Sayfa 0-50 - Isuzu EPC

0-50 — OIL COOLER AND OIL FILTER (#166658) — 551 parça

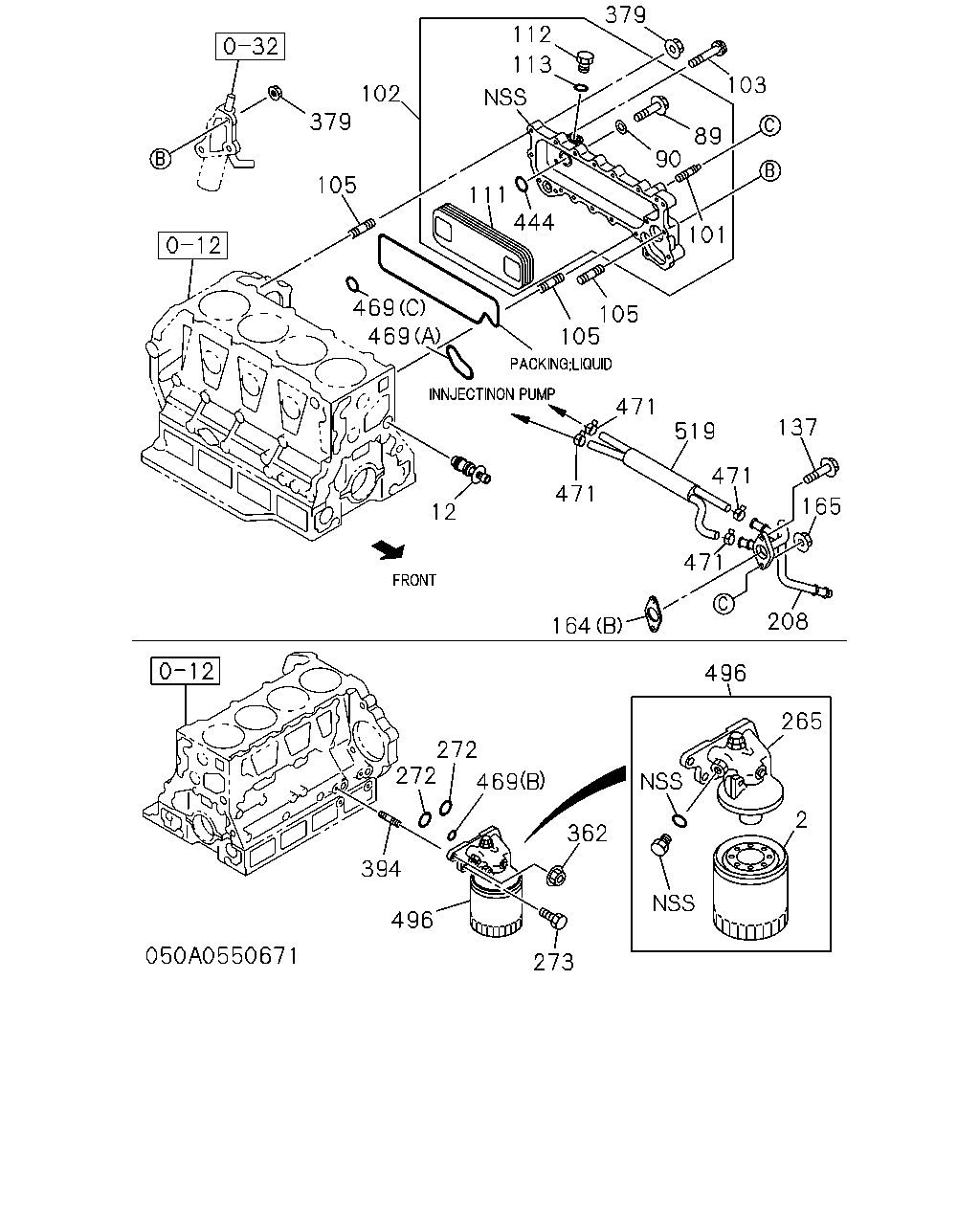

379 101 89 103 379 112 113 102 105 444 111 469 469 105 137 165 208 164 164 12 265 2 333 355 362 469 496 272 272 273 496 394 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	ELEMENT; OIL FILTER	8-97096-778-0	01	1	9304-9502	●
2	ELEMENT; OIL FILTER (A) OD=102 H=80	8-94340-259-1	01	1	9304-9502		●
2	ELEMENT; OIL FILTER (B) OD=80 H=100	8-94463-713-1	01	1	9304-9502		●
2	ELEMENT; OIL FILTER (C) MAIN & PARTIAL KIT	8-94360-418-0	01	1	9304-9502		●
2	ELEMENT; OIL FILTER	8-94340-697-0	01	1	9304-9309			●
2	ELEMENT; OIL FILTER	8-94360-427-1	01	1	9310-9801			●
2	ELEMENT; OIL FILTER	8-94340-697-1	01	1	9802-			●
2	ELEMENT; OIL FILTER	8-97096-777-0	01	1	9304-9502				●
2	ELEMENT; OIL FILTER	8-97096-777-0	01	1	9503-9508				●	●
2	ELEMENT; OIL FILTER	8-97136-470-0	01	1	9509-9609				●	●
2	ELEMENT; OIL FILTER	8-97148-270-0	01	1	9610-9703				●	●
2	ELEMENT; OIL FILTER	8-97148-270-0	01	1	9704-				●	●	●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-070-0	01	1	9304-9502	●
2	ELEMENT; OIL FILTER (C) BESTFIX	5-86750-073-0	01	1	9304-9502		●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-071-0	01	1	9610-9703				●	●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-071-0	01	1	9704-				●	●	●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-069-0	01	1	9310-9801			●
12	VALVE ASM; BYPASS	8-97045-961-0	01	1	9304-9307				●
12	VALVE ASM; BYPASS	8-97075-754-0	01	1	9308-9502				●
12	VALVE ASM; BYPASS	8-97075-754-0	01	1	9503-9703				●	●
12	VALVE ASM; BYPASS	8-97075-754-0	01	1	9704-				●	●	●
89	BOLT; ELEMENT TO CASE FRIGID ZONE(YL3) M8X18	1-09054-015-0	04	1	9304-9502	●
89	BOLT; ELEMENT TO CASE EXC. FRIGID ZONE(YL3) M8X16	5-11289-009-0	04	1	9304-9502	●
89	BOLT; ELEMENT TO CASE M8X16	5-11289-009-0	04	1	9304-9502		●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28020-816-0	02	1	9304-9502				●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	02	1	9503-9703				●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	02	1	9704-9708				●	●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	04	1	9709-				●	●	●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	9304-9502	●	●		●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	9503-9703				●	●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	9704-				●	●	●
101	STUD; OIL COOLER TO PIPE	0-49540-822-0	02	1	9304-9502				●
101	STUD; OIL COOLER TO PIPE	0-49540-822-0	02	1	9503-9703				●	●
101	STUD; OIL COOLER TO PIPE	0-49540-822-0	02	1	9704-9708				●	●	●
101	STUD; OIL COOLER TO PIPE M8X20 L=38	0-49740-820-0	01	1	9709-				●	●	●
102	COOLER ASM; OIL FRIGID ZONE(YL3)	8-97077-377-0	01	1	9304-9502	●
102	COOLER ASM; OIL EXC. FRIGID ZONE(YL3)	8-94438-371-0	01	1	9304-9502	●
102	COOLER ASM; OIL	8-94438-371-0	01	1	9304-9502		●
102	COOLER ASM; OIL	8-97027-982-2	01	1	9304-9502				●
102	COOLER ASM; OIL	8-97027-982-2	01	1	9503-9703				●	●
102	COOLER ASM; OIL	8-97027-982-2	01	1	9704-9708				●	●	●
102	COOLER ASM; OIL	8-97178-779-1	01	1	9709-				●	●	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X25 W/LK WASHER	0-50040-825-0	11	1	9304-9502	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X40 W/LK&PL WASHER	0-50140-840-0	01	1	9304-9502	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X65 W/LK WASHER	8-94205-986-1	01	1	9304-9502	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X43	8-94254-768-1	07	1	9304-9502	●
103	BOLT; OIL COOLER EXC. FRIGID ZONE(YL3) M8X25 W/LK WASHER	0-50040-825-0	02	1	9304-9502	●
103	BOLT; OIL COOLER M8X25 W/LK WASHER	0-50040-825-0	02	1	9304-9502		●
103	BOLT; OIL COOLER EXC. FRIGID ZONE(YL3) M8X28 W/LK WASHER	0-50040-828-0	05	1	9304-9502	●
103	BOLT; OIL COOLER EXC. FRIGID ZONE(YL3) M8X32 W/LK WASHER	0-50040-832-0	06	1	9304-9502	●
103	BOLT; OIL COOLER M8X32 W/LK WASHER	0-50040-832-0	06	1	9304-9502		●
103	BOLT; OIL COOLER EXC. FRIGID ZONE(YL3) M8X35 W/LK WASHER	0-50040-835-0	09	1	9304-9502	●
103	BOLT; OIL COOLER M8X28 W/LK WASHER	0-50040-828-0	04	1	9304-9502		●
103	BOLT; OIL COOLER M8X35 W/LK WASHER	0-50040-835-0	08	1	9304-9502		●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	14	1	9304-9502				●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	14	1	9503-9703				●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	14	1	9704-9708				●	●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	07	1	9709-				●	●	●
103	BOLT; OIL COOLER M8X20 FLANGE	0-28080-820-0	07	1	9709-				●	●	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	9304-9502				●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	9503-9703				●	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	9704-				●	●	●
111	CORE; OIL COOLER FRIGID ZONE(YL3)	8-94404-529-0	01	1	9304-9502	●
111	CORE; OIL COOLER EXC. FRIGID ZONE(YL3)	8-94438-354-0	01	1	9304-9502	●
111	CORE; OIL COOLER	8-94438-354-0	01	1	9304-9502		●
111	CORE; OIL COOLER	8-97028-739-0	01	1	9304-9502				●
111	CORE; OIL COOLER	8-97028-739-0	01	1	9503-9703				●	●
111	CORE; OIL COOLER	8-97028-739-0	01	1	9704-				●	●	●
112	PLUG; OIL COOLER CASE	8-94416-170-0	01	1	9304-9502	●	●
112	PLUG; OIL COOLER CASE	8-97028-587-0	01	1	9304-9502				●
112	PLUG; OIL COOLER CASE M18X12	9-99202-318-0	01	1	9503-9703				●	●
112	PLUG; OIL COOLER CASE M18X12	9-99202-318-0	01	1	9704-				●	●	●
113	GASKET; PLUG,OIL COOLER CASE FRIGID ZONE(YL3) (A) ID=35.2	9-09561-235-0	01	1	9304-9502	●
113	GASKET; PLUG,OIL COOLER CASE (B) ID=20.5 OD=28.0	9-09571-420-0	01	1	9304-9502	●	●
113	GASKET; PLUG,OIL COOLER CASE ID=18.2 OD=26.0	9-09571-418-0	01	1	9304-9502				●
113	GASKET; PLUG,OIL COOLER CASE ID=18.2 OD=26.0	9-09571-418-0	01	1	9503-9703				●	●
113	GASKET; PLUG,OIL COOLER CASE ID=18.2 OD=26.0	9-09571-418-0	01	1	9704-				●	●	●
137	BOLT M8X20 FLANGE	0-28680-820-0	01	1	9711-				●	●	●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=23.3	1-09623-395-0	01	1	9304-9502				●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=23.3	1-09623-395-0	01	1	9503-9604				●	●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97146-684-0	01	1	9605-9703				●	●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97146-684-0	01	1	9704-				●	●	●
165	NUT; HTR PIPE M8 FLANGE	0-91150-108-0	02	1	9304-9502				●
165	NUT; HTR PIPE M8 FLANGE	0-91150-108-0	02	1	9503-9703				●	●
165	NUT; HTR PIPE M8 FLANGE	0-91150-108-0	02	1	9704-9710				●	●	●
165	NUT; HTR PIPE M8 FLANGE	0-91150-108-0	01	1	9711-				●	●	●
208	PIPE; WATER,HTR	8-97064-658-1	01	1	9304-9406				●
208	PIPE; WATER,HTR	8-97108-313-1	01	1	9407-9502				●
208	PIPE; WATER,HTR	8-97108-313-1	01	1	9503-9604				●	●
208	PIPE; WATER,HTR	8-97146-519-0	01	1	9605-				●	●
208	PIPE; WATER,HTR	8-97139-585-1	01	1	9704-						●
265	BODY; OIL FILTER	8-97096-680-0	01	1	9304-9502	●
265	BODY; OIL FILTER	8-97096-677-1	01	1	9304-9502				●
265	BODY; OIL FILTER	8-97096-677-1	01	1	9503-9703				●	●
265	BODY; OIL FILTER	8-97096-677-2	01	1	9704-				●	●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-670-0	01	1	9304-9502	●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9304-			●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9304-9502				●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9503-9703				●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9704-				●	●	●
273	BOLT; OIL FILTER M10X100	9-09600-053-0	02	1	9304-9502	●
273	BOLT; OIL FILTER M10X32 W/LK WASHER	0-50141-032-0	02	1	9304-9502	●	●
273	BOLT; OIL FILTER M10X140	8-94148-616-1	01	1	9304-9502		●
273	BOLT; OIL FILTER M10X109	8-94148-617-1	01	1	9304-9502		●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9304-9502				●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9503-9606				●	●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28781-030-0	02	1	9607-9703				●	●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28781-030-0	02	1	9704-				●	●	●
333	GASKET; OIL FILTER ALSO INCLUDED IN GASKET SET(ENGINE).	9-09920-117-0	01	1	9503-9508				●	●
355	PLUG; OIL PRESS	9-13226-013-0	01	1	9503-9508				●	●
362	NUT; OIL FILTER M10 FLANGE	0-91150-110-0	02	1	9304-9502				●
362	NUT; OIL FILTER M10 FLANGE	0-91150-110-0	02	1	9503-9703				●	●
362	NUT; OIL FILTER M10 FLANGE	0-91150-110-0	02	1	9704-				●	●	●
379	NUT; OIL COOLER M8 FLANGE	0-91150-108-0	03	1	9304-9502				●
379	NUT; OIL COOLER M8 FLANGE	0-91150-108-0	03	1	9503-9703				●	●
379	NUT; OIL COOLER M8 FLANGE	0-91150-108-0	03	1	9704-				●	●	●
394	STUD; OIL FILTER M10X36.5 L=48.5	8-94396-145-0	02	1	9304-9502				●
394	STUD; OIL FILTER M10X36.5 L=48.5	8-94396-145-0	02	1	9503-9612				●	●
394	STUD; OIL FILTER M10X25 L=40	0-49841-025-0	02	1	9701-9703				●	●
394	STUD; OIL FILTER M10X25 L=40	0-49841-025-0	02	1	9704-				●	●	●
444	GASKET; ELEMENT TO BODY	5-11282-011-0	02	1	9304-9502	●	●
444	GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9304-9502				●
444	GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9503-9703				●	●
444	GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9704-				●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97019-653-0	01	1	9304-9502	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9304-9502				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9503-9703				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9704-				●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9304-9502				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9503-9703				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9704-				●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	8-94399-716-1	01	1	9304-9502				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	8-94399-716-1	01	1	9503-9701				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	9702-9703				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	9704-				●	●	●
496	FILTER ASM; OIL	8-97096-670-0	01	1	9304-9502	●
496	FILTER ASM; OIL	8-94340-258-0	01	1	9304-9502		●
496	FILTER ASM; OIL	8-97096-668-0	01	1	9304-9502				●
496	FILTER ASM; OIL	8-97096-668-0	01	1	9503-9508				●	●
496	FILTER ASM; OIL	8-97136-471-0	01	1	9509-9609				●	●
496	FILTER ASM; OIL	8-97148-268-0	01	1	9610-9703				●	●
496	FILTER ASM; OIL	8-97148-268-1	01	1	9704-				●	●	●

165 137 519 471 471 208 164 471 471 12 105 105 101 89 90 103 379 112 113 444 111 102 379 105 469 469 496 265 2 273 362 272 272 469 394 496

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	ELEMENT; OIL FILTER	8-97096-778-0	01	1	9304-9502	●
2	ELEMENT; OIL FILTER (A) OD=102 H=80	8-94340-259-1	01	1	9304-9502		●
2	ELEMENT; OIL FILTER (B) OD=80 H=100	8-94463-713-1	01	1	9304-9502		●
2	ELEMENT; OIL FILTER (C) MAIN & PARTIAL KIT	8-94360-418-0	01	1	9304-9502		●
2	ELEMENT; OIL FILTER	8-94340-697-0	01	1	9304-9309			●
2	ELEMENT; OIL FILTER	8-94360-427-1	01	1	9310-9801			●
2	ELEMENT; OIL FILTER	8-94340-697-1	01	1	9802-			●
2	ELEMENT; OIL FILTER	8-97096-777-0	01	1	9304-9502				●
2	ELEMENT; OIL FILTER	8-97096-777-0	01	1	9503-9508				●	●
2	ELEMENT; OIL FILTER	8-97136-470-0	01	1	9509-9609				●	●
2	ELEMENT; OIL FILTER	8-97148-270-0	01	1	9610-9703				●	●
2	ELEMENT; OIL FILTER	8-97148-270-0	01	1	9704-				●	●	●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-070-0	01	1	9304-9502	●
2	ELEMENT; OIL FILTER (C) BESTFIX	5-86750-073-0	01	1	9304-9502		●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-071-0	01	1	9610-9703				●	●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-071-0	01	1	9704-				●	●	●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-069-0	01	1	9310-9801			●
12	VALVE ASM; BYPASS	8-97045-961-0	01	1	9304-9307				●
12	VALVE ASM; BYPASS	8-97075-754-0	01	1	9308-9502				●
12	VALVE ASM; BYPASS	8-97075-754-0	01	1	9503-9703				●	●
12	VALVE ASM; BYPASS	8-97075-754-0	01	1	9704-				●	●	●
89	BOLT; ELEMENT TO CASE FRIGID ZONE(YL3) M8X18	1-09054-015-0	04	1	9304-9502	●
89	BOLT; ELEMENT TO CASE EXC. FRIGID ZONE(YL3) M8X16	5-11289-009-0	04	1	9304-9502	●
89	BOLT; ELEMENT TO CASE M8X16	5-11289-009-0	04	1	9304-9502		●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28020-816-0	02	1	9304-9502				●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	02	1	9503-9703				●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	02	1	9704-9708				●	●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	04	1	9709-				●	●	●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	9304-9502	●	●		●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	9503-9703				●	●

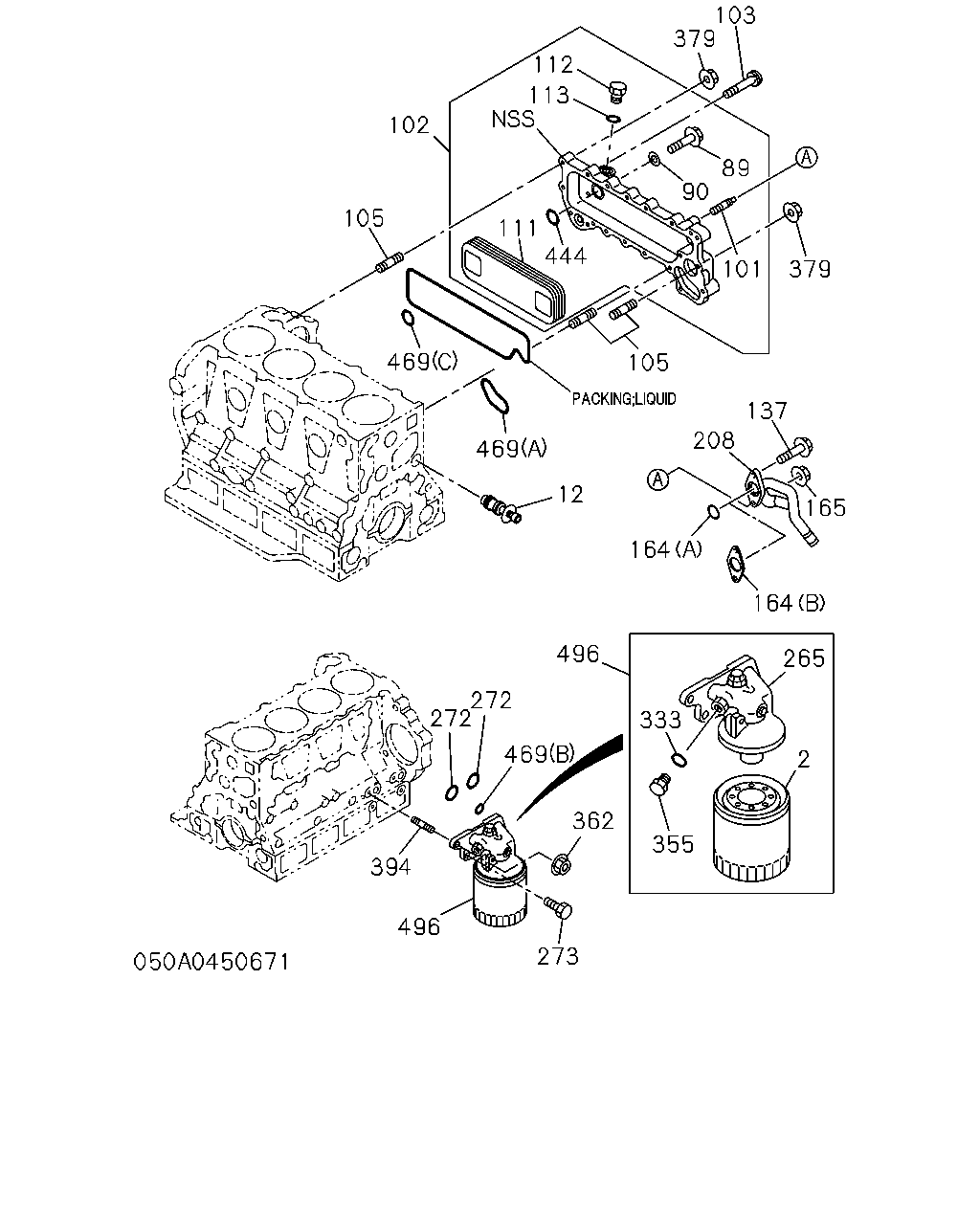

90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	9704-				●	●	●
101	STUD; OIL COOLER TO PIPE	0-49540-822-0	02	1	9304-9502				●
101	STUD; OIL COOLER TO PIPE	0-49540-822-0	02	1	9503-9703				●	●
101	STUD; OIL COOLER TO PIPE	0-49540-822-0	02	1	9704-9708				●	●	●
101	STUD; OIL COOLER TO PIPE M8X20 L=38	0-49740-820-0	01	1	9709-				●	●	●
102	COOLER ASM; OIL FRIGID ZONE(YL3)	8-97077-377-0	01	1	9304-9502	●
102	COOLER ASM; OIL EXC. FRIGID ZONE(YL3)	8-94438-371-0	01	1	9304-9502	●
102	COOLER ASM; OIL	8-94438-371-0	01	1	9304-9502		●
102	COOLER ASM; OIL	8-97027-982-2	01	1	9304-9502				●
102	COOLER ASM; OIL	8-97027-982-2	01	1	9503-9703				●	●
102	COOLER ASM; OIL	8-97027-982-2	01	1	9704-9708				●	●	●
102	COOLER ASM; OIL	8-97178-779-1	01	1	9709-				●	●	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X25 W/LK WASHER	0-50040-825-0	11	1	9304-9502	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X40 W/LK&PL WASHER	0-50140-840-0	01	1	9304-9502	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X65 W/LK WASHER	8-94205-986-1	01	1	9304-9502	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X43	8-94254-768-1	07	1	9304-9502	●
103	BOLT; OIL COOLER EXC. FRIGID ZONE(YL3) M8X25 W/LK WASHER	0-50040-825-0	02	1	9304-9502	●
103	BOLT; OIL COOLER M8X25 W/LK WASHER	0-50040-825-0	02	1	9304-9502		●
103	BOLT; OIL COOLER EXC. FRIGID ZONE(YL3) M8X28 W/LK WASHER	0-50040-828-0	05	1	9304-9502	●
103	BOLT; OIL COOLER EXC. FRIGID ZONE(YL3) M8X32 W/LK WASHER	0-50040-832-0	06	1	9304-9502	●
103	BOLT; OIL COOLER M8X32 W/LK WASHER	0-50040-832-0	06	1	9304-9502		●
103	BOLT; OIL COOLER EXC. FRIGID ZONE(YL3) M8X35 W/LK WASHER	0-50040-835-0	09	1	9304-9502	●
103	BOLT; OIL COOLER M8X28 W/LK WASHER	0-50040-828-0	04	1	9304-9502		●
103	BOLT; OIL COOLER M8X35 W/LK WASHER	0-50040-835-0	08	1	9304-9502		●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	14	1	9304-9502				●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	14	1	9503-9703				●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	14	1	9704-9708				●	●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	07	1	9709-				●	●	●
103	BOLT; OIL COOLER M8X20 FLANGE	0-28080-820-0	07	1	9709-				●	●	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	9304-9502				●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	9503-9703				●	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	9704-				●	●	●
111	CORE; OIL COOLER FRIGID ZONE(YL3)	8-94404-529-0	01	1	9304-9502	●
111	CORE; OIL COOLER EXC. FRIGID ZONE(YL3)	8-94438-354-0	01	1	9304-9502	●
111	CORE; OIL COOLER	8-94438-354-0	01	1	9304-9502		●
111	CORE; OIL COOLER	8-97028-739-0	01	1	9304-9502				●
111	CORE; OIL COOLER	8-97028-739-0	01	1	9503-9703				●	●
111	CORE; OIL COOLER	8-97028-739-0	01	1	9704-				●	●	●
112	PLUG; OIL COOLER CASE	8-94416-170-0	01	1	9304-9502	●	●
112	PLUG; OIL COOLER CASE	8-97028-587-0	01	1	9304-9502				●
112	PLUG; OIL COOLER CASE M18X12	9-99202-318-0	01	1	9503-9703				●	●
112	PLUG; OIL COOLER CASE M18X12	9-99202-318-0	01	1	9704-				●	●	●
113	GASKET; PLUG,OIL COOLER CASE FRIGID ZONE(YL3) (A) ID=35.2	9-09561-235-0	01	1	9304-9502	●
113	GASKET; PLUG,OIL COOLER CASE (B) ID=20.5 OD=28.0	9-09571-420-0	01	1	9304-9502	●	●
113	GASKET; PLUG,OIL COOLER CASE ID=18.2 OD=26.0	9-09571-418-0	01	1	9304-9502				●
113	GASKET; PLUG,OIL COOLER CASE ID=18.2 OD=26.0	9-09571-418-0	01	1	9503-9703				●	●
113	GASKET; PLUG,OIL COOLER CASE ID=18.2 OD=26.0	9-09571-418-0	01	1	9704-				●	●	●
137	BOLT M8X20 FLANGE	0-28680-820-0	01	1	9711-				●	●	●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=23.3	1-09623-395-0	01	1	9304-9502				●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=23.3	1-09623-395-0	01	1	9503-9604				●	●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97146-684-0	01	1	9605-9703				●	●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97146-684-0	01	1	9704-				●	●	●
165	NUT; HTR PIPE M8 FLANGE	0-91150-108-0	02	1	9304-9502				●
165	NUT; HTR PIPE M8 FLANGE	0-91150-108-0	02	1	9503-9703				●	●
165	NUT; HTR PIPE M8 FLANGE	0-91150-108-0	02	1	9704-9710				●	●	●
165	NUT; HTR PIPE M8 FLANGE	0-91150-108-0	01	1	9711-				●	●	●
208	PIPE; WATER,HTR	8-97064-658-1	01	1	9304-9406				●
208	PIPE; WATER,HTR	8-97108-313-1	01	1	9407-9502				●
208	PIPE; WATER,HTR	8-97108-313-1	01	1	9503-9604				●	●
208	PIPE; WATER,HTR	8-97146-519-0	01	1	9605-				●	●
208	PIPE; WATER,HTR	8-97139-585-1	01	1	9704-						●
265	BODY; OIL FILTER	8-97096-680-0	01	1	9304-9502	●
265	BODY; OIL FILTER	8-97096-677-1	01	1	9304-9502				●
265	BODY; OIL FILTER	8-97096-677-1	01	1	9503-9703				●	●
265	BODY; OIL FILTER	8-97096-677-2	01	1	9704-				●	●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-670-0	01	1	9304-9502	●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9304-			●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9304-9502				●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9503-9703				●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9704-				●	●	●
273	BOLT; OIL FILTER M10X100	9-09600-053-0	02	1	9304-9502	●
273	BOLT; OIL FILTER M10X32 W/LK WASHER	0-50141-032-0	02	1	9304-9502	●	●
273	BOLT; OIL FILTER M10X140	8-94148-616-1	01	1	9304-9502		●
273	BOLT; OIL FILTER M10X109	8-94148-617-1	01	1	9304-9502		●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9304-9502				●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9503-9606				●	●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28781-030-0	02	1	9607-9703				●	●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28781-030-0	02	1	9704-				●	●	●
362	NUT; OIL FILTER M10 FLANGE	0-91150-110-0	02	1	9304-9502				●
362	NUT; OIL FILTER M10 FLANGE	0-91150-110-0	02	1	9503-9703				●	●
362	NUT; OIL FILTER M10 FLANGE	0-91150-110-0	02	1	9704-				●	●	●
379	NUT; OIL COOLER M8 FLANGE	0-91150-108-0	03	1	9304-9502				●
379	NUT; OIL COOLER M8 FLANGE	0-91150-108-0	03	1	9503-9703				●	●
379	NUT; OIL COOLER M8 FLANGE	0-91150-108-0	03	1	9704-				●	●	●
394	STUD; OIL FILTER M10X36.5 L=48.5	8-94396-145-0	02	1	9304-9502				●
394	STUD; OIL FILTER M10X36.5 L=48.5	8-94396-145-0	02	1	9503-9612				●	●
394	STUD; OIL FILTER M10X25 L=40	0-49841-025-0	02	1	9701-9703				●	●
394	STUD; OIL FILTER M10X25 L=40	0-49841-025-0	02	1	9704-				●	●	●
444	GASKET; ELEMENT TO BODY	5-11282-011-0	02	1	9304-9502	●	●
444	GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9304-9502				●
444	GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9503-9703				●	●
444	GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9704-				●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97019-653-0	01	1	9304-9502	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9304-9502				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9503-9703				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9704-				●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9304-9502				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9503-9703				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9704-				●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	8-94399-716-1	01	1	9304-9502				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	8-94399-716-1	01	1	9503-9701				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	9702-9703				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	9704-				●	●	●
471	CLIP; HOSE ID=15.5	8-94221-519-0	04	1	9704-						●
496	FILTER ASM; OIL	8-97096-670-0	01	1	9304-9502	●
496	FILTER ASM; OIL	8-94340-258-0	01	1	9304-9502		●
496	FILTER ASM; OIL	8-97096-668-0	01	1	9304-9502				●
496	FILTER ASM; OIL	8-97096-668-0	01	1	9503-9508				●	●
496	FILTER ASM; OIL	8-97136-471-0	01	1	9509-9609				●	●
496	FILTER ASM; OIL	8-97148-268-0	01	1	9610-9703				●	●
496	FILTER ASM; OIL	8-97148-268-1	01	1	9704-				●	●	●
519	HOSE; RUBBER	8-97160-961-1	01	1	9704-						●

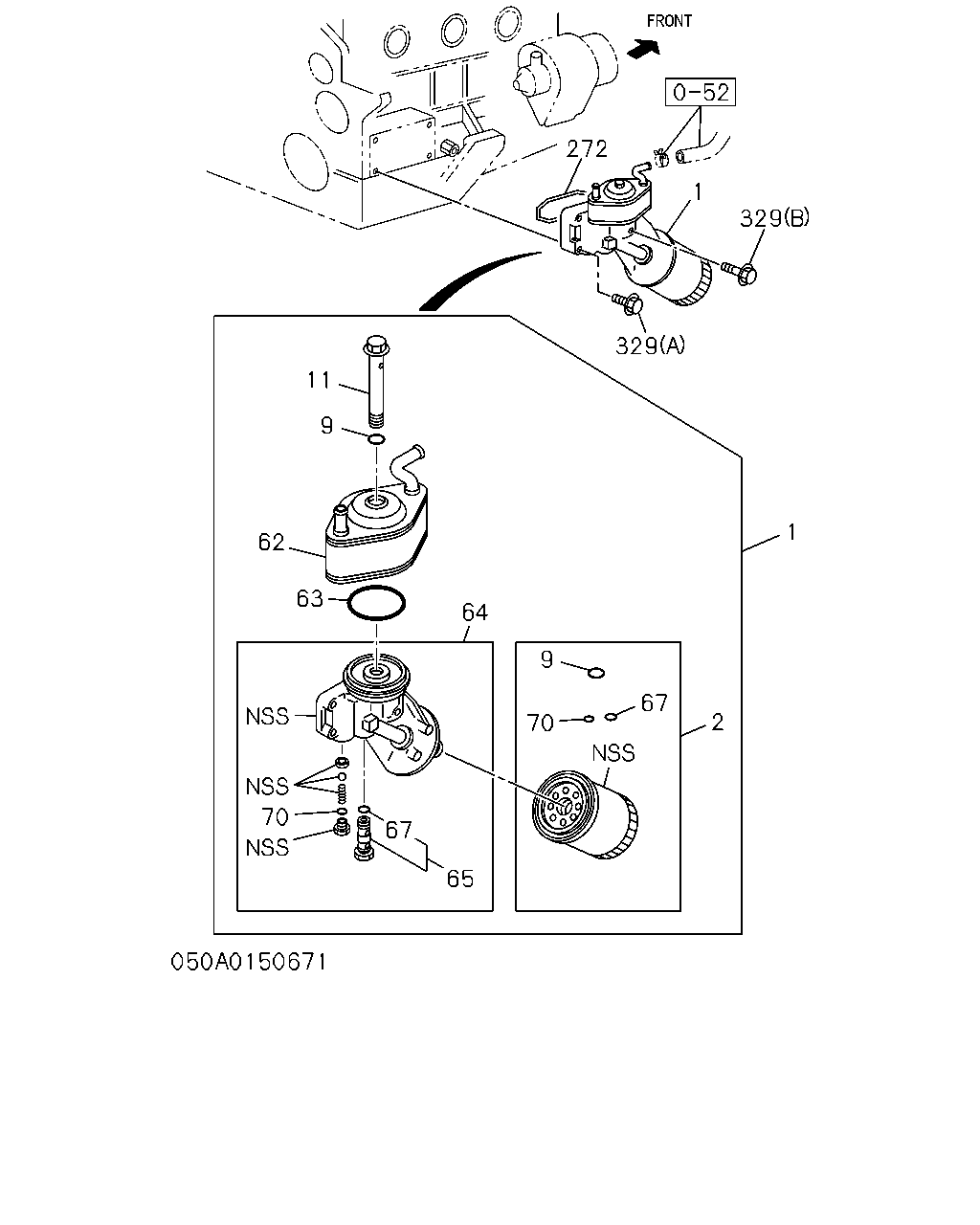

329 1 272 11 9 64 2 1 67 70 63 62 67 65 70 329 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FILTER & COOLER ASM; OIL	8-97080-378-3	01	1	9304-9701			●
1	FILTER & COOLER ASM; OIL	8-97120-286-2	01	1	9702-			●
2	ELEMENT; OIL FILTER	8-97096-778-0	01	1	9304-9502	●
2	ELEMENT; OIL FILTER (A) OD=102 H=80	8-94340-259-1	01	1	9304-9502		●
2	ELEMENT; OIL FILTER (B) OD=80 H=100	8-94463-713-1	01	1	9304-9502		●
2	ELEMENT; OIL FILTER (C) MAIN & PARTIAL KIT	8-94360-418-0	01	1	9304-9502		●
2	ELEMENT; OIL FILTER	8-94340-697-0	01	1	9304-9309			●
2	ELEMENT; OIL FILTER	8-94360-427-1	01	1	9310-9801			●
2	ELEMENT; OIL FILTER	8-94340-697-1	01	1	9802-			●
2	ELEMENT; OIL FILTER	8-97096-777-0	01	1	9304-9502				●
2	ELEMENT; OIL FILTER	8-97096-777-0	01	1	9503-9508				●	●
2	ELEMENT; OIL FILTER	8-97136-470-0	01	1	9509-9609				●	●
2	ELEMENT; OIL FILTER	8-97148-270-0	01	1	9610-9703				●	●
2	ELEMENT; OIL FILTER	8-97148-270-0	01	1	9704-				●	●	●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-070-0	01	1	9304-9502	●
2	ELEMENT; OIL FILTER (C) BESTFIX	5-86750-073-0	01	1	9304-9502		●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-071-0	01	1	9610-9703				●	●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-071-0	01	1	9704-				●	●	●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-069-0	01	1	9310-9801			●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-000-0	01	1	9304-			●
11	BOLT; CENTER	8-97094-724-1	01	1	9304-9701			●
11	BOLT; CENTER	8-97144-713-0	01	1	9702-			●
62	COOLER ASM; OIL	8-97081-589-0	01	1	9304-9701			●
62	COOLER ASM; OIL	8-97144-716-1	01	1	9702-			●
63	GASKET; COOLER TO BRKT	8-94383-720-0	01	1	9304-			●
64	BODY; OIL FILTER & OIL COOLER	8-97081-588-3	01	1	9304-9701			●
64	BODY; OIL FILTER & OIL COOLER	8-97144-712-0	01	1	9702-			●
65	VALVE; OIL COOLER	8-94450-772-0	01	1	9304-			●
67	GASKET; VLV	9-09920-975-0	01	1	9304-			●
70	GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	9304-			●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-670-0	01	1	9304-9502	●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9304-			●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9304-9502				●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9503-9703				●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9704-				●	●	●
329	BOLT; OIL FILTER (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9304-			●
329	BOLT; OIL FILTER (B) M8X65 W/LK WASHER	8-94205-986-1	02	1	9304-			●

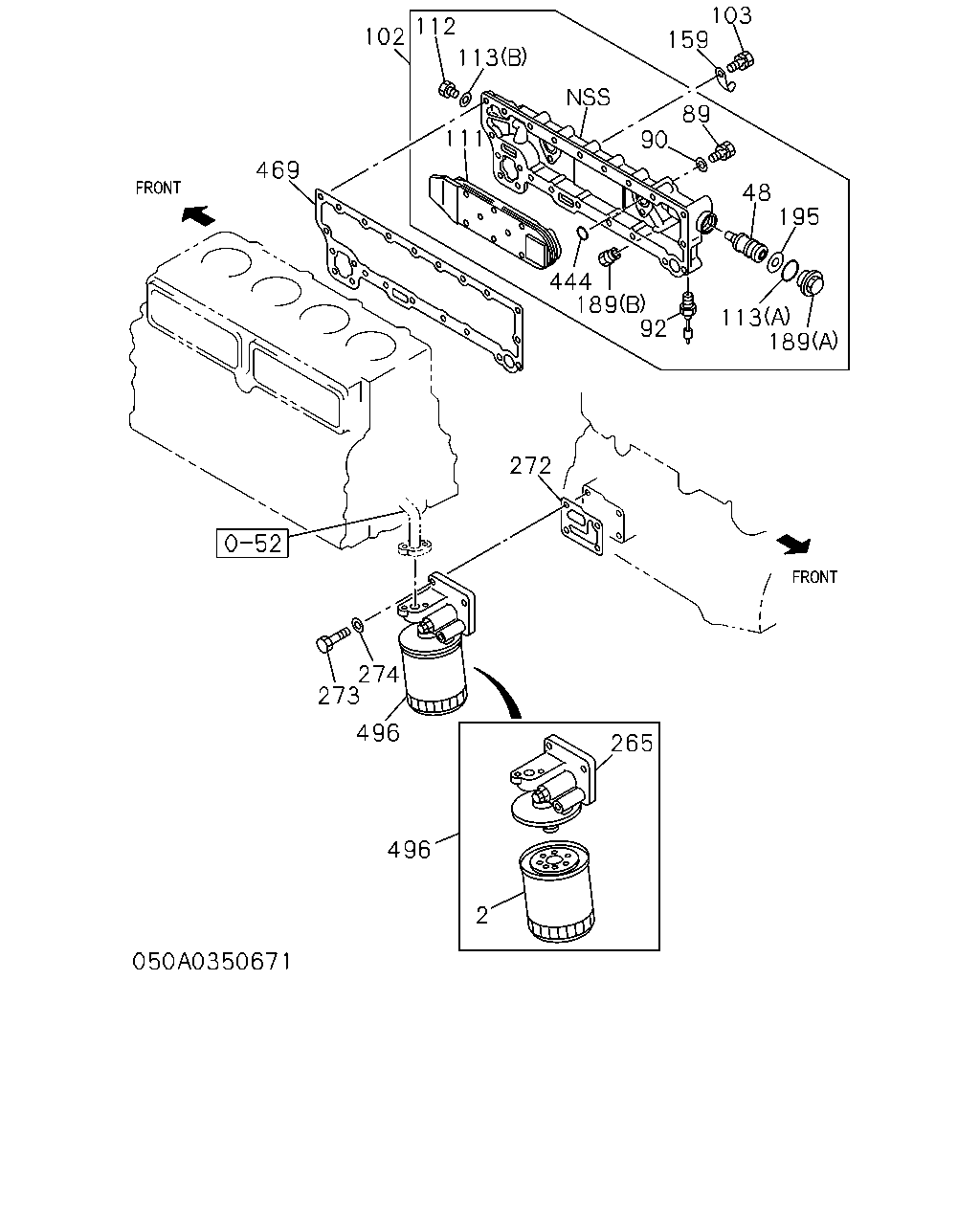

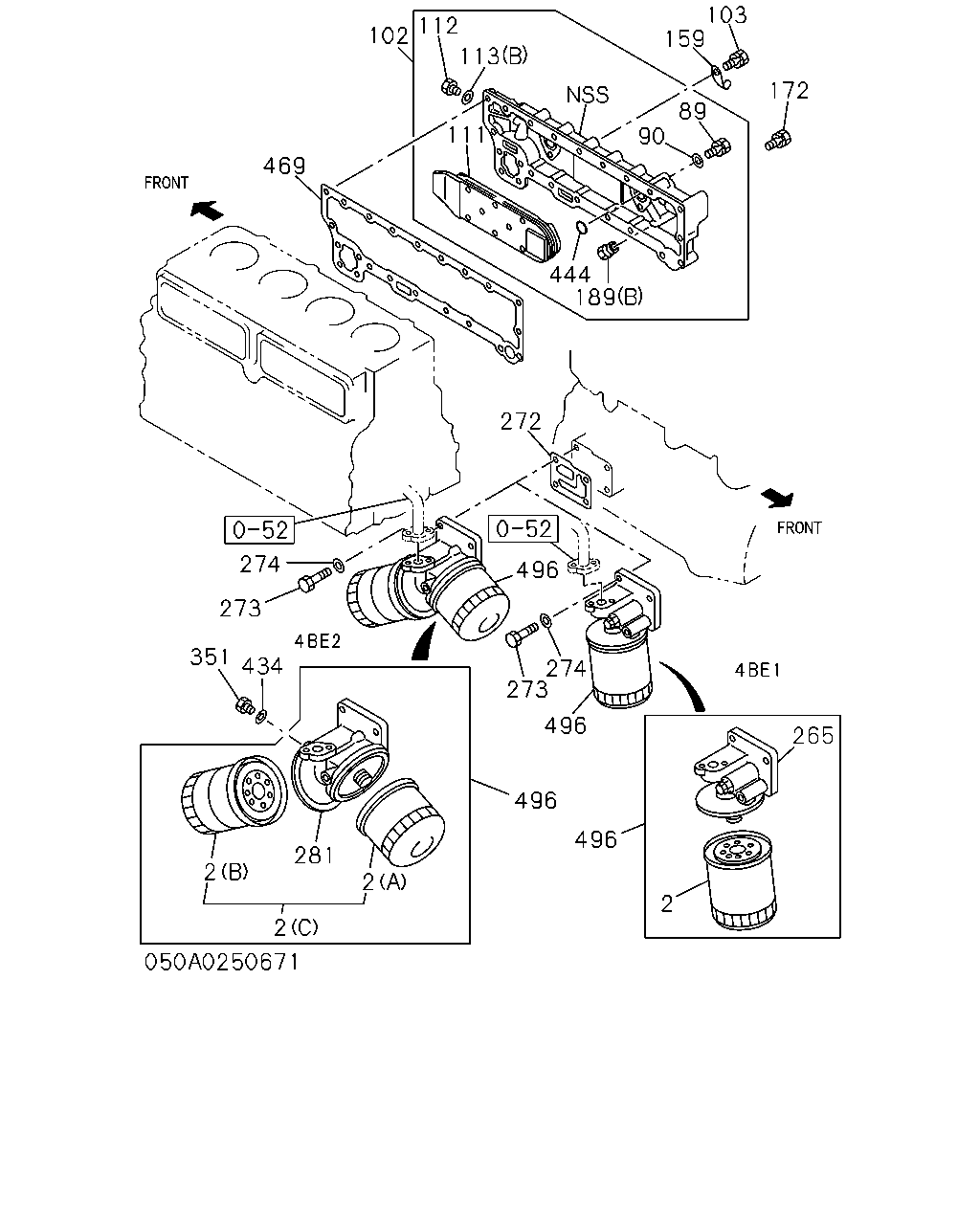

172 103 159 89 90 112 102 113 469 189 444 272 496 274 273 351 434 273 496 496 281 2 2 2 265 274 111 496 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	ELEMENT; OIL FILTER	8-97096-778-0	01	1	9304-9502	●
2	ELEMENT; OIL FILTER (A) OD=102 H=80	8-94340-259-1	01	1	9304-9502		●
2	ELEMENT; OIL FILTER (B) OD=80 H=100	8-94463-713-1	01	1	9304-9502		●
2	ELEMENT; OIL FILTER (C) MAIN & PARTIAL KIT	8-94360-418-0	01	1	9304-9502		●
2	ELEMENT; OIL FILTER	8-94340-697-0	01	1	9304-9309			●
2	ELEMENT; OIL FILTER	8-94360-427-1	01	1	9310-9801			●
2	ELEMENT; OIL FILTER	8-94340-697-1	01	1	9802-			●
2	ELEMENT; OIL FILTER	8-97096-777-0	01	1	9304-9502				●
2	ELEMENT; OIL FILTER	8-97096-777-0	01	1	9503-9508				●	●
2	ELEMENT; OIL FILTER	8-97136-470-0	01	1	9509-9609				●	●
2	ELEMENT; OIL FILTER	8-97148-270-0	01	1	9610-9703				●	●
2	ELEMENT; OIL FILTER	8-97148-270-0	01	1	9704-				●	●	●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-070-0	01	1	9304-9502	●
2	ELEMENT; OIL FILTER (C) BESTFIX	5-86750-073-0	01	1	9304-9502		●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-071-0	01	1	9610-9703				●	●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-071-0	01	1	9704-				●	●	●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-069-0	01	1	9310-9801			●
89	BOLT; ELEMENT TO CASE FRIGID ZONE(YL3) M8X18	1-09054-015-0	04	1	9304-9502	●
89	BOLT; ELEMENT TO CASE EXC. FRIGID ZONE(YL3) M8X16	5-11289-009-0	04	1	9304-9502	●
89	BOLT; ELEMENT TO CASE M8X16	5-11289-009-0	04	1	9304-9502		●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28020-816-0	02	1	9304-9502				●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	02	1	9503-9703				●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	02	1	9704-9708				●	●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	04	1	9709-				●	●	●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	9304-9502	●	●		●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	9503-9703				●	●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	9704-				●	●	●
102	COOLER ASM; OIL FRIGID ZONE(YL3)	8-97077-377-0	01	1	9304-9502	●
102	COOLER ASM; OIL EXC. FRIGID ZONE(YL3)	8-94438-371-0	01	1	9304-9502	●
102	COOLER ASM; OIL	8-94438-371-0	01	1	9304-9502		●
102	COOLER ASM; OIL	8-97027-982-2	01	1	9304-9502				●
102	COOLER ASM; OIL	8-97027-982-2	01	1	9503-9703				●	●
102	COOLER ASM; OIL	8-97027-982-2	01	1	9704-9708				●	●	●
102	COOLER ASM; OIL	8-97178-779-1	01	1	9709-				●	●	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X25 W/LK WASHER	0-50040-825-0	11	1	9304-9502	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X40 W/LK&PL WASHER	0-50140-840-0	01	1	9304-9502	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X65 W/LK WASHER	8-94205-986-1	01	1	9304-9502	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X43	8-94254-768-1	07	1	9304-9502	●
103	BOLT; OIL COOLER EXC. FRIGID ZONE(YL3) M8X25 W/LK WASHER	0-50040-825-0	02	1	9304-9502	●
103	BOLT; OIL COOLER M8X25 W/LK WASHER	0-50040-825-0	02	1	9304-9502		●
103	BOLT; OIL COOLER EXC. FRIGID ZONE(YL3) M8X28 W/LK WASHER	0-50040-828-0	05	1	9304-9502	●
103	BOLT; OIL COOLER EXC. FRIGID ZONE(YL3) M8X32 W/LK WASHER	0-50040-832-0	06	1	9304-9502	●
103	BOLT; OIL COOLER M8X32 W/LK WASHER	0-50040-832-0	06	1	9304-9502		●
103	BOLT; OIL COOLER EXC. FRIGID ZONE(YL3) M8X35 W/LK WASHER	0-50040-835-0	09	1	9304-9502	●
103	BOLT; OIL COOLER M8X28 W/LK WASHER	0-50040-828-0	04	1	9304-9502		●
103	BOLT; OIL COOLER M8X35 W/LK WASHER	0-50040-835-0	08	1	9304-9502		●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	14	1	9304-9502				●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	14	1	9503-9703				●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	14	1	9704-9708				●	●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	07	1	9709-				●	●	●
103	BOLT; OIL COOLER M8X20 FLANGE	0-28080-820-0	07	1	9709-				●	●	●
111	CORE; OIL COOLER FRIGID ZONE(YL3)	8-94404-529-0	01	1	9304-9502	●
111	CORE; OIL COOLER EXC. FRIGID ZONE(YL3)	8-94438-354-0	01	1	9304-9502	●
111	CORE; OIL COOLER	8-94438-354-0	01	1	9304-9502		●
111	CORE; OIL COOLER	8-97028-739-0	01	1	9304-9502				●
111	CORE; OIL COOLER	8-97028-739-0	01	1	9503-9703				●	●
111	CORE; OIL COOLER	8-97028-739-0	01	1	9704-				●	●	●
112	PLUG; OIL COOLER CASE	8-94416-170-0	01	1	9304-9502	●	●
112	PLUG; OIL COOLER CASE	8-97028-587-0	01	1	9304-9502				●
112	PLUG; OIL COOLER CASE M18X12	9-99202-318-0	01	1	9503-9703				●	●
112	PLUG; OIL COOLER CASE M18X12	9-99202-318-0	01	1	9704-				●	●	●
113	GASKET; PLUG,OIL COOLER CASE FRIGID ZONE(YL3) (A) ID=35.2	9-09561-235-0	01	1	9304-9502	●
113	GASKET; PLUG,OIL COOLER CASE (B) ID=20.5 OD=28.0	9-09571-420-0	01	1	9304-9502	●	●
113	GASKET; PLUG,OIL COOLER CASE ID=18.2 OD=26.0	9-09571-418-0	01	1	9304-9502				●
113	GASKET; PLUG,OIL COOLER CASE ID=18.2 OD=26.0	9-09571-418-0	01	1	9503-9703				●	●
113	GASKET; PLUG,OIL COOLER CASE ID=18.2 OD=26.0	9-09571-418-0	01	1	9704-				●	●	●
159	CLIP; CABLE HARNESS,OIL COOLER ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9304-9502	●
172	BOLT; PIPE,OIL COOLER M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9304-9502		●
172	BOLT; PIPE,OIL COOLER M8X40 W/LK&PL WASHER	0-50140-840-0	01	1	9304-9502		●
189	PLUG; BYPASS VLV FRIGID ZONE(YL3) (A)	5-09604-017-1	01	1	9304-9502	●
189	PLUG; BYPASS VLV FRIGID ZONE(YL3) (B)	8-94436-082-0	02	1	9304-9502	●
265	BODY; OIL FILTER	8-97096-680-0	01	1	9304-9502	●
265	BODY; OIL FILTER	8-97096-677-1	01	1	9304-9502				●
265	BODY; OIL FILTER	8-97096-677-1	01	1	9503-9703				●	●
265	BODY; OIL FILTER	8-97096-677-2	01	1	9704-				●	●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-670-0	01	1	9304-9502	●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9304-			●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9304-9502				●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9503-9703				●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9704-				●	●	●
273	BOLT; OIL FILTER M10X100	9-09600-053-0	02	1	9304-9502	●
273	BOLT; OIL FILTER M10X32 W/LK WASHER	0-50141-032-0	02	1	9304-9502	●	●
273	BOLT; OIL FILTER M10X140	8-94148-616-1	01	1	9304-9502		●
273	BOLT; OIL FILTER M10X109	8-94148-617-1	01	1	9304-9502		●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9304-9502				●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9503-9606				●	●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28781-030-0	02	1	9607-9703				●	●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28781-030-0	02	1	9704-				●	●	●
274	GASKET; OIL FILTER ID=10.2 OD=19	9-09572-010-0	02	1	9304-9502	●	●
281	COVER; OIL FILTER	8-94114-583-1	01	1	9304-9502		●
351	PLUG; OIL FILTER M10X7	9-09202-310-0	01	1	9304-9502		●
434	GASKET; PLUG,OIL FILTER ID=10.2 OD=19	9-09572-010-0	01	1	9304-9502		●
444	GASKET; ELEMENT TO BODY	5-11282-011-0	02	1	9304-9502	●	●
444	GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9304-9502				●
444	GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9503-9703				●	●
444	GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9704-				●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97019-653-0	01	1	9304-9502	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9304-9502				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9503-9703				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9704-				●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9304-9502				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9503-9703				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9704-				●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	8-94399-716-1	01	1	9304-9502				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	8-94399-716-1	01	1	9503-9701				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	9702-9703				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	9704-				●	●	●
496	FILTER ASM; OIL	8-97096-670-0	01	1	9304-9502	●
496	FILTER ASM; OIL	8-94340-258-0	01	1	9304-9502		●
496	FILTER ASM; OIL	8-97096-668-0	01	1	9304-9502				●
496	FILTER ASM; OIL	8-97096-668-0	01	1	9503-9508				●	●
496	FILTER ASM; OIL	8-97136-471-0	01	1	9509-9609				●	●
496	FILTER ASM; OIL	8-97148-268-0	01	1	9610-9703				●	●
496	FILTER ASM; OIL	8-97148-268-1	01	1	9704-				●	●	●

189 113 195 48 92 189 444 89 103 159 90 113 112 102 111 469 272 274 273 496 496 2 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	ELEMENT; OIL FILTER	8-97096-778-0	01	1	9304-9502	●
2	ELEMENT; OIL FILTER (A) OD=102 H=80	8-94340-259-1	01	1	9304-9502		●
2	ELEMENT; OIL FILTER (B) OD=80 H=100	8-94463-713-1	01	1	9304-9502		●
2	ELEMENT; OIL FILTER (C) MAIN & PARTIAL KIT	8-94360-418-0	01	1	9304-9502		●
2	ELEMENT; OIL FILTER	8-94340-697-0	01	1	9304-9309			●
2	ELEMENT; OIL FILTER	8-94360-427-1	01	1	9310-9801			●
2	ELEMENT; OIL FILTER	8-94340-697-1	01	1	9802-			●
2	ELEMENT; OIL FILTER	8-97096-777-0	01	1	9304-9502				●
2	ELEMENT; OIL FILTER	8-97096-777-0	01	1	9503-9508				●	●
2	ELEMENT; OIL FILTER	8-97136-470-0	01	1	9509-9609				●	●
2	ELEMENT; OIL FILTER	8-97148-270-0	01	1	9610-9703				●	●
2	ELEMENT; OIL FILTER	8-97148-270-0	01	1	9704-				●	●	●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-070-0	01	1	9304-9502	●
2	ELEMENT; OIL FILTER (C) BESTFIX	5-86750-073-0	01	1	9304-9502		●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-071-0	01	1	9610-9703				●	●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-071-0	01	1	9704-				●	●	●
2	ELEMENT; OIL FILTER BESTFIX	5-86750-069-0	01	1	9310-9801			●
48	VALVE; THERMO,OIL COOLER FRIGID ZONE(YL3)	5-11288-003-1	01	1	9304-9502	●
89	BOLT; ELEMENT TO CASE FRIGID ZONE(YL3) M8X18	1-09054-015-0	04	1	9304-9502	●
89	BOLT; ELEMENT TO CASE EXC. FRIGID ZONE(YL3) M8X16	5-11289-009-0	04	1	9304-9502	●
89	BOLT; ELEMENT TO CASE M8X16	5-11289-009-0	04	1	9304-9502		●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28020-816-0	02	1	9304-9502				●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	02	1	9503-9703				●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	02	1	9704-9708				●	●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	04	1	9709-				●	●	●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	9304-9502	●	●		●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	9503-9703				●	●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	9704-				●	●	●
92	SWITCH ASM; THERMO,OIL COOLER FRIGID ZONE(YL3)	5-82450-023-0	01	1	9304-9502	●
102	COOLER ASM; OIL FRIGID ZONE(YL3)	8-97077-377-0	01	1	9304-9502	●
102	COOLER ASM; OIL EXC. FRIGID ZONE(YL3)	8-94438-371-0	01	1	9304-9502	●
102	COOLER ASM; OIL	8-94438-371-0	01	1	9304-9502		●
102	COOLER ASM; OIL	8-97027-982-2	01	1	9304-9502				●
102	COOLER ASM; OIL	8-97027-982-2	01	1	9503-9703				●	●
102	COOLER ASM; OIL	8-97027-982-2	01	1	9704-9708				●	●	●
102	COOLER ASM; OIL	8-97178-779-1	01	1	9709-				●	●	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X25 W/LK WASHER	0-50040-825-0	11	1	9304-9502	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X40 W/LK&PL WASHER	0-50140-840-0	01	1	9304-9502	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X65 W/LK WASHER	8-94205-986-1	01	1	9304-9502	●
103	BOLT; OIL COOLER FRIGID ZONE(YL3) M8X43	8-94254-768-1	07	1	9304-9502	●
103	BOLT; OIL COOLER EXC. FRIGID ZONE(YL3) M8X25 W/LK WASHER	0-50040-825-0	02	1	9304-9502	●
103	BOLT; OIL COOLER M8X25 W/LK WASHER	0-50040-825-0	02	1	9304-9502		●
103	BOLT; OIL COOLER EXC. FRIGID ZONE(YL3) M8X28 W/LK WASHER	0-50040-828-0	05	1	9304-9502	●
103	BOLT; OIL COOLER EXC. FRIGID ZONE(YL3) M8X32 W/LK WASHER	0-50040-832-0	06	1	9304-9502	●
103	BOLT; OIL COOLER M8X32 W/LK WASHER	0-50040-832-0	06	1	9304-9502		●
103	BOLT; OIL COOLER EXC. FRIGID ZONE(YL3) M8X35 W/LK WASHER	0-50040-835-0	09	1	9304-9502	●
103	BOLT; OIL COOLER M8X28 W/LK WASHER	0-50040-828-0	04	1	9304-9502		●
103	BOLT; OIL COOLER M8X35 W/LK WASHER	0-50040-835-0	08	1	9304-9502		●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	14	1	9304-9502				●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	14	1	9503-9703				●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	14	1	9704-9708				●	●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	07	1	9709-				●	●	●
103	BOLT; OIL COOLER M8X20 FLANGE	0-28080-820-0	07	1	9709-				●	●	●
111	CORE; OIL COOLER FRIGID ZONE(YL3)	8-94404-529-0	01	1	9304-9502	●
111	CORE; OIL COOLER EXC. FRIGID ZONE(YL3)	8-94438-354-0	01	1	9304-9502	●
111	CORE; OIL COOLER	8-94438-354-0	01	1	9304-9502		●
111	CORE; OIL COOLER	8-97028-739-0	01	1	9304-9502				●
111	CORE; OIL COOLER	8-97028-739-0	01	1	9503-9703				●	●
111	CORE; OIL COOLER	8-97028-739-0	01	1	9704-				●	●	●
112	PLUG; OIL COOLER CASE	8-94416-170-0	01	1	9304-9502	●	●
112	PLUG; OIL COOLER CASE	8-97028-587-0	01	1	9304-9502				●
112	PLUG; OIL COOLER CASE M18X12	9-99202-318-0	01	1	9503-9703				●	●
112	PLUG; OIL COOLER CASE M18X12	9-99202-318-0	01	1	9704-				●	●	●
113	GASKET; PLUG,OIL COOLER CASE FRIGID ZONE(YL3) (A) ID=35.2	9-09561-235-0	01	1	9304-9502	●
113	GASKET; PLUG,OIL COOLER CASE (B) ID=20.5 OD=28.0	9-09571-420-0	01	1	9304-9502	●	●
113	GASKET; PLUG,OIL COOLER CASE ID=18.2 OD=26.0	9-09571-418-0	01	1	9304-9502				●
113	GASKET; PLUG,OIL COOLER CASE ID=18.2 OD=26.0	9-09571-418-0	01	1	9503-9703				●	●
113	GASKET; PLUG,OIL COOLER CASE ID=18.2 OD=26.0	9-09571-418-0	01	1	9704-				●	●	●
159	CLIP; CABLE HARNESS,OIL COOLER ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9304-9502	●
189	PLUG; BYPASS VLV FRIGID ZONE(YL3) (A)	5-09604-017-1	01	1	9304-9502	●
189	PLUG; BYPASS VLV FRIGID ZONE(YL3) (B)	8-94436-082-0	02	1	9304-9502	●
195	GASKET; OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). FRIGID ZONE(YL3)	5-11289-002-1	01	1	9304-9502	●
265	BODY; OIL FILTER	8-97096-680-0	01	1	9304-9502	●
265	BODY; OIL FILTER	8-97096-677-1	01	1	9304-9502				●
265	BODY; OIL FILTER	8-97096-677-1	01	1	9503-9703				●	●
265	BODY; OIL FILTER	8-97096-677-2	01	1	9704-				●	●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-670-0	01	1	9304-9502	●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9304-			●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9304-9502				●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9503-9703				●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9704-				●	●	●
273	BOLT; OIL FILTER M10X100	9-09600-053-0	02	1	9304-9502	●
273	BOLT; OIL FILTER M10X32 W/LK WASHER	0-50141-032-0	02	1	9304-9502	●	●
273	BOLT; OIL FILTER M10X140	8-94148-616-1	01	1	9304-9502		●
273	BOLT; OIL FILTER M10X109	8-94148-617-1	01	1	9304-9502		●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9304-9502				●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9503-9606				●	●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28781-030-0	02	1	9607-9703				●	●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28781-030-0	02	1	9704-				●	●	●
274	GASKET; OIL FILTER ID=10.2 OD=19	9-09572-010-0	02	1	9304-9502	●	●
444	GASKET; ELEMENT TO BODY	5-11282-011-0	02	1	9304-9502	●	●
444	GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9304-9502				●
444	GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9503-9703				●	●
444	GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9704-				●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97019-653-0	01	1	9304-9502	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9304-9502				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9503-9703				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9704-				●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9304-9502				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9503-9703				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9704-				●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	8-94399-716-1	01	1	9304-9502				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	8-94399-716-1	01	1	9503-9701				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	9702-9703				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	9704-				●	●	●
496	FILTER ASM; OIL	8-97096-670-0	01	1	9304-9502	●
496	FILTER ASM; OIL	8-94340-258-0	01	1	9304-9502		●
496	FILTER ASM; OIL	8-97096-668-0	01	1	9304-9502				●
496	FILTER ASM; OIL	8-97096-668-0	01	1	9503-9508				●	●
496	FILTER ASM; OIL	8-97136-471-0	01	1	9509-9609				●	●
496	FILTER ASM; OIL	8-97148-268-0	01	1	9610-9703				●	●
496	FILTER ASM; OIL	8-97148-268-1	01	1	9704-				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
