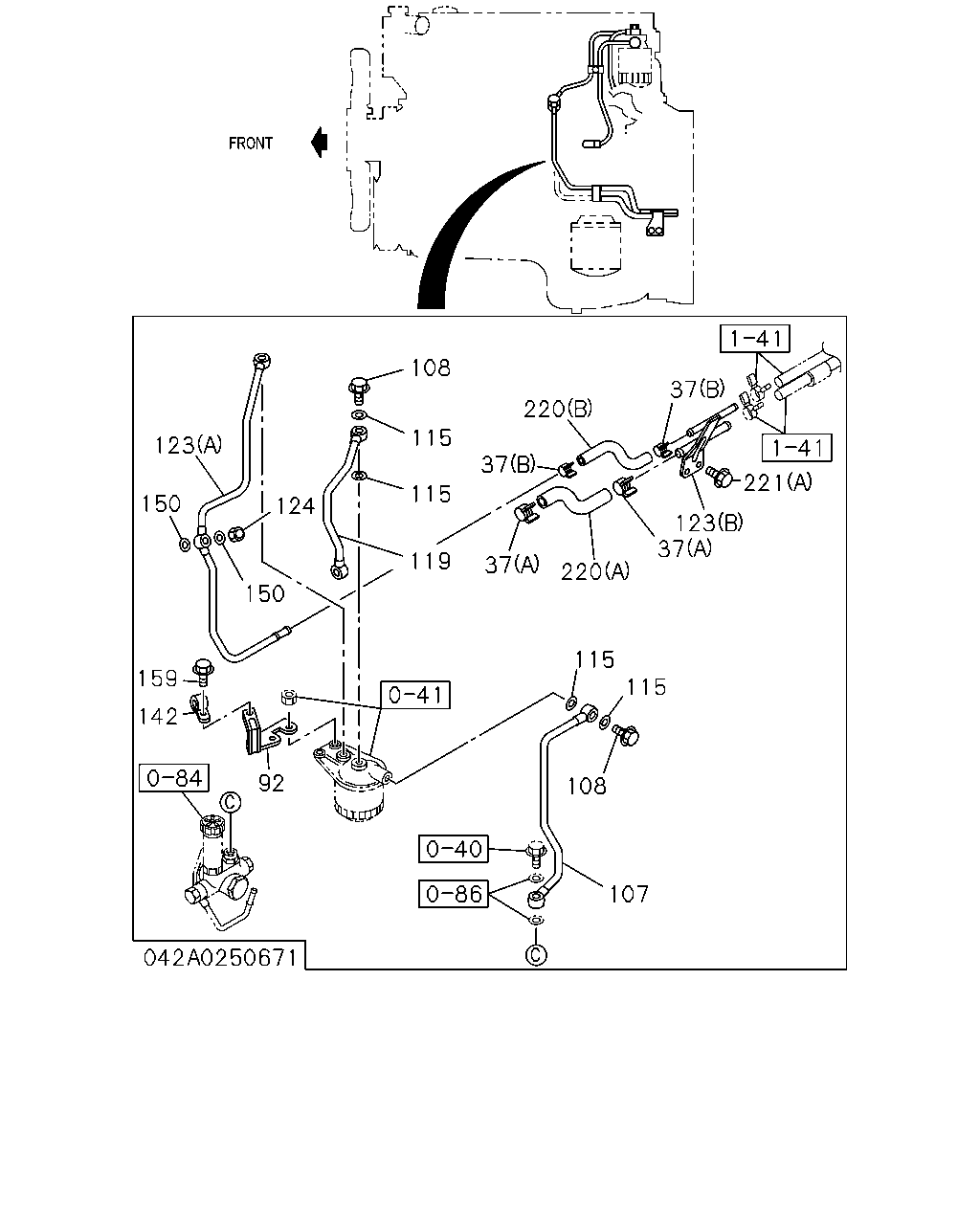

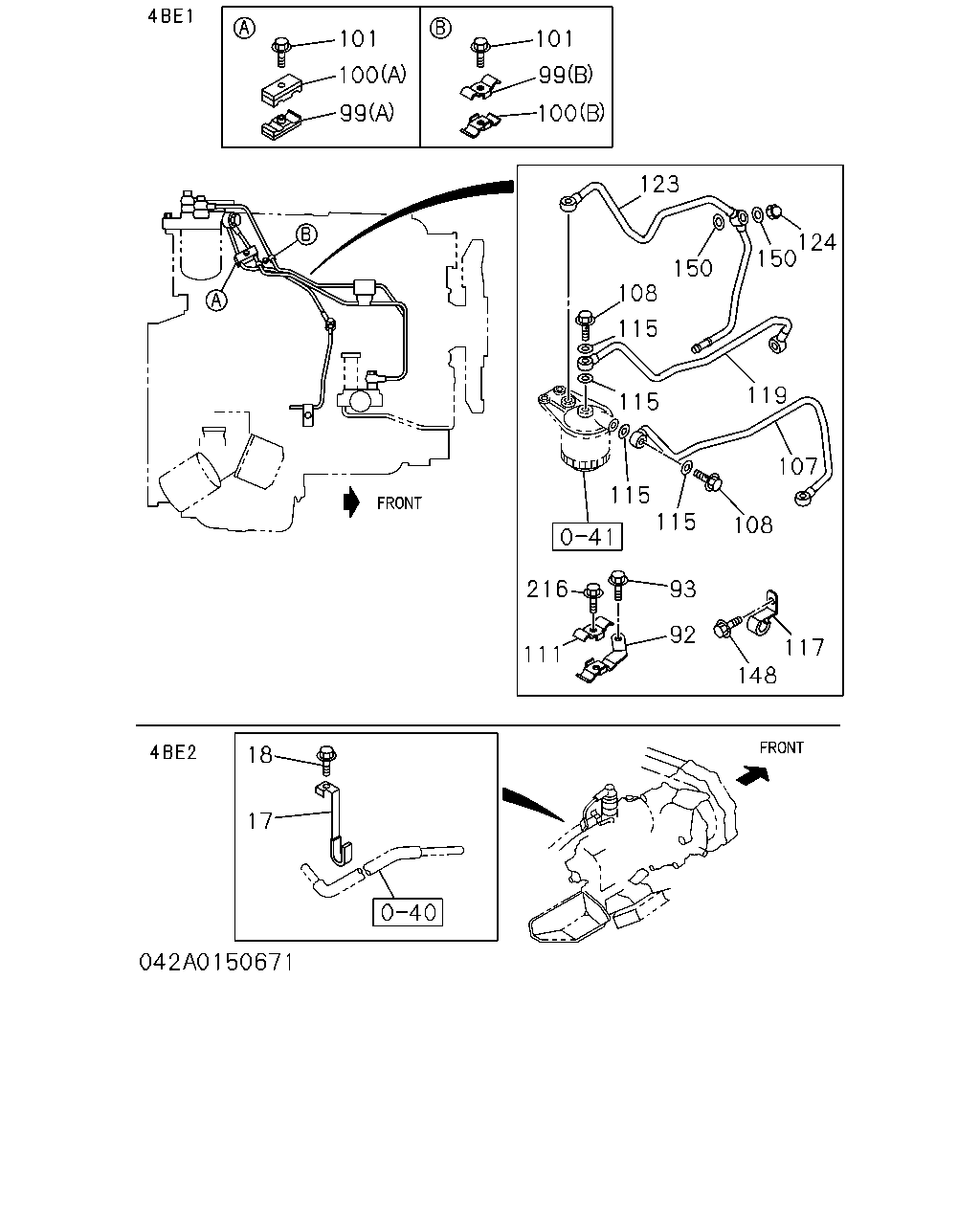

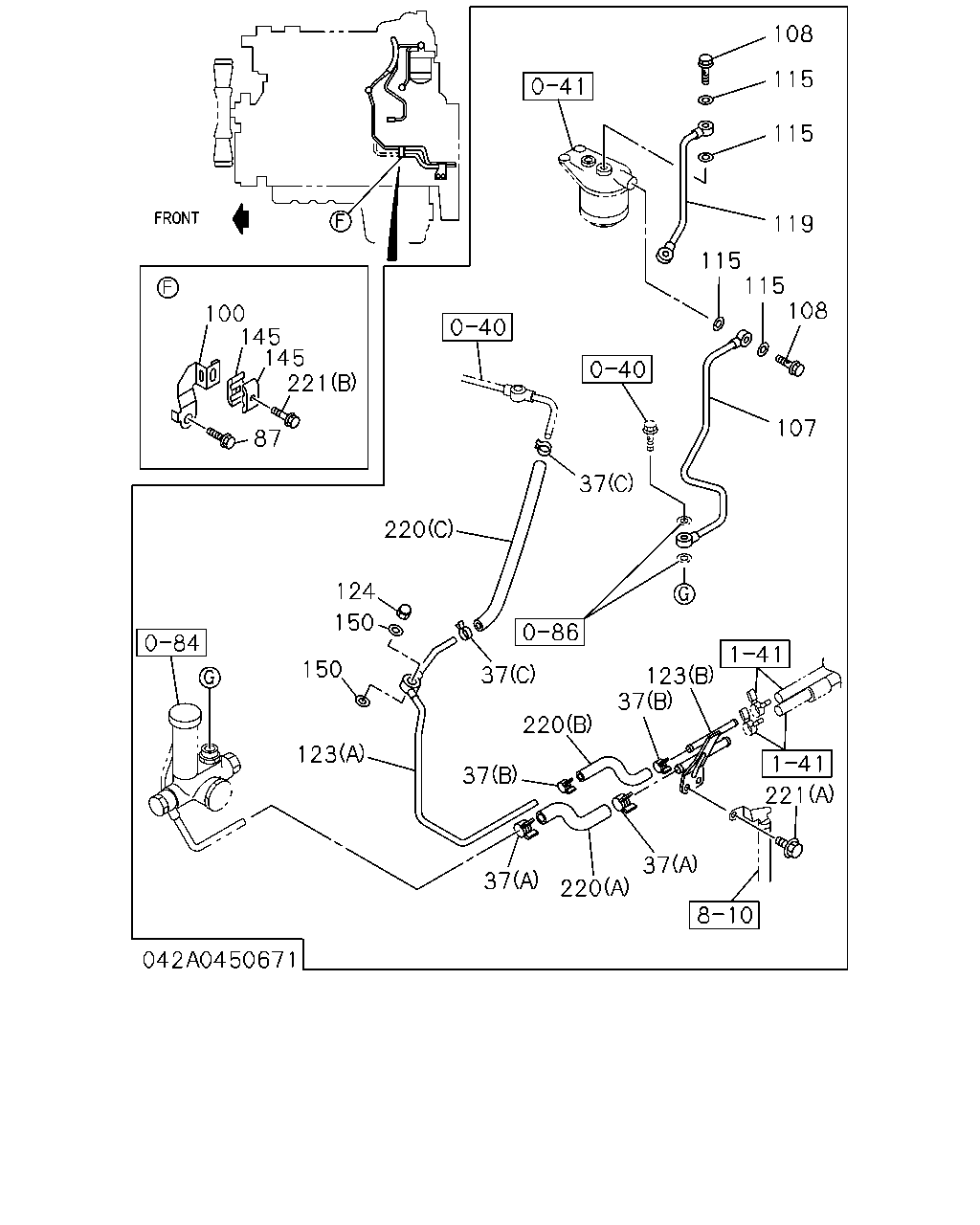

0-42 — FUEL PUMP AND PIPE (#166657) — 173 parça

124 150 150 108 119 115 115 115 108 107 115 93 92 117 148 216 111 101 101 99 100 100 99 18 17 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
17	CLIP; FUEL HOSE TO MANIF,REAR L=120	8-94362-962-1	01	1	9304-9502	●
18	BOLT; CLIP,FUEL HOSE M10X20 W/LK WASHER	0-50051-020-0	01	1	9304-9502	●
92	BRACKET; FUEL PIPE	8-97064-282-0	01	1	9304-9502		●
92	BRACKET; FUEL PIPE	8-97085-387-2	01	1	9304-9502			●
93	BOLT; PIPE BRKT M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9304-9502		●
99	CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	02	1	9304-9502		●
99	CLIP; "A",FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	02	1	9304-9502		●
99	CLIP; "A",FUEL PIPE ID=6.1 & 9.6	8-97016-323-0	03	1	9304-9402			●
99	CLIP; "A",FUEL PIPE ID=6.1 & 9.6	8-97016-323-0	01	1	9403-9502			●
100	CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	02	1	9304-9502		●
100	CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9304-9502		●
100	CLIP; "B",FUEL PIPE (A) ID=6.1 & 9.6	8-97016-322-0	01	1	9304-9502			●
100	CLIP; "B",FUEL PIPE (B)	8-97020-736-1	01	1	9304-9402			●
100	CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9403-9502			●
100	CLIP; "B",FUEL PIPE	8-97108-315-0	01	1	9503-			●	●
101	BOLT; FUEL CLIP M6X25 W/LK WASHER	0-50040-625-0	04	1	9304-9502		●
101	BOLT; FUEL CLIP (A) M6X25 FLANGE	0-28080-625-0	01	1	9304-9502			●
101	BOLT; FUEL CLIP (B) M6X35 FLANGE	0-28080-635-0	01	1	9304-9402			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER REFRIGERATOR CHASSIS(V4R)	8-97021-224-0	01	1	9304-9502		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. REFRIGERATOR CHASSIS(V4R)	8-97020-408-0	01	1	9304-9502		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97080-924-0	01	1	9304-9502			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97088-046-3	01	1	9503-			●	●
108	BOLT; JOINT,FUEL FILTER M14X29 EYE-BOLT	9-09906-325-1	02	1	9304-9502		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9304-9502			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9503-			●	●
111	CLIP; FUEL PIPE ID=10 & 10 L=25	9-09716-114-0	01	1	9304-9502		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	9304-9502		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	9503-			●	●
117	CLIP; FUEL PIPE EXC. REFRIGERATOR CHASSIS(V4R)	9-09916-621-1	01	1	9304-9502		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP REFRIGERATOR CHASSIS(V4R)	8-97011-053-0	01	1	9304-9502		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. REFRIGERATOR CHASSIS(V4R)	8-97020-409-0	01	1	9304-9502		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97080-925-1	01	1	9304-9502			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97088-047-0	01	1	9503-			●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97025-132-1	01	1	9304-9502		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97070-345-3	01	1	9304-9502			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97118-894-1	01	1	9503-			●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97087-196-0	01	1	9304-9502			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97087-196-0	01	1	9503-			●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9304-9502		●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9503-			●	●
148	BOLT; BRKT EXC. REFRIGERATOR CHASSIS(V4R) M6X25 W/LK&PL WASHER	0-50140-625-0	01	1	9304-9502		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	02	1	9304-9502		●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	02	1	9503-			●	●
216	BOLT; CLIP,FUEL PIPE M6X25 W/LK WASHER	0-50040-625-0	01	1	9304-9502		●

221 37 220 37 123 37 220 37 119 115 115 108 124 123 150 150 159 142 115 115 108 107 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
37	CLIP; FUEL HOSE (A) ID=16	8-94238-568-0	02	1	9304-9502		●
37	CLIP; FUEL HOSE (A) ID=16	8-94238-568-0	02	1	9503-		●	●
37	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9304-9502		●
37	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9503-		●	●
37	CLIP; FUEL HOSE (C) ID=12	8-94238-610-0	02	1	9503-9703		●	●
37	CLIP; FUEL HOSE (C) ID=12	8-94238-610-0	02	1	9704-		●	●	●
92	BRACKET; FUEL PIPE	8-97064-282-0	01	1	9304-9502	●
92	BRACKET; FUEL PIPE	8-97085-387-2	01	1	9304-9502		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER REFRIGERATOR CHASSIS(V4R)	8-97021-224-0	01	1	9304-9502	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. REFRIGERATOR CHASSIS(V4R)	8-97020-408-0	01	1	9304-9502	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97080-924-0	01	1	9304-9502		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97088-046-3	01	1	9503-		●	●
108	BOLT; JOINT,FUEL FILTER M14X29 EYE-BOLT	9-09906-325-1	02	1	9304-9502	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9304-9502		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9503-		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	9304-9502	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	9503-		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP REFRIGERATOR CHASSIS(V4R)	8-97011-053-0	01	1	9304-9502	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. REFRIGERATOR CHASSIS(V4R)	8-97020-409-0	01	1	9304-9502	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97080-925-1	01	1	9304-9502		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97088-047-0	01	1	9503-		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97025-132-1	01	1	9304-9502	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97070-345-3	01	1	9304-9502		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97118-894-1	01	1	9503-		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97087-196-0	01	1	9304-9502		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97087-196-0	01	1	9503-		●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9304-9502	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9503-		●	●
142	CLIP; FUEL PIPE ID=7 L=16	9-09524-622-0	01	1	9304-9502		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	02	1	9304-9502	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	02	1	9503-		●	●
159	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	01	1	9304-9502		●
220	HOSE; FUEL (A)	8-97087-227-1	01	1	9304-9502		●
220	HOSE; FUEL (A)	8-97087-227-1	01	1	9503-		●	●
220	HOSE; FUEL (B)	8-97087-228-1	01	1	9304-9502		●
220	HOSE; FUEL (B)	8-97087-228-1	01	1	9503-		●	●
220	HOSE; FUEL (C) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9503-		●	●
220	HOSE; FUEL (C)	8-97145-019-2	01	1	9704-				●
221	BOLT; FUEL PIPE (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9304-9304		●
221	BOLT; FUEL PIPE (A) M8X18 W/LK WASHER	0-50040-818-0	02	1	9305-9502		●
221	BOLT; FUEL PIPE (A) M8X18 W/LK WASHER	0-50040-818-0	02	1	9503-9711		●	●
221	BOLT; FUEL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9712-		●	●
221	BOLT; FUEL PIPE (B) M6X40 FLANGE	0-28680-640-0	01	1	9403-9502		●
221	BOLT; FUEL PIPE (B) M6X40 FLANGE	0-28680-640-0	01	1	9503-		●	●

221 145 145 100 87 101 99 100 99 87 101 100 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
87	BOLT; STAY,FUEL PIPE M8X12 FLANGE	0-28080-812-0	01	1	9304-9502		●
87	BOLT; STAY,FUEL PIPE M8X12 FLANGE	0-28080-812-0	01	1	9503-		●	●
99	CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	02	1	9304-9502	●
99	CLIP; "A",FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	02	1	9304-9502	●
99	CLIP; "A",FUEL PIPE ID=6.1 & 9.6	8-97016-323-0	03	1	9304-9402		●
99	CLIP; "A",FUEL PIPE ID=6.1 & 9.6	8-97016-323-0	01	1	9403-9502		●
100	CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	02	1	9304-9502	●
100	CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9304-9502	●
100	CLIP; "B",FUEL PIPE (A) ID=6.1 & 9.6	8-97016-322-0	01	1	9304-9502		●
100	CLIP; "B",FUEL PIPE (B)	8-97020-736-1	01	1	9304-9402		●
100	CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9403-9502		●
100	CLIP; "B",FUEL PIPE	8-97108-315-0	01	1	9503-		●	●
101	BOLT; FUEL CLIP M6X25 W/LK WASHER	0-50040-625-0	04	1	9304-9502	●
101	BOLT; FUEL CLIP (A) M6X25 FLANGE	0-28080-625-0	01	1	9304-9502		●
101	BOLT; FUEL CLIP (B) M6X35 FLANGE	0-28080-635-0	01	1	9304-9402		●
145	CLIP; FUEL PIPE ID=6.1 & 9.6	8-97016-323-0	02	1	9403-9502		●
145	CLIP; FUEL PIPE ID=6.1 & 9.6	8-97016-323-0	02	1	9503-		●	●
221	BOLT; FUEL PIPE (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9304-9304		●
221	BOLT; FUEL PIPE (A) M8X18 W/LK WASHER	0-50040-818-0	02	1	9305-9502		●
221	BOLT; FUEL PIPE (A) M8X18 W/LK WASHER	0-50040-818-0	02	1	9503-9711		●	●
221	BOLT; FUEL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9712-		●	●
221	BOLT; FUEL PIPE (B) M6X40 FLANGE	0-28680-640-0	01	1	9403-9502		●
221	BOLT; FUEL PIPE (B) M6X40 FLANGE	0-28680-640-0	01	1	9503-		●	●

108 115 115 119 108 115 115 107 123 37 220 221 37 220 37 37 37 124 220 150 150 123 221 145 145 100 37 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
37	CLIP; FUEL HOSE (A) ID=16	8-94238-568-0	02	1	9304-9502		●
37	CLIP; FUEL HOSE (A) ID=16	8-94238-568-0	02	1	9503-		●	●
37	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9304-9502		●
37	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9503-		●	●
37	CLIP; FUEL HOSE (C) ID=12	8-94238-610-0	02	1	9503-9703		●	●
37	CLIP; FUEL HOSE (C) ID=12	8-94238-610-0	02	1	9704-		●	●	●
87	BOLT; STAY,FUEL PIPE M8X12 FLANGE	0-28080-812-0	01	1	9304-9502		●
87	BOLT; STAY,FUEL PIPE M8X12 FLANGE	0-28080-812-0	01	1	9503-		●	●
100	CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	02	1	9304-9502	●
100	CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9304-9502	●
100	CLIP; "B",FUEL PIPE (A) ID=6.1 & 9.6	8-97016-322-0	01	1	9304-9502		●
100	CLIP; "B",FUEL PIPE (B)	8-97020-736-1	01	1	9304-9402		●
100	CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9403-9502		●
100	CLIP; "B",FUEL PIPE	8-97108-315-0	01	1	9503-		●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER REFRIGERATOR CHASSIS(V4R)	8-97021-224-0	01	1	9304-9502	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. REFRIGERATOR CHASSIS(V4R)	8-97020-408-0	01	1	9304-9502	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97080-924-0	01	1	9304-9502		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97088-046-3	01	1	9503-		●	●
108	BOLT; JOINT,FUEL FILTER M14X29 EYE-BOLT	9-09906-325-1	02	1	9304-9502	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9304-9502		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9503-		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	9304-9502	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	9503-		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP REFRIGERATOR CHASSIS(V4R)	8-97011-053-0	01	1	9304-9502	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. REFRIGERATOR CHASSIS(V4R)	8-97020-409-0	01	1	9304-9502	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97080-925-1	01	1	9304-9502		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97088-047-0	01	1	9503-		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97025-132-1	01	1	9304-9502	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97070-345-3	01	1	9304-9502		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97118-894-1	01	1	9503-		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97087-196-0	01	1	9304-9502		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97087-196-0	01	1	9503-		●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9304-9502	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9503-		●	●
145	CLIP; FUEL PIPE ID=6.1 & 9.6	8-97016-323-0	02	1	9403-9502		●
145	CLIP; FUEL PIPE ID=6.1 & 9.6	8-97016-323-0	02	1	9503-		●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	02	1	9304-9502	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	02	1	9503-		●	●
220	HOSE; FUEL (A)	8-97087-227-1	01	1	9304-9502		●
220	HOSE; FUEL (A)	8-97087-227-1	01	1	9503-		●	●
220	HOSE; FUEL (B)	8-97087-228-1	01	1	9304-9502		●
220	HOSE; FUEL (B)	8-97087-228-1	01	1	9503-		●	●
220	HOSE; FUEL (C) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9503-		●	●
220	HOSE; FUEL (C)	8-97145-019-2	01	1	9704-				●
221	BOLT; FUEL PIPE (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9304-9304		●
221	BOLT; FUEL PIPE (A) M8X18 W/LK WASHER	0-50040-818-0	02	1	9305-9502		●
221	BOLT; FUEL PIPE (A) M8X18 W/LK WASHER	0-50040-818-0	02	1	9503-9711		●	●
221	BOLT; FUEL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9712-		●	●
221	BOLT; FUEL PIPE (B) M6X40 FLANGE	0-28680-640-0	01	1	9403-9502		●
221	BOLT; FUEL PIPE (B) M6X40 FLANGE	0-28680-640-0	01	1	9503-		●	●

37 220 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E
37	CLIP; FUEL HOSE (A) ID=16	8-94238-568-0	02	1	9304-9502	●
37	CLIP; FUEL HOSE (A) ID=16	8-94238-568-0	02	1	9503-	●	●
37	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9304-9502	●
37	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9503-	●	●
37	CLIP; FUEL HOSE (C) ID=12	8-94238-610-0	02	1	9503-9703	●	●
37	CLIP; FUEL HOSE (C) ID=12	8-94238-610-0	02	1	9704-	●	●	●
220	HOSE; FUEL (A)	8-97087-227-1	01	1	9304-9502	●
220	HOSE; FUEL (A)	8-97087-227-1	01	1	9503-	●	●
220	HOSE; FUEL (B)	8-97087-228-1	01	1	9304-9502	●
220	HOSE; FUEL (B)	8-97087-228-1	01	1	9503-	●	●
220	HOSE; FUEL (C) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9503-	●	●
220	HOSE; FUEL (C)	8-97145-019-2	01	1	9704-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
