0-41 — FUEL FILTER AND BRACKET (#166656) — 179 parça

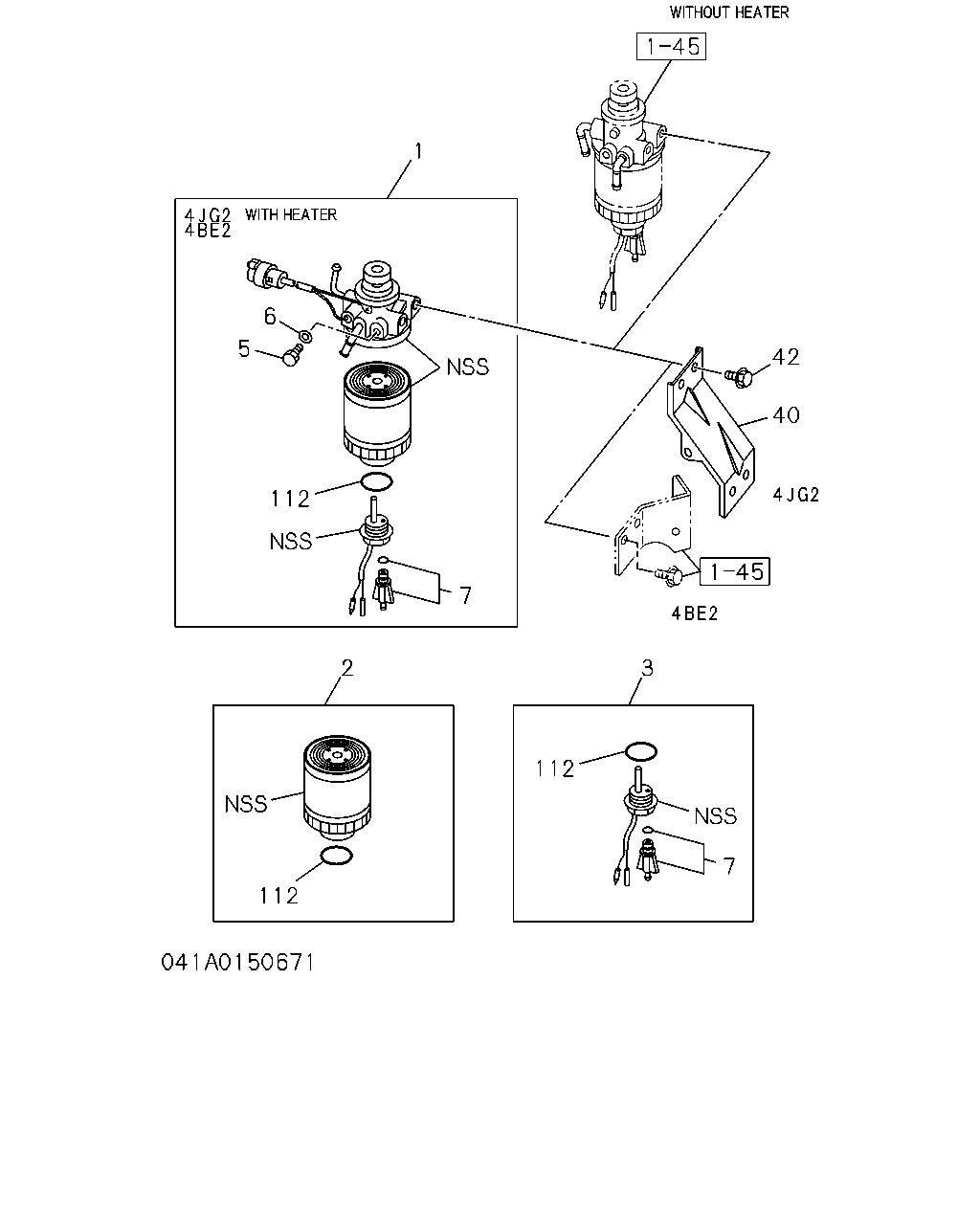

1 6 5 112 7 3 7 112 2 112 42 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FILTER ASM; FUEL	8-94151-745-1	01	1	9304-9502	●
1	FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU>	8-97077-482-0	01	1	9304-9502		●
1	FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97077-483-0	01	1	9304-9502		●
1	FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> WITHOUT HEATER, CHECK FIG 1-45	8-97065-966-0	01	1	9304-9703			●
1	FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> WITHOUT HEATER, CHECK FIG 1-45	8-97065-966-0	01	1	9704-			●	●
1	FILTER ASM; FUEL	8-94370-620-3	01	1	9304-9502					●
1	FILTER ASM; FUEL	8-97117-333-0	01	1	9503-9702					●	●
1	FILTER ASM; FUEL	8-97171-451-1	01	1	9703-					●	●
2	ELEMENT KIT; FUEL FILTER	8-94151-744-0	01	1	9304-9502	●
2	ELEMENT KIT; FUEL FILTER	8-94369-299-1	01	1	9304-9502		●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-1	01	1	9304-9502			●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	9503-9703			●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	9704-			●	●
2	ELEMENT KIT; FUEL FILTER	8-94370-621-3	01	1	9304-9502					●
2	ELEMENT KIT; FUEL FILTER	8-97116-125-0	01	1	9503-9702					●	●
2	ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9703-					●	●
2	ELEMENT KIT; FUEL FILTER BESTFIX	5-86750-079-0	01	1	9503-					●	●
2	ELEMENT KIT; FUEL FILTER BESTFIX	5-86750-079-0	01	1	9304-9502					●
2	ELEMENT KIT; FUEL FILTER BESTFIX	5-86750-078-0	01	1	9304-9502	●
2	ELEMENT KIT; FUEL FILTER BESTFIX	5-86750-215-1	01	1	9304-9502		●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> BESTFIX	5-86750-215-1	01	1	9304-9502			●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> BESTFIX	5-86750-215-1	01	1	9503-9703			●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> BESTFIX	5-86750-215-1	01	1	9704-			●	●
3	SENSOR ASM; FUEL FILTER	8-94450-139-0	01	1	9304-9502		●
3	SENSOR ASM; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	9304-9703			●
3	SENSOR ASM; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	9704-			●	●
5	BOLT; FUEL FILTER	8-94132-674-0	01	1	9304-9502		●
5	BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	9304-9502			●
5	BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	9503-9703			●
5	BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	9704-			●	●
6	GASKET; FUEL FILTER	8-94132-675-0	01	1	9304-9502		●
6	GASKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	9304-9502			●
6	GASKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	9503-9703			●
6	GASKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	9704-			●	●
7	PLUG; SENSOR,FUEL FILTER	8-94450-146-0	01	1	9304-9502		●
7	PLUG; SENSOR,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94450-146-0	01	1	9304-9502			●
7	PLUG; SENSOR,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9503-9703			●
7	PLUG; SENSOR,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9704-9801			●	●
7	PLUG; SENSOR,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	9802-			●	●
40	BRACKET; FUEL FILTER	8-97085-051-1	01	1	9304-			●
40	BRACKET; FUEL FILTER	8-97161-825-0	01	1	9704-				●
42	BOLT; FUEL FILTER M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9304-9502	●
42	BOLT; FUEL FILTER M10X30 FLANGE	0-28781-030-0	02	1	9503-					●	●
42	BOLT; FUEL FILTER M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9703			●
42	BOLT; FUEL FILTER M8X20 FLANGE	0-28680-820-0	02	1	9704-			●	●
112	GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU>	9-09563-334-0	01	1	9802-			●	●

62 1 42 9 10 9 8 2 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FILTER ASM; FUEL	8-94151-745-1	01	1	9304-9502	●
1	FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU>	8-97077-482-0	01	1	9304-9502		●
1	FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97077-483-0	01	1	9304-9502		●
1	FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> WITHOUT HEATER, CHECK FIG 1-45	8-97065-966-0	01	1	9304-9703			●
1	FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> WITHOUT HEATER, CHECK FIG 1-45	8-97065-966-0	01	1	9704-			●	●
1	FILTER ASM; FUEL	8-94370-620-3	01	1	9304-9502					●
1	FILTER ASM; FUEL	8-97117-333-0	01	1	9503-9702					●	●
1	FILTER ASM; FUEL	8-97171-451-1	01	1	9703-					●	●
2	ELEMENT KIT; FUEL FILTER	8-94151-744-0	01	1	9304-9502	●
2	ELEMENT KIT; FUEL FILTER	8-94369-299-1	01	1	9304-9502		●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-1	01	1	9304-9502			●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	9503-9703			●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	9704-			●	●
2	ELEMENT KIT; FUEL FILTER	8-94370-621-3	01	1	9304-9502					●
2	ELEMENT KIT; FUEL FILTER	8-97116-125-0	01	1	9503-9702					●	●
2	ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9703-					●	●
2	ELEMENT KIT; FUEL FILTER BESTFIX	5-86750-079-0	01	1	9503-					●	●
2	ELEMENT KIT; FUEL FILTER BESTFIX	5-86750-079-0	01	1	9304-9502					●
2	ELEMENT KIT; FUEL FILTER BESTFIX	5-86750-078-0	01	1	9304-9502	●
2	ELEMENT KIT; FUEL FILTER BESTFIX	5-86750-215-1	01	1	9304-9502		●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> BESTFIX	5-86750-215-1	01	1	9304-9502			●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> BESTFIX	5-86750-215-1	01	1	9503-9703			●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> BESTFIX	5-86750-215-1	01	1	9704-			●	●
8	COVER; FUEL FILTER	5-13212-075-1	01	1	9304-9502	●				●
8	COVER; FUEL FILTER	8-97126-076-0	01	1	9503-9702					●	●
8	COVER; FUEL FILTER	8-97172-543-1	01	1	9703-					●	●
9	GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=23.0	9-09572-014-0	02	1	9304-9502	●
9	GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	9304-9502					●
10	VALVE; OVERFLOW,FUEL FILTER	9-13260-056-2	01	1	9304-9502	●
10	VALVE; OVERFLOW,FUEL FILTER	9-13260-056-2	01	1	9304-9502					●
42	BOLT; FUEL FILTER M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9304-9502	●
42	BOLT; FUEL FILTER M10X30 FLANGE	0-28781-030-0	02	1	9503-					●	●
42	BOLT; FUEL FILTER M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9703			●
42	BOLT; FUEL FILTER M8X20 FLANGE	0-28680-820-0	02	1	9704-			●	●
46	BRACKET	8-94313-323-1	01	1	9304-9502					●
46	BRACKET	8-97113-035-2	01	1	9503-9703					●	●
46	BRACKET	8-97113-035-3	01	1	9704-				●	●	●
62	NUT; FUEL FILTER M10 FLANGE	0-91150-110-0	02	1	9304-9502					●

42 1 1 43 46 92 93 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FILTER ASM; FUEL	8-94151-745-1	01	1	9304-9502	●
1	FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU>	8-97077-482-0	01	1	9304-9502		●
1	FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97077-483-0	01	1	9304-9502		●
1	FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> WITHOUT HEATER, CHECK FIG 1-45	8-97065-966-0	01	1	9304-9703			●
1	FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> WITHOUT HEATER, CHECK FIG 1-45	8-97065-966-0	01	1	9704-			●	●
1	FILTER ASM; FUEL	8-94370-620-3	01	1	9304-9502					●
1	FILTER ASM; FUEL	8-97117-333-0	01	1	9503-9702					●	●
1	FILTER ASM; FUEL	8-97171-451-1	01	1	9703-					●	●
2	ELEMENT KIT; FUEL FILTER	8-94151-744-0	01	1	9304-9502	●
2	ELEMENT KIT; FUEL FILTER	8-94369-299-1	01	1	9304-9502		●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-1	01	1	9304-9502			●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	9503-9703			●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	9704-			●	●
2	ELEMENT KIT; FUEL FILTER	8-94370-621-3	01	1	9304-9502					●
2	ELEMENT KIT; FUEL FILTER	8-97116-125-0	01	1	9503-9702					●	●
2	ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9703-					●	●
2	ELEMENT KIT; FUEL FILTER BESTFIX	5-86750-079-0	01	1	9503-					●	●
2	ELEMENT KIT; FUEL FILTER BESTFIX	5-86750-079-0	01	1	9304-9502					●
2	ELEMENT KIT; FUEL FILTER BESTFIX	5-86750-078-0	01	1	9304-9502	●
2	ELEMENT KIT; FUEL FILTER BESTFIX	5-86750-215-1	01	1	9304-9502		●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> BESTFIX	5-86750-215-1	01	1	9304-9502			●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> BESTFIX	5-86750-215-1	01	1	9503-9703			●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> BESTFIX	5-86750-215-1	01	1	9704-			●	●
8	COVER; FUEL FILTER	5-13212-075-1	01	1	9304-9502	●				●
8	COVER; FUEL FILTER	8-97126-076-0	01	1	9503-9702					●	●
8	COVER; FUEL FILTER	8-97172-543-1	01	1	9703-					●	●
42	BOLT; FUEL FILTER M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9304-9502	●
42	BOLT; FUEL FILTER M10X30 FLANGE	0-28781-030-0	02	1	9503-					●	●
42	BOLT; FUEL FILTER M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9703			●
42	BOLT; FUEL FILTER M8X20 FLANGE	0-28680-820-0	02	1	9704-			●	●
43	BOLT; BRKT M12X28 FLANGE	0-28181-228-0	02	1	9503-9703					●	●
43	BOLT; BRKT M12X28 FLANGE	0-28181-228-0	02	1	9704-				●	●	●
46	BRACKET	8-94313-323-1	01	1	9304-9502					●
46	BRACKET	8-97113-035-2	01	1	9503-9703					●	●
46	BRACKET	8-97113-035-3	01	1	9704-				●	●	●
92	CAP; FUEL FILTER	8-97117-109-0	01	1	9503-9702					●	●
92	CAP; FUEL FILTER	8-97172-548-0	01	1	9703-					●	●
93	CONNECTOR; FUEL FILTER	8-97143-658-0	01	1	9503-9702					●	●
93	CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	9703-					●	●

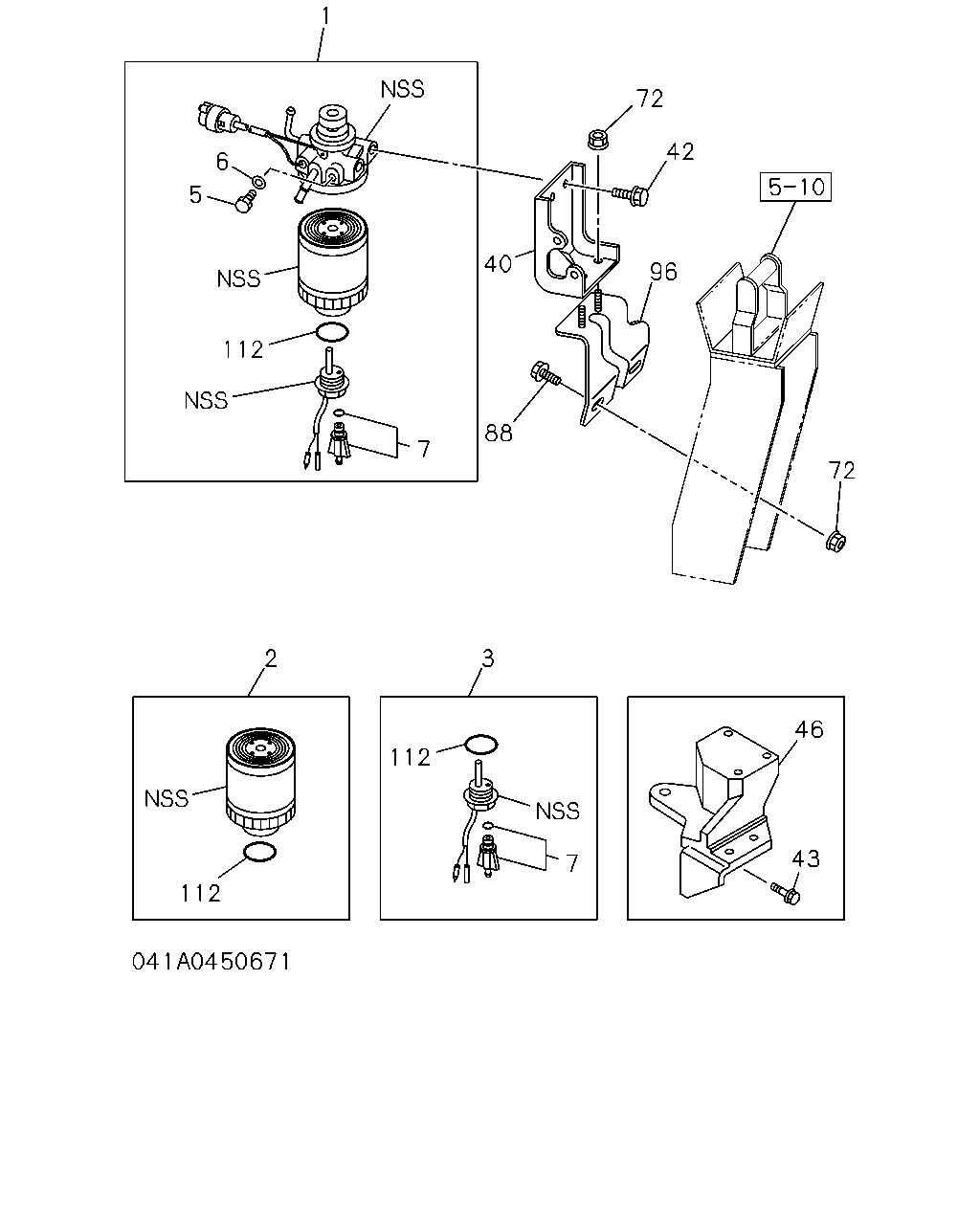

42 72 1 6 5 112 40 96 72 88 7 3 2 112 112 7 46 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FILTER ASM; FUEL	8-94151-745-1	01	1	9304-9502	●
1	FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU>	8-97077-482-0	01	1	9304-9502		●
1	FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97077-483-0	01	1	9304-9502		●
1	FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> WITHOUT HEATER, CHECK FIG 1-45	8-97065-966-0	01	1	9304-9703			●
1	FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> WITHOUT HEATER, CHECK FIG 1-45	8-97065-966-0	01	1	9704-			●	●
1	FILTER ASM; FUEL	8-94370-620-3	01	1	9304-9502					●
1	FILTER ASM; FUEL	8-97117-333-0	01	1	9503-9702					●	●
1	FILTER ASM; FUEL	8-97171-451-1	01	1	9703-					●	●
2	ELEMENT KIT; FUEL FILTER	8-94151-744-0	01	1	9304-9502	●
2	ELEMENT KIT; FUEL FILTER	8-94369-299-1	01	1	9304-9502		●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-1	01	1	9304-9502			●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	9503-9703			●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	9704-			●	●
2	ELEMENT KIT; FUEL FILTER	8-94370-621-3	01	1	9304-9502					●
2	ELEMENT KIT; FUEL FILTER	8-97116-125-0	01	1	9503-9702					●	●
2	ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9703-					●	●
2	ELEMENT KIT; FUEL FILTER BESTFIX	5-86750-079-0	01	1	9503-					●	●
2	ELEMENT KIT; FUEL FILTER BESTFIX	5-86750-079-0	01	1	9304-9502					●
2	ELEMENT KIT; FUEL FILTER BESTFIX	5-86750-078-0	01	1	9304-9502	●
2	ELEMENT KIT; FUEL FILTER BESTFIX	5-86750-215-1	01	1	9304-9502		●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> BESTFIX	5-86750-215-1	01	1	9304-9502			●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> BESTFIX	5-86750-215-1	01	1	9503-9703			●
2	ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> BESTFIX	5-86750-215-1	01	1	9704-			●	●
3	SENSOR ASM; FUEL FILTER	8-94450-139-0	01	1	9304-9502		●
3	SENSOR ASM; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	9304-9703			●
3	SENSOR ASM; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	9704-			●	●
5	BOLT; FUEL FILTER	8-94132-674-0	01	1	9304-9502		●
5	BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	9304-9502			●
5	BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	9503-9703			●
5	BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	9704-			●	●
6	GASKET; FUEL FILTER	8-94132-675-0	01	1	9304-9502		●
6	GASKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	9304-9502			●
6	GASKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	9503-9703			●
6	GASKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	9704-			●	●
7	PLUG; SENSOR,FUEL FILTER	8-94450-146-0	01	1	9304-9502		●
7	PLUG; SENSOR,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94450-146-0	01	1	9304-9502			●
7	PLUG; SENSOR,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9503-9703			●
7	PLUG; SENSOR,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9704-9801			●	●
7	PLUG; SENSOR,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	9802-			●	●
40	BRACKET; FUEL FILTER	8-97085-051-1	01	1	9304-			●
40	BRACKET; FUEL FILTER	8-97161-825-0	01	1	9704-				●
42	BOLT; FUEL FILTER M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9304-9502	●
42	BOLT; FUEL FILTER M10X30 FLANGE	0-28781-030-0	02	1	9503-					●	●
42	BOLT; FUEL FILTER M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9703			●
42	BOLT; FUEL FILTER M8X20 FLANGE	0-28680-820-0	02	1	9704-			●	●
43	BOLT; BRKT M12X28 FLANGE	0-28181-228-0	02	1	9503-9703					●	●
43	BOLT; BRKT M12X28 FLANGE	0-28181-228-0	02	1	9704-				●	●	●
46	BRACKET	8-94313-323-1	01	1	9304-9502					●
46	BRACKET	8-97113-035-2	01	1	9503-9703					●	●
46	BRACKET	8-97113-035-3	01	1	9704-				●	●	●
72	NUT; BRKT,FUEL FILTER M8 FLANGE	0-91150-108-0	02	1	9704-				●
72	NUT; BRKT,FUEL FILTER FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE	0-91150-108-0	02	1	9704-				●
72	NUT; BRKT,FUEL FILTER EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE	0-91150-108-0	01	1	9704-				●
88	BOLT; BRKT,FUEL FILTER M8X25 FLANGE	0-28680-825-0	02	1	9704-				●
96	STAY; FUEL FILTER	8-97161-824-0	01	1	9704-				●
112	GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU>	9-09563-334-0	01	1	9802-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
