Sayfa 0-40 - Isuzu EPC

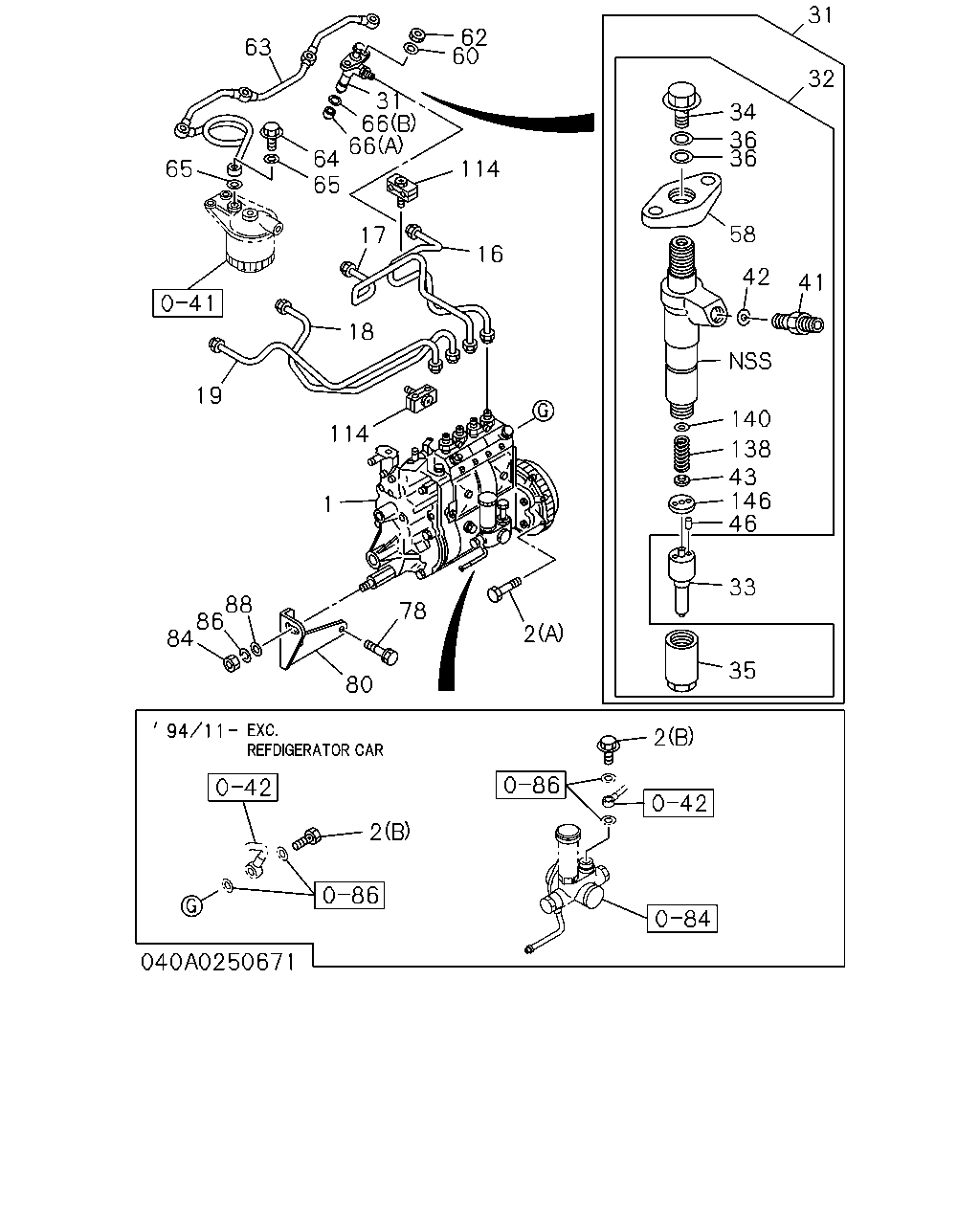

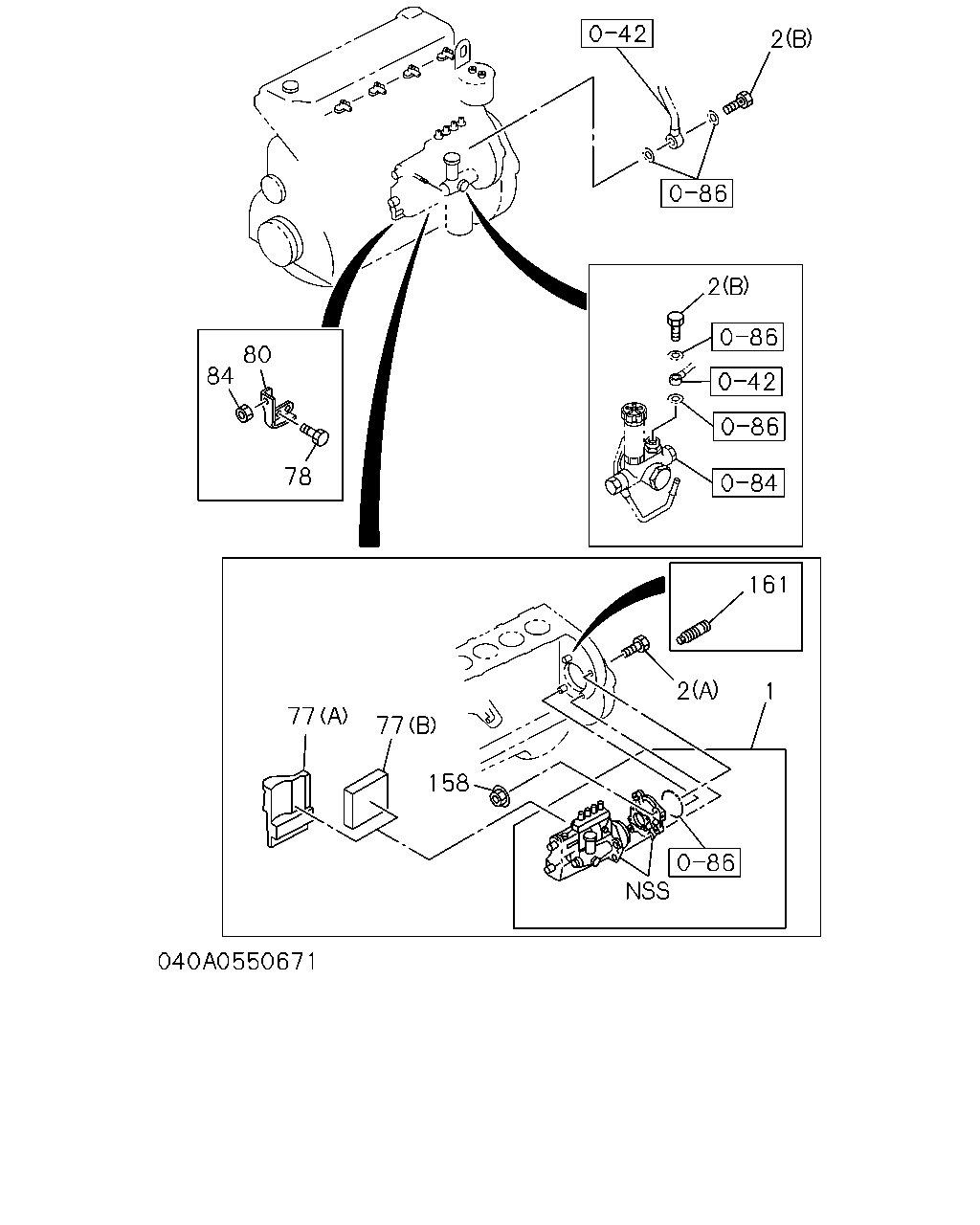

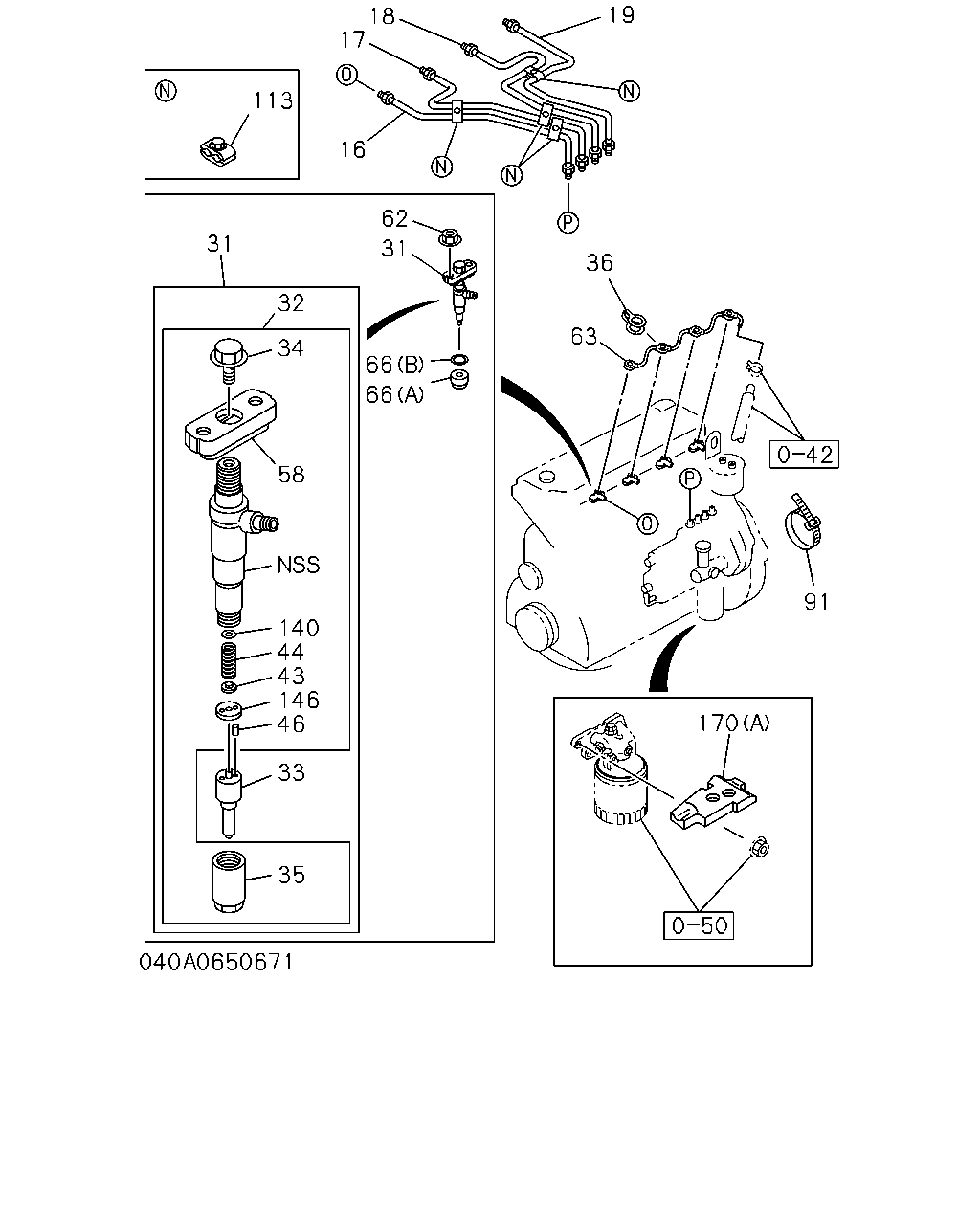

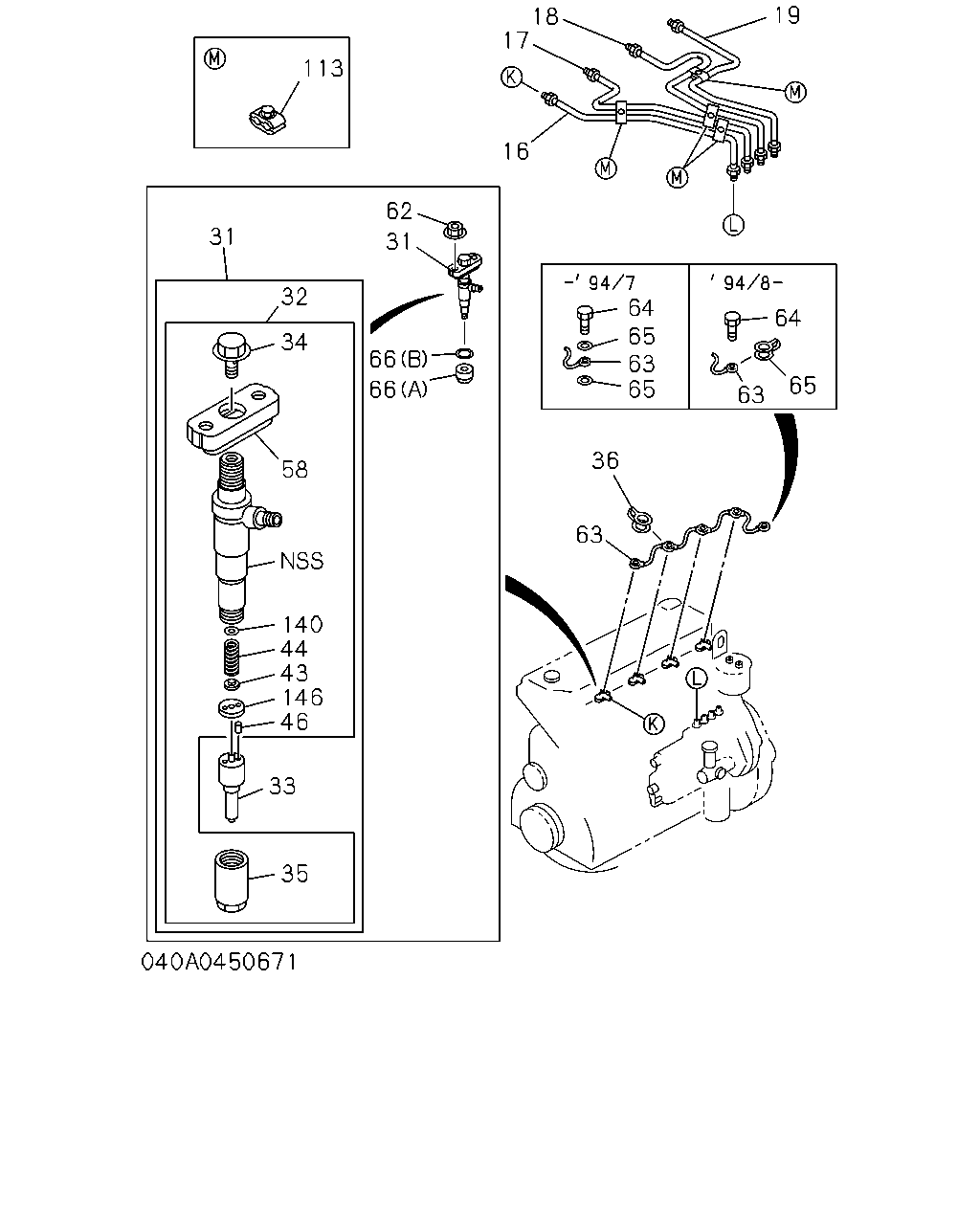

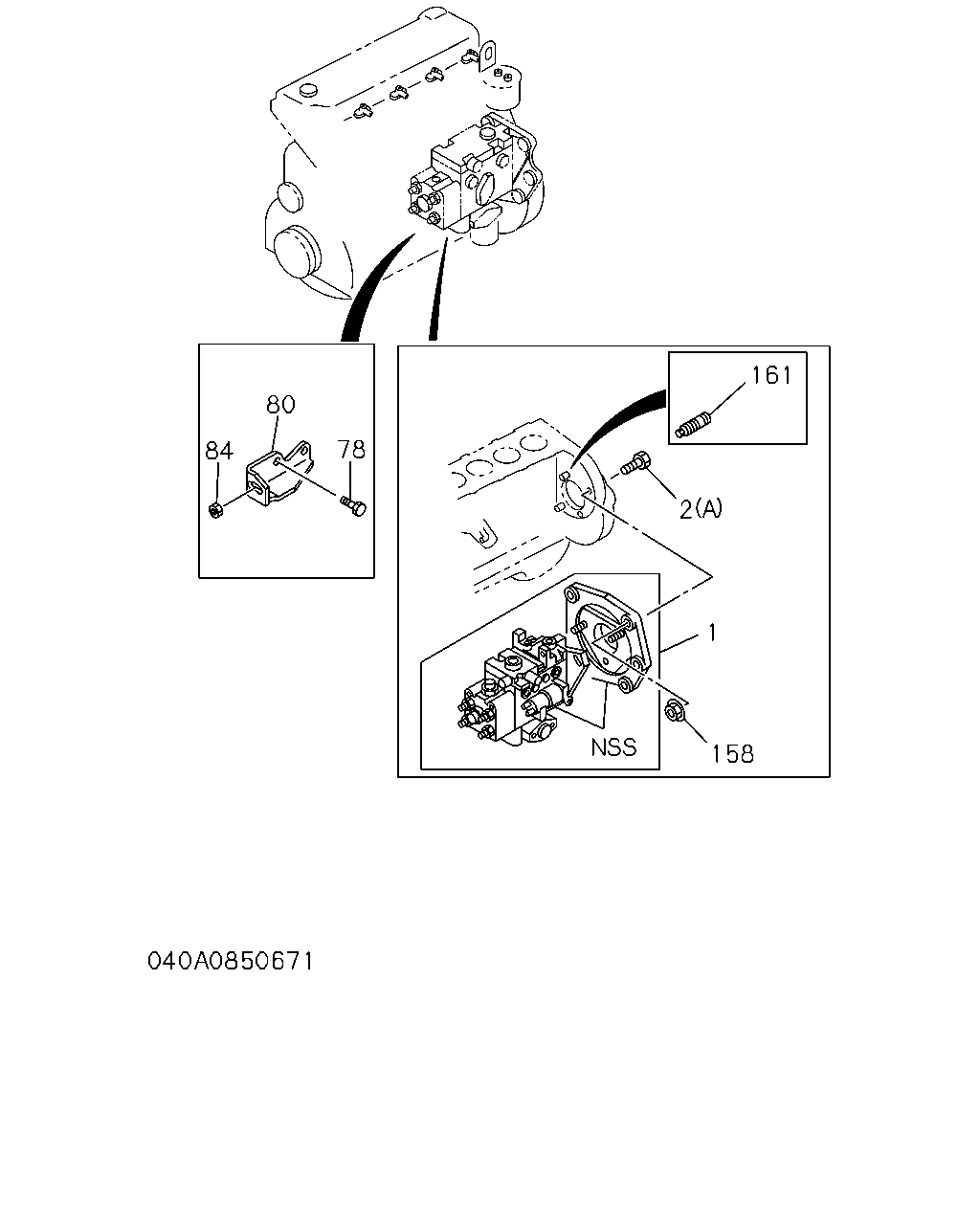

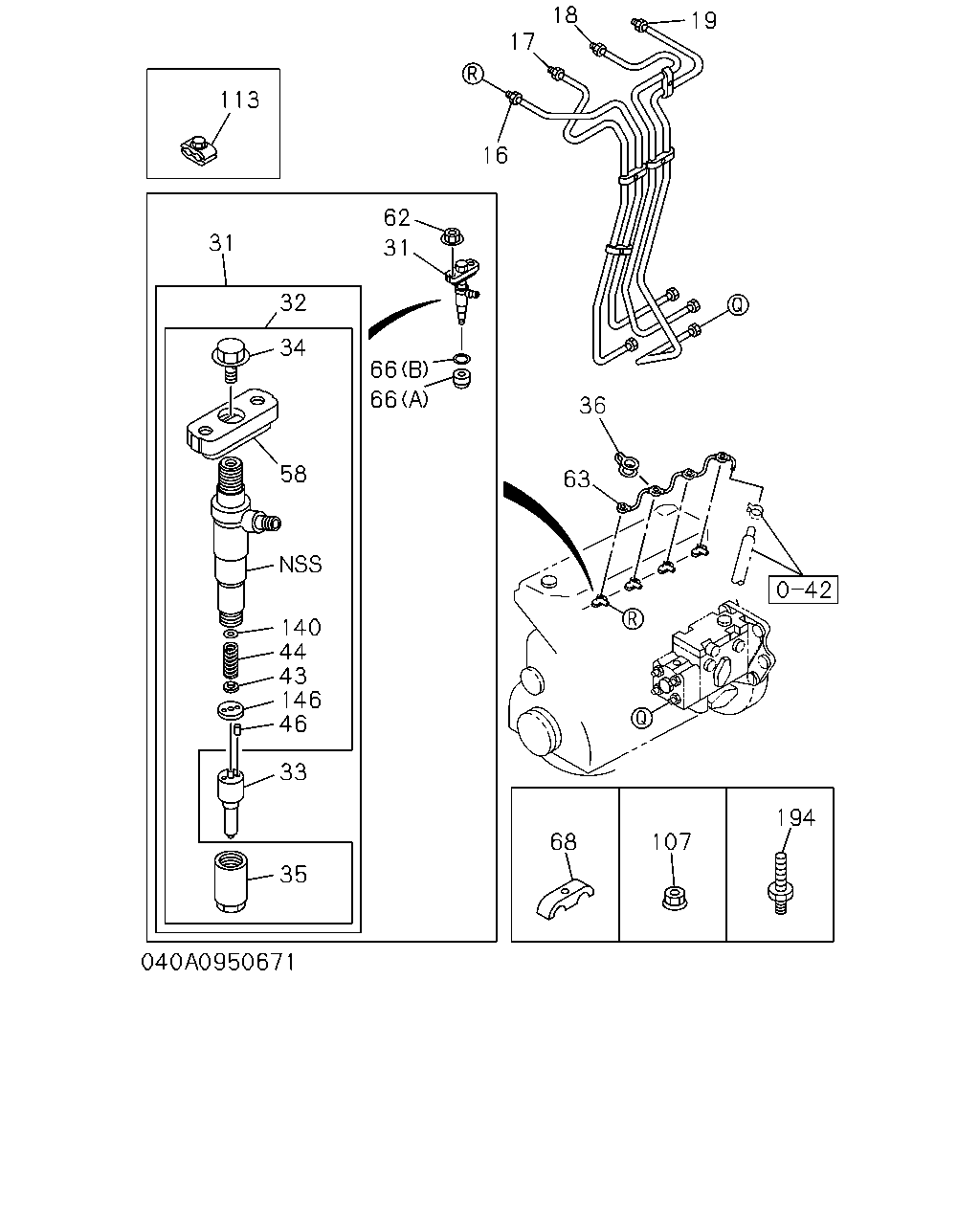

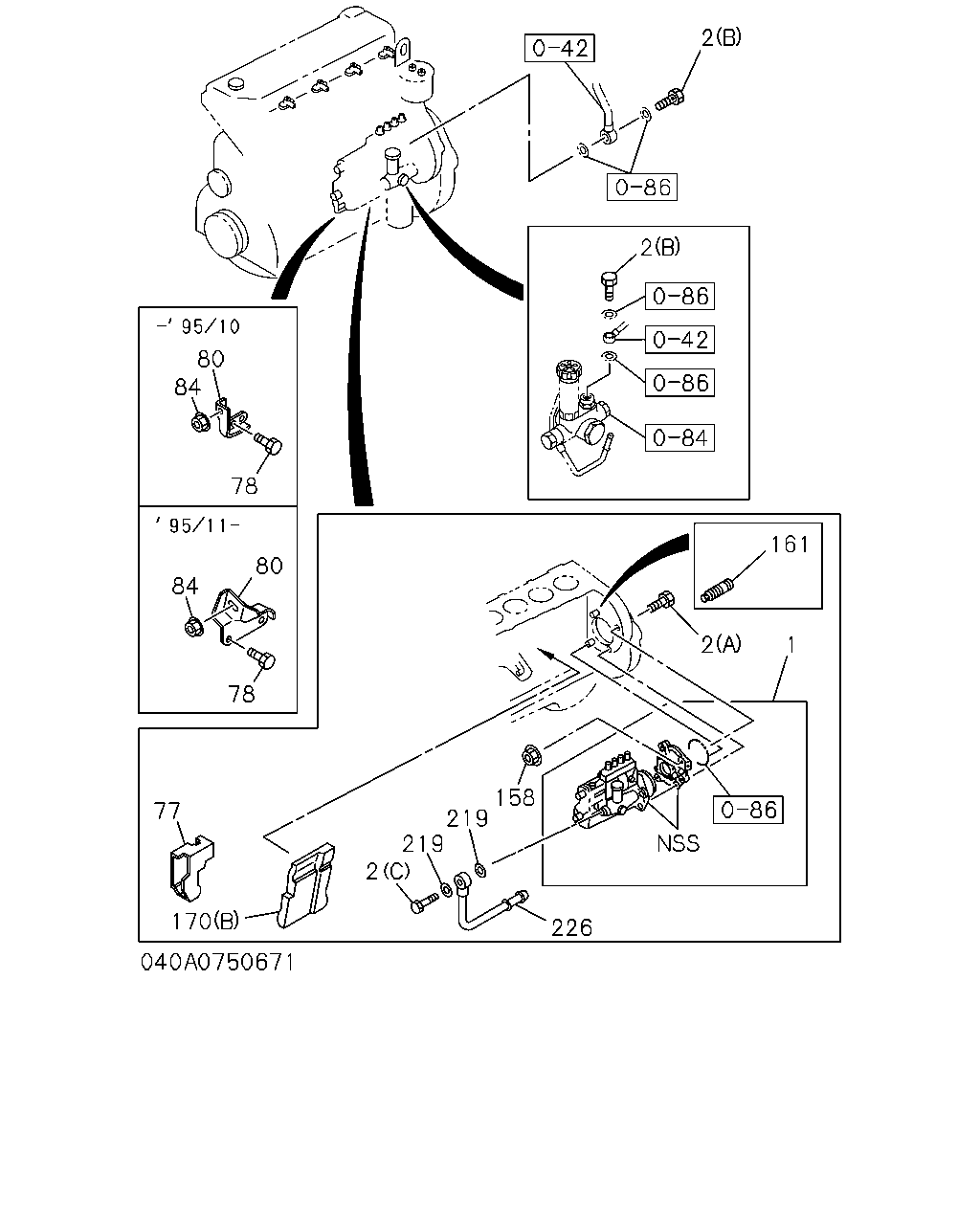

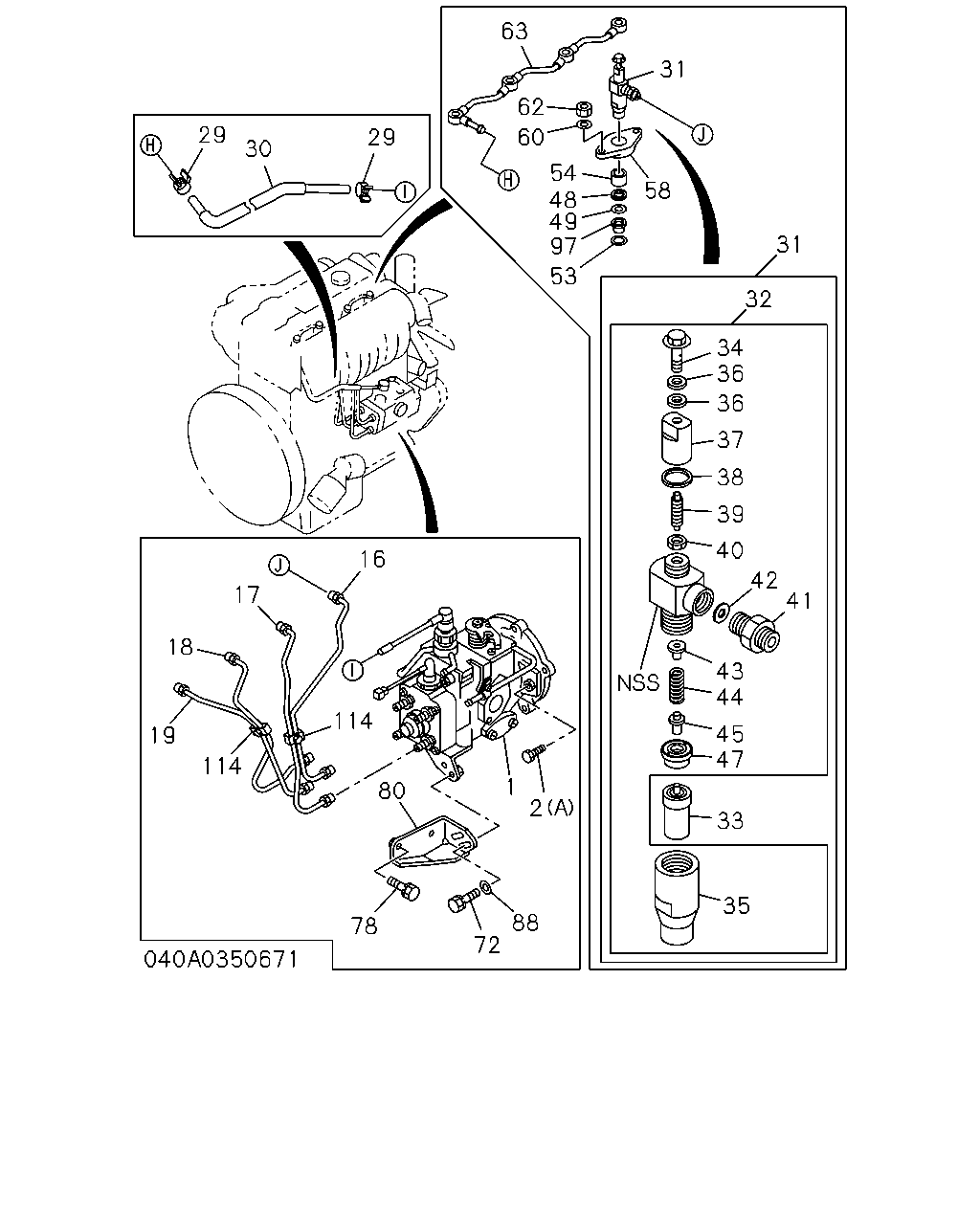

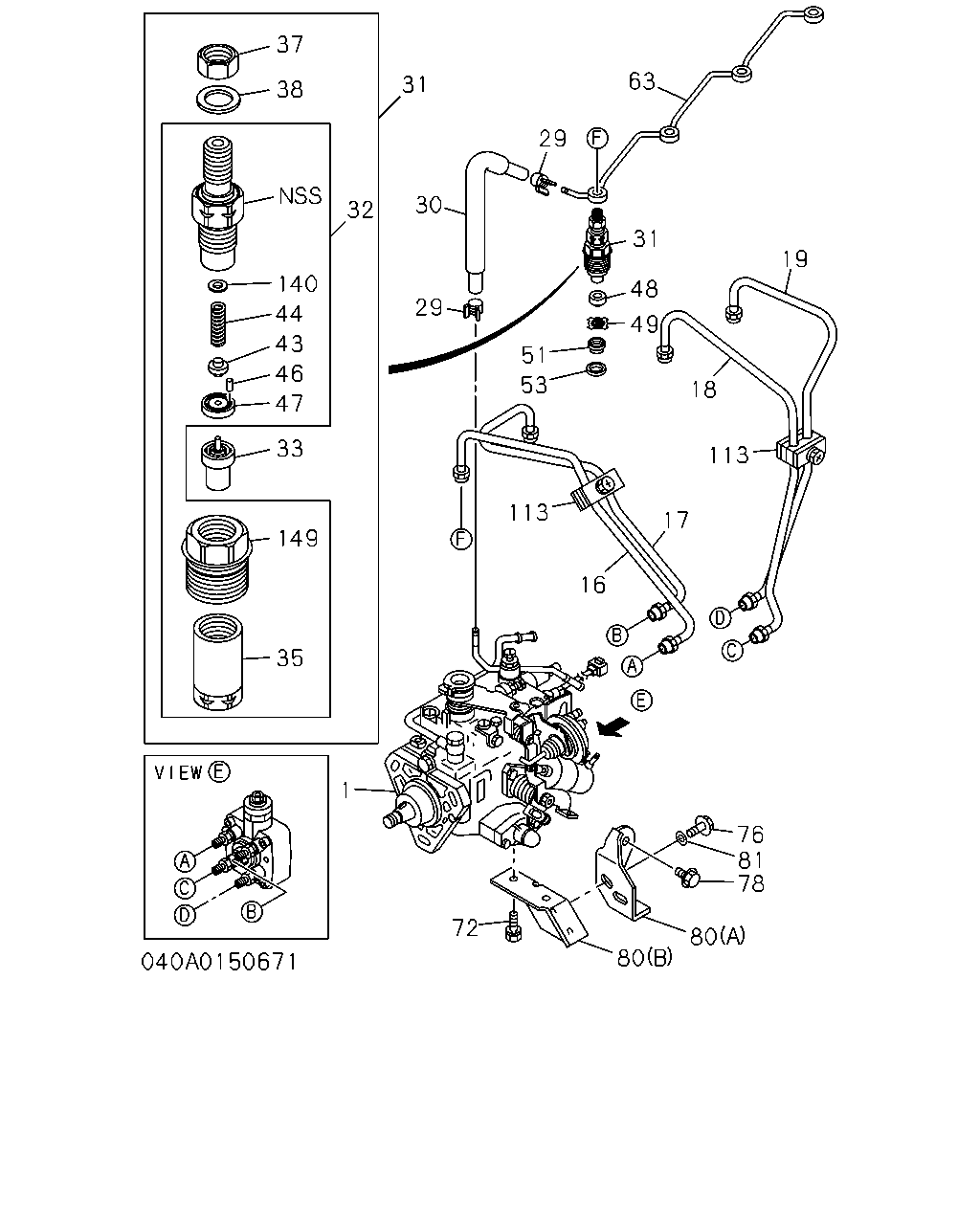

0-40 — FUEL INJECTION SYSTEM (#166655) — 1714 parça

31 32 34 36 36 41 42 58 140 138 43 146 46 33 35 2 2 78 80 2 84 86 88 1 114 19 18 17 114 16 65 64 66 66 31 63 65 62 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. REFRIGERATOR CHASSIS(V4R)	8-97077-491-2	01	1	9304-9502	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-291-2	01	1	9503-9510		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-656-0	01	1	9511-9603		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-771-1	01	1	9604-9811		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97203-369-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. REFRIGERATOR CHASSIS(V4R)	8-97075-425-2	01	1	9304-9410	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. REFRIGERATOR CHASSIS(V4R)	8-97117-559-0	01	1	9411-9502	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-759-1	01	1	9503-9510			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-665-0	01	1	9511-9603			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-774-1	01	1	9604-9811			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97203-372-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97211-445-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97075-360-1	01	1	9304-9409				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97118-525-0	01	1	9410-9502				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16>	8-97080-199-3	01	1	9304-9408					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16>	8-97118-516-0	01	1	9409-9502					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97107-864-1	01	1	9503-9703					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97146-401-0	01	1	9704-					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TACHOMETER<U16>	8-97080-198-3	01	1	9304-9408					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TACHOMETER<U16>	8-97118-515-0	01	1	9409-9502					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-292-1	01	1	9503-9510		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-657-0	01	1	9511-9603		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-772-1	01	1	9604-9811		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97203-370-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97211-444-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-359-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-011-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-354-2	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-007-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97090-361-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97114-012-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-358-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-010-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-355-2	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-008-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-290-2	01	1	9503-9510			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-664-0	01	1	9511-9603			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-773-1	01	1	9604-9811			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97203-371-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-353-2	01	1	9304-9409		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-006-0	01	1	9410-9412		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97115-361-0	01	1	9501-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97139-681-3	01	1	9704-						●
2	BOLT; INJ PUMP (C) M14X30	8-97203-957-0	01	1	9812-		●	●
2	BOLT; INJ PUMP REFRIGERATOR CHASSIS(V4R) (A) M8X55 W/LK WASHER	5-09000-084-1	05	1	9304-9502	●
2	BOLT; INJ PUMP EXC. REFRIGERATOR CHASSIS(V4R) (A) M8X55 W/LK WASHER	5-09000-084-1	06	1	9304-9502	●
2	BOLT; INJ PUMP EXC. REFRIGERATOR CHASSIS(V4R) (B) M14X29 EYE-BOLT	9-09906-325-1	02	1	9411-9502	●
2	BOLT; INJ PUMP (A) M8X22	5-09000-222-1	01	1	9304-9502	●			●
2	BOLT; INJ PUMP (A) M8X65 W/LK WASHER	8-94205-986-1	06	1	9304-9502				●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	9304-9502		●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	9503-9703		●	●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	9704-		●	●			●
2	BOLT; INJ PUMP (A) M12X70 FLANGE	0-28181-270-0	01	1	9304-9502		●
2	BOLT; INJ PUMP (A) M12X70 FLANGE	0-28181-270-0	01	1	9503-9703		●	●
2	BOLT; INJ PUMP (A) M12X70 FLANGE	0-28181-270-0	01	1	9704-		●	●			●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9304-9502		●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9503-9703		●	●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9704-9809		●	●			●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	9810-		●	●			●
2	BOLT; INJ PUMP (B) M14X27 FLANGE	1-09675-086-0	02	1	9304-9502		●
2	BOLT; INJ PUMP (B) M14X27 FLANGE	1-09675-086-0	02	1	9503-		●	●
2	BOLT; INJ PUMP (A) M10X25 FLANGE	0-28081-025-0	01	1	9704-						●
16	PIPE; INJ NO.1	8-97027-349-0	01	1	9304-9502	●
16	PIPE; INJ NO.1	8-94330-081-0	01	1	9304-9502				●
16	PIPE; INJ NO.1	8-97094-687-0	01	1	9304-9404					●
16	PIPE; INJ NO.1	8-97101-873-2	01	1	9405-9703					●
16	PIPE; INJ NO.1	8-97169-365-0	01	1	9704-					●
16	PIPE; INJ NO.1	8-97071-712-3	01	1	9304-9502		●
16	PIPE; INJ NO.1	8-97123-374-0	01	1	9503-		●	●
16	PIPE; INJ NO.1	8-97134-166-1	01	1	9704-						●
17	PIPE; INJ NO.2	8-97027-350-0	01	1	9304-9502	●
17	PIPE; INJ NO.2	8-94330-082-0	01	1	9304-9502				●
17	PIPE; INJ NO.2	8-97094-688-2	01	1	9304-9703					●
17	PIPE; INJ NO.2	8-97169-366-0	01	1	9704-					●
17	PIPE; INJ NO.2	8-97071-713-3	01	1	9304-9502		●
17	PIPE; INJ NO.2	8-97123-375-0	01	1	9503-		●	●
17	PIPE; INJ NO.2	8-97134-167-1	01	1	9704-						●
18	PIPE; INJ NO.3	8-97027-351-0	01	1	9304-9502	●
18	PIPE; INJ NO.3	8-94330-083-0	01	1	9304-9502				●
18	PIPE; INJ NO.3	8-97094-689-2	01	1	9304-9703					●
18	PIPE; INJ NO.3	8-97169-367-0	01	1	9704-					●
18	PIPE; INJ NO.3	8-97071-714-3	01	1	9304-9502		●
18	PIPE; INJ NO.3	8-97123-376-0	01	1	9503-		●	●
18	PIPE; INJ NO.3	8-97134-168-0	01	1	9704-						●
19	PIPE; INJ NO.4	8-97027-352-0	01	1	9304-9502	●
19	PIPE; INJ NO.4	8-94330-084-0	01	1	9304-9502				●
19	PIPE; INJ NO.4	8-97094-690-2	01	1	9304-9703					●
19	PIPE; INJ NO.4	8-97169-368-0	01	1	9704-					●
19	PIPE; INJ NO.4	8-97071-715-3	01	1	9304-9502		●
19	PIPE; INJ NO.4	8-97123-377-1	01	1	9503-		●	●
19	PIPE; INJ NO.4	8-97134-169-0	01	1	9704-						●
31	NOZZLE ASM; INJ	8-97021-703-1	04	1	9304-9502	●
31	NOZZLE ASM; INJ	8-97119-811-0	04	1	9503-			●
31	NOZZLE ASM; INJ	8-94476-622-0	04	1	9304-9502				●
31	NOZZLE ASM; INJ	8-97034-447-1	04	1	9304-9703					●
31	NOZZLE ASM; INJ	8-97143-196-0	04	1	9704-					●
31	NOZZLE ASM; INJ	8-97094-799-0	04	1	9304-9407		●
31	NOZZLE ASM; INJ	8-97114-017-0	04	1	9408-9502		●
31	NOZZLE ASM; INJ	8-97119-812-0	04	1	9503-		●
31	NOZZLE ASM; INJ	8-97174-112-0	04	1	9704-						●
32	HOLDER ASM; NOZZLE	8-97021-746-0	04	1	9304-9502	●
32	HOLDER ASM; NOZZLE	5-15330-020-0	04	1	9304-9502				●
32	HOLDER ASM; NOZZLE	8-94368-247-0	04	1	9304-					●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9304-9502		●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9503-9703		●	●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9704-		●	●			●
33	NOZZLE; INJ	8-94476-376-0	04	1	9304-9502	●
33	NOZZLE; INJ	8-97119-809-0	04	1	9503-			●
33	NOZZLE; INJ	8-94476-623-0	04	1	9304-9502				●
33	NOZZLE; INJ	8-97081-790-0	04	1	9304-9703					●
33	NOZZLE; INJ	8-97143-190-0	04	1	9704-					●
33	NOZZLE; INJ	8-97094-803-0	04	1	9304-9502		●
33	NOZZLE; INJ	8-97119-810-0	04	1	9503-		●
33	NOZZLE; INJ	8-97174-114-0	04	1	9704-						●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE-BOLT	1-09675-037-1	04	1	9304-9502	●
34	BOLT; EYE,NOZZLE HOLDER	5-15349-001-0	04	1	9304-9502				●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9304-9502		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9503-9703		●	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9704-		●	●			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9304-9502	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9503-9703		●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9704-		●	●			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-802-0	04	1	9304-9502				●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94482-217-0	04	1	9304-					●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	08	1	9304-9502	●			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9304-9502		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9503-9703		●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9704-		●	●			●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	8-94368-306-0	04	1	9304-9502	●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	5-15351-002-0	04	1	9304-9502				●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	04	1	9304-9502	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	9-88410-047-0	04	1	9304-9502				●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9304-9502	●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9503-9703		●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9704-		●	●			●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	9-15339-802-0	04	1	9304-9502				●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94128-963-0	04	1	9304-					●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9304-9502	●	●			●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9503-9703		●	●		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9704-		●	●		●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-94319-320-0	04	1	9304-9502	●
58	FLANGE; INJ,NOZZLE HOLDER	9-15337-016-0	04	1	9304-9502				●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9304-9502		●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9503-9703		●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9704-		●	●			●
60	WASHER; NOZZLE HOLDER ID=8.2	9-09150-508-0	08	1	9304-9502	●			●
62	NUT; NOZZLE HOLDER M8	9-09110-508-0	08	1	9304-9502	●			●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9304-9502		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9503-9703		●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9704-		●	●			●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94129-564-0	01	1	9304-9502	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94476-630-0	01	1	9304-9502				●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94368-249-2	01	1	9304-					●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97027-985-1	01	1	9304-9502		●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9503-9703		●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9704-		●	●			●
64	BOLT; JOINT,FUEL FILTER	9-09906-314-1	01	1	9304-9502	●
64	BOLT; JOINT,FUEL FILTER M8X18 EYE-BOLT	1-09675-037-1	01	1	9304-9502		●
65	GASKET; FUEL FILTER ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9304-9502	●
65	GASKET; FUEL FILTER ID=8.2 OD=13.2	1-09630-082-0	02	1	9304-9407		●
65	GASKET; FUEL FILTER ID=8.6	8-94395-214-0	01	1	9408-9502		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-94125-859-1	04	1	9304-9502	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-94125-859-1	04	1	9503-9703		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	9704-		●	●			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	9304-9502	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	9503-9703		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	9704-		●	●			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-94377-623-0	04	1	9304-9502		●
78	BOLT; BRKT TO C/BL M10X20 W/LK WASHER	0-50041-020-0	02	1	9304-9502	●			●
78	BOLT; BRKT TO C/BL M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9304-9612					●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28680-820-0	02	1	9701-					●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28181-020-0	02	1	9304-9502		●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28181-020-0	02	1	9503-9606		●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	02	1	9607-9703		●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	02	1	9704-		●	●			●
80	BRACKET; PUMP	5-19751-071-0	01	1	9304-9502	●
80	BRACKET; PUMP	8-94341-721-0	01	1	9304-9502				●
80	BRACKET; PUMP (A)	8-94133-761-1	01	1	9304-					●
80	BRACKET; PUMP (B)	8-94133-762-2	01	1	9304-					●
80	BRACKET; PUMP	8-94311-184-1	01	1	9304-9502		●
80	BRACKET; PUMP	8-94311-184-1	01	1	9503-9510		●	●
80	BRACKET; PUMP	8-97136-677-0	01	1	9511-		●	●
80	BRACKET; PUMP	8-97119-363-1	01	1	9704-						●
84	NUT; BRKT TO BRKT M10	9-09110-410-0	01	1	9304-9502	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	9304-9502		●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	9503-9703		●	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	9704-		●	●			●
86	WASHER; LK,BRKT TO BRKT,INJ PUMP MTG ID=10.2	9-09150-510-0	01	1	9304-9502	●
88	WASHER; PL,PUMP & RR BRKT FIX ID=10.5 OD=22	9-09164-610-0	01	1	9304-9502	●
88	WASHER; PL,PUMP & RR BRKT FIX ID=8.4 OD=22	9-09164-708-0	02	1	9304-9502				●
114	CLIP; INJ PIPE	5-15419-013-1	02	1	9304-9502	●
114	CLIP; INJ PIPE	5-15419-013-1	03	1	9304-9502				●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	8-94174-141-0	04	1	9304-9502	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	8-94176-886-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.01	8-94176-887-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.02	8-94176-888-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.03	8-94176-889-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.04	8-94176-890-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.05	8-94176-891-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.06	8-94176-892-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.07	8-94176-893-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.08	8-94176-894-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.09	8-94176-895-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.10	8-94176-896-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.11	8-94176-897-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.12	8-94176-898-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.13	8-94176-899-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.14	8-94176-900-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.16	8-94176-902-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.17	8-94176-903-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.18	8-94176-904-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.19	8-94176-905-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.20	8-94176-906-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.21	8-94176-907-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.22	8-94176-908-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.23	8-94176-909-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.24	8-94176-910-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.25	8-94176-911-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.26	8-94176-912-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.27	8-94176-913-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.28	8-94176-914-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.29	8-94176-915-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.30	8-94176-916-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.31	8-94176-917-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.32	8-94176-918-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.33	8-94176-919-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.34	8-94176-920-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.35	8-94176-921-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.36	8-94176-922-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.37	8-94176-923-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.38	8-94176-924-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.40	8-94176-925-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.41	8-94176-926-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.42	8-94176-927-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.43	8-94176-928-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.44	8-94176-929-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.45	8-94176-930-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.46	8-94176-931-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.47	8-94176-932-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.48	8-94176-933-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.49	8-94176-934-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.50	8-94176-935-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.51	8-94176-936-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.52	8-94176-937-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.53	8-94176-938-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.54	8-94176-939-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.55	8-94176-940-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.56	8-94176-941-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.57	8-94176-942-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.58	8-94176-943-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.59	8-94176-944-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.60	8-94176-945-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.61	8-94176-946-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.62	8-94176-947-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.63	8-94176-948-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.64	8-94176-949-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.65	8-94176-950-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.66	8-94176-951-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.67	8-94176-952-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.68	8-94176-953-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.69	8-94176-954-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.70	8-94176-955-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.71	8-94176-956-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.72	8-94176-957-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.73	8-94176-958-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.74	8-94176-959-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.75	8-94176-960-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.39	8-94178-796-0	AR	1	9304-					●
146	SPACER; NOZZLE	8-94174-183-0	04	1	9304-9502	●
146	SPACER; NOZZLE	8-94344-439-0	04	1	9304-9502		●
146	SPACER; NOZZLE	8-94344-439-0	04	1	9503-9703		●	●
146	SPACER; NOZZLE	8-94344-439-0	04	1	9704-		●	●			●

37 38 140 44 43 46 47 33 149 35 1 72 76 81 78 80 80 16 113 17 113 18 19 31 48 49 51 53 29 32 31 30 29 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. REFRIGERATOR CHASSIS(V4R)	8-97077-491-2	01	1	9304-9502	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-291-2	01	1	9503-9510		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-656-0	01	1	9511-9603		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-771-1	01	1	9604-9811		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97203-369-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. REFRIGERATOR CHASSIS(V4R)	8-97075-425-2	01	1	9304-9410	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. REFRIGERATOR CHASSIS(V4R)	8-97117-559-0	01	1	9411-9502	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-759-1	01	1	9503-9510			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-665-0	01	1	9511-9603			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-774-1	01	1	9604-9811			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97203-372-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97211-445-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97075-360-1	01	1	9304-9409				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97118-525-0	01	1	9410-9502				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16>	8-97080-199-3	01	1	9304-9408					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16>	8-97118-516-0	01	1	9409-9502					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97107-864-1	01	1	9503-9703					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97146-401-0	01	1	9704-					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TACHOMETER<U16>	8-97080-198-3	01	1	9304-9408					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TACHOMETER<U16>	8-97118-515-0	01	1	9409-9502					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-292-1	01	1	9503-9510		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-657-0	01	1	9511-9603		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-772-1	01	1	9604-9811		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97203-370-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97211-444-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-359-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-011-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-354-2	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-007-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97090-361-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97114-012-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-358-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-010-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-355-2	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-008-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-290-2	01	1	9503-9510			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-664-0	01	1	9511-9603			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-773-1	01	1	9604-9811			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97203-371-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-353-2	01	1	9304-9409		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-006-0	01	1	9410-9412		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97115-361-0	01	1	9501-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97139-681-3	01	1	9704-						●
16	PIPE; INJ NO.1	8-97027-349-0	01	1	9304-9502	●
16	PIPE; INJ NO.1	8-94330-081-0	01	1	9304-9502				●
16	PIPE; INJ NO.1	8-97094-687-0	01	1	9304-9404					●
16	PIPE; INJ NO.1	8-97101-873-2	01	1	9405-9703					●
16	PIPE; INJ NO.1	8-97169-365-0	01	1	9704-					●
16	PIPE; INJ NO.1	8-97071-712-3	01	1	9304-9502		●
16	PIPE; INJ NO.1	8-97123-374-0	01	1	9503-		●	●
16	PIPE; INJ NO.1	8-97134-166-1	01	1	9704-						●
17	PIPE; INJ NO.2	8-97027-350-0	01	1	9304-9502	●
17	PIPE; INJ NO.2	8-94330-082-0	01	1	9304-9502				●
17	PIPE; INJ NO.2	8-97094-688-2	01	1	9304-9703					●
17	PIPE; INJ NO.2	8-97169-366-0	01	1	9704-					●
17	PIPE; INJ NO.2	8-97071-713-3	01	1	9304-9502		●
17	PIPE; INJ NO.2	8-97123-375-0	01	1	9503-		●	●
17	PIPE; INJ NO.2	8-97134-167-1	01	1	9704-						●
18	PIPE; INJ NO.3	8-97027-351-0	01	1	9304-9502	●
18	PIPE; INJ NO.3	8-94330-083-0	01	1	9304-9502				●
18	PIPE; INJ NO.3	8-97094-689-2	01	1	9304-9703					●
18	PIPE; INJ NO.3	8-97169-367-0	01	1	9704-					●
18	PIPE; INJ NO.3	8-97071-714-3	01	1	9304-9502		●
18	PIPE; INJ NO.3	8-97123-376-0	01	1	9503-		●	●
18	PIPE; INJ NO.3	8-97134-168-0	01	1	9704-						●
19	PIPE; INJ NO.4	8-97027-352-0	01	1	9304-9502	●
19	PIPE; INJ NO.4	8-94330-084-0	01	1	9304-9502				●
19	PIPE; INJ NO.4	8-97094-690-2	01	1	9304-9703					●
19	PIPE; INJ NO.4	8-97169-368-0	01	1	9704-					●
19	PIPE; INJ NO.4	8-97071-715-3	01	1	9304-9502		●
19	PIPE; INJ NO.4	8-97123-377-1	01	1	9503-		●	●
19	PIPE; INJ NO.4	8-97134-169-0	01	1	9704-						●
29	CLIP; HOSE ID=12	8-94238-610-0	02	1	9304-9502				●	●
29	CLIP; HOSE ID=12	8-94238-610-0	02	1	9503-					●
30	HOSE; RUBBER,FUEL LEAK L=440	8-94330-074-0	01	1	9304-9502				●
30	HOSE; RUBBER,FUEL LEAK L=350	8-94339-948-2	01	1	9304-					●
31	NOZZLE ASM; INJ	8-97021-703-1	04	1	9304-9502	●
31	NOZZLE ASM; INJ	8-97119-811-0	04	1	9503-			●
31	NOZZLE ASM; INJ	8-94476-622-0	04	1	9304-9502				●
31	NOZZLE ASM; INJ	8-97034-447-1	04	1	9304-9703					●
31	NOZZLE ASM; INJ	8-97143-196-0	04	1	9704-					●
31	NOZZLE ASM; INJ	8-97094-799-0	04	1	9304-9407		●
31	NOZZLE ASM; INJ	8-97114-017-0	04	1	9408-9502		●
31	NOZZLE ASM; INJ	8-97119-812-0	04	1	9503-		●
31	NOZZLE ASM; INJ	8-97174-112-0	04	1	9704-						●
32	HOLDER ASM; NOZZLE	8-97021-746-0	04	1	9304-9502	●
32	HOLDER ASM; NOZZLE	5-15330-020-0	04	1	9304-9502				●
32	HOLDER ASM; NOZZLE	8-94368-247-0	04	1	9304-					●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9304-9502		●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9503-9703		●	●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9704-		●	●			●
33	NOZZLE; INJ	8-94476-376-0	04	1	9304-9502	●
33	NOZZLE; INJ	8-97119-809-0	04	1	9503-			●
33	NOZZLE; INJ	8-94476-623-0	04	1	9304-9502				●
33	NOZZLE; INJ	8-97081-790-0	04	1	9304-9703					●
33	NOZZLE; INJ	8-97143-190-0	04	1	9704-					●
33	NOZZLE; INJ	8-97094-803-0	04	1	9304-9502		●
33	NOZZLE; INJ	8-97119-810-0	04	1	9503-		●
33	NOZZLE; INJ	8-97174-114-0	04	1	9704-						●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9304-9502	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9503-9703		●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9704-		●	●			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-802-0	04	1	9304-9502				●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94482-217-0	04	1	9304-					●
37	NUT; CAP,NOZZLE HOLDER	9-15332-801-0	04	1	9304-9502				●
37	NUT; CAP,NOZZLE HOLDER M12	8-94174-344-0	04	1	9304-					●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-81355-031-0	04	1	9304-9502				●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). ID=12 W/4-HOLE	8-94173-488-0	04	1	9304-9502					●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). ID=12 W/2-HOLE	8-94104-993-0	04	1	9503-					●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9304-9502	●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9503-9703		●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9704-		●	●			●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	9-15339-802-0	04	1	9304-9502				●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94128-963-0	04	1	9304-					●
44	SPRING; NOZZLE,NOZZLE HOLDER	9-15343-010-0	04	1	9304-9502				●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94128-964-0	04	1	9304-					●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9304-9502		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9503-9703		●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9704-		●	●			●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9304-9502	●	●			●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9503-9703		●	●		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9704-		●	●		●	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	9-15331-004-0	04	1	9304-9502				●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	8-97062-045-0	04	1	9304-					●
48	WASHER; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-15315-026-0	04	1	9304-9502				●
48	WASHER; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.9 OD=17.5	8-94148-392-2	04	1	9304-9602					●
48	WASHER; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97139-710-0	04	1	9603-					●
49	WASHER; CORRUGATED,NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.1 OD=13.6 T=1.27	9-15315-074-0	04	1	9304-9502				●
49	WASHER; CORRUGATED,NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=5.4 OD=10.6 CORRUGATED WASHER	8-94420-247-0	04	1	9304-					●
51	SHIELD; HEAT,INJ NOZZLE	8-94416-370-1	04	1	9304-9602					●
51	SHIELD; HEAT,INJ NOZZLE	8-97139-711-0	04	1	9603-					●
53	WASHER; HEAT SHIELD	9-15315-028-0	04	1	9304-9502				●
53	WASHER; HEAT SHIELD ID=14.2 OD=17.3	8-94257-593-0	04	1	9304-					●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94129-564-0	01	1	9304-9502	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94476-630-0	01	1	9304-9502				●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94368-249-2	01	1	9304-					●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97027-985-1	01	1	9304-9502		●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9503-9703		●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9704-		●	●			●
72	BOLT; BRKT TO INJ PUMP M8X25 W/LK WASHER	0-50040-825-0	02	1	9304-9502				●
72	BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50051-020-0	02	1	9304-					●
76	BOLT; BRKT TO BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9304-					●
78	BOLT; BRKT TO C/BL M10X20 W/LK WASHER	0-50041-020-0	02	1	9304-9502	●			●
78	BOLT; BRKT TO C/BL M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9304-9612					●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28680-820-0	02	1	9701-					●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28181-020-0	02	1	9304-9502		●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28181-020-0	02	1	9503-9606		●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	02	1	9607-9703		●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	02	1	9704-		●	●			●
80	BRACKET; PUMP	5-19751-071-0	01	1	9304-9502	●
80	BRACKET; PUMP	8-94341-721-0	01	1	9304-9502				●
80	BRACKET; PUMP (A)	8-94133-761-1	01	1	9304-					●
80	BRACKET; PUMP (B)	8-94133-762-2	01	1	9304-					●
80	BRACKET; PUMP	8-94311-184-1	01	1	9304-9502		●
80	BRACKET; PUMP	8-94311-184-1	01	1	9503-9510		●	●
80	BRACKET; PUMP	8-97136-677-0	01	1	9511-		●	●
80	BRACKET; PUMP	8-97119-363-1	01	1	9704-						●
81	WASHER; PL,BRKT TO PUMP ID=8.4 OD=22	9-09164-708-0	02	1	9304-					●
113	CLIP; INJ PIPE	5-15419-013-1	02	1	9304-					●
113	CLIP; INJ PIPE	8-94388-824-3	04	1	9304-9403		●
113	CLIP; INJ PIPE	8-97108-317-0	04	1	9404-9502		●
113	CLIP; INJ PIPE	8-97108-317-0	04	1	9503-9804		●	●
113	CLIP; INJ PIPE	8-97191-409-0	04	1	9805-9810		●	●
113	CLIP; INJ PIPE	8-97213-050-0	04	1	9811-		●	●
113	CLIP; INJ PIPE	8-97108-317-0	02	1	9704-9804						●
113	CLIP; INJ PIPE	8-97191-409-0	02	1	9805-9810						●
113	CLIP; INJ PIPE	8-97213-050-0	02	1	9811-						●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	8-94176-886-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.01	8-94176-887-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.02	8-94176-888-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.03	8-94176-889-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.04	8-94176-890-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.05	8-94176-891-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.06	8-94176-892-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.07	8-94176-893-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.08	8-94176-894-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.09	8-94176-895-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.10	8-94176-896-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.11	8-94176-897-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.12	8-94176-898-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.13	8-94176-899-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.14	8-94176-900-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.16	8-94176-902-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.17	8-94176-903-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.18	8-94176-904-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.19	8-94176-905-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.20	8-94176-906-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.21	8-94176-907-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.22	8-94176-908-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.23	8-94176-909-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.24	8-94176-910-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.25	8-94176-911-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.26	8-94176-912-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.27	8-94176-913-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.28	8-94176-914-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.29	8-94176-915-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.30	8-94176-916-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.31	8-94176-917-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.32	8-94176-918-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.33	8-94176-919-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.34	8-94176-920-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.35	8-94176-921-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.36	8-94176-922-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.37	8-94176-923-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.38	8-94176-924-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.40	8-94176-925-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.41	8-94176-926-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.42	8-94176-927-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.43	8-94176-928-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.44	8-94176-929-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.45	8-94176-930-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.46	8-94176-931-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.47	8-94176-932-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.48	8-94176-933-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.49	8-94176-934-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.50	8-94176-935-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.51	8-94176-936-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.52	8-94176-937-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.53	8-94176-938-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.54	8-94176-939-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.55	8-94176-940-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.56	8-94176-941-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.57	8-94176-942-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.58	8-94176-943-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.59	8-94176-944-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.60	8-94176-945-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.61	8-94176-946-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.62	8-94176-947-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.63	8-94176-948-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.64	8-94176-949-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.65	8-94176-950-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.66	8-94176-951-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.67	8-94176-952-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.68	8-94176-953-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.69	8-94176-954-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.70	8-94176-955-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.71	8-94176-956-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.72	8-94176-957-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.73	8-94176-958-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.74	8-94176-959-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.75	8-94176-960-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.39	8-94178-796-0	AR	1	9304-					●
149	SCREW; SETTING,NOZZLE HOLDER	8-94424-217-0	04	1	9304-					●

2 161 1 2 158 77 77 78 80 84 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. REFRIGERATOR CHASSIS(V4R)	8-97077-491-2	01	1	9304-9502	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-291-2	01	1	9503-9510		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-656-0	01	1	9511-9603		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-771-1	01	1	9604-9811		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97203-369-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. REFRIGERATOR CHASSIS(V4R)	8-97075-425-2	01	1	9304-9410	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. REFRIGERATOR CHASSIS(V4R)	8-97117-559-0	01	1	9411-9502	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-759-1	01	1	9503-9510			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-665-0	01	1	9511-9603			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-774-1	01	1	9604-9811			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97203-372-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97211-445-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97075-360-1	01	1	9304-9409				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97118-525-0	01	1	9410-9502				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16>	8-97080-199-3	01	1	9304-9408					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16>	8-97118-516-0	01	1	9409-9502					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97107-864-1	01	1	9503-9703					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97146-401-0	01	1	9704-					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TACHOMETER<U16>	8-97080-198-3	01	1	9304-9408					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TACHOMETER<U16>	8-97118-515-0	01	1	9409-9502					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-292-1	01	1	9503-9510		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-657-0	01	1	9511-9603		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-772-1	01	1	9604-9811		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97203-370-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97211-444-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-359-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-011-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-354-2	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-007-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97090-361-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97114-012-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-358-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-010-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-355-2	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-008-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-290-2	01	1	9503-9510			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-664-0	01	1	9511-9603			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-773-1	01	1	9604-9811			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97203-371-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-353-2	01	1	9304-9409		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-006-0	01	1	9410-9412		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97115-361-0	01	1	9501-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97139-681-3	01	1	9704-						●
2	BOLT; INJ PUMP (C) M14X30	8-97203-957-0	01	1	9812-		●	●
2	BOLT; INJ PUMP REFRIGERATOR CHASSIS(V4R) (A) M8X55 W/LK WASHER	5-09000-084-1	05	1	9304-9502	●
2	BOLT; INJ PUMP EXC. REFRIGERATOR CHASSIS(V4R) (A) M8X55 W/LK WASHER	5-09000-084-1	06	1	9304-9502	●
2	BOLT; INJ PUMP EXC. REFRIGERATOR CHASSIS(V4R) (B) M14X29 EYE-BOLT	9-09906-325-1	02	1	9411-9502	●
2	BOLT; INJ PUMP (A) M8X22	5-09000-222-1	01	1	9304-9502	●			●
2	BOLT; INJ PUMP (A) M8X65 W/LK WASHER	8-94205-986-1	06	1	9304-9502				●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	9304-9502		●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	9503-9703		●	●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	9704-		●	●			●
2	BOLT; INJ PUMP (A) M12X70 FLANGE	0-28181-270-0	01	1	9304-9502		●
2	BOLT; INJ PUMP (A) M12X70 FLANGE	0-28181-270-0	01	1	9503-9703		●	●
2	BOLT; INJ PUMP (A) M12X70 FLANGE	0-28181-270-0	01	1	9704-		●	●			●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9304-9502		●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9503-9703		●	●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9704-9809		●	●			●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	9810-		●	●			●
2	BOLT; INJ PUMP (B) M14X27 FLANGE	1-09675-086-0	02	1	9304-9502		●
2	BOLT; INJ PUMP (B) M14X27 FLANGE	1-09675-086-0	02	1	9503-		●	●
2	BOLT; INJ PUMP (A) M10X25 FLANGE	0-28081-025-0	01	1	9704-						●
77	RUBBER; SPACE,INJ PUMP (A)	8-97029-109-3	01	1	9304-9406		●
77	RUBBER; SPACE,INJ PUMP (B)	8-97114-301-0	01	1	9407-9502		●
77	RUBBER; SPACE,INJ PUMP	8-97029-108-0	01	1	9503-			●
78	BOLT; BRKT TO C/BL M10X20 W/LK WASHER	0-50041-020-0	02	1	9304-9502	●			●
78	BOLT; BRKT TO C/BL M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9304-9612					●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28680-820-0	02	1	9701-					●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28181-020-0	02	1	9304-9502		●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28181-020-0	02	1	9503-9606		●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	02	1	9607-9703		●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	02	1	9704-		●	●			●
80	BRACKET; PUMP	5-19751-071-0	01	1	9304-9502	●
80	BRACKET; PUMP	8-94341-721-0	01	1	9304-9502				●
80	BRACKET; PUMP (A)	8-94133-761-1	01	1	9304-					●
80	BRACKET; PUMP (B)	8-94133-762-2	01	1	9304-					●
80	BRACKET; PUMP	8-94311-184-1	01	1	9304-9502		●
80	BRACKET; PUMP	8-94311-184-1	01	1	9503-9510		●	●
80	BRACKET; PUMP	8-97136-677-0	01	1	9511-		●	●
80	BRACKET; PUMP	8-97119-363-1	01	1	9704-						●
84	NUT; BRKT TO BRKT M10	9-09110-410-0	01	1	9304-9502	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	9304-9502		●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	9503-9703		●	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	9704-		●	●			●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	9304-9502		●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	9503-9703		●	●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	9704-		●	●			●
161	STUD; INJ PUMP M10X36.5 L=48.5	8-94396-145-0	02	1	9304-9703		●
161	STUD; INJ PUMP M10X36.5 L=48.5	8-94396-145-0	02	1	9704-		●				●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	9503-			●

29 30 29 63 62 60 54 48 49 97 53 58 31 31 32 34 36 36 37 38 39 40 42 41 43 44 45 47 33 35 2 1 88 72 78 80 114 16 17 18 19 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. REFRIGERATOR CHASSIS(V4R)	8-97077-491-2	01	1	9304-9502	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-291-2	01	1	9503-9510		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-656-0	01	1	9511-9603		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-771-1	01	1	9604-9811		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97203-369-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. REFRIGERATOR CHASSIS(V4R)	8-97075-425-2	01	1	9304-9410	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. REFRIGERATOR CHASSIS(V4R)	8-97117-559-0	01	1	9411-9502	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-759-1	01	1	9503-9510			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-665-0	01	1	9511-9603			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-774-1	01	1	9604-9811			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97203-372-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97211-445-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97075-360-1	01	1	9304-9409				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97118-525-0	01	1	9410-9502				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16>	8-97080-199-3	01	1	9304-9408					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16>	8-97118-516-0	01	1	9409-9502					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97107-864-1	01	1	9503-9703					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97146-401-0	01	1	9704-					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TACHOMETER<U16>	8-97080-198-3	01	1	9304-9408					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TACHOMETER<U16>	8-97118-515-0	01	1	9409-9502					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-292-1	01	1	9503-9510		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-657-0	01	1	9511-9603		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-772-1	01	1	9604-9811		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97203-370-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97211-444-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-359-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-011-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-354-2	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-007-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97090-361-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97114-012-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-358-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-010-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-355-2	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-008-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-290-2	01	1	9503-9510			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-664-0	01	1	9511-9603			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-773-1	01	1	9604-9811			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97203-371-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-353-2	01	1	9304-9409		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-006-0	01	1	9410-9412		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97115-361-0	01	1	9501-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97139-681-3	01	1	9704-						●
2	BOLT; INJ PUMP (C) M14X30	8-97203-957-0	01	1	9812-		●	●
2	BOLT; INJ PUMP REFRIGERATOR CHASSIS(V4R) (A) M8X55 W/LK WASHER	5-09000-084-1	05	1	9304-9502	●
2	BOLT; INJ PUMP EXC. REFRIGERATOR CHASSIS(V4R) (A) M8X55 W/LK WASHER	5-09000-084-1	06	1	9304-9502	●
2	BOLT; INJ PUMP EXC. REFRIGERATOR CHASSIS(V4R) (B) M14X29 EYE-BOLT	9-09906-325-1	02	1	9411-9502	●
2	BOLT; INJ PUMP (A) M8X22	5-09000-222-1	01	1	9304-9502	●			●
2	BOLT; INJ PUMP (A) M8X65 W/LK WASHER	8-94205-986-1	06	1	9304-9502				●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	9304-9502		●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	9503-9703		●	●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	9704-		●	●			●
2	BOLT; INJ PUMP (A) M12X70 FLANGE	0-28181-270-0	01	1	9304-9502		●
2	BOLT; INJ PUMP (A) M12X70 FLANGE	0-28181-270-0	01	1	9503-9703		●	●
2	BOLT; INJ PUMP (A) M12X70 FLANGE	0-28181-270-0	01	1	9704-		●	●			●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9304-9502		●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9503-9703		●	●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9704-9809		●	●			●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	9810-		●	●			●
2	BOLT; INJ PUMP (B) M14X27 FLANGE	1-09675-086-0	02	1	9304-9502		●
2	BOLT; INJ PUMP (B) M14X27 FLANGE	1-09675-086-0	02	1	9503-		●	●
2	BOLT; INJ PUMP (A) M10X25 FLANGE	0-28081-025-0	01	1	9704-						●
16	PIPE; INJ NO.1	8-97027-349-0	01	1	9304-9502	●
16	PIPE; INJ NO.1	8-94330-081-0	01	1	9304-9502				●
16	PIPE; INJ NO.1	8-97094-687-0	01	1	9304-9404					●
16	PIPE; INJ NO.1	8-97101-873-2	01	1	9405-9703					●
16	PIPE; INJ NO.1	8-97169-365-0	01	1	9704-					●
16	PIPE; INJ NO.1	8-97071-712-3	01	1	9304-9502		●
16	PIPE; INJ NO.1	8-97123-374-0	01	1	9503-		●	●
16	PIPE; INJ NO.1	8-97134-166-1	01	1	9704-						●
17	PIPE; INJ NO.2	8-97027-350-0	01	1	9304-9502	●
17	PIPE; INJ NO.2	8-94330-082-0	01	1	9304-9502				●
17	PIPE; INJ NO.2	8-97094-688-2	01	1	9304-9703					●
17	PIPE; INJ NO.2	8-97169-366-0	01	1	9704-					●
17	PIPE; INJ NO.2	8-97071-713-3	01	1	9304-9502		●
17	PIPE; INJ NO.2	8-97123-375-0	01	1	9503-		●	●
17	PIPE; INJ NO.2	8-97134-167-1	01	1	9704-						●
18	PIPE; INJ NO.3	8-97027-351-0	01	1	9304-9502	●
18	PIPE; INJ NO.3	8-94330-083-0	01	1	9304-9502				●
18	PIPE; INJ NO.3	8-97094-689-2	01	1	9304-9703					●
18	PIPE; INJ NO.3	8-97169-367-0	01	1	9704-					●
18	PIPE; INJ NO.3	8-97071-714-3	01	1	9304-9502		●
18	PIPE; INJ NO.3	8-97123-376-0	01	1	9503-		●	●
18	PIPE; INJ NO.3	8-97134-168-0	01	1	9704-						●
19	PIPE; INJ NO.4	8-97027-352-0	01	1	9304-9502	●
19	PIPE; INJ NO.4	8-94330-084-0	01	1	9304-9502				●
19	PIPE; INJ NO.4	8-97094-690-2	01	1	9304-9703					●
19	PIPE; INJ NO.4	8-97169-368-0	01	1	9704-					●
19	PIPE; INJ NO.4	8-97071-715-3	01	1	9304-9502		●
19	PIPE; INJ NO.4	8-97123-377-1	01	1	9503-		●	●
19	PIPE; INJ NO.4	8-97134-169-0	01	1	9704-						●
29	CLIP; HOSE ID=12	8-94238-610-0	02	1	9304-9502				●	●
29	CLIP; HOSE ID=12	8-94238-610-0	02	1	9503-					●
30	HOSE; RUBBER,FUEL LEAK L=440	8-94330-074-0	01	1	9304-9502				●
30	HOSE; RUBBER,FUEL LEAK L=350	8-94339-948-2	01	1	9304-					●
31	NOZZLE ASM; INJ	8-97021-703-1	04	1	9304-9502	●
31	NOZZLE ASM; INJ	8-97119-811-0	04	1	9503-			●
31	NOZZLE ASM; INJ	8-94476-622-0	04	1	9304-9502				●
31	NOZZLE ASM; INJ	8-97034-447-1	04	1	9304-9703					●
31	NOZZLE ASM; INJ	8-97143-196-0	04	1	9704-					●
31	NOZZLE ASM; INJ	8-97094-799-0	04	1	9304-9407		●
31	NOZZLE ASM; INJ	8-97114-017-0	04	1	9408-9502		●
31	NOZZLE ASM; INJ	8-97119-812-0	04	1	9503-		●
31	NOZZLE ASM; INJ	8-97174-112-0	04	1	9704-						●
32	HOLDER ASM; NOZZLE	8-97021-746-0	04	1	9304-9502	●
32	HOLDER ASM; NOZZLE	5-15330-020-0	04	1	9304-9502				●
32	HOLDER ASM; NOZZLE	8-94368-247-0	04	1	9304-					●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9304-9502		●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9503-9703		●	●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9704-		●	●			●
33	NOZZLE; INJ	8-94476-376-0	04	1	9304-9502	●
33	NOZZLE; INJ	8-97119-809-0	04	1	9503-			●
33	NOZZLE; INJ	8-94476-623-0	04	1	9304-9502				●
33	NOZZLE; INJ	8-97081-790-0	04	1	9304-9703					●
33	NOZZLE; INJ	8-97143-190-0	04	1	9704-					●
33	NOZZLE; INJ	8-97094-803-0	04	1	9304-9502		●
33	NOZZLE; INJ	8-97119-810-0	04	1	9503-		●
33	NOZZLE; INJ	8-97174-114-0	04	1	9704-						●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE-BOLT	1-09675-037-1	04	1	9304-9502	●
34	BOLT; EYE,NOZZLE HOLDER	5-15349-001-0	04	1	9304-9502				●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9304-9502		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9503-9703		●	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9704-		●	●			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9304-9502	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9503-9703		●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9704-		●	●			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-802-0	04	1	9304-9502				●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94482-217-0	04	1	9304-					●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	08	1	9304-9502	●			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9304-9502		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9503-9703		●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9704-		●	●			●
37	NUT; CAP,NOZZLE HOLDER	9-15332-801-0	04	1	9304-9502				●
37	NUT; CAP,NOZZLE HOLDER M12	8-94174-344-0	04	1	9304-					●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-81355-031-0	04	1	9304-9502				●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). ID=12 W/4-HOLE	8-94173-488-0	04	1	9304-9502					●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). ID=12 W/2-HOLE	8-94104-993-0	04	1	9503-					●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	9-88410-173-0	04	1	9304-9502				●
40	NUT; ADJ SCREW,NOZZLE HOLDER	9-88410-174-0	04	1	9304-9502				●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	8-94368-306-0	04	1	9304-9502	●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	5-15351-002-0	04	1	9304-9502				●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	04	1	9304-9502	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	9-88410-047-0	04	1	9304-9502				●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9304-9502	●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9503-9703		●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9704-		●	●			●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	9-15339-802-0	04	1	9304-9502				●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94128-963-0	04	1	9304-					●
44	SPRING; NOZZLE,NOZZLE HOLDER	9-15343-010-0	04	1	9304-9502				●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94128-964-0	04	1	9304-					●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9304-9502		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9503-9703		●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9704-		●	●			●
45	ROD; PUSH,NOZZLE HOLDER	9-15341-002-0	04	1	9304-9502				●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	9-15331-004-0	04	1	9304-9502				●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	8-97062-045-0	04	1	9304-					●
48	WASHER; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-15315-026-0	04	1	9304-9502				●
48	WASHER; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.9 OD=17.5	8-94148-392-2	04	1	9304-9602					●
48	WASHER; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97139-710-0	04	1	9603-					●
49	WASHER; CORRUGATED,NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.1 OD=13.6 T=1.27	9-15315-074-0	04	1	9304-9502				●
49	WASHER; CORRUGATED,NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=5.4 OD=10.6 CORRUGATED WASHER	8-94420-247-0	04	1	9304-					●
53	WASHER; HEAT SHIELD	9-15315-028-0	04	1	9304-9502				●
53	WASHER; HEAT SHIELD ID=14.2 OD=17.3	8-94257-593-0	04	1	9304-					●
54	COVER; DUST,NOZZLE HOLDER	9-15339-044-0	04	1	9304-9502				●
58	FLANGE; INJ,NOZZLE HOLDER	8-94319-320-0	04	1	9304-9502	●
58	FLANGE; INJ,NOZZLE HOLDER	9-15337-016-0	04	1	9304-9502				●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9304-9502		●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9503-9703		●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9704-		●	●			●
60	WASHER; NOZZLE HOLDER ID=8.2	9-09150-508-0	08	1	9304-9502	●			●
62	NUT; NOZZLE HOLDER M8	9-09110-508-0	08	1	9304-9502	●			●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9304-9502		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9503-9703		●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9704-		●	●			●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94129-564-0	01	1	9304-9502	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94476-630-0	01	1	9304-9502				●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94368-249-2	01	1	9304-					●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97027-985-1	01	1	9304-9502		●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9503-9703		●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9704-		●	●			●
72	BOLT; BRKT TO INJ PUMP M8X25 W/LK WASHER	0-50040-825-0	02	1	9304-9502				●
72	BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50051-020-0	02	1	9304-					●
78	BOLT; BRKT TO C/BL M10X20 W/LK WASHER	0-50041-020-0	02	1	9304-9502	●			●
78	BOLT; BRKT TO C/BL M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9304-9612					●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28680-820-0	02	1	9701-					●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28181-020-0	02	1	9304-9502		●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28181-020-0	02	1	9503-9606		●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	02	1	9607-9703		●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	02	1	9704-		●	●			●
80	BRACKET; PUMP	5-19751-071-0	01	1	9304-9502	●
80	BRACKET; PUMP	8-94341-721-0	01	1	9304-9502				●
80	BRACKET; PUMP (A)	8-94133-761-1	01	1	9304-					●
80	BRACKET; PUMP (B)	8-94133-762-2	01	1	9304-					●
80	BRACKET; PUMP	8-94311-184-1	01	1	9304-9502		●
80	BRACKET; PUMP	8-94311-184-1	01	1	9503-9510		●	●
80	BRACKET; PUMP	8-97136-677-0	01	1	9511-		●	●
80	BRACKET; PUMP	8-97119-363-1	01	1	9704-						●
88	WASHER; PL,PUMP & RR BRKT FIX ID=10.5 OD=22	9-09164-610-0	01	1	9304-9502	●
88	WASHER; PL,PUMP & RR BRKT FIX ID=8.4 OD=22	9-09164-708-0	02	1	9304-9502				●
97	NOZZLE; HEAT SHIELD	9-15315-027-0	04	1	9304-9502				●
114	CLIP; INJ PIPE	5-15419-013-1	02	1	9304-9502	●
114	CLIP; INJ PIPE	5-15419-013-1	03	1	9304-9502				●

113 62 31 66 66 32 34 31 58 140 44 43 146 46 33 35 17 16 18 19 64 65 63 64 65 63 65 36 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	PIPE; INJ NO.1	8-97027-349-0	01	1	9304-9502	●
16	PIPE; INJ NO.1	8-94330-081-0	01	1	9304-9502				●
16	PIPE; INJ NO.1	8-97094-687-0	01	1	9304-9404					●
16	PIPE; INJ NO.1	8-97101-873-2	01	1	9405-9703					●
16	PIPE; INJ NO.1	8-97169-365-0	01	1	9704-					●
16	PIPE; INJ NO.1	8-97071-712-3	01	1	9304-9502		●
16	PIPE; INJ NO.1	8-97123-374-0	01	1	9503-		●	●
16	PIPE; INJ NO.1	8-97134-166-1	01	1	9704-						●
17	PIPE; INJ NO.2	8-97027-350-0	01	1	9304-9502	●
17	PIPE; INJ NO.2	8-94330-082-0	01	1	9304-9502				●
17	PIPE; INJ NO.2	8-97094-688-2	01	1	9304-9703					●
17	PIPE; INJ NO.2	8-97169-366-0	01	1	9704-					●
17	PIPE; INJ NO.2	8-97071-713-3	01	1	9304-9502		●
17	PIPE; INJ NO.2	8-97123-375-0	01	1	9503-		●	●
17	PIPE; INJ NO.2	8-97134-167-1	01	1	9704-						●
18	PIPE; INJ NO.3	8-97027-351-0	01	1	9304-9502	●
18	PIPE; INJ NO.3	8-94330-083-0	01	1	9304-9502				●
18	PIPE; INJ NO.3	8-97094-689-2	01	1	9304-9703					●
18	PIPE; INJ NO.3	8-97169-367-0	01	1	9704-					●
18	PIPE; INJ NO.3	8-97071-714-3	01	1	9304-9502		●
18	PIPE; INJ NO.3	8-97123-376-0	01	1	9503-		●	●
18	PIPE; INJ NO.3	8-97134-168-0	01	1	9704-						●
19	PIPE; INJ NO.4	8-97027-352-0	01	1	9304-9502	●
19	PIPE; INJ NO.4	8-94330-084-0	01	1	9304-9502				●
19	PIPE; INJ NO.4	8-97094-690-2	01	1	9304-9703					●
19	PIPE; INJ NO.4	8-97169-368-0	01	1	9704-					●
19	PIPE; INJ NO.4	8-97071-715-3	01	1	9304-9502		●
19	PIPE; INJ NO.4	8-97123-377-1	01	1	9503-		●	●
19	PIPE; INJ NO.4	8-97134-169-0	01	1	9704-						●
31	NOZZLE ASM; INJ	8-97021-703-1	04	1	9304-9502	●
31	NOZZLE ASM; INJ	8-97119-811-0	04	1	9503-			●
31	NOZZLE ASM; INJ	8-94476-622-0	04	1	9304-9502				●
31	NOZZLE ASM; INJ	8-97034-447-1	04	1	9304-9703					●
31	NOZZLE ASM; INJ	8-97143-196-0	04	1	9704-					●
31	NOZZLE ASM; INJ	8-97094-799-0	04	1	9304-9407		●
31	NOZZLE ASM; INJ	8-97114-017-0	04	1	9408-9502		●
31	NOZZLE ASM; INJ	8-97119-812-0	04	1	9503-		●
31	NOZZLE ASM; INJ	8-97174-112-0	04	1	9704-						●
32	HOLDER ASM; NOZZLE	8-97021-746-0	04	1	9304-9502	●
32	HOLDER ASM; NOZZLE	5-15330-020-0	04	1	9304-9502				●
32	HOLDER ASM; NOZZLE	8-94368-247-0	04	1	9304-					●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9304-9502		●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9503-9703		●	●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9704-		●	●			●
33	NOZZLE; INJ	8-94476-376-0	04	1	9304-9502	●
33	NOZZLE; INJ	8-97119-809-0	04	1	9503-			●
33	NOZZLE; INJ	8-94476-623-0	04	1	9304-9502				●
33	NOZZLE; INJ	8-97081-790-0	04	1	9304-9703					●
33	NOZZLE; INJ	8-97143-190-0	04	1	9704-					●
33	NOZZLE; INJ	8-97094-803-0	04	1	9304-9502		●
33	NOZZLE; INJ	8-97119-810-0	04	1	9503-		●
33	NOZZLE; INJ	8-97174-114-0	04	1	9704-						●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE-BOLT	1-09675-037-1	04	1	9304-9502	●
34	BOLT; EYE,NOZZLE HOLDER	5-15349-001-0	04	1	9304-9502				●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9304-9502		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9503-9703		●	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9704-		●	●			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9304-9502	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9503-9703		●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9704-		●	●			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-802-0	04	1	9304-9502				●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94482-217-0	04	1	9304-					●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	08	1	9304-9502	●			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9304-9502		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9503-9703		●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9704-		●	●			●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9304-9502	●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9503-9703		●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9704-		●	●			●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	9-15339-802-0	04	1	9304-9502				●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94128-963-0	04	1	9304-					●
44	SPRING; NOZZLE,NOZZLE HOLDER	9-15343-010-0	04	1	9304-9502				●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94128-964-0	04	1	9304-					●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9304-9502		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9503-9703		●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9704-		●	●			●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9304-9502	●	●			●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9503-9703		●	●		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9704-		●	●		●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-94319-320-0	04	1	9304-9502	●
58	FLANGE; INJ,NOZZLE HOLDER	9-15337-016-0	04	1	9304-9502				●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9304-9502		●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9503-9703		●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9704-		●	●			●
62	NUT; NOZZLE HOLDER M8	9-09110-508-0	08	1	9304-9502	●			●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9304-9502		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9503-9703		●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9704-		●	●			●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94129-564-0	01	1	9304-9502	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94476-630-0	01	1	9304-9502				●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94368-249-2	01	1	9304-					●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97027-985-1	01	1	9304-9502		●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9503-9703		●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9704-		●	●			●
64	BOLT; JOINT,FUEL FILTER	9-09906-314-1	01	1	9304-9502	●
64	BOLT; JOINT,FUEL FILTER M8X18 EYE-BOLT	1-09675-037-1	01	1	9304-9502		●
65	GASKET; FUEL FILTER ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9304-9502	●
65	GASKET; FUEL FILTER ID=8.2 OD=13.2	1-09630-082-0	02	1	9304-9407		●
65	GASKET; FUEL FILTER ID=8.6	8-94395-214-0	01	1	9408-9502		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-94125-859-1	04	1	9304-9502	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-94125-859-1	04	1	9503-9703		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	9704-		●	●			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	9304-9502	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	9503-9703		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	9704-		●	●			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-94377-623-0	04	1	9304-9502		●
113	CLIP; INJ PIPE	5-15419-013-1	02	1	9304-					●
113	CLIP; INJ PIPE	8-94388-824-3	04	1	9304-9403		●
113	CLIP; INJ PIPE	8-97108-317-0	04	1	9404-9502		●
113	CLIP; INJ PIPE	8-97108-317-0	04	1	9503-9804		●	●
113	CLIP; INJ PIPE	8-97191-409-0	04	1	9805-9810		●	●
113	CLIP; INJ PIPE	8-97213-050-0	04	1	9811-		●	●
113	CLIP; INJ PIPE	8-97108-317-0	02	1	9704-9804						●
113	CLIP; INJ PIPE	8-97191-409-0	02	1	9805-9810						●
113	CLIP; INJ PIPE	8-97213-050-0	02	1	9811-						●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	8-94176-886-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.01	8-94176-887-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.02	8-94176-888-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.03	8-94176-889-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.04	8-94176-890-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.05	8-94176-891-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.06	8-94176-892-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.07	8-94176-893-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.08	8-94176-894-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.09	8-94176-895-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.10	8-94176-896-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.11	8-94176-897-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.12	8-94176-898-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.13	8-94176-899-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.14	8-94176-900-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.16	8-94176-902-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.17	8-94176-903-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.18	8-94176-904-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.19	8-94176-905-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.20	8-94176-906-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.21	8-94176-907-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.22	8-94176-908-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.23	8-94176-909-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.24	8-94176-910-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.25	8-94176-911-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.26	8-94176-912-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.27	8-94176-913-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.28	8-94176-914-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.29	8-94176-915-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.30	8-94176-916-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.31	8-94176-917-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.32	8-94176-918-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.33	8-94176-919-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.34	8-94176-920-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.35	8-94176-921-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.36	8-94176-922-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.37	8-94176-923-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.38	8-94176-924-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.40	8-94176-925-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.41	8-94176-926-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.42	8-94176-927-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.43	8-94176-928-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.44	8-94176-929-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.45	8-94176-930-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.46	8-94176-931-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.47	8-94176-932-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.48	8-94176-933-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.49	8-94176-934-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.50	8-94176-935-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.51	8-94176-936-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.52	8-94176-937-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.53	8-94176-938-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.54	8-94176-939-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.55	8-94176-940-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.56	8-94176-941-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.57	8-94176-942-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.58	8-94176-943-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.59	8-94176-944-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.60	8-94176-945-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.61	8-94176-946-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.62	8-94176-947-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.63	8-94176-948-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.64	8-94176-949-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.65	8-94176-950-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.66	8-94176-951-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.67	8-94176-952-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.68	8-94176-953-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.69	8-94176-954-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.70	8-94176-955-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.71	8-94176-956-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.72	8-94176-957-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.73	8-94176-958-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.74	8-94176-959-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.75	8-94176-960-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.39	8-94178-796-0	AR	1	9304-					●
146	SPACER; NOZZLE	8-94174-183-0	04	1	9304-9502	●
146	SPACER; NOZZLE	8-94344-439-0	04	1	9304-9502		●
146	SPACER; NOZZLE	8-94344-439-0	04	1	9503-9703		●	●
146	SPACER; NOZZLE	8-94344-439-0	04	1	9704-		●	●			●

18 17 19 16 62 31 36 63 91 170 32 34 66 66 58 140 44 43 146 46 33 35 31 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	PIPE; INJ NO.1	8-97027-349-0	01	1	9304-9502	●
16	PIPE; INJ NO.1	8-94330-081-0	01	1	9304-9502				●
16	PIPE; INJ NO.1	8-97094-687-0	01	1	9304-9404					●
16	PIPE; INJ NO.1	8-97101-873-2	01	1	9405-9703					●
16	PIPE; INJ NO.1	8-97169-365-0	01	1	9704-					●
16	PIPE; INJ NO.1	8-97071-712-3	01	1	9304-9502		●
16	PIPE; INJ NO.1	8-97123-374-0	01	1	9503-		●	●
16	PIPE; INJ NO.1	8-97134-166-1	01	1	9704-						●
17	PIPE; INJ NO.2	8-97027-350-0	01	1	9304-9502	●
17	PIPE; INJ NO.2	8-94330-082-0	01	1	9304-9502				●
17	PIPE; INJ NO.2	8-97094-688-2	01	1	9304-9703					●
17	PIPE; INJ NO.2	8-97169-366-0	01	1	9704-					●
17	PIPE; INJ NO.2	8-97071-713-3	01	1	9304-9502		●
17	PIPE; INJ NO.2	8-97123-375-0	01	1	9503-		●	●
17	PIPE; INJ NO.2	8-97134-167-1	01	1	9704-						●
18	PIPE; INJ NO.3	8-97027-351-0	01	1	9304-9502	●
18	PIPE; INJ NO.3	8-94330-083-0	01	1	9304-9502				●
18	PIPE; INJ NO.3	8-97094-689-2	01	1	9304-9703					●
18	PIPE; INJ NO.3	8-97169-367-0	01	1	9704-					●
18	PIPE; INJ NO.3	8-97071-714-3	01	1	9304-9502		●
18	PIPE; INJ NO.3	8-97123-376-0	01	1	9503-		●	●
18	PIPE; INJ NO.3	8-97134-168-0	01	1	9704-						●
19	PIPE; INJ NO.4	8-97027-352-0	01	1	9304-9502	●
19	PIPE; INJ NO.4	8-94330-084-0	01	1	9304-9502				●
19	PIPE; INJ NO.4	8-97094-690-2	01	1	9304-9703					●
19	PIPE; INJ NO.4	8-97169-368-0	01	1	9704-					●
19	PIPE; INJ NO.4	8-97071-715-3	01	1	9304-9502		●
19	PIPE; INJ NO.4	8-97123-377-1	01	1	9503-		●	●
19	PIPE; INJ NO.4	8-97134-169-0	01	1	9704-						●
31	NOZZLE ASM; INJ	8-97021-703-1	04	1	9304-9502	●
31	NOZZLE ASM; INJ	8-97119-811-0	04	1	9503-			●
31	NOZZLE ASM; INJ	8-94476-622-0	04	1	9304-9502				●
31	NOZZLE ASM; INJ	8-97034-447-1	04	1	9304-9703					●
31	NOZZLE ASM; INJ	8-97143-196-0	04	1	9704-					●
31	NOZZLE ASM; INJ	8-97094-799-0	04	1	9304-9407		●
31	NOZZLE ASM; INJ	8-97114-017-0	04	1	9408-9502		●
31	NOZZLE ASM; INJ	8-97119-812-0	04	1	9503-		●
31	NOZZLE ASM; INJ	8-97174-112-0	04	1	9704-						●
32	HOLDER ASM; NOZZLE	8-97021-746-0	04	1	9304-9502	●
32	HOLDER ASM; NOZZLE	5-15330-020-0	04	1	9304-9502				●
32	HOLDER ASM; NOZZLE	8-94368-247-0	04	1	9304-					●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9304-9502		●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9503-9703		●	●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9704-		●	●			●
33	NOZZLE; INJ	8-94476-376-0	04	1	9304-9502	●
33	NOZZLE; INJ	8-97119-809-0	04	1	9503-			●
33	NOZZLE; INJ	8-94476-623-0	04	1	9304-9502				●
33	NOZZLE; INJ	8-97081-790-0	04	1	9304-9703					●
33	NOZZLE; INJ	8-97143-190-0	04	1	9704-					●
33	NOZZLE; INJ	8-97094-803-0	04	1	9304-9502		●
33	NOZZLE; INJ	8-97119-810-0	04	1	9503-		●
33	NOZZLE; INJ	8-97174-114-0	04	1	9704-						●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE-BOLT	1-09675-037-1	04	1	9304-9502	●
34	BOLT; EYE,NOZZLE HOLDER	5-15349-001-0	04	1	9304-9502				●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9304-9502		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9503-9703		●	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9704-		●	●			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9304-9502	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9503-9703		●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9704-		●	●			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-802-0	04	1	9304-9502				●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94482-217-0	04	1	9304-					●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	08	1	9304-9502	●			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9304-9502		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9503-9703		●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9704-		●	●			●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9304-9502	●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9503-9703		●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9704-		●	●			●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	9-15339-802-0	04	1	9304-9502				●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94128-963-0	04	1	9304-					●
44	SPRING; NOZZLE,NOZZLE HOLDER	9-15343-010-0	04	1	9304-9502				●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94128-964-0	04	1	9304-					●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9304-9502		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9503-9703		●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9704-		●	●			●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9304-9502	●	●			●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9503-9703		●	●		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9704-		●	●		●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-94319-320-0	04	1	9304-9502	●
58	FLANGE; INJ,NOZZLE HOLDER	9-15337-016-0	04	1	9304-9502				●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9304-9502		●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9503-9703		●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9704-		●	●			●
62	NUT; NOZZLE HOLDER M8	9-09110-508-0	08	1	9304-9502	●			●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9304-9502		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9503-9703		●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9704-		●	●			●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94129-564-0	01	1	9304-9502	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94476-630-0	01	1	9304-9502				●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94368-249-2	01	1	9304-					●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97027-985-1	01	1	9304-9502		●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9503-9703		●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9704-		●	●			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-94125-859-1	04	1	9304-9502	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-94125-859-1	04	1	9503-9703		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	9704-		●	●			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	9304-9502	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	9503-9703		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	9704-		●	●			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-94377-623-0	04	1	9304-9502		●
91	CLIP; HARNESS,INJ PUMP L=140	5-09707-031-0	01	1	9503-9703		●	●
113	CLIP; INJ PIPE	5-15419-013-1	02	1	9304-					●
113	CLIP; INJ PIPE	8-94388-824-3	04	1	9304-9403		●
113	CLIP; INJ PIPE	8-97108-317-0	04	1	9404-9502		●
113	CLIP; INJ PIPE	8-97108-317-0	04	1	9503-9804		●	●
113	CLIP; INJ PIPE	8-97191-409-0	04	1	9805-9810		●	●
113	CLIP; INJ PIPE	8-97213-050-0	04	1	9811-		●	●
113	CLIP; INJ PIPE	8-97108-317-0	02	1	9704-9804						●
113	CLIP; INJ PIPE	8-97191-409-0	02	1	9805-9810						●
113	CLIP; INJ PIPE	8-97213-050-0	02	1	9811-						●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	8-94176-886-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.01	8-94176-887-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.02	8-94176-888-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.03	8-94176-889-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.04	8-94176-890-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.05	8-94176-891-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.06	8-94176-892-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.07	8-94176-893-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.08	8-94176-894-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.09	8-94176-895-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.10	8-94176-896-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.11	8-94176-897-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.12	8-94176-898-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.13	8-94176-899-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.14	8-94176-900-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.16	8-94176-902-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.17	8-94176-903-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.18	8-94176-904-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.19	8-94176-905-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.20	8-94176-906-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.21	8-94176-907-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.22	8-94176-908-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.23	8-94176-909-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.24	8-94176-910-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.25	8-94176-911-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.26	8-94176-912-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.27	8-94176-913-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.28	8-94176-914-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.29	8-94176-915-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.30	8-94176-916-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.31	8-94176-917-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.32	8-94176-918-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.33	8-94176-919-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.34	8-94176-920-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.35	8-94176-921-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.36	8-94176-922-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.37	8-94176-923-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.38	8-94176-924-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.40	8-94176-925-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.41	8-94176-926-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.42	8-94176-927-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.43	8-94176-928-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.44	8-94176-929-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.45	8-94176-930-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.46	8-94176-931-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.47	8-94176-932-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.48	8-94176-933-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.49	8-94176-934-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.50	8-94176-935-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.51	8-94176-936-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.52	8-94176-937-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.53	8-94176-938-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.54	8-94176-939-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.55	8-94176-940-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.56	8-94176-941-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.57	8-94176-942-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.58	8-94176-943-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.59	8-94176-944-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.60	8-94176-945-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.61	8-94176-946-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.62	8-94176-947-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.63	8-94176-948-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.64	8-94176-949-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.65	8-94176-950-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.66	8-94176-951-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.67	8-94176-952-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.68	8-94176-953-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.69	8-94176-954-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.70	8-94176-955-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.71	8-94176-956-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.72	8-94176-957-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.73	8-94176-958-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.74	8-94176-959-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.75	8-94176-960-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.39	8-94178-796-0	AR	1	9304-					●
146	SPACER; NOZZLE	8-94174-183-0	04	1	9304-9502	●
146	SPACER; NOZZLE	8-94344-439-0	04	1	9304-9502		●
146	SPACER; NOZZLE	8-94344-439-0	04	1	9503-9703		●	●
146	SPACER; NOZZLE	8-94344-439-0	04	1	9704-		●	●			●
170	INSULATOR; INJ PUMP (A)	8-97105-410-1	01	1	9503-9512		●	●
170	INSULATOR; INJ PUMP (A)	8-97145-799-0	01	1	9601-9607		●	●
170	INSULATOR; INJ PUMP (A)	8-97161-094-0	01	1	9608-		●	●
170	INSULATOR; INJ PUMP (B)	8-97105-856-2	01	1	9503-9503		●	●
170	INSULATOR; INJ PUMP (B)	8-97130-296-0	01	1	9504-		●	●

80 84 78 84 80 78 77 170 2 219 219 158 226 2 1 161 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. REFRIGERATOR CHASSIS(V4R)	8-97077-491-2	01	1	9304-9502	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-291-2	01	1	9503-9510		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-656-0	01	1	9511-9603		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-771-1	01	1	9604-9811		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97203-369-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. REFRIGERATOR CHASSIS(V4R)	8-97075-425-2	01	1	9304-9410	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. REFRIGERATOR CHASSIS(V4R)	8-97117-559-0	01	1	9411-9502	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-759-1	01	1	9503-9510			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-665-0	01	1	9511-9603			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-774-1	01	1	9604-9811			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97203-372-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97211-445-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97075-360-1	01	1	9304-9409				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97118-525-0	01	1	9410-9502				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16>	8-97080-199-3	01	1	9304-9408					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16>	8-97118-516-0	01	1	9409-9502					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97107-864-1	01	1	9503-9703					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97146-401-0	01	1	9704-					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TACHOMETER<U16>	8-97080-198-3	01	1	9304-9408					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TACHOMETER<U16>	8-97118-515-0	01	1	9409-9502					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-292-1	01	1	9503-9510		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-657-0	01	1	9511-9603		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-772-1	01	1	9604-9811		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97203-370-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97211-444-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-359-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-011-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-354-2	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-007-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97090-361-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97114-012-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-358-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-010-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-355-2	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-008-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-290-2	01	1	9503-9510			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-664-0	01	1	9511-9603			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-773-1	01	1	9604-9811			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97203-371-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-353-2	01	1	9304-9409		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-006-0	01	1	9410-9412		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97115-361-0	01	1	9501-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97139-681-3	01	1	9704-						●
2	BOLT; INJ PUMP (C) M14X30	8-97203-957-0	01	1	9812-		●	●
2	BOLT; INJ PUMP REFRIGERATOR CHASSIS(V4R) (A) M8X55 W/LK WASHER	5-09000-084-1	05	1	9304-9502	●
2	BOLT; INJ PUMP EXC. REFRIGERATOR CHASSIS(V4R) (A) M8X55 W/LK WASHER	5-09000-084-1	06	1	9304-9502	●
2	BOLT; INJ PUMP EXC. REFRIGERATOR CHASSIS(V4R) (B) M14X29 EYE-BOLT	9-09906-325-1	02	1	9411-9502	●
2	BOLT; INJ PUMP (A) M8X22	5-09000-222-1	01	1	9304-9502	●			●
2	BOLT; INJ PUMP (A) M8X65 W/LK WASHER	8-94205-986-1	06	1	9304-9502				●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	9304-9502		●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	9503-9703		●	●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	9704-		●	●			●
2	BOLT; INJ PUMP (A) M12X70 FLANGE	0-28181-270-0	01	1	9304-9502		●
2	BOLT; INJ PUMP (A) M12X70 FLANGE	0-28181-270-0	01	1	9503-9703		●	●
2	BOLT; INJ PUMP (A) M12X70 FLANGE	0-28181-270-0	01	1	9704-		●	●			●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9304-9502		●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9503-9703		●	●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9704-9809		●	●			●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	9810-		●	●			●
2	BOLT; INJ PUMP (B) M14X27 FLANGE	1-09675-086-0	02	1	9304-9502		●
2	BOLT; INJ PUMP (B) M14X27 FLANGE	1-09675-086-0	02	1	9503-		●	●
2	BOLT; INJ PUMP (A) M10X25 FLANGE	0-28081-025-0	01	1	9704-						●
77	RUBBER; SPACE,INJ PUMP (A)	8-97029-109-3	01	1	9304-9406		●
77	RUBBER; SPACE,INJ PUMP (B)	8-97114-301-0	01	1	9407-9502		●
77	RUBBER; SPACE,INJ PUMP	8-97029-108-0	01	1	9503-			●
78	BOLT; BRKT TO C/BL M10X20 W/LK WASHER	0-50041-020-0	02	1	9304-9502	●			●
78	BOLT; BRKT TO C/BL M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9304-9612					●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28680-820-0	02	1	9701-					●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28181-020-0	02	1	9304-9502		●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28181-020-0	02	1	9503-9606		●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	02	1	9607-9703		●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	02	1	9704-		●	●			●
80	BRACKET; PUMP	5-19751-071-0	01	1	9304-9502	●
80	BRACKET; PUMP	8-94341-721-0	01	1	9304-9502				●
80	BRACKET; PUMP (A)	8-94133-761-1	01	1	9304-					●
80	BRACKET; PUMP (B)	8-94133-762-2	01	1	9304-					●
80	BRACKET; PUMP	8-94311-184-1	01	1	9304-9502		●
80	BRACKET; PUMP	8-94311-184-1	01	1	9503-9510		●	●
80	BRACKET; PUMP	8-97136-677-0	01	1	9511-		●	●
80	BRACKET; PUMP	8-97119-363-1	01	1	9704-						●
84	NUT; BRKT TO BRKT M10	9-09110-410-0	01	1	9304-9502	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	9304-9502		●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	9503-9703		●	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	9704-		●	●			●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	9304-9502		●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	9503-9703		●	●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	9704-		●	●			●
161	STUD; INJ PUMP M10X36.5 L=48.5	8-94396-145-0	02	1	9304-9703		●
161	STUD; INJ PUMP M10X36.5 L=48.5	8-94396-145-0	02	1	9704-		●				●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	9503-			●
170	INSULATOR; INJ PUMP (A)	8-97105-410-1	01	1	9503-9512		●	●
170	INSULATOR; INJ PUMP (A)	8-97145-799-0	01	1	9601-9607		●	●
170	INSULATOR; INJ PUMP (A)	8-97161-094-0	01	1	9608-		●	●
170	INSULATOR; INJ PUMP (B)	8-97105-856-2	01	1	9503-9503		●	●
170	INSULATOR; INJ PUMP (B)	8-97130-296-0	01	1	9504-		●	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	9812-		●	●
226	PIPE; FUEL	8-97203-567-0	01	1	9812-		●	●

161 2 1 158 78 80 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. REFRIGERATOR CHASSIS(V4R)	8-97077-491-2	01	1	9304-9502	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-291-2	01	1	9503-9510		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-656-0	01	1	9511-9603		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-771-1	01	1	9604-9811		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97203-369-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. REFRIGERATOR CHASSIS(V4R)	8-97075-425-2	01	1	9304-9410	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. REFRIGERATOR CHASSIS(V4R)	8-97117-559-0	01	1	9411-9502	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-759-1	01	1	9503-9510			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-665-0	01	1	9511-9603			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-774-1	01	1	9604-9811			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97203-372-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97211-445-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97075-360-1	01	1	9304-9409				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97118-525-0	01	1	9410-9502				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16>	8-97080-199-3	01	1	9304-9408					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16>	8-97118-516-0	01	1	9409-9502					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97107-864-1	01	1	9503-9703					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97146-401-0	01	1	9704-					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TACHOMETER<U16>	8-97080-198-3	01	1	9304-9408					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TACHOMETER<U16>	8-97118-515-0	01	1	9409-9502					●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-292-1	01	1	9503-9510		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-657-0	01	1	9511-9603		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-772-1	01	1	9604-9811		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97203-370-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97211-444-0	01	1	9812-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-359-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-011-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-354-2	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-007-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97090-361-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97114-012-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-358-1	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-010-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-355-2	01	1	9304-9406		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) ENG QUICK WARM UP SYSTEM<6JZ> EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-008-0	01	1	9407-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97118-290-2	01	1	9503-9510			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97136-664-0	01	1	9511-9603			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97146-773-1	01	1	9604-9811			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97203-371-0	01	1	9812-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97090-353-2	01	1	9304-9409		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97114-006-0	01	1	9410-9412		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG>	8-97115-361-0	01	1	9501-9502		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97139-681-3	01	1	9704-						●
2	BOLT; INJ PUMP (C) M14X30	8-97203-957-0	01	1	9812-		●	●
2	BOLT; INJ PUMP REFRIGERATOR CHASSIS(V4R) (A) M8X55 W/LK WASHER	5-09000-084-1	05	1	9304-9502	●
2	BOLT; INJ PUMP EXC. REFRIGERATOR CHASSIS(V4R) (A) M8X55 W/LK WASHER	5-09000-084-1	06	1	9304-9502	●
2	BOLT; INJ PUMP EXC. REFRIGERATOR CHASSIS(V4R) (B) M14X29 EYE-BOLT	9-09906-325-1	02	1	9411-9502	●
2	BOLT; INJ PUMP (A) M8X22	5-09000-222-1	01	1	9304-9502	●			●
2	BOLT; INJ PUMP (A) M8X65 W/LK WASHER	8-94205-986-1	06	1	9304-9502				●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	9304-9502		●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	9503-9703		●	●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	9704-		●	●			●
2	BOLT; INJ PUMP (A) M12X70 FLANGE	0-28181-270-0	01	1	9304-9502		●
2	BOLT; INJ PUMP (A) M12X70 FLANGE	0-28181-270-0	01	1	9503-9703		●	●
2	BOLT; INJ PUMP (A) M12X70 FLANGE	0-28181-270-0	01	1	9704-		●	●			●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9304-9502		●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9503-9703		●	●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9704-9809		●	●			●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	9810-		●	●			●
2	BOLT; INJ PUMP (B) M14X27 FLANGE	1-09675-086-0	02	1	9304-9502		●
2	BOLT; INJ PUMP (B) M14X27 FLANGE	1-09675-086-0	02	1	9503-		●	●
2	BOLT; INJ PUMP (A) M10X25 FLANGE	0-28081-025-0	01	1	9704-						●
78	BOLT; BRKT TO C/BL M10X20 W/LK WASHER	0-50041-020-0	02	1	9304-9502	●			●
78	BOLT; BRKT TO C/BL M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9304-9612					●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28680-820-0	02	1	9701-					●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28181-020-0	02	1	9304-9502		●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28181-020-0	02	1	9503-9606		●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	02	1	9607-9703		●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	02	1	9704-		●	●			●
80	BRACKET; PUMP	5-19751-071-0	01	1	9304-9502	●
80	BRACKET; PUMP	8-94341-721-0	01	1	9304-9502				●
80	BRACKET; PUMP (A)	8-94133-761-1	01	1	9304-					●
80	BRACKET; PUMP (B)	8-94133-762-2	01	1	9304-					●
80	BRACKET; PUMP	8-94311-184-1	01	1	9304-9502		●
80	BRACKET; PUMP	8-94311-184-1	01	1	9503-9510		●	●
80	BRACKET; PUMP	8-97136-677-0	01	1	9511-		●	●
80	BRACKET; PUMP	8-97119-363-1	01	1	9704-						●
84	NUT; BRKT TO BRKT M10	9-09110-410-0	01	1	9304-9502	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	9304-9502		●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	9503-9703		●	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	9704-		●	●			●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	9304-9502		●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	9503-9703		●	●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	9704-		●	●			●
161	STUD; INJ PUMP M10X36.5 L=48.5	8-94396-145-0	02	1	9304-9703		●
161	STUD; INJ PUMP M10X36.5 L=48.5	8-94396-145-0	02	1	9704-		●				●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	9503-			●

17 18 19 16 113 31 62 31 66 66 32 34 58 140 44 43 146 46 33 35 68 107 194 63 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	PIPE; INJ NO.1	8-97027-349-0	01	1	9304-9502	●
16	PIPE; INJ NO.1	8-94330-081-0	01	1	9304-9502				●
16	PIPE; INJ NO.1	8-97094-687-0	01	1	9304-9404					●
16	PIPE; INJ NO.1	8-97101-873-2	01	1	9405-9703					●
16	PIPE; INJ NO.1	8-97169-365-0	01	1	9704-					●
16	PIPE; INJ NO.1	8-97071-712-3	01	1	9304-9502		●
16	PIPE; INJ NO.1	8-97123-374-0	01	1	9503-		●	●
16	PIPE; INJ NO.1	8-97134-166-1	01	1	9704-						●
17	PIPE; INJ NO.2	8-97027-350-0	01	1	9304-9502	●
17	PIPE; INJ NO.2	8-94330-082-0	01	1	9304-9502				●
17	PIPE; INJ NO.2	8-97094-688-2	01	1	9304-9703					●
17	PIPE; INJ NO.2	8-97169-366-0	01	1	9704-					●
17	PIPE; INJ NO.2	8-97071-713-3	01	1	9304-9502		●
17	PIPE; INJ NO.2	8-97123-375-0	01	1	9503-		●	●
17	PIPE; INJ NO.2	8-97134-167-1	01	1	9704-						●
18	PIPE; INJ NO.3	8-97027-351-0	01	1	9304-9502	●
18	PIPE; INJ NO.3	8-94330-083-0	01	1	9304-9502				●
18	PIPE; INJ NO.3	8-97094-689-2	01	1	9304-9703					●
18	PIPE; INJ NO.3	8-97169-367-0	01	1	9704-					●
18	PIPE; INJ NO.3	8-97071-714-3	01	1	9304-9502		●
18	PIPE; INJ NO.3	8-97123-376-0	01	1	9503-		●	●
18	PIPE; INJ NO.3	8-97134-168-0	01	1	9704-						●
19	PIPE; INJ NO.4	8-97027-352-0	01	1	9304-9502	●
19	PIPE; INJ NO.4	8-94330-084-0	01	1	9304-9502				●
19	PIPE; INJ NO.4	8-97094-690-2	01	1	9304-9703					●
19	PIPE; INJ NO.4	8-97169-368-0	01	1	9704-					●
19	PIPE; INJ NO.4	8-97071-715-3	01	1	9304-9502		●
19	PIPE; INJ NO.4	8-97123-377-1	01	1	9503-		●	●
19	PIPE; INJ NO.4	8-97134-169-0	01	1	9704-						●
31	NOZZLE ASM; INJ	8-97021-703-1	04	1	9304-9502	●
31	NOZZLE ASM; INJ	8-97119-811-0	04	1	9503-			●
31	NOZZLE ASM; INJ	8-94476-622-0	04	1	9304-9502				●
31	NOZZLE ASM; INJ	8-97034-447-1	04	1	9304-9703					●
31	NOZZLE ASM; INJ	8-97143-196-0	04	1	9704-					●
31	NOZZLE ASM; INJ	8-97094-799-0	04	1	9304-9407		●
31	NOZZLE ASM; INJ	8-97114-017-0	04	1	9408-9502		●
31	NOZZLE ASM; INJ	8-97119-812-0	04	1	9503-		●
31	NOZZLE ASM; INJ	8-97174-112-0	04	1	9704-						●
32	HOLDER ASM; NOZZLE	8-97021-746-0	04	1	9304-9502	●
32	HOLDER ASM; NOZZLE	5-15330-020-0	04	1	9304-9502				●
32	HOLDER ASM; NOZZLE	8-94368-247-0	04	1	9304-					●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9304-9502		●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9503-9703		●	●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	9704-		●	●			●
33	NOZZLE; INJ	8-94476-376-0	04	1	9304-9502	●
33	NOZZLE; INJ	8-97119-809-0	04	1	9503-			●
33	NOZZLE; INJ	8-94476-623-0	04	1	9304-9502				●
33	NOZZLE; INJ	8-97081-790-0	04	1	9304-9703					●
33	NOZZLE; INJ	8-97143-190-0	04	1	9704-					●
33	NOZZLE; INJ	8-97094-803-0	04	1	9304-9502		●
33	NOZZLE; INJ	8-97119-810-0	04	1	9503-		●
33	NOZZLE; INJ	8-97174-114-0	04	1	9704-						●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE-BOLT	1-09675-037-1	04	1	9304-9502	●
34	BOLT; EYE,NOZZLE HOLDER	5-15349-001-0	04	1	9304-9502				●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9304-9502		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9503-9703		●	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9704-		●	●			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9304-9502	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9503-9703		●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9704-		●	●			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-802-0	04	1	9304-9502				●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94482-217-0	04	1	9304-					●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	08	1	9304-9502	●			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9304-9502		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9503-9703		●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9704-		●	●			●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9304-9502	●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9503-9703		●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	9704-		●	●			●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	9-15339-802-0	04	1	9304-9502				●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94128-963-0	04	1	9304-					●
44	SPRING; NOZZLE,NOZZLE HOLDER	9-15343-010-0	04	1	9304-9502				●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94128-964-0	04	1	9304-					●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9304-9502		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9503-9703		●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9704-		●	●			●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9304-9502	●	●			●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9503-9703		●	●		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9704-		●	●		●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-94319-320-0	04	1	9304-9502	●
58	FLANGE; INJ,NOZZLE HOLDER	9-15337-016-0	04	1	9304-9502				●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9304-9502		●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9503-9703		●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9704-		●	●			●
62	NUT; NOZZLE HOLDER M8	9-09110-508-0	08	1	9304-9502	●			●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9304-9502		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9503-9703		●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9704-		●	●			●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94129-564-0	01	1	9304-9502	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94476-630-0	01	1	9304-9502				●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-94368-249-2	01	1	9304-					●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97027-985-1	01	1	9304-9502		●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9503-9703		●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9704-		●	●			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-94125-859-1	04	1	9304-9502	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-94125-859-1	04	1	9503-9703		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	9704-		●	●			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	9304-9502	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	9503-9703		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	9704-		●	●			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-94377-623-0	04	1	9304-9502		●
68	CLIP; INJ PIPE	8-97016-321-0	04	1	9704-9804						●
68	CLIP; INJ PIPE	8-97189-518-0	04	1	9805-9810						●
68	CLIP; INJ PIPE	8-97213-049-0	04	1	9811-						●
107	NUT; INJ PIPE CLIP M5 FLANGE	8-94178-699-0	02	1	9704-						●
113	CLIP; INJ PIPE	5-15419-013-1	02	1	9304-					●
113	CLIP; INJ PIPE	8-94388-824-3	04	1	9304-9403		●
113	CLIP; INJ PIPE	8-97108-317-0	04	1	9404-9502		●
113	CLIP; INJ PIPE	8-97108-317-0	04	1	9503-9804		●	●
113	CLIP; INJ PIPE	8-97191-409-0	04	1	9805-9810		●	●
113	CLIP; INJ PIPE	8-97213-050-0	04	1	9811-		●	●
113	CLIP; INJ PIPE	8-97108-317-0	02	1	9704-9804						●
113	CLIP; INJ PIPE	8-97191-409-0	02	1	9805-9810						●
113	CLIP; INJ PIPE	8-97213-050-0	02	1	9811-						●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9304-9502	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9503-9703		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9704-		●	●			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	8-94176-886-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.01	8-94176-887-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.02	8-94176-888-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.03	8-94176-889-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.04	8-94176-890-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.05	8-94176-891-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.06	8-94176-892-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.07	8-94176-893-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.08	8-94176-894-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.09	8-94176-895-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.10	8-94176-896-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.11	8-94176-897-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.12	8-94176-898-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.13	8-94176-899-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.14	8-94176-900-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.16	8-94176-902-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.17	8-94176-903-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.18	8-94176-904-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.19	8-94176-905-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.20	8-94176-906-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.21	8-94176-907-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.22	8-94176-908-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.23	8-94176-909-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.24	8-94176-910-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.25	8-94176-911-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.26	8-94176-912-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.27	8-94176-913-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.28	8-94176-914-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.29	8-94176-915-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.30	8-94176-916-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.31	8-94176-917-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.32	8-94176-918-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.33	8-94176-919-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.34	8-94176-920-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.35	8-94176-921-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.36	8-94176-922-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.37	8-94176-923-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.38	8-94176-924-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.40	8-94176-925-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.41	8-94176-926-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.42	8-94176-927-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.43	8-94176-928-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.44	8-94176-929-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.45	8-94176-930-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.46	8-94176-931-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.47	8-94176-932-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.48	8-94176-933-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.49	8-94176-934-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.50	8-94176-935-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.51	8-94176-936-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.52	8-94176-937-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.53	8-94176-938-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.54	8-94176-939-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.55	8-94176-940-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.56	8-94176-941-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.57	8-94176-942-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.58	8-94176-943-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.59	8-94176-944-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.60	8-94176-945-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.61	8-94176-946-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.62	8-94176-947-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.63	8-94176-948-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.64	8-94176-949-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.65	8-94176-950-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.66	8-94176-951-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.67	8-94176-952-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.68	8-94176-953-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.69	8-94176-954-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.70	8-94176-955-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.71	8-94176-956-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.72	8-94176-957-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.73	8-94176-958-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.74	8-94176-959-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.75	8-94176-960-0	AR	1	9304-					●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.39	8-94178-796-0	AR	1	9304-					●
146	SPACER; NOZZLE	8-94174-183-0	04	1	9304-9502	●
146	SPACER; NOZZLE	8-94344-439-0	04	1	9304-9502		●
146	SPACER; NOZZLE	8-94344-439-0	04	1	9503-9703		●	●
146	SPACER; NOZZLE	8-94344-439-0	04	1	9704-		●	●			●
194	STUD; INJ PIPE	8-97176-071-0	02	1	9704-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
