0-33 — FAN AND FAN BELT (#166653) — 237 parça

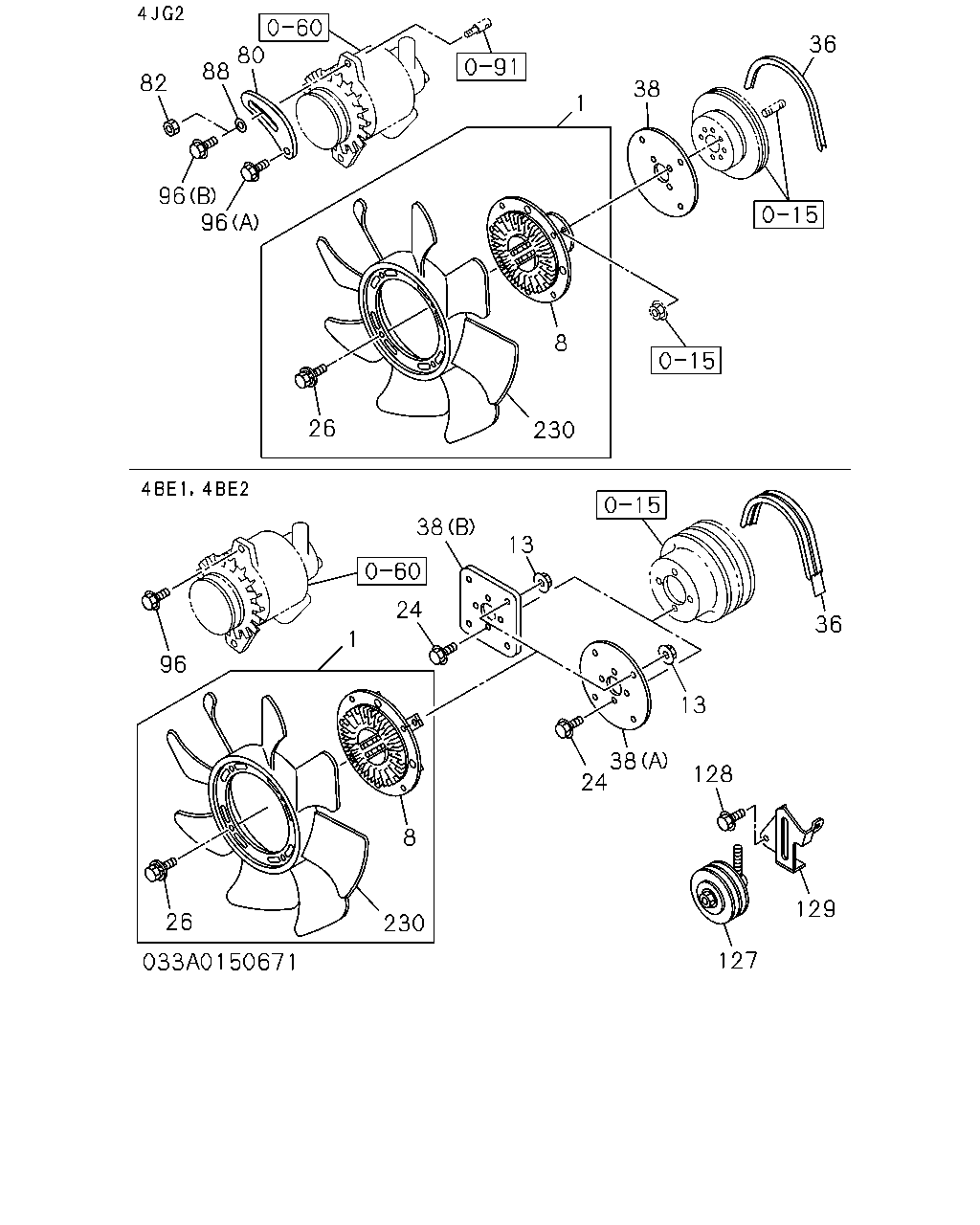

çizim 493866
82 88 80 96 26 96 26 230 24 38 13 128 129 127 36 13 38 24 1 8 230 38 1 36 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 FAN; COOLING
REFRIGERATOR CHASSIS(V4R) 		8-94337-662-2 01 1 9304-9502 ●
1 FAN; COOLING
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97118-158-0 01 1 9304-9502 ●
1 FAN; COOLING 8-97118-158-0 01 1 9304-9502 ●
1 FAN; COOLING 8-97081-738-0 01 1 9304-9505 ●
1 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9506- ●
1 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97088-812-3 01 1 9304-9502 ●
1 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97088-812-3 01 1 9503-9503 ● ●
1 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97129-768-0 01 1 9504-9506 ● ●
1 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97135-865-0 01 1 9507-9512 ● ●
1 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) EXC. REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) OD=430 		8-97141-195-1 01 1 9601- ● ●
1 FAN; COOLING
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97088-813-1 01 1 9304-9411 ●
1 FAN; COOLING
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97123-906-0 01 1 9412-9502 ●
1 FAN; COOLING
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97123-906-0 01 1 9503-9503 ● ●
1 FAN; COOLING
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97129-772-1 01 1 9504-9703 ● ●
1 FAN; COOLING
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97129-772-1 01 1 9704- ● ● ●
1 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY NONFLAT BED(RS5),RR BODY FLAT BED<RS6> 		8-97142-184-1 01 1 9601- ● ●
1 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) 		8-97142-184-1 01 1 9601- ● ●
8 CLUTCH; COOLING FAN
REFRIGERATOR CHASSIS(V4R) 		8-94362-649-0 01 1 9304-9502 ●
8 CLUTCH; COOLING FAN
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97095-204-0 01 1 9304-9502 ●
8 CLUTCH; COOLING FAN 8-97095-204-0 01 1 9304-9502 ●
8 CLUTCH; COOLING FAN 8-97094-661-0 01 1 9304-9502 ●
8 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9503- ●
8 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97088-802-0 01 1 9304-9502 ●
8 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97088-802-0 01 1 9503-9503 ● ●
8 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97129-733-0 01 1 9504-9512 ● ●
8 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) EXC. REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97139-299-0 01 1 9601- ● ●
8 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97088-803-0 01 1 9304-9411 ●
8 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97123-948-0 01 1 9412-9502 ●
8 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97123-948-0 01 1 9503-9503 ● ●
8 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97129-738-0 01 1 9504-9703 ● ●
8 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97129-738-0 01 1 9704- ● ● ●
8 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY NONFLAT BED(RS5),RR BODY FLAT BED<RS6> 		8-97142-168-0 01 1 9601- ● ●
8 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) 		8-97142-168-0 01 1 9601- ● ●
13 NUT; COOLING FAN
M8 FLANGE 		0-91150-108-0 04 1 9304-9502 ● ● ●
13 NUT; COOLING FAN
M8 FLANGE 		0-91150-108-0 04 1 9503-9703 ● ●
13 NUT; COOLING FAN
M8 FLANGE 		0-91150-108-0 04 1 9704- ● ● ●
24 BOLT; FAN
M8X18 W/LK WASHER 		0-50040-818-0 04 1 9304-9502 ●
24 BOLT; FAN
M8X20 W/LK WASHER 		0-50040-820-0 04 1 9304-9502 ●
24 BOLT; FAN
M8X18 FLANGE 		0-28080-818-0 04 1 9304-9502 ●
24 BOLT; FAN
M8X18 FLANGE 		0-28080-818-0 04 1 9503-9703 ● ●
24 BOLT; FAN
M8X18 FLANGE 		0-28080-818-0 04 1 9704- ● ● ●
26 BOLT; FAN TO CLU
REFRIGERATOR CHASSIS(V4R) 		8-94362-650-0 04 1 9304-9304 ●
26 BOLT; FAN TO CLU
EXC. REFRIGERATOR CHASSIS(V4R) 		8-94389-764-0 04 1 9304-9502 ●
26 BOLT; FAN TO CLU 8-94389-764-0 04 1 9304-9502 ●
26 BOLT; FAN TO CLU 8-97094-725-0 04 1 9304-9502 ●
26 BOLT; FAN TO CLU 8-94389-764-0 04 1 9503-9503 ●
26 BOLT; FAN TO CLU 8-94389-764-0 04 1 9504-9703 ●
26 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94389-764-0 04 1 9504-9703 ● ●
26 BOLT; FAN TO CLU 8-94389-764-0 04 1 9704- ● ●
26 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94389-764-0 04 1 9704- ● ●
26 BOLT; FAN TO CLU
A/T 4 SPEED-JATCO(RMK) M6X12 FLANGE 		0-28080-612-0 04 1 9304-9304 ●
26 BOLT; FAN TO CLU
REFRIGERATOR CHASSIS(V4R) M6X12 FLANGE 		0-28080-612-0 04 1 9305-9502 ●
26 BOLT; FAN TO CLU
A/T 4 SPEED-JATCO(RMK) M6X12 FLANGE 		0-28080-612-0 04 1 9305-9502 ●
26 BOLT; FAN TO CLU
A/T 4 SPEED-JATCO(RMK) M6X12 FLANGE 		0-28080-612-0 04 1 9503- ● ●
26 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) M6X20 FLANGE 		0-28080-620-0 04 1 9304-9502 ●
26 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) M6X20 FLANGE 		0-28080-620-0 04 1 9503-9503 ● ●
36 BELT; COOLING FAN
REFRIGERATOR CHASSIS(V4R) L=1221 		8-97062-480-0 01 1 9306-9502 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8970952280) 		8-97095-228-1 01 1 9304-9305 ● ●
36 BELT; COOLING FAN
EXC. REFRIGERATOR CHASSIS(V4R) 1 SET=2 PIECE(8970952280) 		8-97095-228-1 01 1 9306-9502 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8970952280) 		8-97095-228-1 01 1 9306-9502 ●
36 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9304-9701 ●
36 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9702- ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8970147011) 		8-97014-252-1 01 1 9304-9409 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8970944470) 		8-97094-446-1 01 1 9410-9502 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8970944470) 		8-97094-446-2 01 1 9503-9703 ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8970944470) 		8-97094-446-2 01 1 9704-9706 ● ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 9707- ● ● ●
36 BELT; COOLING FAN
BESTFIX 		5-86750-013-0 01 1 9304-9305 ● ●
36 BELT; COOLING FAN
EXC. REFRIGERATOR CHASSIS(V4R) BESTFIX 		5-86750-013-0 01 1 9306-9502 ●
36 BELT; COOLING FAN
BESTFIX 		5-86750-013-0 01 1 9306-9502 ●
36 BELT; COOLING FAN
BESTFIX 		5-86750-011-1 01 1 9702- ●
36 BELT; COOLING FAN
BESTFIX 		5-86750-010-1 01 1 9707- ● ● ●
38 SPACER; FAN
(A) 		5-13642-078-0 01 1 9304-9405 ● ● ●
38 SPACER; FAN
(A) 		5-13642-078-0 01 1 9406-9407 ● ●
38 SPACER; FAN
REFRIGERATOR CHASSIS(V4R) 		8-94441-848-0 01 1 9510-9703 ●
38 SPACER; FAN
(B) 		8-97108-643-0 01 1 9406-9407 ●
38 SPACER; FAN
(B) 		8-97108-643-0 01 1 9408-9502 ● ● ●
38 SPACER; FAN
(B) 		8-97108-643-0 01 1 9503-9703 ● ●
38 SPACER; FAN
(B) 		8-97108-643-0 01 1 9704- ● ● ●
80 PLATE; ADJ 8-97080-556-1 01 1 9304- ●
80 PLATE; ADJ 8-97061-466-1 01 1 9304-9502 ●
80 PLATE; ADJ 8-97061-466-1 01 1 9503-9702 ● ●
80 PLATE; ADJ 8-97172-415-0 01 1 9703-9703 ● ●
80 PLATE; ADJ 8-97172-415-0 01 1 9704- ● ● ●
82 NUT; ADJ PLATE
REFRIGERATOR CHASSIS(V4R) M8 FLANGE 		0-91150-208-0 01 1 9510-9703 ●
88 WASHER; PL,ADJ PLATE
ID=8.4 OD=22 		9-09164-708-0 01 1 9304- ●
96 BOLT; ADJ PLATE
M8X30 W/LK WASHER 		0-50040-830-0 01 1 9304-9502 ● ●
96 BOLT; ADJ PLATE
(A) M8X45 FLANGE 		0-28080-845-0 01 1 9304- ●
96 BOLT; ADJ PLATE
(B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9304- ●
96 BOLT; ADJ PLATE
REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X120 FLANGE 		8-97062-091-1 01 1 9304-9502 ●
96 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X120 FLANGE 		8-97062-091-1 01 1 9304-9502 ●
96 BOLT; ADJ PLATE
REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X120 FLANGE 		8-97062-091-1 01 1 9503-9701 ● ●
96 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X120 FLANGE 		8-97062-091-1 01 1 9503-9701 ● ●
96 BOLT; ADJ PLATE
REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X130 FLANGE 		8-97172-720-0 01 1 9702-9703 ● ●
96 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X130 FLANGE 		8-97172-720-0 01 1 9702-9703 ● ●
96 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X130 FLANGE 		8-97172-720-1 01 1 9704- ● ● ●
96 BOLT; ADJ PLATE
REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X130 FLANGE 		8-97172-720-1 01 1 9704- ● ●
127 PULLEY ASM; IDLE,FAN
2-GROOVE 		8-97061-045-0 01 1 9304-9502 ● ●
128 BOLT; BRKT TO GEAR CASE
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9304-9502 ● ●
129 BRACKET; IDLE PULLEY,FAN 8-94413-330-0 01 1 9304-9502 ● ●
230 FAN; COOLING
REFRIGERATOR CHASSIS(V4R) 		8-94362-648-0 01 1 9304-9502 ●
230 FAN; COOLING
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97118-159-0 01 1 9304-9502 ●
230 FAN; COOLING 8-97118-159-0 01 1 9304-9502 ●
230 FAN; COOLING 8-97094-660-0 01 1 9304- ●
230 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97029-606-0 01 1 9304-9502 ●
230 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97029-606-0 01 1 9503-9506 ● ●
230 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97135-864-0 01 1 9507-9512 ● ●
230 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97140-854-1 01 1 9601- ● ●
230 FAN; COOLING
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97078-662-0 01 1 9304-9502 ●
230 FAN; COOLING
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97078-662-1 01 1 9503-9703 ● ●
230 FAN; COOLING
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97078-662-1 01 1 9704- ● ● ●

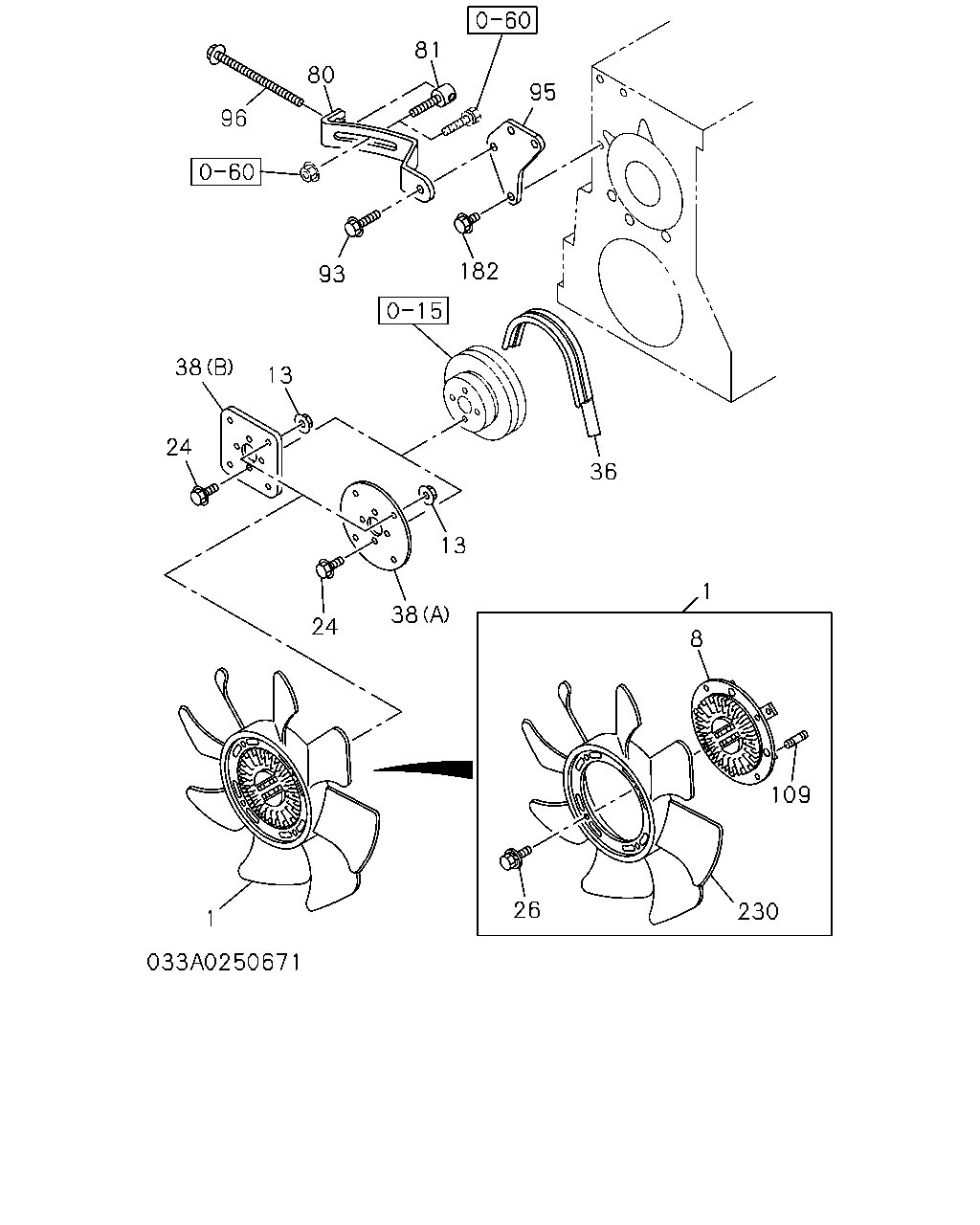

çizim 493899
96 80 81 95 182 93 36 13 38 24 24 38 13 8 1 26 230 109 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 FAN; COOLING
REFRIGERATOR CHASSIS(V4R) 		8-94337-662-2 01 1 9304-9502 ●
1 FAN; COOLING
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97118-158-0 01 1 9304-9502 ●
1 FAN; COOLING 8-97118-158-0 01 1 9304-9502 ●
1 FAN; COOLING 8-97081-738-0 01 1 9304-9505 ●
1 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9506- ●
1 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97088-812-3 01 1 9304-9502 ●
1 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97088-812-3 01 1 9503-9503 ● ●
1 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97129-768-0 01 1 9504-9506 ● ●
1 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97135-865-0 01 1 9507-9512 ● ●
1 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) EXC. REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) OD=430 		8-97141-195-1 01 1 9601- ● ●
1 FAN; COOLING
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97088-813-1 01 1 9304-9411 ●
1 FAN; COOLING
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97123-906-0 01 1 9412-9502 ●
1 FAN; COOLING
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97123-906-0 01 1 9503-9503 ● ●
1 FAN; COOLING
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97129-772-1 01 1 9504-9703 ● ●
1 FAN; COOLING
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97129-772-1 01 1 9704- ● ● ●
1 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY NONFLAT BED(RS5),RR BODY FLAT BED<RS6> 		8-97142-184-1 01 1 9601- ● ●
1 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) 		8-97142-184-1 01 1 9601- ● ●
8 CLUTCH; COOLING FAN
REFRIGERATOR CHASSIS(V4R) 		8-94362-649-0 01 1 9304-9502 ●
8 CLUTCH; COOLING FAN
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97095-204-0 01 1 9304-9502 ●
8 CLUTCH; COOLING FAN 8-97095-204-0 01 1 9304-9502 ●
8 CLUTCH; COOLING FAN 8-97094-661-0 01 1 9304-9502 ●
8 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9503- ●
8 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97088-802-0 01 1 9304-9502 ●
8 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97088-802-0 01 1 9503-9503 ● ●
8 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97129-733-0 01 1 9504-9512 ● ●
8 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) EXC. REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97139-299-0 01 1 9601- ● ●
8 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97088-803-0 01 1 9304-9411 ●
8 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97123-948-0 01 1 9412-9502 ●
8 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97123-948-0 01 1 9503-9503 ● ●
8 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97129-738-0 01 1 9504-9703 ● ●
8 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97129-738-0 01 1 9704- ● ● ●
8 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY NONFLAT BED(RS5),RR BODY FLAT BED<RS6> 		8-97142-168-0 01 1 9601- ● ●
8 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) 		8-97142-168-0 01 1 9601- ● ●
13 NUT; COOLING FAN
M8 FLANGE 		0-91150-108-0 04 1 9304-9502 ● ● ●
13 NUT; COOLING FAN
M8 FLANGE 		0-91150-108-0 04 1 9503-9703 ● ●
13 NUT; COOLING FAN
M8 FLANGE 		0-91150-108-0 04 1 9704- ● ● ●
24 BOLT; FAN
M8X18 W/LK WASHER 		0-50040-818-0 04 1 9304-9502 ●
24 BOLT; FAN
M8X20 W/LK WASHER 		0-50040-820-0 04 1 9304-9502 ●
24 BOLT; FAN
M8X18 FLANGE 		0-28080-818-0 04 1 9304-9502 ●
24 BOLT; FAN
M8X18 FLANGE 		0-28080-818-0 04 1 9503-9703 ● ●
24 BOLT; FAN
M8X18 FLANGE 		0-28080-818-0 04 1 9704- ● ● ●
26 BOLT; FAN TO CLU
REFRIGERATOR CHASSIS(V4R) 		8-94362-650-0 04 1 9304-9304 ●
26 BOLT; FAN TO CLU
EXC. REFRIGERATOR CHASSIS(V4R) 		8-94389-764-0 04 1 9304-9502 ●
26 BOLT; FAN TO CLU 8-94389-764-0 04 1 9304-9502 ●
26 BOLT; FAN TO CLU 8-97094-725-0 04 1 9304-9502 ●
26 BOLT; FAN TO CLU 8-94389-764-0 04 1 9503-9503 ●
26 BOLT; FAN TO CLU 8-94389-764-0 04 1 9504-9703 ●
26 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94389-764-0 04 1 9504-9703 ● ●
26 BOLT; FAN TO CLU 8-94389-764-0 04 1 9704- ● ●
26 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94389-764-0 04 1 9704- ● ●
26 BOLT; FAN TO CLU
A/T 4 SPEED-JATCO(RMK) M6X12 FLANGE 		0-28080-612-0 04 1 9304-9304 ●
26 BOLT; FAN TO CLU
REFRIGERATOR CHASSIS(V4R) M6X12 FLANGE 		0-28080-612-0 04 1 9305-9502 ●
26 BOLT; FAN TO CLU
A/T 4 SPEED-JATCO(RMK) M6X12 FLANGE 		0-28080-612-0 04 1 9305-9502 ●
26 BOLT; FAN TO CLU
A/T 4 SPEED-JATCO(RMK) M6X12 FLANGE 		0-28080-612-0 04 1 9503- ● ●
26 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) M6X20 FLANGE 		0-28080-620-0 04 1 9304-9502 ●
26 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) M6X20 FLANGE 		0-28080-620-0 04 1 9503-9503 ● ●
36 BELT; COOLING FAN
REFRIGERATOR CHASSIS(V4R) L=1221 		8-97062-480-0 01 1 9306-9502 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8970952280) 		8-97095-228-1 01 1 9304-9305 ● ●
36 BELT; COOLING FAN
EXC. REFRIGERATOR CHASSIS(V4R) 1 SET=2 PIECE(8970952280) 		8-97095-228-1 01 1 9306-9502 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8970952280) 		8-97095-228-1 01 1 9306-9502 ●
36 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9304-9701 ●
36 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9702- ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8970147011) 		8-97014-252-1 01 1 9304-9409 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8970944470) 		8-97094-446-1 01 1 9410-9502 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8970944470) 		8-97094-446-2 01 1 9503-9703 ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8970944470) 		8-97094-446-2 01 1 9704-9706 ● ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 9707- ● ● ●
36 BELT; COOLING FAN
BESTFIX 		5-86750-013-0 01 1 9304-9305 ● ●
36 BELT; COOLING FAN
EXC. REFRIGERATOR CHASSIS(V4R) BESTFIX 		5-86750-013-0 01 1 9306-9502 ●
36 BELT; COOLING FAN
BESTFIX 		5-86750-013-0 01 1 9306-9502 ●
36 BELT; COOLING FAN
BESTFIX 		5-86750-011-1 01 1 9702- ●
36 BELT; COOLING FAN
BESTFIX 		5-86750-010-1 01 1 9707- ● ● ●
38 SPACER; FAN
(A) 		5-13642-078-0 01 1 9304-9405 ● ● ●
38 SPACER; FAN
(A) 		5-13642-078-0 01 1 9406-9407 ● ●
38 SPACER; FAN
REFRIGERATOR CHASSIS(V4R) 		8-94441-848-0 01 1 9510-9703 ●
38 SPACER; FAN
(B) 		8-97108-643-0 01 1 9406-9407 ●
38 SPACER; FAN
(B) 		8-97108-643-0 01 1 9408-9502 ● ● ●
38 SPACER; FAN
(B) 		8-97108-643-0 01 1 9503-9703 ● ●
38 SPACER; FAN
(B) 		8-97108-643-0 01 1 9704- ● ● ●
80 PLATE; ADJ 8-97080-556-1 01 1 9304- ●
80 PLATE; ADJ 8-97061-466-1 01 1 9304-9502 ●
80 PLATE; ADJ 8-97061-466-1 01 1 9503-9702 ● ●
80 PLATE; ADJ 8-97172-415-0 01 1 9703-9703 ● ●
80 PLATE; ADJ 8-97172-415-0 01 1 9704- ● ● ●
81 PIECE; SLIDING
REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97086-228-1 01 1 9304-9502 ●
81 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97086-228-1 01 1 9304-9502 ●
81 PIECE; SLIDING
REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97086-228-1 01 1 9503-9703 ● ●
81 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97086-228-1 01 1 9503-9703 ● ●
81 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97086-228-1 01 1 9704- ● ● ●
81 PIECE; SLIDING
REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97086-228-1 01 1 9704- ● ●
93 BOLT; ADJ PLATE BRKT
M10X25 FLANGE 		0-28081-025-0 01 1 9304-9502 ●
93 BOLT; ADJ PLATE BRKT
M10X25 FLANGE 		0-28081-025-0 01 1 9503-9606 ● ●
93 BOLT; ADJ PLATE BRKT
M10X25 FLANGE 		0-28681-025-0 01 1 9607-9703 ● ●
93 BOLT; ADJ PLATE BRKT
M10X25 FLANGE 		0-28681-025-0 01 1 9704- ● ● ●
95 BRACKET; ADJ PLATE 8-97037-510-0 01 1 9304-9502 ●
95 BRACKET; ADJ PLATE 8-97037-510-0 01 1 9503-9703 ● ●
95 BRACKET; ADJ PLATE 8-97037-510-0 01 1 9704- ● ● ●
96 BOLT; ADJ PLATE
M8X30 W/LK WASHER 		0-50040-830-0 01 1 9304-9502 ● ●
96 BOLT; ADJ PLATE
(A) M8X45 FLANGE 		0-28080-845-0 01 1 9304- ●
96 BOLT; ADJ PLATE
(B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9304- ●
96 BOLT; ADJ PLATE
REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X120 FLANGE 		8-97062-091-1 01 1 9304-9502 ●
96 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X120 FLANGE 		8-97062-091-1 01 1 9304-9502 ●
96 BOLT; ADJ PLATE
REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X120 FLANGE 		8-97062-091-1 01 1 9503-9701 ● ●
96 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X120 FLANGE 		8-97062-091-1 01 1 9503-9701 ● ●
96 BOLT; ADJ PLATE
REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X130 FLANGE 		8-97172-720-0 01 1 9702-9703 ● ●
96 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X130 FLANGE 		8-97172-720-0 01 1 9702-9703 ● ●
96 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X130 FLANGE 		8-97172-720-1 01 1 9704- ● ● ●
96 BOLT; ADJ PLATE
REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X130 FLANGE 		8-97172-720-1 01 1 9704- ● ●
109 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 9304-9502 ●
109 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 9503-9703 ● ●
109 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 9704- ● ● ●
182 BOLT; BRKT
M8X32 FLANGE 		0-28080-832-0 03 1 9304-9502 ●
182 BOLT; BRKT
M8X32 FLANGE 		0-28080-832-0 03 1 9503-9510 ● ●
182 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 03 1 9511-9703 ● ●
182 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 03 1 9704- ● ● ●
230 FAN; COOLING
REFRIGERATOR CHASSIS(V4R) 		8-94362-648-0 01 1 9304-9502 ●
230 FAN; COOLING
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97118-159-0 01 1 9304-9502 ●
230 FAN; COOLING 8-97118-159-0 01 1 9304-9502 ●
230 FAN; COOLING 8-97094-660-0 01 1 9304- ●
230 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97029-606-0 01 1 9304-9502 ●
230 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97029-606-0 01 1 9503-9506 ● ●
230 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97135-864-0 01 1 9507-9512 ● ●
230 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97140-854-1 01 1 9601- ● ●
230 FAN; COOLING
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97078-662-0 01 1 9304-9502 ●
230 FAN; COOLING
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97078-662-1 01 1 9503-9703 ● ●
230 FAN; COOLING
M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-97078-662-1 01 1 9704- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
