0-31 — THERMOSTAT AND HOUSING (#166651) — 184 parça
çizim 494228
50 2 44 44 14 64 1 49 66 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 THERMOSTAT
82 CELSIUS 		5-13770-039-0 01 1 9304-9410 ● ●
1 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9411-9502 ● ●
1 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9304- ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97028-690-2 01 1 9304-9502 ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97028-690-2 01 1 9503-9608 ● ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97164-569-0 01 1 9609-9610 ● ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97167-495-0 01 1 9611-9703 ● ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97167-495-0 01 1 9704- ● ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97091-806-0 01 1 9304-9409 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97116-057-0 01 1 9410-9502 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97116-057-0 01 1 9503-9610 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9611-9703 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9704- ● ● ●
2 HOUSING; THERMOSTAT 8-94403-314-1 01 1 9304-9502 ● ●
2 HOUSING; THERMOSTAT
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97034-443-3 01 1 9304-9606 ●
2 HOUSING; THERMOSTAT
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97139-602-0 01 1 9607-9703 ●
2 HOUSING; THERMOSTAT 8-97139-602-0 01 1 9704- ●
2 HOUSING; THERMOSTAT
REFRIGERATOR CHASSIS(V4R) 		8-97034-896-3 01 1 9510-9606 ●
2 HOUSING; THERMOSTAT
REFRIGERATOR CHASSIS(V4R) 		8-97139-603-0 01 1 9607-9703 ●
14 PLUG; SW
PT3/8 		5-09605-005-0 01 1 9304-9502 ● ● ●
14 PLUG; SW
PT3/8 		5-09605-005-0 01 1 9503-9809 ●
14 PLUG; SW
PT3/8 		5-09605-005-0 01 1 9810- ● ● ● ●
14 PLUG; SW
M16X8 PLUG 		9-09661-005-0 01 1 9503-9604 ● ●
15 PIPE; BYPASS 8-97064-309-0 01 1 9304-9412 ● ● ●
15 PIPE; BYPASS 8-94342-574-0 01 1 9501-9502 ● ● ●
15 PIPE; BYPASS 8-94342-574-0 01 1 9503-9703 ● ●
15 PIPE; BYPASS 8-94342-574-0 01 1 9704- ● ● ●
44 BOLT; HSG TO HD
REFRIGERATOR CHASSIS(V4R) M10X25 W/LK&PL WASHER 		0-50141-025-0 02 1 9304-9502 ●
44 BOLT; HSG TO HD
EXC. REFRIGERATOR CHASSIS(V4R) M10X25 W/LK&PL WASHER 		0-50141-025-0 04 1 9304-9502 ●
44 BOLT; HSG TO HD
M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9304-9502 ● ●
44 BOLT; HSG TO HD
M10X25 W/LK&PL WASHER 		0-50141-025-0 03 1 9304-9502 ●
44 BOLT; HSG TO HD
M8X30 W/LK WASHER 		0-50040-830-0 05 1 9304-9509 ●
44 BOLT; HSG TO HD
EXC. REFRIGERATOR CHASSIS(V4R) M8X30 W/LK WASHER 		0-50040-830-0 05 1 9510-9703 ●
44 BOLT; HSG TO HD
REFRIGERATOR CHASSIS(V4R) M8X30 W/LK WASHER 		0-50040-830-0 02 1 9510-9703 ●
44 BOLT; HSG TO HD
M8X30 W/LK WASHER 		0-50040-830-0 05 1 9704- ●
49 PIPE; WATER OUTLET 8-97078-283-1 01 1 9304-9502 ● ●
49 PIPE; WATER OUTLET
(A) 		8-97034-445-0 01 1 9304-9703 ●
49 PIPE; WATER OUTLET
(B) 		8-94254-601-1 01 1 9704- ●
49 PIPE; WATER OUTLET 8-97061-512-3 01 1 9304-9502 ●
49 PIPE; WATER OUTLET 8-97061-512-3 01 1 9503-9504 ● ●
49 PIPE; WATER OUTLET 8-97121-586-0 01 1 9505-9703 ● ●
49 PIPE; WATER OUTLET 8-97145-919-0 01 1 9704-9805 ● ● ●
49 PIPE; WATER OUTLET 8-97200-620-0 01 1 9806- ● ● ●
50 BOLT; OUTLET PIPE
M8X25 W/LK WASHER 		0-50040-825-0 03 1 9304-9502 ● ●
50 BOLT; OUTLET PIPE
M8X45 W/LK&PL WASHER 		0-50140-845-0 02 1 9304-9608 ●
50 BOLT; OUTLET PIPE
M8X40 FLANGE 		0-28680-840-0 02 1 9609-9703 ●
50 BOLT; OUTLET PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 9704-9708 ●
50 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9709- ●
50 BOLT; OUTLET PIPE
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9304-9502 ●
50 BOLT; OUTLET PIPE
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9503-9504 ● ●
50 BOLT; OUTLET PIPE
(A) M8X45 FLANGE 		0-28080-845-0 02 1 9505-9703 ● ●
50 BOLT; OUTLET PIPE
(A) M8X50 FLANGE 		0-28080-850-0 02 1 9704-9805 ● ● ●
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9806- ● ● ●
50 BOLT; OUTLET PIPE
(B) M8X85 FLANGE 		8-97023-062-0 02 1 9304-9502 ●
50 BOLT; OUTLET PIPE
(B) M8X85 FLANGE 		8-97023-062-0 02 1 9503-9703 ● ●
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE 		1-09044-072-1 02 1 9704- ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		9-13743-013-0 01 1 9304-9502 ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94365-674-1 01 1 9304- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-673-0 01 1 9304-9502 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94365-675-1 01 1 9304-9902 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 9903- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97028-669-1 02 1 9304-9502 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97028-669-1 02 1 9503-9610 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97167-477-0 02 1 9611-9703 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97167-477-0 02 1 9704- ● ● ●

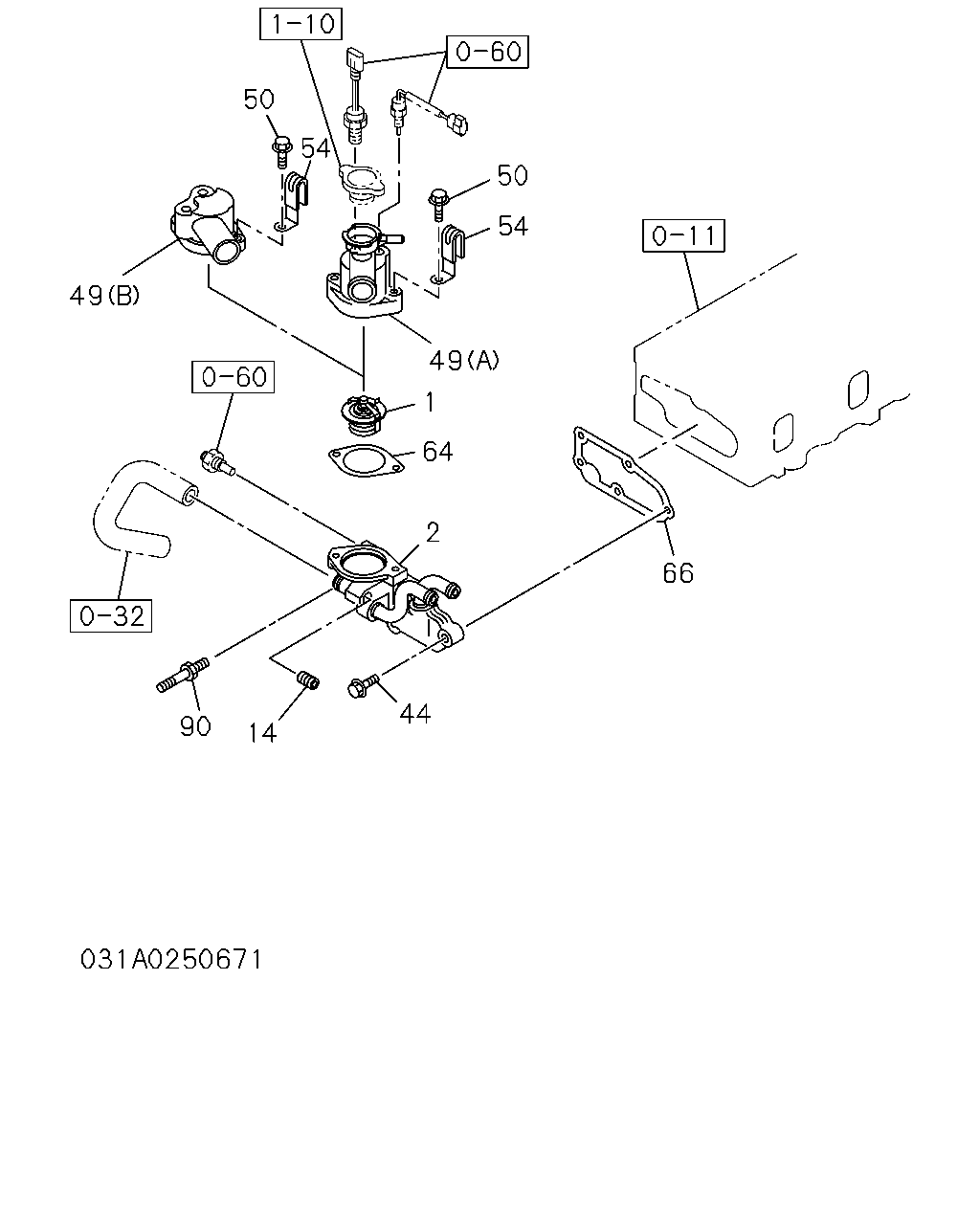

çizim 494263
50 54 49 50 54 49 1 64 2 44 14 90 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 THERMOSTAT
82 CELSIUS 		5-13770-039-0 01 1 9304-9410 ● ●
1 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9411-9502 ● ●
1 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9304- ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97028-690-2 01 1 9304-9502 ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97028-690-2 01 1 9503-9608 ● ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97164-569-0 01 1 9609-9610 ● ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97167-495-0 01 1 9611-9703 ● ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97167-495-0 01 1 9704- ● ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97091-806-0 01 1 9304-9409 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97116-057-0 01 1 9410-9502 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97116-057-0 01 1 9503-9610 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9611-9703 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9704- ● ● ●
2 HOUSING; THERMOSTAT 8-94403-314-1 01 1 9304-9502 ● ●
2 HOUSING; THERMOSTAT
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97034-443-3 01 1 9304-9606 ●
2 HOUSING; THERMOSTAT
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97139-602-0 01 1 9607-9703 ●
2 HOUSING; THERMOSTAT 8-97139-602-0 01 1 9704- ●
2 HOUSING; THERMOSTAT
REFRIGERATOR CHASSIS(V4R) 		8-97034-896-3 01 1 9510-9606 ●
2 HOUSING; THERMOSTAT
REFRIGERATOR CHASSIS(V4R) 		8-97139-603-0 01 1 9607-9703 ●
14 PLUG; SW
PT3/8 		5-09605-005-0 01 1 9304-9502 ● ● ●
14 PLUG; SW
PT3/8 		5-09605-005-0 01 1 9503-9809 ●
14 PLUG; SW
PT3/8 		5-09605-005-0 01 1 9810- ● ● ● ●
14 PLUG; SW
M16X8 PLUG 		9-09661-005-0 01 1 9503-9604 ● ●
44 BOLT; HSG TO HD
REFRIGERATOR CHASSIS(V4R) M10X25 W/LK&PL WASHER 		0-50141-025-0 02 1 9304-9502 ●
44 BOLT; HSG TO HD
EXC. REFRIGERATOR CHASSIS(V4R) M10X25 W/LK&PL WASHER 		0-50141-025-0 04 1 9304-9502 ●
44 BOLT; HSG TO HD
M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9304-9502 ● ●
44 BOLT; HSG TO HD
M10X25 W/LK&PL WASHER 		0-50141-025-0 03 1 9304-9502 ●
44 BOLT; HSG TO HD
M8X30 W/LK WASHER 		0-50040-830-0 05 1 9304-9509 ●
44 BOLT; HSG TO HD
EXC. REFRIGERATOR CHASSIS(V4R) M8X30 W/LK WASHER 		0-50040-830-0 05 1 9510-9703 ●
44 BOLT; HSG TO HD
REFRIGERATOR CHASSIS(V4R) M8X30 W/LK WASHER 		0-50040-830-0 02 1 9510-9703 ●
44 BOLT; HSG TO HD
M8X30 W/LK WASHER 		0-50040-830-0 05 1 9704- ●
49 PIPE; WATER OUTLET 8-97078-283-1 01 1 9304-9502 ● ●
49 PIPE; WATER OUTLET
(A) 		8-97034-445-0 01 1 9304-9703 ●
49 PIPE; WATER OUTLET
(B) 		8-94254-601-1 01 1 9704- ●
49 PIPE; WATER OUTLET 8-97061-512-3 01 1 9304-9502 ●
49 PIPE; WATER OUTLET 8-97061-512-3 01 1 9503-9504 ● ●
49 PIPE; WATER OUTLET 8-97121-586-0 01 1 9505-9703 ● ●
49 PIPE; WATER OUTLET 8-97145-919-0 01 1 9704-9805 ● ● ●
49 PIPE; WATER OUTLET 8-97200-620-0 01 1 9806- ● ● ●
50 BOLT; OUTLET PIPE
M8X25 W/LK WASHER 		0-50040-825-0 03 1 9304-9502 ● ●
50 BOLT; OUTLET PIPE
M8X45 W/LK&PL WASHER 		0-50140-845-0 02 1 9304-9608 ●
50 BOLT; OUTLET PIPE
M8X40 FLANGE 		0-28680-840-0 02 1 9609-9703 ●
50 BOLT; OUTLET PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 9704-9708 ●
50 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9709- ●
50 BOLT; OUTLET PIPE
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9304-9502 ●
50 BOLT; OUTLET PIPE
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9503-9504 ● ●
50 BOLT; OUTLET PIPE
(A) M8X45 FLANGE 		0-28080-845-0 02 1 9505-9703 ● ●
50 BOLT; OUTLET PIPE
(A) M8X50 FLANGE 		0-28080-850-0 02 1 9704-9805 ● ● ●
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9806- ● ● ●
50 BOLT; OUTLET PIPE
(B) M8X85 FLANGE 		8-97023-062-0 02 1 9304-9502 ●
50 BOLT; OUTLET PIPE
(B) M8X85 FLANGE 		8-97023-062-0 02 1 9503-9703 ● ●
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE 		1-09044-072-1 02 1 9704- ● ● ●
54 CLIP; THERMO SWITCH,OUTLET PIPE
ID=13 H=50 L=27 		8-94130-076-0 01 1 9304- ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		9-13743-013-0 01 1 9304-9502 ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94365-674-1 01 1 9304- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-673-0 01 1 9304-9502 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94365-675-1 01 1 9304-9902 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 9903- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97028-669-1 02 1 9304-9502 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97028-669-1 02 1 9503-9610 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97167-477-0 02 1 9611-9703 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97167-477-0 02 1 9704- ● ● ●
90 BOLT; BRKT
REFRIGERATOR CHASSIS(V4R) 		8-97038-624-0 03 1 9510-9703 ●

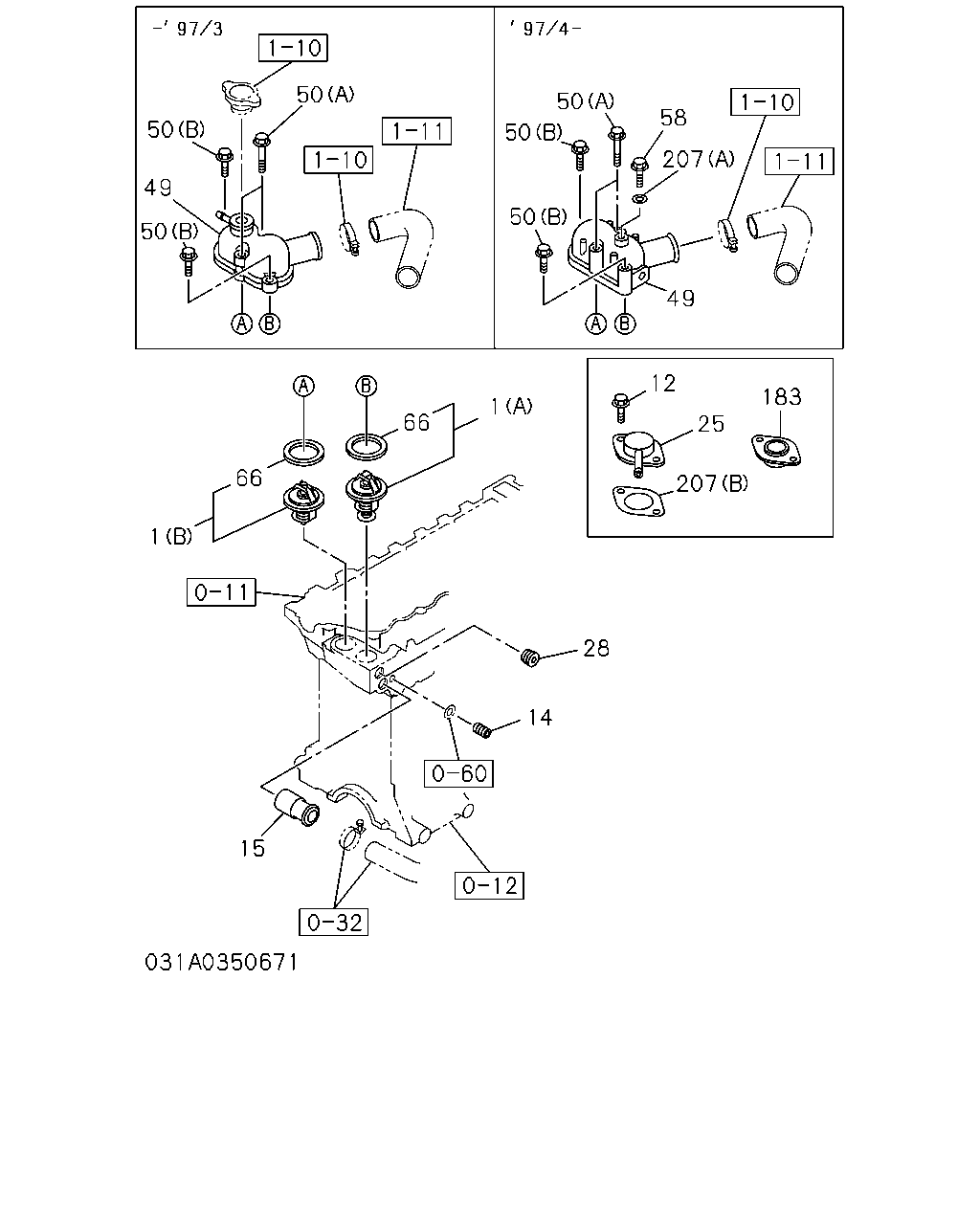

çizim 494295
50 49 50 50 66 1 15 14 28 66 1 207 25 183 12 49 207 58 50 50 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 THERMOSTAT
82 CELSIUS 		5-13770-039-0 01 1 9304-9410 ● ●
1 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9411-9502 ● ●
1 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9304- ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97028-690-2 01 1 9304-9502 ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97028-690-2 01 1 9503-9608 ● ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97164-569-0 01 1 9609-9610 ● ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97167-495-0 01 1 9611-9703 ● ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-97167-495-0 01 1 9704- ● ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97091-806-0 01 1 9304-9409 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97116-057-0 01 1 9410-9502 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97116-057-0 01 1 9503-9610 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9611-9703 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9704- ● ● ●
12 BOLT; HSG
M6X16 FLANGE 		0-28680-616-0 02 1 9603-9703 ● ●
14 PLUG; SW
PT3/8 		5-09605-005-0 01 1 9304-9502 ● ● ●
14 PLUG; SW
PT3/8 		5-09605-005-0 01 1 9503-9809 ●
14 PLUG; SW
PT3/8 		5-09605-005-0 01 1 9810- ● ● ● ●
14 PLUG; SW
M16X8 PLUG 		9-09661-005-0 01 1 9503-9604 ● ●
15 PIPE; BYPASS 8-97064-309-0 01 1 9304-9412 ● ● ●
15 PIPE; BYPASS 8-94342-574-0 01 1 9501-9502 ● ● ●
15 PIPE; BYPASS 8-94342-574-0 01 1 9503-9703 ● ●
15 PIPE; BYPASS 8-94342-574-0 01 1 9704- ● ● ●
25 VALVE; VENTILATION 8-97129-063-0 01 1 9603-9703 ● ●
28 PLUG; HTR
PT3/4 		9-09664-005-0 01 1 9304-9308 ●
49 PIPE; WATER OUTLET 8-97078-283-1 01 1 9304-9502 ● ●
49 PIPE; WATER OUTLET
(A) 		8-97034-445-0 01 1 9304-9703 ●
49 PIPE; WATER OUTLET
(B) 		8-94254-601-1 01 1 9704- ●
49 PIPE; WATER OUTLET 8-97061-512-3 01 1 9304-9502 ●
49 PIPE; WATER OUTLET 8-97061-512-3 01 1 9503-9504 ● ●
49 PIPE; WATER OUTLET 8-97121-586-0 01 1 9505-9703 ● ●
49 PIPE; WATER OUTLET 8-97145-919-0 01 1 9704-9805 ● ● ●
49 PIPE; WATER OUTLET 8-97200-620-0 01 1 9806- ● ● ●
50 BOLT; OUTLET PIPE
M8X25 W/LK WASHER 		0-50040-825-0 03 1 9304-9502 ● ●
50 BOLT; OUTLET PIPE
M8X45 W/LK&PL WASHER 		0-50140-845-0 02 1 9304-9608 ●
50 BOLT; OUTLET PIPE
M8X40 FLANGE 		0-28680-840-0 02 1 9609-9703 ●
50 BOLT; OUTLET PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 9704-9708 ●
50 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9709- ●
50 BOLT; OUTLET PIPE
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9304-9502 ●
50 BOLT; OUTLET PIPE
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9503-9504 ● ●
50 BOLT; OUTLET PIPE
(A) M8X45 FLANGE 		0-28080-845-0 02 1 9505-9703 ● ●
50 BOLT; OUTLET PIPE
(A) M8X50 FLANGE 		0-28080-850-0 02 1 9704-9805 ● ● ●
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9806- ● ● ●
50 BOLT; OUTLET PIPE
(B) M8X85 FLANGE 		8-97023-062-0 02 1 9304-9502 ●
50 BOLT; OUTLET PIPE
(B) M8X85 FLANGE 		8-97023-062-0 02 1 9503-9703 ● ●
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE 		1-09044-072-1 02 1 9704- ● ● ●
58 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 9704- ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-673-0 01 1 9304-9502 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94365-675-1 01 1 9304-9902 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 9903- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97028-669-1 02 1 9304-9502 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97028-669-1 02 1 9503-9610 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97167-477-0 02 1 9611-9703 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97167-477-0 02 1 9704- ● ● ●
183 FLANGE; WATER DUCT 8-97145-821-0 01 1 9603-9703 ● ●
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=13.2 		1-09630-082-0 01 1 9704- ● ● ●
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97129-600-0 02 1 9603-9703 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
