Isuzu WW
▶
TRUCKS
▶
NKR
▶
50671 - NKR
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

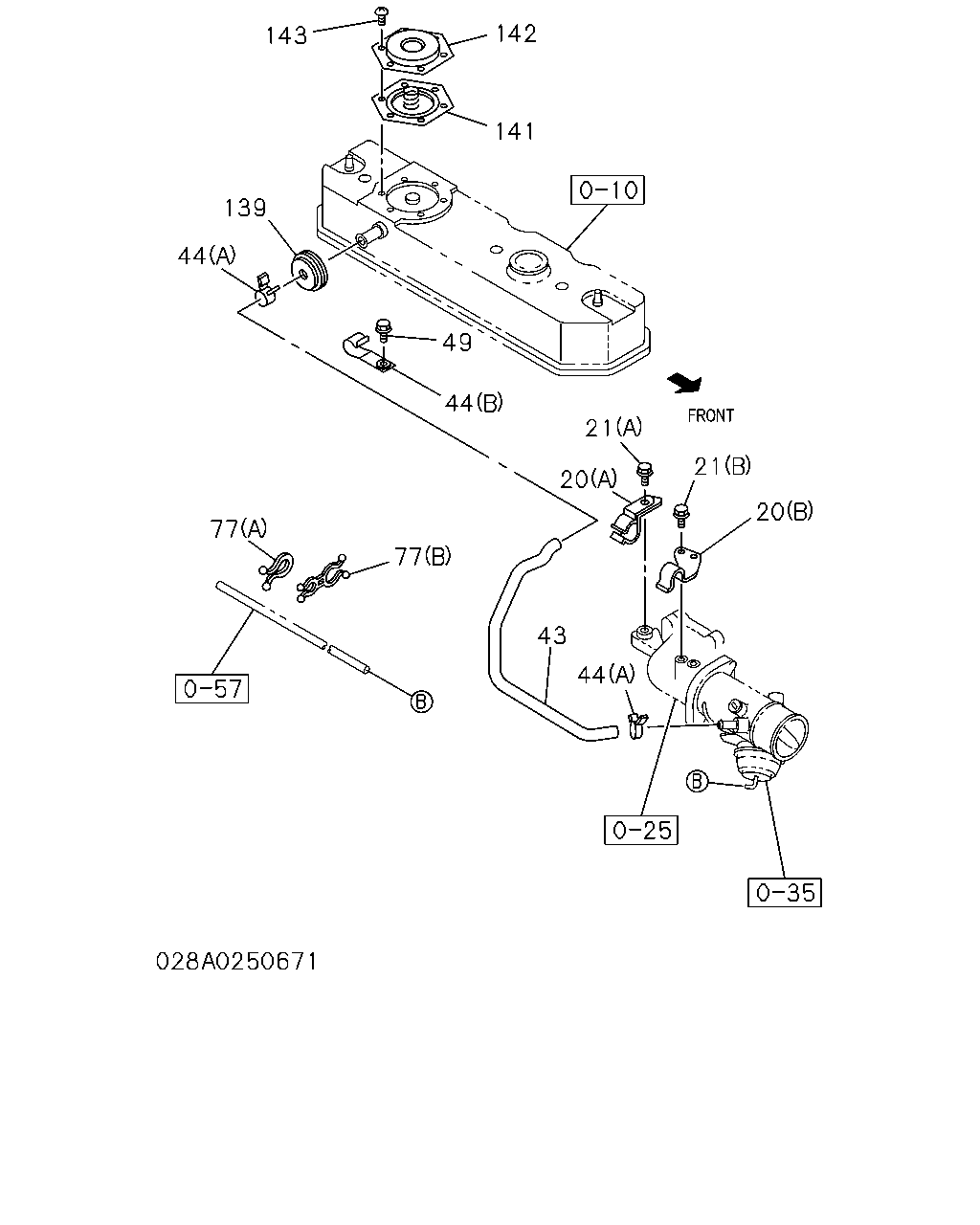

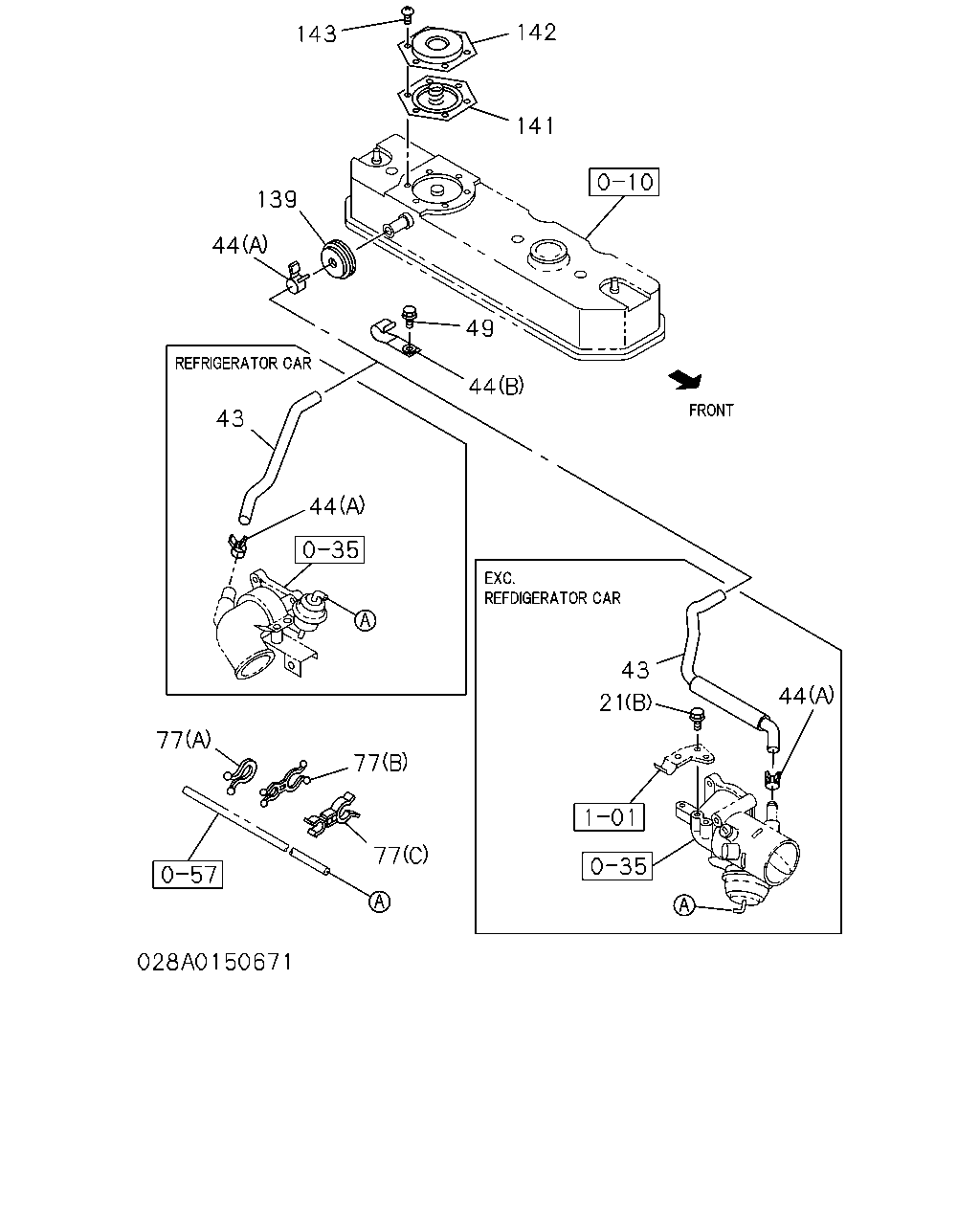

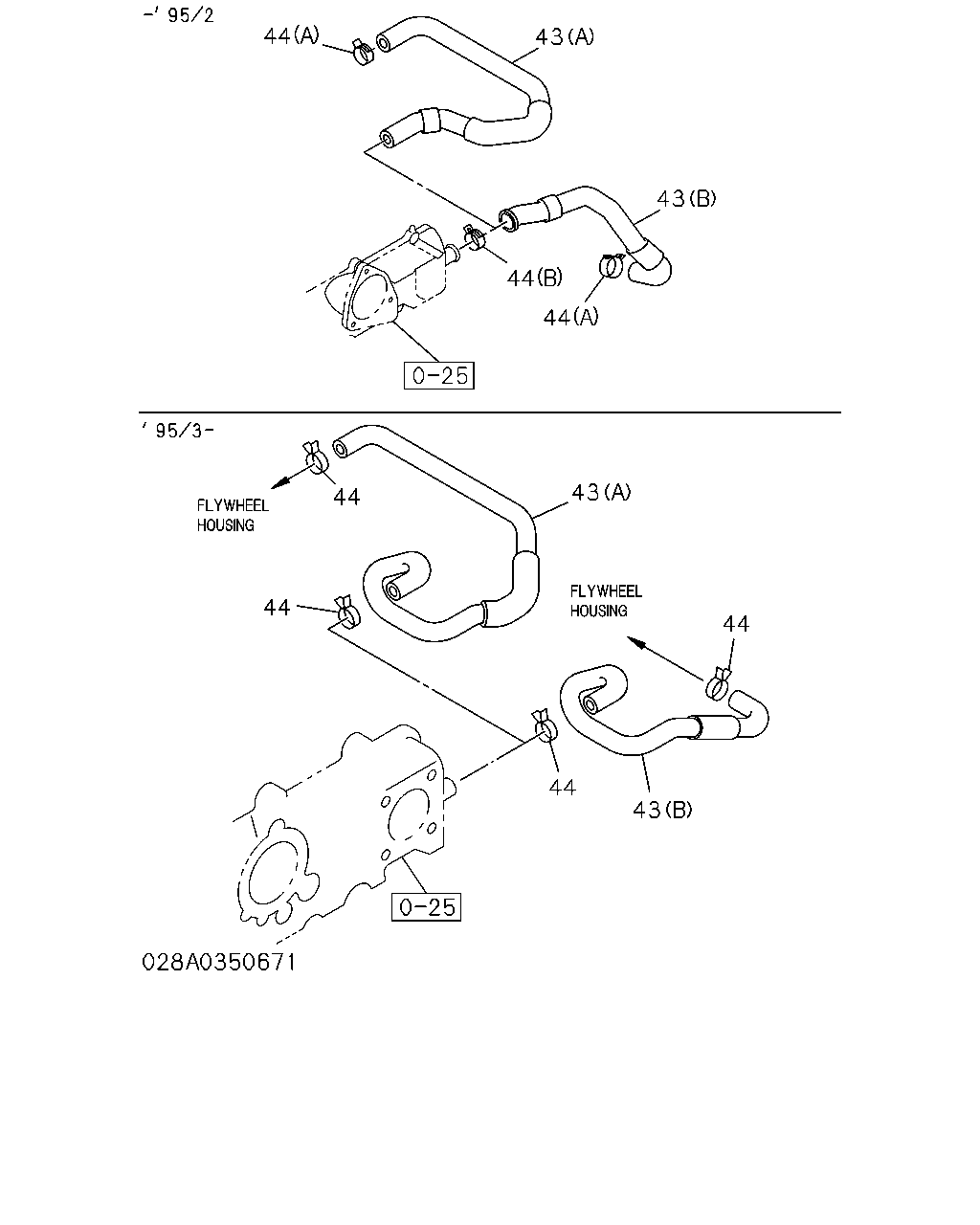

0-28 — VENTILATION SYSTEM
(#166649) — 85 parça
Tümü
A - 4JG2 ENG
B - 4BE1 ENG
C - 4BE2 ENGINE
D - 4HF1 ENG
E - 4HG1 ENG
F - 4HF1 ENG
◀
[028A] 4JG2 (5 parça)
[028A] 4BE1 (31 parça)
[028A] 4BE2 (33 parça)
[028A] 4HF1,4HG1 (16 parça)
▶
12
13
65
51
50
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
12
VENTILATOR; AIR
8-94250-172-0
01
1
9304-
●
13
SCREW; VENTILATOR TO HD COVER
M4X8 W/LK WASHER
9-03910-408-0
04
1
9304-
●
50
HOSE; PCV
8-97030-535-1
01
1
9304-
●
51
CLIP; PCV HOSE
ID=20.4
8-94121-113-0
02
1
9304-
●
65
PIPE; BREATHER
8-94250-615-1
01
1
9304-
●
143
139
44
43
44
77
77
77
21
43
44
44
49
141
142
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
21
BOLT; CLIP
EXC. REFRIGERATOR CHASSIS(V4R) (B) M6X14 W/LK WASHER
0-50040-614-0
02
1
9304-9401
●
21
BOLT; CLIP
(B) M6X12 W/LK WASHER
0-50040-612-0
02
1
9304-9401
●
21
BOLT; CLIP
EXC. REFRIGERATOR CHASSIS(V4R) (B) M6X12 W/LK WASHER
0-50040-612-0
02
1
9402-9502
●
21
BOLT; CLIP
(B) M6X12 W/LK WASHER
0-50040-612-0
02
1
9402-9502
●
21
BOLT; CLIP
(A) M6X14 W/LK&PL WASHER
0-50140-614-0
01
1
9304-9502
●
43
HOSE; PCV
REFRIGERATOR CHASSIS(V4R) L=298
8-94478-938-2
01
1
9304-9502
●
43
HOSE; PCV
EXC. REFRIGERATOR CHASSIS(V4R)
8-97025-382-0
01
1
9304-9502
●
43
HOSE; PCV
8-97010-233-0
01
1
9304-9502
●
43
HOSE; PCV
POWER TAKE OFF - FLYWHEEL(6SZ) (A)
8-97075-993-0
01
1
9304-9502
●
43
HOSE; PCV
POWER TAKE OFF - FLYWHEEL(6SZ) (A)
8-97105-855-2
01
1
9503-
●
●
43
HOSE; PCV
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B)
8-97093-534-0
01
1
9304-9502
●
43
HOSE; PCV
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B)
8-97113-088-1
01
1
9503-9606
●
●
43
HOSE; PCV
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B)
8-97139-586-3
01
1
9607-9703
●
●
43
HOSE; PCV
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B)
8-97139-586-3
01
1
9704-
●
●
●
44
CLIP; HOSE,PCV
(B) ID=21
8-94322-748-1
01
1
9304-9502
●
44
CLIP; HOSE,PCV
(A) ID=21
8-94242-034-0
02
1
9304-9502
●
●
44
CLIP; HOSE,PCV
(B)
8-97010-408-0
01
1
9304-9502
●
44
CLIP; HOSE,PCV
(A) ID=25
8-94342-958-0
01
1
9304-9502
●
44
CLIP; HOSE,PCV
(B) ID=22.7
8-94466-382-0
01
1
9304-9502
●
44
CLIP; HOSE,PCV
ID=22.7
8-94466-382-0
02
1
9503-9703
●
●
44
CLIP; HOSE,PCV
ID=22.7
8-94466-382-0
02
1
9704-
●
●
●
49
BOLT; PCV HOSE CLIP
M6X12 W/LK WASHER
0-50040-612-0
01
1
9304-9502
●
●
77
CLIP; PCV HOSE
REFRIGERATOR CHASSIS(V4R) (B) ID=8 & 23
5-09707-002-0
01
1
9304-9502
●
77
CLIP; PCV HOSE
(B) ID=8 & 23
5-09707-002-0
01
1
9304-9502
●
77
CLIP; PCV HOSE
EXC. REFRIGERATOR CHASSIS(V4R) (C) ID=20.2 & 6
8-94472-577-0
01
1
9304-9502
●
77
CLIP; PCV HOSE
(A) ID=20
1-09709-068-0
02
1
9304-9502
●
●
77
CLIP; PCV HOSE
(A) ID=8.3
1-09709-082-0
01
1
9304-9502
●
●
139
SEAL; RUBBER,PCV HOSE
8-94104-696-0
01
1
9304-9502
●
●
141
DIAPHRAGM ASM
8-94110-111-0
01
1
9304-9502
●
●
142
COVER; PCV
1-14362-002-0
01
1
9304-9502
●
●
143
SCREW; PCV COVER
M5X10 PAN-HD
9-93490-510-0
06
1
9304-9502
●
●
143
139
44
77
77
43
44
20
21
20
21
44
49
141
142
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
20
CLIP; PCV HOSE
(A)
8-97010-409-0
01
1
9304-9502
●
20
CLIP; PCV HOSE
(B)
8-97023-657-0
01
1
9304-9502
●
21
BOLT; CLIP
EXC. REFRIGERATOR CHASSIS(V4R) (B) M6X14 W/LK WASHER
0-50040-614-0
02
1
9304-9401
●
21
BOLT; CLIP
(B) M6X12 W/LK WASHER
0-50040-612-0
02
1
9304-9401
●
21
BOLT; CLIP
EXC. REFRIGERATOR CHASSIS(V4R) (B) M6X12 W/LK WASHER
0-50040-612-0
02
1
9402-9502
●
21
BOLT; CLIP
(B) M6X12 W/LK WASHER
0-50040-612-0
02
1
9402-9502
●
21
BOLT; CLIP
(A) M6X14 W/LK&PL WASHER
0-50140-614-0
01
1
9304-9502
●
43
HOSE; PCV
REFRIGERATOR CHASSIS(V4R) L=298
8-94478-938-2
01
1
9304-9502
●
43
HOSE; PCV
EXC. REFRIGERATOR CHASSIS(V4R)
8-97025-382-0
01
1
9304-9502
●
43
HOSE; PCV
8-97010-233-0
01
1
9304-9502
●
43
HOSE; PCV
POWER TAKE OFF - FLYWHEEL(6SZ) (A)
8-97075-993-0
01
1
9304-9502
●
43
HOSE; PCV
POWER TAKE OFF - FLYWHEEL(6SZ) (A)
8-97105-855-2
01
1
9503-
●
●
43
HOSE; PCV
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B)
8-97093-534-0
01
1
9304-9502
●
43
HOSE; PCV
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B)
8-97113-088-1
01
1
9503-9606
●
●
43
HOSE; PCV
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B)
8-97139-586-3
01
1
9607-9703
●
●
43
HOSE; PCV
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B)
8-97139-586-3
01
1
9704-
●
●
●
44
CLIP; HOSE,PCV
(B) ID=21
8-94322-748-1
01
1
9304-9502
●
44
CLIP; HOSE,PCV
(A) ID=21
8-94242-034-0
02
1
9304-9502
●
●
44
CLIP; HOSE,PCV
(B)
8-97010-408-0
01
1
9304-9502
●
44
CLIP; HOSE,PCV
(A) ID=25
8-94342-958-0
01
1
9304-9502
●
44
CLIP; HOSE,PCV
(B) ID=22.7
8-94466-382-0
01
1
9304-9502
●
44
CLIP; HOSE,PCV
ID=22.7
8-94466-382-0
02
1
9503-9703
●
●
44
CLIP; HOSE,PCV
ID=22.7
8-94466-382-0
02
1
9704-
●
●
●
49
BOLT; PCV HOSE CLIP
M6X12 W/LK WASHER
0-50040-612-0
01
1
9304-9502
●
●
77
CLIP; PCV HOSE
REFRIGERATOR CHASSIS(V4R) (B) ID=8 & 23
5-09707-002-0
01
1
9304-9502
●
77
CLIP; PCV HOSE
(B) ID=8 & 23
5-09707-002-0
01
1
9304-9502
●
77
CLIP; PCV HOSE
EXC. REFRIGERATOR CHASSIS(V4R) (C) ID=20.2 & 6
8-94472-577-0
01
1
9304-9502
●
77
CLIP; PCV HOSE
(A) ID=20
1-09709-068-0
02
1
9304-9502
●
●
77
CLIP; PCV HOSE
(A) ID=8.3
1-09709-082-0
01
1
9304-9502
●
●
139
SEAL; RUBBER,PCV HOSE
8-94104-696-0
01
1
9304-9502
●
●
141
DIAPHRAGM ASM
8-94110-111-0
01
1
9304-9502
●
●
142
COVER; PCV
1-14362-002-0
01
1
9304-9502
●
●
143
SCREW; PCV COVER
M5X10 PAN-HD
9-93490-510-0
06
1
9304-9502
●
●
44
43
43
44
44
43
44
43
44
44
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
43
HOSE; PCV
REFRIGERATOR CHASSIS(V4R) L=298
8-94478-938-2
01
1
9304-9502
●
43
HOSE; PCV
EXC. REFRIGERATOR CHASSIS(V4R)
8-97025-382-0
01
1
9304-9502
●
43
HOSE; PCV
8-97010-233-0
01
1
9304-9502
●
43
HOSE; PCV
POWER TAKE OFF - FLYWHEEL(6SZ) (A)
8-97075-993-0
01
1
9304-9502
●
43
HOSE; PCV
POWER TAKE OFF - FLYWHEEL(6SZ) (A)
8-97105-855-2
01
1
9503-
●
●
43
HOSE; PCV
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B)
8-97093-534-0
01
1
9304-9502
●
43
HOSE; PCV
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B)
8-97113-088-1
01
1
9503-9606
●
●
43
HOSE; PCV
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B)
8-97139-586-3
01
1
9607-9703
●
●
43
HOSE; PCV
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B)
8-97139-586-3
01
1
9704-
●
●
●
44
CLIP; HOSE,PCV
(B) ID=21
8-94322-748-1
01
1
9304-9502
●
44
CLIP; HOSE,PCV
(A) ID=21
8-94242-034-0
02
1
9304-9502
●
●
44
CLIP; HOSE,PCV
(B)
8-97010-408-0
01
1
9304-9502
●
44
CLIP; HOSE,PCV
(A) ID=25
8-94342-958-0
01
1
9304-9502
●
44
CLIP; HOSE,PCV
(B) ID=22.7
8-94466-382-0
01
1
9304-9502
●
44
CLIP; HOSE,PCV
ID=22.7
8-94466-382-0
02
1
9503-9703
●
●
44
CLIP; HOSE,PCV
ID=22.7
8-94466-382-0
02
1
9704-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
