Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#166647) — 207 parça

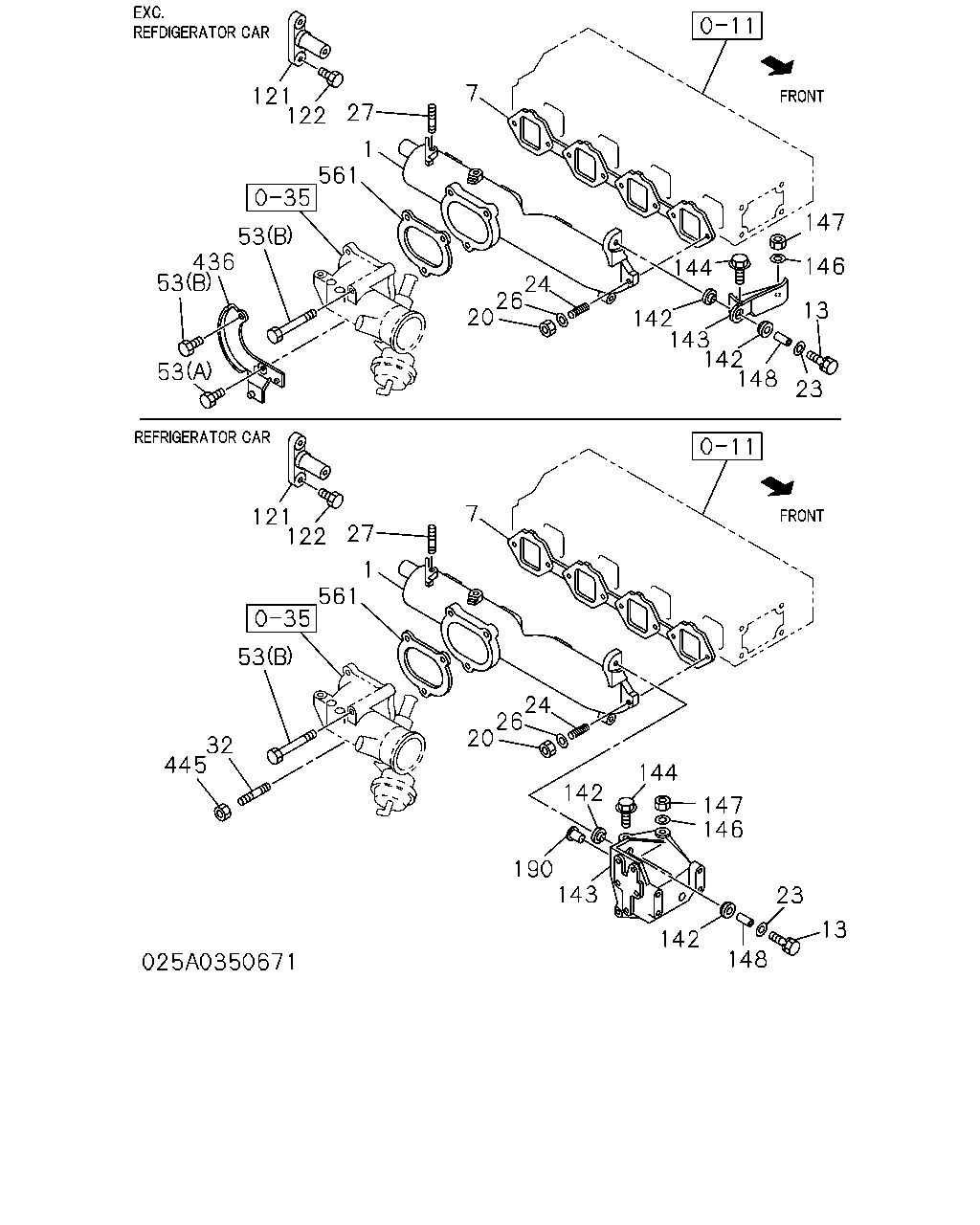

121 122 27 7 1 561 53 436 53 53 24 26 20 23 13 146 147 148 142 143 142 144 13 23 148 142 146 147 144 142 190 143 24 26 20 7 1 27 122 121 53 561 32 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	MANIFOLD; INL REFRIGERATOR CHASSIS(V4R)	8-97064-280-1	01	1	9304-9502	●
1	MANIFOLD; INL EXC. REFRIGERATOR CHASSIS(V4R)	8-97064-281-0	01	1	9304-9502	●
1	MANIFOLD; INL	5-14111-189-3	01	1	9304-9502		●
1	MANIFOLD; INL	8-94337-735-0	01	1	9304-9404			●
1	MANIFOLD; INL	8-97107-744-0	01	1	9405-9703			●
1	MANIFOLD; INL	8-97147-920-0	01	1	9704-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94116-988-0	01	1	9304-9502	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	5-14115-022-1	01	1	9304-9403		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-616-0	01	1	9404-9502		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9304-9703			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97144-623-0	04	1	9704-			●
13	BOLT; INL MANIF M8X40 W/LK WASHER	0-50040-840-0	01	1	9304-9502	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	06	1	9304-9502		●	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	06	1	9503-			●
13	BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9304-9502				●
13	BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9503-9703				●	●
13	BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9704-				●	●	●
20	NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9304-9502	●
20	NUT; INL MANIF M8 FLANGE	5-09440-005-0	02	1	9304-9502		●	●
20	NUT; INL MANIF M8 FLANGE	5-09440-005-0	02	1	9503-			●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9304-9502				●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	04	1	9503-9606				●	●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9607-9703				●	●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9704-				●	●	●
23	WASHER; PL,INL MANIF OD=28.6	8-94155-884-1	01	1	9304-9502	●
23	WASHER; PL,INL MANIF ID=8.4 OD=22	9-09164-708-0	01	1	9304-			●
24	SPRING; INL MANIF	5-09580-105-0	08	1	9304-9502	●
26	WASHER; PL,SPRING SEAT ID=12.5	9-09164-512-0	08	1	9304-9502	●
27	STUD; INL MANIF M6X20 L=29	9-04110-620-0	01	1	9304-9502	●
27	STUD; INL MANIF (A) M8X25 L=37	9-04110-825-0	01	1	9304-			●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	9304-			●
32	STUD; INL PIPE REFRIGERATOR CHASSIS(V4R)	1-09302-089-0	01	1	9304-9502	●
53	BOLT; INL PIPE EXC. REFRIGERATOR CHASSIS(V4R) (A) M10X90 W/LK&PL WASHER	0-50151-090-0	01	1	9304-9502	●
53	BOLT; INL PIPE (B) M10X35 W/LK&PL WASHER	0-50151-035-0	02	1	9304-9502	●	●
121	BRACKET REFRIGERATOR CHASSIS(V4R)	8-94478-933-0	01	1	9304-9502	●
122	BOLT; BRKT REFRIGERATOR CHASSIS(V4R) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9304-9502	●
142	RUBBER; MTG,INL MANIF TO BRKT	8-94255-643-1	02	1	9304-9502	●
143	BRACKET; INL MANIF FRT REFRIGERATOR CHASSIS(V4R)	8-94372-139-0	01	1	9304-9502	●
143	BRACKET; INL MANIF FRT EXC. REFRIGERATOR CHASSIS(V4R)	8-94129-708-2	01	1	9304-9502	●
144	BOLT; BRKT FIX REFRIGERATOR CHASSIS(V4R) M10X35 W/LK WASHER	0-50041-035-0	01	1	9304-9502	●
144	BOLT; BRKT FIX REFRIGERATOR CHASSIS(V4R) M10X70 W/LK WASHER	0-50041-070-0	01	1	9304-9502	●
144	BOLT; BRKT FIX REFRIGERATOR CHASSIS(V4R) M10X35 W/LK&PL WASHER	0-50141-035-0	01	1	9304-9502	●
144	BOLT; BRKT FIX EXC. REFRIGERATOR CHASSIS(V4R) M10X32 W/LK WASHER	0-50041-032-0	01	1	9304-9502	●
146	WASHER; LK,BRKT ID=10.2	9-09150-510-0	01	1	9304-9502	●
147	NUT; BRKT M10	9-09110-510-0	01	1	9304-9502	●
148	BUSHING; SPACER,INL MANIF TO BRKT OD=12 L=20.5	8-94255-642-1	01	1	9304-9502	●
190	COLLAR; INLET MANIFOLD REFRIGERATOR CHASSIS(V4R)	8-94201-057-1	01	1	9304-9502	●
436	BRACKET; FUEL CUT EXC. REFRIGERATOR CHASSIS(V4R)	8-97049-305-1	01	1	9304-9502	●
445	NUT; THROTTLE BODY TO MANIF REFRIGERATOR CHASSIS(V4R) M10 FLANGE	0-91150-110-0	01	1	9304-9502	●
445	NUT; THROTTLE BODY TO MANIF M8 FLANGE	0-91150-108-0	03	1	9304-9502				●
561	GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE). ID=64X89	8-94370-677-0	01	1	9304-9502	●
561	GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE). ID=66	8-94370-678-0	01	1	9304-9502		●

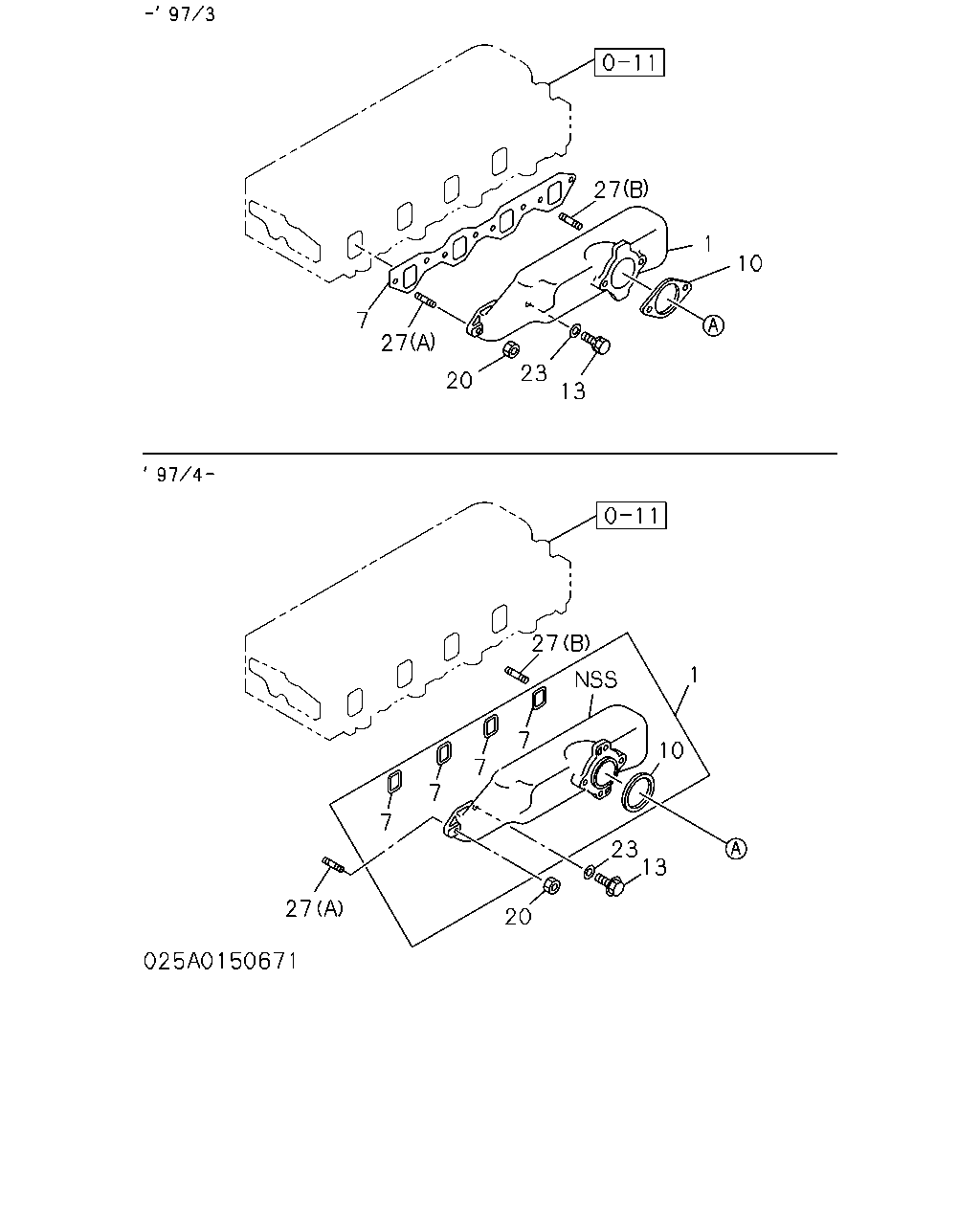

7 27 20 23 13 1 10 27 1 10 13 23 27 7 7 7 7 27 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	MANIFOLD; INL REFRIGERATOR CHASSIS(V4R)	8-97064-280-1	01	1	9304-9502	●
1	MANIFOLD; INL EXC. REFRIGERATOR CHASSIS(V4R)	8-97064-281-0	01	1	9304-9502	●
1	MANIFOLD; INL	5-14111-189-3	01	1	9304-9502		●
1	MANIFOLD; INL	8-94337-735-0	01	1	9304-9404			●
1	MANIFOLD; INL	8-97107-744-0	01	1	9405-9703			●
1	MANIFOLD; INL	8-97147-920-0	01	1	9704-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94116-988-0	01	1	9304-9502	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	5-14115-022-1	01	1	9304-9403		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-616-0	01	1	9404-9502		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9304-9703			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97144-623-0	04	1	9704-			●
10	GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	5-09637-027-0	01	1	9304-9502		●
10	GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97035-883-0	01	1	9304-9703			●
10	GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97144-622-0	01	1	9704-			●
13	BOLT; INL MANIF M8X40 W/LK WASHER	0-50040-840-0	01	1	9304-9502	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	06	1	9304-9502		●	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	06	1	9503-			●
13	BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9304-9502				●
13	BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9503-9703				●	●
13	BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9704-				●	●	●
20	NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9304-9502	●
20	NUT; INL MANIF M8 FLANGE	5-09440-005-0	02	1	9304-9502		●	●
20	NUT; INL MANIF M8 FLANGE	5-09440-005-0	02	1	9503-			●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9304-9502				●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	04	1	9503-9606				●	●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9607-9703				●	●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9704-				●	●	●
23	WASHER; PL,INL MANIF OD=28.6	8-94155-884-1	01	1	9304-9502	●
23	WASHER; PL,INL MANIF ID=8.4 OD=22	9-09164-708-0	01	1	9304-			●
27	STUD; INL MANIF M6X20 L=29	9-04110-620-0	01	1	9304-9502	●
27	STUD; INL MANIF (A) M8X25 L=37	9-04110-825-0	01	1	9304-			●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	9304-			●

114 116 115 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
114	HOSE; VAC,INT THROTTLE L=1380	8-97089-847-0	01	1	9304-9304	●
114	HOSE; VAC,INT THROTTLE L=1320	8-97096-148-1	01	1	9304-	●
115	CLIP; VAC HOSE,INT THROTTLE (A) ID=8 & 23	5-09707-002-0	01	1	9304-9509	●
115	CLIP; VAC HOSE,INT THROTTLE EXC. REFRIGERATOR CHASSIS(V4R) (A) ID=8 & 23	5-09707-002-0	01	1	9510-	●
115	CLIP; VAC HOSE,INT THROTTLE (A) ID=8 & 16	5-09707-032-0	03	1	9304-	●
115	CLIP; VAC HOSE,INT THROTTLE (B) ID=6.8X2	8-94126-636-0	01	1	9305-	●
115	CLIP; VAC HOSE,INT THROTTLE EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C) ID=14.5 & 31.8	1-09709-126-0	01	1	9304-9304	●
115	CLIP; VAC HOSE,INT THROTTLE FLAT LOW&SHORT CHASSIS(NKN**C) REFRIGERATOR CHASSIS(V4R) (C) ID=6 & 16.5	8-94165-402-0	01	1	9510-	●
116	BOLT; MANIF TO INL PIPE M10X25 W/LK WASHER	0-50051-025-0	02	1	9304-9706	●
116	BOLT; MANIF TO INL PIPE M10X20 FLANGE	0-28181-020-0	02	1	9707-9801	●
116	BOLT; MANIF TO INL PIPE M10X20 FLANGE	0-28781-020-0	02	1	9802-	●

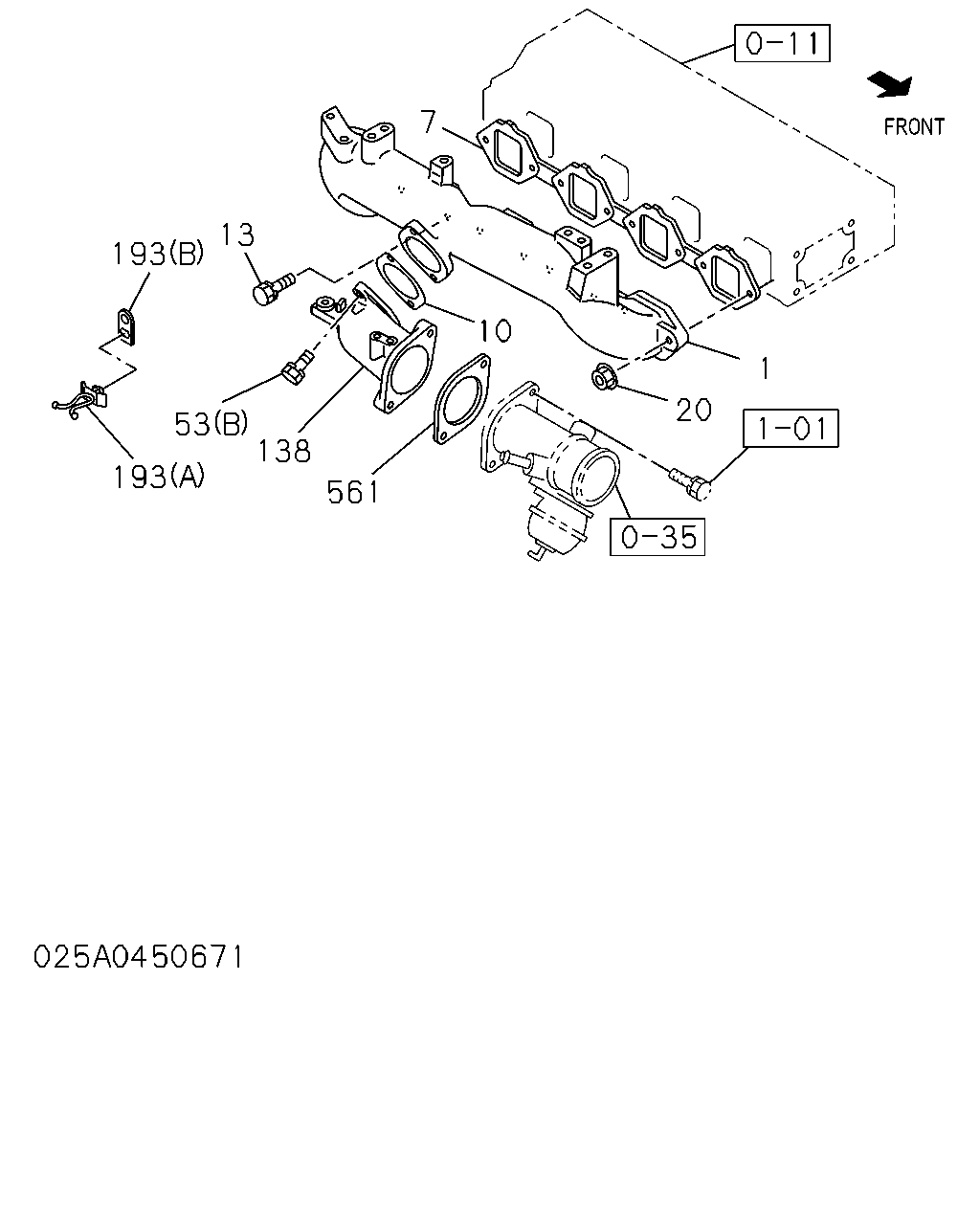

193 13 53 138 561 193 20 1 10 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	MANIFOLD; INL REFRIGERATOR CHASSIS(V4R)	8-97064-280-1	01	1	9304-9502	●
1	MANIFOLD; INL EXC. REFRIGERATOR CHASSIS(V4R)	8-97064-281-0	01	1	9304-9502	●
1	MANIFOLD; INL	5-14111-189-3	01	1	9304-9502		●
1	MANIFOLD; INL	8-94337-735-0	01	1	9304-9404			●
1	MANIFOLD; INL	8-97107-744-0	01	1	9405-9703			●
1	MANIFOLD; INL	8-97147-920-0	01	1	9704-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94116-988-0	01	1	9304-9502	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	5-14115-022-1	01	1	9304-9403		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-616-0	01	1	9404-9502		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9304-9703			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97144-623-0	04	1	9704-			●
10	GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	5-09637-027-0	01	1	9304-9502		●
10	GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97035-883-0	01	1	9304-9703			●
10	GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97144-622-0	01	1	9704-			●
13	BOLT; INL MANIF M8X40 W/LK WASHER	0-50040-840-0	01	1	9304-9502	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	06	1	9304-9502		●	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	06	1	9503-			●
13	BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9304-9502				●
13	BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9503-9703				●	●
13	BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9704-				●	●	●
20	NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9304-9502	●
20	NUT; INL MANIF M8 FLANGE	5-09440-005-0	02	1	9304-9502		●	●
20	NUT; INL MANIF M8 FLANGE	5-09440-005-0	02	1	9503-			●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9304-9502				●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	04	1	9503-9606				●	●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9607-9703				●	●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9704-				●	●	●
53	BOLT; INL PIPE EXC. REFRIGERATOR CHASSIS(V4R) (A) M10X90 W/LK&PL WASHER	0-50151-090-0	01	1	9304-9502	●
53	BOLT; INL PIPE (B) M10X35 W/LK&PL WASHER	0-50151-035-0	02	1	9304-9502	●	●
138	PIPE; INL	8-94380-643-0	01	1	9304-9502		●
193	CLIP; VAC HOSE (A) ID=8	8-94154-795-0	01	1	9304-9502		●
193	CLIP; VAC HOSE (B)	8-94342-964-0	01	1	9304-9502		●
561	GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE). ID=64X89	8-94370-677-0	01	1	9304-9502	●
561	GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE). ID=66	8-94370-678-0	01	1	9304-9502		●

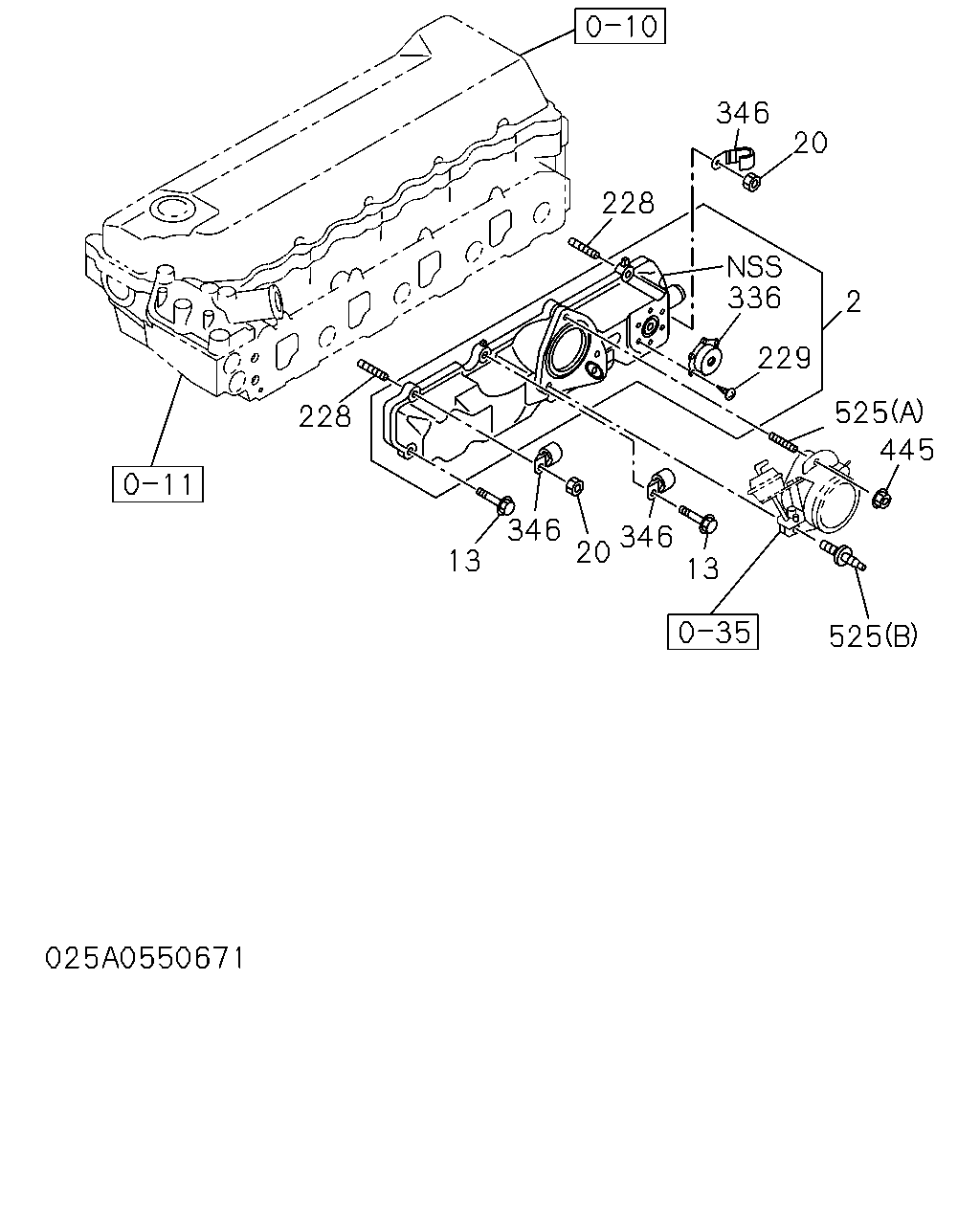

346 228 336 2 229 525 445 525 13 346 20 346 13 228 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	COVER; INL	8-97033-719-1	01	1	9304-9502				●
2	COVER; INL	8-97109-000-4	01	1	9503-9608				●	●
2	COVER; INL	8-97146-864-1	01	1	9609-9703				●	●
2	COVER; INL	8-97146-864-2	01	1	9704-				●	●	●
13	BOLT; INL MANIF M8X40 W/LK WASHER	0-50040-840-0	01	1	9304-9502	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	06	1	9304-9502		●	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	06	1	9503-			●
13	BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9304-9502				●
13	BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9503-9703				●	●
13	BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9704-				●	●	●
20	NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9304-9502	●
20	NUT; INL MANIF M8 FLANGE	5-09440-005-0	02	1	9304-9502		●	●
20	NUT; INL MANIF M8 FLANGE	5-09440-005-0	02	1	9503-			●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9304-9502				●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	04	1	9503-9606				●	●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9607-9703				●	●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9704-				●	●	●
228	STUD; INL COVER M8X30 L=41	8-97016-313-0	02	1	9304-9502				●
229	SCREW; VENTILATION VLV M4X8 TAPPING	0-71080-408-0	06	1	9304-9502				●
229	SCREW; VENTILATION VLV M4X8 W/LK WASHER	9-03910-408-0	04	1	9503-9703				●	●
229	SCREW; VENTILATION VLV M4X8 W/LK WASHER	9-03910-408-0	04	1	9704-				●	●	●
336	VALVE; VENTILATION	8-97010-548-0	01	1	9304-9502				●
336	VALVE; VENTILATION	8-97119-887-0	01	1	9503-9703				●	●
336	VALVE; VENTILATION	8-97119-887-0	01	1	9704-				●	●	●
346	CLIP; ENG HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	05	1	9304-9502				●
346	CLIP; ENG HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9503-9703				●	●
346	CLIP; ENG HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9704-				●	●	●
445	NUT; THROTTLE BODY TO MANIF REFRIGERATOR CHASSIS(V4R) M10 FLANGE	0-91150-110-0	01	1	9304-9502	●
445	NUT; THROTTLE BODY TO MANIF M8 FLANGE	0-91150-108-0	03	1	9304-9502				●
525	STUD; CONT VLV (A) M8X20 L=38	8-97021-431-0	02	1	9304-9502				●
525	STUD; CONT VLV (B)	8-97033-689-0	01	1	9304-9502				●

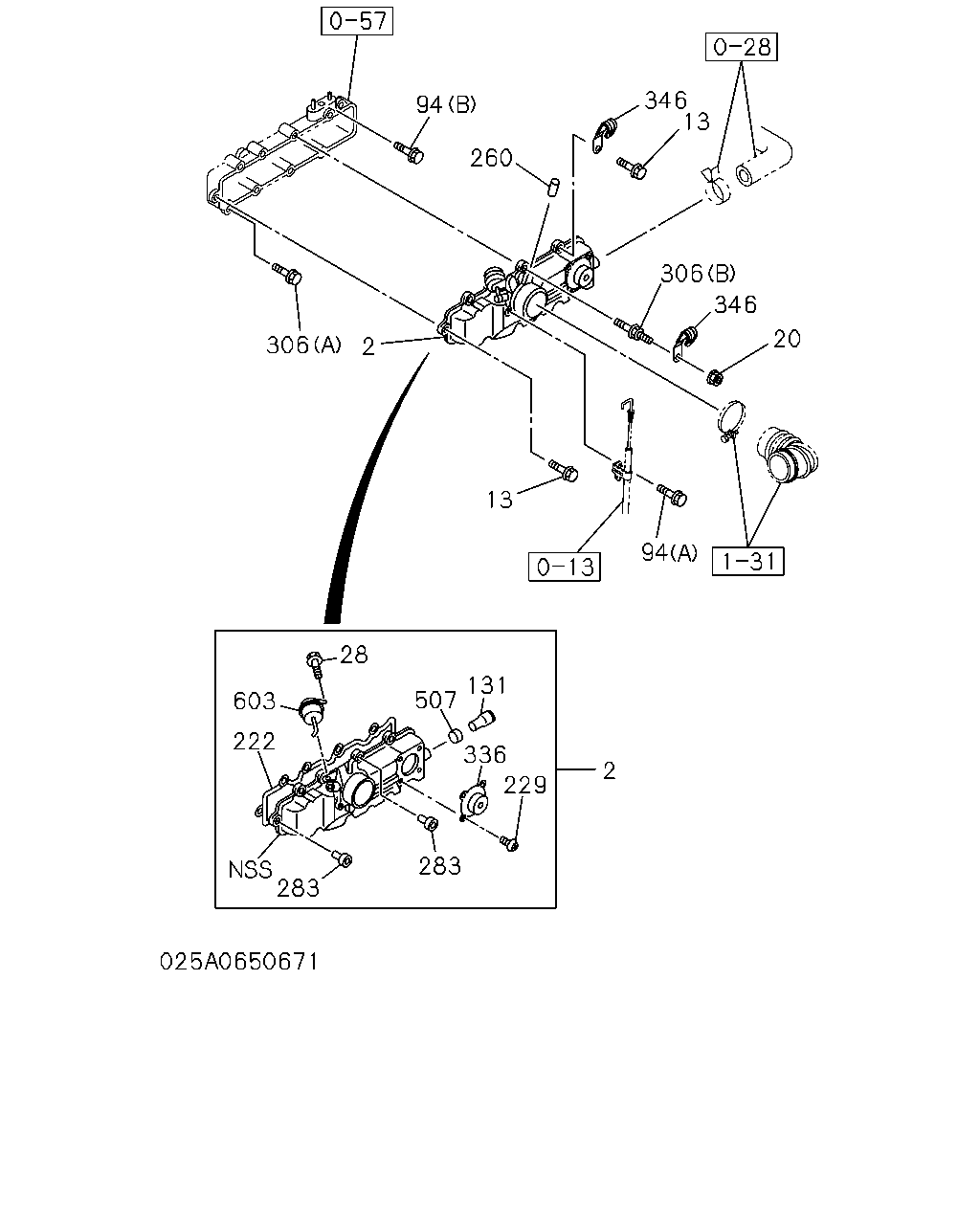

94 260 306 2 13 28 603 222 283 283 229 336 507 131 2 94 20 346 306 13 346

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	COVER; INL	8-97033-719-1	01	1	9304-9502				●
2	COVER; INL	8-97109-000-4	01	1	9503-9608				●	●
2	COVER; INL	8-97146-864-1	01	1	9609-9703				●	●
2	COVER; INL	8-97146-864-2	01	1	9704-				●	●	●
13	BOLT; INL MANIF M8X40 W/LK WASHER	0-50040-840-0	01	1	9304-9502	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	06	1	9304-9502		●	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	06	1	9503-			●
13	BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9304-9502				●
13	BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9503-9703				●	●
13	BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9704-				●	●	●
20	NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9304-9502	●
20	NUT; INL MANIF M8 FLANGE	5-09440-005-0	02	1	9304-9502		●	●
20	NUT; INL MANIF M8 FLANGE	5-09440-005-0	02	1	9503-			●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9304-9502				●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	04	1	9503-9606				●	●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9607-9703				●	●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9704-				●	●	●
28	BOLT; CHAMBER M6X12 FLANGE	0-28080-612-0	02	1	9803-				●	●	●
94	BOLT (A) M8X12 FLANGE	0-28080-812-0	01	1	9503-9703				●	●
94	BOLT (A) M8X12 FLANGE	0-28080-812-0	01	1	9704-				●	●	●
94	BOLT (B) M8X30 FLANGE	0-28080-830-0	02	1	9607-9703				●	●
94	BOLT (B) M8X30 FLANGE	0-28080-830-0	02	1	9704-				●	●	●
131	PIPE; PCV,INL	8-97102-601-0	01	1	9503-9703				●	●
131	PIPE; PCV,INL	8-97102-601-0	01	1	9704-				●	●	●
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	9503-9703				●	●
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	9704-				●	●	●
229	SCREW; VENTILATION VLV M4X8 TAPPING	0-71080-408-0	06	1	9304-9502				●
229	SCREW; VENTILATION VLV M4X8 W/LK WASHER	9-03910-408-0	04	1	9503-9703				●	●
229	SCREW; VENTILATION VLV M4X8 W/LK WASHER	9-03910-408-0	04	1	9704-				●	●	●
260	CAP; RUBBER ID=4	8-94217-809-0	01	1	9503-9703				●	●
260	CAP; RUBBER ID=4	8-94217-809-0	01	1	9704-				●	●	●
283	RUBBER OD=23	8-97105-689-5	10	1	9503-9703				●	●
283	RUBBER OD=23	8-97105-689-6	10	1	9704-				●	●	●
306	BOLT; VLV (A) M8X45 FLANGE	0-28080-845-0	05	1	9503-9703				●	●
306	BOLT; VLV (A) M8X45 FLANGE	0-28080-845-0	05	1	9704-				●	●	●
306	BOLT; VLV (B)	8-97088-145-0	02	1	9503-9606				●	●
336	VALVE; VENTILATION	8-97010-548-0	01	1	9304-9502				●
336	VALVE; VENTILATION	8-97119-887-0	01	1	9503-9703				●	●
336	VALVE; VENTILATION	8-97119-887-0	01	1	9704-				●	●	●
346	CLIP; ENG HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	05	1	9304-9502				●
346	CLIP; ENG HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9503-9703				●	●
346	CLIP; ENG HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9704-				●	●	●
507	ORIFICE	8-97088-649-0	01	1	9503-9703				●	●
507	ORIFICE	8-97088-649-0	01	1	9704-				●	●	●
603	CHAMBER; THROTTLE	8-97204-780-0	01	1	9704-9802				●	●	●
603	CHAMBER; THROTTLE	8-97204-780-0	01	1	9803-				●	●	●
603	CHAMBER; THROTTLE	8-97162-186-0	01	1	9503-9701				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
