0-22 — ENGINE MOUNTING (#166646) — 530 parça

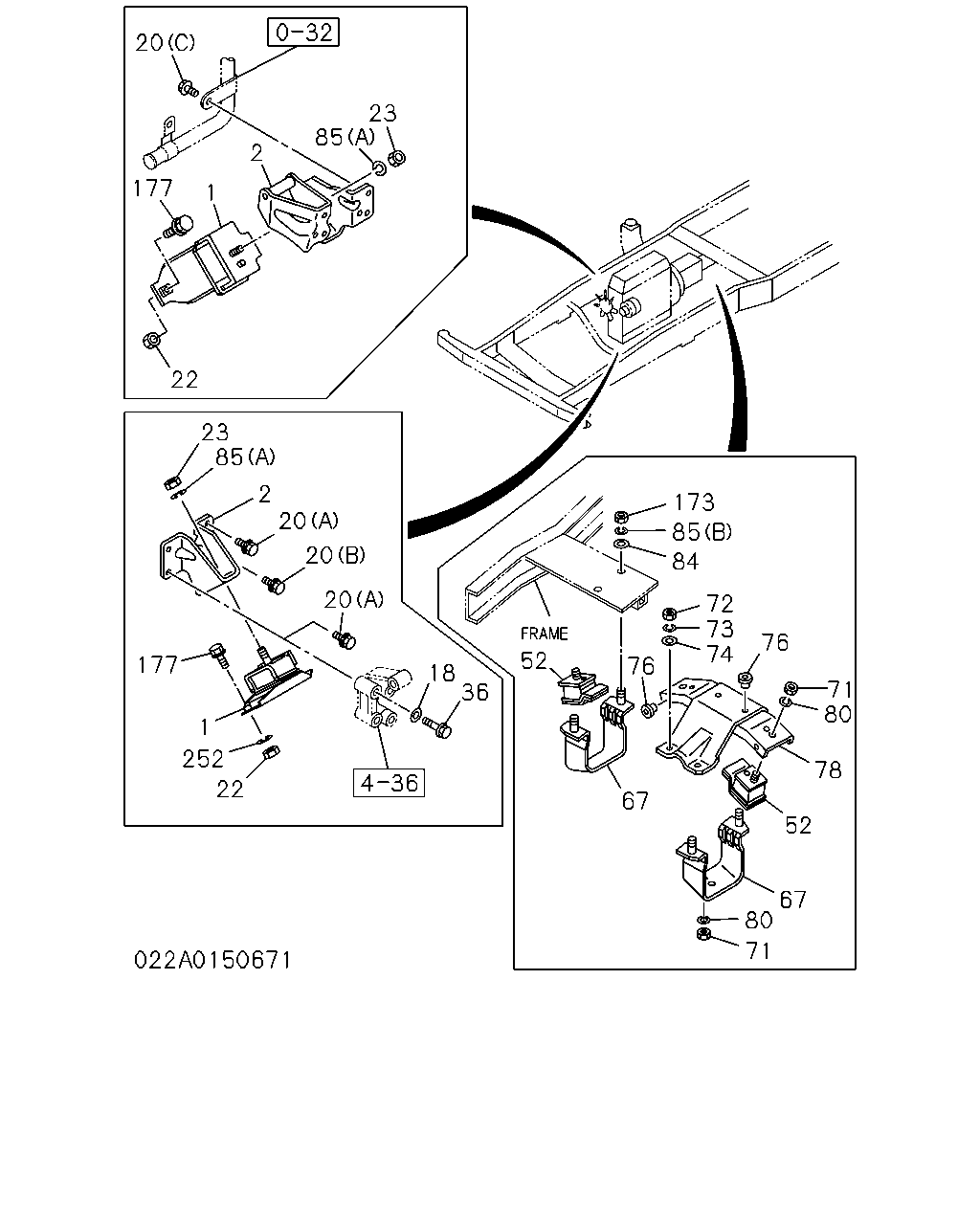

çizim 493466
23 85 2 1 177 20 22 23 85 2 20 20 20 18 36 177 1 252 22 173 85 84 72 73 74 76 76 71 80 78 52 67 80 71 67 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RUBBER; ENG FOOT,FRT 8-94374-403-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT 8-94374-402-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT 8-97092-069-0 01 1 9304-9311 ●
1 RUBBER; ENG FOOT,FRT 8-97106-759-0 01 1 9312-9502 ●
1 RUBBER; ENG FOOT,FRT 8-97092-068-0 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT 8-97085-123-0 01 1 9304- ●
1 RUBBER; ENG FOOT,FRT 8-97085-122-0 01 1 9304- ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-703-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-703-1 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-892-0 01 1 9507-9703 ● ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-892-0 01 1 9704- ● ● ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-702-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-702-1 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-890-0 01 1 9507-9703 ● ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-890-0 01 1 9704- ● ● ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-973-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-973-1 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-896-0 01 1 9507- ● ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-972-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-972-1 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-894-0 01 1 9507- ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-971-0 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-971-0 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-895-0 01 1 9507-9703 ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-895-0 01 1 9704- ● ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-970-0 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-970-0 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-893-0 01 1 9507-9703 ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-893-0 01 1 9704- ● ● ●
2 FOOT; ENG 8-94172-338-1 01 1 9304-9502 ● ●
2 FOOT; ENG 8-94157-826-0 01 1 9304-9502 ● ●
2 FOOT; ENG 8-94122-052-1 01 1 9304- ●
2 FOOT; ENG 8-97073-922-1 01 1 9304- ●
2 FOOT; ENG 8-94311-118-2 02 1 9304-9502 ●
2 FOOT; ENG 8-97119-225-1 02 1 9503-9605 ● ●
2 FOOT; ENG 8-97145-013-0 02 1 9606-9703 ● ●
2 FOOT; ENG 8-97145-013-0 02 1 9704- ● ● ●
18 WASHER; PL,ENG FOOT
ID=10.5 OD=22 T=4 		1-09503-045-0 02 1 9304-9403 ●
20 BOLT; ENG FOOT
M10X22 		8-94313-465-0 08 1 9304-9502 ● ●
20 BOLT; ENG FOOT
(A) M10X22 W/LK WASHER 		0-50041-022-0 03 1 9304-9403 ●
20 BOLT; ENG FOOT
(A) M10X22 W/LK WASHER 		0-50041-022-0 05 1 9404- ●
20 BOLT; ENG FOOT
(B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 9304- ●
20 BOLT; ENG FOOT
(C) M10X28 		8-94329-952-1 02 1 9304- ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 9304-9502 ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 9503-9703 ● ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 9704- ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
M12 		9-99110-412-0 02 1 9304-9502 ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
M12 		9-99110-412-0 02 1 9503-9703 ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
M12 		9-99110-412-0 02 1 9704- ● ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) M10 		9-09110-410-0 02 1 9304-9502 ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
M10 		9-09110-410-0 02 1 9503-9608 ●
22 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) M10 		9-09110-410-0 02 1 9503-9608 ● ●
22 NUT; CUSHION RUBBER TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 9609- ●
22 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE 		0-91150-210-0 02 1 9609- ● ●
22 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10 		9-09110-410-0 04 1 9304-9502 ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
M10 		9-09110-410-0 04 1 9304-9502 ●
22 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10 		9-09110-410-0 04 1 9503-9608 ● ●
22 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE 		0-91150-210-0 04 1 9609- ● ●
23 NUT; SUPPORT RUBBER,ENG FOOT
M12 		9-99110-412-0 02 1 9304- ●
36 BOLT; MTG RUBBER
M10X65 		5-09030-024-1 02 1 9304-9403 ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9304-9502 ● ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9503-9703 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9704- ● ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 02 1 9304-9502 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 9304- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 9304- ●
67 BRACKET; SUPPORT,ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-97021-232-1 02 1 9304-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-97021-232-1 02 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-97021-232-1 02 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-97017-182-0 01 1 9304-9309 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-357-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-357-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-357-0 01 1 9704- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-97017-181-0 01 1 9304-9309 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-356-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-356-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-356-0 01 1 9704- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-359-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-97102-359-0 01 1 9503- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-358-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-97102-358-0 01 1 9503- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) 		8-94384-214-0 01 1 9304-9309 ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94384-214-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-214-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-214-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94384-214-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-214-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-214-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-214-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-214-0 01 1 9704- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) 		8-94384-213-0 01 1 9304-9309 ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94384-213-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-213-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-213-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94384-213-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-213-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-213-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-213-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-213-0 01 1 9704- ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9408-9502 ● ● ●
71 NUT; SUPPORT RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE 		0-91150-110-0 04 1 9408-9502 ●
71 NUT; SUPPORT RUBBER TO BRKT
EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE 		0-91150-110-0 04 1 9408-9502 ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9503-9703 ●
71 NUT; SUPPORT RUBBER TO BRKT
A/T 4 SPEED-JATCO(RMK) M10 FLANGE 		0-91150-110-0 04 1 9503-9703 ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) M10 FLANGE 		0-91150-110-0 04 1 9503-9703 ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9704- ● ●
71 NUT; SUPPORT RUBBER TO BRKT
A/T 4 SPEED-JATCO(RMK) M10 FLANGE 		0-91150-110-0 04 1 9704- ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) M10 FLANGE 		0-91150-110-0 04 1 9704- ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 		9-09110-410-0 04 1 9304-9407 ● ● ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) EXC. FRT INDEPENDENT SUSPENSION(6PP) M10 		9-09110-410-0 04 1 9408-9502 ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) M10 		9-09110-410-0 04 1 9503- ● ●
72 NUT; SUPPORT RUBBER TO TRANS
M10 		9-09110-410-0 04 1 9304-9502 ●
72 NUT; SUPPORT RUBBER TO TRANS
A/T 4 SPEED-JATCO(RMK) M10 		9-09110-410-0 04 1 9304-9502 ●
72 NUT; SUPPORT RUBBER TO TRANS
M10 		9-09110-410-0 04 1 9503-9703 ●
72 NUT; SUPPORT RUBBER TO TRANS
A/T 4 SPEED-JATCO(RMK) M10 		9-09110-410-0 04 1 9503-9703 ● ●
72 NUT; SUPPORT RUBBER TO TRANS
M10 		9-09110-410-0 04 1 9704- ●
72 NUT; SUPPORT RUBBER TO TRANS
A/T 4 SPEED-JATCO(RMK) M10 		9-09110-410-0 04 1 9704- ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=10.2 		9-09150-610-0 04 1 9304-9502 ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
A/T 4 SPEED-JATCO(RMK) ID=10.2 		9-09150-610-0 04 1 9304-9502 ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=10.2 		9-09150-610-0 04 1 9503-9703 ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
A/T 4 SPEED-JATCO(RMK) ID=10.2 		9-09150-610-0 04 1 9503-9703 ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=10.2 		9-09150-610-0 04 1 9704- ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
A/T 4 SPEED-JATCO(RMK) ID=10.2 		9-09150-610-0 04 1 9704- ● ● ●
74 WASHER; PL,SUPPORT RUBBER TO TRANS
ID=10.5 OD=22 		9-09164-610-0 02 1 9304-9502 ● ● ● ●
74 WASHER; PL,SUPPORT RUBBER TO TRANS
ID=10.5 OD=22 		9-09164-610-0 02 1 9503-9703 ● ● ●
74 WASHER; PL,SUPPORT RUBBER TO TRANS
ID=10.5 OD=22 		9-09164-610-0 02 1 9704- ● ● ● ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 04 1 9304-9502 ● ● ● ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 04 1 9503-9703 ● ● ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 04 1 9704- ● ● ● ●
78 BRACKET; ENG MTG,RR 8-94112-891-1 01 1 9304-9502 ● ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) 		8-94112-891-1 01 1 9304-9502 ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) 		8-94112-891-1 01 1 9503-9703 ● ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) 		8-94112-891-1 01 1 9704- ● ● ●
78 BRACKET; ENG MTG,RR 8-94133-393-1 01 1 9304- ●
78 BRACKET; ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-94458-319-1 01 1 9304-9502 ●
78 BRACKET; ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-94458-319-1 01 1 9503-9703 ● ●
78 BRACKET; ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-94458-319-1 01 1 9704- ● ● ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-94404-365-0 01 1 9304-9309 ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94404-365-0 01 1 9310-9502 ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-94404-365-0 01 1 9503- ● ●
80 WASHER; LK,SUPPORT RUBBER TO BRKT
ID=10.2 		9-09150-510-0 04 1 9304-9407 ● ● ● ●
80 WASHER; LK,SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=10.2 		9-09150-510-0 04 1 9408-9502 ●
80 WASHER; LK,SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) ID=10.2 		9-09150-510-0 04 1 9503- ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 9304-9502 ● ● ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 9503-9703 ● ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 9704- ● ● ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 9304-9502 ● ● ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 9503-9703 ● ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 9704- ● ● ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
(A) ID=12.2 		9-09150-612-0 02 1 9304- ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 9304-9502 ● ● ● ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 9503-9703 ● ● ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 9704- ● ● ● ●
177 BOLT; BRKT TO CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(6PP) M10X32.5 		8-97090-761-0 04 1 9304-9502 ● ● ●
177 BOLT; BRKT TO CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(6PP) M10X32.5 		8-97090-761-0 04 1 9503- ● ● ●
177 BOLT; BRKT TO CUSHION RUBBER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5 		8-94468-733-1 04 1 9304-9502 ● ● ●
177 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 9304-9502 ●
177 BOLT; BRKT TO CUSHION RUBBER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5 		8-94468-733-1 04 1 9503- ● ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 9304-9502 ● ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 9503-9703 ● ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 9704- ● ● ● ●

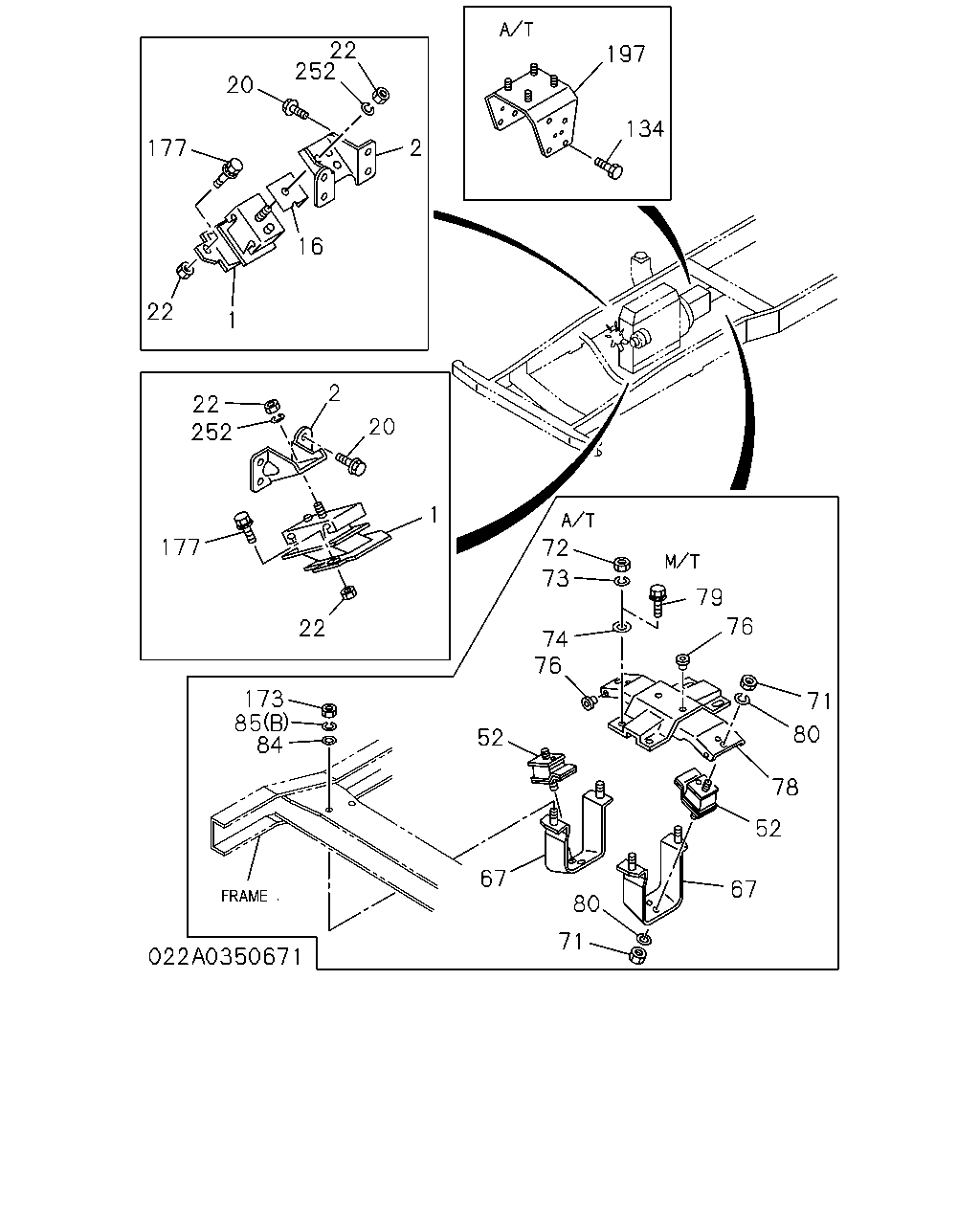

çizim 493777
177 20 252 22 2 16 1 22 22 252 2 20 1 22 177 173 85 84 72 73 74 76 79 76 71 80 78 52 67 71 67 52 80 134 197
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RUBBER; ENG FOOT,FRT 8-94374-403-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT 8-94374-402-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT 8-97092-069-0 01 1 9304-9311 ●
1 RUBBER; ENG FOOT,FRT 8-97106-759-0 01 1 9312-9502 ●
1 RUBBER; ENG FOOT,FRT 8-97092-068-0 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT 8-97085-123-0 01 1 9304- ●
1 RUBBER; ENG FOOT,FRT 8-97085-122-0 01 1 9304- ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-703-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-703-1 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-892-0 01 1 9507-9703 ● ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-892-0 01 1 9704- ● ● ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-702-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-702-1 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-890-0 01 1 9507-9703 ● ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-890-0 01 1 9704- ● ● ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-973-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-973-1 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-896-0 01 1 9507- ● ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-972-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-972-1 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-894-0 01 1 9507- ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-971-0 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-971-0 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-895-0 01 1 9507-9703 ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-895-0 01 1 9704- ● ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-970-0 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-970-0 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-893-0 01 1 9507-9703 ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-893-0 01 1 9704- ● ● ●
2 FOOT; ENG 8-94172-338-1 01 1 9304-9502 ● ●
2 FOOT; ENG 8-94157-826-0 01 1 9304-9502 ● ●
2 FOOT; ENG 8-94122-052-1 01 1 9304- ●
2 FOOT; ENG 8-97073-922-1 01 1 9304- ●
2 FOOT; ENG 8-94311-118-2 02 1 9304-9502 ●
2 FOOT; ENG 8-97119-225-1 02 1 9503-9605 ● ●
2 FOOT; ENG 8-97145-013-0 02 1 9606-9703 ● ●
2 FOOT; ENG 8-97145-013-0 02 1 9704- ● ● ●
16 PROTECTOR; HEAT,ENG MTG,FRT 8-94365-486-0 01 1 9304-9502 ●
16 PROTECTOR; HEAT,ENG MTG,FRT 8-94365-486-0 01 1 9503-9703 ● ●
16 PROTECTOR; HEAT,ENG MTG,FRT 8-94365-486-0 01 1 9704- ● ● ●
20 BOLT; ENG FOOT
M10X22 		8-94313-465-0 08 1 9304-9502 ● ●
20 BOLT; ENG FOOT
(A) M10X22 W/LK WASHER 		0-50041-022-0 03 1 9304-9403 ●
20 BOLT; ENG FOOT
(A) M10X22 W/LK WASHER 		0-50041-022-0 05 1 9404- ●
20 BOLT; ENG FOOT
(B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 9304- ●
20 BOLT; ENG FOOT
(C) M10X28 		8-94329-952-1 02 1 9304- ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 9304-9502 ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 9503-9703 ● ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 9704- ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
M12 		9-99110-412-0 02 1 9304-9502 ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
M12 		9-99110-412-0 02 1 9503-9703 ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
M12 		9-99110-412-0 02 1 9704- ● ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) M10 		9-09110-410-0 02 1 9304-9502 ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
M10 		9-09110-410-0 02 1 9503-9608 ●
22 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) M10 		9-09110-410-0 02 1 9503-9608 ● ●
22 NUT; CUSHION RUBBER TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 9609- ●
22 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE 		0-91150-210-0 02 1 9609- ● ●
22 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10 		9-09110-410-0 04 1 9304-9502 ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
M10 		9-09110-410-0 04 1 9304-9502 ●
22 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10 		9-09110-410-0 04 1 9503-9608 ● ●
22 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE 		0-91150-210-0 04 1 9609- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9304-9502 ● ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9503-9703 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9704- ● ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 02 1 9304-9502 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 9304- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 9304- ●
67 BRACKET; SUPPORT,ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-97021-232-1 02 1 9304-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-97021-232-1 02 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-97021-232-1 02 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-97017-182-0 01 1 9304-9309 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-357-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-357-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-357-0 01 1 9704- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-97017-181-0 01 1 9304-9309 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-356-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-356-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-356-0 01 1 9704- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-359-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-97102-359-0 01 1 9503- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-358-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-97102-358-0 01 1 9503- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) 		8-94384-214-0 01 1 9304-9309 ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94384-214-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-214-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-214-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94384-214-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-214-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-214-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-214-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-214-0 01 1 9704- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) 		8-94384-213-0 01 1 9304-9309 ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94384-213-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-213-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-213-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94384-213-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-213-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-213-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-213-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-213-0 01 1 9704- ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9408-9502 ● ● ●
71 NUT; SUPPORT RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE 		0-91150-110-0 04 1 9408-9502 ●
71 NUT; SUPPORT RUBBER TO BRKT
EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE 		0-91150-110-0 04 1 9408-9502 ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9503-9703 ●
71 NUT; SUPPORT RUBBER TO BRKT
A/T 4 SPEED-JATCO(RMK) M10 FLANGE 		0-91150-110-0 04 1 9503-9703 ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) M10 FLANGE 		0-91150-110-0 04 1 9503-9703 ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9704- ● ●
71 NUT; SUPPORT RUBBER TO BRKT
A/T 4 SPEED-JATCO(RMK) M10 FLANGE 		0-91150-110-0 04 1 9704- ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) M10 FLANGE 		0-91150-110-0 04 1 9704- ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 		9-09110-410-0 04 1 9304-9407 ● ● ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) EXC. FRT INDEPENDENT SUSPENSION(6PP) M10 		9-09110-410-0 04 1 9408-9502 ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) M10 		9-09110-410-0 04 1 9503- ● ●
72 NUT; SUPPORT RUBBER TO TRANS
M10 		9-09110-410-0 04 1 9304-9502 ●
72 NUT; SUPPORT RUBBER TO TRANS
A/T 4 SPEED-JATCO(RMK) M10 		9-09110-410-0 04 1 9304-9502 ●
72 NUT; SUPPORT RUBBER TO TRANS
M10 		9-09110-410-0 04 1 9503-9703 ●
72 NUT; SUPPORT RUBBER TO TRANS
A/T 4 SPEED-JATCO(RMK) M10 		9-09110-410-0 04 1 9503-9703 ● ●
72 NUT; SUPPORT RUBBER TO TRANS
M10 		9-09110-410-0 04 1 9704- ●
72 NUT; SUPPORT RUBBER TO TRANS
A/T 4 SPEED-JATCO(RMK) M10 		9-09110-410-0 04 1 9704- ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=10.2 		9-09150-610-0 04 1 9304-9502 ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
A/T 4 SPEED-JATCO(RMK) ID=10.2 		9-09150-610-0 04 1 9304-9502 ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=10.2 		9-09150-610-0 04 1 9503-9703 ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
A/T 4 SPEED-JATCO(RMK) ID=10.2 		9-09150-610-0 04 1 9503-9703 ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=10.2 		9-09150-610-0 04 1 9704- ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
A/T 4 SPEED-JATCO(RMK) ID=10.2 		9-09150-610-0 04 1 9704- ● ● ●
74 WASHER; PL,SUPPORT RUBBER TO TRANS
ID=10.5 OD=22 		9-09164-610-0 02 1 9304-9502 ● ● ● ●
74 WASHER; PL,SUPPORT RUBBER TO TRANS
ID=10.5 OD=22 		9-09164-610-0 02 1 9503-9703 ● ● ●
74 WASHER; PL,SUPPORT RUBBER TO TRANS
ID=10.5 OD=22 		9-09164-610-0 02 1 9704- ● ● ● ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 04 1 9304-9502 ● ● ● ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 04 1 9503-9703 ● ● ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 04 1 9704- ● ● ● ●
78 BRACKET; ENG MTG,RR 8-94112-891-1 01 1 9304-9502 ● ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) 		8-94112-891-1 01 1 9304-9502 ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) 		8-94112-891-1 01 1 9503-9703 ● ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) 		8-94112-891-1 01 1 9704- ● ● ●
78 BRACKET; ENG MTG,RR 8-94133-393-1 01 1 9304- ●
78 BRACKET; ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-94458-319-1 01 1 9304-9502 ●
78 BRACKET; ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-94458-319-1 01 1 9503-9703 ● ●
78 BRACKET; ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-94458-319-1 01 1 9704- ● ● ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-94404-365-0 01 1 9304-9309 ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94404-365-0 01 1 9310-9502 ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-94404-365-0 01 1 9503- ● ●
79 BOLT; SUPPORT RUBBER TO TRANS
M10X28 W/LK WASHER 		0-50041-028-0 04 1 9304-9501 ● ●
79 BOLT; SUPPORT RUBBER TO TRANS
M/T MXA5R(RMT),M/T MXA 6R(RMU) M10X28 W/LK WASHER 		0-50041-028-0 04 1 9304-9501 ●
79 BOLT; SUPPORT RUBBER TO TRANS
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9502-9502 ● ●
79 BOLT; SUPPORT RUBBER TO TRANS
M/T MXA5R(RMT),M/T MXA 6R(RMU) M10X30 W/LK WASHER 		0-50041-030-0 04 1 9502-9502 ●
79 BOLT; SUPPORT RUBBER TO TRANS
M/T MXA5R(RMT),M/T MXA 6R(RMU) M10X30 W/LK WASHER 		0-50041-030-0 04 1 9503-9609 ● ●
79 BOLT; SUPPORT RUBBER TO TRANS
M/T MXA5R(RMT),M/T MXA 6R(RMU) M10X25 FLANGE 		0-28081-025-0 04 1 9610-9703 ● ●
79 BOLT; SUPPORT RUBBER TO TRANS
M/T MXA5R(RMT),M/T MXA 6R(RMU) M10X25 FLANGE 		0-28081-025-0 04 1 9704- ● ● ●
80 WASHER; LK,SUPPORT RUBBER TO BRKT
ID=10.2 		9-09150-510-0 04 1 9304-9407 ● ● ● ●
80 WASHER; LK,SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=10.2 		9-09150-510-0 04 1 9408-9502 ●
80 WASHER; LK,SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) ID=10.2 		9-09150-510-0 04 1 9503- ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 9304-9502 ● ● ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 9503-9703 ● ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 9704- ● ● ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 9304-9502 ● ● ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 9503-9703 ● ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 9704- ● ● ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
(A) ID=12.2 		9-09150-612-0 02 1 9304- ●
134 BOLT; SUPPORT BRKT
A/T 4 SPEED-JATCO(RMK) M12X28 		0-50051-228-0 08 1 9304-9502 ●
134 BOLT; SUPPORT BRKT
A/T 4 SPEED-JATCO(RMK) M12X28 		0-50051-228-0 08 1 9503-9609 ● ●
134 BOLT; SUPPORT BRKT
A/T 4 SPEED-JATCO(RMK) M12X30 		0-28781-230-0 08 1 9610-9703 ● ●
134 BOLT; SUPPORT BRKT
A/T 4 SPEED-JATCO(RMK) M12X30 		0-28781-230-0 08 1 9704- ● ● ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 9304-9502 ● ● ● ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 9503-9703 ● ● ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 9704- ● ● ● ●
177 BOLT; BRKT TO CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(6PP) M10X32.5 		8-97090-761-0 04 1 9304-9502 ● ● ●
177 BOLT; BRKT TO CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(6PP) M10X32.5 		8-97090-761-0 04 1 9503- ● ● ●
177 BOLT; BRKT TO CUSHION RUBBER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5 		8-94468-733-1 04 1 9304-9502 ● ● ●
177 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 9304-9502 ●
177 BOLT; BRKT TO CUSHION RUBBER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5 		8-94468-733-1 04 1 9503- ● ● ●
197 BRACKET; ENG MTG BRKT TO TRANS
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) 		8-97066-283-0 01 1 9304-9502 ●
197 BRACKET; ENG MTG BRKT TO TRANS
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) 		8-97066-283-0 01 1 9503-9703 ● ●
197 BRACKET; ENG MTG BRKT TO TRANS
A/T 4 SPEED-JATCO(RMK) BOTTLE CARRIER CHASSIS(V4E) 		8-97066-283-2 01 1 9704- ● ● ●
197 BRACKET; ENG MTG BRKT TO TRANS
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-94382-868-2 01 1 9304-9502 ●
197 BRACKET; ENG MTG BRKT TO TRANS
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-94382-868-2 01 1 9503-9703 ● ●
197 BRACKET; ENG MTG BRKT TO TRANS
A/T 4 SPEED-JATCO(RMK) EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-94382-868-3 01 1 9704- ● ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 9304-9502 ● ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 9503-9703 ● ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 9704- ● ● ● ●

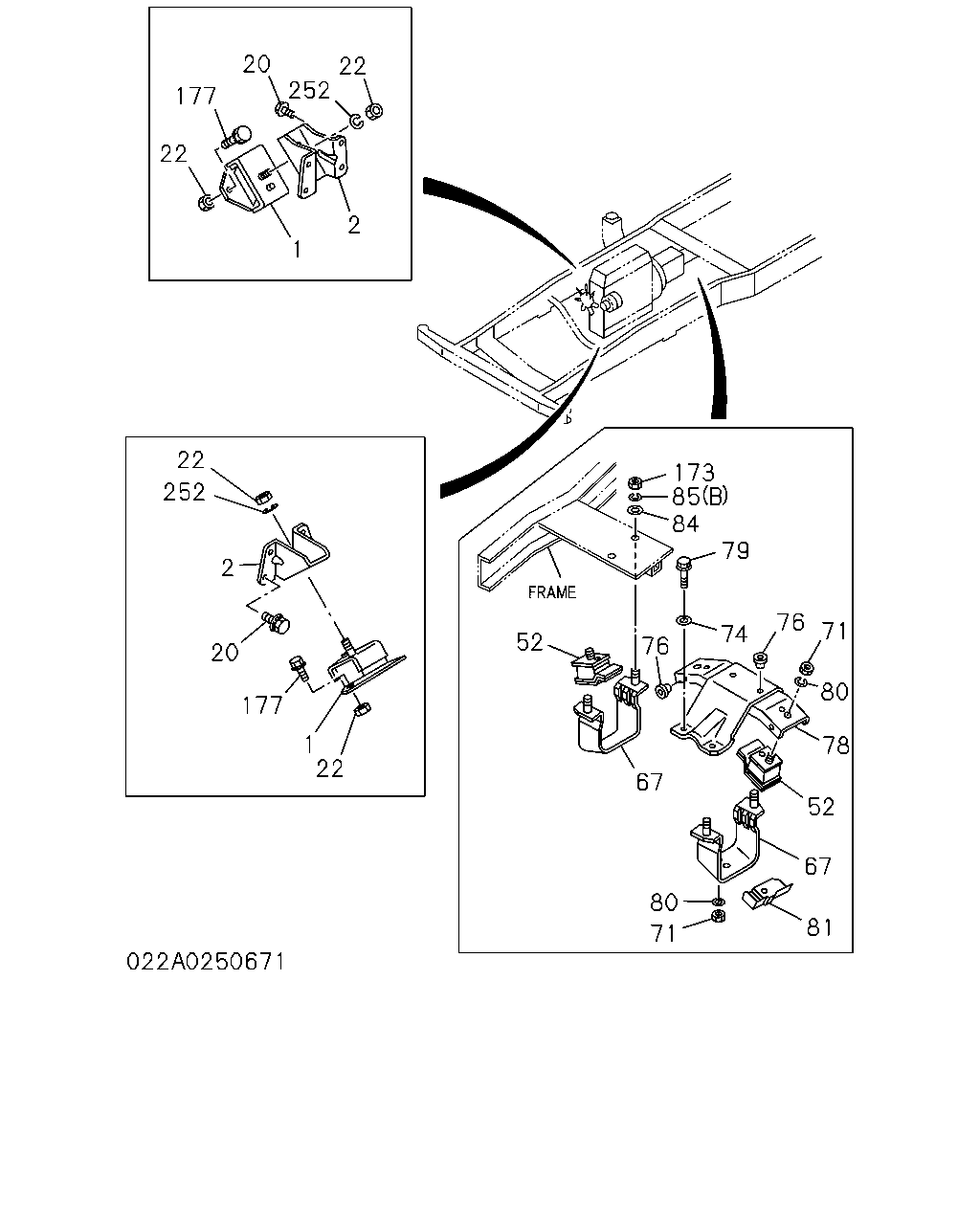

çizim 493933
1 2 22 252 20 177 22 22 252 2 20 177 1 22 173 85 84 79 74 76 52 67 80 71 81 67 52 78 80 71 76
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RUBBER; ENG FOOT,FRT 8-94374-403-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT 8-94374-402-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT 8-97092-069-0 01 1 9304-9311 ●
1 RUBBER; ENG FOOT,FRT 8-97106-759-0 01 1 9312-9502 ●
1 RUBBER; ENG FOOT,FRT 8-97092-068-0 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT 8-97085-123-0 01 1 9304- ●
1 RUBBER; ENG FOOT,FRT 8-97085-122-0 01 1 9304- ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-703-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-703-1 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-892-0 01 1 9507-9703 ● ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-892-0 01 1 9704- ● ● ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-702-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-702-1 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-890-0 01 1 9507-9703 ● ●
1 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-890-0 01 1 9704- ● ● ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-973-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-973-1 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-896-0 01 1 9507- ● ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-972-1 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-972-1 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
A/T 4 SPEED-JATCO(RMK) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-894-0 01 1 9507- ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-971-0 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-971-0 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-895-0 01 1 9507-9703 ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-895-0 01 1 9704- ● ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-970-0 01 1 9304-9502 ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97086-970-0 01 1 9503-9506 ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-893-0 01 1 9507-9703 ● ●
1 RUBBER; ENG FOOT,FRT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-893-0 01 1 9704- ● ● ●
2 FOOT; ENG 8-94172-338-1 01 1 9304-9502 ● ●
2 FOOT; ENG 8-94157-826-0 01 1 9304-9502 ● ●
2 FOOT; ENG 8-94122-052-1 01 1 9304- ●
2 FOOT; ENG 8-97073-922-1 01 1 9304- ●
2 FOOT; ENG 8-94311-118-2 02 1 9304-9502 ●
2 FOOT; ENG 8-97119-225-1 02 1 9503-9605 ● ●
2 FOOT; ENG 8-97145-013-0 02 1 9606-9703 ● ●
2 FOOT; ENG 8-97145-013-0 02 1 9704- ● ● ●
20 BOLT; ENG FOOT
M10X22 		8-94313-465-0 08 1 9304-9502 ● ●
20 BOLT; ENG FOOT
(A) M10X22 W/LK WASHER 		0-50041-022-0 03 1 9304-9403 ●
20 BOLT; ENG FOOT
(A) M10X22 W/LK WASHER 		0-50041-022-0 05 1 9404- ●
20 BOLT; ENG FOOT
(B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 9304- ●
20 BOLT; ENG FOOT
(C) M10X28 		8-94329-952-1 02 1 9304- ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 9304-9502 ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 9503-9703 ● ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 9704- ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
M12 		9-99110-412-0 02 1 9304-9502 ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
M12 		9-99110-412-0 02 1 9503-9703 ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
M12 		9-99110-412-0 02 1 9704- ● ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) M10 		9-09110-410-0 02 1 9304-9502 ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
M10 		9-09110-410-0 02 1 9503-9608 ●
22 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) M10 		9-09110-410-0 02 1 9503-9608 ● ●
22 NUT; CUSHION RUBBER TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 9609- ●
22 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE 		0-91150-210-0 02 1 9609- ● ●
22 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10 		9-09110-410-0 04 1 9304-9502 ● ● ●
22 NUT; CUSHION RUBBER TO BRKT
M10 		9-09110-410-0 04 1 9304-9502 ●
22 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10 		9-09110-410-0 04 1 9503-9608 ● ●
22 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE 		0-91150-210-0 04 1 9609- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9304-9502 ● ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9503-9703 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9704- ● ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 02 1 9304-9502 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 9304- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 9304- ●
67 BRACKET; SUPPORT,ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-97021-232-1 02 1 9304-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-97021-232-1 02 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-97021-232-1 02 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-97017-182-0 01 1 9304-9309 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-357-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-357-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-357-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-357-0 01 1 9704- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-97017-181-0 01 1 9304-9309 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-356-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-356-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) GARBAGE/VACUUM CHASSIS(V4G) EXC. REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) 		8-97102-356-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-356-0 01 1 9704- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-359-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-97102-359-0 01 1 9503- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-358-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-97102-358-0 01 1 9503- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) 		8-94384-214-0 01 1 9304-9309 ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94384-214-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-214-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-214-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94384-214-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-214-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-214-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-214-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-214-0 01 1 9704- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) 		8-94384-213-0 01 1 9304-9309 ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94384-213-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-213-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-213-0 01 1 9310-9502 ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) 		8-94384-213-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC**C) M/T MXA5R(RMT) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-213-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-213-0 01 1 9503-9703 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
S TIRE&SHORT CHASSIS(NKB1SC) W TIRE/FULL FLAT LOW & SHORT CHASSIS(NKC1SC) W TIRE & MIDDLE CHASSIS(NKC1SF) FLAT LOW&SHORT CHASSIS(NKN1SC) FLAT LOW/FULL FLAT LOW &MIDDLE CHASSIS(NKN1SF) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. GARBAGE/VACUUM CHASSIS(V4G),REAR WIDE TREAD(V4T) 		8-94384-213-0 01 1 9704- ● ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
SEMI MIDDLE CHASSIS(NK***D) M/T MXA5R(RMT),M/T MXA 6R(RMU) FRT INDEPENDENT SUSPENSION(6PP) 		8-94384-213-0 01 1 9704- ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9408-9502 ● ● ●
71 NUT; SUPPORT RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE 		0-91150-110-0 04 1 9408-9502 ●
71 NUT; SUPPORT RUBBER TO BRKT
EXC. BACK HOE CHASSIS(V4A),FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE 		0-91150-110-0 04 1 9408-9502 ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9503-9703 ●
71 NUT; SUPPORT RUBBER TO BRKT
A/T 4 SPEED-JATCO(RMK) M10 FLANGE 		0-91150-110-0 04 1 9503-9703 ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) M10 FLANGE 		0-91150-110-0 04 1 9503-9703 ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9704- ● ●
71 NUT; SUPPORT RUBBER TO BRKT
A/T 4 SPEED-JATCO(RMK) M10 FLANGE 		0-91150-110-0 04 1 9704- ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) M10 FLANGE 		0-91150-110-0 04 1 9704- ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 		9-09110-410-0 04 1 9304-9407 ● ● ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) EXC. FRT INDEPENDENT SUSPENSION(6PP) M10 		9-09110-410-0 04 1 9408-9502 ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) M10 		9-09110-410-0 04 1 9503- ● ●
74 WASHER; PL,SUPPORT RUBBER TO TRANS
ID=10.5 OD=22 		9-09164-610-0 02 1 9304-9502 ● ● ● ●
74 WASHER; PL,SUPPORT RUBBER TO TRANS
ID=10.5 OD=22 		9-09164-610-0 02 1 9503-9703 ● ● ●
74 WASHER; PL,SUPPORT RUBBER TO TRANS
ID=10.5 OD=22 		9-09164-610-0 02 1 9704- ● ● ● ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 04 1 9304-9502 ● ● ● ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 04 1 9503-9703 ● ● ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 04 1 9704- ● ● ● ●
78 BRACKET; ENG MTG,RR 8-94112-891-1 01 1 9304-9502 ● ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) 		8-94112-891-1 01 1 9304-9502 ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) 		8-94112-891-1 01 1 9503-9703 ● ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. BACK HOE CHASSIS(V4A) 		8-94112-891-1 01 1 9704- ● ● ●
78 BRACKET; ENG MTG,RR 8-94133-393-1 01 1 9304- ●
78 BRACKET; ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-94458-319-1 01 1 9304-9502 ●
78 BRACKET; ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-94458-319-1 01 1 9503-9703 ● ●
78 BRACKET; ENG MTG,RR
A/T 4 SPEED-JATCO(RMK) 		8-94458-319-1 01 1 9704- ● ● ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-94404-365-0 01 1 9304-9309 ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94404-365-0 01 1 9310-9502 ●
78 BRACKET; ENG MTG,RR
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) 		8-94404-365-0 01 1 9503- ● ●
79 BOLT; SUPPORT RUBBER TO TRANS
M10X28 W/LK WASHER 		0-50041-028-0 04 1 9304-9501 ● ●
79 BOLT; SUPPORT RUBBER TO TRANS
M/T MXA5R(RMT),M/T MXA 6R(RMU) M10X28 W/LK WASHER 		0-50041-028-0 04 1 9304-9501 ●
79 BOLT; SUPPORT RUBBER TO TRANS
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9502-9502 ● ●
79 BOLT; SUPPORT RUBBER TO TRANS
M/T MXA5R(RMT),M/T MXA 6R(RMU) M10X30 W/LK WASHER 		0-50041-030-0 04 1 9502-9502 ●
79 BOLT; SUPPORT RUBBER TO TRANS
M/T MXA5R(RMT),M/T MXA 6R(RMU) M10X30 W/LK WASHER 		0-50041-030-0 04 1 9503-9609 ● ●
79 BOLT; SUPPORT RUBBER TO TRANS
M/T MXA5R(RMT),M/T MXA 6R(RMU) M10X25 FLANGE 		0-28081-025-0 04 1 9610-9703 ● ●
79 BOLT; SUPPORT RUBBER TO TRANS
M/T MXA5R(RMT),M/T MXA 6R(RMU) M10X25 FLANGE 		0-28081-025-0 04 1 9704- ● ● ●
80 WASHER; LK,SUPPORT RUBBER TO BRKT
ID=10.2 		9-09150-510-0 04 1 9304-9407 ● ● ● ●
80 WASHER; LK,SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=10.2 		9-09150-510-0 04 1 9408-9502 ●
80 WASHER; LK,SUPPORT RUBBER TO BRKT
M/T MXA5R(RMT),M/T MXA 6R(RMU) BACK HOE CHASSIS(V4A) ID=10.2 		9-09150-510-0 04 1 9503- ● ●
81 PROTECTOR; HEAT,ENG MTG 8-94112-893-1 01 1 9304-9502 ●
81 PROTECTOR; HEAT,ENG MTG 8-94389-739-0 01 1 9304-9502 ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 9304-9502 ● ● ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 9503-9703 ● ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 9704- ● ● ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 9304-9502 ● ● ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 9503-9703 ● ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 9704- ● ● ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
(A) ID=12.2 		9-09150-612-0 02 1 9304- ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 9304-9502 ● ● ● ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 9503-9703 ● ● ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 9704- ● ● ● ●
177 BOLT; BRKT TO CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(6PP) M10X32.5 		8-97090-761-0 04 1 9304-9502 ● ● ●
177 BOLT; BRKT TO CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(6PP) M10X32.5 		8-97090-761-0 04 1 9503- ● ● ●
177 BOLT; BRKT TO CUSHION RUBBER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5 		8-94468-733-1 04 1 9304-9502 ● ● ●
177 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 9304-9502 ●
177 BOLT; BRKT TO CUSHION RUBBER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5 		8-94468-733-1 04 1 9503- ● ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 9304-9502 ● ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 9503-9703 ● ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 9704- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
