Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#166645) — 307 parça

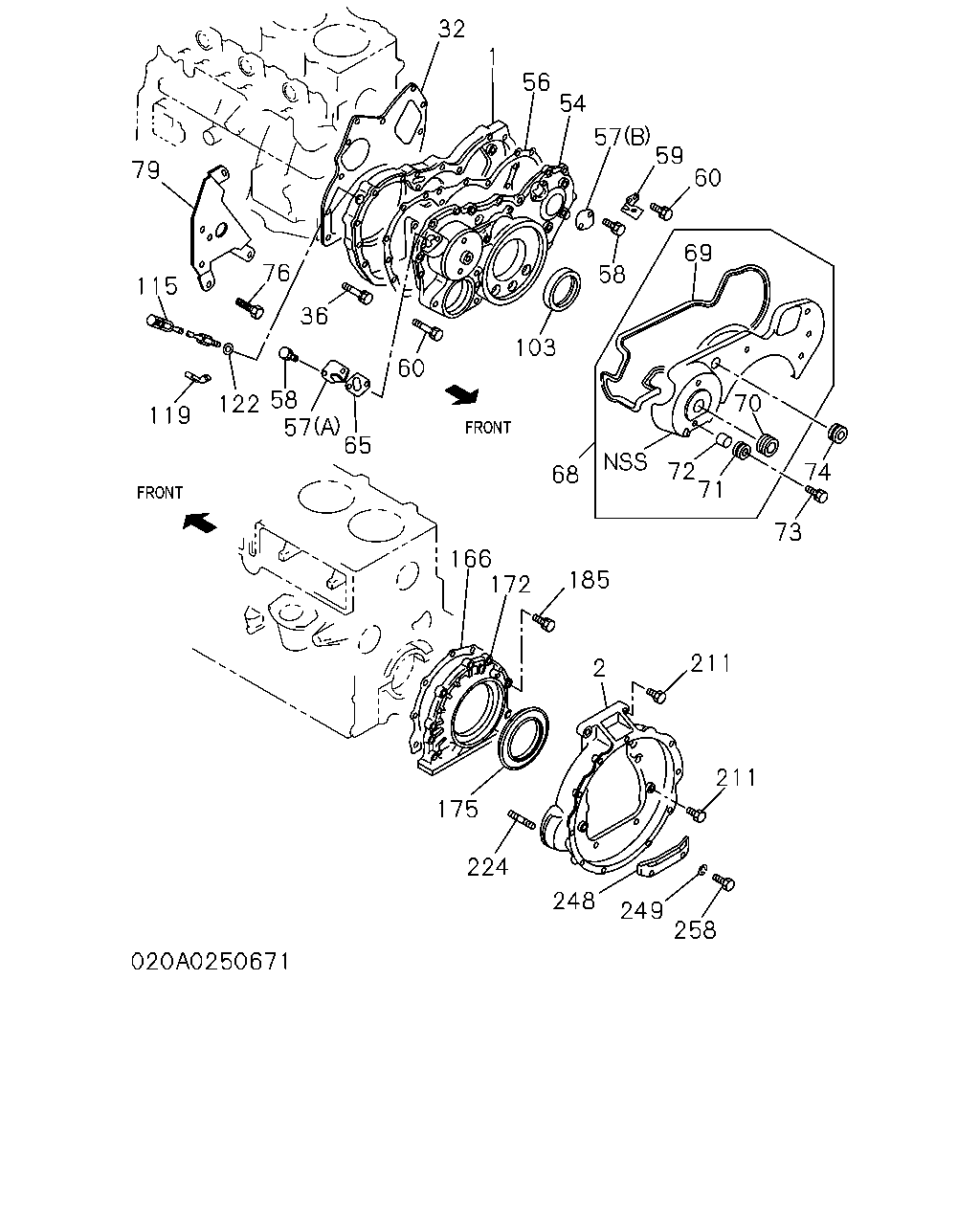

32 1 56 54 57 59 60 69 58 103 68 72 71 73 74 70 211 211 258 249 248 224 175 2 185 172 166 65 60 57 58 36 76 115 79 119 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CASE; TIMING GEAR	8-94457-910-2	01	1	9304-9502	●	●
1	CASE; TIMING GEAR	8-97083-629-2	01	1	9304-9410			●
1	CASE; TIMING GEAR	8-97115-133-0	01	1	9411-9606			●
1	CASE; TIMING GEAR	8-97160-960-0	01	1	9607-9703			●
1	CASE; TIMING GEAR	8-97141-532-1	01	1	9704-			●
2	HOUSING; FLYWHEEL	8-94327-481-1	01	1	9304-9502	●	●
2	HOUSING; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ)	8-97085-674-4	01	1	9304-9502				●
2	HOUSING; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ)	8-97085-674-4	01	1	9503-9712				●	●
2	HOUSING; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ)	8-97190-841-1	01	1	9801-				●	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97071-848-5	01	1	9304-9407				●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97112-139-2	01	1	9408-9502				●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97112-139-2	01	1	9503-9703				●	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97112-139-5	01	1	9704-9902				●	●	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97223-971-0	01	1	9903-				●	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-671-0	01	1	9304-9502	●	●
36	BOLT; GEAR CASE M8X20 W/LK WASHER	0-50040-820-0	04	1	9304-9502	●	●
36	BOLT; GEAR CASE M8X45 W/LK WASHER	0-50040-845-0	02	1	9304-9502	●	●
54	COVER; GEAR CASE	8-94371-853-2	01	1	9304-9502	●
54	COVER; GEAR CASE	8-94371-852-1	01	1	9304-9502		●
56	GASKET; GEAR CASE TO COVER	8-94370-672-0	01	1	9304-9502	●	●
57	COVER; TIMING CHECK HOLE (A)	8-94250-086-1	01	1	9304-9502	●
57	COVER; TIMING CHECK HOLE (B)	5-11321-009-0	01	1	9304-9502	●	●
57	COVER; TIMING CHECK HOLE (A)	8-94419-003-0	01	1	9304-9502		●
58	BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	03	1	9304-9502	●	●
58	BOLT; CHECK HOLE COVER M6X16 W/LK WASHER	0-50040-616-0	01	1	9304-9502		●
59	BRACKET; ENG CONT	8-94424-059-1	01	1	9304-9502		●
60	BOLT; COVER TO CASE M8X25 W/LK WASHER	0-50040-825-0	08	1	9304-9502	●
60	BOLT; COVER TO CASE M8X60 W/LK WASHER	0-50040-860-0	04	1	9304-9502	●
60	BOLT; COVER TO CASE M8X80 W/LK WASHER	0-50040-880-0	01	1	9304-9502	●	●
60	BOLT; COVER TO CASE M6X14 W/LK WASHER	0-50040-614-0	02	1	9304-9502		●
60	BOLT; COVER TO CASE M8X28 W/LK WASHER	0-50040-828-0	08	1	9304-9502		●
60	BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	04	1	9304-9502		●
65	GASKET; COVER,TIMING CHECK HOLE	8-97045-362-1	02	1	9304-9502	●	●
68	COVER ASM; GEAR CASE COVER	5-19380-023-2	01	1	9304-9502	●
68	COVER ASM; GEAR CASE COVER	8-94341-755-0	01	1	9304-9502		●
69	SEAL; RUBBER,COVER TO COVER	5-19387-005-1	01	1	9304-9502	●
69	SEAL; RUBBER,COVER TO COVER	8-94366-564-0	01	1	9304-9502		●
70	GROMMET; OIL PIPE SEAL	1-19389-004-0	01	1	9304-9502	●
71	RUBBER; MTG,COVER	5-19389-002-0	07	1	9304-9502	●
71	RUBBER; MTG,COVER	5-19389-002-0	05	1	9304-9502		●
72	BUSHING; SPACER,COVER TO COVER	5-19389-009-0	07	1	9304-9502	●
72	BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	9304-9502		●
73	BOLT; COVER FIX M6X16 W/LK&PL WASHER	0-50140-616-0	07	1	9304-9502	●
73	BOLT; COVER FIX M6X16 W/LK&PL WASHER	0-50140-616-0	05	1	9304-9502		●
74	GROMMET; BOX COVER	8-94222-309-1	01	1	9304-9502	●
76	BOLT; BRKT TO GEAR CASE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) M10X100 W/LK WASHER	0-50041-000-0	01	1	9304-9502	●
76	BOLT; BRKT TO GEAR CASE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) M10X70 W/LK WASHER	0-50041-070-0	01	1	9304-9502	●
76	BOLT; BRKT TO GEAR CASE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) M8X110	5-09030-047-1	01	1	9304-9502	●
79	BRACKET; GEAR CASE COVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	8-94366-331-0	01	1	9304-9502	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94373-765-0	01	1	9304-9502	●	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9304-			●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-94369-518-0	01	1	9304-9502				●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-94369-518-0	01	1	9503-9703				●	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-94369-518-0	01	1	9704-				●	●	●
115	SENSOR; REVOLUTION,ENG SPD	8-97021-162-1	01	1	9304-9502	●	●
119	CLIP; HARNESS,ENG SPD SENSOR ID=8.5	5-09700-275-0	01	1	9304-9502	●	●
122	GASKET; ENG SPD SENSOR ID=16.2 OD=24	9-09571-416-0	01	1	9304-9502	●	●
166	GASKET; RET TO C/BL	8-94370-664-0	01	1	9304-9502	●	●
172	RETAINER; CR/SHF	8-97079-520-0	01	1	9304-9502	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97072-823-1	01	1	9304-9502	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9304-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9304-9502				●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9503-9703				●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9704-				●	●	●
185	BOLT; RET TO C/BL M8X22 W/LK WASHER	0-50040-822-0	07	1	9304-9502	●	●
211	BOLT; HSG M14X50	0-50041-450-0	04	1	9304-9502	●	●
211	BOLT; HSG M14X45	8-94341-374-1	02	1	9304-9502	●	●
211	BOLT; HSG M14X65	8-94341-376-1	02	1	9304-9502	●	●
211	BOLT; HSG (A) M10X50 FLANGE	0-28181-050-0	01	1	9304-9403				●
211	BOLT; HSG (A) M10X40 FLANGE	0-28181-040-0	01	1	9404-9502				●
211	BOLT; HSG (A) M10X40 FLANGE	0-28181-040-0	01	1	9503-9606				●	●
211	BOLT; HSG (A) M10X40 FLANGE	0-28781-040-0	01	1	9607-9703				●	●
211	BOLT; HSG (A) M10X40 FLANGE	0-28781-040-0	01	1	9704-				●	●	●
211	BOLT; HSG (C) M12X30 FLANGE	8-94343-919-0	01	1	9304-9502				●
211	BOLT; HSG (C) M12X30 FLANGE	8-94343-919-0	01	1	9503-9511				●	●
211	BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	9512-9703				●	●
211	BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	9704-				●	●	●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (E) M8X125	8-94148-832-0	01	1	9304-9502				●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (E) M8X125	8-94148-832-0	01	1	9503-				●	●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (F) M12X128	8-94399-252-0	09	1	9304-9502				●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (F) M12X128	8-94399-252-0	09	1	9503-				●	●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (G) M8X65	9-01065-865-0	01	1	9304-9502				●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (G) M8X65	9-01065-865-0	01	1	9503-				●	●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	9304-9502				●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	9503-9703				●	●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	9704-				●	●	●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D) M12X70	8-94388-783-1	09	1	9304-9404				●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9405-9502				●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9503-9703				●	●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9704-				●	●	●
224	STUD; STARTER M12X45 L=63	8-94139-529-0	01	1	9304-9502	●	●
224	STUD; STARTER M12X33 L=51	9-94411-233-0	01	1	9304-9502	●	●
248	COVER; DUST,FLYWHEEL HSG RET	8-97042-801-0	01	1	9304-9502	●	●
249	WASHER; LK,DUST COVER ID=6.1	9-09150-506-0	02	1	9304-9502	●	●
258	BOLT; DUST COVER,RET M6X12	0-20800-612-0	02	1	9304-9502	●	●

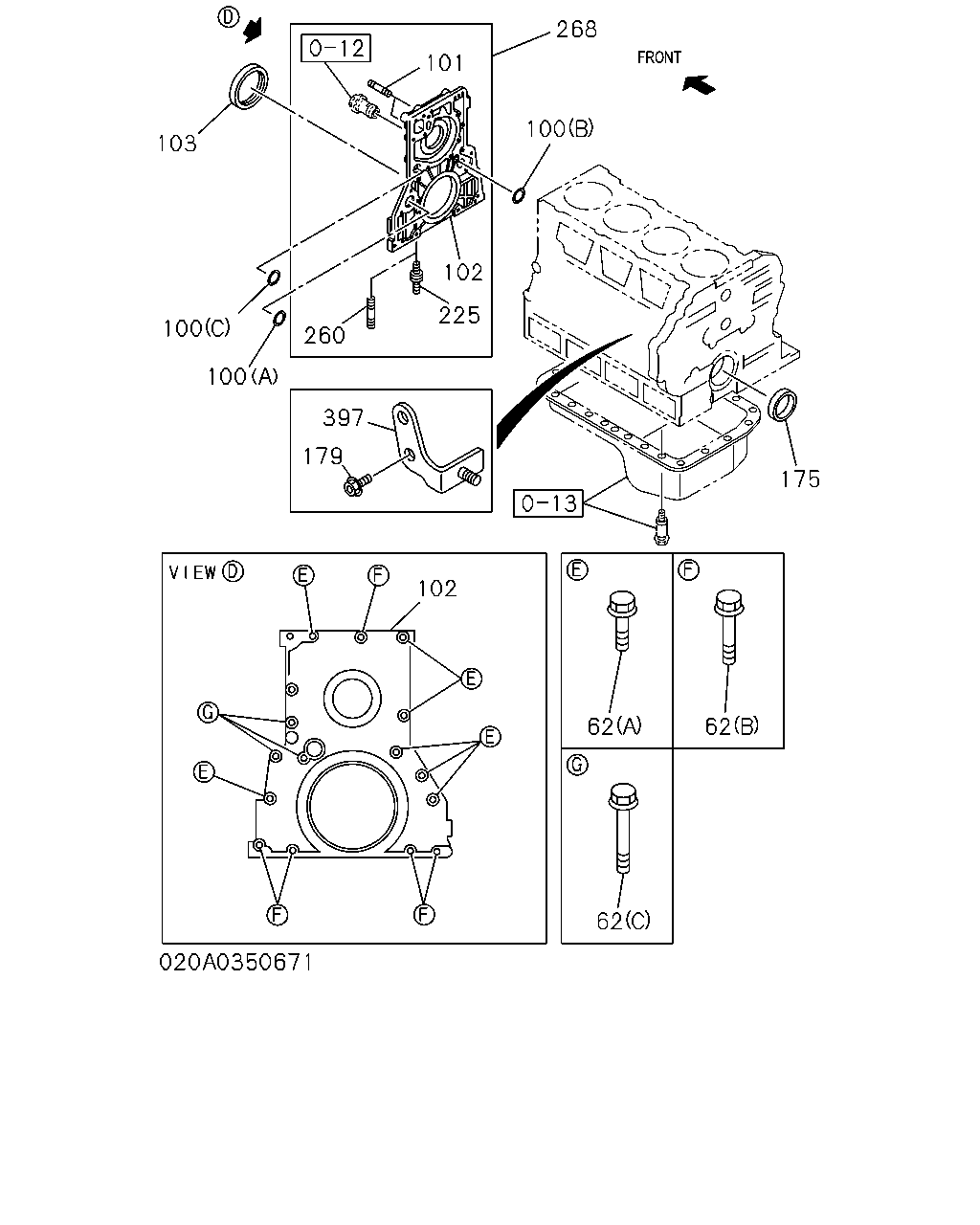

101 268 100 175 62 62 62 102 225 102 260 397 179 100 100 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
62	BOLT; COVER (B) M8X32 FLANGE	0-28080-832-0	05	1	9304-9502				●
62	BOLT; COVER (B) M8X32 FLANGE	0-28080-832-0	05	1	9503-9510				●	●
62	BOLT; COVER (B) M8X35 FLANGE	0-28680-835-0	05	1	9511-9703				●	●
62	BOLT; COVER (B) M8X35 FLANGE	0-28680-835-0	05	1	9704-				●	●	●
62	BOLT; COVER (C) M8X65	8-94158-393-1	03	1	9304-9402				●
62	BOLT; COVER (C) M8X65 FLANGE	1-09044-072-0	03	1	9403-9502				●
62	BOLT; COVER (C) M8X65 FLANGE	1-09044-072-1	03	1	9503-9703				●	●
62	BOLT; COVER (C) M8X65 FLANGE	1-09044-072-1	03	1	9704-				●	●	●
62	BOLT; COVER (A) M8X22 FLANGE	0-28080-822-0	07	1	9304-9406				●
62	BOLT; COVER (A) M8X22 FLANGE	0-28080-822-0	08	1	9407-9411				●
62	BOLT; COVER (A) M8X22 FLANGE	0-28080-822-0	07	1	9412-9502				●
62	BOLT; COVER (A) M8X22 FLANGE	0-28080-822-0	06	1	9503-9510				●	●
62	BOLT; COVER (A) M8X25 FLANGE	0-28680-825-0	06	1	9511-9703				●	●
62	BOLT; COVER (A) M8X25 FLANGE	0-28680-825-0	06	1	9704-				●	●	●
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=35.1	8-97028-748-0	01	1	9304-9502				●
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=35.1	8-97028-748-1	01	1	9503-9703				●	●
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=35.1	8-97028-748-1	01	1	9704-				●	●	●
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8	9-09561-318-0	01	1	9304-9502				●
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8	9-09561-318-0	01	1	9503-9703				●	●
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8	9-09561-318-0	01	1	9704-				●	●	●
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09563-228-0	01	1	9304-9502				●
101	STUD; WATER PUMP M8X18 L=29	8-97028-541-0	01	1	9304-9502				●
101	STUD; WATER PUMP M8X18 L=29	8-97028-541-0	01	1	9503-9703				●	●
101	STUD; WATER PUMP M8X18 L=29	8-97028-541-0	01	1	9704-				●	●	●
101	STUD; WATER PUMP M8X18 L=30	9-04110-818-0	01	1	9304-9502				●
101	STUD; WATER PUMP M8X18 L=30	9-04110-818-0	01	1	9503-9703				●	●
101	STUD; WATER PUMP M8X18 L=30	9-04110-818-0	01	1	9704-				●	●	●
102	RETAINER; FRT	8-97033-849-2	01	1	9304-9304				●
102	RETAINER; FRT	8-97094-943-2	01	1	9305-9502				●
102	RETAINER; FRT	8-97094-943-2	01	1	9503-9703				●	●
102	RETAINER; FRT	8-97094-943-3	01	1	9704-				●	●	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94373-765-0	01	1	9304-9502	●	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9304-			●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-94369-518-0	01	1	9304-9502				●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-94369-518-0	01	1	9503-9703				●	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-94369-518-0	01	1	9704-				●	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97072-823-1	01	1	9304-9502	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9304-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9304-9502				●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9503-9703				●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9704-				●	●	●
179	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9704-						●
225	STUD; OIL PAN M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	04	1	9503-9703				●	●
225	STUD; OIL PAN M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	04	1	9704-				●	●	●
260	STUD; OIL PAN M8X20 L=32	9-04110-820-0	04	1	9304-9502				●
268	COVER; FRT	8-97033-805-2	01	1	9304-9304				●
268	COVER; FRT	8-97113-768-0	01	1	9305-9502				●
268	COVER; FRT	8-97074-859-2	01	1	9503-9703				●	●
268	COVER; FRT	8-97074-859-3	01	1	9704-				●	●	●
397	BRACKET; CONNECTOR	8-97163-042-0	01	1	9704-						●

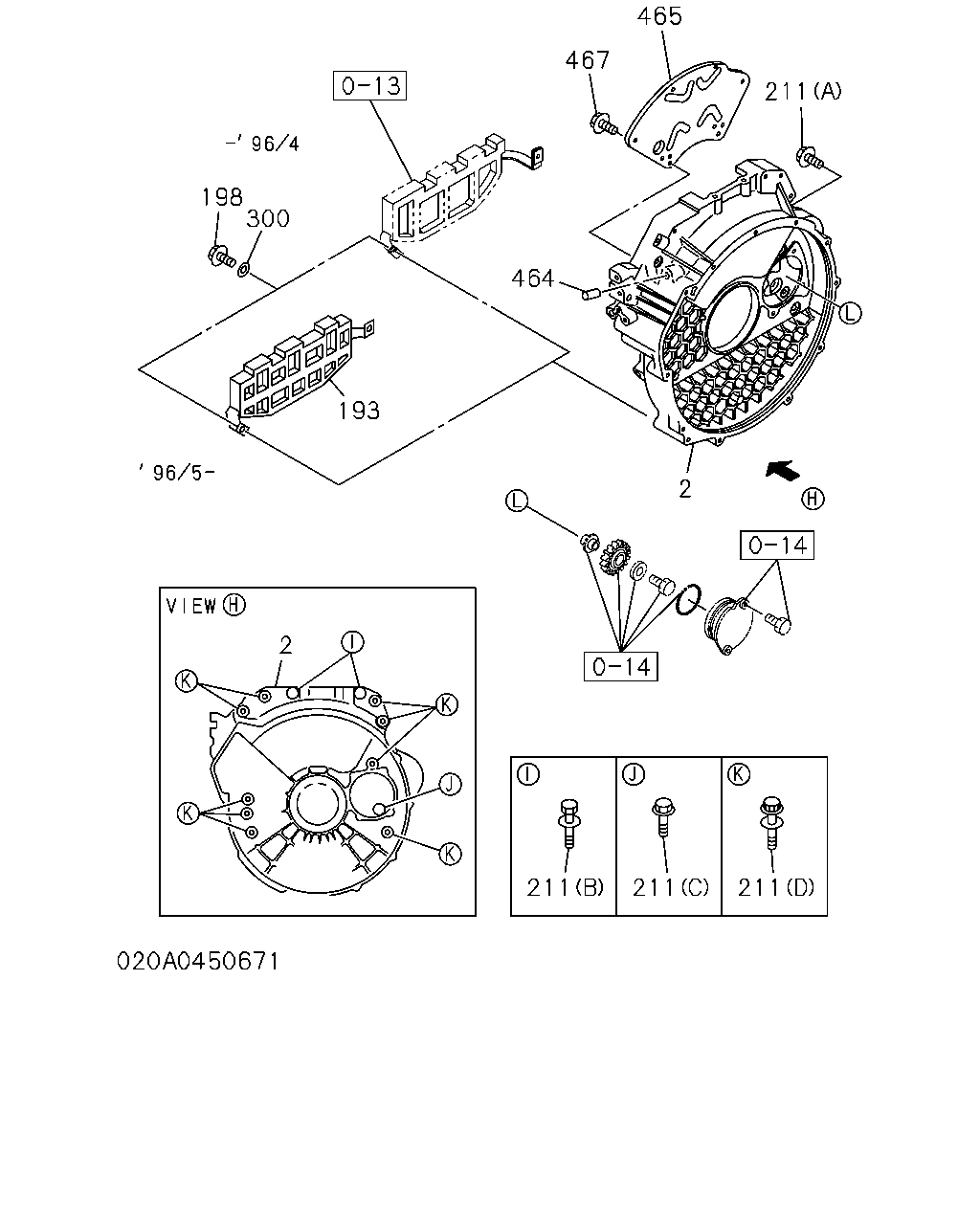

300 198 193 2 211 211 211 2 464 211 465 467

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E	F
2	HOUSING; FLYWHEEL	8-94327-481-1	01	1	9304-9502	●	●
2	HOUSING; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ)	8-97085-674-4	01	1	9304-9502			●
2	HOUSING; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ)	8-97085-674-4	01	1	9503-9712			●	●
2	HOUSING; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ)	8-97190-841-1	01	1	9801-			●	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97071-848-5	01	1	9304-9407			●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97112-139-2	01	1	9408-9502			●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97112-139-2	01	1	9503-9703			●	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97112-139-5	01	1	9704-9902			●	●	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97223-971-0	01	1	9903-			●	●	●
193	SPACER; STAY TO OIL,PAN EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97147-247-0	01	1	9606-9703			●	●
193	SPACER; STAY TO OIL,PAN EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97147-247-0	01	1	9704-			●	●	●
198	BOLT; STAY TO OIL PAN EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M12X20 FLANGE	0-28181-220-0	02	1	9304-9502			●
198	BOLT; STAY TO OIL PAN EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M12X20 FLANGE	0-28181-220-0	02	1	9503-9703			●	●
198	BOLT; STAY TO OIL PAN EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M12X20 FLANGE	0-28181-220-0	02	1	9704-			●	●	●
211	BOLT; HSG M14X50	0-50041-450-0	04	1	9304-9502	●	●
211	BOLT; HSG M14X45	8-94341-374-1	02	1	9304-9502	●	●
211	BOLT; HSG M14X65	8-94341-376-1	02	1	9304-9502	●	●
211	BOLT; HSG (A) M10X50 FLANGE	0-28181-050-0	01	1	9304-9403			●
211	BOLT; HSG (A) M10X40 FLANGE	0-28181-040-0	01	1	9404-9502			●
211	BOLT; HSG (A) M10X40 FLANGE	0-28181-040-0	01	1	9503-9606			●	●
211	BOLT; HSG (A) M10X40 FLANGE	0-28781-040-0	01	1	9607-9703			●	●
211	BOLT; HSG (A) M10X40 FLANGE	0-28781-040-0	01	1	9704-			●	●	●
211	BOLT; HSG (C) M12X30 FLANGE	8-94343-919-0	01	1	9304-9502			●
211	BOLT; HSG (C) M12X30 FLANGE	8-94343-919-0	01	1	9503-9511			●	●
211	BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	9512-9703			●	●
211	BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	9704-			●	●	●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (E) M8X125	8-94148-832-0	01	1	9304-9502			●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (E) M8X125	8-94148-832-0	01	1	9503-			●	●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (F) M12X128	8-94399-252-0	09	1	9304-9502			●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (F) M12X128	8-94399-252-0	09	1	9503-			●	●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (G) M8X65	9-01065-865-0	01	1	9304-9502			●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (G) M8X65	9-01065-865-0	01	1	9503-			●	●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	9304-9502			●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	9503-9703			●	●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	9704-			●	●	●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D) M12X70	8-94388-783-1	09	1	9304-9404			●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9405-9502			●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9503-9703			●	●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9704-			●	●	●
300	WASHER; PL,SPACER EXC. POWER TAKE OFF - FLYWHEEL(6SZ) ID=12.5	9-09164-512-0	02	1	9304-9306			●
464	PIPE; PCV,FLYWHEEL HSG	8-94373-246-3	01	1	9304-9502			●
464	PIPE; PCV,FLYWHEEL HSG	8-94373-246-3	01	1	9503-9703			●	●
464	PIPE; PCV,FLYWHEEL HSG	8-94373-246-3	01	1	9704-			●	●	●
465	PLATE; FLYWHEEL HSG POWER TAKE OFF - FLYWHEEL(6SZ)	8-97062-505-0	01	1	9304-9502			●
465	PLATE; FLYWHEEL HSG POWER TAKE OFF - FLYWHEEL(6SZ)	8-97062-505-0	01	1	9503-			●	●
465	PLATE; FLYWHEEL HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-94370-384-2	01	1	9304-9502			●
465	PLATE; FLYWHEEL HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-94370-384-2	01	1	9503-9703			●	●
465	PLATE; FLYWHEEL HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-94370-384-3	01	1	9704-			●	●	●
467	BOLT; PLATE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M6X10 FLANGE	0-28080-610-0	06	1	9304-9502			●
467	BOLT; PLATE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M6X10 FLANGE	0-28080-610-0	06	1	9503-9703			●	●
467	BOLT; PLATE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M6X10 FLANGE	0-28080-610-0	06	1	9704-			●	●	●
467	BOLT; PLATE POWER TAKE OFF - FLYWHEEL(6SZ) M6X10 FLANGE	0-28080-610-0	05	1	9304-9502			●
467	BOLT; PLATE POWER TAKE OFF - FLYWHEEL(6SZ) M6X10 FLANGE	0-28080-610-0	05	1	9503-			●	●

242 467 465 481 191 192 192 2 2 211 241 211 241 211 211 241 479 478 480 192 191 192 464 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E	F
2	HOUSING; FLYWHEEL	8-94327-481-1	01	1	9304-9502	●	●
2	HOUSING; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ)	8-97085-674-4	01	1	9304-9502			●
2	HOUSING; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ)	8-97085-674-4	01	1	9503-9712			●	●
2	HOUSING; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ)	8-97190-841-1	01	1	9801-			●	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97071-848-5	01	1	9304-9407			●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97112-139-2	01	1	9408-9502			●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97112-139-2	01	1	9503-9703			●	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97112-139-5	01	1	9704-9902			●	●	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-97223-971-0	01	1	9903-			●	●	●
191	STAY; FLYWHEEL HSG POWER TAKE OFF - FLYWHEEL(6SZ)	8-97081-670-1	01	1	9304-9502			●
191	STAY; FLYWHEEL HSG POWER TAKE OFF - FLYWHEEL(6SZ)	8-97081-670-1	01	1	9503-9611			●	●
191	STAY; FLYWHEEL HSG POWER TAKE OFF - FLYWHEEL(6SZ)	8-97167-292-0	01	1	9612-			●	●
191	STAY; FLYWHEEL HSG POWER TAKE OFF - FLYWHEEL(6SZ)	8-97063-291-2	01	1	9304-9502			●
191	STAY; FLYWHEEL HSG POWER TAKE OFF - FLYWHEEL(6SZ)	8-97063-291-2	01	1	9503-9611			●	●
191	STAY; FLYWHEEL HSG POWER TAKE OFF - FLYWHEEL(6SZ)	8-97167-291-0	01	1	9612-			●	●
192	BOLT; STAY TO HSG POWER TAKE OFF - FLYWHEEL(6SZ) (A) M12X50 FLANGE	0-28181-250-0	02	1	9304-9502			●
192	BOLT; STAY TO HSG POWER TAKE OFF - FLYWHEEL(6SZ) (A) M12X50 FLANGE	0-28181-250-0	02	1	9503-			●	●
192	BOLT; STAY TO HSG POWER TAKE OFF - FLYWHEEL(6SZ) (B) M12X100 FLANGE	0-28181-200-0	01	1	9304-9502			●
192	BOLT; STAY TO HSG POWER TAKE OFF - FLYWHEEL(6SZ) (B) M12X100 FLANGE	0-28181-200-0	01	1	9503-			●	●
192	BOLT; STAY TO HSG POWER TAKE OFF - FLYWHEEL(6SZ) (C) M10X45 FLANGE	0-28181-045-0	02	1	9304-9502			●
192	BOLT; STAY TO HSG POWER TAKE OFF - FLYWHEEL(6SZ) (C) M10X45 FLANGE	0-28181-045-0	02	1	9503-			●	●
211	BOLT; HSG M14X50	0-50041-450-0	04	1	9304-9502	●	●
211	BOLT; HSG M14X45	8-94341-374-1	02	1	9304-9502	●	●
211	BOLT; HSG M14X65	8-94341-376-1	02	1	9304-9502	●	●
211	BOLT; HSG (A) M10X50 FLANGE	0-28181-050-0	01	1	9304-9403			●
211	BOLT; HSG (A) M10X40 FLANGE	0-28181-040-0	01	1	9404-9502			●
211	BOLT; HSG (A) M10X40 FLANGE	0-28181-040-0	01	1	9503-9606			●	●
211	BOLT; HSG (A) M10X40 FLANGE	0-28781-040-0	01	1	9607-9703			●	●
211	BOLT; HSG (A) M10X40 FLANGE	0-28781-040-0	01	1	9704-			●	●	●
211	BOLT; HSG (C) M12X30 FLANGE	8-94343-919-0	01	1	9304-9502			●
211	BOLT; HSG (C) M12X30 FLANGE	8-94343-919-0	01	1	9503-9511			●	●
211	BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	9512-9703			●	●
211	BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	9704-			●	●	●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (E) M8X125	8-94148-832-0	01	1	9304-9502			●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (E) M8X125	8-94148-832-0	01	1	9503-			●	●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (F) M12X128	8-94399-252-0	09	1	9304-9502			●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (F) M12X128	8-94399-252-0	09	1	9503-			●	●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (G) M8X65	9-01065-865-0	01	1	9304-9502			●
211	BOLT; HSG POWER TAKE OFF - FLYWHEEL(6SZ) (G) M8X65	9-01065-865-0	01	1	9503-			●	●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	9304-9502			●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	9503-9703			●	●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	9704-			●	●	●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D) M12X70	8-94388-783-1	09	1	9304-9404			●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9405-9502			●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9503-9703			●	●
211	BOLT; HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9704-			●	●	●
241	WASHER; PL,HSG POWER TAKE OFF - FLYWHEEL(6SZ) ID=8.4 OD=22	9-09164-708-0	02	1	9304-9502			●
241	WASHER; PL,HSG POWER TAKE OFF - FLYWHEEL(6SZ) ID=8.4 OD=22	9-09164-708-0	02	1	9503-			●	●
241	WASHER; PL,HSG POWER TAKE OFF - FLYWHEEL(6SZ) ID=12.5 OD=22	9-09851-933-0	09	1	9304-9502			●
241	WASHER; PL,HSG POWER TAKE OFF - FLYWHEEL(6SZ) ID=12.5 OD=22	9-09851-933-0	09	1	9503-			●	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF - FLYWHEEL(6SZ) OD=12.3	5-09600-013-0	04	1	9304-9502			●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF - FLYWHEEL(6SZ) OD=12.3	5-09600-013-0	04	1	9503-			●	●
464	PIPE; PCV,FLYWHEEL HSG	8-94373-246-3	01	1	9304-9502			●
464	PIPE; PCV,FLYWHEEL HSG	8-94373-246-3	01	1	9503-9703			●	●
464	PIPE; PCV,FLYWHEEL HSG	8-94373-246-3	01	1	9704-			●	●	●
465	PLATE; FLYWHEEL HSG POWER TAKE OFF - FLYWHEEL(6SZ)	8-97062-505-0	01	1	9304-9502			●
465	PLATE; FLYWHEEL HSG POWER TAKE OFF - FLYWHEEL(6SZ)	8-97062-505-0	01	1	9503-			●	●
465	PLATE; FLYWHEEL HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-94370-384-2	01	1	9304-9502			●
465	PLATE; FLYWHEEL HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-94370-384-2	01	1	9503-9703			●	●
465	PLATE; FLYWHEEL HSG EXC. POWER TAKE OFF - FLYWHEEL(6SZ)	8-94370-384-3	01	1	9704-			●	●	●
467	BOLT; PLATE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M6X10 FLANGE	0-28080-610-0	06	1	9304-9502			●
467	BOLT; PLATE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M6X10 FLANGE	0-28080-610-0	06	1	9503-9703			●	●
467	BOLT; PLATE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M6X10 FLANGE	0-28080-610-0	06	1	9704-			●	●	●
467	BOLT; PLATE POWER TAKE OFF - FLYWHEEL(6SZ) M6X10 FLANGE	0-28080-610-0	05	1	9304-9502			●
467	BOLT; PLATE POWER TAKE OFF - FLYWHEEL(6SZ) M6X10 FLANGE	0-28080-610-0	05	1	9503-			●	●
478	COVER; FLYWHEEL HSG POWER TAKE OFF - FLYWHEEL(6SZ)	8-94396-896-0	01	1	9304-9502			●
478	COVER; FLYWHEEL HSG POWER TAKE OFF - FLYWHEEL(6SZ)	8-94396-896-2	01	1	9503-			●	●
479	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF - FLYWHEEL(6SZ)	8-94396-903-0	01	1	9304-9502			●
479	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF - FLYWHEEL(6SZ)	8-94396-903-0	01	1	9503-			●	●
480	BOLT; COVER POWER TAKE OFF - FLYWHEEL(6SZ) M10X25	1-09044-080-0	07	1	9304-9502			●
480	BOLT; COVER POWER TAKE OFF - FLYWHEEL(6SZ) M10X25	1-09044-080-0	07	1	9503-			●	●
481	PIN; BAFFLE PLATE POWER TAKE OFF - FLYWHEEL(6SZ) ID=6 L=12	9-08160-612-0	02	1	9304-9502			●
481	PIN; BAFFLE PLATE POWER TAKE OFF - FLYWHEEL(6SZ) ID=6 L=12	9-08160-612-0	02	1	9503-			●	●

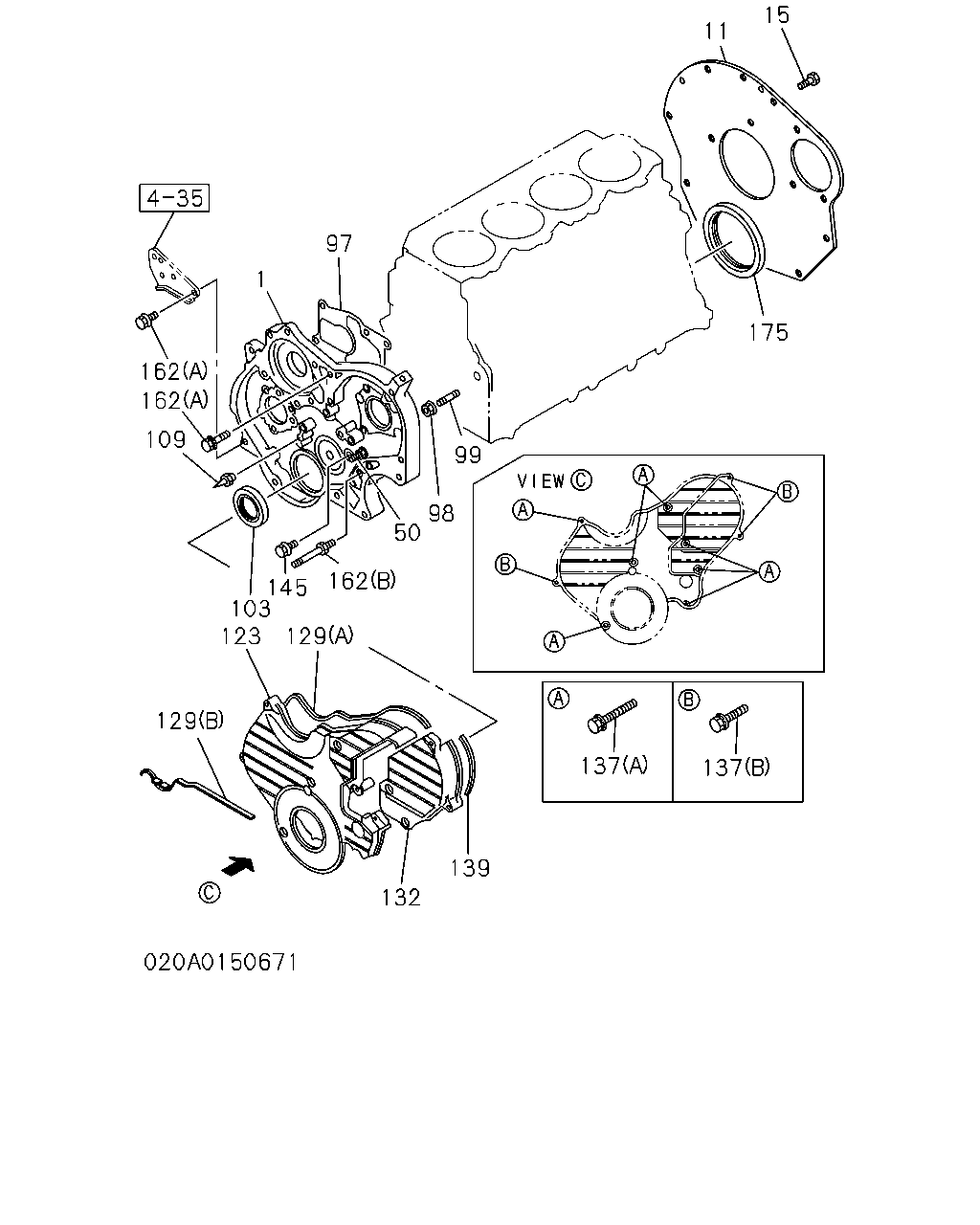

97 1 162 162 109 145 103 123 129 162 50 99 98 139 132 137 137 175 11 15 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CASE; TIMING GEAR	8-94457-910-2	01	1	9304-9502	●	●
1	CASE; TIMING GEAR	8-97083-629-2	01	1	9304-9410			●
1	CASE; TIMING GEAR	8-97115-133-0	01	1	9411-9606			●
1	CASE; TIMING GEAR	8-97160-960-0	01	1	9607-9703			●
1	CASE; TIMING GEAR	8-97141-532-1	01	1	9704-			●
11	PLATE; RR,C/BL	8-94437-923-2	01	1	9304-			●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9304-			●
50	STUD M8X42.5 L=69	8-97148-539-0	01	1	9606-			●
97	GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-302-0	01	1	9304-9504			●
97	GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-429-0	01	1	9505-			●
98	NUT; STUD,INJ PUMP M8	8-94224-829-0	03	1	9304-9703			●
98	NUT; STUD,INJ PUMP M8	8-94224-829-0	02	1	9704-			●
99	STUD; INJ PUMP M8X25 L=41	9-04020-825-0	03	1	9305-9406			●
99	STUD; INJ PUMP M8X28 L=44	9-04020-828-0	03	1	9407-9703			●
99	STUD; INJ PUMP M8X28 L=44	9-04020-828-0	02	1	9704-			●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94373-765-0	01	1	9304-9502	●	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9304-			●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-94369-518-0	01	1	9304-9502				●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-94369-518-0	01	1	9503-9703				●	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-94369-518-0	01	1	9704-				●	●	●
109	POINTER; TIMING M5X7.5	8-94133-500-0	01	1	9304-			●
123	COVER; TIMING,LWR	8-97038-105-1	01	1	9304-			●
129	GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=560	8-94464-695-1	01	1	9304-			●
129	GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (B) L=366	8-94464-696-0	01	1	9304-			●
132	COVER; TIMING,UPR	8-97038-103-1	01	1	9304-			●
137	BOLT; FRT PLATE (A) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9304-			●
137	BOLT; FRT PLATE (B) M6X50 W/LK WASHER	8-94152-616-1	03	1	9304-			●
139	GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). L=215	8-94139-961-0	01	1	9304-			●
145	BOLT; TENSIONER GUIDE M8X20	8-94152-617-1	01	1	9304-			●
162	BOLT; FRT PLATE (A) M8X45 W/LK WASHER	0-50040-845-0	03	1	9304-			●
162	BOLT; FRT PLATE (B) M8X19.5,M8X42.5 L=69	8-94167-314-1	01	1	9304-9605			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97072-823-1	01	1	9304-9502	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9304-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9304-9502				●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9503-9703				●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9704-				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
