Sayfa 0-15 - Isuzu EPC

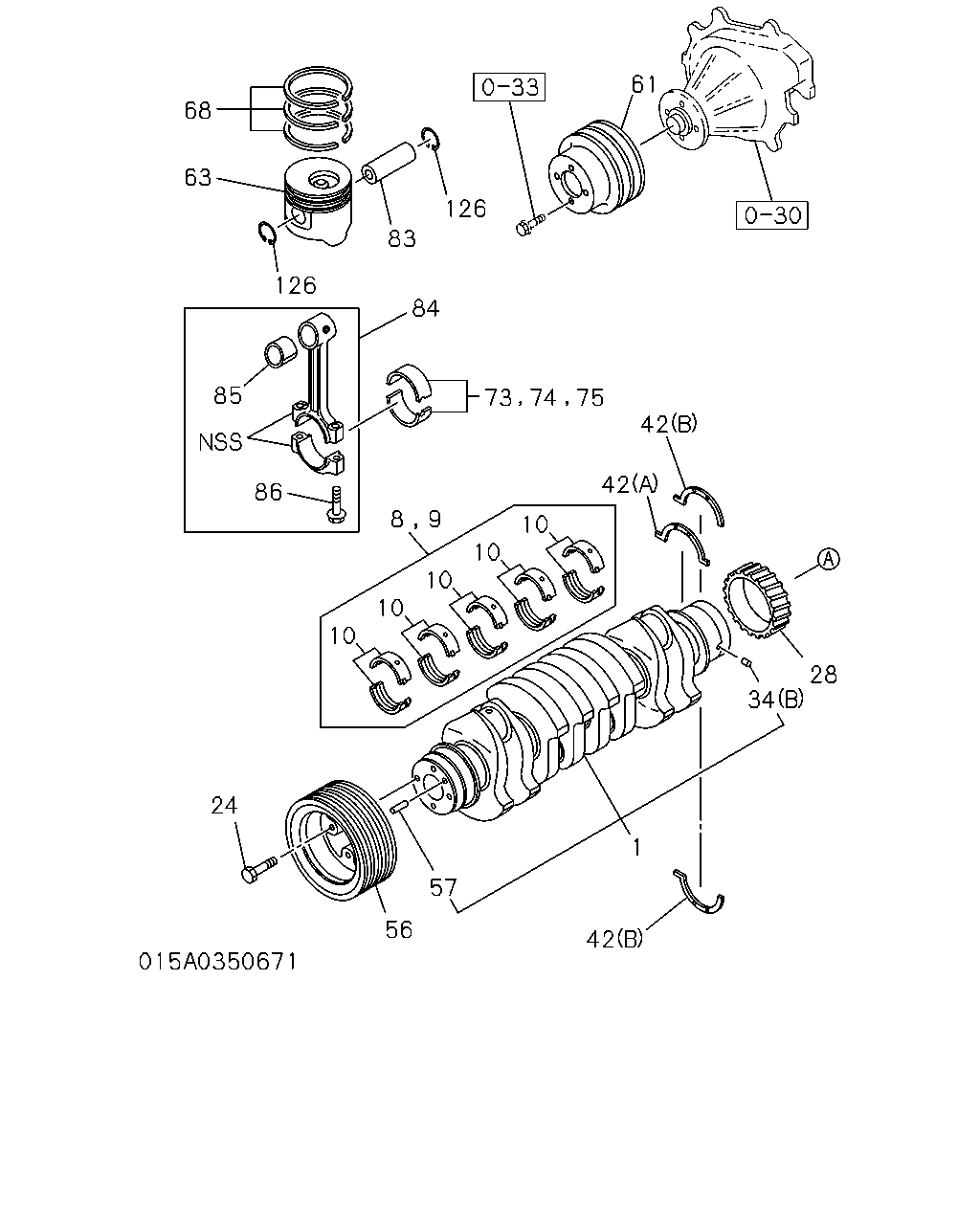

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#166644) — 504 parça

68 63 126 83 126 61 73 74 75 42 42 28 34 1 42 57 56 24 10 8 9 10 10 10 10 86 85 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CRANKSHAFT	8-94416-373-2	01	1	9304-9502	●	●
1	CRANKSHAFT	8-97023-182-1	01	1	9304-			●
1	CRANKSHAFT	8-97028-179-4	01	1	9304-9305				●
1	CRANKSHAFT	8-97033-171-2	01	1	9306-9408				●
1	CRANKSHAFT	8-97112-981-0	01	1	9409-9502				●
1	CRANKSHAFT	8-97112-981-0	01	1	9503-9703				●	●
1	CRANKSHAFT	8-97112-981-1	01	1	9704-				●	●	●
8	METAL KIT; CRANKSHAFT,U/S=0.25	8-97174-988-0	01	1	9304-9502				●
8	METAL KIT; CRANKSHAFT,U/S=0.25	8-97174-988-0	01	1	9503-9703				●	●
8	METAL KIT; CRANKSHAFT,U/S=0.25	8-97174-988-0	01	1	9704-				●	●	●
9	METAL KIT; CRANKSHAFT,U/S=0.50	8-97174-989-0	01	1	9304-9502				●
9	METAL KIT; CRANKSHAFT,U/S=0.50	8-97174-989-0	01	1	9503-9703				●	●
9	METAL KIT; CRANKSHAFT,U/S=0.50	8-97174-989-0	01	1	9704-				●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9304-			●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9304-			●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9304-			●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9304-9502				●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9503-9703				●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9704-				●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9304-9502				●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9503-9703				●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9704-				●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9304-9502				●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9503-9703				●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9704-				●	●	●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	9304-9502				●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	9503-9703				●	●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	9704-				●	●	●
28	GEAR; CR/SHF Z=25	9-12521-043-0	01	1	9304-9502	●	●
28	GEAR; CR/SHF Z=42	8-94370-784-3	01	1	9304-9404				●
28	GEAR; CR/SHF Z=42	8-97110-040-3	01	1	9405-9502				●
28	GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9503-9703				●	●
28	GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9704-9902				●	●	●
28	GEAR; CR/SHF Z=42	8-97109-626-1	01	1	9903-				●	●	●
34	PIN; GEAR SETTING (B) OD=5 L=6	9-09878-626-0	01	1	9304-9502				●
34	PIN; GEAR SETTING (B) OD=5 L=6	9-09878-626-0	01	1	9503-9703				●	●
34	PIN; GEAR SETTING (B) OD=5 L=6	9-09878-626-0	01	1	9704-				●	●	●
34	PIN; GEAR SETTING POWER TAKE OFF - FLYWHEEL(6SZ) (A) OD=8 L=16	9-08150-816-0	01	1	9304-9502				●
34	PIN; GEAR SETTING POWER TAKE OFF - FLYWHEEL(6SZ) (A) OD=8 L=16	9-08150-816-0	01	1	9503-				●	●
42	WASHER; THRUST,CR/SHF	8-97071-358-0	02	1	9304-9502	●	●
42	WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9304-			●
42	WASHER; THRUST,CR/SHF (A) FRONT	8-94399-277-0	01	1	9304-9502				●
42	WASHER; THRUST,CR/SHF (A) FRONT	8-94399-277-0	01	1	9503-9703				●	●
42	WASHER; THRUST,CR/SHF (A) FRONT	8-94399-277-0	01	1	9704-				●	●	●
42	WASHER; THRUST,CR/SHF (B) REAR	8-94399-283-0	02	1	9304-9502				●
42	WASHER; THRUST,CR/SHF (B) REAR	8-94399-283-0	02	1	9503-9703				●	●
42	WASHER; THRUST,CR/SHF (B) REAR	8-94399-283-0	02	1	9704-				●	●	●
56	PULLEY; CR/SHF DAMPER REFRIGERATOR CHASSIS(V4R) 4-GROOVE	8-97040-330-0	01	1	9304-9502	●
56	PULLEY; CR/SHF DAMPER (A) 3-GROOVE	8-94460-623-1	01	1	9304-9509			●
56	PULLEY; CR/SHF DAMPER EXC. REFRIGERATOR CHASSIS(V4R) (A) 3-GROOVE	8-94460-623-1	01	1	9510-9703			●
56	PULLEY; CR/SHF DAMPER (A) 3-GROOVE	8-94460-623-1	01	1	9704-9707			●
56	PULLEY; CR/SHF DAMPER (B) 3-GROOVE	8-97182-904-0	01	1	9708-			●
56	PULLEY; CR/SHF DAMPER REFRIGERATOR CHASSIS(V4R) 4-GROOVE	8-97083-076-1	01	1	9510-9703			●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97033-848-0	01	1	9304-9412				●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-2	01	1	9501-9502				●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-2	01	1	9503-9703				●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-3	01	1	9704-9711				●	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-3	01	1	9802-9812				●	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-0	01	1	9901-				●	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-477-4	01	1	9712-9801				●	●	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE	8-97096-884-0	01	1	9306-9412				●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	02	1	9304-9502				●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	02	1	9503-9703				●	●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	02	1	9704-				●	●	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97013-763-0	01	1	9304-9502	●
61	PULLEY; FAN DRIVE 3-GROOVE	8-97095-217-0	01	1	9304-9308		●
61	PULLEY; FAN DRIVE 3-GROOVE	8-97100-638-0	01	1	9309-9502		●
61	PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9304-			●
61	PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9304-9502				●
61	PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9503-9702				●	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9703-9703				●
61	PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9704-				●		●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-1	01	1	9703-					●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-648-0	04	1	9304-9502	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-649-0	04	1	9304-9502	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-646-0	04	1	9304-9502		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-647-0	04	1	9304-9502		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-616-0	04	1	9304-9703			●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9704-			●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-617-0	04	1	9304-9703			●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9704-			●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-655-0	04	1	9304-9502				●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-0	04	1	9503-9703				●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-0	04	1	9704-9704				●		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9705-				●		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-0	04	1	9503-9703					●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-0	04	1	9704-					●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94418-918-0	04	1	9304-9502	●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97105-867-0	04	1	9503-					●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9304-9703			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9704-			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97076-047-0	04	1	9304-9304				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97028-691-0	04	1	9304-9502				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9503-9703				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9704-				●		●
73	METAL SET; CONN ROD,STANDARD	8-97011-031-0	04	1	9304-9502	●	●
73	METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9304-			●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9304-9502				●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9503-9703				●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9704-				●	●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9304-9502				●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9503-9703				●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9704-				●	●	●
74	METAL SET; CONN ROD,U/S=0.25	5-87310-090-1	04	1	9304-9502	●	●
74	METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	9304-9502				●
74	METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	9503-9703				●	●
74	METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	9704-				●	●	●
75	METAL SET; CONN ROD,U/S=0.50	5-87310-091-1	04	1	9304-9502	●	●
75	METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	9304-9502				●
75	METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	9503-9703				●	●
75	METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	9704-				●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-022-0	04	1	9304-9502	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9304-			●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-0	04	1	9304-9502				●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-0	04	1	9503-9703				●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9704-				●	●	●
84	ROD ASM; CONN	8-97011-030-0	04	1	9304-9502	●	●
84	ROD ASM; CONN	8-97062-300-0	04	1	9304-			●
84	ROD ASM; CONN	8-94473-443-6	04	1	9304-9502				●
84	ROD ASM; CONN	8-94473-443-6	04	1	9503-9506				●	●
84	ROD ASM; CONN	8-97135-032-0	04	1	9507-9703				●	●
84	ROD ASM; CONN	8-97135-032-0	04	1	9704-				●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-027-0	04	1	9304-9502	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9304-			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9304-9502				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9503-9703				●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9704-				●	●	●
86	BOLT; CONNROD M12X61	8-97011-094-0	08	1	9304-9502	●	●
86	BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9304-			●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9304-9502				●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9503-9703				●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9704-				●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94107-575-0	08	1	9304-9502	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	9304-			●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-1	08	1	9304-9502				●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9503-9703				●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9704-				●	●	●

12 100 40 52 38 40 12 35 108 49 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

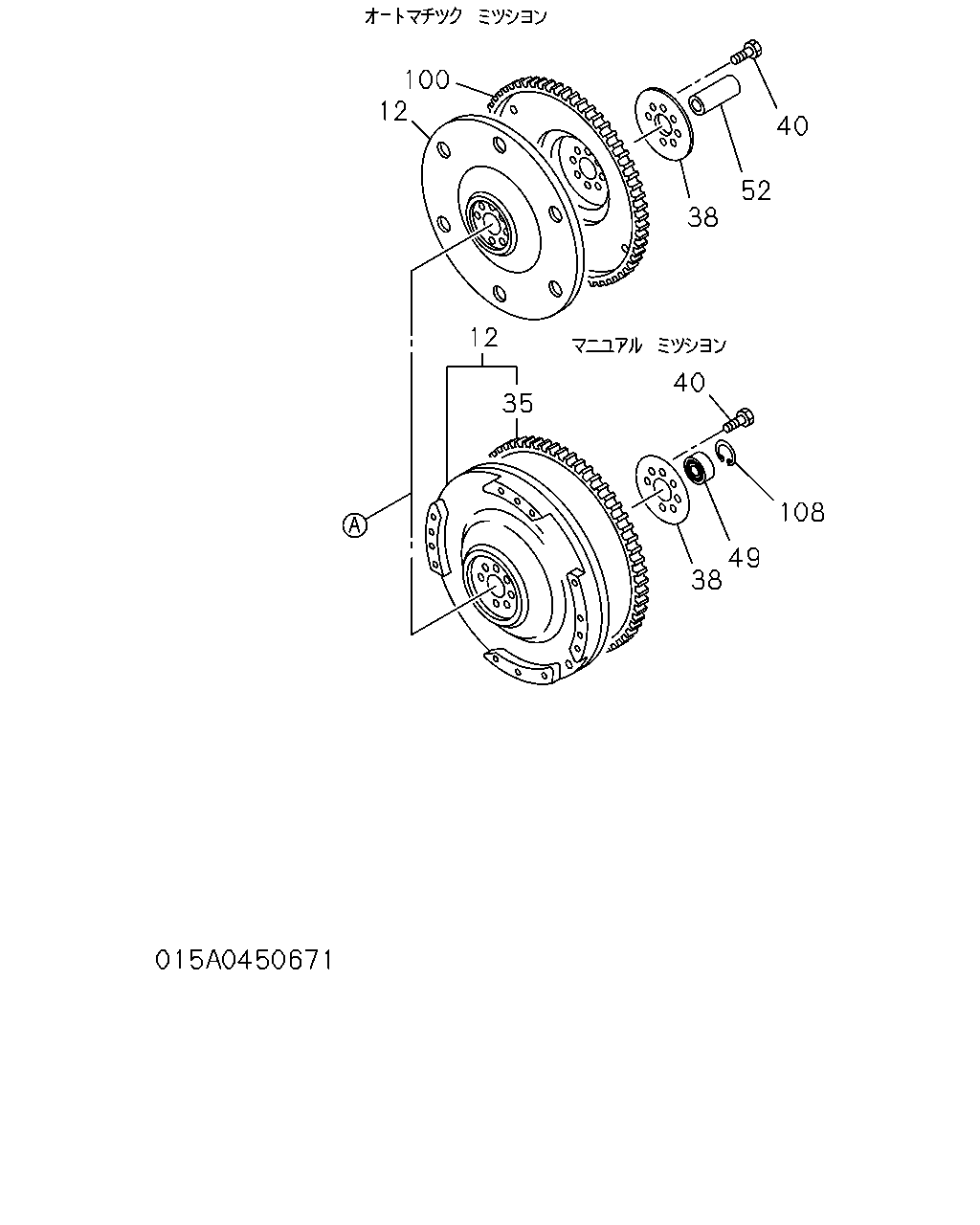

12	FLYWHEEL	8-94372-128-1	01	1	9304-9502	●	●
12	FLYWHEEL	8-97034-430-2	01	1	9304-			●
12	FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97027-933-1	01	1	9304-9502				●
12	FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97027-933-1	01	1	9503-				●	●
12	FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97077-585-1	01	1	9304-9408				●
12	FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97115-782-0	01	1	9409-9502				●
12	FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97115-782-0	01	1	9503-9612				●	●
12	FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97169-129-0	01	1	9701-9703				●	●
12	FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97169-129-2	01	1	9704-				●	●	●
35	GEAR; RING Z=128	5-12333-002-0	01	1	9304-9310	●	●
35	GEAR; RING	8-94468-412-0	01	1	9311-9502	●	●
35	GEAR; RING Z=108	8-94419-602-1	01	1	9304-			●
35	GEAR; RING M/T MXA5R(RMT),M/T MXA 6R(RMU) Z=138	8-97046-366-0	01	1	9304-9502				●
35	GEAR; RING M/T MXA5R(RMT),M/T MXA 6R(RMU) Z=138	8-97046-366-0	01	1	9503-9612				●	●
35	GEAR; RING M/T MXA5R(RMT),M/T MXA 6R(RMU) Z=138	8-97169-134-0	01	1	9701-9703				●	●
35	GEAR; RING M/T MXA5R(RMT),M/T MXA 6R(RMU) Z=138	8-97169-134-0	01	1	9704-				●	●	●
38	WASHER; FLYWHEEL	5-12336-003-0	01	1	9304-9502	●	●
38	WASHER; FLYWHEEL	8-94133-970-0	01	1	9304-			●
38	WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97013-377-1	01	1	9304-9502				●
38	WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97013-377-1	01	1	9503-				●	●
38	WASHER; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-94310-615-0	01	1	9304-9502				●
38	WASHER; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-94310-615-0	01	1	9503-9703				●	●
38	WASHER; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-94310-615-0	01	1	9704-				●	●	●
40	BOLT; FLYWHEEL M14X36	8-97028-730-0	06	1	9304-9502	●	●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9304-			●
40	BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X72	8-97065-516-1	08	1	9304-9408				●
40	BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X51	8-94334-870-1	08	1	9409-9502				●
40	BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X51	8-94334-870-1	08	1	9503-				●	●
40	BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M16X62	8-97065-517-1	08	1	9304-9408				●
40	BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M18X33	8-97112-999-0	08	1	9409-9502				●
40	BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M18X33	8-97112-999-0	08	1	9503-9702				●	●
40	BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M16X42	8-97178-013-0	08	1	9703-9703				●	●
40	BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M16X42	8-97178-013-0	08	1	9704-				●	●
40	BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9704-						●
40	BOLT; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ) M16X119	8-97077-637-1	08	1	9304-9408				●
40	BOLT; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ) M16X99	8-97113-000-0	08	1	9409-9502				●
40	BOLT; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ) M16X99	8-97113-000-0	08	1	9503-				●	●
49	BEARING; PILOT M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97031-741-0	01	1	9304-9502				●
49	BEARING; PILOT M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97031-741-0	01	1	9503-9703				●	●
49	BEARING; PILOT M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97031-741-0	01	1	9704-				●	●	●
52	SLEEVE; CONV PILOT A/T 4 SPEED-JATCO(RMK)	8-97026-319-1	01	1	9304-9502				●
52	SLEEVE; CONV PILOT A/T 4 SPEED-JATCO(RMK)	8-97026-319-1	01	1	9503-				●	●
100	PLATE; FLEX A/T 4 SPEED-JATCO(RMK)	8-97046-365-2	01	1	9304-9502				●
100	PLATE; FLEX A/T 4 SPEED-JATCO(RMK)	8-97046-365-2	01	1	9503-				●	●
108	RING; SNAP,BRG SET M/T MXA5R(RMT),M/T MXA 6R(RMU) OD=45.5	9-09180-142-0	01	1	9304-9408				●

68 63 126 83 126 62 61 60 42 42 73 10 1 37 40 38 35 12 56 58 130 14 43 56 31 84 87 86 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CRANKSHAFT	8-94416-373-2	01	1	9304-9502	●	●
1	CRANKSHAFT	8-97023-182-1	01	1	9304-			●
1	CRANKSHAFT	8-97028-179-4	01	1	9304-9305				●
1	CRANKSHAFT	8-97033-171-2	01	1	9306-9408				●
1	CRANKSHAFT	8-97112-981-0	01	1	9409-9502				●
1	CRANKSHAFT	8-97112-981-0	01	1	9503-9703				●	●
1	CRANKSHAFT	8-97112-981-1	01	1	9704-				●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9304-			●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9304-			●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9304-			●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9304-9502				●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9503-9703				●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9704-				●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9304-9502				●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9503-9703				●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9704-				●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9304-9502				●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9503-9703				●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9704-				●	●	●
12	FLYWHEEL	8-94372-128-1	01	1	9304-9502	●	●
12	FLYWHEEL	8-97034-430-2	01	1	9304-			●
12	FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97027-933-1	01	1	9304-9502				●
12	FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97027-933-1	01	1	9503-				●	●
12	FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97077-585-1	01	1	9304-9408				●
12	FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97115-782-0	01	1	9409-9502				●
12	FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97115-782-0	01	1	9503-9612				●	●
12	FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97169-129-0	01	1	9701-9703				●	●
12	FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97169-129-2	01	1	9704-				●	●	●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9407-			●
31	KEY; FEATHER,CR/SHF	9-08030-743-0	01	1	9304-			●
35	GEAR; RING Z=128	5-12333-002-0	01	1	9304-9310	●	●
35	GEAR; RING	8-94468-412-0	01	1	9311-9502	●	●
35	GEAR; RING Z=108	8-94419-602-1	01	1	9304-			●
35	GEAR; RING M/T MXA5R(RMT),M/T MXA 6R(RMU) Z=138	8-97046-366-0	01	1	9304-9502				●
35	GEAR; RING M/T MXA5R(RMT),M/T MXA 6R(RMU) Z=138	8-97046-366-0	01	1	9503-9612				●	●
35	GEAR; RING M/T MXA5R(RMT),M/T MXA 6R(RMU) Z=138	8-97169-134-0	01	1	9701-9703				●	●
35	GEAR; RING M/T MXA5R(RMT),M/T MXA 6R(RMU) Z=138	8-97169-134-0	01	1	9704-				●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT NSK	9-00090-679-0	01	1	9304-9502	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT NSK	9-00090-679-0	01	1	9503-			●
38	WASHER; FLYWHEEL	5-12336-003-0	01	1	9304-9502	●	●
38	WASHER; FLYWHEEL	8-94133-970-0	01	1	9304-			●
38	WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97013-377-1	01	1	9304-9502				●
38	WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97013-377-1	01	1	9503-				●	●
38	WASHER; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-94310-615-0	01	1	9304-9502				●
38	WASHER; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-94310-615-0	01	1	9503-9703				●	●
38	WASHER; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-94310-615-0	01	1	9704-				●	●	●
40	BOLT; FLYWHEEL M14X36	8-97028-730-0	06	1	9304-9502	●	●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9304-			●
40	BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X72	8-97065-516-1	08	1	9304-9408				●
40	BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X51	8-94334-870-1	08	1	9409-9502				●
40	BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X51	8-94334-870-1	08	1	9503-				●	●
40	BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M16X62	8-97065-517-1	08	1	9304-9408				●
40	BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M18X33	8-97112-999-0	08	1	9409-9502				●
40	BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M18X33	8-97112-999-0	08	1	9503-9702				●	●
40	BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M16X42	8-97178-013-0	08	1	9703-9703				●	●
40	BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M16X42	8-97178-013-0	08	1	9704-				●	●
40	BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9704-						●
40	BOLT; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ) M16X119	8-97077-637-1	08	1	9304-9408				●
40	BOLT; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ) M16X99	8-97113-000-0	08	1	9409-9502				●
40	BOLT; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ) M16X99	8-97113-000-0	08	1	9503-				●	●
42	WASHER; THRUST,CR/SHF	8-97071-358-0	02	1	9304-9502	●	●
42	WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9304-			●
42	WASHER; THRUST,CR/SHF (A) FRONT	8-94399-277-0	01	1	9304-9502				●
42	WASHER; THRUST,CR/SHF (A) FRONT	8-94399-277-0	01	1	9503-9703				●	●
42	WASHER; THRUST,CR/SHF (A) FRONT	8-94399-277-0	01	1	9704-				●	●	●
42	WASHER; THRUST,CR/SHF (B) REAR	8-94399-283-0	02	1	9304-9502				●
42	WASHER; THRUST,CR/SHF (B) REAR	8-94399-283-0	02	1	9503-9703				●	●
42	WASHER; THRUST,CR/SHF (B) REAR	8-94399-283-0	02	1	9704-				●	●	●
43	BOLT; CR/SHF PULLEY M16X29 FLANGE	8-94433-406-0	01	1	9304-9312			●
43	BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9401-			●
56	PULLEY; CR/SHF DAMPER REFRIGERATOR CHASSIS(V4R) 4-GROOVE	8-97040-330-0	01	1	9304-9502	●
56	PULLEY; CR/SHF DAMPER (A) 3-GROOVE	8-94460-623-1	01	1	9304-9509			●
56	PULLEY; CR/SHF DAMPER EXC. REFRIGERATOR CHASSIS(V4R) (A) 3-GROOVE	8-94460-623-1	01	1	9510-9703			●
56	PULLEY; CR/SHF DAMPER (A) 3-GROOVE	8-94460-623-1	01	1	9704-9707			●
56	PULLEY; CR/SHF DAMPER (B) 3-GROOVE	8-97182-904-0	01	1	9708-			●
56	PULLEY; CR/SHF DAMPER REFRIGERATOR CHASSIS(V4R) 4-GROOVE	8-97083-076-1	01	1	9510-9703			●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97033-848-0	01	1	9304-9412				●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-2	01	1	9501-9502				●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-2	01	1	9503-9703				●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-3	01	1	9704-9711				●	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-3	01	1	9802-9812				●	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-0	01	1	9901-				●	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-477-4	01	1	9712-9801				●	●	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE	8-97096-884-0	01	1	9306-9412				●
58	BOLT; CR/SHF PULLEY M8X18 W/LK WASHER	0-50040-818-0	04	1	9304-9707			●
60	STUD; FAN FIX M6X18 L=27	9-04110-618-0	04	1	9304-9509			●
60	STUD; FAN FIX EXC. REFRIGERATOR CHASSIS(V4R) M6X18 L=27	9-04110-618-0	04	1	9510-9703			●
60	STUD; FAN FIX M6X18 L=27	9-04110-618-0	04	1	9704-			●
60	STUD; FAN FIX REFRIGERATOR CHASSIS(V4R) M6X25 L=33	8-94340-628-0	04	1	9510-9703			●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97013-763-0	01	1	9304-9502	●
61	PULLEY; FAN DRIVE 3-GROOVE	8-97095-217-0	01	1	9304-9308		●
61	PULLEY; FAN DRIVE 3-GROOVE	8-97100-638-0	01	1	9309-9502		●
61	PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9304-			●
61	PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9304-9502				●
61	PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9503-9702				●	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9703-9703				●
61	PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9704-				●		●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-1	01	1	9703-					●
62	NUT; FAN PULLEY M6 FLANGE	5-09440-004-0	04	1	9304-			●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-648-0	04	1	9304-9502	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-649-0	04	1	9304-9502	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-646-0	04	1	9304-9502		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-647-0	04	1	9304-9502		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-616-0	04	1	9304-9703			●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9704-			●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-617-0	04	1	9304-9703			●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9704-			●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-655-0	04	1	9304-9502				●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-0	04	1	9503-9703				●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-0	04	1	9704-9704				●		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9705-				●		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-0	04	1	9503-9703					●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-0	04	1	9704-					●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94418-918-0	04	1	9304-9502	●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97105-867-0	04	1	9503-					●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9304-9703			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9704-			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97076-047-0	04	1	9304-9304				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97028-691-0	04	1	9304-9502				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9503-9703				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9704-				●		●
73	METAL SET; CONN ROD,STANDARD	8-97011-031-0	04	1	9304-9502	●	●
73	METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9304-			●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9304-9502				●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9503-9703				●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9704-				●	●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9304-9502				●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9503-9703				●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9704-				●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-022-0	04	1	9304-9502	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9304-			●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-0	04	1	9304-9502				●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-0	04	1	9503-9703				●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9704-				●	●	●
84	ROD ASM; CONN	8-97011-030-0	04	1	9304-9502	●	●
84	ROD ASM; CONN	8-97062-300-0	04	1	9304-			●
84	ROD ASM; CONN	8-94473-443-6	04	1	9304-9502				●
84	ROD ASM; CONN	8-94473-443-6	04	1	9503-9506				●	●
84	ROD ASM; CONN	8-97135-032-0	04	1	9507-9703				●	●
84	ROD ASM; CONN	8-97135-032-0	04	1	9704-				●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-027-0	04	1	9304-9502	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9304-			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9304-9502				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9503-9703				●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9704-				●	●	●
86	BOLT; CONNROD M12X61	8-97011-094-0	08	1	9304-9502	●	●
86	BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9304-			●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9304-9502				●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9503-9703				●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9704-				●	●	●
87	PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9304-			●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94107-575-0	08	1	9304-9502	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	9304-			●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-1	08	1	9304-9502				●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9503-9703				●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9704-				●	●	●
130	PIN; STRAIGHT OD=4 L=12	9-08160-412-0	01	1	9304-9707			●

68 63 83 126 126 12 35 61 40 38 37 32 7 1 42 42 28 48 48 75 74 73 84 86 85 18 56 59 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CRANKSHAFT	8-94416-373-2	01	1	9304-9502	●	●
1	CRANKSHAFT	8-97023-182-1	01	1	9304-			●
1	CRANKSHAFT	8-97028-179-4	01	1	9304-9305				●
1	CRANKSHAFT	8-97033-171-2	01	1	9306-9408				●
1	CRANKSHAFT	8-97112-981-0	01	1	9409-9502				●
1	CRANKSHAFT	8-97112-981-0	01	1	9503-9703				●	●
1	CRANKSHAFT	8-97112-981-1	01	1	9704-				●	●	●
7	METAL KIT; CRANKSHAFT,STANDARD	8-97071-660-0	01	1	9304-9502	●	●
12	FLYWHEEL	8-94372-128-1	01	1	9304-9502	●	●
12	FLYWHEEL	8-97034-430-2	01	1	9304-			●
12	FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97027-933-1	01	1	9304-9502				●
12	FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97027-933-1	01	1	9503-				●	●
12	FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97077-585-1	01	1	9304-9408				●
12	FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97115-782-0	01	1	9409-9502				●
12	FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97115-782-0	01	1	9503-9612				●	●
12	FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97169-129-0	01	1	9701-9703				●	●
12	FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-97169-129-2	01	1	9704-				●	●	●
18	PULLEY; CR/SHF EXC. REFRIGERATOR CHASSIS(V4R) 3-GROOVE	8-97041-578-0	01	1	9304-9306	●
18	PULLEY; CR/SHF 3-GROOVE	8-97041-578-0	01	1	9304-9306		●
18	PULLEY; CR/SHF EXC. REFRIGERATOR CHASSIS(V4R) 3-GROOVE	8-97102-309-0	01	1	9307-9502	●
18	PULLEY; CR/SHF 3-GROOVE	8-97102-309-0	01	1	9307-9502		●
28	GEAR; CR/SHF Z=25	9-12521-043-0	01	1	9304-9502	●	●
28	GEAR; CR/SHF Z=42	8-94370-784-3	01	1	9304-9404				●
28	GEAR; CR/SHF Z=42	8-97110-040-3	01	1	9405-9502				●
28	GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9503-9703				●	●
28	GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9704-9902				●	●	●
28	GEAR; CR/SHF Z=42	8-97109-626-1	01	1	9903-				●	●	●
32	PIN; FLYWHEEL OD=12 L=20	9-08161-220-0	01	1	9304-9502	●	●
35	GEAR; RING Z=128	5-12333-002-0	01	1	9304-9310	●	●
35	GEAR; RING	8-94468-412-0	01	1	9311-9502	●	●
35	GEAR; RING Z=108	8-94419-602-1	01	1	9304-			●
35	GEAR; RING M/T MXA5R(RMT),M/T MXA 6R(RMU) Z=138	8-97046-366-0	01	1	9304-9502				●
35	GEAR; RING M/T MXA5R(RMT),M/T MXA 6R(RMU) Z=138	8-97046-366-0	01	1	9503-9612				●	●
35	GEAR; RING M/T MXA5R(RMT),M/T MXA 6R(RMU) Z=138	8-97169-134-0	01	1	9701-9703				●	●
35	GEAR; RING M/T MXA5R(RMT),M/T MXA 6R(RMU) Z=138	8-97169-134-0	01	1	9704-				●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT NSK	9-00090-679-0	01	1	9304-9502	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT NSK	9-00090-679-0	01	1	9503-			●
38	WASHER; FLYWHEEL	5-12336-003-0	01	1	9304-9502	●	●
38	WASHER; FLYWHEEL	8-94133-970-0	01	1	9304-			●
38	WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97013-377-1	01	1	9304-9502				●
38	WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97013-377-1	01	1	9503-				●	●
38	WASHER; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-94310-615-0	01	1	9304-9502				●
38	WASHER; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-94310-615-0	01	1	9503-9703				●	●
38	WASHER; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU)	8-94310-615-0	01	1	9704-				●	●	●
40	BOLT; FLYWHEEL M14X36	8-97028-730-0	06	1	9304-9502	●	●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9304-			●
40	BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X72	8-97065-516-1	08	1	9304-9408				●
40	BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X51	8-94334-870-1	08	1	9409-9502				●
40	BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X51	8-94334-870-1	08	1	9503-				●	●
40	BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M16X62	8-97065-517-1	08	1	9304-9408				●
40	BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M18X33	8-97112-999-0	08	1	9409-9502				●
40	BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M18X33	8-97112-999-0	08	1	9503-9702				●	●
40	BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M16X42	8-97178-013-0	08	1	9703-9703				●	●
40	BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M16X42	8-97178-013-0	08	1	9704-				●	●
40	BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9704-						●
40	BOLT; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ) M16X119	8-97077-637-1	08	1	9304-9408				●
40	BOLT; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ) M16X99	8-97113-000-0	08	1	9409-9502				●
40	BOLT; FLYWHEEL POWER TAKE OFF - FLYWHEEL(6SZ) M16X99	8-97113-000-0	08	1	9503-				●	●
42	WASHER; THRUST,CR/SHF	8-97071-358-0	02	1	9304-9502	●	●
42	WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9304-			●
42	WASHER; THRUST,CR/SHF (A) FRONT	8-94399-277-0	01	1	9304-9502				●
42	WASHER; THRUST,CR/SHF (A) FRONT	8-94399-277-0	01	1	9503-9703				●	●
42	WASHER; THRUST,CR/SHF (A) FRONT	8-94399-277-0	01	1	9704-				●	●	●
42	WASHER; THRUST,CR/SHF (B) REAR	8-94399-283-0	02	1	9304-9502				●
42	WASHER; THRUST,CR/SHF (B) REAR	8-94399-283-0	02	1	9503-9703				●	●
42	WASHER; THRUST,CR/SHF (B) REAR	8-94399-283-0	02	1	9704-				●	●	●
44	NUT; CR/SHF FRT M27	5-12378-002-0	01	1	9304-9502	●	●
48	KEY; WOODRUFF,CR/SHF	8-94107-597-0	02	1	9304-9502	●	●
56	PULLEY; CR/SHF DAMPER REFRIGERATOR CHASSIS(V4R) 4-GROOVE	8-97040-330-0	01	1	9304-9502	●
56	PULLEY; CR/SHF DAMPER (A) 3-GROOVE	8-94460-623-1	01	1	9304-9509			●
56	PULLEY; CR/SHF DAMPER EXC. REFRIGERATOR CHASSIS(V4R) (A) 3-GROOVE	8-94460-623-1	01	1	9510-9703			●
56	PULLEY; CR/SHF DAMPER (A) 3-GROOVE	8-94460-623-1	01	1	9704-9707			●
56	PULLEY; CR/SHF DAMPER (B) 3-GROOVE	8-97182-904-0	01	1	9708-			●
56	PULLEY; CR/SHF DAMPER REFRIGERATOR CHASSIS(V4R) 4-GROOVE	8-97083-076-1	01	1	9510-9703			●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97033-848-0	01	1	9304-9412				●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-2	01	1	9501-9502				●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-2	01	1	9503-9703				●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-3	01	1	9704-9711				●	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-3	01	1	9802-9812				●	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-0	01	1	9901-				●	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-477-4	01	1	9712-9801				●	●	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE	8-97096-884-0	01	1	9306-9412				●
59	WASHER; CR/SHF PULLEY	5-09503-024-0	01	1	9304-9502	●	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97013-763-0	01	1	9304-9502	●
61	PULLEY; FAN DRIVE 3-GROOVE	8-97095-217-0	01	1	9304-9308		●
61	PULLEY; FAN DRIVE 3-GROOVE	8-97100-638-0	01	1	9309-9502		●
61	PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9304-			●
61	PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9304-9502				●
61	PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9503-9702				●	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9703-9703				●
61	PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9704-				●		●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-1	01	1	9703-					●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-648-0	04	1	9304-9502	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-649-0	04	1	9304-9502	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-646-0	04	1	9304-9502		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-647-0	04	1	9304-9502		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-616-0	04	1	9304-9703			●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9704-			●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-617-0	04	1	9304-9703			●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9704-			●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-655-0	04	1	9304-9502				●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-0	04	1	9503-9703				●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-0	04	1	9704-9704				●		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9705-				●		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-0	04	1	9503-9703					●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-0	04	1	9704-					●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94418-918-0	04	1	9304-9502	●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97105-867-0	04	1	9503-					●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9304-9703			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9704-			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97076-047-0	04	1	9304-9304				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97028-691-0	04	1	9304-9502				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9503-9703				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9704-				●		●
73	METAL SET; CONN ROD,STANDARD	8-97011-031-0	04	1	9304-9502	●	●
73	METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9304-			●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9304-9502				●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9503-9703				●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9704-				●	●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9304-9502				●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9503-9703				●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9704-				●	●	●
74	METAL SET; CONN ROD,U/S=0.25	5-87310-090-1	04	1	9304-9502	●	●
74	METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	9304-9502				●
74	METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	9503-9703				●	●
74	METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	9704-				●	●	●
75	METAL SET; CONN ROD,U/S=0.50	5-87310-091-1	04	1	9304-9502	●	●
75	METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	9304-9502				●
75	METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	9503-9703				●	●
75	METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	9704-				●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-022-0	04	1	9304-9502	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9304-			●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-0	04	1	9304-9502				●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-0	04	1	9503-9703				●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9704-				●	●	●
84	ROD ASM; CONN	8-97011-030-0	04	1	9304-9502	●	●
84	ROD ASM; CONN	8-97062-300-0	04	1	9304-			●
84	ROD ASM; CONN	8-94473-443-6	04	1	9304-9502				●
84	ROD ASM; CONN	8-94473-443-6	04	1	9503-9506				●	●
84	ROD ASM; CONN	8-97135-032-0	04	1	9507-9703				●	●
84	ROD ASM; CONN	8-97135-032-0	04	1	9704-				●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-027-0	04	1	9304-9502	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9304-			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9304-9502				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9503-9703				●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9704-				●	●	●
86	BOLT; CONNROD M12X61	8-97011-094-0	08	1	9304-9502	●	●
86	BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9304-			●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9304-9502				●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9503-9703				●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9704-				●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94107-575-0	08	1	9304-9502	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	9304-			●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-1	08	1	9304-9502				●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9503-9703				●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9704-				●	●	●

29 147 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E	F
29	GEAR; CR/SHF,PTO POWER TAKE OFF - FLYWHEEL(6SZ) Z=42	8-94396-882-0	01	1	9304-9502	●
29	GEAR; CR/SHF,PTO POWER TAKE OFF - FLYWHEEL(6SZ) Z=42	8-94396-882-0	01	1	9503-	●	●
34	PIN; GEAR SETTING (B) OD=5 L=6	9-09878-626-0	01	1	9304-9502	●
34	PIN; GEAR SETTING (B) OD=5 L=6	9-09878-626-0	01	1	9503-9703	●	●
34	PIN; GEAR SETTING (B) OD=5 L=6	9-09878-626-0	01	1	9704-	●	●	●
34	PIN; GEAR SETTING POWER TAKE OFF - FLYWHEEL(6SZ) (A) OD=8 L=16	9-08150-816-0	01	1	9304-9502	●
34	PIN; GEAR SETTING POWER TAKE OFF - FLYWHEEL(6SZ) (A) OD=8 L=16	9-08150-816-0	01	1	9503-	●	●
147	SPACER; CRANK GEAR POWER TAKE OFF - FLYWHEEL(6SZ)	8-97064-107-1	01	1	9304-9502	●
147	SPACER; CRANK GEAR POWER TAKE OFF - FLYWHEEL(6SZ)	8-97064-107-1	01	1	9503-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
