Sayfa 0-14 - Isuzu EPC

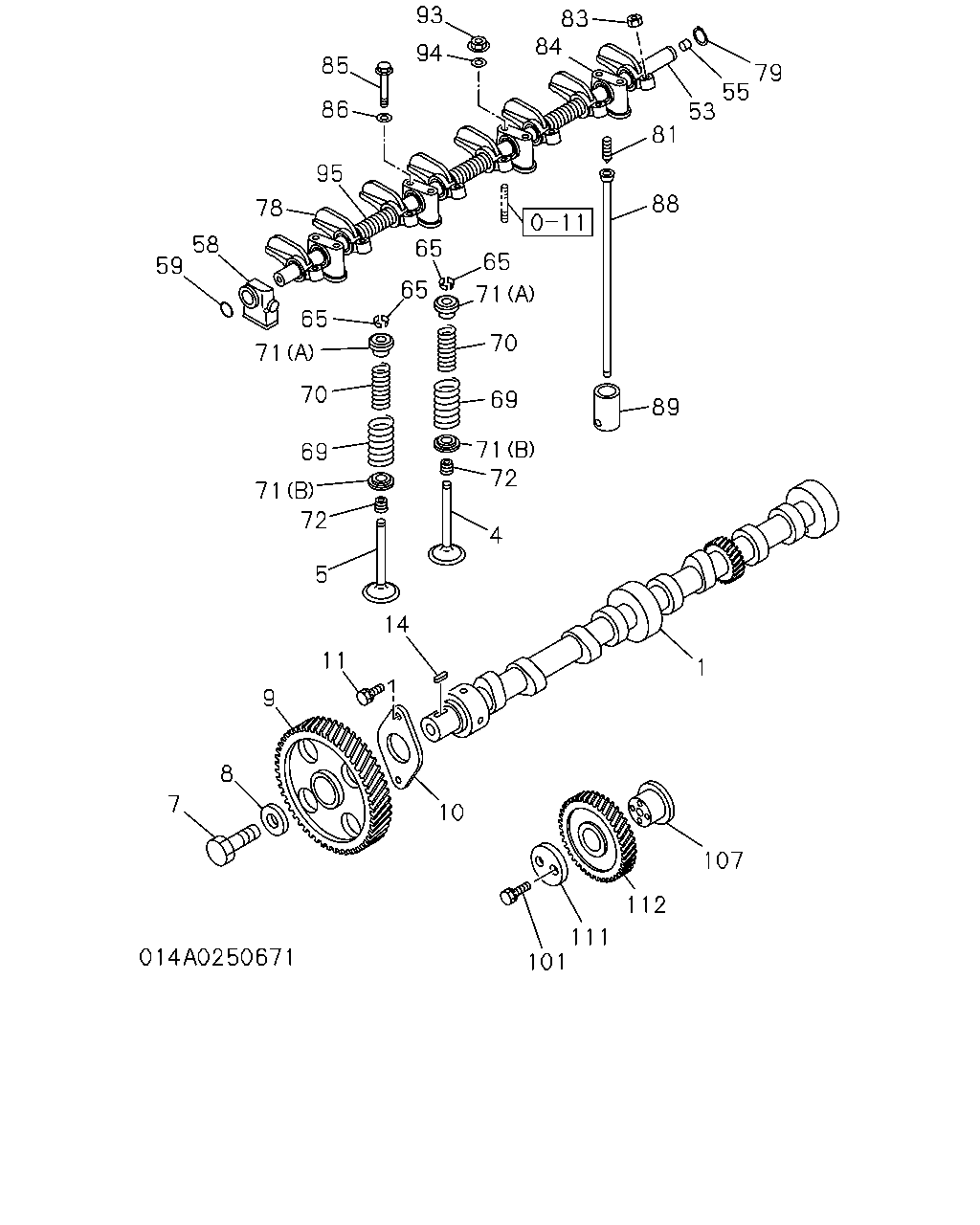

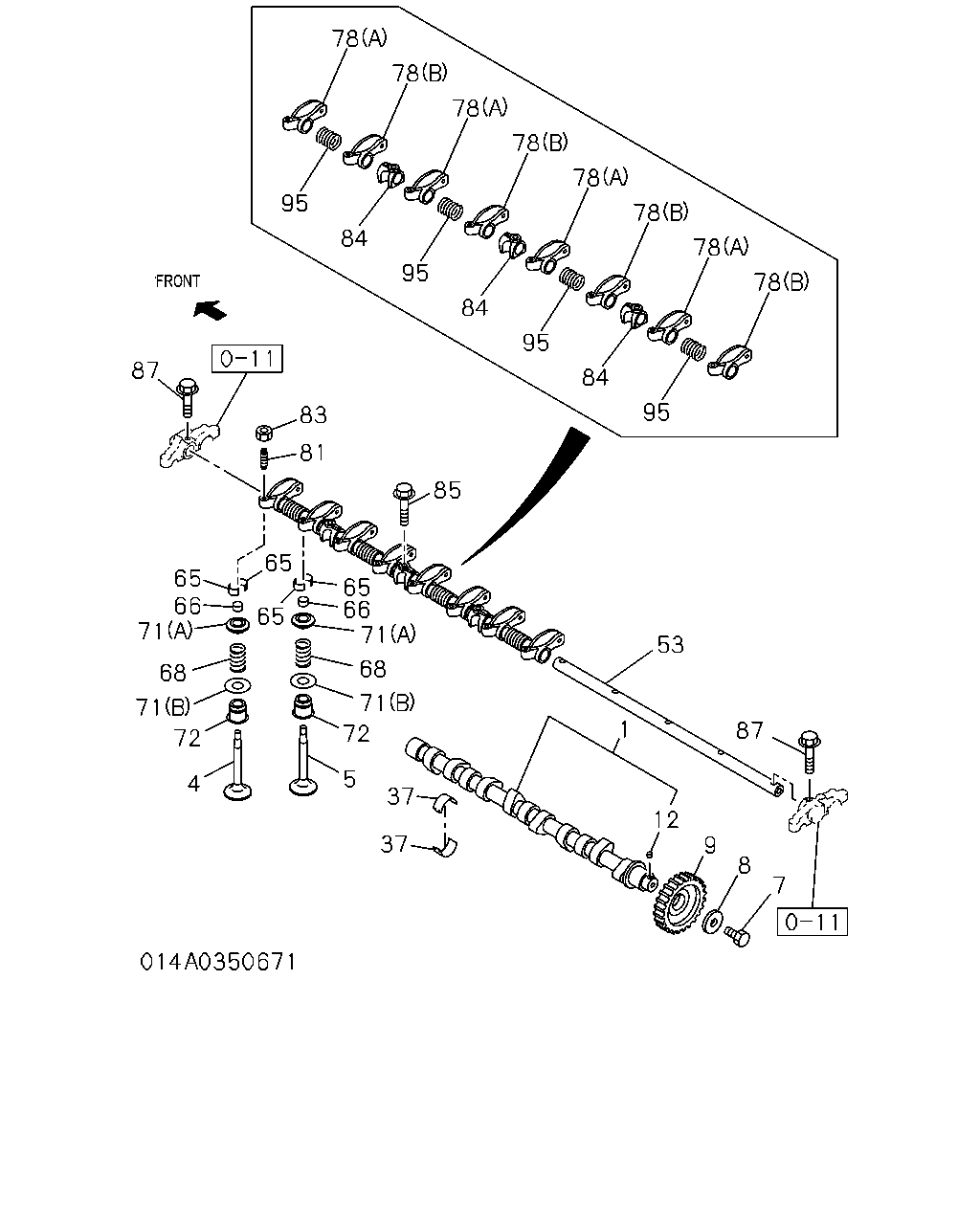

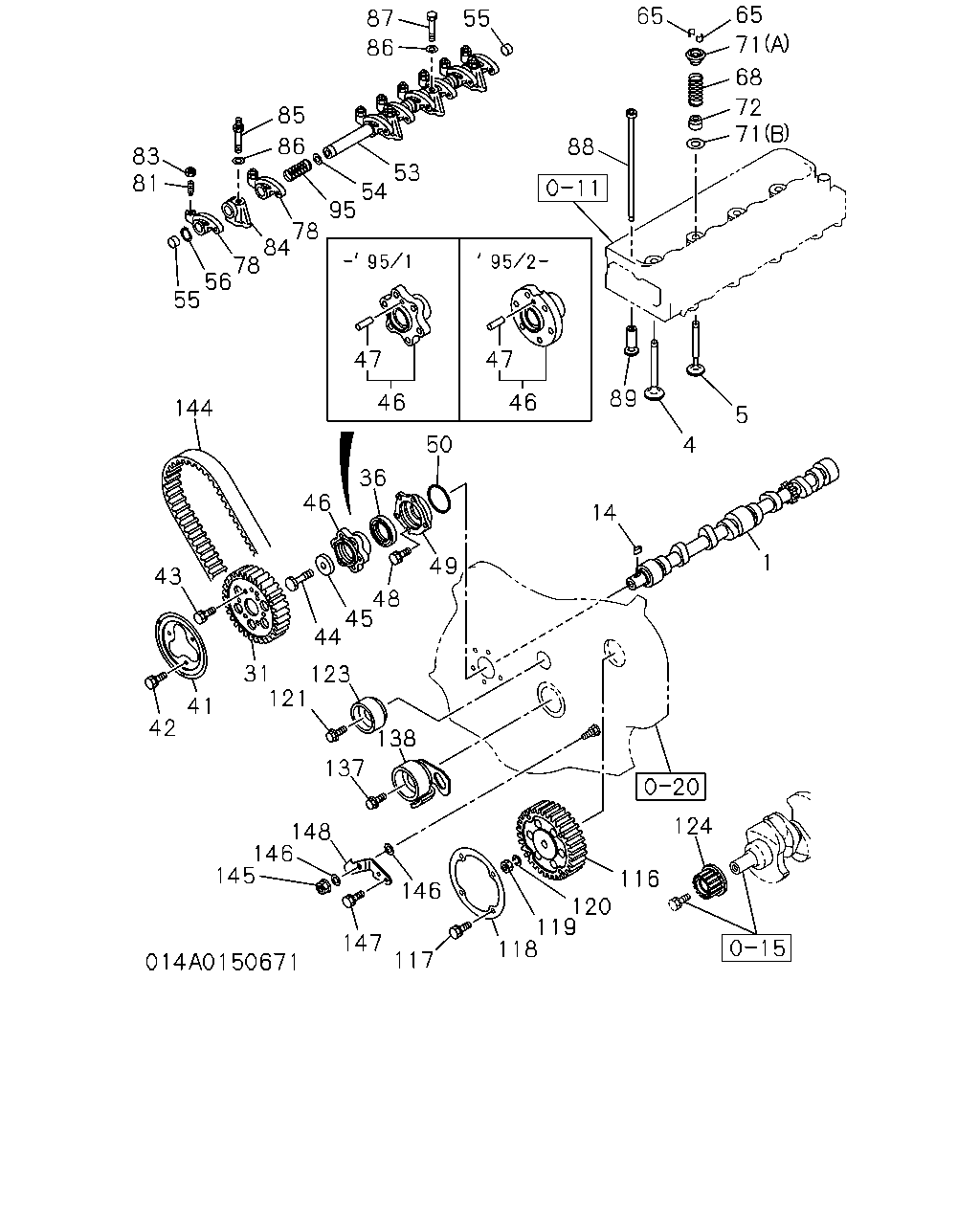

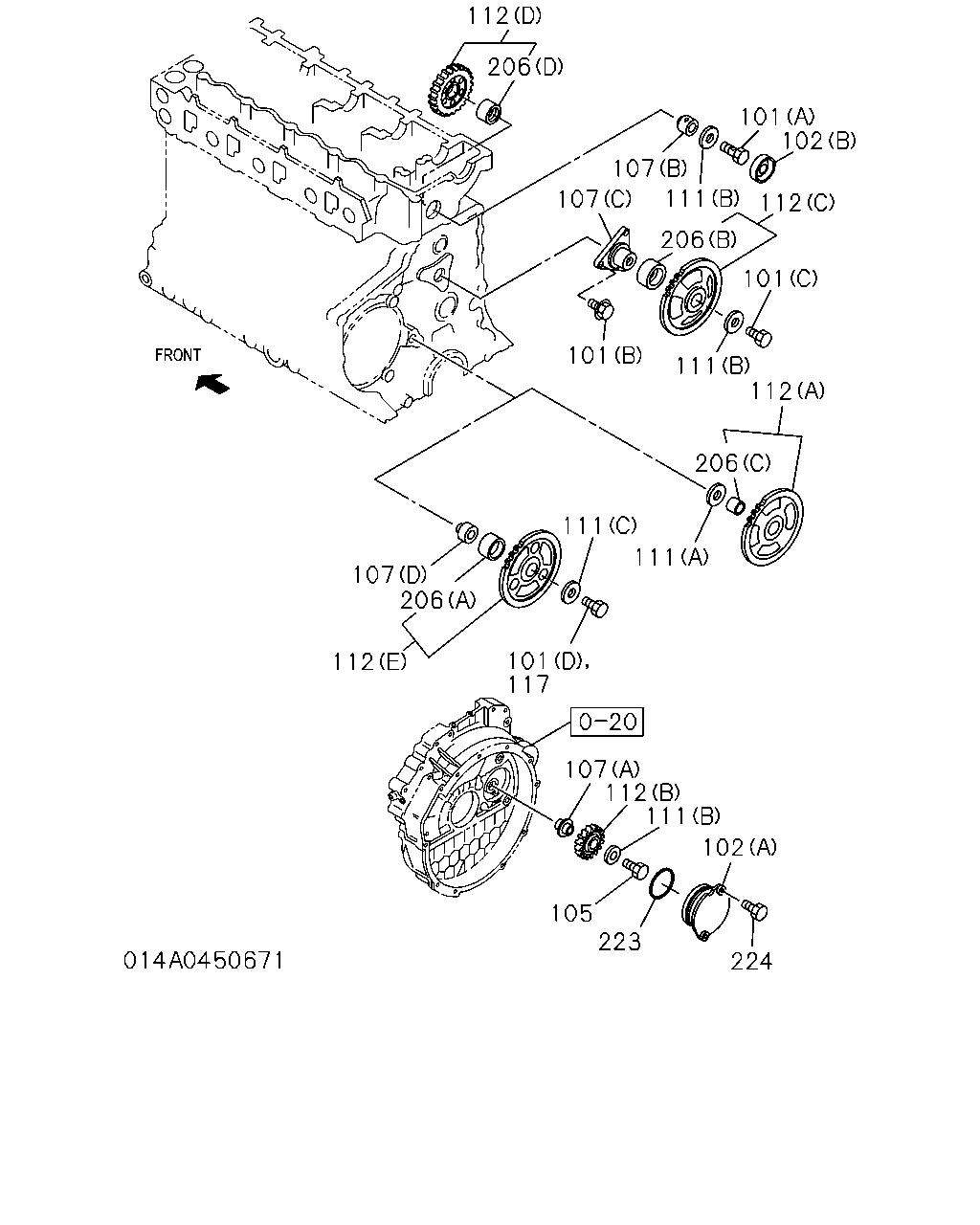

0-14 — CAMSHAFT AND VALVE (#166643) — 538 parça

112 206 101 102 107 107 111 112 206 101 111 101 112 206 111 111 107 206 112 117 101 107 112 111 102 224 223 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
101	BOLT; THRUST COLLAR M10X55	5-09030-038-1	02	1	9304-9502	●	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9304-9502			●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9503-9703			●	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9704-			●	●	●
101	BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9304-9502			●
101	BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9503-9703			●	●
101	BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9704-			●	●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9304-9502			●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9503-9703			●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9704-9711			●	●	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	9712-			●	●	●
101	BOLT; THRUST COLLAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D) M14X65	8-97066-798-0	01	1	9304-9405			●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	9304-9502			●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	9503-9703			●	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	9704-			●	●	●
102	COVER; IDLE GEAR (B) OD=51	8-94396-229-0	01	1	9304-9502			●
102	COVER; IDLE GEAR (B) OD=51	8-94396-229-0	01	1	9503-9703			●	●
102	COVER; IDLE GEAR (B) OD=51	8-94396-229-0	01	1	9704-9710			●	●	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	9711-			●	●	●
105	BOLT; IDLE GEAR SHAFT M14X60	9-91666-460-0	01	1	9304-9502			●
105	BOLT; IDLE GEAR SHAFT M14X60	9-91666-460-0	01	1	9503-9703			●	●
105	BOLT; IDLE GEAR SHAFT M14X60	9-91666-460-0	01	1	9704-			●	●	●
107	SHAFT; IDLE GEAR	9-12531-030-0	01	1	9304-9402	●	●
107	SHAFT; IDLE GEAR	8-97101-281-0	01	1	9403-9502	●	●
107	SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9304-9502			●
107	SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9503-9703			●	●
107	SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9704-			●	●	●
107	SHAFT; IDLE GEAR (B)	8-97065-555-0	01	1	9304-9502			●
107	SHAFT; IDLE GEAR (B)	8-97065-555-1	01	1	9503-9703			●	●
107	SHAFT; IDLE GEAR (B)	8-97065-555-1	01	1	9704-9711			●	●	●
107	SHAFT; IDLE GEAR (B)	8-97186-398-0	01	1	9712-			●	●	●
107	SHAFT; IDLE GEAR (C)	8-97075-401-1	01	1	9304-9502			●
107	SHAFT; IDLE GEAR (C)	8-97075-401-1	01	1	9503-9703			●	●
107	SHAFT; IDLE GEAR (C)	8-97075-401-1	01	1	9704-9711			●	●	●
107	SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9712-			●	●	●
107	SHAFT; IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D)	8-94399-245-4	01	1	9304-9406			●
107	SHAFT; IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D)	8-97104-380-0	01	1	9407-9502			●
107	SHAFT; IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D)	8-97104-380-0	01	1	9503-9703			●	●
107	SHAFT; IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D)	8-97104-380-0	01	1	9704-			●	●	●
111	COLLAR; THRUST,IDLE GEAR	5-12535-001-1	01	1	9304-9502	●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-94370-688-0	03	1	9304-9502			●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-94370-688-0	03	1	9503-9605			●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-97137-065-0	03	1	9606-9703			●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-97137-065-0	03	1	9704-9807			●	●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-97209-728-0	03	1	9808-			●	●	●
111	COLLAR; THRUST,IDLE GEAR POWER TAKE OFF - FLYWHEEL(6SZ) (A) ID=24 OD=60	8-94396-897-0	01	1	9304-9502			●
111	COLLAR; THRUST,IDLE GEAR POWER TAKE OFF - FLYWHEEL(6SZ) (A) ID=24 OD=60	8-94396-897-0	01	1	9503-			●	●
111	COLLAR; THRUST,IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (C) ID=14.5 OD=46	8-94370-688-0	01	1	9304-9502			●
111	COLLAR; THRUST,IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (C) ID=14.5 OD=46	8-94370-688-0	01	1	9503-9605			●	●
111	COLLAR; THRUST,IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (C) ID=14.5 OD=46	8-97137-065-0	01	1	9606-9703			●	●
111	COLLAR; THRUST,IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (C) ID=14.5 OD=46	8-97137-065-0	01	1	9704-9807			●	●	●
111	COLLAR; THRUST,IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (C) ID=14.5 OD=46	8-97209-728-0	01	1	9808-			●	●	●
112	GEAR; IDLE Z=51	9-12523-801-4	01	1	9304-9502	●	●
112	GEAR; IDLE (B) Z=34	8-94341-671-4	01	1	9304-9408			●
112	GEAR; IDLE (B) Z=34	8-97120-005-0	01	1	9409-9502			●
112	GEAR; IDLE (B) Z=34	8-97120-005-0	01	1	9503-9703			●	●
112	GEAR; IDLE (B) Z=34	8-97120-005-0	01	1	9704-			●	●	●
112	GEAR; IDLE (D)	8-94396-834-1	01	1	9304-9408			●
112	GEAR; IDLE (D) Z=41	8-97112-607-0	01	1	9409-9502			●
112	GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9503-9703			●	●
112	GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9704-			●	●	●
112	GEAR; IDLE (C) Z=61	8-97094-546-1	01	1	9304-9502			●
112	GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9503-9703			●	●
112	GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9704-			●	●	●
112	GEAR; IDLE POWER TAKE OFF - FLYWHEEL(6SZ) (A) Z=72-30	8-97094-548-1	01	1	9304-9502			●
112	GEAR; IDLE POWER TAKE OFF - FLYWHEEL(6SZ) (A) Z=72-60	8-97114-603-1	01	1	9503-9607			●	●
112	GEAR; IDLE POWER TAKE OFF - FLYWHEEL(6SZ) (A) Z=72-60	8-97164-567-0	01	1	9608-9902			●	●
112	GEAR; IDLE POWER TAKE OFF - FLYWHEEL(6SZ) (A) Z=72-60	8-97227-214-0	01	1	9903-			●	●
112	GEAR; IDLE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (E) Z=72-30	8-97094-544-1	01	1	9304-9502			●
112	GEAR; IDLE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (E) Z=72-60	8-97114-602-1	01	1	9503-9703			●	●
112	GEAR; IDLE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (E) Z=72-60	8-97114-602-1	01	1	9704-9902			●	●	●
112	GEAR; IDLE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (E) Z=72-60	8-97227-213-0	01	1	9903-			●	●	●
117	BOLT; FLANGE M6X12 W/LK WASHER	0-50040-612-0	04	1	9304-9607						●
117	BOLT; FLANGE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M14X65 FLANGE	8-97113-167-0	01	1	9406-9502			●
117	BOLT; FLANGE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M14X65 FLANGE	8-97113-167-0	01	1	9503-9703			●	●
117	BOLT; FLANGE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M14X65 FLANGE	8-97113-167-0	01	1	9704-			●	●	●
206	BUSHING; IDLE GEAR (D) AFTER PRESS FITTING, MACHINE IT.	8-94369-339-0	01	1	9304-9402			●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	9304-9502			●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	9503-9703			●	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	9704-			●	●	●
206	BUSHING; IDLE GEAR (D) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	9403-9502			●
206	BUSHING; IDLE GEAR (D) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	9503-9703			●	●
206	BUSHING; IDLE GEAR (D) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	9704-			●	●	●
206	BUSHING; IDLE GEAR POWER TAKE OFF - FLYWHEEL(6SZ) (C) AFTER PRESS FITTING, MACHINE IT.	8-94396-047-0	01	1	9304-9502			●
206	BUSHING; IDLE GEAR POWER TAKE OFF - FLYWHEEL(6SZ) (C) AFTER PRESS FITTING, MACHINE IT.	8-94396-047-0	01	1	9503-			●	●
206	BUSHING; IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	9304-9502			●
206	BUSHING; IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	9503-9703			●	●
206	BUSHING; IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	9704-			●	●	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-247-0	01	1	9304-9502			●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-247-0	01	1	9503-9703			●	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-247-0	01	1	9704-			●	●	●
224	BOLT; COVER M8X14 FLANGE	0-28080-814-0	02	1	9304-9502			●
224	BOLT; COVER M8X14 FLANGE	0-28080-814-0	02	1	9503-9606			●	●
224	BOLT; COVER M8X16 FLANGE	0-28080-816-0	02	1	9607-9703			●	●
224	BOLT; COVER M8X16 FLANGE	0-28080-816-0	02	1	9704-			●	●	●

87 86 55 65 65 71 68 72 71 53 54 85 86 83 81 55 56 78 84 78 95 47 46 144 50 36 46 43 41 42 31 121 44 123 45 48 49 14 46 47 4 5 89 88 1 124 116 120 119 118 117 147 146 145 148 137 138 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CAMSHAFT	8-94409-412-0	01	1	9304-9502	●	●
1	CAMSHAFT	8-94127-797-4	01	1	9304-						●
1	CAMSHAFT	8-97077-829-0	01	1	9304-9502			●
1	CAMSHAFT	8-97077-829-0	01	1	9503-9703			●	●
1	CAMSHAFT	8-97077-829-0	01	1	9704-			●	●	●
4	VALVE; INL	8-97034-379-0	04	1	9304-9502	●
4	VALVE; INL	8-97028-702-0	04	1	9304-9502		●
4	VALVE; INL	8-97080-214-1	04	1	9304-9505						●
4	VALVE; INL	8-97131-729-0	04	1	9506-						●
4	VALVE; INL	8-97033-864-1	04	1	9304-9502			●
4	VALVE; INL	8-94394-160-1	04	1	9503-9703			●	●
4	VALVE; INL	8-94394-160-1	04	1	9704-9705			●	●	●
4	VALVE; INL	8-97171-398-0	04	1	9706-			●	●	●
5	VALVE; EXH	8-97028-707-1	04	1	9304-9502	●
5	VALVE; EXH	8-97028-706-0	04	1	9304-9502		●
5	VALVE; EXH	8-97065-970-0	04	1	9304-9409						●
5	VALVE; EXH	8-97118-767-0	04	1	9410-						●
5	VALVE; EXH	8-97019-337-0	04	1	9304-9502			●
5	VALVE; EXH	8-97019-337-0	04	1	9503-9703			●	●
5	VALVE; EXH	8-97019-337-0	04	1	9704-9705			●	●	●
5	VALVE; EXH	8-97171-399-0	04	1	9706-			●	●	●
14	KEY; CM/SHF	9-08010-720-0	01	1	9304-9502	●	●
14	KEY; CM/SHF	9-08000-718-0	01	1	9304-						●
31	SPROCKET; CM/SHF Z=44	8-97043-288-0	01	1	9304-9503						●
31	SPROCKET; CM/SHF Z=44	8-97116-059-0	01	1	9504-9607						●
31	SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	9608-						●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56 T=7.0	8-97080-562-0	01	1	9304-						●
41	FLANGE; CAM PULLEY	8-94157-492-0	01	1	9304-						●
42	BOLT; FLANGE CAM M8X18 W/LK WASHER	0-50040-818-0	03	1	9304-						●
43	BOLT; PULLEY M6X16 W/LK WASHER	0-50040-616-0	03	1	9304-						●
44	BOLT M12X47	8-94433-407-0	01	1	9304-						●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9304-						●
46	CENTER ASM; TIMING PULLEY	8-94133-513-1	01	1	9304-9501						●
46	CENTER ASM; TIMING PULLEY	8-97118-491-0	01	1	9502-						●
47	PIN; STRAIGHT,CENTER OD=4 L=12	9-08160-412-0	01	1	9304-						●
48	BOLT; RET M8X35 W/LK WASHER	0-50040-835-0	05	1	9304-						●
49	RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	9304-						●
50	GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97080-893-0	01	1	9304-						●
53	SHAFT; ROCKER ARM	8-94129-551-0	01	1	9304-9502	●	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9304-9502			●
53	SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9503-9703			●	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9704-			●	●	●
53	SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9705-			●	●	●
53	SHAFT; ROCKER ARM	8-98000-021-1	01	1	9304-						●
54	WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9304-						●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9304-9502	●	●				●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9503-						●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9304-						●
65	COLLAR; SPLIT	5-12565-006-0	16	1	9304-9502	●	●	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	9503-9703			●	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	9704-			●	●	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9304-						●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	9304-						●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	9304-9502			●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	9503-9703			●	●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	9704-			●	●	●
71	SEAT; SPR (A) UPPER	8-94114-579-0	08	1	9304-9502	●	●
71	SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	9304-9502	●	●				●
71	SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	9503-						●
71	SEAT; SPR (A) UPPER OD=32.8	8-94133-731-2	08	1	9304-						●
71	SEAT; SPR (A) UPPER	8-94385-029-1	08	1	9304-9502			●
71	SEAT; SPR (A) UPPER OD=38	8-94385-029-1	08	1	9503-9703			●	●
71	SEAT; SPR (A) UPPER OD=38	8-94385-029-2	08	1	9704-			●	●	●
71	SEAT; SPR (B) LOWER	8-94399-526-0	08	1	9304-9502			●
71	SEAT; SPR (B) LOWER ID=14.3 OD=40	8-94399-526-0	08	1	9503-9703			●	●
71	SEAT; SPR (B) LOWER ID=14.3 OD=40	8-94399-526-1	08	1	9704-			●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-015-0	08	1	9304-9410	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-167-0	08	1	9411-9502	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	5-12569-006-0	08	1	9304-9604						●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9605-						●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-1	08	1	9304-9502			●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	9503-9703			●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	9704-			●	●	●
78	ARM; ROCKER	1-12611-249-0	08	1	9304-9502	●	●
78	ARM; ROCKER	8-94152-344-0	08	1	9304-						●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	04	1	9304-9502			●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	04	1	9503-9703			●	●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	04	1	9704-			●	●	●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	04	1	9304-9502			●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	04	1	9503-9703			●	●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	04	1	9704-			●	●	●
78	ARM; ROCKER (A) INLET KEIHIN SEIMITSU	8-97174-562-0	04	1	9705-			●	●	●
78	ARM; ROCKER (B) EXHAUST KEIHIN SEIMITSU	8-97174-565-0	04	1	9705-			●	●	●
81	SCREW; ADJ,ROCKER ARM	9-12616-042-0	08	1	9304-9502	●	●
81	SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9304-						●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9304-9502			●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9503-9703			●	●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9704-			●	●	●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	9304-9502	●	●				●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	9503-						●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	08	1	9304-9502			●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	08	1	9503-9602			●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	9603-9703			●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	9704-			●	●	●
84	BRACKET; ROCKER SHAFT,INTER	9-12628-105-0	04	1	9304-9502	●	●
84	BRACKET; ROCKER SHAFT,INTER	8-97043-740-0	04	1	9304-9305						●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9306-						●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9304-9502			●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9503-9703			●	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9704-			●	●	●
84	BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9705-			●	●	●
85	BOLT; BRKT M8X65	1-09000-567-0	06	1	9304-9502	●	●
85	BOLT; BRKT	8-94433-304-0	03	1	9304-						●
85	BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9304-9502			●
85	BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	9503-9703			●	●
85	BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	9704-			●	●	●
85	BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	9705-			●	●	●
86	WASHER; ROCKER ARM FIX	9-09851-430-0	06	1	9304-9502	●	●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9304-						●
87	BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9304-						●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	02	1	9304-9502			●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	02	1	9503-9703			●	●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	02	1	9704-			●	●	●
88	ROD; PUSH	8-94146-132-0	08	1	9304-9502	●	●
88	ROD; PUSH	8-97071-673-0	08	1	9304-						●
89	TAPPET; VLV	8-94366-277-1	08	1	9304-9502	●	●
89	TAPPET; VLV	8-94438-305-0	08	1	9304-						●
95	SPRING; ROCKER SHAFT	1-09580-335-0	03	1	9304-9502	●	●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9304-						●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9304-9502			●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9503-9703			●	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9704-			●	●	●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9705-			●	●	●
116	PULLEY; TIMING,INJ PUMP Z=44 B=37.7	8-97043-289-0	01	1	9304-						●
117	BOLT; FLANGE M6X12 W/LK WASHER	0-50040-612-0	04	1	9304-9607						●
117	BOLT; FLANGE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M14X65 FLANGE	8-97113-167-0	01	1	9406-9502			●
117	BOLT; FLANGE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M14X65 FLANGE	8-97113-167-0	01	1	9503-9703			●	●
117	BOLT; FLANGE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) M14X65 FLANGE	8-97113-167-0	01	1	9704-			●	●	●
118	FLANGE; INJ PUMP PULLEY	5-12539-020-0	01	1	9304-9607						●
119	NUT; PULLEY M14	8-94226-565-0	01	1	9304-						●
120	WASHER; LK,PULLEY,INJ PUMP	8-94226-554-0	01	1	9304-						●
121	BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	9304-						●
123	PULLEY; IDLE,TIMING	8-94382-215-1	01	1	9304-						●
124	PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	9304-						●
137	BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	9304-						●
138	TENSIONER; TIMING BELT	8-94382-214-1	01	1	9304-						●
144	BELT; TIMING BLUE	8-97065-986-0	01	1	9304-9503						●
144	BELT; TIMING BLUE	8-94380-679-0	01	1	9504-						●
145	NUT; FLANGE M8	8-94224-829-0	01	1	9304-9606						●
145	NUT; FLANGE M8 FLANGE	0-91150-208-0	01	1	9607-						●
146	WASHER; PL,TENSION LEVER ID=8.4 OD=22	9-09164-708-0	02	1	9304-						●
147	BOLT; TENSION LEVER M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9304-9605						●
147	BOLT; TENSION LEVER M6X12 FLANGE	0-28080-612-0	01	1	9606-						●
148	LEVER; TENSION,TIMING BELT	8-94167-317-0	01	1	9304-9605						●
148	LEVER; TENSION,TIMING BELT	8-97146-370-0	01	1	9606-						●

85 86 95 78 58 59 71 65 70 69 71 72 5 11 9 8 7 14 4 72 89 88 81 53 55 79 83 84 93 94 65 65 65 71 70 69 71 1 107 112 111 101 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CAMSHAFT	8-94409-412-0	01	1	9304-9502	●	●
1	CAMSHAFT	8-94127-797-4	01	1	9304-						●
1	CAMSHAFT	8-97077-829-0	01	1	9304-9502			●
1	CAMSHAFT	8-97077-829-0	01	1	9503-9703			●	●
1	CAMSHAFT	8-97077-829-0	01	1	9704-			●	●	●
4	VALVE; INL	8-97034-379-0	04	1	9304-9502	●
4	VALVE; INL	8-97028-702-0	04	1	9304-9502		●
4	VALVE; INL	8-97080-214-1	04	1	9304-9505						●
4	VALVE; INL	8-97131-729-0	04	1	9506-						●
4	VALVE; INL	8-97033-864-1	04	1	9304-9502			●
4	VALVE; INL	8-94394-160-1	04	1	9503-9703			●	●
4	VALVE; INL	8-94394-160-1	04	1	9704-9705			●	●	●
4	VALVE; INL	8-97171-398-0	04	1	9706-			●	●	●
5	VALVE; EXH	8-97028-707-1	04	1	9304-9502	●
5	VALVE; EXH	8-97028-706-0	04	1	9304-9502		●
5	VALVE; EXH	8-97065-970-0	04	1	9304-9409						●
5	VALVE; EXH	8-97118-767-0	04	1	9410-						●
5	VALVE; EXH	8-97019-337-0	04	1	9304-9502			●
5	VALVE; EXH	8-97019-337-0	04	1	9503-9703			●	●
5	VALVE; EXH	8-97019-337-0	04	1	9704-9705			●	●	●
5	VALVE; EXH	8-97171-399-0	04	1	9706-			●	●	●
7	BOLT; CM/SHF GEAR M14X39	5-09000-236-0	01	1	9304-9502	●	●
7	BOLT; CM/SHF GEAR M14X40	9-92061-440-0	01	1	9304-9502			●
7	BOLT; CM/SHF GEAR M14X40	9-92061-440-0	01	1	9503-9703			●	●
7	BOLT; CM/SHF GEAR M14X40	9-92061-440-0	01	1	9704-			●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9304-9502	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9503-9703			●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9704-			●	●	●
9	GEAR; CM/SHF Z=50	9-12522-147-1	01	1	9304-9502	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-1	01	1	9304-9502			●
9	GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9503-9703			●	●
9	GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9704-			●	●	●
10	PLATE; THRUST	9-11681-015-0	01	1	9304-9502	●	●
11	BOLT; THRUST PLATE TO C/BL M8X25 W/LK WASHER	0-50040-825-0	02	1	9304-9502	●	●
14	KEY; CM/SHF	9-08010-720-0	01	1	9304-9502	●	●
14	KEY; CM/SHF	9-08000-718-0	01	1	9304-						●
53	SHAFT; ROCKER ARM	8-94129-551-0	01	1	9304-9502	●	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9304-9502			●
53	SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9503-9703			●	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9704-			●	●	●
53	SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9705-			●	●	●
53	SHAFT; ROCKER ARM	8-98000-021-1	01	1	9304-						●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9304-9502	●	●				●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9503-						●
58	BRACKET; ROCKER SHAFT,FRT	5-12628-012-0	01	1	9304-9502	●	●
59	GASKET; ROCKER SHAFT	5-09623-060-0	01	1	9304-9502	●	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	9304-9502	●	●	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	9503-9703			●	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	9704-			●	●	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9304-						●
69	SPRING; VLV,OUTER	8-94125-512-0	08	1	9304-9502	●	●
70	SPRING; VLV,INNER	8-94125-511-0	08	1	9304-9502	●	●
71	SEAT; SPR (A) UPPER	8-94114-579-0	08	1	9304-9502	●	●
71	SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	9304-9502	●	●				●
71	SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	9503-						●
71	SEAT; SPR (A) UPPER OD=32.8	8-94133-731-2	08	1	9304-						●
71	SEAT; SPR (A) UPPER	8-94385-029-1	08	1	9304-9502			●
71	SEAT; SPR (A) UPPER OD=38	8-94385-029-1	08	1	9503-9703			●	●
71	SEAT; SPR (A) UPPER OD=38	8-94385-029-2	08	1	9704-			●	●	●
71	SEAT; SPR (B) LOWER	8-94399-526-0	08	1	9304-9502			●
71	SEAT; SPR (B) LOWER ID=14.3 OD=40	8-94399-526-0	08	1	9503-9703			●	●
71	SEAT; SPR (B) LOWER ID=14.3 OD=40	8-94399-526-1	08	1	9704-			●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-015-0	08	1	9304-9410	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-167-0	08	1	9411-9502	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	5-12569-006-0	08	1	9304-9604						●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9605-						●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-1	08	1	9304-9502			●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	9503-9703			●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	9704-			●	●	●
78	ARM; ROCKER	1-12611-249-0	08	1	9304-9502	●	●
78	ARM; ROCKER	8-94152-344-0	08	1	9304-						●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	04	1	9304-9502			●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	04	1	9503-9703			●	●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	04	1	9704-			●	●	●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	04	1	9304-9502			●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	04	1	9503-9703			●	●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	04	1	9704-			●	●	●
78	ARM; ROCKER (A) INLET KEIHIN SEIMITSU	8-97174-562-0	04	1	9705-			●	●	●
78	ARM; ROCKER (B) EXHAUST KEIHIN SEIMITSU	8-97174-565-0	04	1	9705-			●	●	●
79	RING; SNAP,RR END,ROCKER SHAFT ID=17.5	9-09180-019-0	01	1	9304-9502	●	●
81	SCREW; ADJ,ROCKER ARM	9-12616-042-0	08	1	9304-9502	●	●
81	SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9304-						●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9304-9502			●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9503-9703			●	●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9704-			●	●	●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	9304-9502	●	●				●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	9503-						●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	08	1	9304-9502			●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	08	1	9503-9602			●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	9603-9703			●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	9704-			●	●	●
84	BRACKET; ROCKER SHAFT,INTER	9-12628-105-0	04	1	9304-9502	●	●
84	BRACKET; ROCKER SHAFT,INTER	8-97043-740-0	04	1	9304-9305						●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9306-						●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9304-9502			●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9503-9703			●	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9704-			●	●	●
84	BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9705-			●	●	●
85	BOLT; BRKT M8X65	1-09000-567-0	06	1	9304-9502	●	●
85	BOLT; BRKT	8-94433-304-0	03	1	9304-						●
85	BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9304-9502			●
85	BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	9503-9703			●	●
85	BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	9704-			●	●	●
85	BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	9705-			●	●	●
86	WASHER; ROCKER ARM FIX	9-09851-430-0	06	1	9304-9502	●	●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9304-						●
88	ROD; PUSH	8-94146-132-0	08	1	9304-9502	●	●
88	ROD; PUSH	8-97071-673-0	08	1	9304-						●
89	TAPPET; VLV	8-94366-277-1	08	1	9304-9502	●	●
89	TAPPET; VLV	8-94438-305-0	08	1	9304-						●
93	NUT; BRKT	1-09400-116-0	03	1	9304-9502	●	●
94	WASHER; PL,BRKT	9-09851-430-0	03	1	9304-9502	●	●
95	SPRING; ROCKER SHAFT	1-09580-335-0	03	1	9304-9502	●	●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9304-						●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9304-9502			●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9503-9703			●	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9704-			●	●	●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9705-			●	●	●
101	BOLT; THRUST COLLAR M10X55	5-09030-038-1	02	1	9304-9502	●	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9304-9502			●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9503-9703			●	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9704-			●	●	●
101	BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9304-9502			●
101	BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9503-9703			●	●
101	BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9704-			●	●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9304-9502			●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9503-9703			●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9704-9711			●	●	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	9712-			●	●	●
101	BOLT; THRUST COLLAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D) M14X65	8-97066-798-0	01	1	9304-9405			●
107	SHAFT; IDLE GEAR	9-12531-030-0	01	1	9304-9402	●	●
107	SHAFT; IDLE GEAR	8-97101-281-0	01	1	9403-9502	●	●
107	SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9304-9502			●
107	SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9503-9703			●	●
107	SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9704-			●	●	●
107	SHAFT; IDLE GEAR (B)	8-97065-555-0	01	1	9304-9502			●
107	SHAFT; IDLE GEAR (B)	8-97065-555-1	01	1	9503-9703			●	●
107	SHAFT; IDLE GEAR (B)	8-97065-555-1	01	1	9704-9711			●	●	●
107	SHAFT; IDLE GEAR (B)	8-97186-398-0	01	1	9712-			●	●	●
107	SHAFT; IDLE GEAR (C)	8-97075-401-1	01	1	9304-9502			●
107	SHAFT; IDLE GEAR (C)	8-97075-401-1	01	1	9503-9703			●	●
107	SHAFT; IDLE GEAR (C)	8-97075-401-1	01	1	9704-9711			●	●	●
107	SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9712-			●	●	●
107	SHAFT; IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D)	8-94399-245-4	01	1	9304-9406			●
107	SHAFT; IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D)	8-97104-380-0	01	1	9407-9502			●
107	SHAFT; IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D)	8-97104-380-0	01	1	9503-9703			●	●
107	SHAFT; IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (D)	8-97104-380-0	01	1	9704-			●	●	●
111	COLLAR; THRUST,IDLE GEAR	5-12535-001-1	01	1	9304-9502	●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-94370-688-0	03	1	9304-9502			●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-94370-688-0	03	1	9503-9605			●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-97137-065-0	03	1	9606-9703			●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-97137-065-0	03	1	9704-9807			●	●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-97209-728-0	03	1	9808-			●	●	●
111	COLLAR; THRUST,IDLE GEAR POWER TAKE OFF - FLYWHEEL(6SZ) (A) ID=24 OD=60	8-94396-897-0	01	1	9304-9502			●
111	COLLAR; THRUST,IDLE GEAR POWER TAKE OFF - FLYWHEEL(6SZ) (A) ID=24 OD=60	8-94396-897-0	01	1	9503-			●	●
111	COLLAR; THRUST,IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (C) ID=14.5 OD=46	8-94370-688-0	01	1	9304-9502			●
111	COLLAR; THRUST,IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (C) ID=14.5 OD=46	8-94370-688-0	01	1	9503-9605			●	●
111	COLLAR; THRUST,IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (C) ID=14.5 OD=46	8-97137-065-0	01	1	9606-9703			●	●
111	COLLAR; THRUST,IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (C) ID=14.5 OD=46	8-97137-065-0	01	1	9704-9807			●	●	●
111	COLLAR; THRUST,IDLE GEAR EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (C) ID=14.5 OD=46	8-97209-728-0	01	1	9808-			●	●	●
112	GEAR; IDLE Z=51	9-12523-801-4	01	1	9304-9502	●	●
112	GEAR; IDLE (B) Z=34	8-94341-671-4	01	1	9304-9408			●
112	GEAR; IDLE (B) Z=34	8-97120-005-0	01	1	9409-9502			●
112	GEAR; IDLE (B) Z=34	8-97120-005-0	01	1	9503-9703			●	●
112	GEAR; IDLE (B) Z=34	8-97120-005-0	01	1	9704-			●	●	●
112	GEAR; IDLE (D)	8-94396-834-1	01	1	9304-9408			●
112	GEAR; IDLE (D) Z=41	8-97112-607-0	01	1	9409-9502			●
112	GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9503-9703			●	●
112	GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9704-			●	●	●
112	GEAR; IDLE (C) Z=61	8-97094-546-1	01	1	9304-9502			●
112	GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9503-9703			●	●
112	GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9704-			●	●	●
112	GEAR; IDLE POWER TAKE OFF - FLYWHEEL(6SZ) (A) Z=72-30	8-97094-548-1	01	1	9304-9502			●
112	GEAR; IDLE POWER TAKE OFF - FLYWHEEL(6SZ) (A) Z=72-60	8-97114-603-1	01	1	9503-9607			●	●
112	GEAR; IDLE POWER TAKE OFF - FLYWHEEL(6SZ) (A) Z=72-60	8-97164-567-0	01	1	9608-9902			●	●
112	GEAR; IDLE POWER TAKE OFF - FLYWHEEL(6SZ) (A) Z=72-60	8-97227-214-0	01	1	9903-			●	●
112	GEAR; IDLE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (E) Z=72-30	8-97094-544-1	01	1	9304-9502			●
112	GEAR; IDLE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (E) Z=72-60	8-97114-602-1	01	1	9503-9703			●	●
112	GEAR; IDLE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (E) Z=72-60	8-97114-602-1	01	1	9704-9902			●	●	●
112	GEAR; IDLE EXC. POWER TAKE OFF - FLYWHEEL(6SZ) (E) Z=72-60	8-97227-213-0	01	1	9903-			●	●	●

78 78 78 78 78 78 78 78 95 84 95 84 95 84 95 83 84 81 85 53 87 65 65 66 71 68 71 72 4 65 65 71 66 68 71 72 5 37 37 1 12 9 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CAMSHAFT	8-94409-412-0	01	1	9304-9502	●	●
1	CAMSHAFT	8-94127-797-4	01	1	9304-						●
1	CAMSHAFT	8-97077-829-0	01	1	9304-9502			●
1	CAMSHAFT	8-97077-829-0	01	1	9503-9703			●	●
1	CAMSHAFT	8-97077-829-0	01	1	9704-			●	●	●
4	VALVE; INL	8-97034-379-0	04	1	9304-9502	●
4	VALVE; INL	8-97028-702-0	04	1	9304-9502		●
4	VALVE; INL	8-97080-214-1	04	1	9304-9505						●
4	VALVE; INL	8-97131-729-0	04	1	9506-						●
4	VALVE; INL	8-97033-864-1	04	1	9304-9502			●
4	VALVE; INL	8-94394-160-1	04	1	9503-9703			●	●
4	VALVE; INL	8-94394-160-1	04	1	9704-9705			●	●	●
4	VALVE; INL	8-97171-398-0	04	1	9706-			●	●	●
5	VALVE; EXH	8-97028-707-1	04	1	9304-9502	●
5	VALVE; EXH	8-97028-706-0	04	1	9304-9502		●
5	VALVE; EXH	8-97065-970-0	04	1	9304-9409						●
5	VALVE; EXH	8-97118-767-0	04	1	9410-						●
5	VALVE; EXH	8-97019-337-0	04	1	9304-9502			●
5	VALVE; EXH	8-97019-337-0	04	1	9503-9703			●	●
5	VALVE; EXH	8-97019-337-0	04	1	9704-9705			●	●	●
5	VALVE; EXH	8-97171-399-0	04	1	9706-			●	●	●
7	BOLT; CM/SHF GEAR M14X39	5-09000-236-0	01	1	9304-9502	●	●
7	BOLT; CM/SHF GEAR M14X40	9-92061-440-0	01	1	9304-9502			●
7	BOLT; CM/SHF GEAR M14X40	9-92061-440-0	01	1	9503-9703			●	●
7	BOLT; CM/SHF GEAR M14X40	9-92061-440-0	01	1	9704-			●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9304-9502	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9503-9703			●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9704-			●	●	●
9	GEAR; CM/SHF Z=50	9-12522-147-1	01	1	9304-9502	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-1	01	1	9304-9502			●
9	GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9503-9703			●	●
9	GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9704-			●	●	●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	9304-9502			●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	9503-9703			●	●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	9704-			●	●	●
37	METAL; CM/SHF	8-94393-380-0	10	1	9304-9408			●
37	METAL; CM/SHF	8-97112-638-0	10	1	9409-9502			●
37	METAL; CM/SHF	8-97112-638-0	10	1	9503-9703			●	●
37	METAL; CM/SHF	8-97112-638-0	10	1	9704-			●	●	●
53	SHAFT; ROCKER ARM	8-94129-551-0	01	1	9304-9502	●	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9304-9502			●
53	SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9503-9703			●	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9704-			●	●	●
53	SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9705-			●	●	●
53	SHAFT; ROCKER ARM	8-98000-021-1	01	1	9304-						●
65	COLLAR; SPLIT	5-12565-006-0	16	1	9304-9502	●	●	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	9503-9703			●	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	9704-			●	●	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9304-						●
66	CAP; VLV STEM END	8-97075-453-0	08	1	9304-9502			●
66	CAP; VLV STEM END	8-97075-453-0	08	1	9503-9703			●	●
66	CAP; VLV STEM END	8-97075-453-0	08	1	9704-9805			●	●	●
66	CAP; VLV STEM END	8-97188-300-0	08	1	9806-			●	●	●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	9304-						●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	9304-9502			●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	9503-9703			●	●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	9704-			●	●	●
71	SEAT; SPR (A) UPPER	8-94114-579-0	08	1	9304-9502	●	●
71	SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	9304-9502	●	●				●
71	SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	9503-						●
71	SEAT; SPR (A) UPPER OD=32.8	8-94133-731-2	08	1	9304-						●
71	SEAT; SPR (A) UPPER	8-94385-029-1	08	1	9304-9502			●
71	SEAT; SPR (A) UPPER OD=38	8-94385-029-1	08	1	9503-9703			●	●
71	SEAT; SPR (A) UPPER OD=38	8-94385-029-2	08	1	9704-			●	●	●
71	SEAT; SPR (B) LOWER	8-94399-526-0	08	1	9304-9502			●
71	SEAT; SPR (B) LOWER ID=14.3 OD=40	8-94399-526-0	08	1	9503-9703			●	●
71	SEAT; SPR (B) LOWER ID=14.3 OD=40	8-94399-526-1	08	1	9704-			●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-015-0	08	1	9304-9410	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-167-0	08	1	9411-9502	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	5-12569-006-0	08	1	9304-9604						●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9605-						●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-1	08	1	9304-9502			●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	9503-9703			●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	9704-			●	●	●
78	ARM; ROCKER	1-12611-249-0	08	1	9304-9502	●	●
78	ARM; ROCKER	8-94152-344-0	08	1	9304-						●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	04	1	9304-9502			●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	04	1	9503-9703			●	●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	04	1	9704-			●	●	●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	04	1	9304-9502			●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	04	1	9503-9703			●	●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	04	1	9704-			●	●	●
78	ARM; ROCKER (A) INLET KEIHIN SEIMITSU	8-97174-562-0	04	1	9705-			●	●	●
78	ARM; ROCKER (B) EXHAUST KEIHIN SEIMITSU	8-97174-565-0	04	1	9705-			●	●	●
81	SCREW; ADJ,ROCKER ARM	9-12616-042-0	08	1	9304-9502	●	●
81	SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9304-						●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9304-9502			●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9503-9703			●	●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9704-			●	●	●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	9304-9502	●	●				●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	9503-						●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	08	1	9304-9502			●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	08	1	9503-9602			●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	9603-9703			●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	9704-			●	●	●
84	BRACKET; ROCKER SHAFT,INTER	9-12628-105-0	04	1	9304-9502	●	●
84	BRACKET; ROCKER SHAFT,INTER	8-97043-740-0	04	1	9304-9305						●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9306-						●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9304-9502			●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9503-9703			●	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9704-			●	●	●
84	BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9705-			●	●	●
85	BOLT; BRKT M8X65	1-09000-567-0	06	1	9304-9502	●	●
85	BOLT; BRKT	8-94433-304-0	03	1	9304-						●
85	BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9304-9502			●
85	BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	9503-9703			●	●
85	BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	9704-			●	●	●
85	BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	9705-			●	●	●
87	BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9304-						●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	02	1	9304-9502			●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	02	1	9503-9703			●	●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	02	1	9704-			●	●	●
95	SPRING; ROCKER SHAFT	1-09580-335-0	03	1	9304-9502	●	●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9304-						●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9304-9502			●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9503-9703			●	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9704-			●	●	●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9705-			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
