0-13 — OIL PAN AND LEVEL GAUGE (#166642) — 210 parça

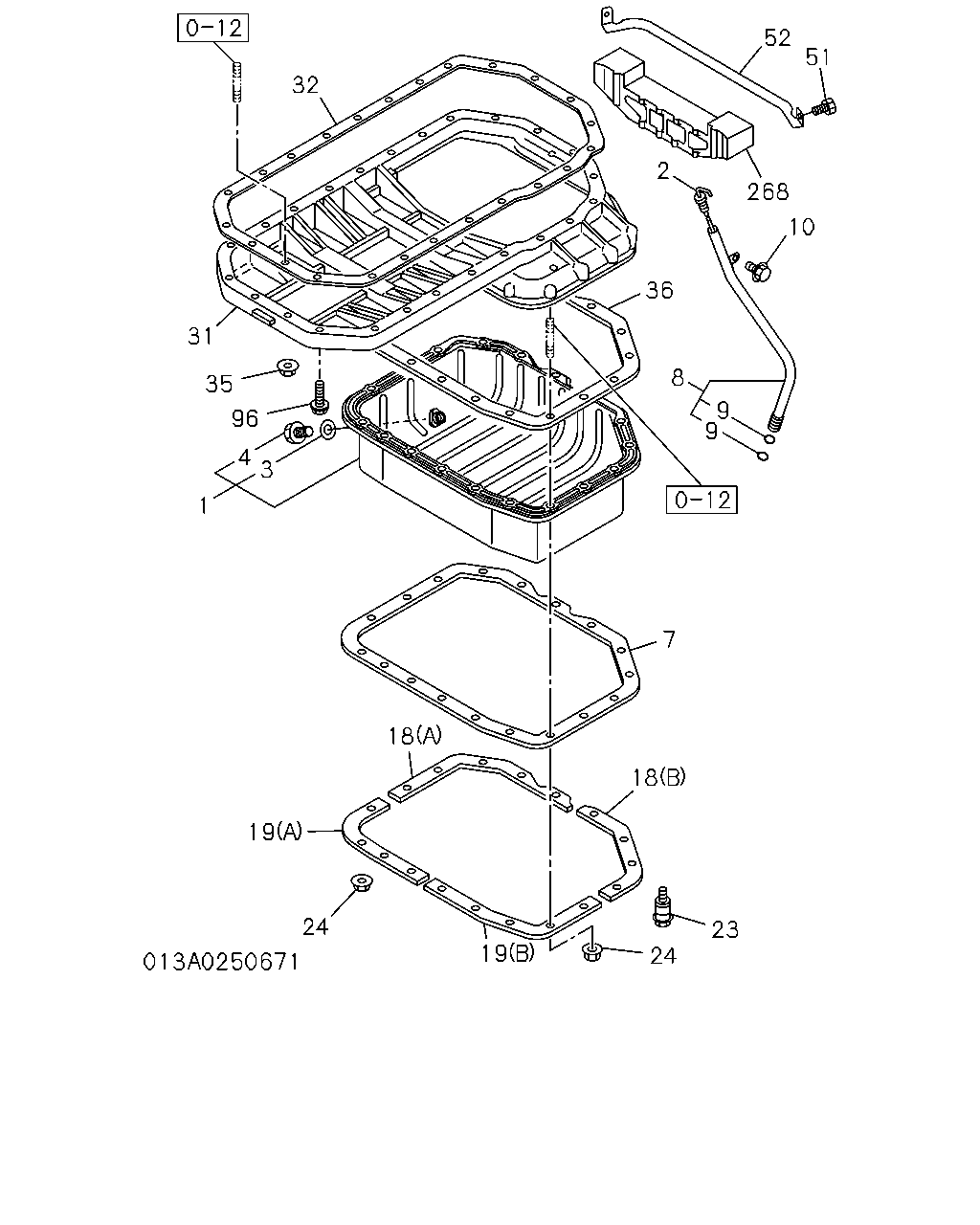

çizim 492578
32 52 268 51 2 10 36 8 9 9 31 35 96 4 1 3 19 24 18 7 18 23 24 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PAN ASM; OIL 8-94466-367-0 01 1 9304-9502 ● ●
1 PAN ASM; OIL 8-97083-322-3 01 1 9304-9502 ●
1 PAN ASM; OIL
SHORT CHASSIS(NK***C) 		8-97083-322-3 01 1 9503-9703 ●
1 PAN ASM; OIL 8-97083-322-3 01 1 9704- ●
1 PAN ASM; OIL
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97075-845-4 01 1 9304-9304 ●
1 PAN ASM; OIL
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97104-773-0 01 1 9305-9308 ●
1 PAN ASM; OIL
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97105-673-0 01 1 9309-9502 ●
1 PAN ASM; OIL
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97092-478-2 01 1 9503- ● ●
1 PAN ASM; OIL
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97087-642-1 01 1 9503-9703 ● ●
1 PAN ASM; OIL
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97087-642-2 01 1 9704- ● ●
1 PAN ASM; OIL 8-97087-642-2 01 1 9704- ●
1 PAN ASM; OIL
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97095-100-0 01 1 9304-9502 ●
1 PAN ASM; OIL
MIDDLE CHASSIS(NK***F) 		8-97110-571-0 01 1 9503-9703 ●
2 GAUGE; OIL LEVEL 8-94382-486-0 01 1 9304-9502 ● ●
2 GAUGE; OIL LEVEL 8-94470-765-0 01 1 9304- ●
2 GAUGE; OIL LEVEL 8-94376-311-3 01 1 9304-9502 ●
2 GAUGE; OIL LEVEL 8-94376-311-3 01 1 9503-9703 ● ●
2 GAUGE; OIL LEVEL 8-94376-311-3 01 1 9704- ● ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 9304-9502 ● ● ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 9503-9703 ● ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 9704- ● ● ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 9304-9502 ● ● ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 9503-9703 ● ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 9704- ● ● ● ●
7 GASKET; PLATE TO OIL PAN 8-94170-388-0 01 1 9304-9502 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-94372-124-1 01 1 9304-9502 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97044-886-0 01 1 9304- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97031-976-0 01 1 9304-9502 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97031-976-0 01 1 9503-9603 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97146-862-0 01 1 9604-9703 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97146-862-0 01 1 9704- ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9304-9502 ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9503-9703 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9704- ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 9304- ●
10 BOLT; GUIDE TUBE
M8X16 W/LK WASHER 		0-50040-816-0 01 1 9304-9502 ● ●
18 PLATE; OIL PAN RR
(B) 		8-94323-918-1 01 1 9304-9502 ● ●
18 PLATE; OIL PAN RR
(A) 		8-94323-917-1 01 1 9304-9502 ● ●
19 PLATE; OIL PAN FRT
(B) 		8-94323-916-1 01 1 9304-9502 ● ●
19 PLATE; OIL PAN FRT
(A) 		8-94323-915-1 01 1 9304-9502 ● ●
23 BOLT; OIL PAN
M8X28 		5-11369-095-5 11 1 9304-9502 ● ●
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97087-634-0 11 1 9503-9703 ● ●
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97087-634-0 11 1 9704- ● ● ●
23 BOLT; OIL PAN
(A) M8X14 W/SCOTCH GRIP 		8-97047-004-0 01 1 9304-9502 ●
23 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 9304-9502 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 07 1 9304-9502 ● ●
24 NUT; OIL PAN
M8 W/LK WASHER 		8-94327-073-0 07 1 9304-9502 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-208-0 15 1 9503-9703 ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-208-0 15 1 9704-9801 ● ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 15 1 9802- ● ● ●
31 PLATE; BED,C/BL TO OIL PAN 8-94481-379-1 01 1 9304-9502 ● ●
32 GASKET; C/BL TO BED PLATE 8-94370-666-0 01 1 9304-9502 ● ●
35 NUT; BED PLATE FIX
M8 FLANGE 		0-91150-108-0 04 1 9304-9502 ● ●
36 GASKET; OIL PAN TO BED PLATE 8-94170-387-0 01 1 9304-9502 ● ●
51 BOLT; BRKT,NOISE RUBBER
M6X14 W/LK WASHER 		0-50040-614-0 02 1 9304-9502 ●
52 BRACKET; NOISE SPACER 8-94466-373-0 01 1 9304-9502 ●
96 BOLT; BED PLATE TO C/BL
M8X40 W/LK WASHER 		0-50040-840-0 18 1 9304-9502 ● ●
96 BOLT; BED PLATE TO C/BL
M8X60 W/LK WASHER 		0-50040-860-0 02 1 9304-9502 ● ●
268 SPACER; RUBBER,NOISE,OIL PAN 8-94366-563-0 01 1 9304-9502 ●

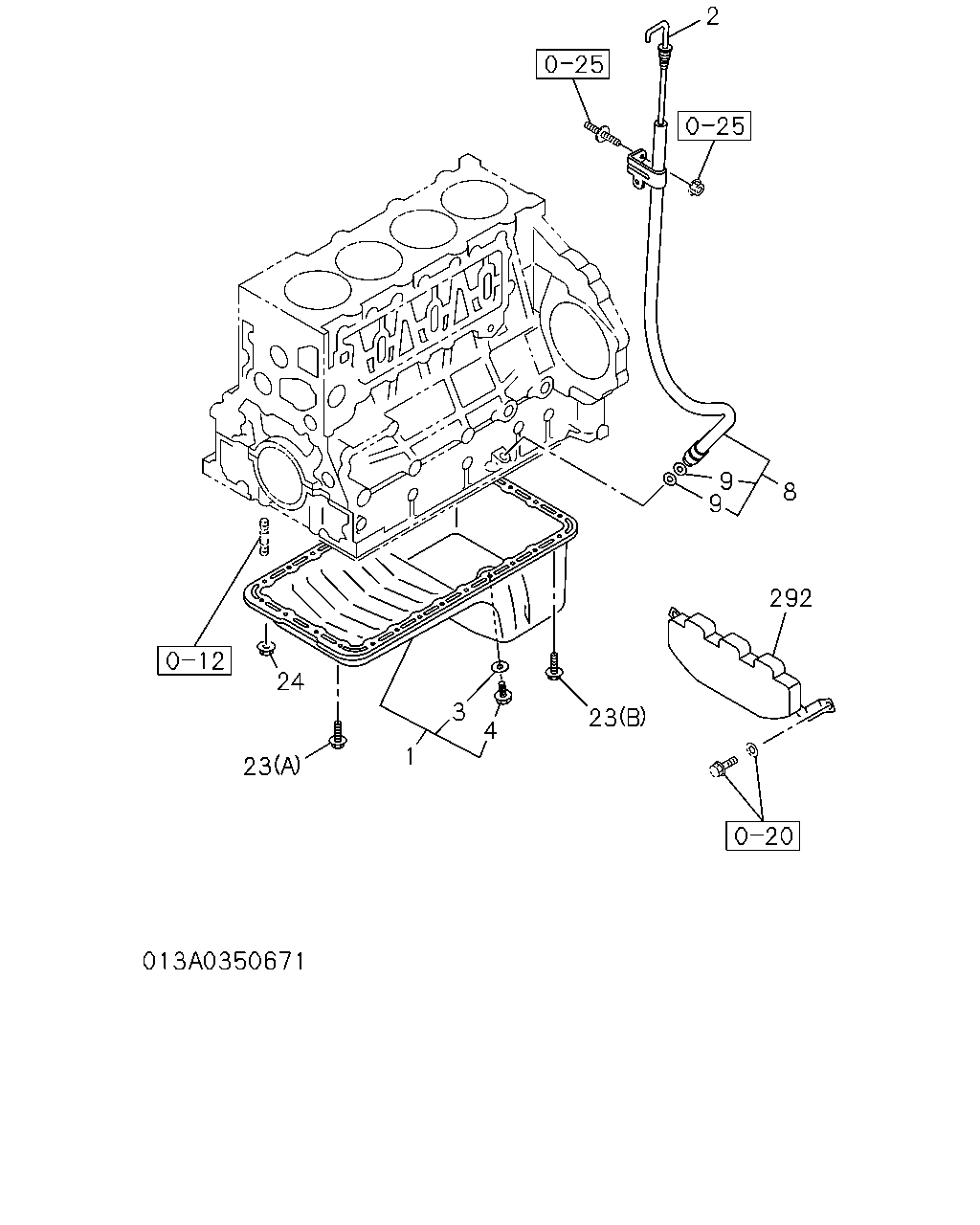

çizim 492582
2 8 9 9 292 23 3 1 24 23 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PAN ASM; OIL 8-94466-367-0 01 1 9304-9502 ● ●
1 PAN ASM; OIL 8-97083-322-3 01 1 9304-9502 ●
1 PAN ASM; OIL
SHORT CHASSIS(NK***C) 		8-97083-322-3 01 1 9503-9703 ●
1 PAN ASM; OIL 8-97083-322-3 01 1 9704- ●
1 PAN ASM; OIL
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97075-845-4 01 1 9304-9304 ●
1 PAN ASM; OIL
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97104-773-0 01 1 9305-9308 ●
1 PAN ASM; OIL
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97105-673-0 01 1 9309-9502 ●
1 PAN ASM; OIL
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97092-478-2 01 1 9503- ● ●
1 PAN ASM; OIL
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97087-642-1 01 1 9503-9703 ● ●
1 PAN ASM; OIL
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97087-642-2 01 1 9704- ● ●
1 PAN ASM; OIL 8-97087-642-2 01 1 9704- ●
1 PAN ASM; OIL
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97095-100-0 01 1 9304-9502 ●
1 PAN ASM; OIL
MIDDLE CHASSIS(NK***F) 		8-97110-571-0 01 1 9503-9703 ●
2 GAUGE; OIL LEVEL 8-94382-486-0 01 1 9304-9502 ● ●
2 GAUGE; OIL LEVEL 8-94470-765-0 01 1 9304- ●
2 GAUGE; OIL LEVEL 8-94376-311-3 01 1 9304-9502 ●
2 GAUGE; OIL LEVEL 8-94376-311-3 01 1 9503-9703 ● ●
2 GAUGE; OIL LEVEL 8-94376-311-3 01 1 9704- ● ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 9304-9502 ● ● ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 9503-9703 ● ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 9704- ● ● ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 9304-9502 ● ● ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 9503-9703 ● ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 9704- ● ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-94372-124-1 01 1 9304-9502 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97044-886-0 01 1 9304- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97031-976-0 01 1 9304-9502 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97031-976-0 01 1 9503-9603 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97146-862-0 01 1 9604-9703 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97146-862-0 01 1 9704- ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9304-9502 ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9503-9703 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9704- ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 9304- ●
23 BOLT; OIL PAN
M8X28 		5-11369-095-5 11 1 9304-9502 ● ●
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97087-634-0 11 1 9503-9703 ● ●
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97087-634-0 11 1 9704- ● ● ●
23 BOLT; OIL PAN
(A) M8X14 W/SCOTCH GRIP 		8-97047-004-0 01 1 9304-9502 ●
23 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 9304-9502 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 07 1 9304-9502 ● ●
24 NUT; OIL PAN
M8 W/LK WASHER 		8-94327-073-0 07 1 9304-9502 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-208-0 15 1 9503-9703 ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-208-0 15 1 9704-9801 ● ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 15 1 9802- ● ● ●
292 INSULATOR ASM; OIL PAN
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97100-516-1 01 1 9304-9406 ●
292 INSULATOR ASM; OIL PAN
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97106-452-1 01 1 9407-9502 ●
292 INSULATOR ASM; OIL PAN
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97106-452-1 01 1 9503-9605 ● ●

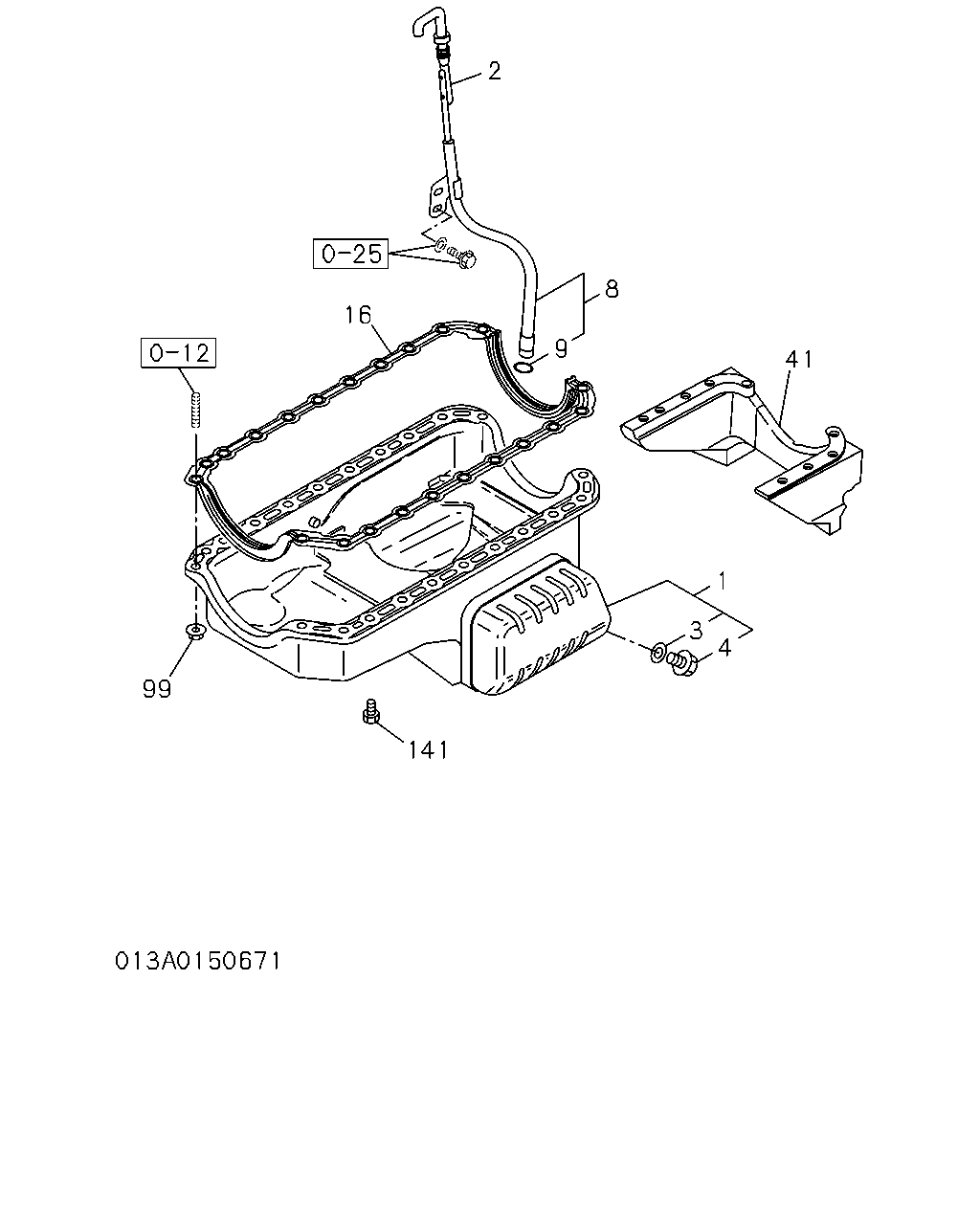

çizim 492614
2 8 9 16 41 1 3 4 141 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PAN ASM; OIL 8-94466-367-0 01 1 9304-9502 ● ●
1 PAN ASM; OIL 8-97083-322-3 01 1 9304-9502 ●
1 PAN ASM; OIL
SHORT CHASSIS(NK***C) 		8-97083-322-3 01 1 9503-9703 ●
1 PAN ASM; OIL 8-97083-322-3 01 1 9704- ●
1 PAN ASM; OIL
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97075-845-4 01 1 9304-9304 ●
1 PAN ASM; OIL
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97104-773-0 01 1 9305-9308 ●
1 PAN ASM; OIL
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97105-673-0 01 1 9309-9502 ●
1 PAN ASM; OIL
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97092-478-2 01 1 9503- ● ●
1 PAN ASM; OIL
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97087-642-1 01 1 9503-9703 ● ●
1 PAN ASM; OIL
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97087-642-2 01 1 9704- ● ●
1 PAN ASM; OIL 8-97087-642-2 01 1 9704- ●
1 PAN ASM; OIL
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97095-100-0 01 1 9304-9502 ●
1 PAN ASM; OIL
MIDDLE CHASSIS(NK***F) 		8-97110-571-0 01 1 9503-9703 ●
2 GAUGE; OIL LEVEL 8-94382-486-0 01 1 9304-9502 ● ●
2 GAUGE; OIL LEVEL 8-94470-765-0 01 1 9304- ●
2 GAUGE; OIL LEVEL 8-94376-311-3 01 1 9304-9502 ●
2 GAUGE; OIL LEVEL 8-94376-311-3 01 1 9503-9703 ● ●
2 GAUGE; OIL LEVEL 8-94376-311-3 01 1 9704- ● ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 9304-9502 ● ● ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 9503-9703 ● ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 9704- ● ● ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 9304-9502 ● ● ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 9503-9703 ● ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 9704- ● ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-94372-124-1 01 1 9304-9502 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97044-886-0 01 1 9304- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97031-976-0 01 1 9304-9502 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97031-976-0 01 1 9503-9603 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97146-862-0 01 1 9604-9703 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97146-862-0 01 1 9704- ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9304-9502 ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9503-9703 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9704- ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 9304- ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 9304- ●
41 RUBBER; SPACE 8-97095-936-0 01 1 9304- ●
99 NUT; BRKT TO OIL PAN FIX
M8 FLANGE 		5-09440-010-0 10 1 9304-9403 ●
99 NUT; BRKT TO OIL PAN FIX
M8 FLANGE 		5-09440-010-0 08 1 9404-9410 ●
99 NUT; BRKT TO OIL PAN FIX
M8 FLANGE 		5-09440-010-0 10 1 9411- ●
141 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 9304-9403 ●
141 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 14 1 9404-9410 ●
141 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 9411- ●

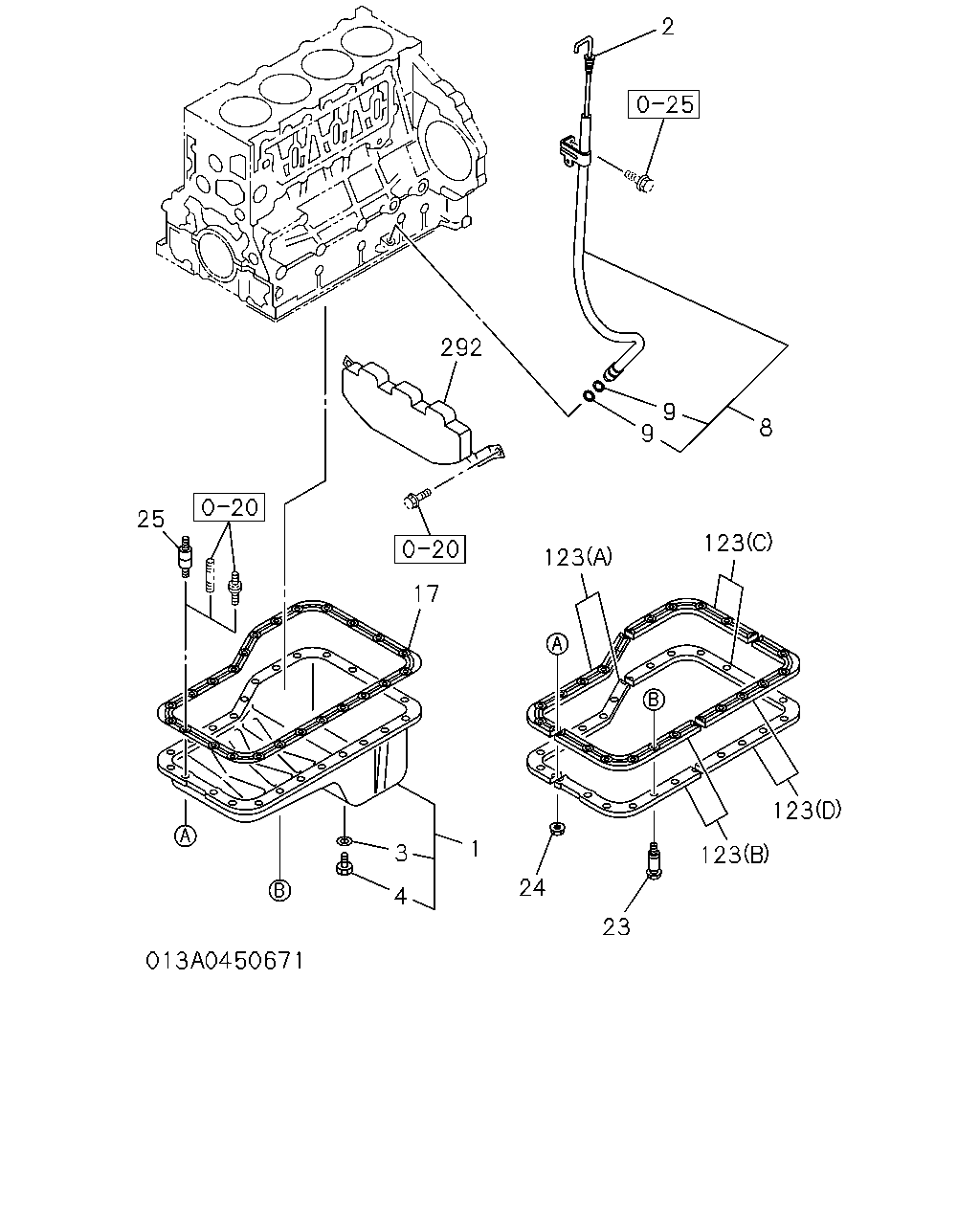

çizim 492624
292 9 9 2 8 123 123 17 1 24 23 123 123 3 4 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PAN ASM; OIL 8-94466-367-0 01 1 9304-9502 ● ●
1 PAN ASM; OIL 8-97083-322-3 01 1 9304-9502 ●
1 PAN ASM; OIL
SHORT CHASSIS(NK***C) 		8-97083-322-3 01 1 9503-9703 ●
1 PAN ASM; OIL 8-97083-322-3 01 1 9704- ●
1 PAN ASM; OIL
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97075-845-4 01 1 9304-9304 ●
1 PAN ASM; OIL
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97104-773-0 01 1 9305-9308 ●
1 PAN ASM; OIL
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97105-673-0 01 1 9309-9502 ●
1 PAN ASM; OIL
INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97092-478-2 01 1 9503- ● ●
1 PAN ASM; OIL
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97087-642-1 01 1 9503-9703 ● ●
1 PAN ASM; OIL
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97087-642-2 01 1 9704- ● ●
1 PAN ASM; OIL 8-97087-642-2 01 1 9704- ●
1 PAN ASM; OIL
EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97095-100-0 01 1 9304-9502 ●
1 PAN ASM; OIL
MIDDLE CHASSIS(NK***F) 		8-97110-571-0 01 1 9503-9703 ●
2 GAUGE; OIL LEVEL 8-94382-486-0 01 1 9304-9502 ● ●
2 GAUGE; OIL LEVEL 8-94470-765-0 01 1 9304- ●
2 GAUGE; OIL LEVEL 8-94376-311-3 01 1 9304-9502 ●
2 GAUGE; OIL LEVEL 8-94376-311-3 01 1 9503-9703 ● ●
2 GAUGE; OIL LEVEL 8-94376-311-3 01 1 9704- ● ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 9304-9502 ● ● ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 9503-9703 ● ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 9704- ● ● ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 9304-9502 ● ● ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 9503-9703 ● ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 9704- ● ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-94372-124-1 01 1 9304-9502 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97044-886-0 01 1 9304- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97031-976-0 01 1 9304-9502 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97031-976-0 01 1 9503-9603 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97146-862-0 01 1 9604-9703 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97146-862-0 01 1 9704- ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9304-9502 ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9503-9703 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9704- ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 9304- ●
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97106-747-2 01 1 9503-9602 ● ●
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-148-0 01 1 9603-9703 ● ●
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-148-2 01 1 9704- ● ● ●
23 BOLT; OIL PAN
M8X28 		5-11369-095-5 11 1 9304-9502 ● ●
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97087-634-0 11 1 9503-9703 ● ●
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97087-634-0 11 1 9704- ● ● ●
23 BOLT; OIL PAN
(A) M8X14 W/SCOTCH GRIP 		8-97047-004-0 01 1 9304-9502 ●
23 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 9304-9502 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 07 1 9304-9502 ● ●
24 NUT; OIL PAN
M8 W/LK WASHER 		8-94327-073-0 07 1 9304-9502 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-208-0 15 1 9503-9703 ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-208-0 15 1 9704-9801 ● ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 15 1 9802- ● ● ●
25 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 10 1 9503-9703 ● ●
25 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 10 1 9704- ● ● ●
25 STUD; OIL PAN
M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 01 1 9503-9703 ● ●
25 STUD; OIL PAN
M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 01 1 9704- ● ● ●
123 RUBBER; SEAL OIL
(B) FRONT 		8-97087-622-2 01 1 9503-9703 ● ●
123 RUBBER; SEAL OIL
(B) FRONT 		8-97087-622-2 01 1 9704- ● ● ●
123 RUBBER; SEAL OIL
(D) REAR 		8-97087-628-2 01 1 9503-9703 ● ●
123 RUBBER; SEAL OIL
(D) REAR 		8-97087-628-2 01 1 9704- ● ● ●
123 RUBBER; SEAL OIL
(A) FRONT 		8-97087-619-2 01 1 9503-9703 ● ●
123 RUBBER; SEAL OIL
(A) FRONT 		8-97087-619-2 01 1 9704- ● ● ●
123 RUBBER; SEAL OIL
(C) REAR 		8-97087-625-2 01 1 9503-9703 ● ●
123 RUBBER; SEAL OIL
(C) REAR 		8-97087-625-2 01 1 9704- ● ● ●
292 INSULATOR ASM; OIL PAN
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97100-516-1 01 1 9304-9406 ●
292 INSULATOR ASM; OIL PAN
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97106-452-1 01 1 9407-9502 ●
292 INSULATOR ASM; OIL PAN
EXC. POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97106-452-1 01 1 9503-9605 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
