Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#166641) — 455 parça

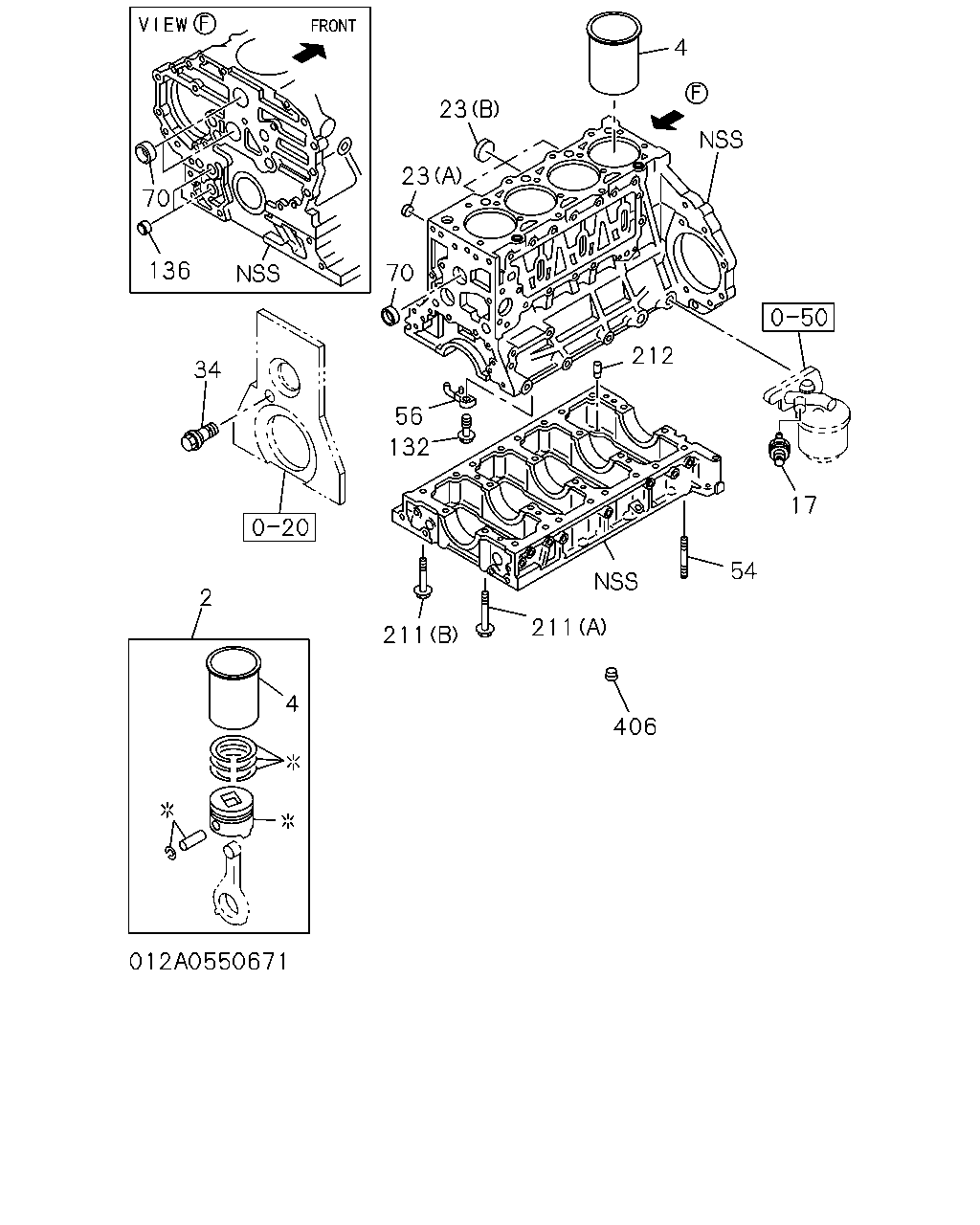

23 23 4 136 70 34 56 132 211 211 406 54 17 212 2 4 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	LINER SET; ENG CYL GRADE=1	5-87814-557-0	04	1	9304-9502	●
2	LINER SET; ENG CYL GRADE=2	5-87814-558-0	04	1	9304-9502	●
2	LINER SET; ENG CYL GRADE=3	5-87814-559-0	04	1	9304-9502	●
2	LINER SET; ENG CYL GRADE=4	5-87814-560-0	04	1	9304-9502	●
2	LINER SET; ENG CYL GRADE=1	5-87814-561-0	04	1	9304-9502		●
2	LINER SET; ENG CYL GRADE=2	5-87814-562-0	04	1	9304-9502		●
2	LINER SET; ENG CYL GRADE=3	5-87814-563-0	04	1	9304-9502		●
2	LINER SET; ENG CYL GRADE=4	5-87814-564-0	04	1	9304-9502		●
2	LINER SET; ENG CYL GRADE=1	5-87814-483-0	04	1	9304-9703			●
2	LINER SET; ENG CYL GRADE=1	5-87814-487-0	04	1	9704-			●
2	LINER SET; ENG CYL GRADE=2	5-87814-484-0	04	1	9304-9703			●
2	LINER SET; ENG CYL GRADE=2	5-87814-488-0	04	1	9704-			●
2	LINER SET; ENG CYL GRADE=3	5-87814-485-0	04	1	9304-9703			●
2	LINER SET; ENG CYL GRADE=3	5-87814-489-0	04	1	9704-			●
2	LINER SET; ENG CYL GRADE=4	5-87814-486-0	04	1	9304-9703			●
2	LINER SET; ENG CYL GRADE=4	5-87814-490-0	04	1	9704-			●
2	LINER SET; ENG CYL GRADE=1X	5-87814-515-0	04	1	9304-9502				●
2	LINER SET; ENG CYL GRADE=1X	5-87814-519-0	04	1	9503-9703				●
2	LINER SET; ENG CYL GRADE=1X	5-87814-519-0	04	1	9704-9704				●	●
2	LINER SET; ENG CYL GRADE=1X	5-87814-519-0	04	1	9705-				●	●
2	LINER SET; ENG CYL GRADE=3X	5-87814-516-0	04	1	9304-9502				●
2	LINER SET; ENG CYL GRADE=3X	5-87814-520-0	04	1	9503-9703				●
2	LINER SET; ENG CYL GRADE=3X	5-87814-520-0	04	1	9704-9704				●	●
2	LINER SET; ENG CYL GRADE=3X	5-87814-520-0	04	1	9705-				●	●
2	LINER SET; ENG CYL GRADE=1X	5-87814-521-0	04	1	9503-9703						●
2	LINER SET; ENG CYL GRADE=1X	5-87814-521-0	04	1	9704-						●
2	LINER SET; ENG CYL GRADE=3X	5-87814-522-0	04	1	9503-9703						●
2	LINER SET; ENG CYL GRADE=3X	5-87814-522-0	04	1	9704-						●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-715-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-716-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-717-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-718-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-719-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-720-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-721-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-722-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9304-9703				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9704-				●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9304-9703				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9704-				●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-729-0	04	1	9503-9703						●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-729-0	04	1	9704-						●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-730-0	04	1	9503-9703						●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-730-0	04	1	9704-						●
17	SWITCH; OIL PRESSURE	8-97078-086-0	01	1	9304-9502	●	●
17	SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9304-9502			●	●
17	SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9503-9703			●	●		●
17	SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9704-			●
17	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9704-				●	●	●
23	CUP; SEALING,C/BL FRT & RR OD=28	5-11219-014-0	01	1	9304-9502	●	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	03	1	9304-			●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	8-97036-337-0	03	1	9304-9305			●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	03	1	9306-			●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	8-97036-339-0	02	1	9304-9305			●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	9306-			●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-0	03	1	9304-9305			●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9304-9305				●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9306-9502			●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9503-9703			●	●		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9704-9810			●	●	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9811-			●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	9304-9502				●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	9503-9703				●		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	9704-				●	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	9811-				●	●	●
34	VALVE; OIL RELIEF	8-97023-339-0	01	1	9304-9502	●	●
34	VALVE; OIL RELIEF	8-94386-047-1	01	1	9304-9502				●
34	VALVE; OIL RELIEF	8-94386-047-1	01	1	9503-9703				●		●
34	VALVE; OIL RELIEF	8-94386-047-1	01	1	9704-				●	●	●
54	STUD; OIL PAN TO BLOCK M8X41.5	5-11369-101-0	07	1	9304-9502	●	●
54	STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9304-9403			●
54	STUD; OIL PAN TO BLOCK	8-94133-974-2	08	1	9404-9410			●
54	STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9411-			●
54	STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	9304-9502				●
56	JET; OIL,PISTON COOLING	8-94341-897-0	04	1	9304-9502		●
56	JET; OIL,PISTON COOLING	8-94370-579-0	04	1	9304-9502				●
56	JET; OIL,PISTON COOLING	8-94370-579-0	04	1	9503-9703				●		●
56	JET; OIL,PISTON COOLING	8-94370-579-0	04	1	9704-				●	●	●
70	CUP; SEALING,FRT & RR OD=60	1-09600-052-0	02	1	9304-9502	●	●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	9304-			●
70	CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9304-9502				●
70	CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9503-9703				●		●
70	CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9704-9810				●	●	●
70	CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	9811-				●	●	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9304-9502		●		●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9503-9703				●		●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9704-				●	●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94105-115-1	01	1	9304-9502	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	9-11224-602-1	01	1	9304-9502		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-0	02	1	9401-				●	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	9304-9502				●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	9503-9703				●		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	9704-				●	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	9304-9502				●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	9503-9703				●		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	9704-				●	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9304-9502				●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9503-9604				●		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	9605-9703				●		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	9704-				●	●	●
406	PLUG; CRANK CASE PT3/8	5-09605-005-0	02	1	9304-9502				●
406	PLUG; CRANK CASE PT3/8	5-09605-005-0	02	1	9503-9703				●		●
406	PLUG; CRANK CASE PT3/8	5-09605-005-0	02	1	9704-				●	●	●

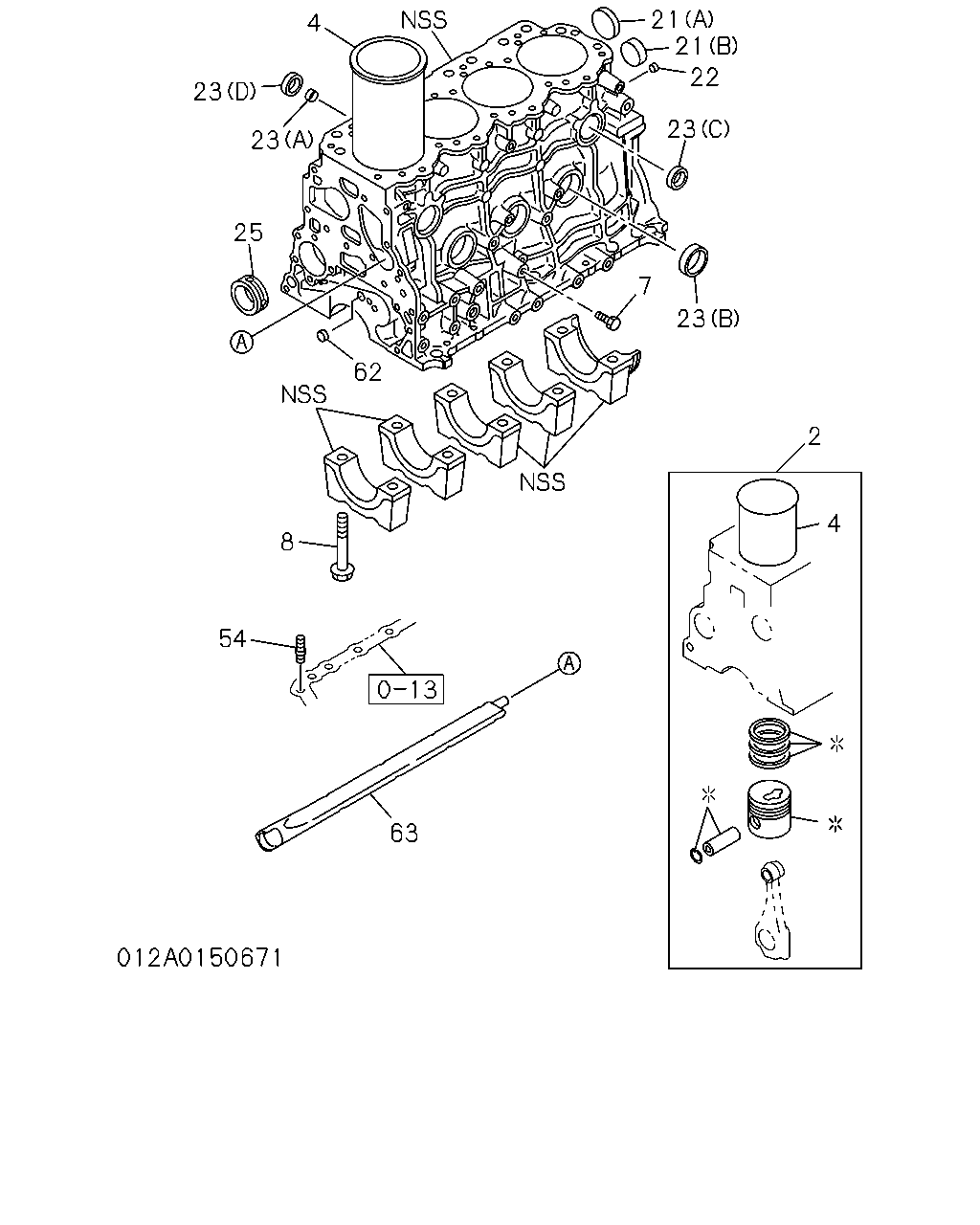

4 23 23 25 62 8 54 63 2 4 21 21 22 23 23 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	LINER SET; ENG CYL GRADE=1	5-87814-557-0	04	1	9304-9502	●
2	LINER SET; ENG CYL GRADE=2	5-87814-558-0	04	1	9304-9502	●
2	LINER SET; ENG CYL GRADE=3	5-87814-559-0	04	1	9304-9502	●
2	LINER SET; ENG CYL GRADE=4	5-87814-560-0	04	1	9304-9502	●
2	LINER SET; ENG CYL GRADE=1	5-87814-561-0	04	1	9304-9502		●
2	LINER SET; ENG CYL GRADE=2	5-87814-562-0	04	1	9304-9502		●
2	LINER SET; ENG CYL GRADE=3	5-87814-563-0	04	1	9304-9502		●
2	LINER SET; ENG CYL GRADE=4	5-87814-564-0	04	1	9304-9502		●
2	LINER SET; ENG CYL GRADE=1	5-87814-483-0	04	1	9304-9703			●
2	LINER SET; ENG CYL GRADE=1	5-87814-487-0	04	1	9704-			●
2	LINER SET; ENG CYL GRADE=2	5-87814-484-0	04	1	9304-9703			●
2	LINER SET; ENG CYL GRADE=2	5-87814-488-0	04	1	9704-			●
2	LINER SET; ENG CYL GRADE=3	5-87814-485-0	04	1	9304-9703			●
2	LINER SET; ENG CYL GRADE=3	5-87814-489-0	04	1	9704-			●
2	LINER SET; ENG CYL GRADE=4	5-87814-486-0	04	1	9304-9703			●
2	LINER SET; ENG CYL GRADE=4	5-87814-490-0	04	1	9704-			●
2	LINER SET; ENG CYL GRADE=1X	5-87814-515-0	04	1	9304-9502				●
2	LINER SET; ENG CYL GRADE=1X	5-87814-519-0	04	1	9503-9703				●
2	LINER SET; ENG CYL GRADE=1X	5-87814-519-0	04	1	9704-9704				●	●
2	LINER SET; ENG CYL GRADE=1X	5-87814-519-0	04	1	9705-				●	●
2	LINER SET; ENG CYL GRADE=3X	5-87814-516-0	04	1	9304-9502				●
2	LINER SET; ENG CYL GRADE=3X	5-87814-520-0	04	1	9503-9703				●
2	LINER SET; ENG CYL GRADE=3X	5-87814-520-0	04	1	9704-9704				●	●
2	LINER SET; ENG CYL GRADE=3X	5-87814-520-0	04	1	9705-				●	●
2	LINER SET; ENG CYL GRADE=1X	5-87814-521-0	04	1	9503-9703						●
2	LINER SET; ENG CYL GRADE=1X	5-87814-521-0	04	1	9704-						●
2	LINER SET; ENG CYL GRADE=3X	5-87814-522-0	04	1	9503-9703						●
2	LINER SET; ENG CYL GRADE=3X	5-87814-522-0	04	1	9704-						●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-715-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-716-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-717-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-718-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-719-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-720-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-721-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-722-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9304-9703				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9704-				●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9304-9703				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9704-				●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-729-0	04	1	9503-9703						●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-729-0	04	1	9704-						●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-730-0	04	1	9503-9703						●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-730-0	04	1	9704-						●
7	PLUG; WATER DRAIN	9-09809-098-0	01	1	9304-9502		●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9503-			●
7	PLUG; WATER DRAIN M10X7	9-09861-010-0	01	1	9401-9502				●
7	PLUG; WATER DRAIN M10X7	9-09861-010-0	01	1	9503-9703				●		●
7	PLUG; WATER DRAIN M10X7	9-09861-010-0	01	1	9704-				●	●	●
8	BOLT; BRG CAP M16X119	1-09000-469-1	10	1	9304-9502	●	●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9304-			●
21	CUP; SEALING,RR (B) OD=36	8-97036-548-0	01	1	9304-9305			●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9306-			●
21	CUP; SEALING,RR (A) OD=38	8-97036-549-0	01	1	9304-9305			●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9306-			●
22	CUP; SEALING,DUCT HOLE OD=12	8-97036-335-0	01	1	9304-9305			●
22	CUP; SEALING,DUCT HOLE OD=12.3	5-09600-013-0	01	1	9306-			●
23	CUP; SEALING,C/BL FRT & RR OD=28	5-11219-014-0	01	1	9304-9502	●	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	03	1	9304-			●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	8-97036-337-0	03	1	9304-9305			●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	03	1	9306-			●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	8-97036-339-0	02	1	9304-9305			●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	9306-			●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-0	03	1	9304-9305			●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9304-9305				●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9306-9502			●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9503-9703			●	●		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9704-9810			●	●	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9811-			●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	9304-9502				●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	9503-9703				●		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	9704-				●	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	9811-				●	●	●
25	METAL; CM/SHF FRONT	9-11691-048-0	01	1	9304-9502	●	●
25	METAL; CM/SHF CENTER&REAR	9-11693-035-0	02	1	9304-9502	●	●
25	METAL; CM/SHF CENTER&REAR	8-94427-201-2	02	1	9304-			●
25	METAL; CM/SHF FRONT	8-94427-206-2	01	1	9304-			●
54	STUD; OIL PAN TO BLOCK M8X41.5	5-11369-101-0	07	1	9304-9502	●	●
54	STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9304-9403			●
54	STUD; OIL PAN TO BLOCK	8-94133-974-2	08	1	9404-9410			●
54	STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9411-			●
54	STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	9304-9502				●
62	CUP; SEALING,C/BL FRT OD=14	5-11219-011-0	01	1	9304-			●
63	DUCT; WATER,C/BL	8-94456-794-2	01	1	9304-			●

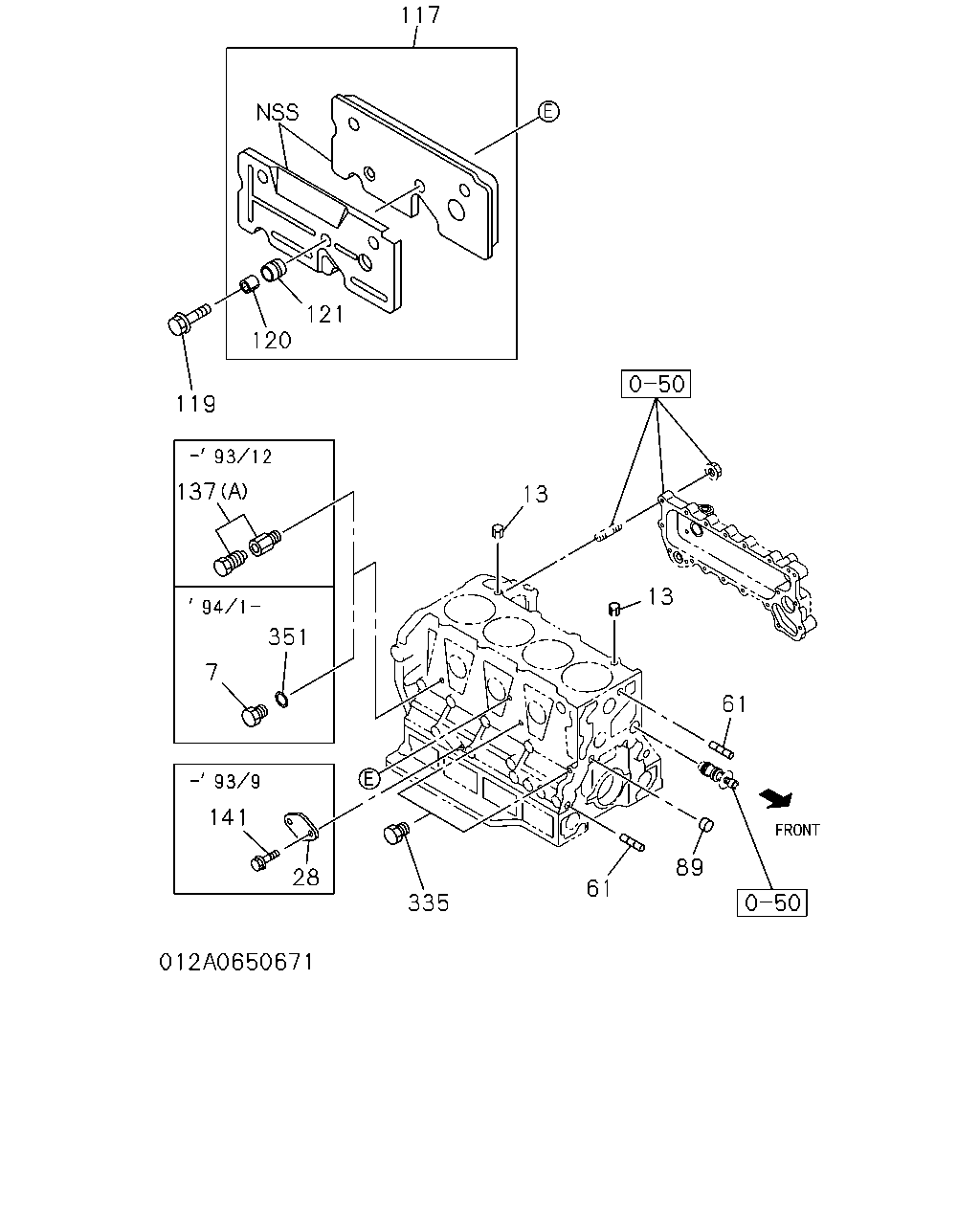

117 121 120 119 137 7 351 13 13 61 89 61 335 28 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	PLUG; WATER DRAIN	9-09809-098-0	01	1	9304-9502		●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9503-			●
7	PLUG; WATER DRAIN M10X7	9-09861-010-0	01	1	9401-9502				●
7	PLUG; WATER DRAIN M10X7	9-09861-010-0	01	1	9503-9703				●		●
7	PLUG; WATER DRAIN M10X7	9-09861-010-0	01	1	9704-				●	●	●
13	DOWEL; C/BL TO HD OD=16	8-94148-079-0	02	1	9304-9502	●	●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9304-			●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9304-9502				●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9503-9703				●		●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9704-				●	●	●
28	COVER; OIL PORT	1-11219-163-0	01	1	9304-9309				●
61	PIN; STRAIGHT OD=10 L=20	9-08151-020-0	02	1	9304-			●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	9304-9502				●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	9503-9703				●		●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	9704-				●	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9304-9502				●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9503-9703				●		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9704-				●	●	●
117	COVER ASM; C/BL	8-97075-841-3	01	1	9304-9408				●
117	COVER ASM; C/BL	8-97118-347-0	01	1	9409-9502				●
117	COVER ASM; C/BL	8-97118-347-0	01	1	9503-				●		●
119	BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	9304-9405				●
119	BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9406-9502				●
119	BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9503-				●		●
120	BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	04	1	9304-9502				●
120	BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	04	1	9503-				●		●
121	RUBBER; MTG,COVER OD=22	8-94140-428-1	04	1	9304-9502				●
121	RUBBER; MTG,COVER OD=22	8-94140-428-1	04	1	9503-				●		●
137	COCK; DRAIN,WATER (A)	1-09680-025-0	01	1	9304-9312	●			●
137	COCK; DRAIN,WATER (A)	1-09680-025-0	01	1	9401-9502	●
137	COCK; DRAIN,WATER (B) WO/PLUG	8-94461-953-1	01	1	9304-9502		●
141	BOLT; COVER M8X16 FLANGE	0-28080-816-0	02	1	9304-9309				●
335	PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	04	1	9304-9312				●
335	PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	02	1	9401-9502				●
335	PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	02	1	9503-9611				●		●
335	PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	9612-9703				●		●
335	PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	9704-				●	●	●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0	9-09571-410-0	01	1	9401-9502				●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0	9-09571-410-0	01	1	9503-9602				●		●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9603-9703				●		●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9704-				●	●	●

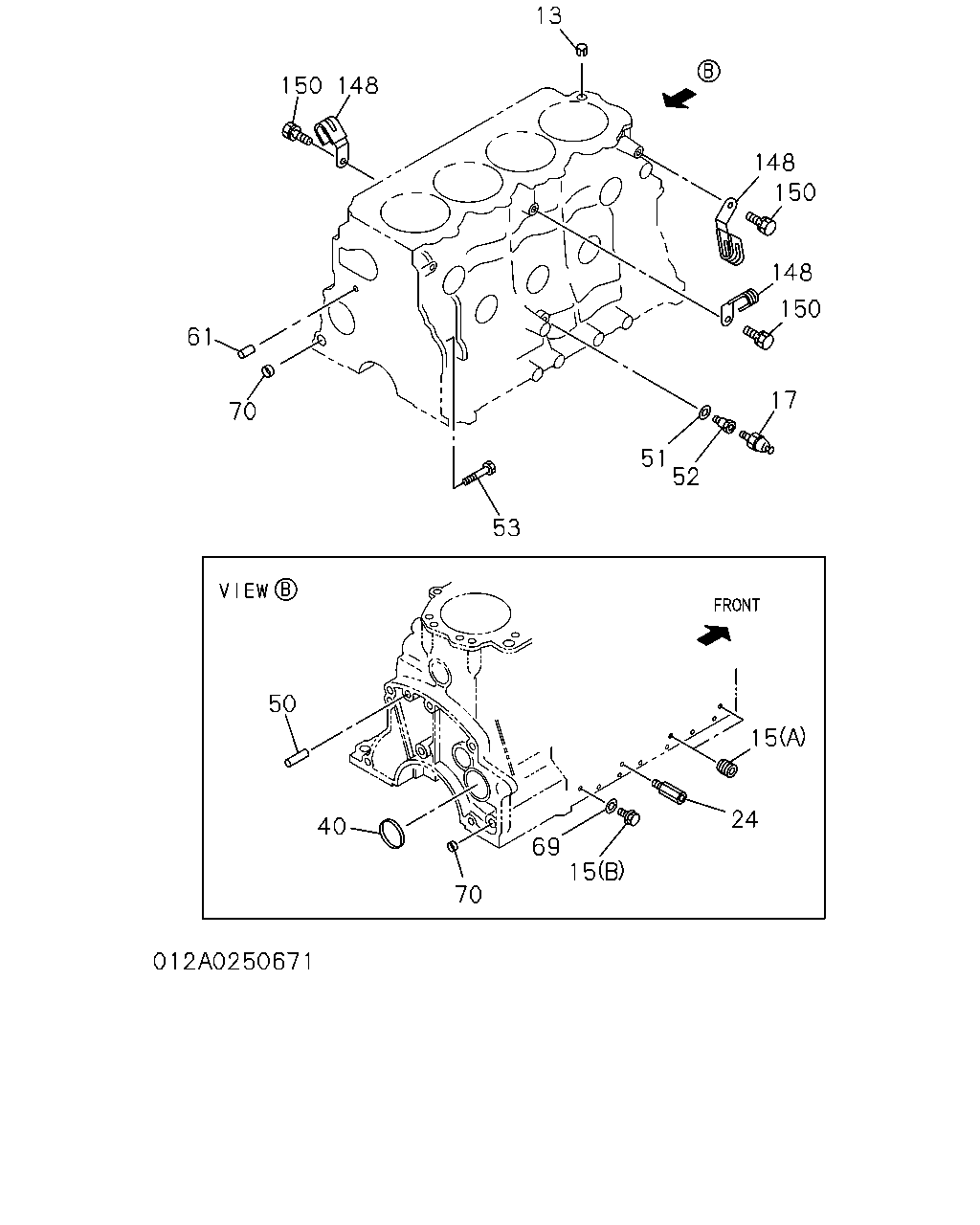

150 148 13 148 150 148 150 17 52 51 53 15 24 15 69 70 40 50 61 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	DOWEL; C/BL TO HD OD=16	8-94148-079-0	02	1	9304-9502	●	●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9304-			●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9304-9502				●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9503-9703				●		●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9704-				●	●	●
15	PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	9304-			●
15	PLUG; OIL GALLERY (B) M14X14	8-94152-613-0	01	1	9304-			●
17	SWITCH; OIL PRESSURE	8-97078-086-0	01	1	9304-9502	●	●
17	SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9304-9502			●	●
17	SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9503-9703			●	●		●
17	SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9704-			●
17	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9704-				●	●	●
24	NIPPLE; OIL FEED,VAC PUMP	8-94107-560-0	01	1	9304-9502	●	●
24	NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	9304-			●
40	CUP; SEALING,C/BL RR OD=67	8-94344-462-0	01	1	9304-9502	●	●
40	CUP; SEALING,C/BL RR OD=56	8-94250-514-0	01	1	9304-			●
50	PIN; STRAIGHT,RR PLATE OD=10 L=32	9-08161-032-0	01	1	9304-			●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9304-			●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-749-2	01	1	9304-			●
53	BOLT; REAMER M10X52	9-09806-020-0	01	1	9304-			●
61	PIN; STRAIGHT OD=10 L=20	9-08151-020-0	02	1	9304-			●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	9304-9502				●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	9503-9703				●		●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	9704-				●	●	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	01	1	9304-			●
70	CUP; SEALING,FRT & RR OD=60	1-09600-052-0	02	1	9304-9502	●	●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	9304-			●
70	CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9304-9502				●
70	CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9503-9703				●		●
70	CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9704-9810				●	●	●
70	CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	9811-				●	●	●
148	CLIP; HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9304-9310			●
148	CLIP; HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9311-9502			●
148	CLIP; HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9503-9812			●
148	CLIP; HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9901-			●
150	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	04	1	9304-9310			●
150	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	03	1	9311-9502			●
150	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	04	1	9503-9812			●
150	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	03	1	9901-			●

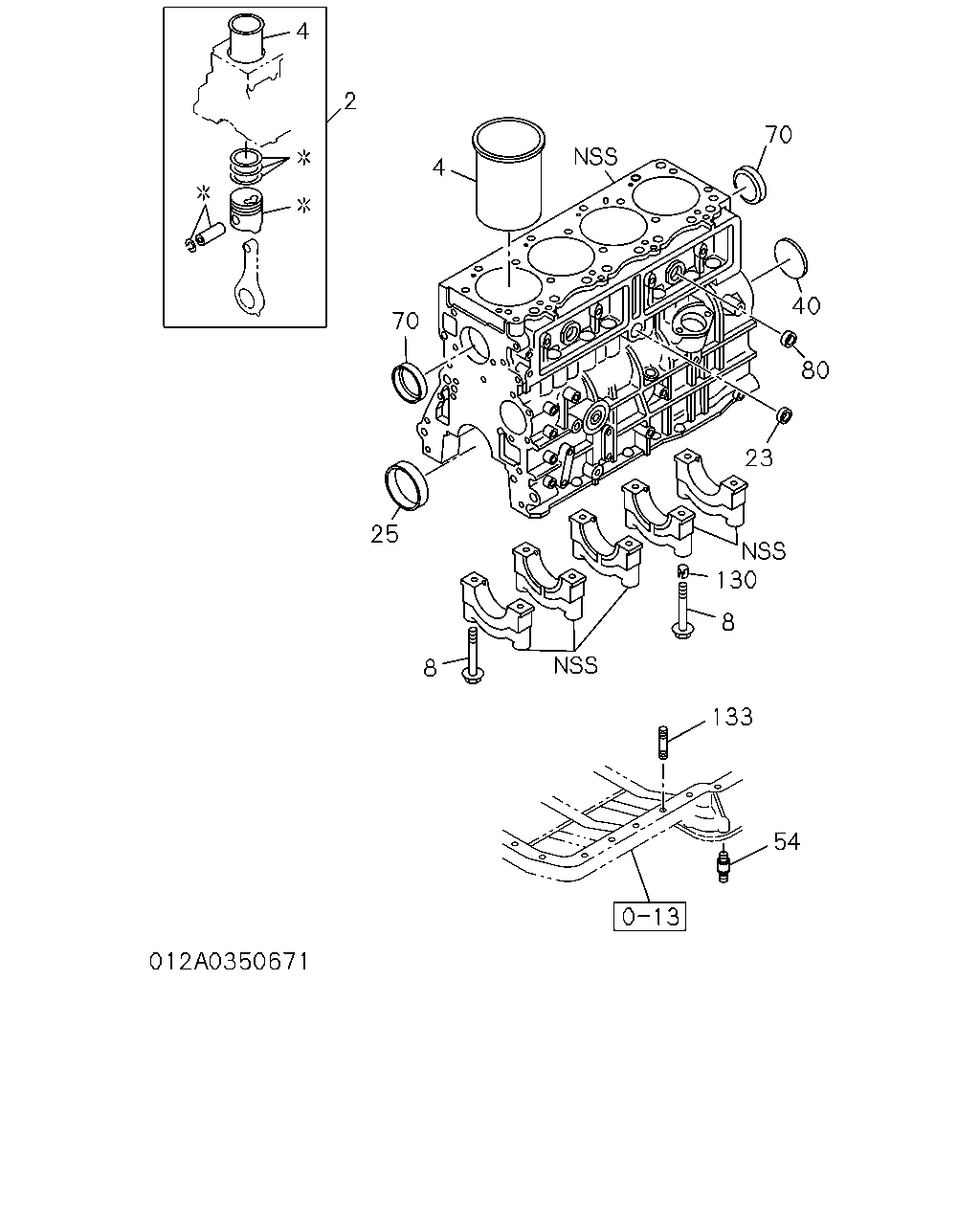

4 2 4 70 25 8 8 133 130 23 80 40 70 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	LINER SET; ENG CYL GRADE=1	5-87814-557-0	04	1	9304-9502	●
2	LINER SET; ENG CYL GRADE=2	5-87814-558-0	04	1	9304-9502	●
2	LINER SET; ENG CYL GRADE=3	5-87814-559-0	04	1	9304-9502	●
2	LINER SET; ENG CYL GRADE=4	5-87814-560-0	04	1	9304-9502	●
2	LINER SET; ENG CYL GRADE=1	5-87814-561-0	04	1	9304-9502		●
2	LINER SET; ENG CYL GRADE=2	5-87814-562-0	04	1	9304-9502		●
2	LINER SET; ENG CYL GRADE=3	5-87814-563-0	04	1	9304-9502		●
2	LINER SET; ENG CYL GRADE=4	5-87814-564-0	04	1	9304-9502		●
2	LINER SET; ENG CYL GRADE=1	5-87814-483-0	04	1	9304-9703			●
2	LINER SET; ENG CYL GRADE=1	5-87814-487-0	04	1	9704-			●
2	LINER SET; ENG CYL GRADE=2	5-87814-484-0	04	1	9304-9703			●
2	LINER SET; ENG CYL GRADE=2	5-87814-488-0	04	1	9704-			●
2	LINER SET; ENG CYL GRADE=3	5-87814-485-0	04	1	9304-9703			●
2	LINER SET; ENG CYL GRADE=3	5-87814-489-0	04	1	9704-			●
2	LINER SET; ENG CYL GRADE=4	5-87814-486-0	04	1	9304-9703			●
2	LINER SET; ENG CYL GRADE=4	5-87814-490-0	04	1	9704-			●
2	LINER SET; ENG CYL GRADE=1X	5-87814-515-0	04	1	9304-9502				●
2	LINER SET; ENG CYL GRADE=1X	5-87814-519-0	04	1	9503-9703				●
2	LINER SET; ENG CYL GRADE=1X	5-87814-519-0	04	1	9704-9704				●	●
2	LINER SET; ENG CYL GRADE=1X	5-87814-519-0	04	1	9705-				●	●
2	LINER SET; ENG CYL GRADE=3X	5-87814-516-0	04	1	9304-9502				●
2	LINER SET; ENG CYL GRADE=3X	5-87814-520-0	04	1	9503-9703				●
2	LINER SET; ENG CYL GRADE=3X	5-87814-520-0	04	1	9704-9704				●	●
2	LINER SET; ENG CYL GRADE=3X	5-87814-520-0	04	1	9705-				●	●
2	LINER SET; ENG CYL GRADE=1X	5-87814-521-0	04	1	9503-9703						●
2	LINER SET; ENG CYL GRADE=1X	5-87814-521-0	04	1	9704-						●
2	LINER SET; ENG CYL GRADE=3X	5-87814-522-0	04	1	9503-9703						●
2	LINER SET; ENG CYL GRADE=3X	5-87814-522-0	04	1	9704-						●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-715-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-716-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-717-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-718-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-719-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-720-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-721-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-722-0	04	1	9304-9502	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9304-9703			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9704-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9304-9703				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9704-				●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9304-9703				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9704-				●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-729-0	04	1	9503-9703						●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-729-0	04	1	9704-						●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-730-0	04	1	9503-9703						●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-730-0	04	1	9704-						●
8	BOLT; BRG CAP M16X119	1-09000-469-1	10	1	9304-9502	●	●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9304-			●
23	CUP; SEALING,C/BL FRT & RR OD=28	5-11219-014-0	01	1	9304-9502	●	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	03	1	9304-			●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	8-97036-337-0	03	1	9304-9305			●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	03	1	9306-			●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	8-97036-339-0	02	1	9304-9305			●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	9306-			●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-0	03	1	9304-9305			●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9304-9305				●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9306-9502			●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9503-9703			●	●		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9704-9810			●	●	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9811-			●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	9304-9502				●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	9503-9703				●		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	9704-				●	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	9811-				●	●	●
25	METAL; CM/SHF FRONT	9-11691-048-0	01	1	9304-9502	●	●
25	METAL; CM/SHF CENTER&REAR	9-11693-035-0	02	1	9304-9502	●	●
25	METAL; CM/SHF CENTER&REAR	8-94427-201-2	02	1	9304-			●
25	METAL; CM/SHF FRONT	8-94427-206-2	01	1	9304-			●
40	CUP; SEALING,C/BL RR OD=67	8-94344-462-0	01	1	9304-9502	●	●
40	CUP; SEALING,C/BL RR OD=56	8-94250-514-0	01	1	9304-			●
54	STUD; OIL PAN TO BLOCK M8X41.5	5-11369-101-0	07	1	9304-9502	●	●
54	STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9304-9403			●
54	STUD; OIL PAN TO BLOCK	8-94133-974-2	08	1	9404-9410			●
54	STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9411-			●
54	STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	9304-9502				●
70	CUP; SEALING,FRT & RR OD=60	1-09600-052-0	02	1	9304-9502	●	●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	9304-			●
70	CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9304-9502				●
70	CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9503-9703				●		●
70	CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9704-9810				●	●	●
70	CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	9811-				●	●	●
80	CUP; SEALING,TAPPET CHAMBER OD=32	1-09600-012-1	02	1	9304-9502	●	●
130	DOWEL; BRG CAP	5-11257-001-1	01	1	9304-9502	●	●
133	STUD; BED PLATE	9-04100-840-0	04	1	9304-9502	●	●

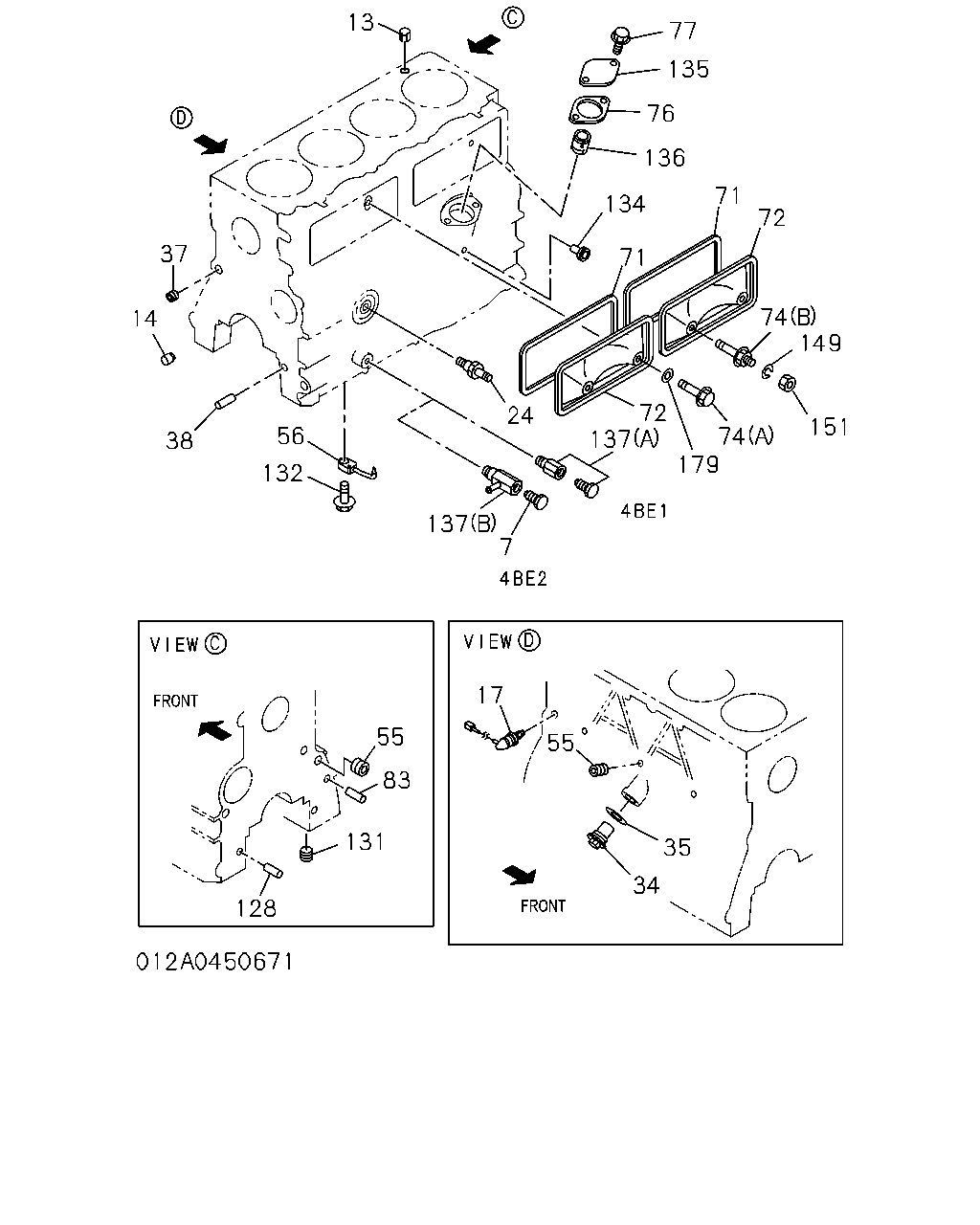

13 77 135 76 136 134 71 72 71 74 149 151 74 137 72 179 137 7 132 56 38 14 37 55 83 131 128 17 55 35 34 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	PLUG; WATER DRAIN	9-09809-098-0	01	1	9304-9502		●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9503-			●
7	PLUG; WATER DRAIN M10X7	9-09861-010-0	01	1	9401-9502				●
7	PLUG; WATER DRAIN M10X7	9-09861-010-0	01	1	9503-9703				●		●
7	PLUG; WATER DRAIN M10X7	9-09861-010-0	01	1	9704-				●	●	●
13	DOWEL; C/BL TO HD OD=16	8-94148-079-0	02	1	9304-9502	●	●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9304-			●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9304-9502				●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9503-9703				●		●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9704-				●	●	●
14	DOWEL; TIMING GEAR CASE TO C/BL OD=11 L=8	9-11229-058-1	01	1	9304-9502	●	●
17	SWITCH; OIL PRESSURE	8-97078-086-0	01	1	9304-9502	●	●
17	SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9304-9502			●	●
17	SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9503-9703			●	●		●
17	SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9704-			●
17	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9704-				●	●	●
24	NIPPLE; OIL FEED,VAC PUMP	8-94107-560-0	01	1	9304-9502	●	●
24	NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	9304-			●
34	VALVE; OIL RELIEF	8-97023-339-0	01	1	9304-9502	●	●
34	VALVE; OIL RELIEF	8-94386-047-1	01	1	9304-9502				●
34	VALVE; OIL RELIEF	8-94386-047-1	01	1	9503-9703				●		●
34	VALVE; OIL RELIEF	8-94386-047-1	01	1	9704-				●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9304-9502	●	●
37	PLUG; OIL GALLERY	8-97025-440-0	02	1	9304-9502	●	●
38	PIN; TIMING GEAR CASE OD=10 L=50	9-08151-050-0	01	1	9304-9502	●	●
55	PLUG; OIL GALLERY PT1/8	1-09605-050-0	06	1	9304-9502	●
55	PLUG; OIL GALLERY PT1/8	1-09605-050-0	07	1	9304-9502		●
56	JET; OIL,PISTON COOLING	8-94341-897-0	04	1	9304-9502		●
56	JET; OIL,PISTON COOLING	8-94370-579-0	04	1	9304-9502				●
56	JET; OIL,PISTON COOLING	8-94370-579-0	04	1	9503-9703				●		●
56	JET; OIL,PISTON COOLING	8-94370-579-0	04	1	9704-				●	●	●
71	GASKET; COVER TO C/BL	8-94367-368-0	02	1	9304-9502	●	●
72	COVER; TAPPET CHAMBER	8-97028-525-0	02	1	9304-9502	●	●
74	BOLT; COVER TO C/BL (A) M8X56 FLANGE	8-94367-530-1	03	1	9304-9502	●	●
74	BOLT; COVER TO C/BL (B) M8X56	8-94367-531-1	01	1	9304-9502	●	●
76	GASKET; COVER TO C/BL	8-94370-668-0	01	1	9304-9502	●
76	GASKET; COVER TO C/BL	9-09565-348-0	01	1	9304-9502		●
77	BOLT; COVER TO C/BL M8X18 W/LK WASHER	0-50040-818-0	02	1	9304-9502	●
77	BOLT; COVER TO C/BL M8X20 W/LK WASHER	0-50040-820-0	02	1	9304-9502		●
83	PIN; FLYWHEEL HSG OD=10 L=18	9-08151-018-0	02	1	9304-9502	●	●
128	PIN; STRAIGHT,OIL SEAL RET OD=8 L=16	9-08150-816-0	02	1	9304-9502	●	●
131	PLUG; TAPER,C/BL PT3/8	9-99205-517-0	01	1	9304-9502	●	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9304-9502		●		●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9503-9703				●		●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9704-				●	●	●
134	PLUG; OIL PUMP	8-94105-114-2	01	1	9304-9502	●
135	COVER; OIL PUMP	8-94254-920-0	01	1	9304-9502	●
135	COVER; OIL PUMP	1-11219-129-1	01	1	9304-9502		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94105-115-1	01	1	9304-9502	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	9-11224-602-1	01	1	9304-9502		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-0	02	1	9401-				●	●	●
137	COCK; DRAIN,WATER (A)	1-09680-025-0	01	1	9304-9312	●			●
137	COCK; DRAIN,WATER (A)	1-09680-025-0	01	1	9401-9502	●
137	COCK; DRAIN,WATER (B) WO/PLUG	8-94461-953-1	01	1	9304-9502		●
149	WASHER; LK,CLIP,HARNESS ID=8.2	9-09150-508-0	01	1	9304-9502		●
151	NUT; CLIP HARNESS M8 W/LK WASHER	8-94413-537-0	01	1	9304-9502	●
151	NUT; CLIP HARNESS M8	9-09110-508-0	01	1	9304-9502		●
179	GASKET; COVER TO BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=17	9-09572-008-0	04	1	9304-9502	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
