◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#166640) — 469 parça

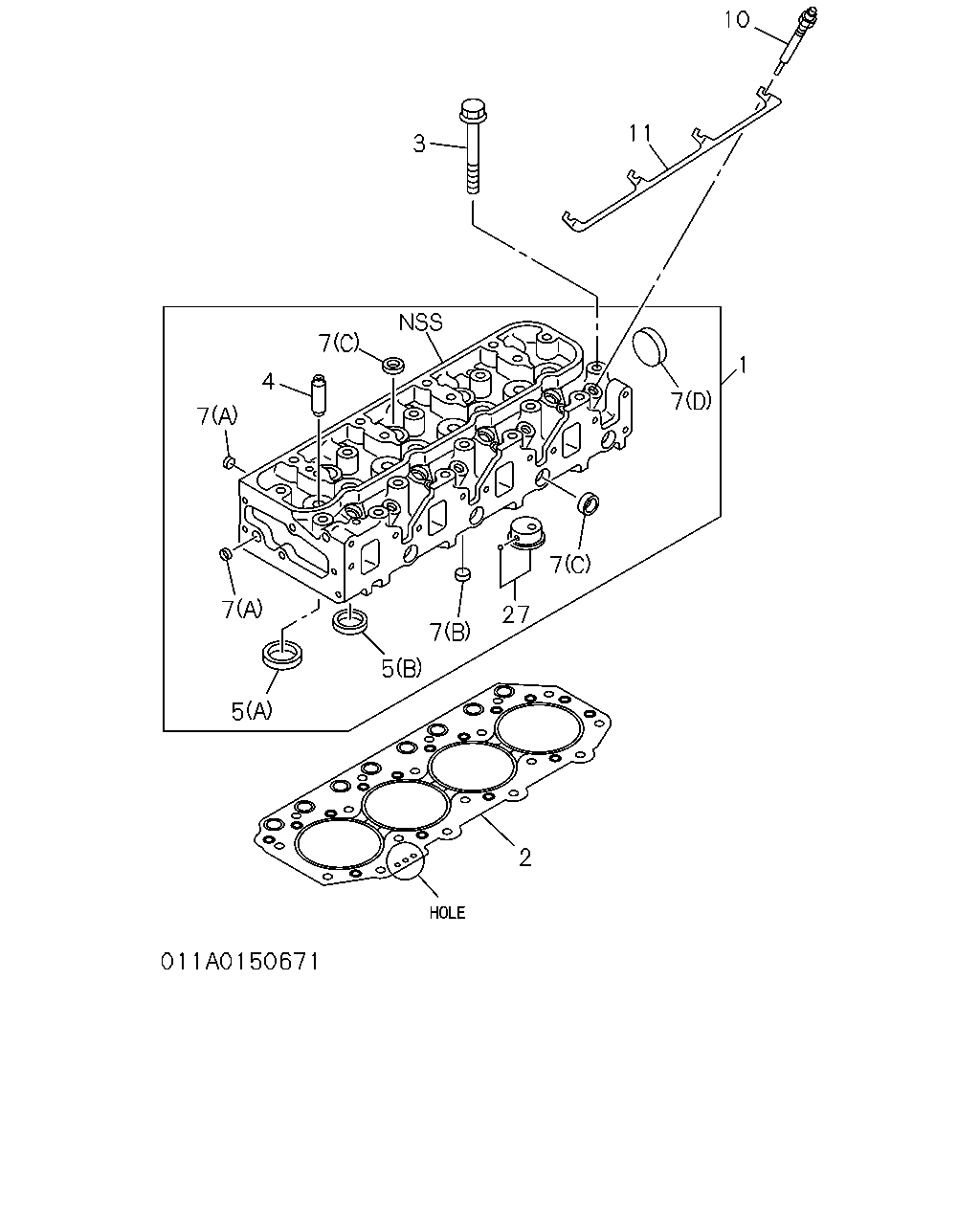

çizim 492600
10 11 3 1 7 7 27 7 5 5 7 7 4 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-94478-114-0 01 1 9304-9502 ●
1 HEAD ASM; CYL 8-94476-617-2 01 1 9304-9502 ●
1 HEAD ASM; CYL 8-97089-280-1 01 1 9304-9703 ●
1 HEAD ASM; CYL 8-97120-278-4 01 1 9704- ●
1 HEAD ASM; CYL 8-97033-149-2 01 1 9304-9412 ●
1 HEAD ASM; CYL 8-97126-145-0 01 1 9501-9502 ●
1 HEAD ASM; CYL 8-97095-664-7 01 1 9503-9604 ● ●
1 HEAD ASM; CYL 8-97146-520-0 01 1 9605-9703 ● ●
1 HEAD ASM; CYL 8-97146-520-2 01 1 9704- ● ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.95 1-NOTCH 		8-94418-919-0 01 1 9304-9502 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97062-612-2 01 1 9503-9510 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97134-954-0 01 1 9511-9702 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97144-984-0 01 1 9703- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=2.00 2-NOTCH 		8-94418-920-0 01 1 9304-9502 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97062-613-2 01 1 9503-9510 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97134-955-0 01 1 9511-9702 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97144-985-0 01 1 9703- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=2.05 3-NOTCH 		8-94418-921-0 01 1 9304-9502 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97062-614-2 01 1 9503-9510 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97134-956-0 01 1 9511-9702 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97144-986-0 01 1 9703- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94476-631-1 01 1 9304-9502 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-HOLE 		8-97066-196-0 01 1 9304- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-HOLE 		8-97066-197-0 01 1 9304- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-HOLE 		8-97066-198-0 01 1 9304- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=2.05 WO/NOTCH 		8-97048-347-0 01 1 9304-9312 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97107-566-0 01 1 9401-9409 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9410-9703 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9704- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=2.10 1-NOTCH 		8-97048-348-0 01 1 9304-9312 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97107-567-0 01 1 9401-9409 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9410-9703 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9704- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=2.15 2-NOTCH 		8-97048-349-0 01 1 9304-9312 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97107-568-0 01 1 9401-9409 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9410-9703 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9704- ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X25,M12X115 L=153 		8-94367-436-0 01 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(D) M8X25 M14X115 L=155 		8-97087-660-0 01 1 9503-9703 ● ●
3 BOLT; CYL HD TO BLOCK
(D) M8X25 M14X115 L=155 		8-97087-660-0 01 1 9704- ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X102 		8-94367-437-0 04 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(B) M12X115 		8-94367-438-0 13 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(B) M12X115 		8-94367-438-0 18 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9304-9701 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9702- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9503-9703 ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9704- ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9503-9703 ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9704- ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 17 1 9503-9703 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 17 1 9704- ● ● ●
4 GUIDE; VLV 5-11721-001-0 08 1 9304-9502 ● ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9304- ●
4 GUIDE; VLV 8-94396-598-0 08 1 9304-9502 ●
4 GUIDE; VLV 8-94396-598-0 08 1 9503-9703 ● ●
4 GUIDE; VLV 8-94396-598-0 08 1 9704- ● ● ●
5 SEAT; VLV INSERT
(A) INLET 		1-11715-034-0 04 1 9304-9502 ●
5 SEAT; VLV INSERT
(B) EXHAUST 		5-11711-028-0 04 1 9304-9502 ●
5 SEAT; VLV INSERT
(B) EXHAUST 		5-11711-021-0 04 1 9304-9502 ●
5 SEAT; VLV INSERT
(A) INLET 		5-11715-018-0 04 1 9304-9502 ●
5 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9304- ●
5 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9304- ●
5 SEAT; VLV INSERT
(A) INLET 		8-94399-148-0 04 1 9304-9412 ●
5 SEAT; VLV INSERT
(A) INLET 		8-97088-460-0 04 1 9501-9502 ●
5 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 9503-9703 ● ●
5 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 9704- ● ● ●
5 SEAT; VLV INSERT
(B) EXHAUST 		8-94399-153-0 04 1 9304-9412 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 9501-9502 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 9503-9703 ● ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 9704- ● ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=25 		1-09600-016-0 07 1 9304-9502 ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 9503-9703 ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 9704- ● ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=20 		9-11129-128-0 02 1 9304-9502 ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9304-9305 ● ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9306-9502 ● ● ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9503- ●
7 CUP; SEALING,CYL HEAD
(E) OD=32 		5-11219-015-0 02 1 9304-9502 ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9304-9502 ● ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9503-9703 ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9704-9810 ● ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 9811- ● ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=25 		1-09600-016-0 10 1 9304-9502 ●
7 CUP; SEALING,CYL HEAD
(B) OD=20 		9-11129-128-0 03 1 9304-9502 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12 		8-97036-335-0 05 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9306- ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		8-97036-336-0 03 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 9306- ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97036-338-0 06 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9306-9901 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 9902- ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97036-550-0 01 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		1-09600-012-1 12 1 9304-9502 ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		1-09600-012-1 12 1 9503-9703 ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		1-09600-012-1 12 1 9704-9810 ● ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 9811- ● ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 9304-9502 ●
10 PLUG; GLOW 8-94135-377-4 04 1 9304-9502 ● ●
10 PLUG; GLOW 8-94135-377-4 04 1 9503-9703 ● ●
10 PLUG; GLOW 8-94135-377-4 04 1 9704-9810 ● ● ●
10 PLUG; GLOW
BOSCH 		1-82513-044-0 04 1 9811- ● ● ●
10 PLUG; GLOW 8-94380-645-1 04 1 9304-9502 ●
10 PLUG; GLOW
NGK 		8-97043-744-1 04 1 9304- ●
10 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9304-9502 ●
10 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9503-9703 ● ●
10 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9704- ● ● ●
11 CONNECTOR; GLOW PLUG 5-19732-002-0 01 1 9304-9502 ●
11 CONNECTOR; GLOW PLUG 5-19730-011-0 01 1 9304-9502 ●
11 CONNECTOR; GLOW PLUG 8-94368-252-0 01 1 9304-9602 ●
11 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9603- ●
11 CONNECTOR; GLOW PLUG 8-94399-608-2 01 1 9304-9502 ●
11 CONNECTOR; GLOW PLUG 8-94399-608-2 01 1 9503-9508 ● ●
11 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9509-9703 ● ●
11 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9704- ● ● ●
27 PLUG; HOT 8-97120-280-0 04 1 9811- ●
27 PLUG; HOT 8-94476-619-0 04 1 9304-9502 ●
27 PLUG; HOT 8-97089-278-0 04 1 9304-9703 ●
27 PLUG; HOT 8-97120-280-0 04 1 9704-9810 ●

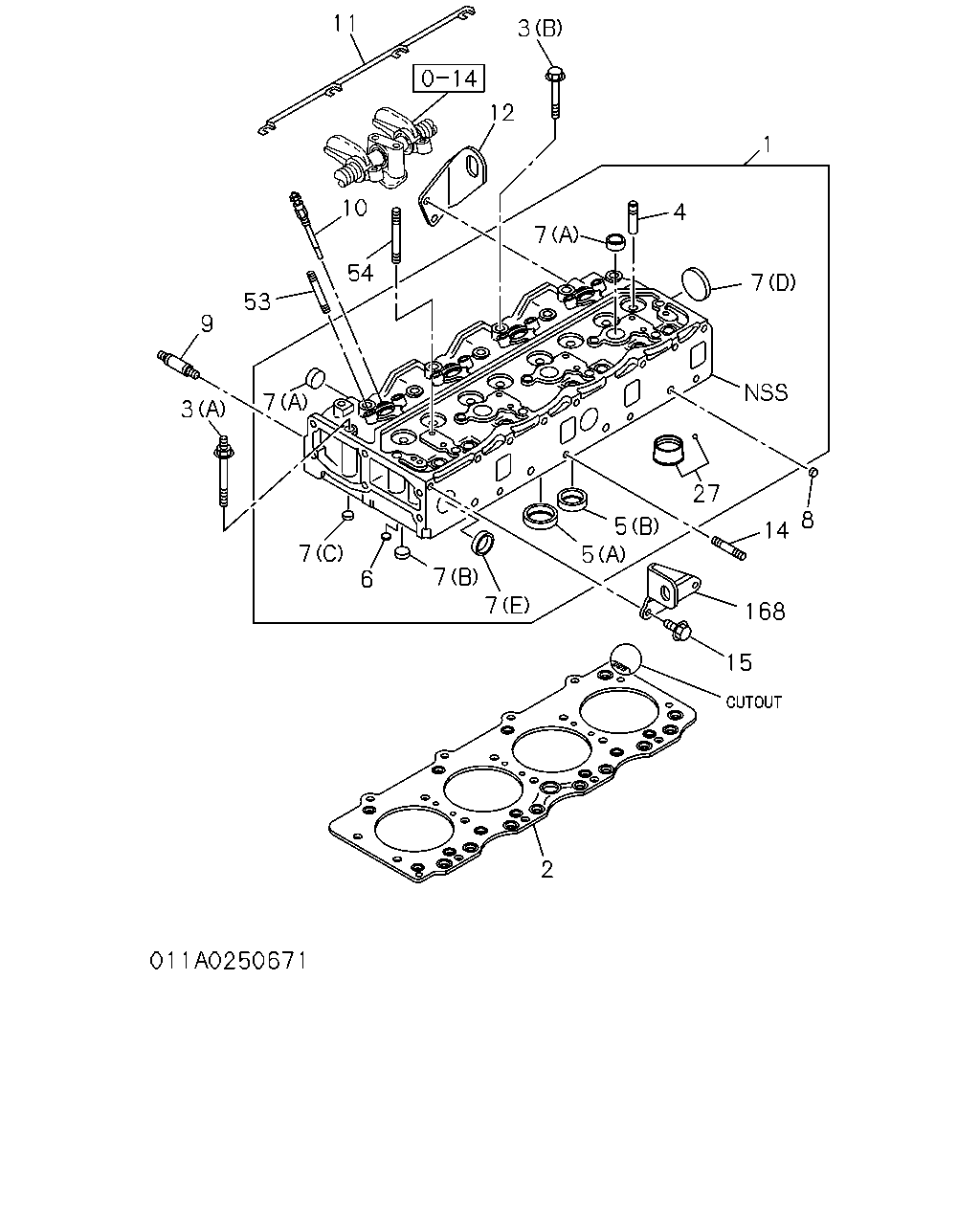

çizim 492602
11 3 12 10 54 53 9 3 7 7 6 7 7 5 5 27 7 4 7 1 14 8 168 15 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-94478-114-0 01 1 9304-9502 ●
1 HEAD ASM; CYL 8-94476-617-2 01 1 9304-9502 ●
1 HEAD ASM; CYL 8-97089-280-1 01 1 9304-9703 ●
1 HEAD ASM; CYL 8-97120-278-4 01 1 9704- ●
1 HEAD ASM; CYL 8-97033-149-2 01 1 9304-9412 ●
1 HEAD ASM; CYL 8-97126-145-0 01 1 9501-9502 ●
1 HEAD ASM; CYL 8-97095-664-7 01 1 9503-9604 ● ●
1 HEAD ASM; CYL 8-97146-520-0 01 1 9605-9703 ● ●
1 HEAD ASM; CYL 8-97146-520-2 01 1 9704- ● ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.95 1-NOTCH 		8-94418-919-0 01 1 9304-9502 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97062-612-2 01 1 9503-9510 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97134-954-0 01 1 9511-9702 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97144-984-0 01 1 9703- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=2.00 2-NOTCH 		8-94418-920-0 01 1 9304-9502 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97062-613-2 01 1 9503-9510 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97134-955-0 01 1 9511-9702 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97144-985-0 01 1 9703- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=2.05 3-NOTCH 		8-94418-921-0 01 1 9304-9502 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97062-614-2 01 1 9503-9510 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97134-956-0 01 1 9511-9702 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97144-986-0 01 1 9703- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94476-631-1 01 1 9304-9502 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-HOLE 		8-97066-196-0 01 1 9304- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-HOLE 		8-97066-197-0 01 1 9304- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-HOLE 		8-97066-198-0 01 1 9304- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=2.05 WO/NOTCH 		8-97048-347-0 01 1 9304-9312 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97107-566-0 01 1 9401-9409 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9410-9703 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9704- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=2.10 1-NOTCH 		8-97048-348-0 01 1 9304-9312 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97107-567-0 01 1 9401-9409 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9410-9703 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9704- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=2.15 2-NOTCH 		8-97048-349-0 01 1 9304-9312 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97107-568-0 01 1 9401-9409 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9410-9703 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9704- ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X25,M12X115 L=153 		8-94367-436-0 01 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(D) M8X25 M14X115 L=155 		8-97087-660-0 01 1 9503-9703 ● ●
3 BOLT; CYL HD TO BLOCK
(D) M8X25 M14X115 L=155 		8-97087-660-0 01 1 9704- ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X102 		8-94367-437-0 04 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(B) M12X115 		8-94367-438-0 13 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(B) M12X115 		8-94367-438-0 18 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9304-9701 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9702- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9503-9703 ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9704- ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9503-9703 ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9704- ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 17 1 9503-9703 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 17 1 9704- ● ● ●
4 GUIDE; VLV 5-11721-001-0 08 1 9304-9502 ● ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9304- ●
4 GUIDE; VLV 8-94396-598-0 08 1 9304-9502 ●
4 GUIDE; VLV 8-94396-598-0 08 1 9503-9703 ● ●
4 GUIDE; VLV 8-94396-598-0 08 1 9704- ● ● ●
5 SEAT; VLV INSERT
(A) INLET 		1-11715-034-0 04 1 9304-9502 ●
5 SEAT; VLV INSERT
(B) EXHAUST 		5-11711-028-0 04 1 9304-9502 ●
5 SEAT; VLV INSERT
(B) EXHAUST 		5-11711-021-0 04 1 9304-9502 ●
5 SEAT; VLV INSERT
(A) INLET 		5-11715-018-0 04 1 9304-9502 ●
5 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9304- ●
5 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9304- ●
5 SEAT; VLV INSERT
(A) INLET 		8-94399-148-0 04 1 9304-9412 ●
5 SEAT; VLV INSERT
(A) INLET 		8-97088-460-0 04 1 9501-9502 ●
5 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 9503-9703 ● ●
5 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 9704- ● ● ●
5 SEAT; VLV INSERT
(B) EXHAUST 		8-94399-153-0 04 1 9304-9412 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 9501-9502 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 9503-9703 ● ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 9704- ● ● ●
6 PLUG; PLATE
OD=11.9 		9-09660-034-0 04 1 9304-9502 ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=25 		1-09600-016-0 07 1 9304-9502 ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 9503-9703 ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 9704- ● ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=20 		9-11129-128-0 02 1 9304-9502 ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9304-9305 ● ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9306-9502 ● ● ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9503- ●
7 CUP; SEALING,CYL HEAD
(E) OD=32 		5-11219-015-0 02 1 9304-9502 ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9304-9502 ● ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9503-9703 ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9704-9810 ● ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 9811- ● ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=25 		1-09600-016-0 10 1 9304-9502 ●
7 CUP; SEALING,CYL HEAD
(B) OD=20 		9-11129-128-0 03 1 9304-9502 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12 		8-97036-335-0 05 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9306- ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		8-97036-336-0 03 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 9306- ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97036-338-0 06 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9306-9901 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 9902- ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97036-550-0 01 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		1-09600-012-1 12 1 9304-9502 ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		1-09600-012-1 12 1 9503-9703 ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		1-09600-012-1 12 1 9704-9810 ● ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 9811- ● ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 9304-9502 ●
8 CUP; SEALING,WATER JACKET
OD=12.5 		9-11129-601-0 04 1 9304-9502 ● ●
9 STUD; INL MANIF
M8X62 		5-14129-005-2 08 1 9304-9502 ●
9 STUD; INL MANIF
M8X25 L=37 		9-04110-825-0 02 1 9304-9502 ●
10 PLUG; GLOW 8-94135-377-4 04 1 9304-9502 ● ●
10 PLUG; GLOW 8-94135-377-4 04 1 9503-9703 ● ●
10 PLUG; GLOW 8-94135-377-4 04 1 9704-9810 ● ● ●
10 PLUG; GLOW
BOSCH 		1-82513-044-0 04 1 9811- ● ● ●
10 PLUG; GLOW 8-94380-645-1 04 1 9304-9502 ●
10 PLUG; GLOW
NGK 		8-97043-744-1 04 1 9304- ●
10 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9304-9502 ●
10 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9503-9703 ● ●
10 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9704- ● ● ●
11 CONNECTOR; GLOW PLUG 5-19732-002-0 01 1 9304-9502 ●
11 CONNECTOR; GLOW PLUG 5-19730-011-0 01 1 9304-9502 ●
11 CONNECTOR; GLOW PLUG 8-94368-252-0 01 1 9304-9602 ●
11 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9603- ●
11 CONNECTOR; GLOW PLUG 8-94399-608-2 01 1 9304-9502 ●
11 CONNECTOR; GLOW PLUG 8-94399-608-2 01 1 9503-9508 ● ●
11 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9509-9703 ● ●
11 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9704- ● ● ●

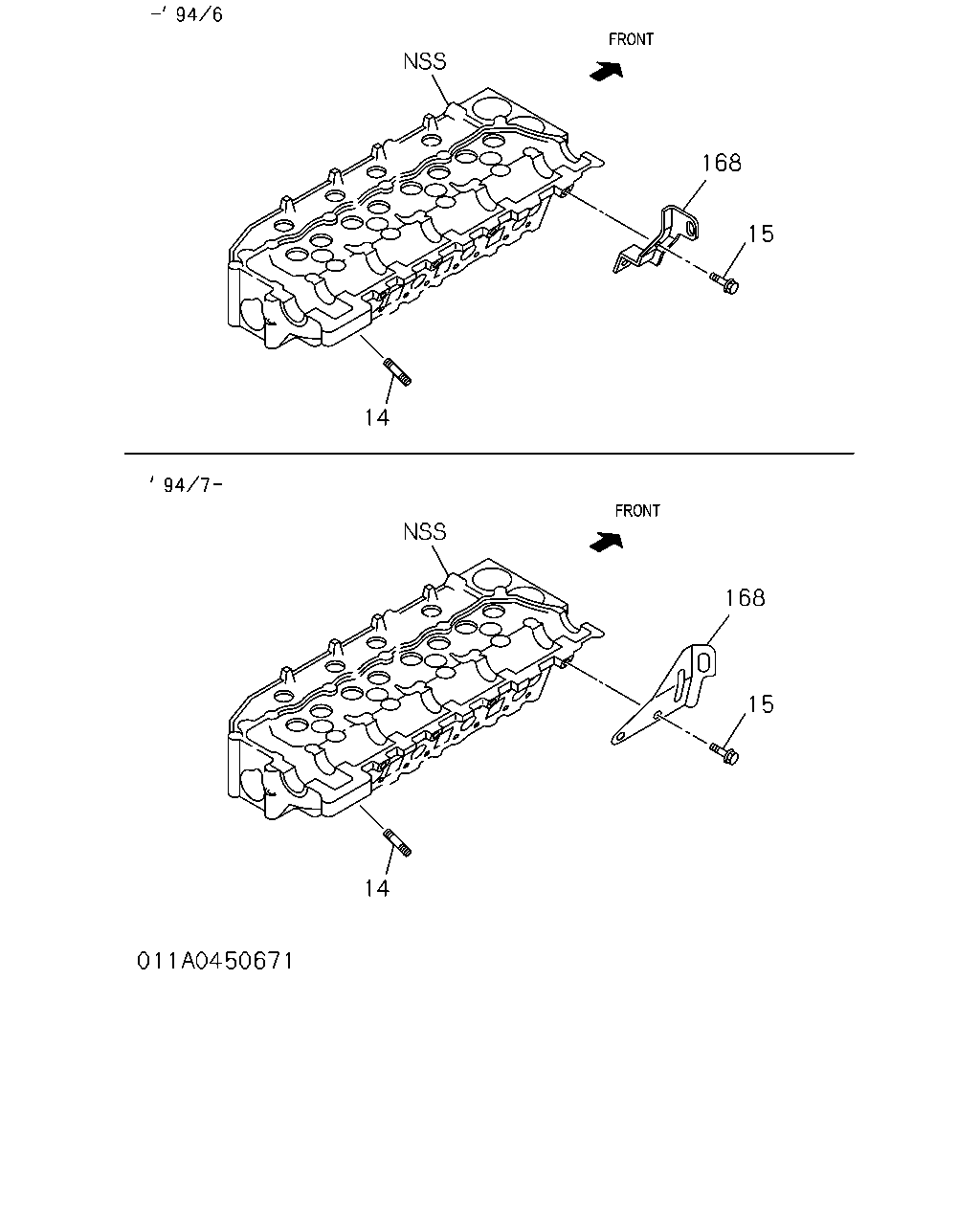

12 HANGER; ENG,RR 8-94255-644-1 01 1 9304-9502 ● ●
12 HANGER; ENG,RR 8-97071-960-0 01 1 9304-9502 ●
12 HANGER; ENG,RR 8-97113-021-0 01 1 9503-9703 ● ●
12 HANGER; ENG,RR 8-97113-021-0 01 1 9704- ● ● ●
14 STUD; EXH MANIF
M8X85 L=100 		9-09830-177-0 04 1 9304-9502 ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 04 1 9304-9405 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9406-9502 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9503-9703 ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9704- ● ● ●
15 BOLT; HANGER,FRT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) M10X25 W/LK&PL WASHER 		0-50141-025-0 02 1 9304-9502 ●
15 BOLT; HANGER,FRT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X25 W/LK&PL WASHER 		0-50141-025-0 02 1 9304-9502 ●
15 BOLT; HANGER,FRT
REFRIGERATOR CHASSIS(V4R) M10X20 W/LK WASHER 		0-50041-020-0 02 1 9304-9502 ●
15 BOLT; HANGER,FRT
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),REFRIGERATOR CHASSIS(V4R) M10X20 W/LK WASHER 		0-50041-020-0 02 1 9304-9502 ●
15 BOLT; HANGER,FRT
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X20 W/LK WASHER 		0-50041-020-0 02 1 9304-9502 ●
15 BOLT; HANGER,FRT
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),REFRIGERATOR CHASSIS(V4R) M10X18 FLANGE 		0-28181-018-0 02 1 9304-9402 ●
15 BOLT; HANGER,FRT
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),REFRIGERATOR CHASSIS(V4R) M10X20 FLANGE 		0-28181-020-0 02 1 9403-9502 ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28181-020-0 02 1 9503-9606 ● ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28781-020-0 02 1 9607-9703 ● ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28781-020-0 02 1 9704- ● ● ●
27 PLUG; HOT 8-97120-280-0 04 1 9811- ●
27 PLUG; HOT 8-94476-619-0 04 1 9304-9502 ●
27 PLUG; HOT 8-97089-278-0 04 1 9304-9703 ●
27 PLUG; HOT 8-97120-280-0 04 1 9704-9810 ●
53 STUD; INJ NOZZLE
M8X66 L=90 		1-09300-014-0 08 1 9304-9502 ●
53 STUD; INJ NOZZLE
M8X45 L=57 		9-04110-845-0 04 1 9304-9502 ●
53 STUD; INJ NOZZLE
M8X75 L=87 		9-04110-875-0 04 1 9304-9502 ●
53 STUD; INJ NOZZLE
M8X68.5 L=90 		8-97014-415-1 08 1 9304-9502 ●
53 STUD; INJ NOZZLE
M8X68.5 L=90 		8-97014-415-1 08 1 9503-9703 ● ●
53 STUD; INJ NOZZLE
M8X68.5 L=90 		8-97014-415-1 08 1 9704-9705 ● ● ●
53 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 9706- ● ● ●
54 STUD; ROCKER ARM
M8X79 L=92 		5-09300-065-0 03 1 9304-9502 ● ●
168 HANGER; ENG,FRT
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97087-057-1 01 1 9304-9502 ●
168 HANGER; ENG,FRT 8-97087-057-1 01 1 9304-9502 ●
168 HANGER; ENG,FRT
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),REFRIGERATOR CHASSIS(V4R) 		8-94334-929-2 01 1 9304-9406 ●
168 HANGER; ENG,FRT 8-97104-515-1 01 1 9407-9502 ●
168 HANGER; ENG,FRT 8-97104-515-1 01 1 9503-9703 ● ●
168 HANGER; ENG,FRT 8-97104-515-1 01 1 9704- ● ● ●

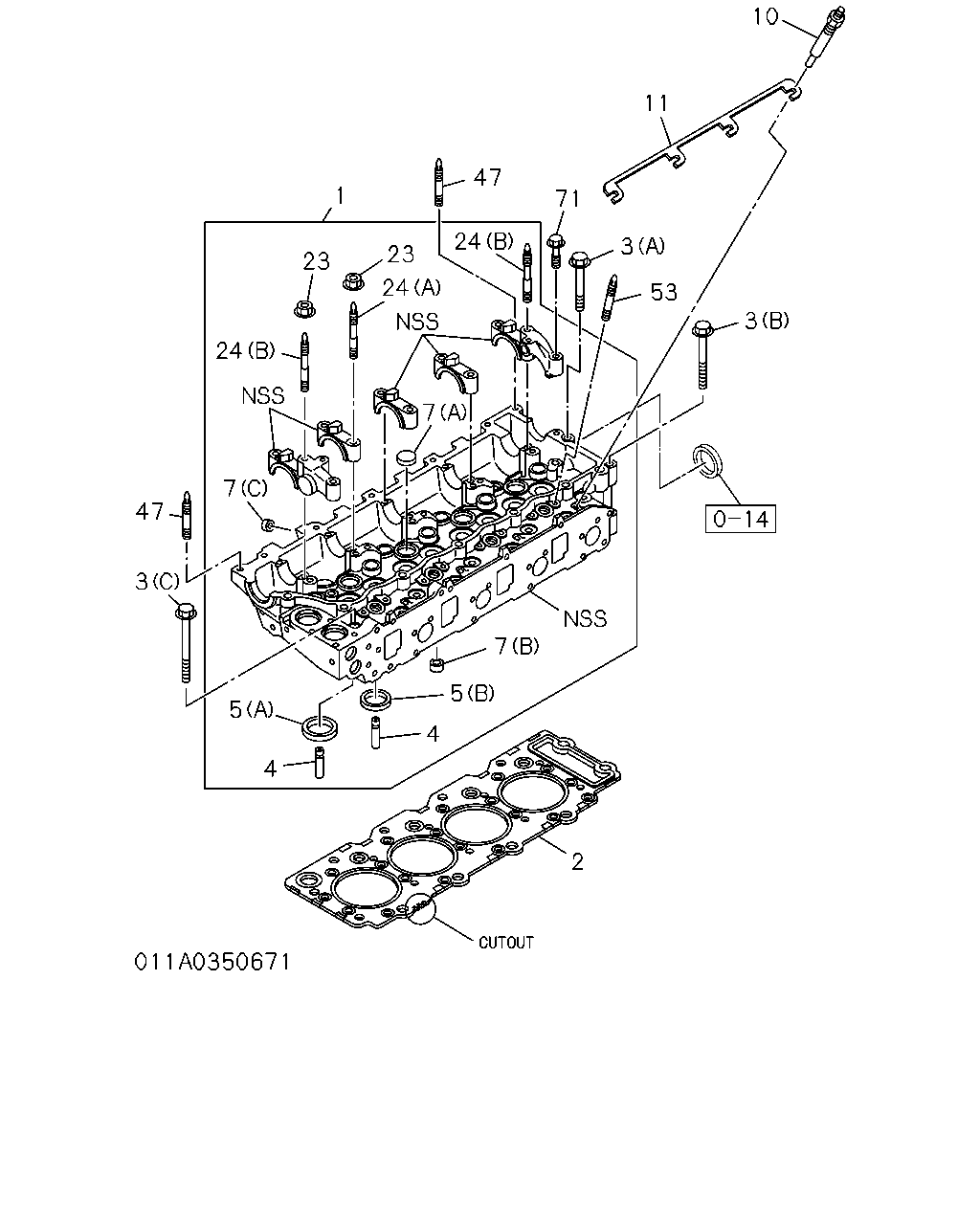

çizim 492604
10 11 71 47 1 23 24 3 53 3 24 23 24 7 47 3 4 5 4 7 5 2 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-94478-114-0 01 1 9304-9502 ●
1 HEAD ASM; CYL 8-94476-617-2 01 1 9304-9502 ●
1 HEAD ASM; CYL 8-97089-280-1 01 1 9304-9703 ●
1 HEAD ASM; CYL 8-97120-278-4 01 1 9704- ●
1 HEAD ASM; CYL 8-97033-149-2 01 1 9304-9412 ●
1 HEAD ASM; CYL 8-97126-145-0 01 1 9501-9502 ●
1 HEAD ASM; CYL 8-97095-664-7 01 1 9503-9604 ● ●
1 HEAD ASM; CYL 8-97146-520-0 01 1 9605-9703 ● ●
1 HEAD ASM; CYL 8-97146-520-2 01 1 9704- ● ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.95 1-NOTCH 		8-94418-919-0 01 1 9304-9502 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97062-612-2 01 1 9503-9510 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97134-954-0 01 1 9511-9702 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97144-984-0 01 1 9703- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=2.00 2-NOTCH 		8-94418-920-0 01 1 9304-9502 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97062-613-2 01 1 9503-9510 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97134-955-0 01 1 9511-9702 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97144-985-0 01 1 9703- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=2.05 3-NOTCH 		8-94418-921-0 01 1 9304-9502 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97062-614-2 01 1 9503-9510 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97134-956-0 01 1 9511-9702 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97144-986-0 01 1 9703- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94476-631-1 01 1 9304-9502 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-HOLE 		8-97066-196-0 01 1 9304- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-HOLE 		8-97066-197-0 01 1 9304- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-HOLE 		8-97066-198-0 01 1 9304- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=2.05 WO/NOTCH 		8-97048-347-0 01 1 9304-9312 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97107-566-0 01 1 9401-9409 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9410-9703 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9704- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=2.10 1-NOTCH 		8-97048-348-0 01 1 9304-9312 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97107-567-0 01 1 9401-9409 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9410-9703 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9704- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=2.15 2-NOTCH 		8-97048-349-0 01 1 9304-9312 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97107-568-0 01 1 9401-9409 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9410-9703 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9704- ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X25,M12X115 L=153 		8-94367-436-0 01 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(D) M8X25 M14X115 L=155 		8-97087-660-0 01 1 9503-9703 ● ●
3 BOLT; CYL HD TO BLOCK
(D) M8X25 M14X115 L=155 		8-97087-660-0 01 1 9704- ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X102 		8-94367-437-0 04 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(B) M12X115 		8-94367-438-0 13 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(B) M12X115 		8-94367-438-0 18 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9304-9701 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9702- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9503-9703 ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9704- ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9503-9703 ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9704- ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 17 1 9503-9703 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 17 1 9704- ● ● ●
4 GUIDE; VLV 5-11721-001-0 08 1 9304-9502 ● ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9304- ●
4 GUIDE; VLV 8-94396-598-0 08 1 9304-9502 ●
4 GUIDE; VLV 8-94396-598-0 08 1 9503-9703 ● ●
4 GUIDE; VLV 8-94396-598-0 08 1 9704- ● ● ●
5 SEAT; VLV INSERT
(A) INLET 		1-11715-034-0 04 1 9304-9502 ●
5 SEAT; VLV INSERT
(B) EXHAUST 		5-11711-028-0 04 1 9304-9502 ●
5 SEAT; VLV INSERT
(B) EXHAUST 		5-11711-021-0 04 1 9304-9502 ●
5 SEAT; VLV INSERT
(A) INLET 		5-11715-018-0 04 1 9304-9502 ●
5 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9304- ●
5 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9304- ●
5 SEAT; VLV INSERT
(A) INLET 		8-94399-148-0 04 1 9304-9412 ●
5 SEAT; VLV INSERT
(A) INLET 		8-97088-460-0 04 1 9501-9502 ●
5 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 9503-9703 ● ●
5 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 9704- ● ● ●
5 SEAT; VLV INSERT
(B) EXHAUST 		8-94399-153-0 04 1 9304-9412 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 9501-9502 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 9503-9703 ● ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 9704- ● ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=25 		1-09600-016-0 07 1 9304-9502 ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 9503-9703 ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 9704- ● ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=20 		9-11129-128-0 02 1 9304-9502 ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9304-9305 ● ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9306-9502 ● ● ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9503- ●
7 CUP; SEALING,CYL HEAD
(E) OD=32 		5-11219-015-0 02 1 9304-9502 ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9304-9502 ● ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9503-9703 ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9704-9810 ● ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 9811- ● ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=25 		1-09600-016-0 10 1 9304-9502 ●
7 CUP; SEALING,CYL HEAD
(B) OD=20 		9-11129-128-0 03 1 9304-9502 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12 		8-97036-335-0 05 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9306- ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		8-97036-336-0 03 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 9306- ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97036-338-0 06 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9306-9901 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 9902- ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97036-550-0 01 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		1-09600-012-1 12 1 9304-9502 ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		1-09600-012-1 12 1 9503-9703 ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		1-09600-012-1 12 1 9704-9810 ● ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 9811- ● ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 9304-9502 ●
10 PLUG; GLOW 8-94135-377-4 04 1 9304-9502 ● ●
10 PLUG; GLOW 8-94135-377-4 04 1 9503-9703 ● ●
10 PLUG; GLOW 8-94135-377-4 04 1 9704-9810 ● ● ●
10 PLUG; GLOW
BOSCH 		1-82513-044-0 04 1 9811- ● ● ●
10 PLUG; GLOW 8-94380-645-1 04 1 9304-9502 ●
10 PLUG; GLOW
NGK 		8-97043-744-1 04 1 9304- ●
10 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9304-9502 ●
10 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9503-9703 ● ●
10 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9704- ● ● ●
11 CONNECTOR; GLOW PLUG 5-19732-002-0 01 1 9304-9502 ●
11 CONNECTOR; GLOW PLUG 5-19730-011-0 01 1 9304-9502 ●
11 CONNECTOR; GLOW PLUG 8-94368-252-0 01 1 9304-9602 ●
11 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9603- ●
11 CONNECTOR; GLOW PLUG 8-94399-608-2 01 1 9304-9502 ●
11 CONNECTOR; GLOW PLUG 8-94399-608-2 01 1 9503-9508 ● ●
11 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9509-9703 ● ●
11 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9704- ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 10 1 9304-9502 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 10 1 9503-9703 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 10 1 9704- ● ● ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 9304-9502 ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 9503-9703 ● ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 9704- ● ● ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 9304-9502 ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 9503-9703 ● ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 9704- ● ● ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 9304-9502 ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 04 1 9503-9606 ● ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 9607-9703 ● ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 9704- ● ● ●
47 STUD; CYL HD
M8X65 L=76 		8-94321-032-0 02 1 9607-9608 ● ●
47 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 9609-9703 ● ●
47 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 9704- ● ● ●
53 STUD; INJ NOZZLE
M8X66 L=90 		1-09300-014-0 08 1 9304-9502 ●
53 STUD; INJ NOZZLE
M8X45 L=57 		9-04110-845-0 04 1 9304-9502 ●
53 STUD; INJ NOZZLE
M8X75 L=87 		9-04110-875-0 04 1 9304-9502 ●
53 STUD; INJ NOZZLE
M8X68.5 L=90 		8-97014-415-1 08 1 9304-9502 ●
53 STUD; INJ NOZZLE
M8X68.5 L=90 		8-97014-415-1 08 1 9503-9703 ● ●
53 STUD; INJ NOZZLE
M8X68.5 L=90 		8-97014-415-1 08 1 9704-9705 ● ● ●
53 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 9706- ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9304-9502 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9503-9703 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9704- ● ● ●
çizim 492610
67 12 41 3 12 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 BOLT; CYL HD TO BLOCK
(A) M10X25,M12X115 L=153 		8-94367-436-0 01 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(D) M8X25 M14X115 L=155 		8-97087-660-0 01 1 9503-9703 ● ●
3 BOLT; CYL HD TO BLOCK
(D) M8X25 M14X115 L=155 		8-97087-660-0 01 1 9704- ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X102 		8-94367-437-0 04 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(B) M12X115 		8-94367-438-0 13 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(B) M12X115 		8-94367-438-0 18 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9304-9701 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9702- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9503-9703 ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9704- ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9503-9703 ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9704- ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9304-9502 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 17 1 9503-9703 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 17 1 9704- ● ● ●
12 HANGER; ENG,RR 8-94255-644-1 01 1 9304-9502 ● ●
12 HANGER; ENG,RR 8-97071-960-0 01 1 9304-9502 ●
12 HANGER; ENG,RR 8-97113-021-0 01 1 9503-9703 ● ●
12 HANGER; ENG,RR 8-97113-021-0 01 1 9704- ● ● ●
41 BOLT; ENG HANGER
M12X28 FLANGE 		0-28181-228-0 02 1 9304-9502 ●
41 BOLT; ENG HANGER
M10X20 FLANGE 		0-28781-020-0 02 1 9503-9703 ● ●
41 BOLT; ENG HANGER
M10X20 FLANGE 		0-28781-020-0 02 1 9704- ● ● ●
67 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ●
67 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9704- ● ● ●
çizim 492611
168 15 14 15 168 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 STUD; EXH MANIF
M8X85 L=100 		9-09830-177-0 04 1 9304-9502 ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 04 1 9304-9405 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9406-9502 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9503-9703 ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9704- ● ● ●
15 BOLT; HANGER,FRT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) M10X25 W/LK&PL WASHER 		0-50141-025-0 02 1 9304-9502 ●
15 BOLT; HANGER,FRT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X25 W/LK&PL WASHER 		0-50141-025-0 02 1 9304-9502 ●
15 BOLT; HANGER,FRT
REFRIGERATOR CHASSIS(V4R) M10X20 W/LK WASHER 		0-50041-020-0 02 1 9304-9502 ●
15 BOLT; HANGER,FRT
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),REFRIGERATOR CHASSIS(V4R) M10X20 W/LK WASHER 		0-50041-020-0 02 1 9304-9502 ●
15 BOLT; HANGER,FRT
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X20 W/LK WASHER 		0-50041-020-0 02 1 9304-9502 ●
15 BOLT; HANGER,FRT
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),REFRIGERATOR CHASSIS(V4R) M10X18 FLANGE 		0-28181-018-0 02 1 9304-9402 ●
15 BOLT; HANGER,FRT
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),REFRIGERATOR CHASSIS(V4R) M10X20 FLANGE 		0-28181-020-0 02 1 9403-9502 ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28181-020-0 02 1 9503-9606 ● ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28781-020-0 02 1 9607-9703 ● ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28781-020-0 02 1 9704- ● ● ●
168 HANGER; ENG,FRT
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97087-057-1 01 1 9304-9502 ●
168 HANGER; ENG,FRT 8-97087-057-1 01 1 9304-9502 ●
168 HANGER; ENG,FRT
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),REFRIGERATOR CHASSIS(V4R) 		8-94334-929-2 01 1 9304-9406 ●
168 HANGER; ENG,FRT 8-97104-515-1 01 1 9407-9502 ●
168 HANGER; ENG,FRT 8-97104-515-1 01 1 9503-9703 ● ●
168 HANGER; ENG,FRT 8-97104-515-1 01 1 9704- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
