9-01 — TOOLS (#166637) — 32 parça

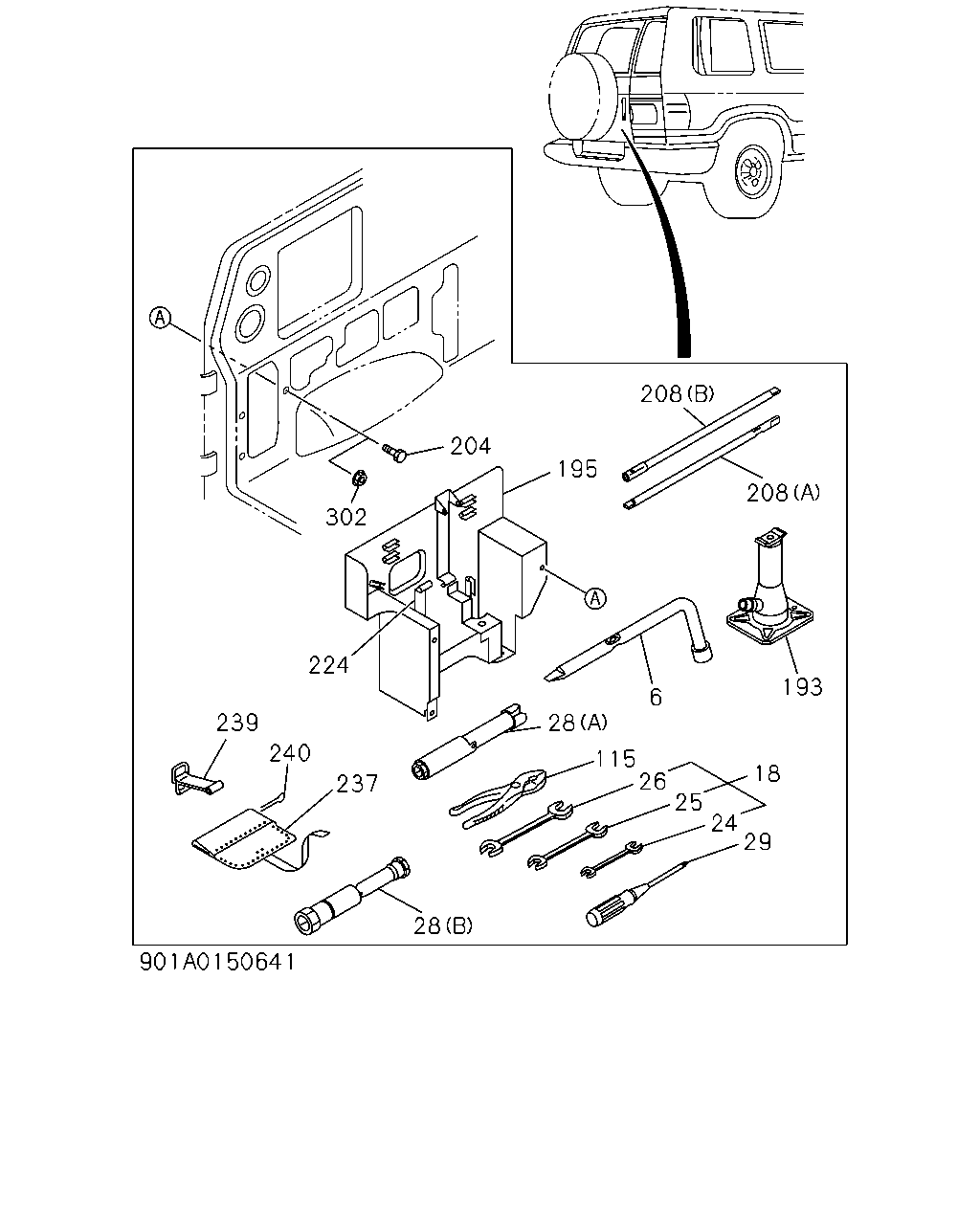

çizim 494471
208 195 208 204 302 224 240 239 237 28 28 115 6 193 18 26 25 24 29
BalonParca AdiParca NoAdetTipApplied Date A B
6 WRENCH; WHEEL 8-94367-941-0 01 1 9112- ● ●
18 WRENCH KIT 9-85161-902-0 01 1 9112-9504 ● ●
18 WRENCH KIT 8-97115-905-1 01 1 9505- ● ●
24 WRENCH; 8X10
8X10 		9-99592-108-0 01 1 9112- ● ●
25 WRENCH; 12X14
12X14 		9-09592-112-0 01 1 9112- ● ●
26 WRENCH; 22X17
22X17 		9-85162-101-0 01 1 9112- ● ●
28 WRENCH; SPARK PLUG
6VD1 DOHC ENG(RLV) (A) 		8-97031-340-2 01 1 9112-9211 ● ●
28 WRENCH; SPARK PLUG
6VD1 DOHC ENG(RLV) (B) 		8-97089-572-0 01 1 9212- ● ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9112- ● ●
115 PLIER 5-85171-002-0 01 1 9112- ● ●
193 JACK ASM 8-97039-016-0 01 1 9112-9301 ● ●
193 JACK ASM 8-97018-377-0 01 1 9302-9308 ● ●
193 JACK ASM 8-97039-016-2 01 1 9308-9502 ● ●
193 JACK ASM 8-97128-456-0 01 1 9503-9504 ● ●
193 JACK ASM 8-97132-736-0 01 1 9505-9606 ● ●
193 JACK ASM 8-97175-809-0 01 1 9607-9702 ● ●
193 JACK ASM
M/T MUA 5 SPEED(RMN),A/T THM(RMQ) 		8-97175-228-0 01 1 9703- ● ●
193 JACK ASM
A/T AISIN(RMD) 		8-97175-230-0 01 1 9703- ● ●
195 BRACKET; JACK 8-97035-075-0 01 1 9112-9211 ● ●
195 BRACKET; JACK 8-97087-790-0 01 1 9212-9307 ● ●
195 BRACKET; JACK 8-97091-565-6 01 1 9308- ● ●
204 BOLT; BRKT,JACK
M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9112-9204 ● ●
204 BOLT; BRKT,JACK
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9205-9307 ● ●
208 HANDLE; JACK
(A) 		8-94367-915-0 01 1 9112- ● ●
208 HANDLE; JACK
(B) 		8-94367-921-0 01 1 9112- ● ●
224 BAND; RUBBER,JACK
L=150 		9-68399-066-1 01 1 9112-9606 ● ●
237 BAG; TOOL 8-97019-769-0 01 1 9112-9309 ● ●
237 BAG; TOOL 8-97103-736-0 01 1 9310- ● ●
239 BAND; TOOL BAG
L=82 		9-68399-060-0 01 1 9112- ● ●
240 PIN; SPLIT,TOOL BAG BAND
D=2.5 L=43 		8-94335-692-2 02 1 9112-9606 ● ●
240 PIN; SPLIT,TOOL BAG BAND
D=2.5 L=43 		8-94335-692-2 01 1 9607- ● ●
302 NUT; JACK BRKT
M6 FLANGE 		0-91150-106-0 03 1 9308- ● ●
