8-90 — RADIO AND TV (#166636) — 112 parça

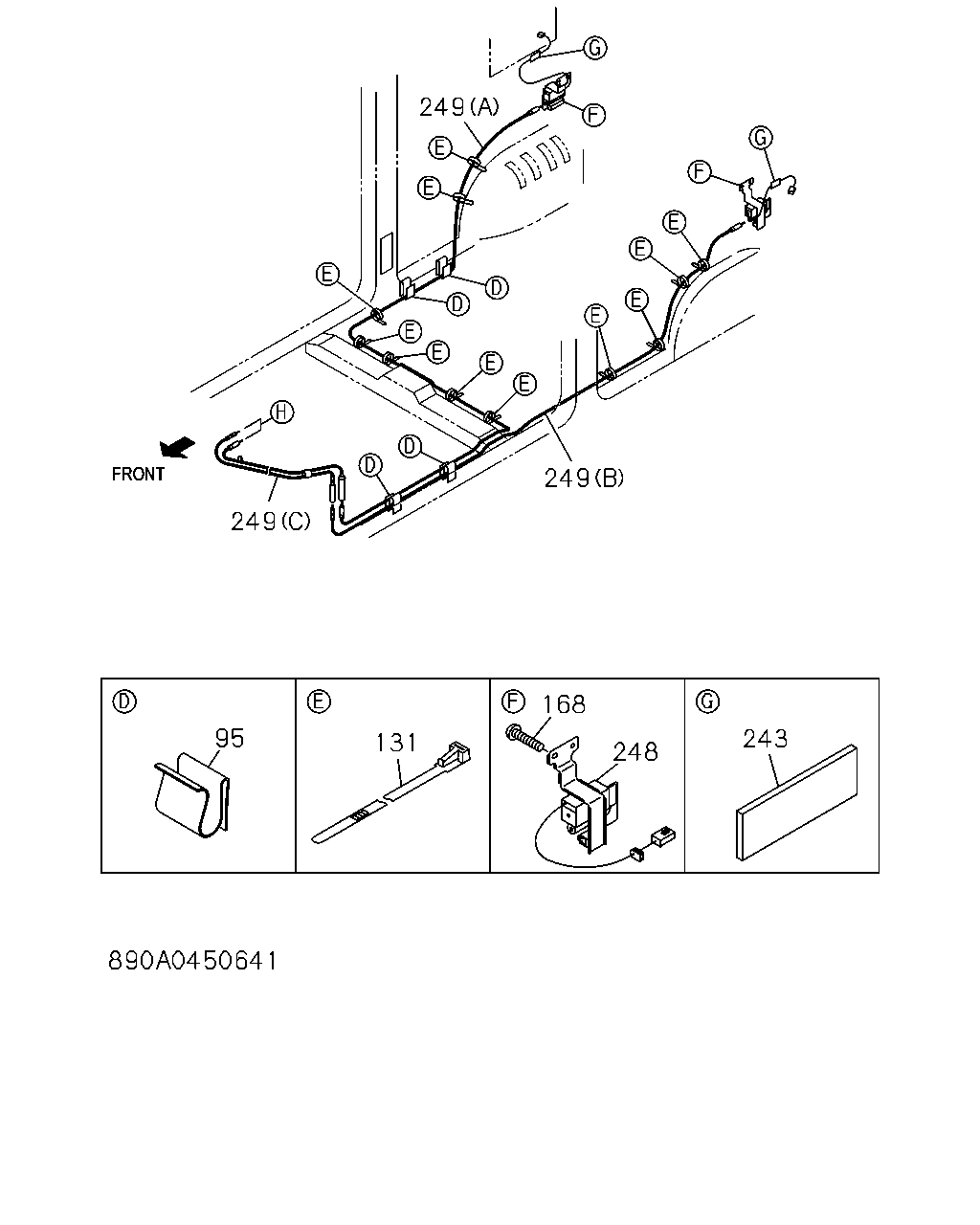

çizim 493557
249 249 249 243 248 168 131 95
BalonParca AdiParca NoAdetTipApplied Date A B
95 CLIP; FEEDER & HARNESS
DIVERSITY ANTENNA<7HE> B=8.4 H=16 CR-PLATED 		8-94116-002-3 01 1 9505-9506 ● ●
131 CLIP
DIVERSITY ANTENNA<7HE> L=140 		5-09707-031-0 10 1 9505-9602 ● ●
131 CLIP
DIVERSITY ANTENNA<7HE> L=140 		5-09707-031-0 09 1 9603-9709 ● ●
131 CLIP
DIVERSITY ANTENNA<7HE> L=100 		5-09707-036-0 09 1 9710- ● ●
131 CLIP
POWER ANTENNA<U75>,DIVERSITY ANTENNA<7HE> L=140 		5-09707-031-0 02 1 9505- ● ●
131 CLIP
DIVERSITY ANTENNA<7HE> L=140 		5-09707-031-0 01 1 9505-9602 ●
168 SCREW; BRKT
DIVERSITY ANTENNA<7HE> M5X16 TAPPING 		9-07076-516-0 04 1 9505- ● ●
243 TAPE; SOFT
DIVERSITY ANTENNA<7HE> 		8-94137-544-0 02 1 9505- ● ●
248 AMPLIFIER ASM
DIVERSITY ANTENNA<7HE> 		8-97119-896-2 01 1 9505-9506 ● ●
248 AMPLIFIER ASM
DIVERSITY ANTENNA<7HE> 		8-97134-178-1 01 1 9507- ●
248 AMPLIFIER ASM
DIVERSITY ANTENNA<7HE> 		8-97119-897-2 01 1 9505-9506 ● ●
248 AMPLIFIER ASM
DIVERSITY ANTENNA<7HE> 		8-97134-179-1 01 1 9507- ●
248 AMPLIFIER ASM
DIVERSITY ANTENNA<7HE> 		8-97133-970-0 01 1 9507- ●
248 AMPLIFIER ASM
DIVERSITY ANTENNA<7HE> 		8-97133-971-0 01 1 9507- ●
249 CABLE FEEDER
DIVERSITY ANTENNA<7HE> (A) 		8-97117-540-3 01 1 9505- ●
249 CABLE FEEDER
DIVERSITY ANTENNA<7HE> (B) 		8-97117-542-3 01 1 9505-9508 ●
249 CABLE FEEDER
DIVERSITY ANTENNA<7HE> (B) 		8-97134-908-0 01 1 9509-9605 ●
249 CABLE FEEDER
DIVERSITY ANTENNA<7HE> (B) 		8-97146-101-0 01 1 9606- ●
249 CABLE FEEDER
DIVERSITY ANTENNA<7HE> (C) 		8-97117-543-2 01 1 9505-9508 ● ●
249 CABLE FEEDER
DIVERSITY ANTENNA<7HE> (C) 		8-97134-906-0 01 1 9509-9605 ● ●
249 CABLE FEEDER
DIVERSITY ANTENNA<7HE> (C) 		8-97146-102-0 01 1 9606- ● ●
249 CABLE FEEDER
DIVERSITY ANTENNA<7HE> (A) 		8-97117-539-3 01 1 9505- ●
249 CABLE FEEDER
DIVERSITY ANTENNA<7HE> (B) 		8-97117-541-3 01 1 9505-9508 ●
249 CABLE FEEDER
DIVERSITY ANTENNA<7HE> (B) 		8-97134-907-0 01 1 9509-9605 ●
249 CABLE FEEDER
DIVERSITY ANTENNA<7HE> (B) 		8-97146-100-0 01 1 9606- ●

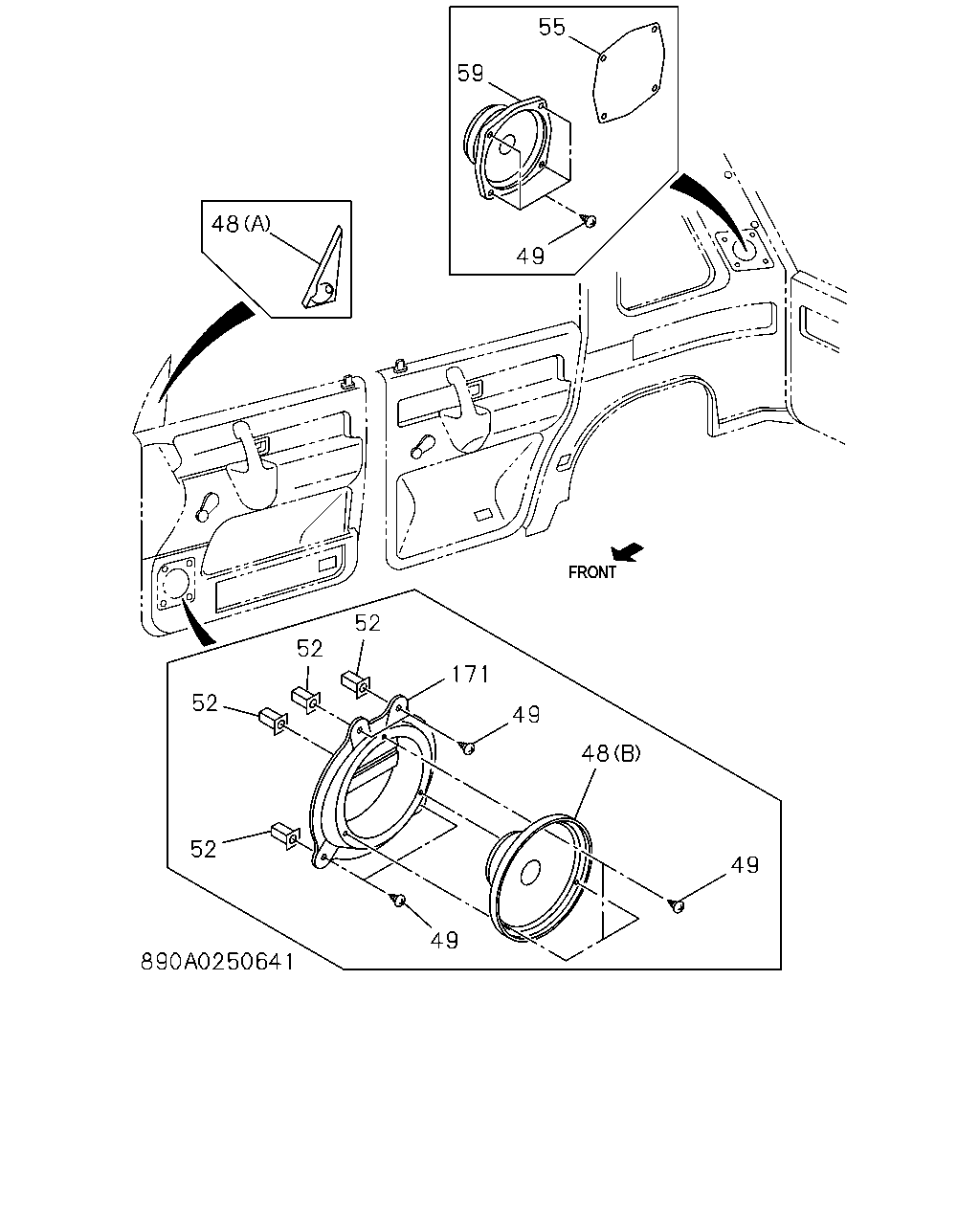

çizim 493601
55 59 49 48 171 52 52 52 52 49 49 48 49
BalonParca AdiParca NoAdetTipApplied Date A B
48 SPEAKER; AUDIO
AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) (B) 		8-94376-084-1 02 1 9112-9504 ● ●
48 SPEAKER; AUDIO
AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) (B) 		8-97109-483-0 02 1 9505-9508 ● ●
48 SPEAKER; AUDIO
AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) (B) 		8-97132-159-0 02 1 9509- ● ●
48 SPEAKER; AUDIO
AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) (A) 		8-97042-583-1 01 1 9112- ● ●
48 SPEAKER; AUDIO
AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) (A) 		8-97042-584-1 01 1 9112- ● ●
49 SCREW; SPEAKER
M5X16 TAPPING 		9-09829-323-1 22 1 9112-9209 ● ●
49 SCREW; SPEAKER
M5X16 TAPPING 		9-09829-323-1 16 1 9210-9305 ● ●
49 SCREW; SPEAKER
M5X16 TAPPING 		9-09829-323-1 14 1 9306- ● ●
49 SCREW; SPEAKER
AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) M5X16 TAPPING 		9-09829-323-1 06 1 9210-9504 ● ●
49 SCREW; SPEAKER
AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) M5X16 TAPPING 		9-09829-323-1 06 1 9505- ● ●
52 GROMMET; SCREW,SPEAKER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9112-9305 ● ●
52 GROMMET; SCREW,SPEAKER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 9306- ● ●
55 COVER; SPEAKER HOLE
EXC. AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 		8-94372-840-0 02 1 9112-9504 ● ●
55 COVER; SPEAKER HOLE
EXC. AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4), AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 		8-94372-840-0 02 1 9505- ● ●
59 SPEAKER; AUDIO
AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 		8-97033-278-1 02 1 9112-9504 ● ●
59 SPEAKER; AUDIO
AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 		8-97109-484-0 02 1 9505- ● ●
171 COVER; SPEAKER 8-94376-087-2 02 1 9112-9502 ● ●
171 COVER; SPEAKER 8-97130-328-0 02 1 9503- ● ●

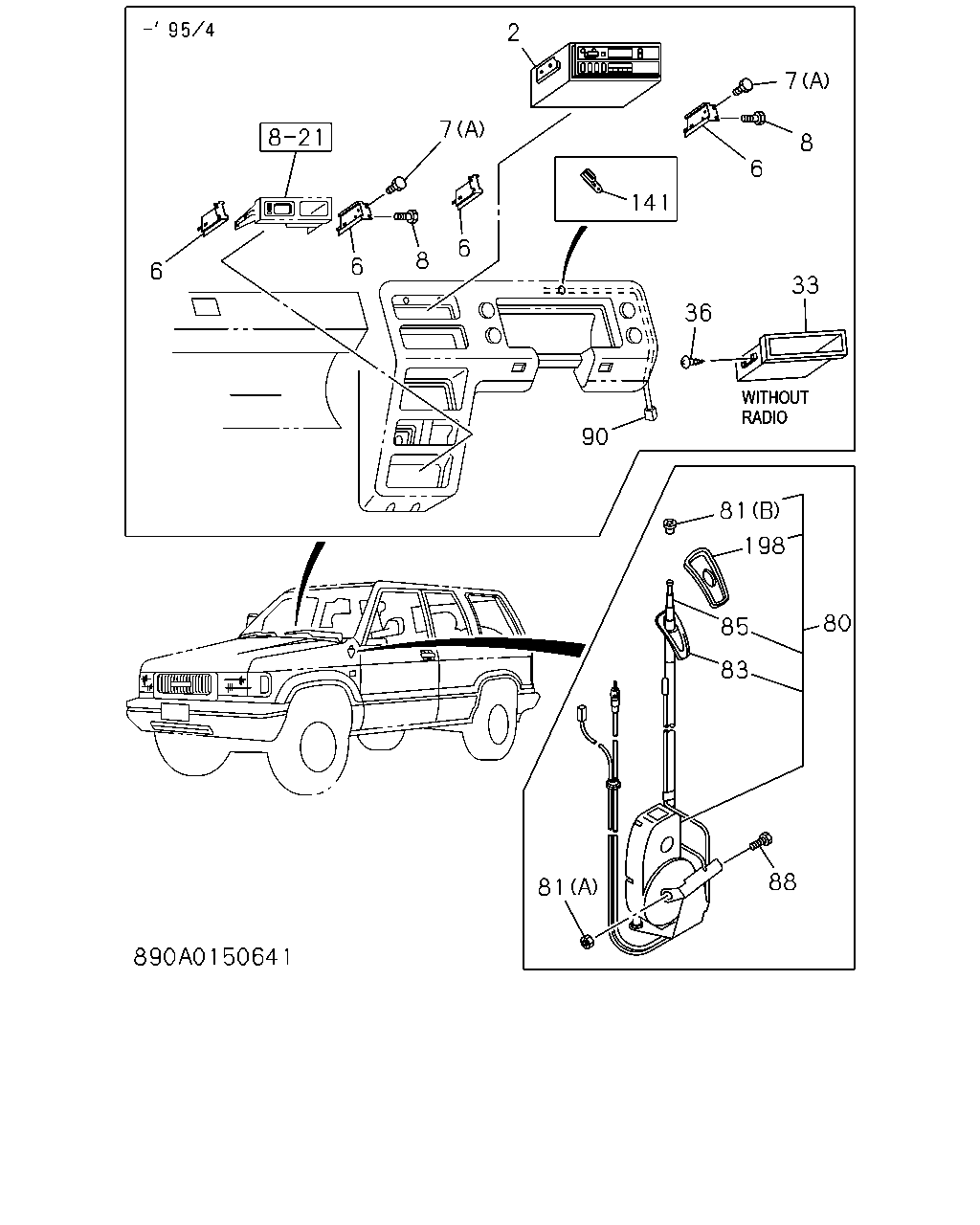

çizim 494451
2 7 6 8 6 6 6 141 8 7 33 36 90 81 198 80 85 83 88 81
BalonParca AdiParca NoAdetTipApplied Date A B
2 RADIO & CASSETTE DECK ASM
AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 		8-97018-458-0 01 1 9112-9308 ● ●
2 RADIO & CASSETTE DECK ASM
AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 		8-97018-458-0 01 1 9309-9504 ● ●
2 RADIO & CASSETTE DECK ASM
AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 		8-97109-482-0 01 1 9505- ● ●
6 BRACKET; RADIO TO PANEL 8-94359-616-3 02 1 9112-9504 ● ●
6 BRACKET; RADIO TO PANEL 8-97102-092-1 02 1 9505- ● ●
6 BRACKET; RADIO TO PANEL 8-94359-615-3 02 1 9112-9504 ● ●
6 BRACKET; RADIO TO PANEL 8-97085-169-1 02 1 9505- ● ●
7 SCREW; RADIO
(A) M5X16 TAPPING 		9-09829-323-1 08 1 9112-9504 ● ●
7 SCREW; RADIO
(A) M5X16 TAPPING 		9-09829-323-1 01 1 9505- ● ●
7 SCREW; RADIO
(A) M5X16 TAPPING 		9-09829-323-1 02 1 9505- ● ●
7 SCREW; RADIO
(A) M5X16 TAPPING 		9-09829-323-1 02 1 9505- ● ●
7 SCREW; RADIO
AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) (B) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9505- ● ●
8 BOLT; RADIO TO BRKT
AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) M5X8 		8-94182-728-0 04 1 9112-9504 ● ●
33 COVER; RADIO
EXC. AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 44X184 		8-94435-504-2 01 1 9112-9504 ● ●
33 COVER; RADIO
EXC. DIGITAL CLOCK<UE8> 44X184 		8-94435-504-2 01 1 9112-9504 ● ●
33 COVER; RADIO
EXC. AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4), AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 		8-97066-253-2 01 1 9505- ● ●
33 COVER; RADIO 8-97066-253-2 01 1 9505- ● ●
36 SCREW; COVER
M5X14 TAPPING 		9-09829-322-1 04 1 9112-9504 ● ●
36 SCREW; COVER
EXC. AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4), AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) M5X10 		8-94428-816-0 04 1 9505- ● ●
36 SCREW; COVER
M5X10 		8-94428-816-0 04 1 9505- ● ●
80 ANTENNA 8-97068-838-2 01 1 9112-9304 ● ●
80 ANTENNA 8-97092-571-1 01 1 9305-9411 ● ●
80 ANTENNA 8-97119-137-0 01 1 9412-9504 ● ●
80 ANTENNA
POWER ANTENNA<U75> 		8-97119-137-0 01 1 9505-9511 ● ●
80 ANTENNA
POWER ANTENNA<U75> 		8-97136-820-0 01 1 9511- ● ●
81 NUT; ANTENNA POLE
(A) 		8-94334-769-0 01 1 9112-9307 ● ●
81 NUT; ANTENNA POLE
(A) 		8-94334-769-0 01 1 9308-9504 ● ●
81 NUT; ANTENNA POLE
POWER ANTENNA<U75> (A) 		8-94334-769-0 01 1 9505- ● ●
81 NUT; ANTENNA POLE
(B) 		8-97072-733-0 01 1 9112-9504 ● ●
81 NUT; ANTENNA POLE
POWER ANTENNA<U75> (B) 		8-97072-733-0 01 1 9505- ● ●
83 GROMMET; BASE,ANTENNA POLE INNER 8-97072-729-0 01 1 9112-9504 ● ●
83 GROMMET; BASE,ANTENNA POLE INNER
POWER ANTENNA<U75> 		8-97072-729-0 01 1 9505- ● ●
85 POLE; ANTENNA 8-97072-735-0 01 1 9112-9301 ● ●
85 POLE; ANTENNA 8-97087-197-0 01 1 9302-9504 ● ●
85 POLE; ANTENNA
POWER ANTENNA<U75> 		8-97087-197-0 01 1 9505- ● ●
88 BOLT; ANTENNA EARTH
M6X14 		8-94153-946-0 01 1 9112-9209 ● ●
88 BOLT; ANTENNA EARTH
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9210-9504 ● ●
88 BOLT; ANTENNA EARTH
POWER ANTENNA<U75> M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9505- ● ●
88 BOLT; ANTENNA EARTH
M6X20 		8-97025-797-0 01 1 9112-9504 ● ●
88 BOLT; ANTENNA EARTH
POWER ANTENNA<U75> M6X20 		8-97025-797-0 01 1 9505- ● ●
90 CABLE; ANTENNA,FEEDER 8-97036-954-5 01 1 9112-9411 ● ●
90 CABLE; ANTENNA,FEEDER 8-97125-244-0 01 1 9412-9504 ● ●
90 CABLE; ANTENNA,FEEDER
POWER ANTENNA<U75> 		8-97126-797-2 01 1 9505- ● ●
141 CLIP; ANTENNA CABLE
L=80 		5-09700-307-1 03 1 9112-9504 ● ●
198 SHEET; ANTENNA 8-97072-732-0 01 1 9112-9504 ● ●
198 SHEET; ANTENNA
POWER ANTENNA<U75> 		8-97072-732-0 01 1 9505- ● ●

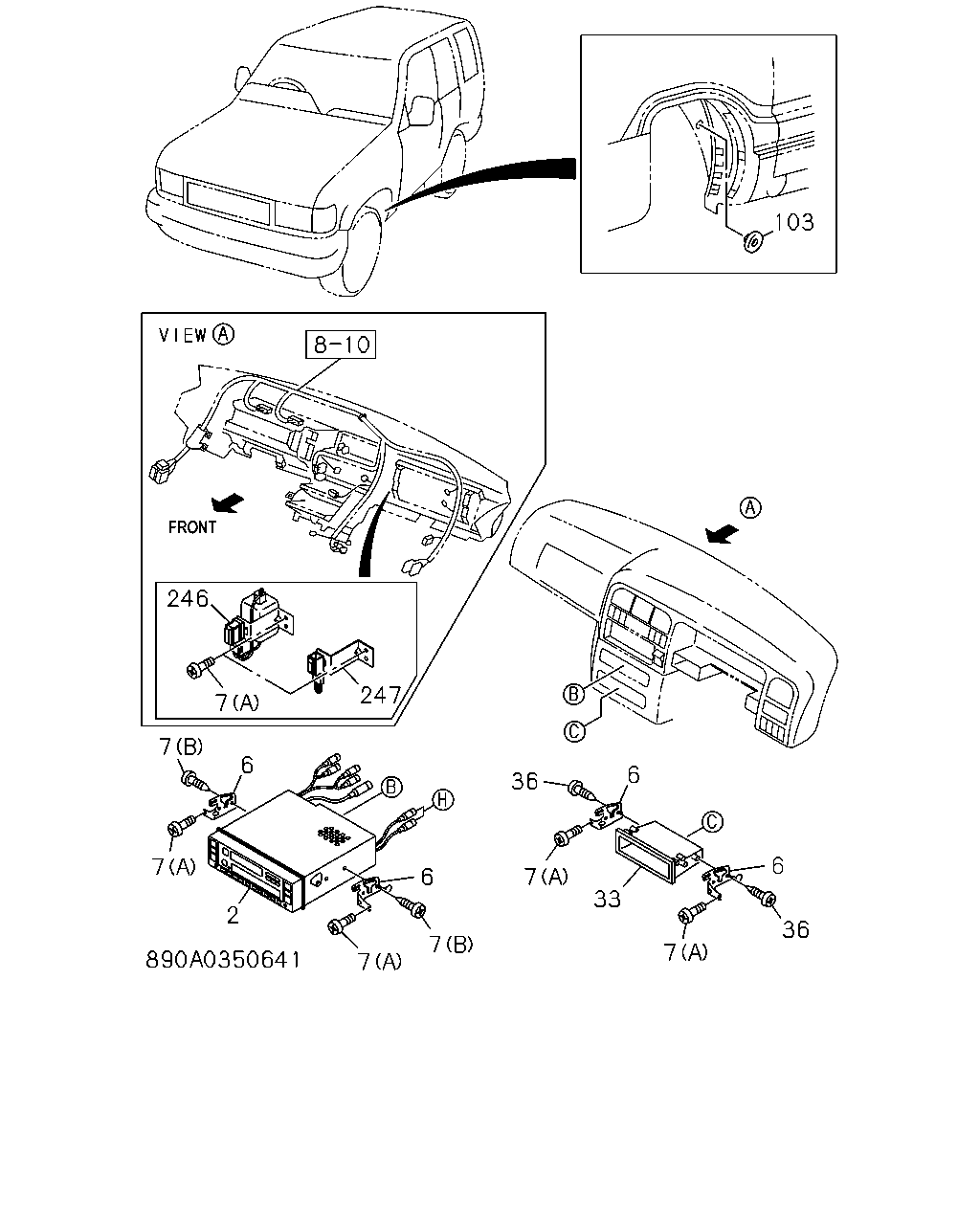

çizim 494463
246 7 247 7 6 36 6 7 33 6 36 103 7 7 7 6 2 7
BalonParca AdiParca NoAdetTipApplied Date A B
2 RADIO & CASSETTE DECK ASM
AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 		8-97018-458-0 01 1 9112-9308 ● ●
2 RADIO & CASSETTE DECK ASM
AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 		8-97018-458-0 01 1 9309-9504 ● ●
2 RADIO & CASSETTE DECK ASM
AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 		8-97109-482-0 01 1 9505- ● ●
6 BRACKET; RADIO TO PANEL 8-94359-616-3 02 1 9112-9504 ● ●
6 BRACKET; RADIO TO PANEL 8-97102-092-1 02 1 9505- ● ●
6 BRACKET; RADIO TO PANEL 8-94359-615-3 02 1 9112-9504 ● ●
6 BRACKET; RADIO TO PANEL 8-97085-169-1 02 1 9505- ● ●
7 SCREW; RADIO
(A) M5X16 TAPPING 		9-09829-323-1 08 1 9112-9504 ● ●
7 SCREW; RADIO
(A) M5X16 TAPPING 		9-09829-323-1 01 1 9505- ● ●
7 SCREW; RADIO
(A) M5X16 TAPPING 		9-09829-323-1 02 1 9505- ● ●
7 SCREW; RADIO
(A) M5X16 TAPPING 		9-09829-323-1 02 1 9505- ● ●
7 SCREW; RADIO
AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) (B) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9505- ● ●
33 COVER; RADIO
EXC. AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 44X184 		8-94435-504-2 01 1 9112-9504 ● ●
33 COVER; RADIO
EXC. DIGITAL CLOCK<UE8> 44X184 		8-94435-504-2 01 1 9112-9504 ● ●
33 COVER; RADIO
EXC. AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4), AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 		8-97066-253-2 01 1 9505- ● ●
33 COVER; RADIO 8-97066-253-2 01 1 9505- ● ●
36 SCREW; COVER
M5X14 TAPPING 		9-09829-322-1 04 1 9112-9504 ● ●
36 SCREW; COVER
EXC. AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4), AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) M5X10 		8-94428-816-0 04 1 9505- ● ●
36 SCREW; COVER
M5X10 		8-94428-816-0 04 1 9505- ● ●
103 GROMMET; ANTENNA HOLE,FRT
EXC. POWER ANTENNA<U75> 		8-94111-420-0 01 1 9505- ● ●
246 FILTER; NOISE
AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 		8-97117-666-1 01 1 9505-9507 ● ●
246 FILTER; NOISE
AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 		8-97134-909-0 01 1 9508- ● ●
247 CONNECTOR
EXC. AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4), AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 		8-97117-667-1 01 1 9505- ● ●
