8-85 — REAR WIPER AND WASHER (#166635) — 30 parça

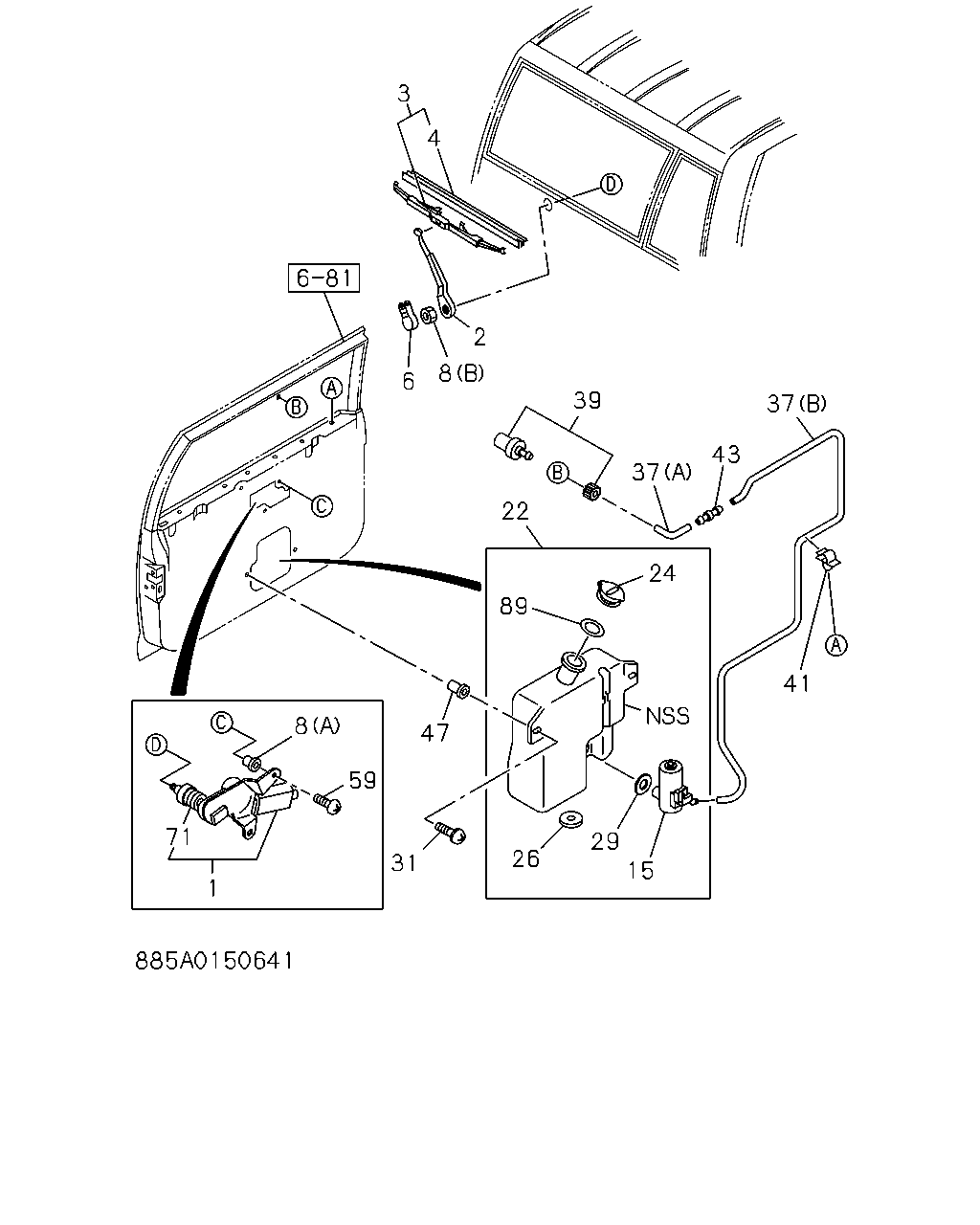

çizim 494438
6 3 4 8 2 39 37 22 37 43 24 89 41 47 31 26 15 29 8 59 1 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 MOTOR ASM; RR WIPER 8-94358-870-5 01 1 9112-9604 ● ●
1 MOTOR ASM; RR WIPER 8-97147-216-0 01 1 9605- ● ●
2 ARM ASM; REAR WIPER 8-94358-865-0 01 1 9112-9208 ● ●
2 ARM ASM; REAR WIPER 8-97808-697-0 01 1 9209- ● ●
3 BLADE ASM; REAR WIPER 8-94358-867-0 01 1 9112-9504 ● ●
3 BLADE ASM; REAR WIPER
L=394 		8-97121-982-0 01 1 9505-9510 ● ●
3 BLADE ASM; REAR WIPER
L=394 		8-97121-982-0 01 1 9511- ● ●
4 RUBBER; BLADE,RR WIPER 8-97807-716-0 01 1 9112-9504 ● ●
4 RUBBER; BLADE,RR WIPER
L=378 		8-97122-718-0 01 1 9505-9510 ● ●
4 RUBBER; BLADE,RR WIPER
L=378 		8-97122-718-0 01 1 9511- ● ●
6 CLIP; COVER 8-94358-866-0 01 1 9112- ● ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
(A) WELL NUT 		8-94311-999-0 02 1 9112-9305 ● ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
(A) M6 RUBBER NUT 		8-97023-281-0 02 1 9306- ● ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
(B) M6 		9-09110-406-0 01 1 9112- ● ●
15 MOTOR ASM; RR,WASHER TANK 8-97016-545-0 01 1 9112- ● ●
22 TANK ASM; RR WASHER 8-97807-508-0 01 1 9112- ● ●
24 CAP; WASHER TANK,RR 8-97807-504-0 01 1 9112- ● ●
26 RUBBER; CUSHION,RR WASHER TANK 8-97807-503-0 01 1 9112- ● ●
29 GASKET; TANK TO MOTOR 8-97807-502-0 01 1 9112- ● ●
31 SCREW; RR WASHER TANK TO BODY
M6X25 W/PL WASHER 		9-03900-625-0 02 1 9112- ● ●
37 HOSE; WASHER TANK,RR
(A) 		8-97807-507-0 01 1 9112- ● ●
37 HOSE; WASHER TANK,RR
(B) L=1550 SERVICED BY L=10000 		8-94389-303-0 01 1 9209- ● ●
39 NOZZLE; RR WINDSHIELD,WASHER 8-94358-869-0 01 1 9112- ● ●
41 CLIP; RR WASHER TANK HOSE
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> EXC. REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97804-783-0 01 1 9112-9504 ● ●
43 VALVE; CHECK,RR WASHER TANK HOSE 8-97807-506-0 01 1 9112- ● ●
47 NUT; HANGER,RR WIPER
WELL NUT 		8-94311-999-0 02 1 9112-9305 ● ●
47 NUT; HANGER,RR WIPER
M6 RUBBER NUT 		8-97023-281-0 02 1 9306- ● ●
59 SCREW; REAR WIPER MOTOR
M6X25 W/PL WASHER 		9-03900-625-0 02 1 9112- ● ●
71 PARTS ASM; FIXING KITS,RR WIPER PIVOT 8-97807-635-0 01 1 9112- ● ●
89 GASKET; TANK CAP 8-97807-505-0 01 1 9112- ● ●
