◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#166634) — 84 parça

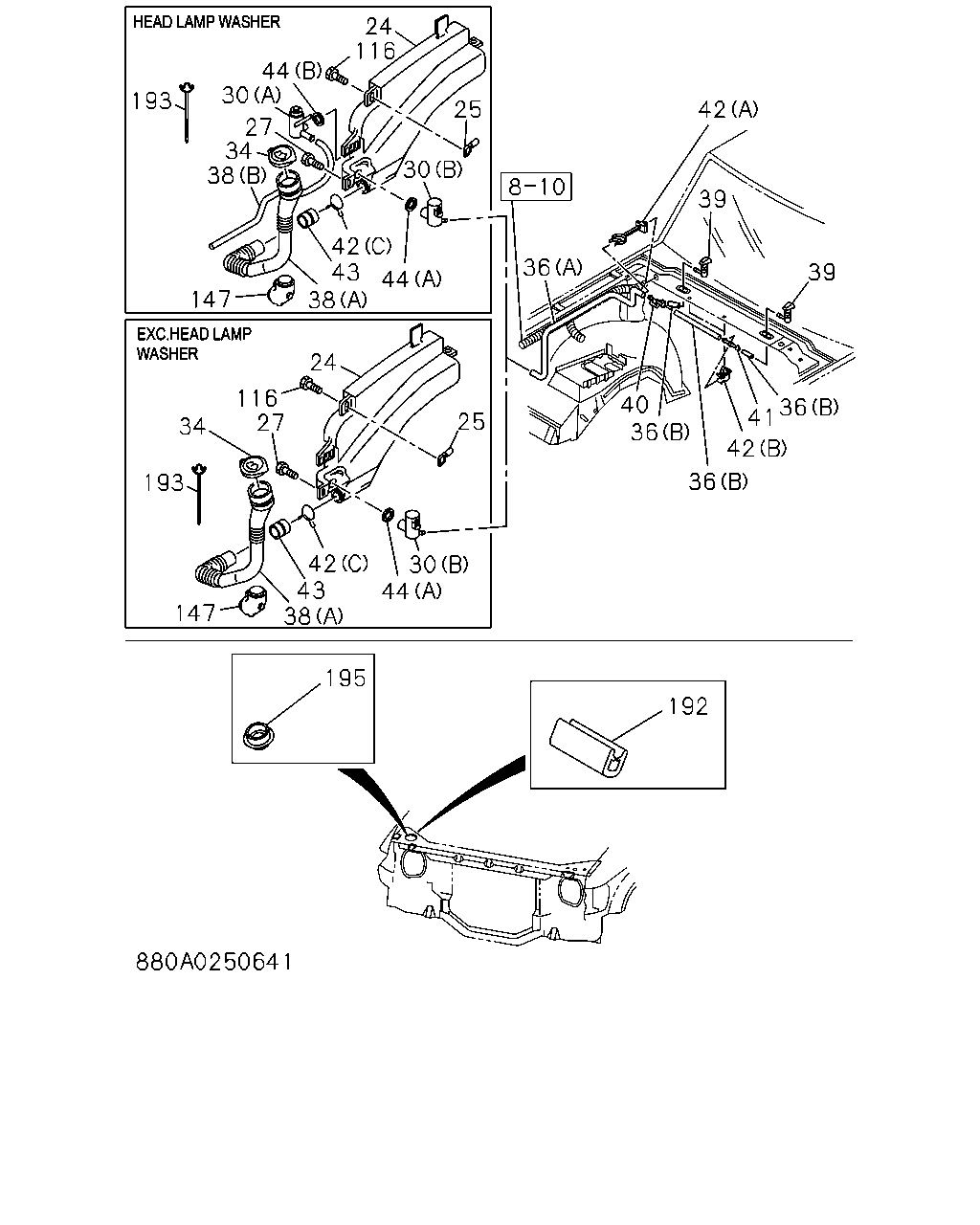

çizim 493588
24 116 25 30 44 43 42 38 147 38 34 27 30 44 193 24 25 30 44 38 43 42 147 193 34 116 27 195 192 36 42 41 36 39 36 40 36 39 42
BalonParca AdiParca NoAdetTipApplied Date A B
24 TANK ASM; WASHER
HEADLAMP WASHER<CE3> 		8-97807-517-3 01 1 9112- ● ●
24 TANK ASM; WASHER
EXC. HEADLAMP WASHER<CE3> 		8-97807-510-3 01 1 9112- ● ●
25 BRACKET; WASHER TANK 8-97807-513-0 01 1 9112- ● ●
27 BOLT; WASHER TANK
M6X14 W/LK&PL WASHER 		8-94382-066-1 02 1 9112- ● ●
30 MOTOR ASM; FRT WASHER TANK
(B) 		8-97807-511-0 01 1 9112- ● ●
30 MOTOR ASM; FRT WASHER TANK
HEADLAMP WASHER<CE3> (A) 		8-97807-538-0 01 1 9112- ● ●
34 CAP; WASHER TANK 8-97807-514-0 01 1 9112- ● ●
36 HOSE; WASHER
(B) L=155 L=650 L=80 SERVICED BY L=10000 		8-94389-303-0 01 1 9112- ● ●
36 HOSE; WASHER
(A) INCLUDING ENGINE ROOM HARNESS RH L=1260 		8-97808-066-0 01 1 9112-9504 ● ●
36 HOSE; WASHER
(A) INCLUDING ENGINE ROOM HARNESS RH L=1260 		8-97118-916-0 01 1 9505-9605 ● ●
36 HOSE; WASHER
(A) INCLUDING ENGINE ROOM HARNESS RH L=1260 		8-97130-714-0 01 1 9606- ● ●
38 HOSE; JOINT,TANK
(A) 		8-94358-854-0 01 1 9112-9504 ● ●
38 HOSE; JOINT,TANK
(A) 		8-94358-854-0 01 1 9505- ● ●
38 HOSE; JOINT,TANK
HEADLAMP WASHER<CE3> (B) 		8-97807-636-0 01 1 9112- ● ●
39 NOZZLE; WINDSHIELD WASHER 8-97802-674-0 01 1 9112- ● ●
39 NOZZLE; WINDSHIELD WASHER 8-94358-853-0 01 1 9112- ● ●
40 JOINT; WASHER HOSE 8-97807-498-0 01 1 9112- ● ●
41 VALVE; CHECK,WASHER TANK 8-97807-499-0 01 1 9112- ● ●
42 CLIP; WASHER HOSE
(A) L=46 		8-94154-654-1 01 1 9112- ● ●
42 CLIP; WASHER HOSE
(B) ID=5.8 L=8 		8-94155-681-0 02 1 9112- ● ●
42 CLIP; WASHER HOSE
(C) 		8-97807-516-3 01 1 9112- ● ●
43 RUBBER; GASKET,TANK 8-97807-515-0 01 1 9112-9504 ● ●
43 RUBBER; GASKET,TANK 8-97807-515-0 01 1 9505- ● ●
44 GASKET; MOTOR TO TANK
(A) 		8-97807-512-0 01 1 9112- ● ●
44 GASKET; MOTOR TO TANK
HEADLAMP WASHER<CE3> (B) 		8-94352-050-0 01 1 9112- ● ●
116 SCREW; TANK TO BRKT 8-97807-451-0 01 1 9112- ● ●
147 PROTECTOR; WASHER TANK 8-97807-637-0 01 1 9112- ● ●
192 PROTECTOR; EDGE
L=30 		8-94366-689-0 01 1 9112-9403 ● ●
193 GAUGE; LEVEL,WASHER TANK 8-97807-982-0 01 1 9112-9504 ● ●
195 PROTECTOR; FILLER NECK 8-97803-032-0 01 1 9112-9405 ● ●
195 PROTECTOR; FILLER NECK 8-97114-362-0 01 1 9406- ● ●

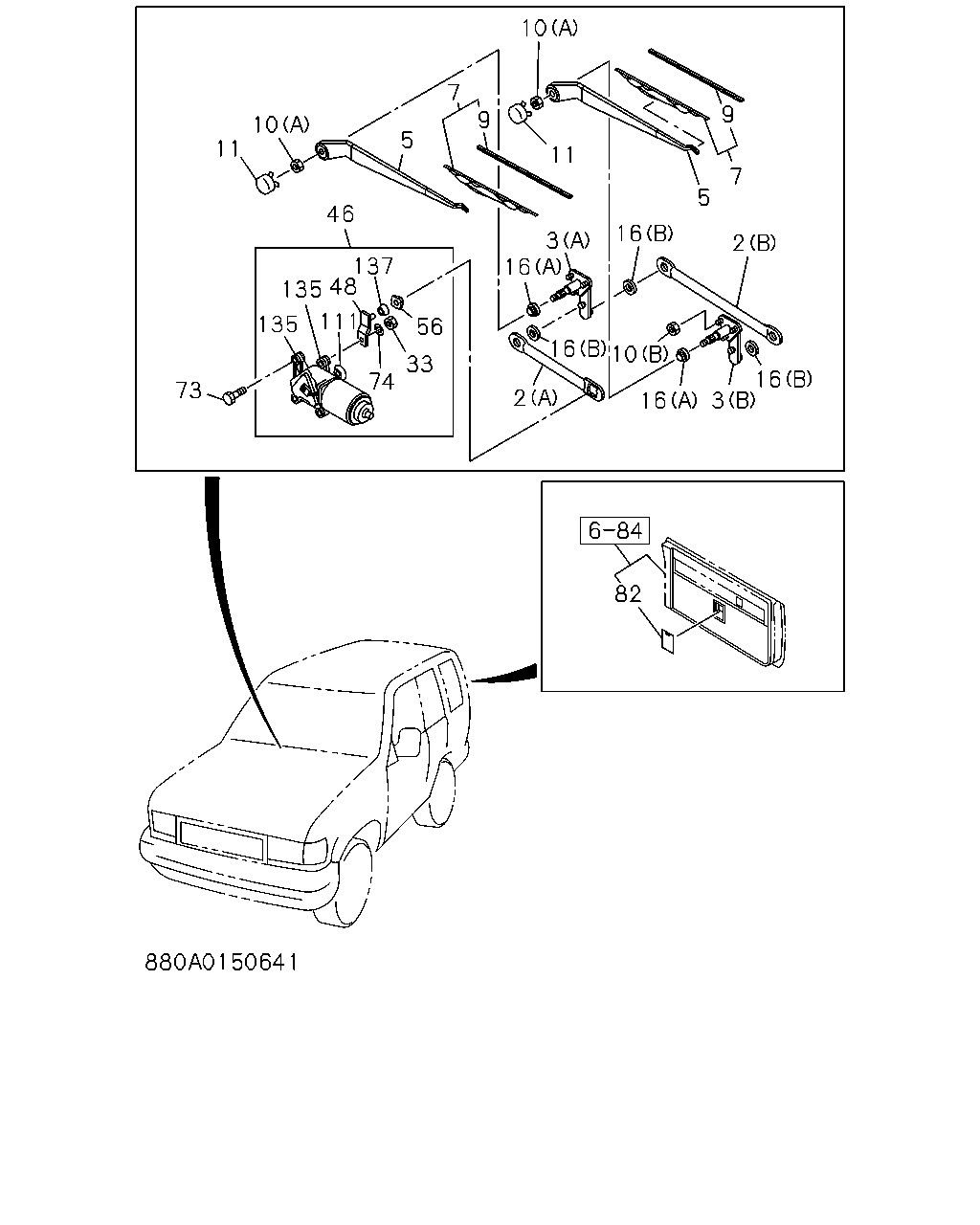

çizim 494414
10 11 46 5 7 9 10 11 3 16 16 16 2 10 16 3 16 2 5 7 9 82 73 135 135 48 111 74 33 56 137
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINK; FRT WIPER
(A) 		8-97807-520-0 01 1 9112- ● ●
2 LINK; FRT WIPER
(B) 		8-97807-523-0 01 1 9112- ● ●
3 PIVOT ASM; FRT WIPER
(A) 		8-97807-522-0 01 1 9112- ● ●
3 PIVOT ASM; FRT WIPER
(B) 		8-97807-524-0 01 1 9112- ● ●
5 ARM; WIPER 8-94358-847-2 01 1 9112-9208 ● ●
5 ARM; WIPER 8-94358-845-2 01 1 9112-9208 ● ●
5 ARM; WIPER 8-97808-695-1 01 1 9209-9504 ● ●
5 ARM; WIPER 8-97112-748-1 01 1 9505-9605 ● ●
5 ARM; WIPER 8-97139-596-1 01 1 9606- ● ●
5 ARM; WIPER 8-97808-693-1 01 1 9209-9605 ● ●
5 ARM; WIPER 8-97139-593-1 01 1 9606- ● ●
7 BLADE; WIPER 8-97804-038-2 01 1 9112-9403 ● ●
7 BLADE; WIPER 8-97107-562-0 01 1 9404-9504 ● ●
7 BLADE; WIPER 8-97112-745-1 01 1 9505-9508 ● ●
7 BLADE; WIPER
L=550 		8-97134-567-0 01 1 9509-9605 ● ●
7 BLADE; WIPER
L=550 		8-97139-627-0 01 1 9606- ● ●
7 BLADE; WIPER 8-97804-037-2 01 1 9112-9403 ● ●
7 BLADE; WIPER
L=500 		8-97107-561-0 01 1 9404-9508 ● ●
7 BLADE; WIPER
L=500 		8-97134-562-0 01 1 9509-9605 ● ●
7 BLADE; WIPER
L=500 		8-97139-626-0 01 1 9606- ● ●
7 BLADE; WIPER
BESTFIX 		1-86750-085-1 01 1 9404-9504 ● ●
7 BLADE; WIPER
BESTFIX 		1-86750-087-1 01 1 9505- ● ●
7 BLADE; WIPER
BESTFIX 		1-86750-085-1 01 1 9404- ● ●
9 RUBBER; FRT WIPER BLADE
L=500 		8-97807-965-0 01 1 9112-9504 ● ●
9 RUBBER; FRT WIPER BLADE
L=550 		8-97128-959-0 01 1 9505-9508 ● ●
9 RUBBER; FRT WIPER BLADE
L=500 		8-97807-964-0 01 1 9112-9605 ● ●
9 RUBBER; FRT WIPER BLADE
L=550 		8-97142-512-0 01 1 9509-9605 ● ●
9 RUBBER; FRT WIPER BLADE
L=550 		8-97178-834-0 01 1 9606- ● ●
9 RUBBER; FRT WIPER BLADE
L=500 		8-97178-835-0 01 1 9606- ● ●
9 RUBBER; FRT WIPER BLADE
BESTFIX 		1-86750-248-0 01 1 9112-9504 ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
(A) M10 FLANGE 		8-94144-220-0 02 1 9112- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
(B) 		8-94380-160-0 06 1 9112-9605 ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
(B) M6 W/DISHED WASHER 		8-94423-325-0 06 1 9606- ● ●
11 COVER; WIPER ARM 8-94367-999-0 02 1 9112-9605 ● ●
11 COVER; WIPER ARM 8-97148-349-0 02 1 9606- ● ●
16 SEAL; BALL JOINT
(A) 		8-97807-525-0 02 1 9112-9206 ● ●
16 SEAL; BALL JOINT
(A) 		8-94377-722-0 02 1 9207- ● ●
16 SEAL; BALL JOINT
(B) 		8-97025-889-0 03 1 9112- ● ●
33 NUT; MOTOR TO ARM
M8 		9-09111-408-0 01 1 9112- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-94358-838-2 01 1 9112- ● ●
48 ARM; WIPER MOTOR 8-97807-638-0 01 1 9112- ● ●
56 JOINT; OUTER,WIPER MOTOR 8-94323-719-0 01 1 9112- ● ●
73 BOLT
M6X28 W/PL WASHER 		8-94148-420-0 04 1 9112-9606 ● ●
73 BOLT
M6X33 W/PL WASHER 		8-97164-266-0 04 1 9607- ● ●
74 WASHER; ARM TO MOTOR
ID=8.2 		9-09150-508-0 01 1 9112- ● ●
82 LID; WASHER TANK
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-236-2 01 1 9112-9307 ● ●
82 LID; WASHER TANK
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-238-2 01 1 9112-9504 ● ●
82 LID; WASHER TANK
DARK GRAY 		8-97098-644-2 01 1 9505-9510 ● ●
82 LID; WASHER TANK
DARK GRAY 		8-97098-644-2 01 1 9511- ● ●
111 SEAL; FRT WIPER MOTOR TO BRKT 8-94387-086-0 01 1 9112- ● ●
135 RUBBER; CUSHION,WIPER MOTOR 8-94387-088-0 04 1 9112- ● ●
137 SEAL; JOINT,WIPER MOTOR 8-94167-624-0 01 1 9112- ● ●

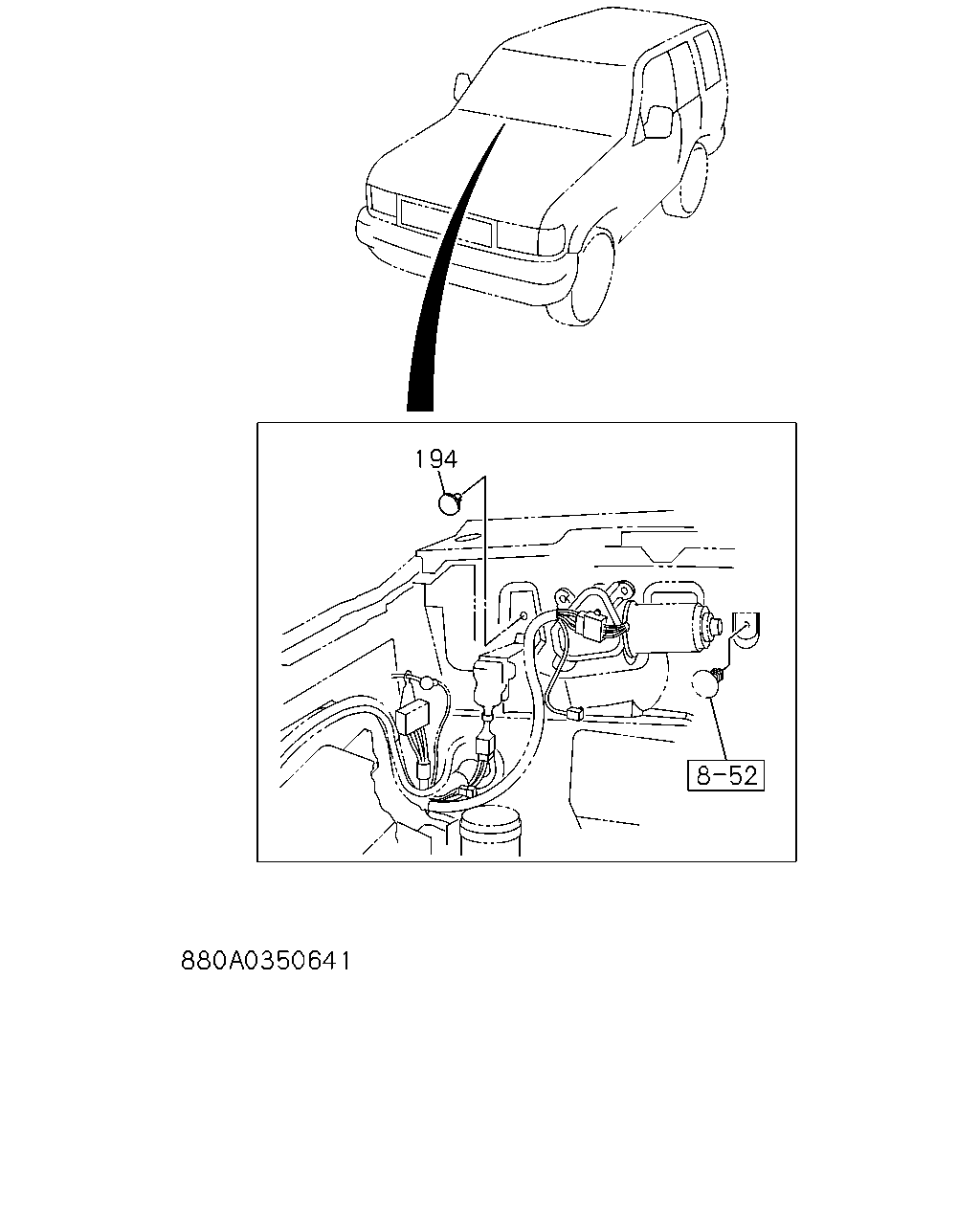

çizim 494415
194
BalonParca AdiParca NoAdetTipApplied Date A B
194 PLUG; HOLE,CLIP
6VD1 DOHC ENG(RLV) 		8-97807-966-0 01 1 9112- ● ●
