8-75 — CONDENSER (#166633) — 85 parça

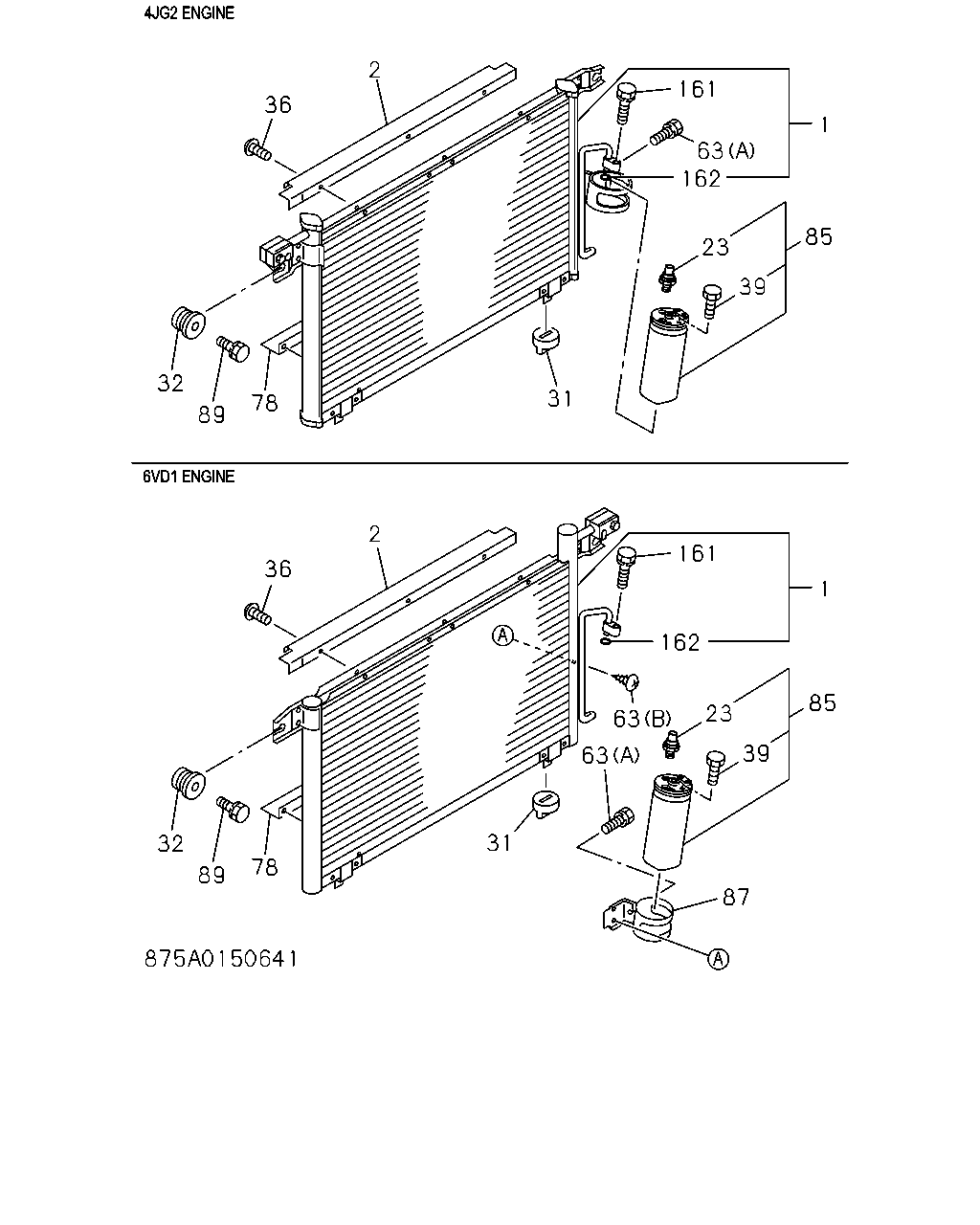

1 85 39 23 31 162 63 161 2 36 78 89 32 36 2 32 89 78 31 87 85 1 161 162 63 63 23 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-270-3	01	1	9112-9303	●	●
1	CONDENSER; A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97095-657-1	01	1	9304-9412	●	●
1	CONDENSER; A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97123-980-0	01	1	9501-	●	●
1	CONDENSER; A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60)	8-97049-250-2	01	1	9112-9208	●	●
1	CONDENSER; A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97085-800-0	01	1	9209-9303	●	●
1	CONDENSER; A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97096-049-1	01	1	9304-9412	●	●
1	CONDENSER; A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97116-761-0	01	1	9501-9511	●	●
1	CONDENSER; A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97123-979-0	01	1	9512-	●	●
2	PLATE; UPR,CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-256-0	01	1	9112-9412	●	●
2	PLATE; UPR,CONDENSER 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-256-0	01	1	9501-9511	●	●
2	PLATE; UPR,CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-256-1	01	1	9512-	●	●
2	PLATE; UPR,CONDENSER 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97116-762-0	01	1	9501-9511	●	●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97049-271-0	01	1	9112-9303	●	●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97095-659-0	01	1	9304-	●	●
31	RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97018-673-0	02	1	9112-	●	●
32	GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-94481-685-1	02	1	9112-9412	●	●
32	GROMMET; CONDENSER 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-94481-685-1	02	1	9501-9511	●	●
32	GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-94481-685-1	02	1	9512-	●	●
32	GROMMET; CONDENSER 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97096-063-0	02	1	9501-9511	●	●
36	SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60) M5X14 TAPPING	8-97049-258-0	06	1	9112-9208	●	●
36	SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M5X14 TAPPING	8-97049-258-0	06	1	9209-9308	●	●
36	SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M5X14 TAPPING	8-97049-258-0	04	1	9309-9511	●	●
36	SCREW; PLATE TO CONDENSER 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M5X14 TAPPING	8-97049-258-0	04	1	9512-	●	●
36	SCREW; PLATE TO CONDENSER 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97142-815-0	04	1	9512-	●	●
39	PLUG; FUSIBLE,RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97035-706-0	02	1	9112-9303	●	●
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X20	8-97049-253-0	01	1	9112-9412	●	●
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6X25	8-97095-660-0	01	1	9501-	●	●
63	BOLT; RECEIVER TANK 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X14 TAPPING	8-97049-258-0	02	1	9209-9412	●	●
78	PLATE; LWR,CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-257-0	01	1	9112-	●	●
85	DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-251-0	01	1	9112-9201	●	●
85	DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-251-0	02	1	9202-9202	●	●
85	DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-251-0	01	1	9202-9303	●	●
85	DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97095-658-0	01	1	9304-	●	●
87	BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97085-816-0	01	1	9112-9303	●	●
87	BRACKET; RECEIVER DRYER 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97085-816-0	01	1	9304-9412	●	●
89	BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-255-0	02	1	9112-	●	●
161	BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-254-0	01	1	9209-9303	●	●
161	BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6X25	8-97095-660-0	01	1	9304-9307	●	●
161	BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6X25	8-97095-660-0	01	1	9606-	●	●
161	BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6X25	8-97095-660-0	01	1	9308-9510	●	●
162	GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6	8-94481-700-0	01	1	9112-9412	●	●
162	GASKET; PIPE TO DRYER 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6	8-94481-700-0	01	1	9501-9511	●	●
162	GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6	8-94481-700-0	01	1	9512-	●	●
162	GASKET; PIPE TO DRYER 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6.07	8-94461-902-0	01	1	9501-9511	●	●

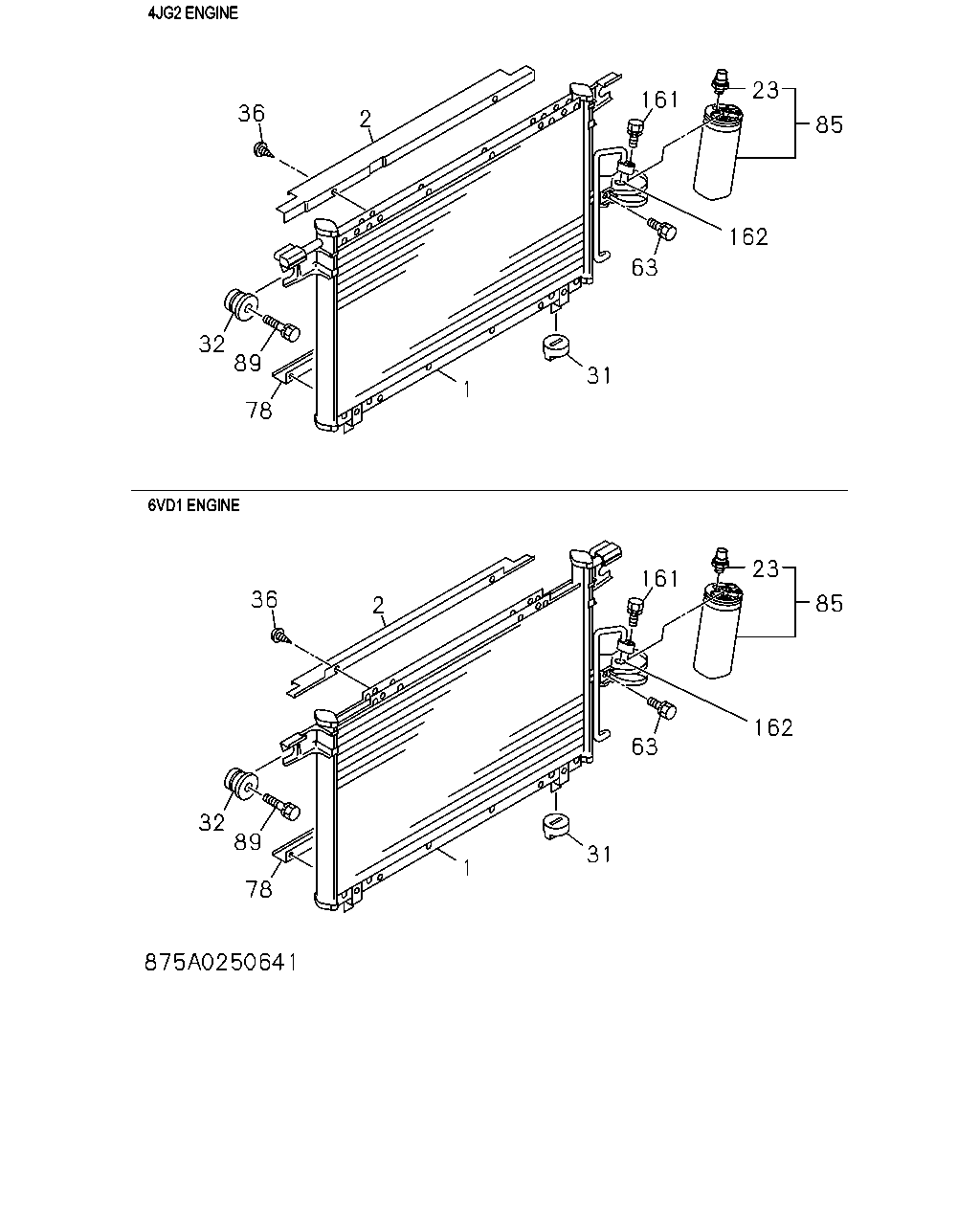

36 2 32 89 78 1 31 63 162 161 23 85 36 2 32 89 78 1 31 63 161 23 85 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-270-3	01	1	9112-9303	●	●
1	CONDENSER; A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97095-657-1	01	1	9304-9412	●	●
1	CONDENSER; A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97123-980-0	01	1	9501-	●	●
1	CONDENSER; A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60)	8-97049-250-2	01	1	9112-9208	●	●
1	CONDENSER; A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97085-800-0	01	1	9209-9303	●	●
1	CONDENSER; A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97096-049-1	01	1	9304-9412	●	●
1	CONDENSER; A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97116-761-0	01	1	9501-9511	●	●
1	CONDENSER; A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97123-979-0	01	1	9512-	●	●
2	PLATE; UPR,CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-256-0	01	1	9112-9412	●	●
2	PLATE; UPR,CONDENSER 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-256-0	01	1	9501-9511	●	●
2	PLATE; UPR,CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-256-1	01	1	9512-	●	●
2	PLATE; UPR,CONDENSER 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97116-762-0	01	1	9501-9511	●	●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97049-271-0	01	1	9112-9303	●	●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97095-659-0	01	1	9304-	●	●
31	RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97018-673-0	02	1	9112-	●	●
32	GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-94481-685-1	02	1	9112-9412	●	●
32	GROMMET; CONDENSER 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-94481-685-1	02	1	9501-9511	●	●
32	GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-94481-685-1	02	1	9512-	●	●
32	GROMMET; CONDENSER 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97096-063-0	02	1	9501-9511	●	●
36	SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60) M5X14 TAPPING	8-97049-258-0	06	1	9112-9208	●	●
36	SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M5X14 TAPPING	8-97049-258-0	06	1	9209-9308	●	●
36	SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M5X14 TAPPING	8-97049-258-0	04	1	9309-9511	●	●
36	SCREW; PLATE TO CONDENSER 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M5X14 TAPPING	8-97049-258-0	04	1	9512-	●	●
36	SCREW; PLATE TO CONDENSER 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97142-815-0	04	1	9512-	●	●
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X20	8-97049-253-0	01	1	9112-9412	●	●
63	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6X25	8-97095-660-0	01	1	9501-	●	●
63	BOLT; RECEIVER TANK 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X14 TAPPING	8-97049-258-0	02	1	9209-9412	●	●
78	PLATE; LWR,CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-257-0	01	1	9112-	●	●
85	DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-251-0	01	1	9112-9201	●	●
85	DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-251-0	02	1	9202-9202	●	●
85	DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-251-0	01	1	9202-9303	●	●
85	DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97095-658-0	01	1	9304-	●	●
89	BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-255-0	02	1	9112-	●	●
161	BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97049-254-0	01	1	9209-9303	●	●
161	BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6X25	8-97095-660-0	01	1	9304-9307	●	●
161	BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6X25	8-97095-660-0	01	1	9606-	●	●
161	BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6X25	8-97095-660-0	01	1	9308-9510	●	●
162	GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6	8-94481-700-0	01	1	9112-9412	●	●
162	GASKET; PIPE TO DRYER 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6	8-94481-700-0	01	1	9501-9511	●	●
162	GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6	8-94481-700-0	01	1	9512-	●	●
162	GASKET; PIPE TO DRYER 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6.07	8-94461-902-0	01	1	9501-9511	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
