Sayfa 8-74 - Isuzu EPC

8-74 — EVAPORATOR (#166632) — 250 parça

44 39 37 13 5 47 46 38 37 45 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	EVAPORATOR FULLAUTO AIR CONDITIONER(C68)	8-97124-433-0	01	1	9505-9602	●	●
5	EVAPORATOR FULLAUTO AIR CONDITIONER(C68)	8-97143-359-0	01	1	9603-	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97046-501-0	01	1	9112-9504	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97046-501-0	01	1	9505-9602	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97143-243-0	01	1	9603-	●	●
13	SEAL; EVAP FULLAUTO AIR CONDITIONER(C68) (A)	8-97111-792-0	01	1	9505-	●	●
13	SEAL; EVAP FULLAUTO AIR CONDITIONER(C68) (B)	8-97125-391-0	01	1	9505-9510	●	●
13	SEAL; EVAP FULLAUTO AIR CONDITIONER(C68) (B) SERVICED BY L=665	8-97111-793-0	01	1	9511-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) T=5.0	8-97069-402-0	01	1	9112-9504	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) T=5.0	8-97069-402-0	01	1	9505-	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) ID=4.5	8-94248-212-0	01	1	9112-9208	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=4.5	8-94248-212-0	01	1	9209-9404	●	●
37	GASKET; EVAP FULLAUTO AIR CONDITIONER(C68) ID=4.5	8-94248-212-0	01	1	9405-9504	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) ID=6	8-94481-700-0	01	1	9112-9208	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6	8-94481-700-0	01	1	9209-	●	●
38	VALVE; EXPANSION FULLAUTO AIR CONDITIONER(C68)	8-94313-860-0	01	1	9209-9303	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-94327-421-0	01	1	9112-9303	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97085-275-0	01	1	9304-9404	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97112-753-0	01	1	9405-9602	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97143-242-0	01	1	9603-	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94481-717-0	01	1	9112-	●	●
44	EVAPORATOR ASM; A/C FULLAUTO AIR CONDITIONER(C68)	8-97127-460-0	01	1	9505-9602	●	●
44	EVAPORATOR ASM; A/C FULLAUTO AIR CONDITIONER(C68)	8-97143-363-0	01	1	9603-	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97046-500-0	01	1	9112-9303	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97095-628-1	01	1	9304-9504	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97095-628-1	01	1	9505-9602	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97143-364-0	01	1	9603-	●	●
45	PIPE; EXPANSION VLV FULLAUTO AIR CONDITIONER(C68)	8-97124-432-0	01	1	9505-	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97046-489-0	01	1	9112-9504	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97046-489-0	01	1	9505-	●	●
46	CLIP; EXPANSION VLV FULLAUTO AIR CONDITIONER(C68) ID=8X2	8-94344-881-1	01	1	9505-	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	1-83574-124-0	01	1	9112-9504	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	1-83574-124-1	01	1	9505-	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M5X14	8-94244-002-0	01	1	9112-9602	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97130-601-0	01	1	9603-	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	5-83579-024-0	01	1	9112-9308	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97105-792-0	01	1	9308-9404	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97103-725-0	01	1	9405-	●	●

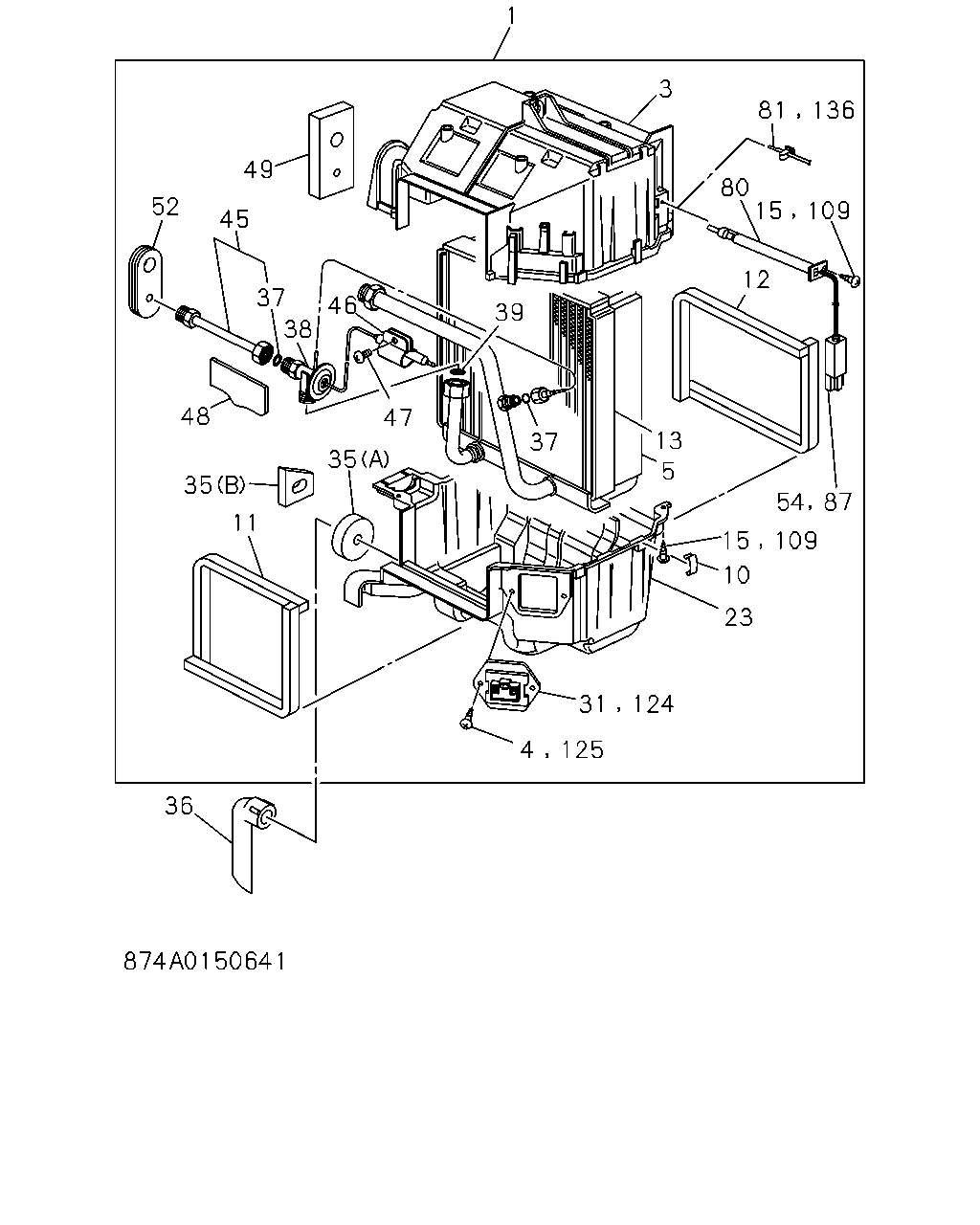

1 3 81 136 80 15 109 12 54 87 15 109 10 23 31 124 4 125 5 13 37 39 47 35 11 36 35 48 38 46 37 45 49 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	EVAPORATOR ASM FULLAUTO AIR CONDITIONER(C68)	8-97045-693-0	01	1	9209-9303	●	●
1	EVAPORATOR ASM FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97085-852-3	01	1	9304-9504	●	●
1	EVAPORATOR ASM FULLAUTO AIR CONDITIONER(C68)	8-97109-571-3	01	1	9505-	●	●
1	EVAPORATOR ASM 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-94380-198-1	01	1	9112-9202	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-94380-198-1	01	1	9203-9303	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-851-1	01	1	9304-9404	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97109-570-2	01	1	9405-	●	●
1	EVAPORATOR ASM 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60)	8-94376-094-1	01	1	9112-9202	●	●
3	CASE; EVAP,UPR FULLAUTO AIR CONDITIONER(C68)	8-97111-702-2	01	1	9505-	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97046-498-0	01	1	9112-9404	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97112-510-1	01	1	9405-9504	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97112-510-1	01	1	9505-	●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94248-807-0	02	1	9112-9307	●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60)	8-94248-807-0	02	1	9308-9411	●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94248-807-0	02	1	9412-9504	●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60)	8-94248-807-0	02	1	9505-	●	●
5	EVAPORATOR FULLAUTO AIR CONDITIONER(C68)	8-97124-433-0	01	1	9505-9602	●	●
5	EVAPORATOR FULLAUTO AIR CONDITIONER(C68)	8-97143-359-0	01	1	9603-	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97046-501-0	01	1	9112-9504	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97046-501-0	01	1	9505-9602	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97143-243-0	01	1	9603-	●	●
10	CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	1-83574-148-0	03	1	9112-9504	●	●
10	CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60)	1-83574-148-0	03	1	9505-	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94324-804-0	02	1	9112-9308	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97105-793-0	01	1	9308-9404	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97103-724-0	01	1	9405-	●	●
12	LINING; EVAP FULLAUTO AIR CONDITIONER(C68)	8-97111-789-0	01	1	9505-	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94324-805-0	02	1	9112-9308	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97105-794-0	01	1	9308-9404	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97103-723-0	01	1	9405-9504	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	9505-	●	●
13	SEAL; EVAP FULLAUTO AIR CONDITIONER(C68) (A)	8-97111-792-0	01	1	9505-	●	●
13	SEAL; EVAP FULLAUTO AIR CONDITIONER(C68) (B)	8-97125-391-0	01	1	9505-9510	●	●
13	SEAL; EVAP FULLAUTO AIR CONDITIONER(C68) (B) SERVICED BY L=665	8-97111-793-0	01	1	9511-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) T=5.0	8-97069-402-0	01	1	9112-9504	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) T=5.0	8-97069-402-0	01	1	9505-	●	●
15	SCREW; BRKT TO CASE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M4X16	8-94324-850-0	01	1	9112-9308	●	●
23	CASE; EVAP,LWR FULLAUTO AIR CONDITIONER(C68)	8-97111-703-0	01	1	9505-	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97046-499-1	01	1	9112-9504	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97046-499-1	01	1	9505-	●	●
31	RESISTOR; POWER EVAP FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97077-715-0	01	1	9209-9303	●	●
31	RESISTOR; POWER EVAP FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97077-715-0	01	1	9412-9504	●	●
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97078-452-0	01	1	9112-9504	●	●
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97078-452-1	01	1	9505-	●	●
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97069-405-2	01	1	9112-	●	●
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97069-406-0	01	1	9112-9308	●	●
36	HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97034-121-1	01	1	9112-9510	●	●
36	HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97140-076-0	01	1	9511-	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) ID=4.5	8-94248-212-0	01	1	9112-9208	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=4.5	8-94248-212-0	01	1	9209-9404	●	●
37	GASKET; EVAP FULLAUTO AIR CONDITIONER(C68) ID=4.5	8-94248-212-0	01	1	9405-9504	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) ID=6	8-94481-700-0	01	1	9112-9208	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6	8-94481-700-0	01	1	9209-	●	●
38	VALVE; EXPANSION FULLAUTO AIR CONDITIONER(C68)	8-94313-860-0	01	1	9209-9303	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-94327-421-0	01	1	9112-9303	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97085-275-0	01	1	9304-9404	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97112-753-0	01	1	9405-9602	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97143-242-0	01	1	9603-	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94481-717-0	01	1	9112-	●	●
45	PIPE; EXPANSION VLV FULLAUTO AIR CONDITIONER(C68)	8-97124-432-0	01	1	9505-	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97046-489-0	01	1	9112-9504	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97046-489-0	01	1	9505-	●	●
46	CLIP; EXPANSION VLV FULLAUTO AIR CONDITIONER(C68) ID=8X2	8-94344-881-1	01	1	9505-	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	1-83574-124-0	01	1	9112-9504	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	1-83574-124-1	01	1	9505-	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M5X14	8-94244-002-0	01	1	9112-9602	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97130-601-0	01	1	9603-	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	5-83579-024-0	01	1	9112-9308	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97105-792-0	01	1	9308-9404	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97103-725-0	01	1	9405-	●	●
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97069-404-1	01	1	9112-	●	●
52	GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94324-801-0	01	1	9112-	●	●
54	THERMOSTAT; A/C FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97037-639-0	01	1	9209-9303	●	●
54	THERMOSTAT; A/C FULLAUTO AIR CONDITIONER(C68)	8-97125-393-0	01	1	9505-9602	●	●
54	THERMOSTAT; A/C FULLAUTO AIR CONDITIONER(C68)	8-97123-946-0	01	1	9603-	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97046-491-0	01	1	9209-9303	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97087-577-0	01	1	9304-	●	●
54	THERMOSTAT; A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97046-491-0	01	1	9112-9202	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97046-491-0	01	1	9203-9208	●	●
54	THERMOSTAT; A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60)	8-94387-717-0	01	1	9112-9202	●	●
80	BRACKET AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97046-494-0	01	1	9112-9308	●	●
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9308-9411	●	●
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94481-724-0	01	1	9412-	●	●
87	SENSOR; EVAP FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97037-639-0	01	1	9304-9504	●	●
109	BOLT; EVAP FULLAUTO AIR CONDITIONER(C68) M4X16	8-94324-850-0	06	1	9606-	●	●
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M4X16	8-94324-850-0	04	1	9112-9504	●	●
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	04	1	9505-	●	●
124	TRANSISTOR; POWER,EVAP FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97077-715-0	01	1	9304-9411	●	●
124	TRANSISTOR; POWER,EVAP FULLAUTO AIR CONDITIONER(C68)	8-97111-797-0	01	1	9505-	●	●
125	SCREW; TRANSISTOR FULLAUTO AIR CONDITIONER(C68)	8-94248-807-0	02	1	9308-9411	●	●
125	SCREW; TRANSISTOR FULLAUTO AIR CONDITIONER(C68) M4X16	8-94324-850-0	08	1	9505-9605	●	●
125	SCREW; TRANSISTOR FULLAUTO AIR CONDITIONER(C68) M4X16	8-94324-850-0	02	1	9606-	●	●
136	CLIP; SENSOR FULLAUTO AIR CONDITIONER(C68)	8-94481-724-0	01	1	9308-9411	●	●

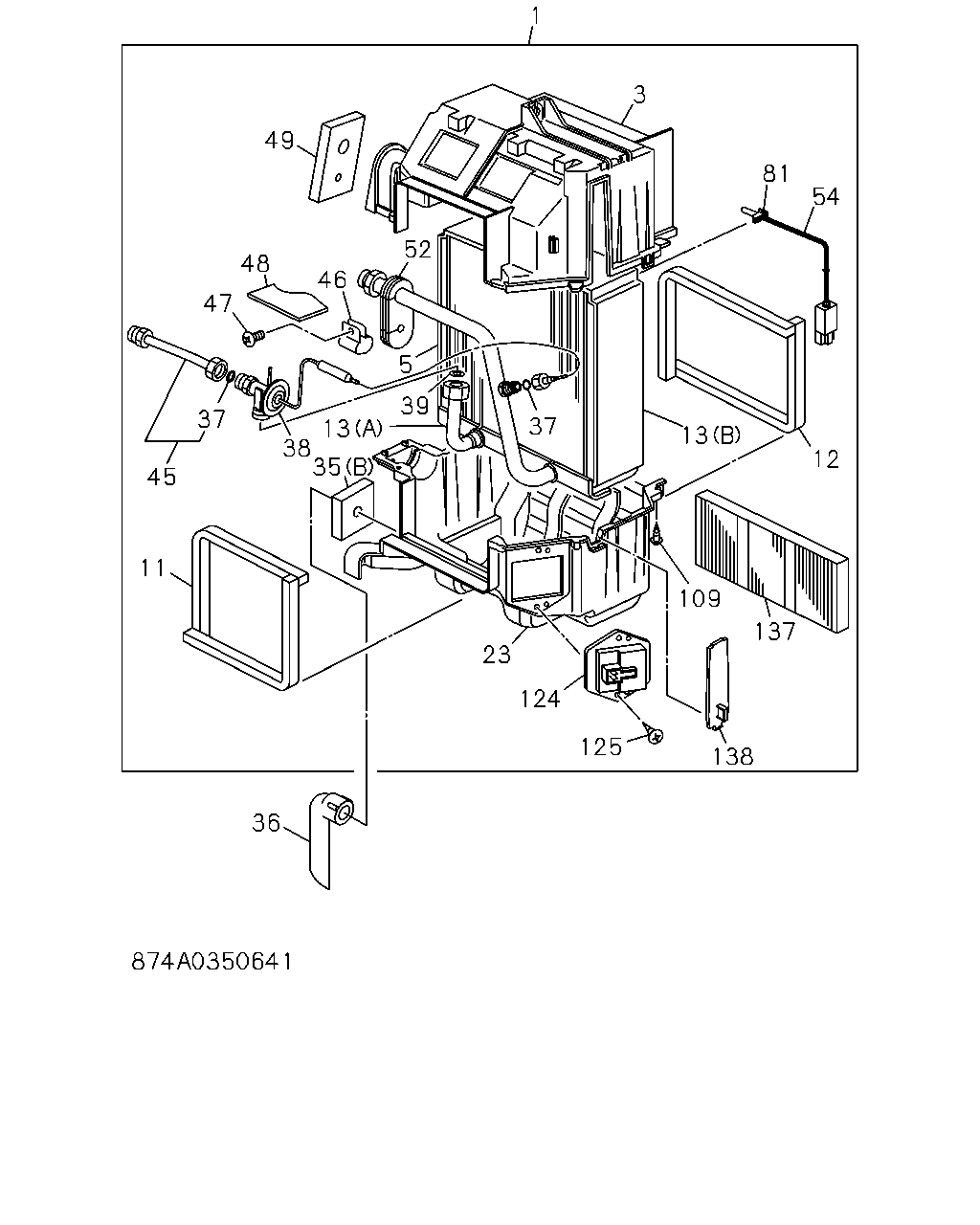

1 3 81 54 12 13 109 137 138 125 124 23 36 11 45 37 35 38 13 39 37 5 47 48 46 52 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	EVAPORATOR ASM FULLAUTO AIR CONDITIONER(C68)	8-97045-693-0	01	1	9209-9303	●	●
1	EVAPORATOR ASM FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97085-852-3	01	1	9304-9504	●	●
1	EVAPORATOR ASM FULLAUTO AIR CONDITIONER(C68)	8-97109-571-3	01	1	9505-	●	●
1	EVAPORATOR ASM 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-94380-198-1	01	1	9112-9202	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-94380-198-1	01	1	9203-9303	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-851-1	01	1	9304-9404	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97109-570-2	01	1	9405-	●	●
1	EVAPORATOR ASM 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60)	8-94376-094-1	01	1	9112-9202	●	●
3	CASE; EVAP,UPR FULLAUTO AIR CONDITIONER(C68)	8-97111-702-2	01	1	9505-	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97046-498-0	01	1	9112-9404	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97112-510-1	01	1	9405-9504	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97112-510-1	01	1	9505-	●	●
5	EVAPORATOR FULLAUTO AIR CONDITIONER(C68)	8-97124-433-0	01	1	9505-9602	●	●
5	EVAPORATOR FULLAUTO AIR CONDITIONER(C68)	8-97143-359-0	01	1	9603-	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97046-501-0	01	1	9112-9504	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97046-501-0	01	1	9505-9602	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97143-243-0	01	1	9603-	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94324-804-0	02	1	9112-9308	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97105-793-0	01	1	9308-9404	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97103-724-0	01	1	9405-	●	●
12	LINING; EVAP FULLAUTO AIR CONDITIONER(C68)	8-97111-789-0	01	1	9505-	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94324-805-0	02	1	9112-9308	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97105-794-0	01	1	9308-9404	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97103-723-0	01	1	9405-9504	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	9505-	●	●
13	SEAL; EVAP FULLAUTO AIR CONDITIONER(C68) (A)	8-97111-792-0	01	1	9505-	●	●
13	SEAL; EVAP FULLAUTO AIR CONDITIONER(C68) (B)	8-97125-391-0	01	1	9505-9510	●	●
13	SEAL; EVAP FULLAUTO AIR CONDITIONER(C68) (B) SERVICED BY L=665	8-97111-793-0	01	1	9511-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) T=5.0	8-97069-402-0	01	1	9112-9504	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) T=5.0	8-97069-402-0	01	1	9505-	●	●
23	CASE; EVAP,LWR FULLAUTO AIR CONDITIONER(C68)	8-97111-703-0	01	1	9505-	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97046-499-1	01	1	9112-9504	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97046-499-1	01	1	9505-	●	●
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97069-405-2	01	1	9112-	●	●
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97069-406-0	01	1	9112-9308	●	●
36	HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97034-121-1	01	1	9112-9510	●	●
36	HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97140-076-0	01	1	9511-	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) ID=4.5	8-94248-212-0	01	1	9112-9208	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=4.5	8-94248-212-0	01	1	9209-9404	●	●
37	GASKET; EVAP FULLAUTO AIR CONDITIONER(C68) ID=4.5	8-94248-212-0	01	1	9405-9504	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) ID=6	8-94481-700-0	01	1	9112-9208	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6	8-94481-700-0	01	1	9209-	●	●
38	VALVE; EXPANSION FULLAUTO AIR CONDITIONER(C68)	8-94313-860-0	01	1	9209-9303	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-94327-421-0	01	1	9112-9303	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97085-275-0	01	1	9304-9404	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97112-753-0	01	1	9405-9602	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97143-242-0	01	1	9603-	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94481-717-0	01	1	9112-	●	●
45	PIPE; EXPANSION VLV FULLAUTO AIR CONDITIONER(C68)	8-97124-432-0	01	1	9505-	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97046-489-0	01	1	9112-9504	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97046-489-0	01	1	9505-	●	●
46	CLIP; EXPANSION VLV FULLAUTO AIR CONDITIONER(C68) ID=8X2	8-94344-881-1	01	1	9505-	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	1-83574-124-0	01	1	9112-9504	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	1-83574-124-1	01	1	9505-	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M5X14	8-94244-002-0	01	1	9112-9602	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97130-601-0	01	1	9603-	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	5-83579-024-0	01	1	9112-9308	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97105-792-0	01	1	9308-9404	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97103-725-0	01	1	9405-	●	●
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97069-404-1	01	1	9112-	●	●
52	GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94324-801-0	01	1	9112-	●	●
54	THERMOSTAT; A/C FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97037-639-0	01	1	9209-9303	●	●
54	THERMOSTAT; A/C FULLAUTO AIR CONDITIONER(C68)	8-97125-393-0	01	1	9505-9602	●	●
54	THERMOSTAT; A/C FULLAUTO AIR CONDITIONER(C68)	8-97123-946-0	01	1	9603-	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97046-491-0	01	1	9209-9303	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97087-577-0	01	1	9304-	●	●
54	THERMOSTAT; A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97046-491-0	01	1	9112-9202	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97046-491-0	01	1	9203-9208	●	●
54	THERMOSTAT; A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60)	8-94387-717-0	01	1	9112-9202	●	●
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9308-9411	●	●
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94481-724-0	01	1	9412-	●	●
109	BOLT; EVAP FULLAUTO AIR CONDITIONER(C68) M4X16	8-94324-850-0	06	1	9606-	●	●
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M4X16	8-94324-850-0	04	1	9112-9504	●	●
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	04	1	9505-	●	●
124	TRANSISTOR; POWER,EVAP FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97077-715-0	01	1	9304-9411	●	●
124	TRANSISTOR; POWER,EVAP FULLAUTO AIR CONDITIONER(C68)	8-97111-797-0	01	1	9505-	●	●
125	SCREW; TRANSISTOR FULLAUTO AIR CONDITIONER(C68)	8-94248-807-0	02	1	9308-9411	●	●
125	SCREW; TRANSISTOR FULLAUTO AIR CONDITIONER(C68) M4X16	8-94324-850-0	08	1	9505-9605	●	●
125	SCREW; TRANSISTOR FULLAUTO AIR CONDITIONER(C68) M4X16	8-94324-850-0	02	1	9606-	●	●
137	FILTER; EVAPORATOR FULLAUTO AIR CONDITIONER(C68)	8-97111-788-0	02	1	9505-	●	●
138	COVER; CASE FULLAUTO AIR CONDITIONER(C68)	8-97111-790-0	01	1	9505-	●	●

44 13 37 13 39 5 38 46 48 47 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	EVAPORATOR FULLAUTO AIR CONDITIONER(C68)	8-97124-433-0	01	1	9505-9602	●	●
5	EVAPORATOR FULLAUTO AIR CONDITIONER(C68)	8-97143-359-0	01	1	9603-	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97046-501-0	01	1	9112-9504	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97046-501-0	01	1	9505-9602	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97143-243-0	01	1	9603-	●	●
13	SEAL; EVAP FULLAUTO AIR CONDITIONER(C68) (A)	8-97111-792-0	01	1	9505-	●	●
13	SEAL; EVAP FULLAUTO AIR CONDITIONER(C68) (B)	8-97125-391-0	01	1	9505-9510	●	●
13	SEAL; EVAP FULLAUTO AIR CONDITIONER(C68) (B) SERVICED BY L=665	8-97111-793-0	01	1	9511-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) T=5.0	8-97069-402-0	01	1	9112-9504	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) T=5.0	8-97069-402-0	01	1	9505-	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) ID=4.5	8-94248-212-0	01	1	9112-9208	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=4.5	8-94248-212-0	01	1	9209-9404	●	●
37	GASKET; EVAP FULLAUTO AIR CONDITIONER(C68) ID=4.5	8-94248-212-0	01	1	9405-9504	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) ID=6	8-94481-700-0	01	1	9112-9208	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6	8-94481-700-0	01	1	9209-	●	●
38	VALVE; EXPANSION FULLAUTO AIR CONDITIONER(C68)	8-94313-860-0	01	1	9209-9303	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-94327-421-0	01	1	9112-9303	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97085-275-0	01	1	9304-9404	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97112-753-0	01	1	9405-9602	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97143-242-0	01	1	9603-	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94481-717-0	01	1	9112-	●	●
44	EVAPORATOR ASM; A/C FULLAUTO AIR CONDITIONER(C68)	8-97127-460-0	01	1	9505-9602	●	●
44	EVAPORATOR ASM; A/C FULLAUTO AIR CONDITIONER(C68)	8-97143-363-0	01	1	9603-	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97046-500-0	01	1	9112-9303	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97095-628-1	01	1	9304-9504	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97095-628-1	01	1	9505-9602	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97143-364-0	01	1	9603-	●	●
45	PIPE; EXPANSION VLV FULLAUTO AIR CONDITIONER(C68)	8-97124-432-0	01	1	9505-	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97046-489-0	01	1	9112-9504	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97046-489-0	01	1	9505-	●	●
46	CLIP; EXPANSION VLV FULLAUTO AIR CONDITIONER(C68) ID=8X2	8-94344-881-1	01	1	9505-	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	1-83574-124-0	01	1	9112-9504	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	1-83574-124-1	01	1	9505-	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M5X14	8-94244-002-0	01	1	9112-9602	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97130-601-0	01	1	9603-	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	5-83579-024-0	01	1	9112-9308	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97105-792-0	01	1	9308-9404	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97103-725-0	01	1	9405-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
