8-73 — BLOWER UNIT (#166631) — 130 parça

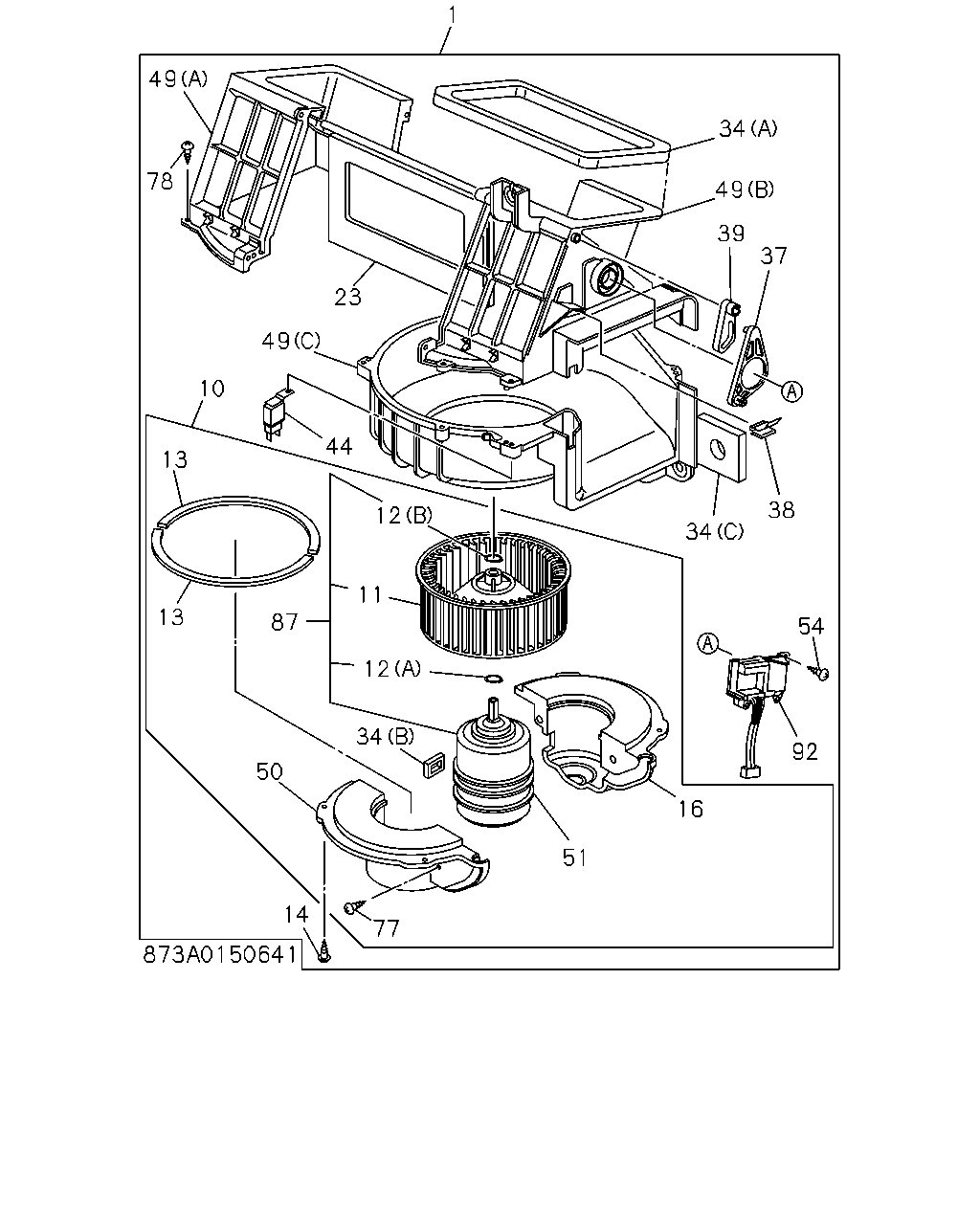

çizim 494493
34 49 39 1 37 49 78 23 49 44 10 12 11 12 87 13 13 34 50 14 77 51 16 92 54 34 38
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
FULLAUTO AIR CONDITIONER(C68) 		8-97045-689-1 01 1 9209-9307 ● ●
1 BLOWER ASM
FULLAUTO AIR CONDITIONER(C68) 		8-97085-838-0 01 1 9308-9308 ● ●
1 BLOWER ASM
FULLAUTO AIR CONDITIONER(C68) 930830- 		8-97045-689-2 01 1 9308-9403 ● ●
1 BLOWER ASM
FULLAUTO AIR CONDITIONER(C68) 		8-97109-567-0 01 1 9404- ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94376-105-3 01 1 9112-9307 ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97085-837-0 01 1 9308-9308 ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 930830- 		8-94376-105-4 01 1 9308-9403 ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97109-566-0 01 1 9404-9504 ● ●
1 BLOWER ASM
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-97109-566-1 01 1 9505- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-97047-200-1 01 1 9112-9307 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-97096-072-0 01 1 9308-9308 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
930830- 		8-97103-726-0 01 1 9308- ● ●
11 IMPELLER; FAN MOTOR 8-94327-434-0 01 1 9112-9302 ● ●
11 IMPELLER; FAN MOTOR 8-97089-700-0 01 1 9303- ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9112-9307 ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9112- ● ●
13 LINING; BLOWER UNIT 8-94324-816-0 02 1 9112- ● ●
14 SCREW; COVER TO CASE
FULLAUTO AIR CONDITIONER(C68) M5X16 		8-94248-820-0 05 1 9209-9403 ● ●
14 SCREW; COVER TO CASE
EXC. FULLAUTO AIR CONDITIONER(C68) M5X20 		9-09829-324-1 04 1 9705- ● ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-94248-820-0 04 1 9112-9403 ● ●
14 SCREW; COVER TO CASE
M5X16 		8-94248-820-0 04 1 9404-9704 ● ●
14 SCREW; COVER TO CASE
FULLAUTO AIR CONDITIONER(C68) M5X16 		8-94248-820-0 04 1 9705- ● ●
16 COVER; BLOWER UNIT 8-94324-813-0 01 1 9112-9307 ● ●
23 SHUTTER; BLOWER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-94324-818-2 01 1 9209- ● ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97073-514-0 01 1 9112-9504 ● ●
23 SHUTTER; BLOWER UNIT
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-97073-514-0 01 1 9505-9704 ● ●
23 SHUTTER; BLOWER UNIT
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-97072-039-0 01 1 9705- ● ●
34 LINING; BLOWER UNIT
(B) 		8-97027-786-0 01 1 9112-9307 ● ●
34 LINING; BLOWER UNIT
(A) 		8-97069-409-0 01 1 9112-9308 ● ●
34 LINING; BLOWER UNIT
930830- 		8-94327-437-0 01 1 9308- ● ●
34 LINING; BLOWER UNIT
(C) 		8-97069-410-0 01 1 9112-9308 ● ●
37 LEVER; MODE LEVER 8-94327-435-2 01 1 9112- ● ●
38 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94337-654-0 01 1 9112-9504 ● ●
38 CLIP; BLOWER UNIT
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-94337-654-0 01 1 9505- ● ●
39 LEVER; SHUTTER,BLOWER UNIT 8-94327-436-0 01 1 9112-9302 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94327-436-0 01 1 9303-9504 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-94327-436-0 01 1 9505-9704 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-97178-223-0 01 1 9705- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97096-069-0 01 1 9303- ● ●
44 RELAY; BLOWER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97037-772-0 01 1 9209-9308 ● ●
44 RELAY; BLOWER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97011-283-0 01 1 9308- ● ●
49 CASE; BLOWER UNIT
(A) 		8-94327-430-1 01 1 9112-9504 ● ●
49 CASE; BLOWER UNIT
(A) 		8-94327-430-1 01 1 9505-9510 ● ●
49 CASE; BLOWER UNIT
(A) 		8-94327-430-1 01 1 9511- ● ●
49 CASE; BLOWER UNIT
(B) 		8-94327-431-1 01 1 9112-9504 ● ●
49 CASE; BLOWER UNIT
(B) 		8-94327-431-1 01 1 9505-9510 ● ●
49 CASE; BLOWER UNIT
(B) 		8-94327-431-1 01 1 9511- ● ●
49 CASE; BLOWER UNIT
(C) 		8-94327-432-1 01 1 9112-9504 ● ●
49 CASE; BLOWER UNIT
(C) 		8-94327-432-1 01 1 9505-9510 ● ●
49 CASE; BLOWER UNIT
(C) 		8-94327-432-1 01 1 9511- ● ●
50 COVER; BLOWER UNIT 8-94324-814-0 01 1 9112-9307 ● ●
51 ISOLATOR; BLOWER UNIT 8-94324-815-0 01 1 9112-9307 ● ●
54 SCREW; ACTUATOR TO CASE
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-94324-850-0 01 1 9209-9307 ● ●
54 SCREW; ACTUATOR TO CASE
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-94324-850-0 03 1 9308-9308 ● ●
54 SCREW; ACTUATOR TO CASE
FULLAUTO AIR CONDITIONER(C68) 930830- M4X16 		8-94324-850-0 01 1 9308-9403 ● ●
54 SCREW; ACTUATOR TO CASE
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-94324-850-0 03 1 9505- ● ●
77 SCREW; COVER TO COVER,BLOWER UNIT
M5X16 		8-94248-820-0 02 1 9112-9307 ● ●
78 SCREW; CASE TO CASE
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-94324-850-0 12 1 9209-9307 ● ●
78 SCREW; CASE TO CASE
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-94324-850-0 12 1 9308-9403 ● ●
78 SCREW; CASE TO CASE
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-94324-850-0 13 1 9404-9504 ● ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-94324-850-0 10 1 9112-9504 ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 10 1 9505-9704 ● ●
78 SCREW; CASE TO CASE
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-94324-850-0 10 1 9705- ● ●
78 SCREW; CASE TO CASE
EXC. FULLAUTO AIR CONDITIONER(C68) M4X16 		8-94324-850-0 08 1 9705- ● ●
87 MOTOR ASM; FAN 8-97069-408-1 01 1 9112-9307 ● ●
87 MOTOR ASM; FAN 8-97106-493-0 01 1 9308-9403 ● ●
92 ACTUATOR; BLOWER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97076-079-0 01 1 9209- ● ●

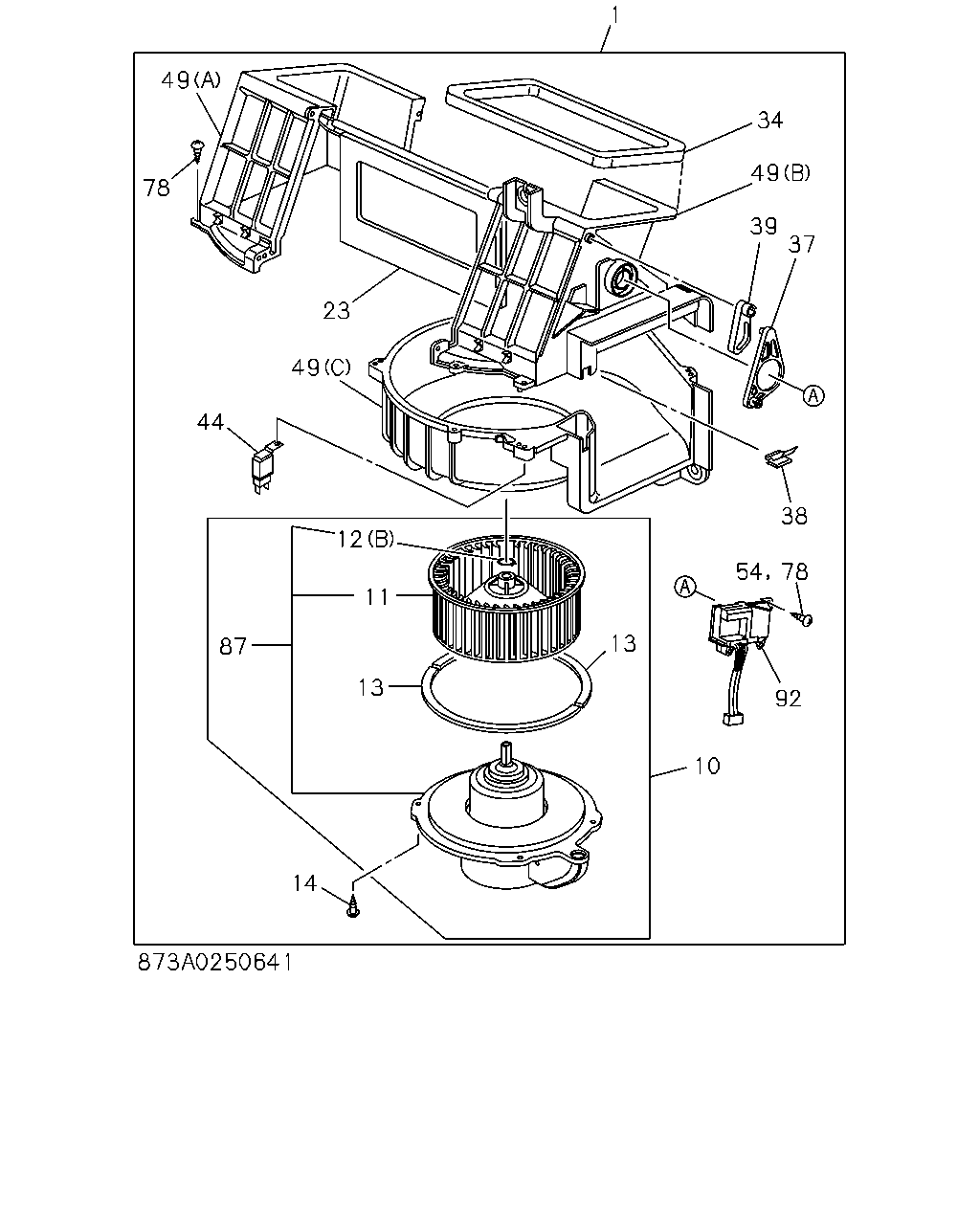

çizim 494503
1 34 49 39 37 38 54 78 92 10 13 14 13 11 12 87 44 49 23 78 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
FULLAUTO AIR CONDITIONER(C68) 		8-97045-689-1 01 1 9209-9307 ● ●
1 BLOWER ASM
FULLAUTO AIR CONDITIONER(C68) 		8-97085-838-0 01 1 9308-9308 ● ●
1 BLOWER ASM
FULLAUTO AIR CONDITIONER(C68) 930830- 		8-97045-689-2 01 1 9308-9403 ● ●
1 BLOWER ASM
FULLAUTO AIR CONDITIONER(C68) 		8-97109-567-0 01 1 9404- ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94376-105-3 01 1 9112-9307 ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97085-837-0 01 1 9308-9308 ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 930830- 		8-94376-105-4 01 1 9308-9403 ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97109-566-0 01 1 9404-9504 ● ●
1 BLOWER ASM
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-97109-566-1 01 1 9505- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-97047-200-1 01 1 9112-9307 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-97096-072-0 01 1 9308-9308 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
930830- 		8-97103-726-0 01 1 9308- ● ●
11 IMPELLER; FAN MOTOR 8-94327-434-0 01 1 9112-9302 ● ●
11 IMPELLER; FAN MOTOR 8-97089-700-0 01 1 9303- ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9112-9307 ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9112- ● ●
13 LINING; BLOWER UNIT 8-94324-816-0 02 1 9112- ● ●
14 SCREW; COVER TO CASE
FULLAUTO AIR CONDITIONER(C68) M5X16 		8-94248-820-0 05 1 9209-9403 ● ●
14 SCREW; COVER TO CASE
EXC. FULLAUTO AIR CONDITIONER(C68) M5X20 		9-09829-324-1 04 1 9705- ● ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-94248-820-0 04 1 9112-9403 ● ●
14 SCREW; COVER TO CASE
M5X16 		8-94248-820-0 04 1 9404-9704 ● ●
14 SCREW; COVER TO CASE
FULLAUTO AIR CONDITIONER(C68) M5X16 		8-94248-820-0 04 1 9705- ● ●
23 SHUTTER; BLOWER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-94324-818-2 01 1 9209- ● ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97073-514-0 01 1 9112-9504 ● ●
23 SHUTTER; BLOWER UNIT
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-97073-514-0 01 1 9505-9704 ● ●
23 SHUTTER; BLOWER UNIT
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-97072-039-0 01 1 9705- ● ●
34 LINING; BLOWER UNIT
(B) 		8-97027-786-0 01 1 9112-9307 ● ●
34 LINING; BLOWER UNIT
(A) 		8-97069-409-0 01 1 9112-9308 ● ●
34 LINING; BLOWER UNIT
930830- 		8-94327-437-0 01 1 9308- ● ●
34 LINING; BLOWER UNIT
(C) 		8-97069-410-0 01 1 9112-9308 ● ●
37 LEVER; MODE LEVER 8-94327-435-2 01 1 9112- ● ●
38 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94337-654-0 01 1 9112-9504 ● ●
38 CLIP; BLOWER UNIT
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-94337-654-0 01 1 9505- ● ●
39 LEVER; SHUTTER,BLOWER UNIT 8-94327-436-0 01 1 9112-9302 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94327-436-0 01 1 9303-9504 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-94327-436-0 01 1 9505-9704 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-97178-223-0 01 1 9705- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97096-069-0 01 1 9303- ● ●
44 RELAY; BLOWER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97037-772-0 01 1 9209-9308 ● ●
44 RELAY; BLOWER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97011-283-0 01 1 9308- ● ●
49 CASE; BLOWER UNIT
(A) 		8-94327-430-1 01 1 9112-9504 ● ●
49 CASE; BLOWER UNIT
(A) 		8-94327-430-1 01 1 9505-9510 ● ●
49 CASE; BLOWER UNIT
(A) 		8-94327-430-1 01 1 9511- ● ●
49 CASE; BLOWER UNIT
(B) 		8-94327-431-1 01 1 9112-9504 ● ●
49 CASE; BLOWER UNIT
(B) 		8-94327-431-1 01 1 9505-9510 ● ●
49 CASE; BLOWER UNIT
(B) 		8-94327-431-1 01 1 9511- ● ●
49 CASE; BLOWER UNIT
(C) 		8-94327-432-1 01 1 9112-9504 ● ●
49 CASE; BLOWER UNIT
(C) 		8-94327-432-1 01 1 9505-9510 ● ●
49 CASE; BLOWER UNIT
(C) 		8-94327-432-1 01 1 9511- ● ●
54 SCREW; ACTUATOR TO CASE
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-94324-850-0 01 1 9209-9307 ● ●
54 SCREW; ACTUATOR TO CASE
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-94324-850-0 03 1 9308-9308 ● ●
54 SCREW; ACTUATOR TO CASE
FULLAUTO AIR CONDITIONER(C68) 930830- M4X16 		8-94324-850-0 01 1 9308-9403 ● ●
54 SCREW; ACTUATOR TO CASE
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-94324-850-0 03 1 9505- ● ●
78 SCREW; CASE TO CASE
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-94324-850-0 12 1 9209-9307 ● ●
78 SCREW; CASE TO CASE
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-94324-850-0 12 1 9308-9403 ● ●
78 SCREW; CASE TO CASE
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-94324-850-0 13 1 9404-9504 ● ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-94324-850-0 10 1 9112-9504 ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 10 1 9505-9704 ● ●
78 SCREW; CASE TO CASE
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-94324-850-0 10 1 9705- ● ●
78 SCREW; CASE TO CASE
EXC. FULLAUTO AIR CONDITIONER(C68) M4X16 		8-94324-850-0 08 1 9705- ● ●
87 MOTOR ASM; FAN 8-97069-408-1 01 1 9112-9307 ● ●
87 MOTOR ASM; FAN 8-97106-493-0 01 1 9308-9403 ● ●
92 ACTUATOR; BLOWER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97076-079-0 01 1 9209- ● ●
