Isuzu WW
▶
SUV
▶
UBS
▶
50641 - UBS
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

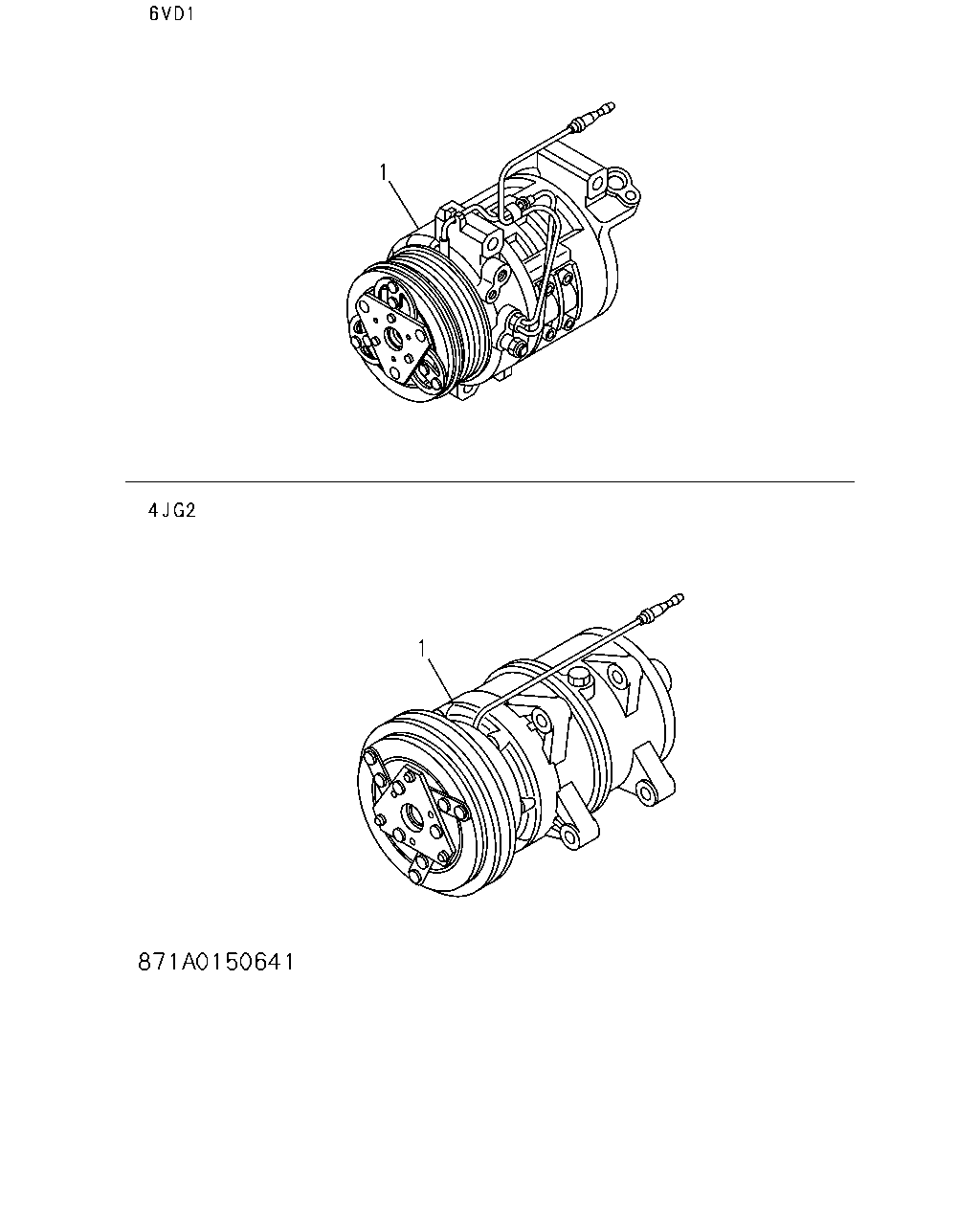

8-71 - COMPRESSOR; AIR CONDITIONING
▶
8-71 — COMPRESSOR; AIR CONDITIONING
(#166630) — 7 parça
Tümü
A - UBS1VC
B - UBS1VF
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COMPRESSOR ASM; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)
8-94376-097-0
01
1
9112-9303
●
●
1
COMPRESSOR ASM; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) VALEO R-134A
8-97070-714-1
01
1
9304-
●
●
1
COMPRESSOR ASM; A/C
6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60)
8-97021-756-3
01
1
9112-9202
●
●
1
COMPRESSOR ASM; A/C
6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60)
8-97074-660-0
01
1
9203-9208
●
●
1
COMPRESSOR ASM; A/C
6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)
8-97075-366-0
01
1
9209-9303
●
●
1
COMPRESSOR ASM; A/C
6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"
8-97085-898-0
01
1
9304-9602
●
●
1
COMPRESSOR ASM; A/C
6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) VALEO R-134A
8-97085-896-0
01
1
9603-
●
●
