◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50814 - NKR(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#16663) — 23 parça

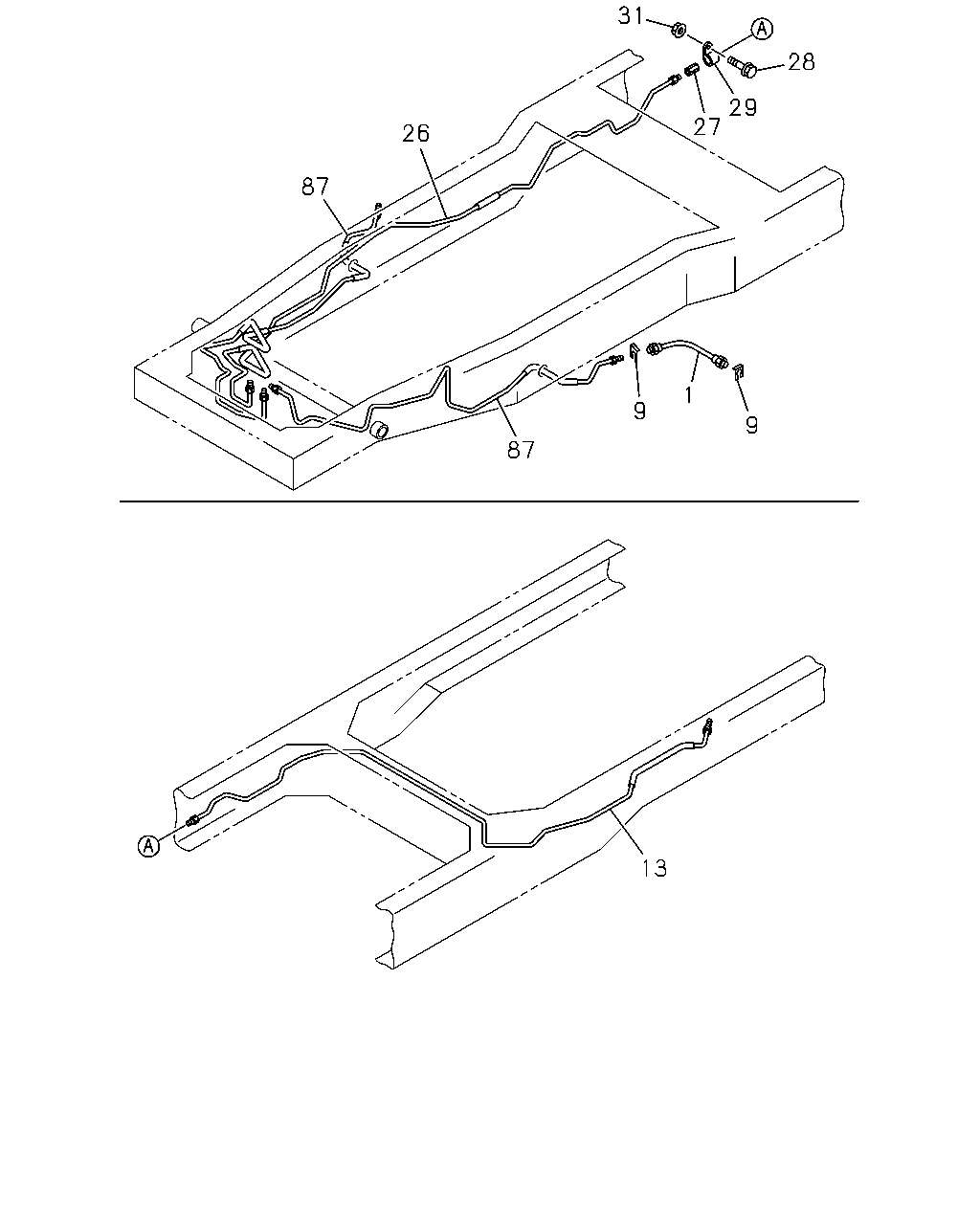

çizim 49071
31 28 29 27 26 87 1 9 9 87 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,FRT BRK 8-97035-063-0 02 1 0009- ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0009- ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0009- ● ● ●
13 PIPE; OIL,UNION TO UNION
THA 		8-97916-825-0 01 1 0009- ●
13 PIPE; OIL,UNION TO UNION
THA 		8-97914-142-0 01 1 0009- ●
13 PIPE; OIL,UNION TO UNION
THA 		8-97914-400-0 01 1 0009- ●
26 PIPE; BRK,JOINT TO 2 WAY
THA 		8-97917-995-0 01 1 0009- ●
26 PIPE; BRK,JOINT TO 2 WAY
THA 		8-97917-996-0 01 1 0009- ●
26 PIPE; BRK,JOINT TO 2 WAY
THA 		8-97917-001-1 01 1 0009- ●
27 UNION; BRK PIPE
M10 STRAIGHT 		9-09227-005-0 01 1 0009- ● ● ●
28 BOLT; UNION CLIP
M6X25 FLANGE 		0-28680-625-0 01 1 0009- ● ● ●
29 CLIP; UNION
ID=16 L=20 		9-09525-532-0 01 1 0009- ● ● ●
31 NUT; UNION CLIP
M6 FLANGE 		0-91150-106-0 01 1 0009- ● ● ●
87 PIPE; BRK,5 WAY TO UNION
M/T MSB5M<RM5>,M/T MSB5S<R45> EXC. POWER STEERING<N40> THA 		8-97910-156-0 01 1 0009- ● ● ●
87 PIPE; BRK,5 WAY TO UNION
THA 		8-97916-826-0 01 1 0009- ● ●
87 PIPE; BRK,5 WAY TO UNION
THA 		8-97917-994-0 01 1 0009- ● ●
87 PIPE; BRK,5 WAY TO UNION
THA 		8-97910-155-0 01 1 0009- ●

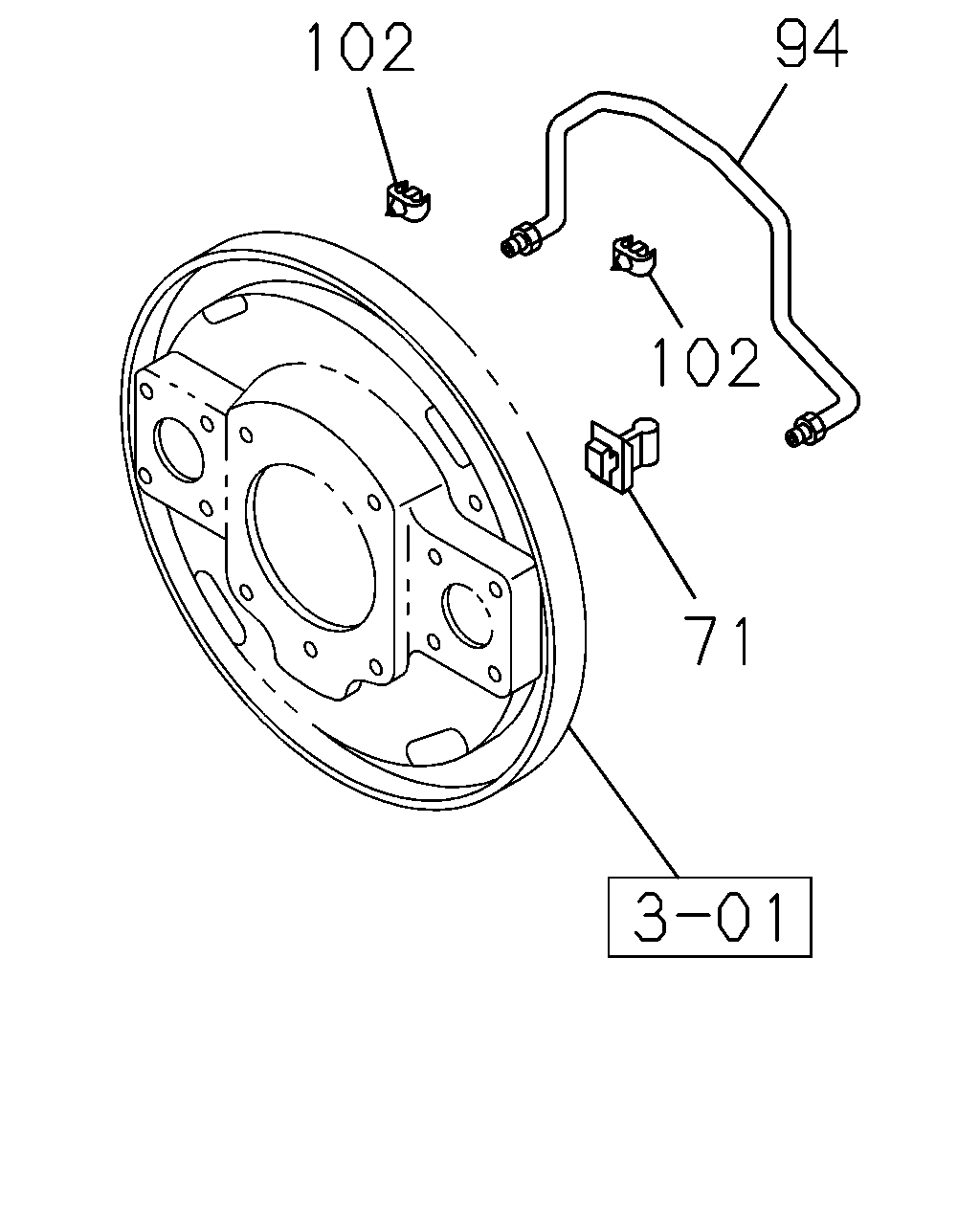

çizim 50576
94 102 102 71
BalonParca AdiParca NoAdetTipApplied Date A B C
71 GROMMET; OIL PIPE
THA 		9-09756-034-0 02 1 0009- ● ● ●
94 PIPE; BRK,W/C TO W/C
THA 		8-97940-699-0 01 1 0009- ● ●
94 PIPE; BRK,W/C TO W/C
THA 		8-97940-700-0 01 1 0009- ● ●
94 PIPE; BRK,W/C TO W/C
THA 		8-97940-696-0 02 1 0009- ●
102 CLIP; PIPE 8-94128-306-0 02 1 0009- ● ●
102 CLIP; PIPE 8-94128-306-0 01 1 0009- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
