8-65 — CONTROL LEVER; HEATER AND AIR CON (#166629) — 69 parça

23 69 24 51 8 49 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	SCREW; CONT LVR TO INST PNL M5X16 TAPPING	9-09829-323-1	04	1	9112-	●	●
23	BEZEL; CONT LEVER FULLAUTO AIR CONDITIONER(C68)	8-97045-690-1	01	1	9209-9307	●	●
23	BEZEL; CONT LEVER FULLAUTO AIR CONDITIONER(C68)	8-97103-582-1	01	1	9308-9504	●	●
23	BEZEL; CONT LEVER FULLAUTO AIR CONDITIONER(C68) EXC. INST TRIM WOOD GRAIN<7HB>	8-97109-582-3	01	1	9505-	●	●
23	BEZEL; CONT LEVER FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB>	8-97109-583-3	01	1	9505-9605		●
23	BEZEL; CONT LEVER FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB>	8-97136-407-0	01	1	9606-		●
24	BULB; CONT LEVER FULLAUTO AIR CONDITIONER(C68)	8-97085-166-0	06	1	9209-9504	●	●
24	BULB; CONT LEVER FULLAUTO AIR CONDITIONER(C68) 14V 0.1A	8-97112-615-0	04	1	9505-	●	●
49	PANEL; CONT FULLAUTO AIR CONDITIONER(C68)	8-97077-717-1	01	1	9209-9504	●	●
49	PANEL; CONT FULLAUTO AIR CONDITIONER(C68) EXC. INST TRIM WOOD GRAIN<7HB>	8-97123-990-0	01	1	9505-	●	●
49	PANEL; CONT FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB>	8-97123-994-0	01	1	9505-9605		●
49	PANEL; CONT FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB>	8-97137-776-0	01	1	9606-		●
51	UNIT; CONT,CONT PANEL FULLAUTO AIR CONDITIONER(C68)	8-97077-718-1	01	1	9209-9307	●	●
51	UNIT; CONT,CONT PANEL FULLAUTO AIR CONDITIONER(C68)	8-97105-394-1	01	1	9308-9504	●	●
69	SCREW; BEZEL BRKT FULLAUTO AIR CONDITIONER(C68)	8-97077-719-0	02	1	9209-9504	●	●
85	ASPIRATOR FULLAUTO AIR CONDITIONER(C68)	8-97077-720-1	01	1	9209-	●	●

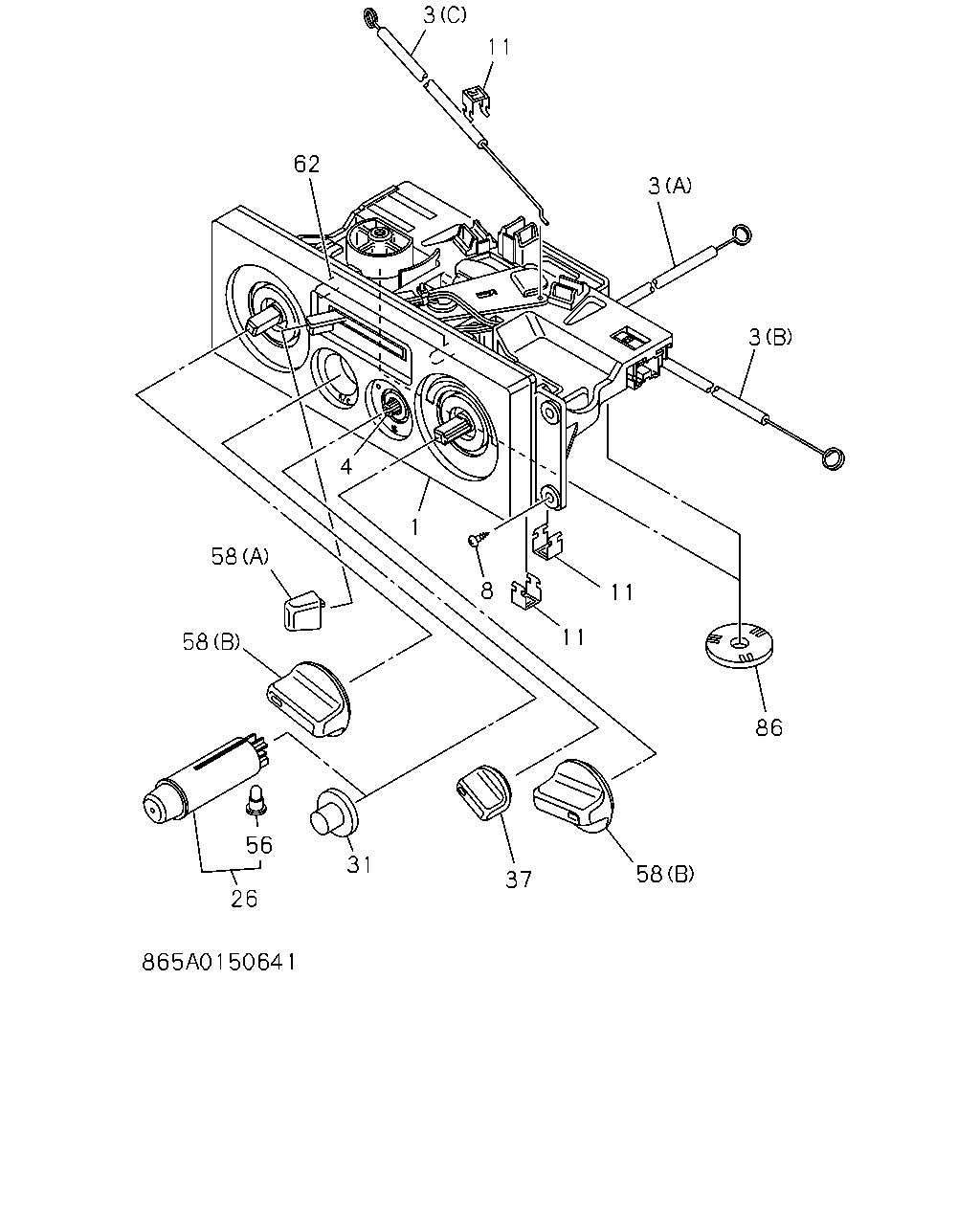

3 3 11 3 11 11 86 58 37 31 56 26 58 58 4 1 8 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER SUB ASM; HTR CONT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97062-826-3	01	1	9112-9504	●	●
1	LEVER SUB ASM; HTR CONT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97123-985-0	01	1	9505-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) TEMP	8-97062-824-0	01	1	9112-9504	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) MODE	8-97123-987-0	01	1	9505-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) FRESH AIR/CYCLE AIR	8-97062-825-0	01	1	9112-9504	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) TEMP	8-97123-988-0	01	1	9505-9509	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41) (A) TEMP	8-97123-988-2	01	1	9510-9510	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) TEMP	8-97123-988-2	01	1	9511-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) MODE	8-97065-219-0	01	1	9112-9504	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) FRESH AIR/CYCLE AIR	8-97123-989-0	01	1	9505-	●	●
4	SWITCH; FAN,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97061-915-1	01	1	9112-	●	●
8	SCREW; CONT LVR TO INST PNL M5X16 TAPPING	9-09829-323-1	04	1	9112-	●	●
11	CLIP; CABLE,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94325-471-0	03	1	9112-	●	●
26	SWITCH; A/C,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60)	8-97042-015-1	01	1	9112-	●	●
31	COVER; HOLE,CONT LEVER HEATER & DEFROSTER(C41)	8-97061-922-0	01	1	9112-	●	●
37	KNOB; SW,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97061-917-0	01	1	9112-	●	●
56	BULB; SWITCH,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97115-090-0	01	1	9112-9504	●	●
56	BULB; SWITCH,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97115-090-0	01	1	9510-	●	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) F/C	8-97061-913-0	01	1	9112-9504	●	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) F/C	8-97116-767-0	01	1	9505-	●	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MODE & TEMP	8-97061-916-0	02	1	9112-	●	●
62	BULB; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97061-914-0	02	1	9112-	●	●
86	WASHER; CONT LEVER AIR CONDITIONER MANUAL CONT(C60)	8-94129-950-0	01	1	9203-9308	●	●
86	WASHER; CONT LEVER HEATER & DEFROSTER(C41)	8-94129-950-0	02	1	9203-9308	●	●
86	WASHER; CONT LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94129-950-0	02	1	9309-	●	●

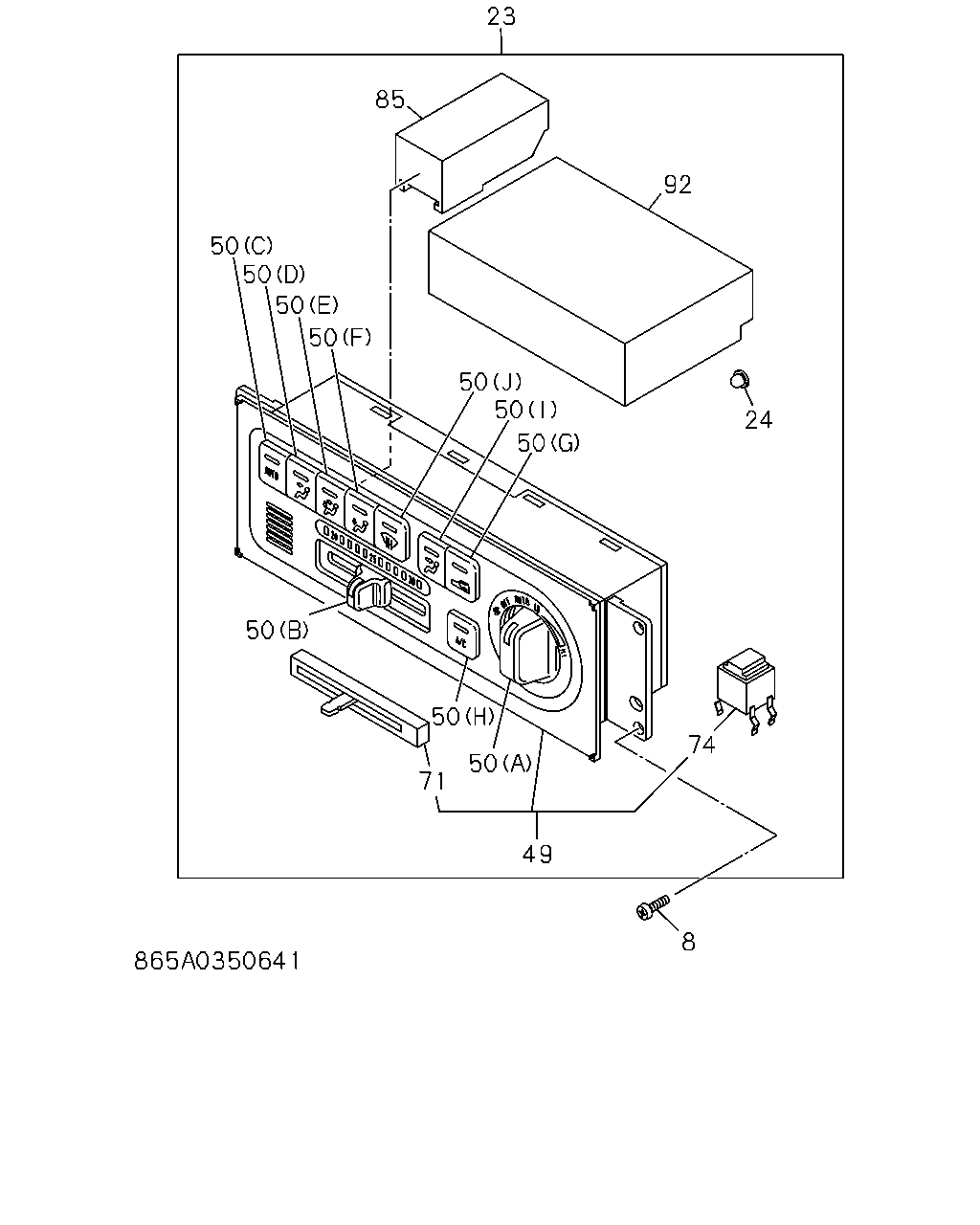

23 92 24 85 50 50 50 50 50 50 50 74 8 49 50 50 71 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	SCREW; CONT LVR TO INST PNL M5X16 TAPPING	9-09829-323-1	04	1	9112-	●	●
23	BEZEL; CONT LEVER FULLAUTO AIR CONDITIONER(C68)	8-97045-690-1	01	1	9209-9307	●	●
23	BEZEL; CONT LEVER FULLAUTO AIR CONDITIONER(C68)	8-97103-582-1	01	1	9308-9504	●	●
23	BEZEL; CONT LEVER FULLAUTO AIR CONDITIONER(C68) EXC. INST TRIM WOOD GRAIN<7HB>	8-97109-582-3	01	1	9505-	●	●
23	BEZEL; CONT LEVER FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB>	8-97109-583-3	01	1	9505-9605		●
23	BEZEL; CONT LEVER FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB>	8-97136-407-0	01	1	9606-		●
24	BULB; CONT LEVER FULLAUTO AIR CONDITIONER(C68)	8-97085-166-0	06	1	9209-9504	●	●
24	BULB; CONT LEVER FULLAUTO AIR CONDITIONER(C68) 14V 0.1A	8-97112-615-0	04	1	9505-	●	●
49	PANEL; CONT FULLAUTO AIR CONDITIONER(C68)	8-97077-717-1	01	1	9209-9504	●	●
49	PANEL; CONT FULLAUTO AIR CONDITIONER(C68) EXC. INST TRIM WOOD GRAIN<7HB>	8-97123-990-0	01	1	9505-	●	●
49	PANEL; CONT FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB>	8-97123-994-0	01	1	9505-9605		●
49	PANEL; CONT FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB>	8-97137-776-0	01	1	9606-		●
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) (A)	8-97112-613-0	01	1	9505-	●	●
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) (B)	8-97112-614-0	01	1	9505-	●	●
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB> (C)	8-97122-455-0	01	1	9606-		●
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB> (D)	8-97122-456-0	01	1	9606-		●
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB> (E)	8-97122-457-0	01	1	9606-		●
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB> (F)	8-97122-458-0	01	1	9606-		●
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB> (G)	8-97122-461-0	01	1	9606-		●
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB> (H)	8-97122-462-0	01	1	9606-		●
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB> (I)	8-97126-086-0	01	1	9606-		●
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB> (J)	8-97126-087-0	01	1	9606-		●
71	RESISTOR; CONT PANEL FULLAUTO AIR CONDITIONER(C68)	8-97123-992-0	01	1	9505-9605	●	●
71	RESISTOR; CONT PANEL FULLAUTO AIR CONDITIONER(C68) EXC. INST TRIM WOOD GRAIN<7HB>	8-97123-992-0	01	1	9606-	●	●
74	SWITCH; CONT PANEL FULLAUTO AIR CONDITIONER(C68)	8-97123-991-0	01	1	9505-9605	●	●
74	SWITCH; CONT PANEL FULLAUTO AIR CONDITIONER(C68) EXC. INST TRIM WOOD GRAIN<7HB>	8-97123-991-0	01	1	9606-	●	●
85	ASPIRATOR FULLAUTO AIR CONDITIONER(C68)	8-97077-720-1	01	1	9209-	●	●
92	CASE; CONT UNIT FULLAUTO AIR CONDITIONER(C68)	8-97123-993-0	01	1	9505-	●	●
