8-60 — HEATER UNIT; FRONT (#166628) — 409 parça

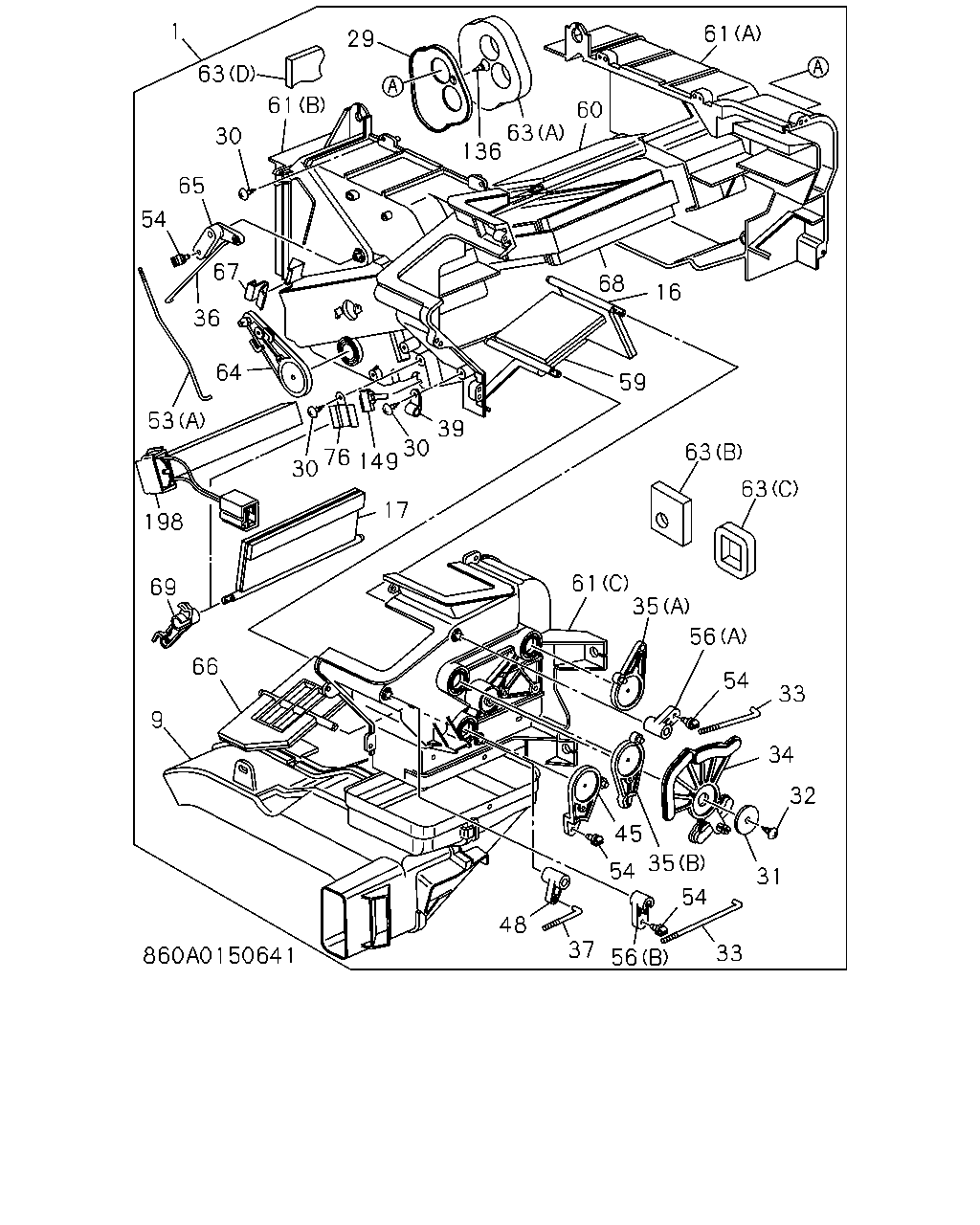

çizim 493576
29 63 1 61 30 65 54 67 36 64 53 198 30 76 30 149 39 17 69 66 9 61 35 56 54 33 34 32 31 35 45 54 48 37 33 54 59 16 68 63 63 136 63 60 61 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97045-688-3 01 1 9209-9504 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97109-562-3 01 1 9505-9510 ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97109-562-3 01 1 9511-9605 ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97176-431-0 01 1 9606- ● ●
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97070-157-3 01 1 9209-9504 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97109-563-3 01 1 9505-9605 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97176-432-0 01 1 9606- ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97035-218-5 01 1 9112-9504 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97109-559-1 01 1 9505-9510 ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97109-559-1 01 1 9511-9605 ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97176-429-0 01 1 9606- ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-94376-101-5 01 1 9112-9504 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97109-557-1 01 1 9505-9605 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97176-428-0 01 1 9606- ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97045-687-4 01 1 9209-9504 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97109-561-3 01 1 9505-9605 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97176-430-0 01 1 9606- ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94376-100-6 01 1 9112-9504 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97109-556-1 01 1 9505-9605 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97176-427-0 01 1 9606-9711 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97170-855-0 01 1 9712- ● ●
9 DUCT; HTR UNIT 8-97045-856-2 01 1 9112-9504 ● ●
9 DUCT; HTR UNIT 8-97111-573-1 01 1 9505- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-94328-631-0 01 1 9112-9605 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-97161-526-0 01 1 9606- ● ●
17 SHUTTER; HTR UNIT,CENTER 8-94328-641-0 01 1 9112- ● ●
29 COVER; HTR UNIT
4JG2 ENG(RJC) 		8-97045-865-0 01 1 9112- ● ●
29 COVER; HTR UNIT
6VD1 DOHC ENG(RLV) 		8-97045-862-0 01 1 9112- ● ●
30 SCREW; HTR UNIT
EXC. CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 14 1 9112-9308 ● ●
30 SCREW; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 16 1 9309- ● ●
30 SCREW; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 17 1 9112-9308 ● ●
30 SCREW; HTR UNIT
EXC. CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 13 1 9309- ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9112- ● ●
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 9112-9504 ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-94248-820-0 01 1 9505-9605 ● ●
32 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M5X20 		9-09829-324-1 01 1 9505-9605 ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 9606- ● ●
33 ROD; SHUTTER LEVER 8-94328-635-0 02 1 9112- ● ●
34 LEVER; SHUTTER,HTR UNIT 8-97045-861-0 01 1 9112-9504 ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-861-0 01 1 9505- ● ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97111-577-1 01 1 9505- ● ●
35 LEVER; SHUTTER,HTR UNIT
(A) 		8-94328-645-1 01 1 9112- ● ●
35 LEVER; SHUTTER,HTR UNIT
(B) 		8-97045-860-0 01 1 9112- ● ●
36 ROD; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-847-0 01 1 9112- ● ●
37 ROD; LEVER 8-94324-848-0 01 1 9112-9504 ● ●
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-848-0 01 1 9505- ● ●
37 ROD; LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-94324-848-0 02 1 9505- ● ●
39 CLIP; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97032-616-0 01 1 9209-9504 ● ●
39 CLIP; HTR UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97032-616-0 03 1 9209-9504 ● ●
39 CLIP; HTR UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9112-9504 ● ●
39 CLIP; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9505- ● ●
45 LEVER; SHUTTER,HTR UNIT 8-94328-646-1 01 1 9112- ● ●
48 LEVER; HTR UNIT 8-94328-627-0 01 1 9112- ● ●
53 ROD; SHUTTER LEVER
(A) 		8-94324-846-0 01 1 9112- ● ●
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) (B) 		8-97076-075-0 01 1 9209-9504 ● ●
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) (D) 		8-94328-635-0 01 1 9505- ● ●
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) (C) 		8-97076-076-0 01 1 9209-9504 ● ●
54 CLIP; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-94248-794-0 06 1 9209- ● ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94248-794-0 04 1 9112- ● ●
56 LEVER; SHUTTER,HTR UNIT
(A) 		8-94328-649-0 01 1 9112- ● ●
56 LEVER; SHUTTER,HTR UNIT
(B) 		8-97045-859-0 01 1 9112- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-94328-629-0 01 1 9112-9504 ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-629-0 01 1 9505-9605 ● ●
59 SHUTTER; HTR UNIT,SIDE
FULLAUTO AIR CONDITIONER(C68) 		8-97130-339-0 01 1 9505-9605 ● ●
59 SHUTTER; HTR UNIT,SIDE 8-97130-339-0 01 1 9606- ● ●
60 DOOR; MIX,HTR UNIT 8-94324-833-0 01 1 9112- ● ●
61 CASE; HTR UNIT
(A) 		8-94328-637-3 01 1 9112-9504 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94328-637-3 01 1 9505- ● ●
61 CASE; HTR UNIT
(C) 		8-94328-638-2 01 1 9112- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (D) 		8-97111-579-0 01 1 9505- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> (E) 		8-97111-580-0 01 1 9505- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> (E) 		8-97111-581-0 01 1 9505- ● ●
61 CASE; HTR UNIT
EXC. CERAMIC HEATER<6YX> (B) 		8-94328-636-3 01 1 9112-9504 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (B) 		8-94328-636-3 01 1 9505- ● ●
61 CASE; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> (B) 		8-97045-867-2 01 1 9112-9504 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (B) 		8-97045-867-2 01 1 9505- ● ●
63 LINING; HTR UNIT
(B) 		8-97069-413-0 01 1 9112-9308 ● ●
63 LINING; HTR UNIT
(C) 		8-97069-414-0 01 1 9112-9308 ● ●
63 LINING; HTR UNIT
4JG2 ENG(RJC) (A) 		8-97069-412-1 01 1 9112- ● ●
63 LINING; HTR UNIT
6VD1 DOHC ENG(RLV) (A) 		8-97069-415-1 01 1 9112- ● ●
63 LINING; HTR UNIT
6VD1 DOHC ENG(RLV) (D) 		8-97081-291-1 01 1 9203- ● ●
64 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-840-1 01 1 9112- ● ●
65 LEVER; MIX,DOOR
FULLAUTO AIR CONDITIONER(C68) 		8-97076-074-0 01 1 9209-9504 ● ●
65 LEVER; MIX,DOOR
FULLAUTO AIR CONDITIONER(C68) 		8-97111-578-0 01 1 9505- ● ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-642-0 01 1 9112- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-94328-630-0 01 1 9112- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94337-654-0 02 1 9112- ● ●
68 CORE; HTR UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) 		8-97103-729-0 01 1 9209-9605 ● ●
68 CORE; HTR UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-640-2 01 1 9112-9605 ● ●
68 CORE; HTR UNIT
4JG2 ENG(RJC) 		8-94328-640-2 01 1 9606- ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97103-728-0 01 1 9209-9605 ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-857-1 01 1 9112-9605 ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) 		8-97045-857-1 01 1 9606-9711 ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97045-857-1 01 1 9712- ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97170-854-0 01 1 9712- ● ●
69 LEVER; SHUTTER,HTR UNIT 8-97045-858-0 01 1 9112- ● ●
76 BRACKET; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> 		8-97045-869-0 01 1 9112- ● ●
136 SCREW; PLATE 8-97045-863-0 01 1 9112- ● ●
149 SWITCH ASM; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> 		8-97045-870-2 01 1 9112- ● ●
198 HEATER; ELEC
4JG2 ENG(RJC) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9112- ● ●

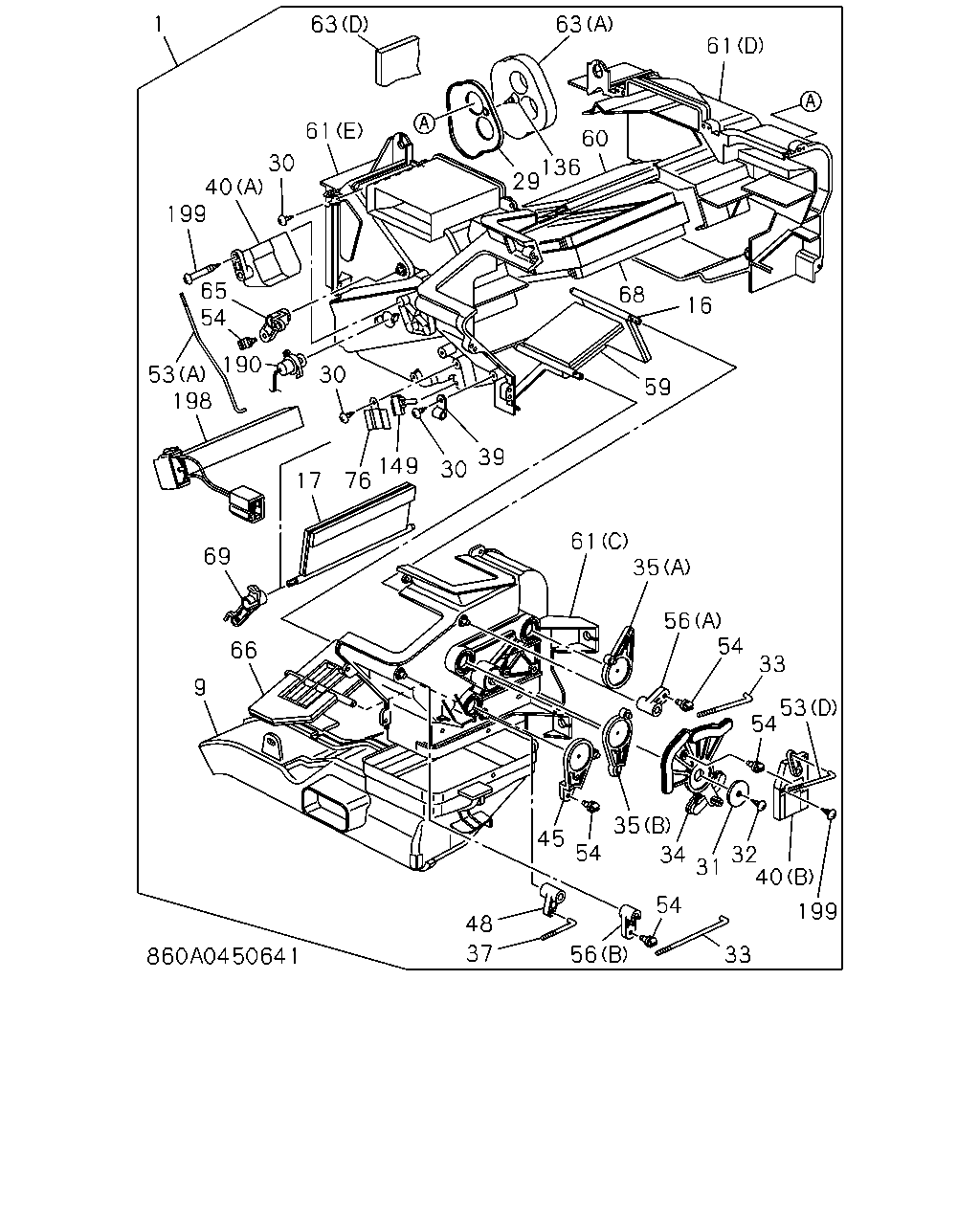

çizim 493678
61 63 63 1 61 30 40 199 29 136 60 16 68 59 39 30 149 76 17 30 190 54 65 53 198 69 66 9 61 35 56 54 33 53 54 199 40 32 31 34 35 54 45 48 37 56 54 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97045-688-3 01 1 9209-9504 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97109-562-3 01 1 9505-9510 ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97109-562-3 01 1 9511-9605 ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97176-431-0 01 1 9606- ● ●
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97070-157-3 01 1 9209-9504 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97109-563-3 01 1 9505-9605 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97176-432-0 01 1 9606- ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97035-218-5 01 1 9112-9504 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97109-559-1 01 1 9505-9510 ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97109-559-1 01 1 9511-9605 ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97176-429-0 01 1 9606- ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-94376-101-5 01 1 9112-9504 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97109-557-1 01 1 9505-9605 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97176-428-0 01 1 9606- ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97045-687-4 01 1 9209-9504 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97109-561-3 01 1 9505-9605 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97176-430-0 01 1 9606- ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94376-100-6 01 1 9112-9504 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97109-556-1 01 1 9505-9605 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97176-427-0 01 1 9606-9711 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97170-855-0 01 1 9712- ● ●
9 DUCT; HTR UNIT 8-97045-856-2 01 1 9112-9504 ● ●
9 DUCT; HTR UNIT 8-97111-573-1 01 1 9505- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-94328-631-0 01 1 9112-9605 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-97161-526-0 01 1 9606- ● ●
17 SHUTTER; HTR UNIT,CENTER 8-94328-641-0 01 1 9112- ● ●
29 COVER; HTR UNIT
4JG2 ENG(RJC) 		8-97045-865-0 01 1 9112- ● ●
29 COVER; HTR UNIT
6VD1 DOHC ENG(RLV) 		8-97045-862-0 01 1 9112- ● ●
30 SCREW; HTR UNIT
EXC. CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 14 1 9112-9308 ● ●
30 SCREW; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 16 1 9309- ● ●
30 SCREW; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 17 1 9112-9308 ● ●
30 SCREW; HTR UNIT
EXC. CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 13 1 9309- ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9112- ● ●
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 9112-9504 ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-94248-820-0 01 1 9505-9605 ● ●
32 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M5X20 		9-09829-324-1 01 1 9505-9605 ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 9606- ● ●
33 ROD; SHUTTER LEVER 8-94328-635-0 02 1 9112- ● ●
34 LEVER; SHUTTER,HTR UNIT 8-97045-861-0 01 1 9112-9504 ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-861-0 01 1 9505- ● ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97111-577-1 01 1 9505- ● ●
35 LEVER; SHUTTER,HTR UNIT
(A) 		8-94328-645-1 01 1 9112- ● ●
35 LEVER; SHUTTER,HTR UNIT
(B) 		8-97045-860-0 01 1 9112- ● ●
37 ROD; LEVER 8-94324-848-0 01 1 9112-9504 ● ●
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-848-0 01 1 9505- ● ●
37 ROD; LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-94324-848-0 02 1 9505- ● ●
39 CLIP; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97032-616-0 01 1 9209-9504 ● ●
39 CLIP; HTR UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97032-616-0 03 1 9209-9504 ● ●
39 CLIP; HTR UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9112-9504 ● ●
39 CLIP; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9505- ● ●
40 ACTUATOR; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97076-077-0 02 1 9209-9504 ● ●
40 ACTUATOR; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (A) 		8-97111-575-0 01 1 9505- ● ●
40 ACTUATOR; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-97111-576-0 01 1 9505- ● ●
45 LEVER; SHUTTER,HTR UNIT 8-94328-646-1 01 1 9112- ● ●
48 LEVER; HTR UNIT 8-94328-627-0 01 1 9112- ● ●
53 ROD; SHUTTER LEVER
(A) 		8-94324-846-0 01 1 9112- ● ●
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) (B) 		8-97076-075-0 01 1 9209-9504 ● ●
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) (D) 		8-94328-635-0 01 1 9505- ● ●
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) (C) 		8-97076-076-0 01 1 9209-9504 ● ●
54 CLIP; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-94248-794-0 06 1 9209- ● ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94248-794-0 04 1 9112- ● ●
56 LEVER; SHUTTER,HTR UNIT
(A) 		8-94328-649-0 01 1 9112- ● ●
56 LEVER; SHUTTER,HTR UNIT
(B) 		8-97045-859-0 01 1 9112- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-94328-629-0 01 1 9112-9504 ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-629-0 01 1 9505-9605 ● ●
59 SHUTTER; HTR UNIT,SIDE
FULLAUTO AIR CONDITIONER(C68) 		8-97130-339-0 01 1 9505-9605 ● ●
59 SHUTTER; HTR UNIT,SIDE 8-97130-339-0 01 1 9606- ● ●
60 DOOR; MIX,HTR UNIT 8-94324-833-0 01 1 9112- ● ●
61 CASE; HTR UNIT
(A) 		8-94328-637-3 01 1 9112-9504 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94328-637-3 01 1 9505- ● ●
61 CASE; HTR UNIT
(C) 		8-94328-638-2 01 1 9112- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (D) 		8-97111-579-0 01 1 9505- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> (E) 		8-97111-580-0 01 1 9505- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> (E) 		8-97111-581-0 01 1 9505- ● ●
61 CASE; HTR UNIT
EXC. CERAMIC HEATER<6YX> (B) 		8-94328-636-3 01 1 9112-9504 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (B) 		8-94328-636-3 01 1 9505- ● ●
61 CASE; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> (B) 		8-97045-867-2 01 1 9112-9504 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (B) 		8-97045-867-2 01 1 9505- ● ●
63 LINING; HTR UNIT
(B) 		8-97069-413-0 01 1 9112-9308 ● ●
63 LINING; HTR UNIT
(C) 		8-97069-414-0 01 1 9112-9308 ● ●
63 LINING; HTR UNIT
4JG2 ENG(RJC) (A) 		8-97069-412-1 01 1 9112- ● ●
63 LINING; HTR UNIT
6VD1 DOHC ENG(RLV) (A) 		8-97069-415-1 01 1 9112- ● ●
63 LINING; HTR UNIT
6VD1 DOHC ENG(RLV) (D) 		8-97081-291-1 01 1 9203- ● ●
65 LEVER; MIX,DOOR
FULLAUTO AIR CONDITIONER(C68) 		8-97076-074-0 01 1 9209-9504 ● ●
65 LEVER; MIX,DOOR
FULLAUTO AIR CONDITIONER(C68) 		8-97111-578-0 01 1 9505- ● ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-642-0 01 1 9112- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-94328-630-0 01 1 9112- ● ●
68 CORE; HTR UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) 		8-97103-729-0 01 1 9209-9605 ● ●
68 CORE; HTR UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-640-2 01 1 9112-9605 ● ●
68 CORE; HTR UNIT
4JG2 ENG(RJC) 		8-94328-640-2 01 1 9606- ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97103-728-0 01 1 9209-9605 ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-857-1 01 1 9112-9605 ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) 		8-97045-857-1 01 1 9606-9711 ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97045-857-1 01 1 9712- ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97170-854-0 01 1 9712- ● ●
69 LEVER; SHUTTER,HTR UNIT 8-97045-858-0 01 1 9112- ● ●
76 BRACKET; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> 		8-97045-869-0 01 1 9112- ● ●
136 SCREW; PLATE 8-97045-863-0 01 1 9112- ● ●
149 SWITCH ASM; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> 		8-97045-870-2 01 1 9112- ● ●
190 SENSOR; HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97076-078-1 01 1 9209-9504 ● ●
190 SENSOR; HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97111-574-1 01 1 9505- ● ●
198 HEATER; ELEC
4JG2 ENG(RJC) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9112- ● ●
199 SCREW; ACTUATOR
FULLAUTO AIR CONDITIONER(C68) 		8-94348-809-0 06 1 9209-9308 ● ●
199 SCREW; ACTUATOR
FULLAUTO AIR CONDITIONER(C68) 		8-94348-809-0 04 1 9309- ● ●

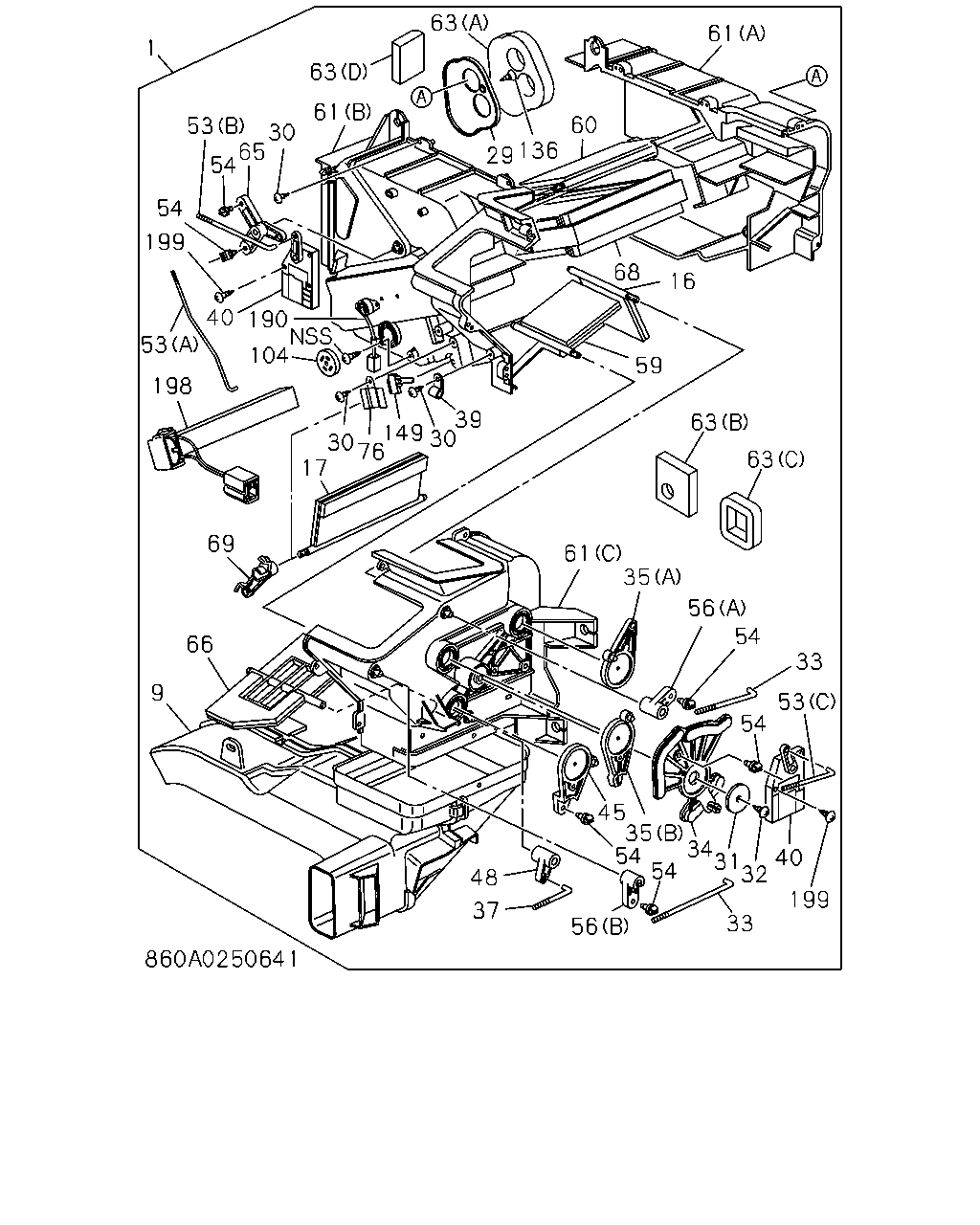

çizim 493782
63 63 1 61 60 136 29 61 30 53 54 65 54 199 40 190 30 104 76 149 39 30 198 53 69 17 66 9 61 35 56 54 33 53 54 63 63 59 16 68 45 35 34 31 32 199 40 33 56 54 54 48 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97045-688-3 01 1 9209-9504 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97109-562-3 01 1 9505-9510 ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97109-562-3 01 1 9511-9605 ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97176-431-0 01 1 9606- ● ●
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97070-157-3 01 1 9209-9504 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97109-563-3 01 1 9505-9605 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97176-432-0 01 1 9606- ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97035-218-5 01 1 9112-9504 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97109-559-1 01 1 9505-9510 ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97109-559-1 01 1 9511-9605 ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97176-429-0 01 1 9606- ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-94376-101-5 01 1 9112-9504 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97109-557-1 01 1 9505-9605 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97176-428-0 01 1 9606- ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97045-687-4 01 1 9209-9504 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97109-561-3 01 1 9505-9605 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97176-430-0 01 1 9606- ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94376-100-6 01 1 9112-9504 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97109-556-1 01 1 9505-9605 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97176-427-0 01 1 9606-9711 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97170-855-0 01 1 9712- ● ●
9 DUCT; HTR UNIT 8-97045-856-2 01 1 9112-9504 ● ●
9 DUCT; HTR UNIT 8-97111-573-1 01 1 9505- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-94328-631-0 01 1 9112-9605 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-97161-526-0 01 1 9606- ● ●
17 SHUTTER; HTR UNIT,CENTER 8-94328-641-0 01 1 9112- ● ●
29 COVER; HTR UNIT
4JG2 ENG(RJC) 		8-97045-865-0 01 1 9112- ● ●
29 COVER; HTR UNIT
6VD1 DOHC ENG(RLV) 		8-97045-862-0 01 1 9112- ● ●
30 SCREW; HTR UNIT
EXC. CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 14 1 9112-9308 ● ●
30 SCREW; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 16 1 9309- ● ●
30 SCREW; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 17 1 9112-9308 ● ●
30 SCREW; HTR UNIT
EXC. CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 13 1 9309- ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9112- ● ●
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 9112-9504 ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-94248-820-0 01 1 9505-9605 ● ●
32 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M5X20 		9-09829-324-1 01 1 9505-9605 ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 9606- ● ●
33 ROD; SHUTTER LEVER 8-94328-635-0 02 1 9112- ● ●
34 LEVER; SHUTTER,HTR UNIT 8-97045-861-0 01 1 9112-9504 ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-861-0 01 1 9505- ● ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97111-577-1 01 1 9505- ● ●
35 LEVER; SHUTTER,HTR UNIT
(A) 		8-94328-645-1 01 1 9112- ● ●
35 LEVER; SHUTTER,HTR UNIT
(B) 		8-97045-860-0 01 1 9112- ● ●
37 ROD; LEVER 8-94324-848-0 01 1 9112-9504 ● ●
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-848-0 01 1 9505- ● ●
37 ROD; LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-94324-848-0 02 1 9505- ● ●
39 CLIP; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97032-616-0 01 1 9209-9504 ● ●
39 CLIP; HTR UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97032-616-0 03 1 9209-9504 ● ●
39 CLIP; HTR UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9112-9504 ● ●
39 CLIP; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9505- ● ●
40 ACTUATOR; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97076-077-0 02 1 9209-9504 ● ●
40 ACTUATOR; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (A) 		8-97111-575-0 01 1 9505- ● ●
40 ACTUATOR; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-97111-576-0 01 1 9505- ● ●
45 LEVER; SHUTTER,HTR UNIT 8-94328-646-1 01 1 9112- ● ●
48 LEVER; HTR UNIT 8-94328-627-0 01 1 9112- ● ●
53 ROD; SHUTTER LEVER
(A) 		8-94324-846-0 01 1 9112- ● ●
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) (B) 		8-97076-075-0 01 1 9209-9504 ● ●
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) (D) 		8-94328-635-0 01 1 9505- ● ●
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) (C) 		8-97076-076-0 01 1 9209-9504 ● ●
54 CLIP; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-94248-794-0 06 1 9209- ● ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94248-794-0 04 1 9112- ● ●
56 LEVER; SHUTTER,HTR UNIT
(A) 		8-94328-649-0 01 1 9112- ● ●
56 LEVER; SHUTTER,HTR UNIT
(B) 		8-97045-859-0 01 1 9112- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-94328-629-0 01 1 9112-9504 ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-629-0 01 1 9505-9605 ● ●
59 SHUTTER; HTR UNIT,SIDE
FULLAUTO AIR CONDITIONER(C68) 		8-97130-339-0 01 1 9505-9605 ● ●
59 SHUTTER; HTR UNIT,SIDE 8-97130-339-0 01 1 9606- ● ●
60 DOOR; MIX,HTR UNIT 8-94324-833-0 01 1 9112- ● ●
61 CASE; HTR UNIT
(A) 		8-94328-637-3 01 1 9112-9504 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94328-637-3 01 1 9505- ● ●
61 CASE; HTR UNIT
(C) 		8-94328-638-2 01 1 9112- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (D) 		8-97111-579-0 01 1 9505- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> (E) 		8-97111-580-0 01 1 9505- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> (E) 		8-97111-581-0 01 1 9505- ● ●
61 CASE; HTR UNIT
EXC. CERAMIC HEATER<6YX> (B) 		8-94328-636-3 01 1 9112-9504 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (B) 		8-94328-636-3 01 1 9505- ● ●
61 CASE; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> (B) 		8-97045-867-2 01 1 9112-9504 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (B) 		8-97045-867-2 01 1 9505- ● ●
63 LINING; HTR UNIT
(B) 		8-97069-413-0 01 1 9112-9308 ● ●
63 LINING; HTR UNIT
(C) 		8-97069-414-0 01 1 9112-9308 ● ●
63 LINING; HTR UNIT
4JG2 ENG(RJC) (A) 		8-97069-412-1 01 1 9112- ● ●
63 LINING; HTR UNIT
6VD1 DOHC ENG(RLV) (A) 		8-97069-415-1 01 1 9112- ● ●
63 LINING; HTR UNIT
6VD1 DOHC ENG(RLV) (D) 		8-97081-291-1 01 1 9203- ● ●
65 LEVER; MIX,DOOR
FULLAUTO AIR CONDITIONER(C68) 		8-97076-074-0 01 1 9209-9504 ● ●
65 LEVER; MIX,DOOR
FULLAUTO AIR CONDITIONER(C68) 		8-97111-578-0 01 1 9505- ● ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-642-0 01 1 9112- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-94328-630-0 01 1 9112- ● ●
68 CORE; HTR UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) 		8-97103-729-0 01 1 9209-9605 ● ●
68 CORE; HTR UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-640-2 01 1 9112-9605 ● ●
68 CORE; HTR UNIT
4JG2 ENG(RJC) 		8-94328-640-2 01 1 9606- ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97103-728-0 01 1 9209-9605 ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-857-1 01 1 9112-9605 ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) 		8-97045-857-1 01 1 9606-9711 ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97045-857-1 01 1 9712- ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97170-854-0 01 1 9712- ● ●
69 LEVER; SHUTTER,HTR UNIT 8-97045-858-0 01 1 9112- ● ●
76 BRACKET; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> 		8-97045-869-0 01 1 9112- ● ●
104 CAP; CASE,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-94328-658-0 01 1 9209-9504 ● ●
136 SCREW; PLATE 8-97045-863-0 01 1 9112- ● ●
149 SWITCH ASM; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> 		8-97045-870-2 01 1 9112- ● ●
190 SENSOR; HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97076-078-1 01 1 9209-9504 ● ●
190 SENSOR; HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97111-574-1 01 1 9505- ● ●
198 HEATER; ELEC
4JG2 ENG(RJC) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9112- ● ●
199 SCREW; ACTUATOR
FULLAUTO AIR CONDITIONER(C68) 		8-94348-809-0 06 1 9209-9308 ● ●
199 SCREW; ACTUATOR
FULLAUTO AIR CONDITIONER(C68) 		8-94348-809-0 04 1 9309- ● ●

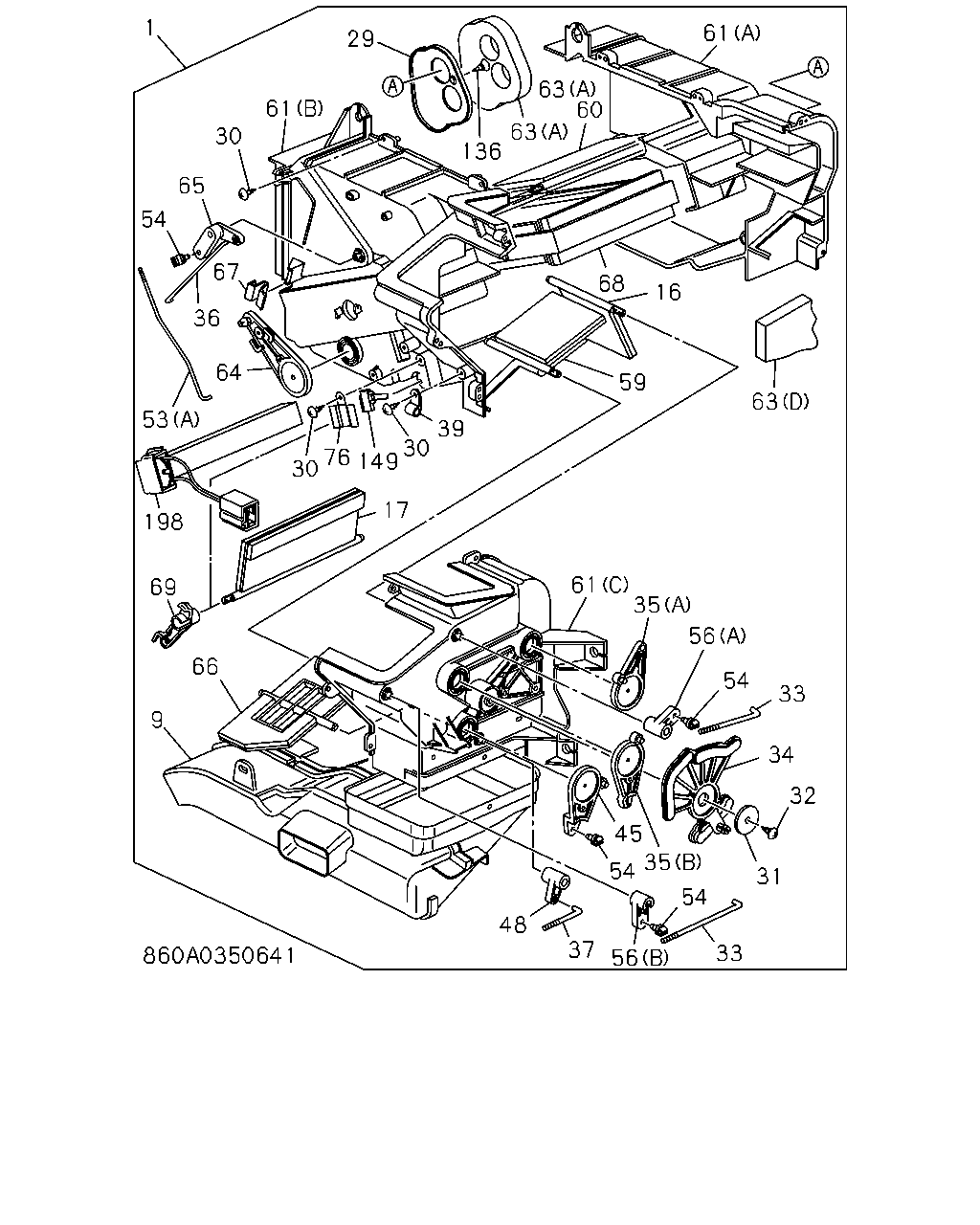

çizim 493815
61 63 63 60 29 1 61 30 65 54 67 36 64 53 30 76 30 149 39 136 68 59 16 63 17 198 69 66 9 61 35 56 54 33 34 32 31 54 35 45 54 48 37 56 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97045-688-3 01 1 9209-9504 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97109-562-3 01 1 9505-9510 ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97109-562-3 01 1 9511-9605 ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97176-431-0 01 1 9606- ● ●
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97070-157-3 01 1 9209-9504 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97109-563-3 01 1 9505-9605 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97176-432-0 01 1 9606- ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97035-218-5 01 1 9112-9504 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97109-559-1 01 1 9505-9510 ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97109-559-1 01 1 9511-9605 ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97176-429-0 01 1 9606- ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-94376-101-5 01 1 9112-9504 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97109-557-1 01 1 9505-9605 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97176-428-0 01 1 9606- ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97045-687-4 01 1 9209-9504 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97109-561-3 01 1 9505-9605 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97176-430-0 01 1 9606- ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94376-100-6 01 1 9112-9504 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97109-556-1 01 1 9505-9605 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97176-427-0 01 1 9606-9711 ● ●
1 HEATER UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97170-855-0 01 1 9712- ● ●
9 DUCT; HTR UNIT 8-97045-856-2 01 1 9112-9504 ● ●
9 DUCT; HTR UNIT 8-97111-573-1 01 1 9505- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-94328-631-0 01 1 9112-9605 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-97161-526-0 01 1 9606- ● ●
17 SHUTTER; HTR UNIT,CENTER 8-94328-641-0 01 1 9112- ● ●
29 COVER; HTR UNIT
4JG2 ENG(RJC) 		8-97045-865-0 01 1 9112- ● ●
29 COVER; HTR UNIT
6VD1 DOHC ENG(RLV) 		8-97045-862-0 01 1 9112- ● ●
30 SCREW; HTR UNIT
EXC. CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 14 1 9112-9308 ● ●
30 SCREW; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 16 1 9309- ● ●
30 SCREW; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 17 1 9112-9308 ● ●
30 SCREW; HTR UNIT
EXC. CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 13 1 9309- ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9112- ● ●
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 9112-9504 ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-94248-820-0 01 1 9505-9605 ● ●
32 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M5X20 		9-09829-324-1 01 1 9505-9605 ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 9606- ● ●
33 ROD; SHUTTER LEVER 8-94328-635-0 02 1 9112- ● ●
34 LEVER; SHUTTER,HTR UNIT 8-97045-861-0 01 1 9112-9504 ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-861-0 01 1 9505- ● ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97111-577-1 01 1 9505- ● ●
35 LEVER; SHUTTER,HTR UNIT
(A) 		8-94328-645-1 01 1 9112- ● ●
35 LEVER; SHUTTER,HTR UNIT
(B) 		8-97045-860-0 01 1 9112- ● ●
36 ROD; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-847-0 01 1 9112- ● ●
37 ROD; LEVER 8-94324-848-0 01 1 9112-9504 ● ●
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-848-0 01 1 9505- ● ●
37 ROD; LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-94324-848-0 02 1 9505- ● ●
39 CLIP; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97032-616-0 01 1 9209-9504 ● ●
39 CLIP; HTR UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> 		8-97032-616-0 03 1 9209-9504 ● ●
39 CLIP; HTR UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9112-9504 ● ●
39 CLIP; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9505- ● ●
45 LEVER; SHUTTER,HTR UNIT 8-94328-646-1 01 1 9112- ● ●
48 LEVER; HTR UNIT 8-94328-627-0 01 1 9112- ● ●
53 ROD; SHUTTER LEVER
(A) 		8-94324-846-0 01 1 9112- ● ●
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) (B) 		8-97076-075-0 01 1 9209-9504 ● ●
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) (D) 		8-94328-635-0 01 1 9505- ● ●
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) (C) 		8-97076-076-0 01 1 9209-9504 ● ●
54 CLIP; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-94248-794-0 06 1 9209- ● ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94248-794-0 04 1 9112- ● ●
56 LEVER; SHUTTER,HTR UNIT
(A) 		8-94328-649-0 01 1 9112- ● ●
56 LEVER; SHUTTER,HTR UNIT
(B) 		8-97045-859-0 01 1 9112- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-94328-629-0 01 1 9112-9504 ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-629-0 01 1 9505-9605 ● ●
59 SHUTTER; HTR UNIT,SIDE
FULLAUTO AIR CONDITIONER(C68) 		8-97130-339-0 01 1 9505-9605 ● ●
59 SHUTTER; HTR UNIT,SIDE 8-97130-339-0 01 1 9606- ● ●
60 DOOR; MIX,HTR UNIT 8-94324-833-0 01 1 9112- ● ●
61 CASE; HTR UNIT
(A) 		8-94328-637-3 01 1 9112-9504 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94328-637-3 01 1 9505- ● ●
61 CASE; HTR UNIT
(C) 		8-94328-638-2 01 1 9112- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (D) 		8-97111-579-0 01 1 9505- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) CERAMIC HEATER<6YX> (E) 		8-97111-580-0 01 1 9505- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> (E) 		8-97111-581-0 01 1 9505- ● ●
61 CASE; HTR UNIT
EXC. CERAMIC HEATER<6YX> (B) 		8-94328-636-3 01 1 9112-9504 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (B) 		8-94328-636-3 01 1 9505- ● ●
61 CASE; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> (B) 		8-97045-867-2 01 1 9112-9504 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (B) 		8-97045-867-2 01 1 9505- ● ●
63 LINING; HTR UNIT
(B) 		8-97069-413-0 01 1 9112-9308 ● ●
63 LINING; HTR UNIT
(C) 		8-97069-414-0 01 1 9112-9308 ● ●
63 LINING; HTR UNIT
4JG2 ENG(RJC) (A) 		8-97069-412-1 01 1 9112- ● ●
63 LINING; HTR UNIT
6VD1 DOHC ENG(RLV) (A) 		8-97069-415-1 01 1 9112- ● ●
63 LINING; HTR UNIT
6VD1 DOHC ENG(RLV) (D) 		8-97081-291-1 01 1 9203- ● ●
64 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-840-1 01 1 9112- ● ●
65 LEVER; MIX,DOOR
FULLAUTO AIR CONDITIONER(C68) 		8-97076-074-0 01 1 9209-9504 ● ●
65 LEVER; MIX,DOOR
FULLAUTO AIR CONDITIONER(C68) 		8-97111-578-0 01 1 9505- ● ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-642-0 01 1 9112- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-94328-630-0 01 1 9112- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94337-654-0 02 1 9112- ● ●
68 CORE; HTR UNIT
4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) 		8-97103-729-0 01 1 9209-9605 ● ●
68 CORE; HTR UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-640-2 01 1 9112-9605 ● ●
68 CORE; HTR UNIT
4JG2 ENG(RJC) 		8-94328-640-2 01 1 9606- ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97103-728-0 01 1 9209-9605 ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-857-1 01 1 9112-9605 ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) 		8-97045-857-1 01 1 9606-9711 ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) 		8-97045-857-1 01 1 9712- ● ●
68 CORE; HTR UNIT
6VD1 DOHC ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97170-854-0 01 1 9712- ● ●
69 LEVER; SHUTTER,HTR UNIT 8-97045-858-0 01 1 9112- ● ●
76 BRACKET; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> 		8-97045-869-0 01 1 9112- ● ●
136 SCREW; PLATE 8-97045-863-0 01 1 9112- ● ●
149 SWITCH ASM; HTR UNIT
4JG2 ENG(RJC) CERAMIC HEATER<6YX> 		8-97045-870-2 01 1 9112- ● ●
198 HEATER; ELEC
4JG2 ENG(RJC) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
