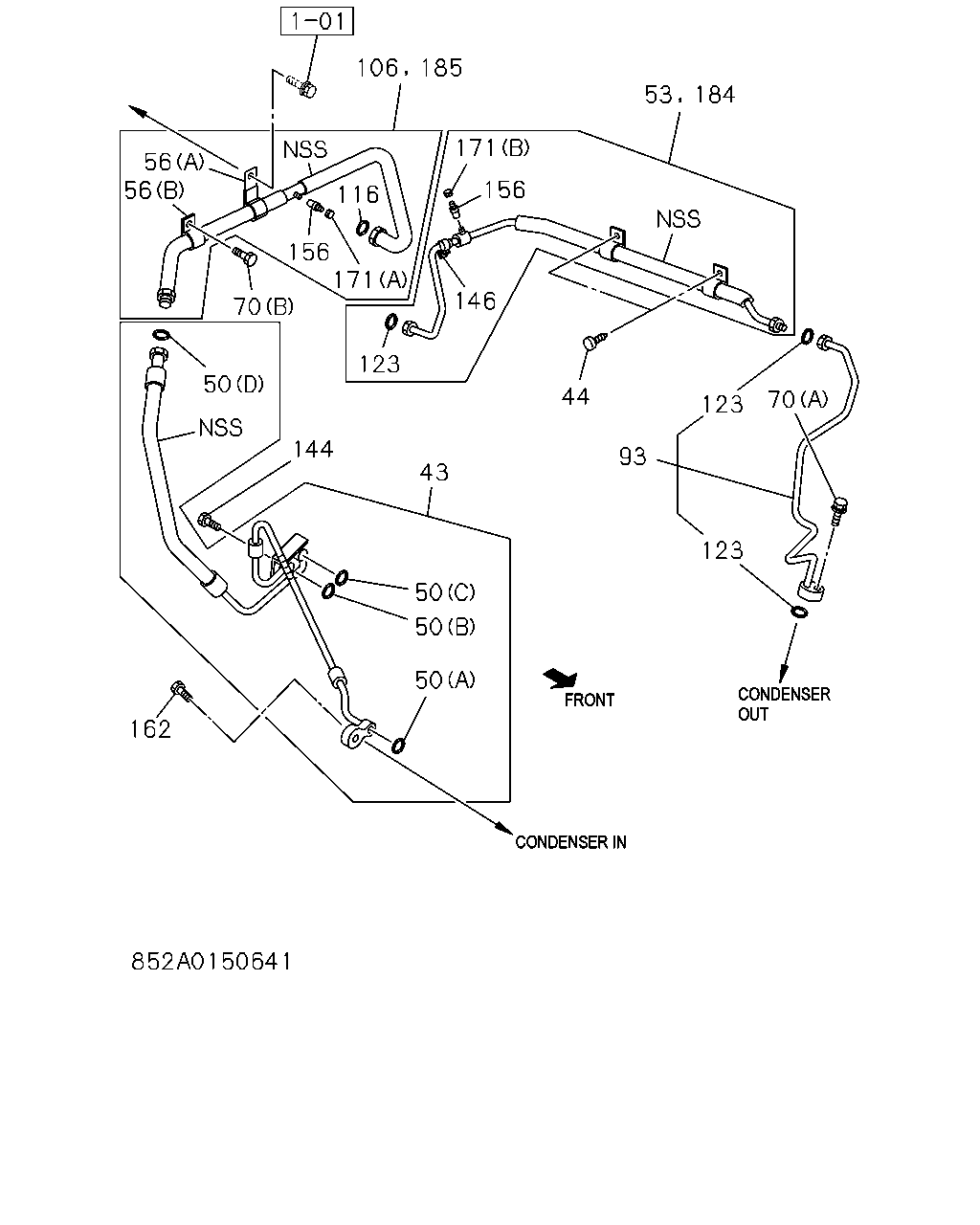

8-52 — PIPING; AIR CONDITIONING (#166627) — 101 parça

106 185 53 184 171 56 56 116 156 70 171 146 156 123 70 44 93 123 43 123 144 50 162 50 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-94376-285-2	01	1	9112-9208	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94376-285-2	01	1	9209-9301	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97086-209-1	01	1	9302-	●	●
44	CLIP; FLEX HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) D6.8X12	8-94198-687-0	02	1	9112-	●	●
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (D) ID=13.9	8-94113-330-0	01	1	9112-	●	●
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=10.8	8-94113-331-0	01	1	9112-	●	●
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=11.0	8-94461-900-0	01	1	9112-	●	●
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=14.8	8-94461-901-0	01	1	9112-	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97038-934-1	01	1	9112-9208	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97038-934-1	01	1	9209-9303	●	●
53	PIPE; RECEIVER TANK TO EVAP 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97017-583-0	01	1	9112-9303	●	●
56	CLIP; PIPE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97137-775-0	01	1	9511-	●	●
56	CLIP; PIPE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97139-184-0	01	1	9511-	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) (A) M6X25	9-01960-625-0	01	1	9112-9204	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 W/LK&PL WASHER	0-50140-625-0	01	1	9205-9208	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X25 FLANGE	0-28080-625-0	01	1	9209-9702	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X25 FLANGE	0-28680-625-0	01	1	9703-	●	●
70	BOLT; PIPE TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-94470-854-1	01	1	9112-9309	●	●
70	BOLT; PIPE TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9310-	●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60)	8-94380-199-0	01	1	9112-9208	●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94380-199-0	01	1	9209-9303	●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97085-843-0	01	1	9304-	●	●
106	PIPE; PIPE TO UNION 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94388-104-3	01	1	9112-9303	●	●
116	GASKET; PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=13.9	8-94113-330-0	01	1	9112-9307	●	●
116	GASKET; PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=13.9	8-94113-330-0	01	1	9308-	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	03	1	9112-9208	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6.07	8-94461-902-0	03	1	9209-9504	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6.07	8-94461-902-0	02	1	9505-9510	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6.07	8-94461-902-0	01	1	9511-	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6.07	8-94461-902-0	01	1	9308-9510	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6.07	8-94461-902-0	02	1	9511-	●	●
144	BOLT; CONN TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M10X45	0-28011-045-0	01	1	9112-9204	●	●
144	BOLT; CONN TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M10X45 FLANGE	0-28081-045-0	01	1	9205-9307	●	●
144	BOLT; CONN TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M10X45 FLANGE	0-28081-045-0	01	1	9308-	●	●
144	BOLT; CONN TO CMPR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●
146	CLIP; RECEIVER PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9304-9307	●	●
146	CLIP; RECEIVER PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9308-	●	●
146	CLIP; RECEIVER PIPE 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94457-163-0	02	1	9112-	●	●
156	VALVE; PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94121-731-0	01	1	9112-9303	●	●
156	VALVE; PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97083-100-0	01	1	9304-9307	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97083-100-0	01	1	9304-9307	●	●
156	VALVE; PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97083-100-0	01	1	9308-	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97083-100-0	01	1	9308-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28680-825-0	01	1	9610-	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) CAP MARK H	8-97083-101-0	01	1	9304-9307	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) CAP MARK H	8-97083-101-0	01	1	9308-	●	●
171	CAP; PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-94324-069-0	01	1	9112-9303	●	●
171	CAP; PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) CAP MARK L	8-97083-102-0	01	1	9304-9307	●	●
171	CAP; PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) CAP MARK L	8-97083-102-0	01	1	9308-	●	●
184	PIPE; PIPE TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97085-847-1	01	1	9304-9504	●	●
184	PIPE; PIPE TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97124-652-0	01	1	9505-	●	●
184	PIPE; PIPE TO EVAP 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97085-845-1	01	1	9304-	●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97085-849-1	01	1	9304-	●	●

53 184 146 146 123 171 156 123 93 70 123 162 147 66 148 67 67 67 67 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	PIPE; RECEIVER TANK TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97038-934-1	01	1	9112-9208	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97038-934-1	01	1	9209-9303	●	●
53	PIPE; RECEIVER TANK TO EVAP 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97017-583-0	01	1	9112-9303	●	●
66	HOSE; FLEX,A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) (B)	8-94376-284-1	01	1	9112-9208	●	●
66	HOSE; FLEX,A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-94376-284-1	01	1	9209-9303	●	●
66	HOSE; FLEX,A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) "R-134A"	8-97086-207-1	01	1	9304-	●	●
66	HOSE; FLEX,A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94376-291-1	01	1	9112-9208	●	●
66	HOSE; FLEX,A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-94376-291-1	01	1	9209-9301	●	●
66	HOSE; FLEX,A/C 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97086-203-1	01	1	9302-	●	●
67	GASKET; FLEX HOSE 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=13.9	8-94113-330-0	02	1	9112-	●	●
67	GASKET; FLEX HOSE 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=10.8	8-94113-331-0	02	1	9112-	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) (A) M6X25	9-01960-625-0	01	1	9112-9204	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 W/LK&PL WASHER	0-50140-625-0	01	1	9205-9208	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X25 FLANGE	0-28080-625-0	01	1	9209-9702	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X25 FLANGE	0-28680-625-0	01	1	9703-	●	●
70	BOLT; PIPE TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-94470-854-1	01	1	9112-9309	●	●
70	BOLT; PIPE TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9310-	●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60)	8-94380-199-0	01	1	9112-9208	●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94380-199-0	01	1	9209-9303	●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97085-843-0	01	1	9304-	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	03	1	9112-9208	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6.07	8-94461-902-0	03	1	9209-9504	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6.07	8-94461-902-0	02	1	9505-9510	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6.07	8-94461-902-0	01	1	9511-	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6.07	8-94461-902-0	01	1	9308-9510	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=6.07	8-94461-902-0	02	1	9511-	●	●
146	CLIP; RECEIVER PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9304-9307	●	●
146	CLIP; RECEIVER PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9308-	●	●
146	CLIP; RECEIVER PIPE 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94457-163-0	02	1	9112-	●	●
147	CAP; FLEX HOSE 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94324-069-0	01	1	9209-9303	●	●
147	CAP; FLEX HOSE 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK L	8-97083-102-0	01	1	9304-	●	●
148	VALVE; FLEX HOSE 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97083-100-0	01	1	9304-	●	●
156	VALVE; PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94121-731-0	01	1	9112-9303	●	●
156	VALVE; PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97083-100-0	01	1	9304-9307	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97083-100-0	01	1	9304-9307	●	●
156	VALVE; PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97083-100-0	01	1	9308-	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97083-100-0	01	1	9308-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28680-825-0	01	1	9610-	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) CAP MARK H	8-97083-101-0	01	1	9304-9307	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) CAP MARK H	8-97083-101-0	01	1	9308-	●	●
171	CAP; PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-94324-069-0	01	1	9112-9303	●	●
171	CAP; PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) CAP MARK L	8-97083-102-0	01	1	9304-9307	●	●
171	CAP; PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) CAP MARK L	8-97083-102-0	01	1	9308-	●	●
184	PIPE; PIPE TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97085-847-1	01	1	9304-9504	●	●
184	PIPE; PIPE TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97124-652-0	01	1	9505-	●	●
184	PIPE; PIPE TO EVAP 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) "R-134A"	8-97085-845-1	01	1	9304-	●	●

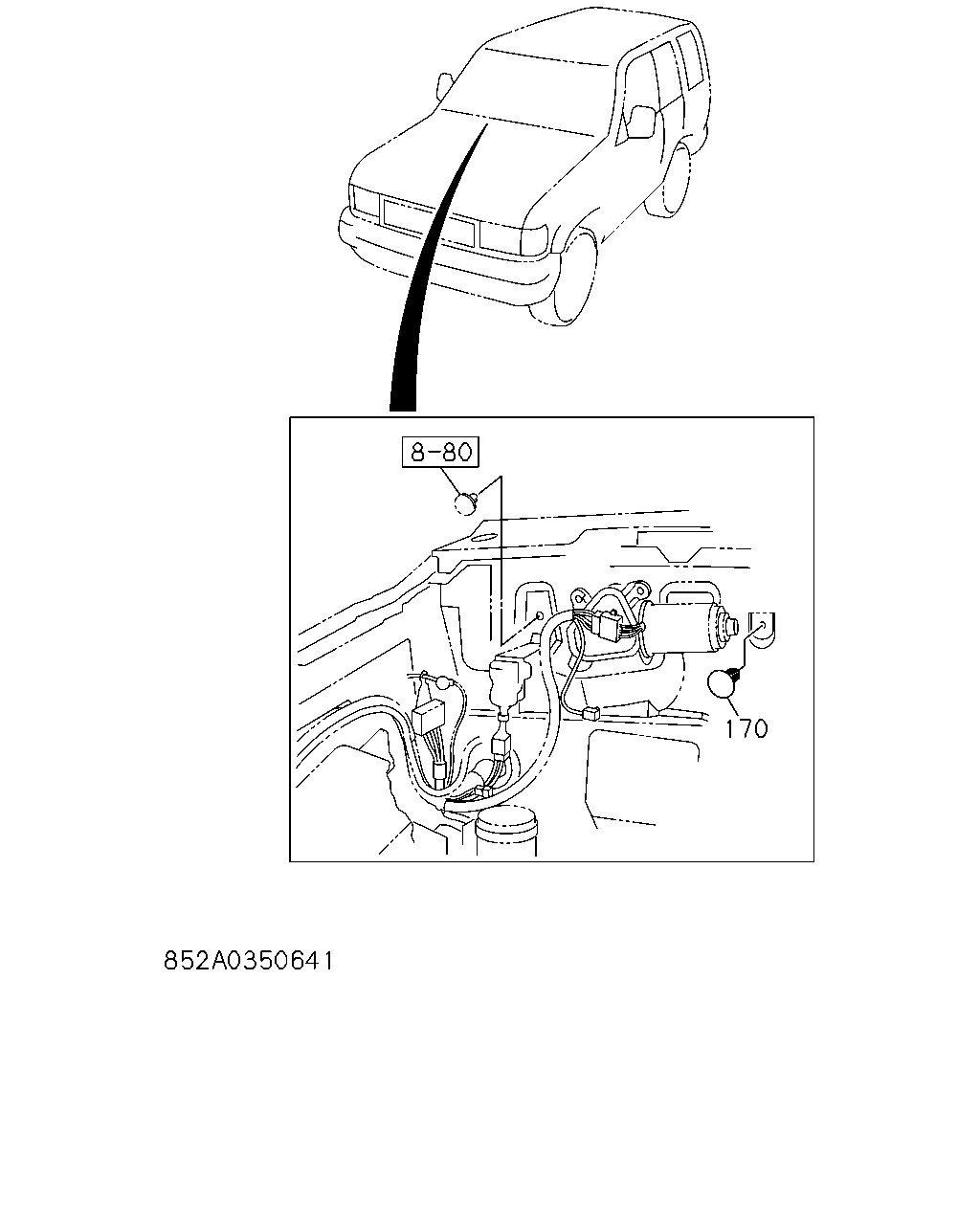

170

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	170	PLUG; HOLE 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) OD=12 L=14.8	8-94279-921-0	01	1	9310-	●	●
	170	PLUG; HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68) OD=12 L=14.8	8-94279-921-0	01	1	9310-	●	●
