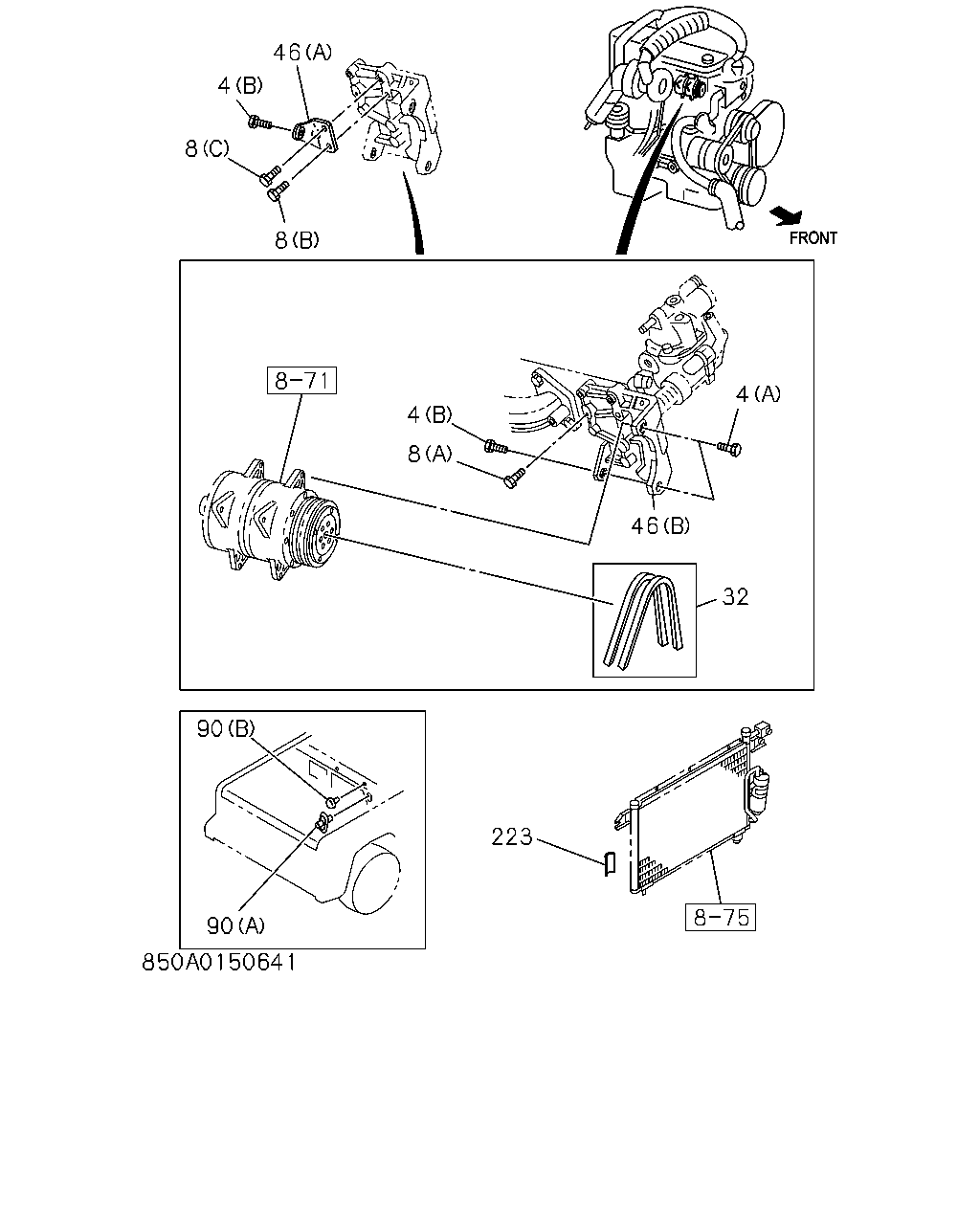

8-50 — AIR CONDITIONING SYSTEM; FRONT (#166626) — 84 parça

46 4 8 8 4 8 46 4 32 223 90 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9112-9504	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VARIABLE TORQUE SPRIT<7HA> (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9505-9605	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9606-	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	9112-9208	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9209-9504	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VARIABLE TORQUE SPRIT<7HA> (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9505-9605	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9606-	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X50	5-09000-243-1	01	1	9112-9204	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X50 W/LK WASHER	0-50041-050-0	01	1	9205-9208	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9209-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VARIABLE TORQUE SPRIT<7HA> (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9505-9605	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9606-	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X40 W/LK WASHER	0-50040-840-0	01	1	9112-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VARIABLE TORQUE SPRIT<7HA> (A) M8X40 W/LK WASHER	0-50040-840-0	01	1	9505-	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) M10X55	5-09030-038-1	01	1	9209-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VARIABLE TORQUE SPRIT<7HA> (C) M10X55	5-09030-038-1	01	1	9505-9605	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) M10X55	5-09030-038-1	01	1	9606-	●	●
8	BOLT; BRKT 6VD1 DOHC ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68) M10X16 FLANGE	0-28181-016-0	01	1	9112-	●	●
32	BELT; A/C CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 2PCS SET	8-94434-926-0	01	1	9112-	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B)	8-94421-543-1	01	1	9112-9202	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97074-766-0	01	1	9203-9208	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97085-063-0	01	1	9209-9410	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97114-780-0	01	1	9411-9504	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VARIABLE TORQUE SPRIT<7HA> (B)	8-97114-780-0	01	1	9505-9605	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97114-780-0	01	1	9606-	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97085-065-0	01	1	9208-9410	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97114-782-0	01	1	9411-9504	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VARIABLE TORQUE SPRIT<7HA> (A)	8-97114-782-0	01	1	9505-9605	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97114-782-0	01	1	9606-	●	●
46	BRACKET; CMPR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60)	8-94374-507-1	01	1	9112-9208	●	●
46	BRACKET; CMPR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94374-507-5	01	1	9209-	●	●
90	PLUG; PIPE HOLE (B) OD=12	9-09956-122-0	02	1	9112-9303	●	●
90	PLUG; PIPE HOLE 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) OD=12	9-09956-122-0	02	1	9304-	●	●
90	PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68) (B) OD=12	9-09956-122-0	02	1	9304-	●	●
90	PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68) (A)	8-94222-310-1	01	1	9112-	●	●
90	PLUG; PIPE HOLE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) OD=12	9-09956-122-0	01	1	9304-	●	●
223	INSULATOR; HEAT,CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97077-716-0	02	1	9202-9308	●	●

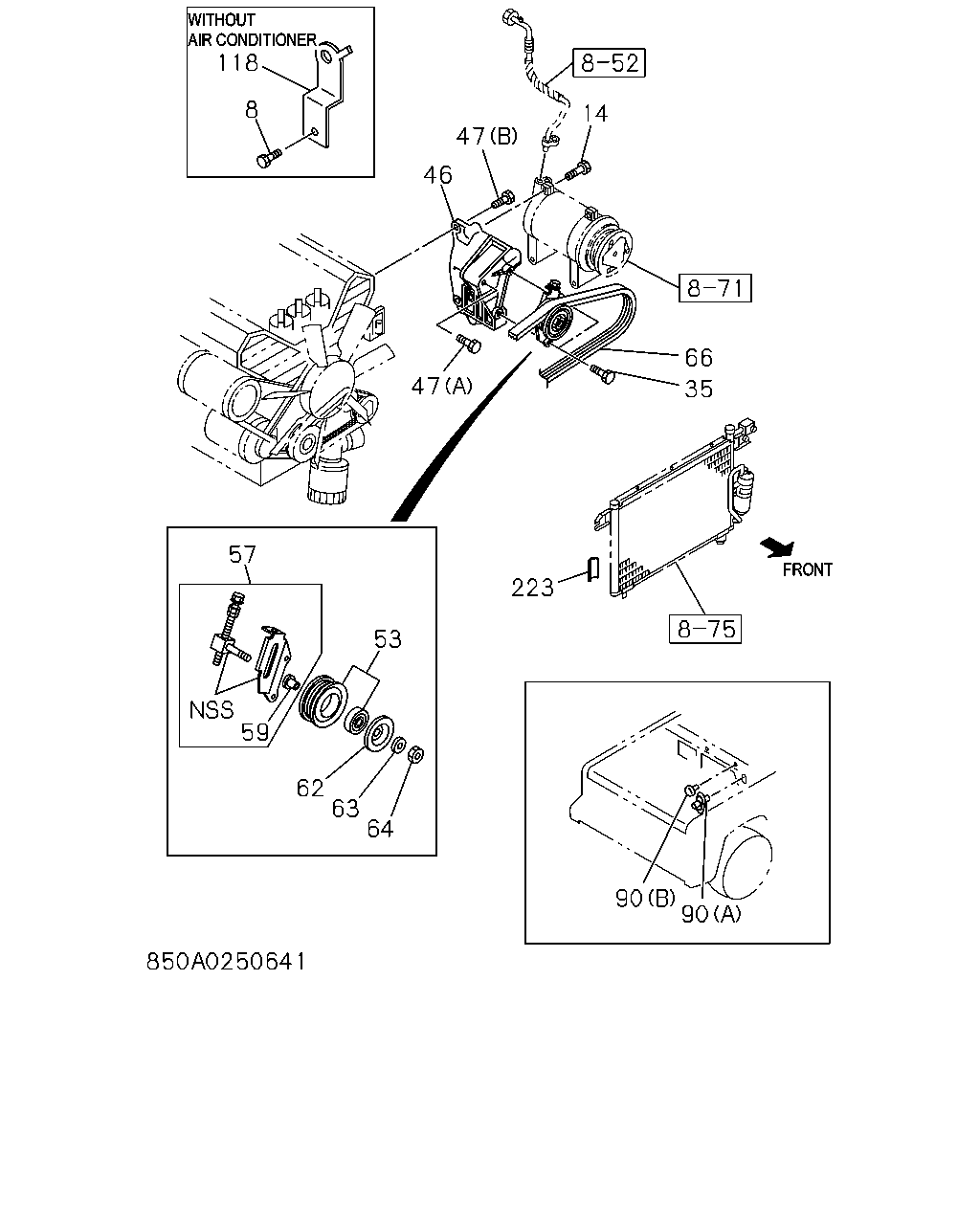

118 46 47 14 47 66 35 223 53 57 59 62 63 64 90 90 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X50	5-09000-243-1	01	1	9112-9204	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X50 W/LK WASHER	0-50041-050-0	01	1	9205-9208	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9209-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VARIABLE TORQUE SPRIT<7HA> (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9505-9605	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9606-	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X40 W/LK WASHER	0-50040-840-0	01	1	9112-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VARIABLE TORQUE SPRIT<7HA> (A) M8X40 W/LK WASHER	0-50040-840-0	01	1	9505-	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) M10X55	5-09030-038-1	01	1	9209-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VARIABLE TORQUE SPRIT<7HA> (C) M10X55	5-09030-038-1	01	1	9505-9605	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) M10X55	5-09030-038-1	01	1	9606-	●	●
8	BOLT; BRKT 6VD1 DOHC ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68) M10X16 FLANGE	0-28181-016-0	01	1	9112-	●	●
14	BOLT; CMPR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) M8X65	8-94158-393-1	02	1	9112-9208	●	●
14	BOLT; CMPR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X65	8-94158-393-1	02	1	9209-9402	●	●
14	BOLT; CMPR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X65 FLANGE	1-09044-072-1	02	1	9403-	●	●
14	BOLT; CMPR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) M8X75	8-94239-147-0	02	1	9112-9208	●	●
14	BOLT; CMPR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X75	8-94239-147-0	02	1	9209-	●	●
35	BOLT; IDLER PULLEY TO C/BL 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X16 FLANGE	0-28080-816-0	02	1	9112-	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B)	8-94421-543-1	01	1	9112-9202	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97074-766-0	01	1	9203-9208	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97085-063-0	01	1	9209-9410	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97114-780-0	01	1	9411-9504	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VARIABLE TORQUE SPRIT<7HA> (B)	8-97114-780-0	01	1	9505-9605	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97114-780-0	01	1	9606-	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97085-065-0	01	1	9208-9410	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97114-782-0	01	1	9411-9504	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VARIABLE TORQUE SPRIT<7HA> (A)	8-97114-782-0	01	1	9505-9605	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97114-782-0	01	1	9606-	●	●
46	BRACKET; CMPR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60)	8-94374-507-1	01	1	9112-9208	●	●
46	BRACKET; CMPR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94374-507-5	01	1	9209-	●	●
47	BOLT; BRKT TO BODY 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28181-025-0	03	1	9112-9208	●	●
47	BOLT; BRKT TO BODY 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X25 FLANGE	0-28181-025-0	03	1	9209-	●	●
47	BOLT; BRKT TO BODY 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) (A) M10X75 FLANGE	8-94399-669-1	01	1	9112-9208	●	●
47	BOLT; BRKT TO BODY 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) M10X75 FLANGE	8-94399-669-1	01	1	9209-	●	●
53	PULLEY; IDLER WITH COVER 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97061-667-0	01	1	9112-	●	●
57	BRACKET; IDLER PULLEY 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97061-670-0	01	1	9112-	●	●
59	COLLAR; IDLER PULLEY 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97061-669-0	01	1	9112-	●	●
62	COVER; IDLER PULLEY 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97061-671-0	01	1	9112-	●	●
63	WASHER; SHAFT,IDLER PULLEY 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97061-672-0	01	1	9112-	●	●
64	NUT; SHAFT,IDLER PULLEY 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97061-668-0	01	1	9112-	●	●
66	BELT; A/C CMPR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-94382-107-1	01	1	9112-	●	●
90	PLUG; PIPE HOLE (B) OD=12	9-09956-122-0	02	1	9112-9303	●	●
90	PLUG; PIPE HOLE 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) OD=12	9-09956-122-0	02	1	9304-	●	●
90	PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68) (B) OD=12	9-09956-122-0	02	1	9304-	●	●
90	PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68) (A)	8-94222-310-1	01	1	9112-	●	●
90	PLUG; PIPE HOLE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) OD=12	9-09956-122-0	01	1	9304-	●	●
118	BRACKET; HARNESS CLIP,A/C 6VD1 DOHC ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68)	8-97039-000-0	01	1	9112-	●	●
223	INSULATOR; HEAT,CONDENSER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97077-716-0	02	1	9202-9308	●	●
