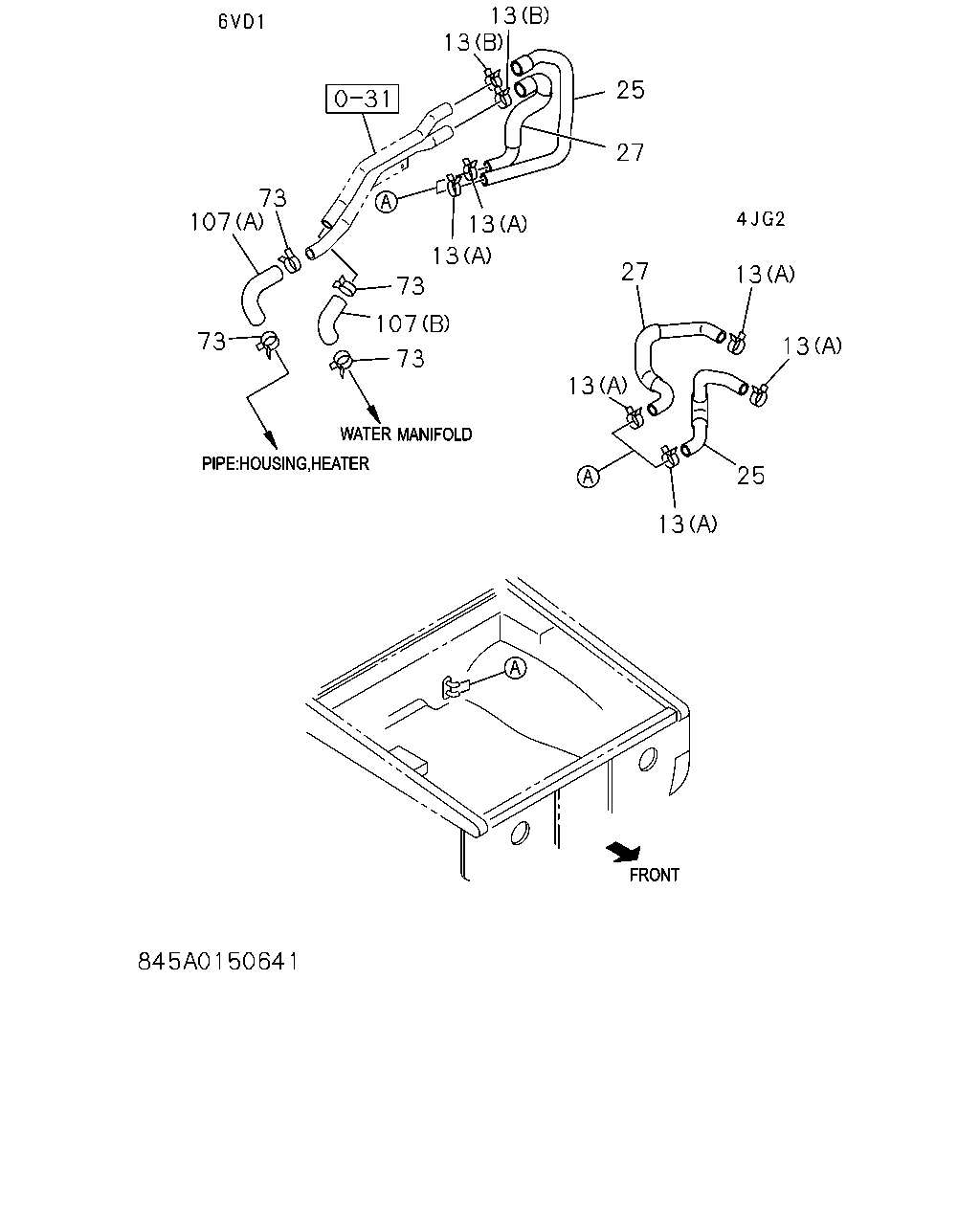

8-45 — HEATER PIPING (#166625) — 10 parça

13 13 27 13 13 25 27 25 13 13 13 13 73 107 73 73 107 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; HTR HOSE 4JG2 ENG(RJC) (A) ID=22	8-94382-401-0	04	1	9112-	●	●
13	CLIP; HTR HOSE 6VD1 DOHC ENG(RLV) (A) ID=22	8-94382-401-0	02	1	9112-	●	●
13	CLIP; HTR HOSE 6VD1 DOHC ENG(RLV) (B) ID=23	8-94382-402-0	02	1	9112-	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC)	8-97023-975-1	01	1	9112-	●	●
25	HOSE; WATER,ENG TO HTR UNIT 6VD1 DOHC ENG(RLV)	8-94376-338-0	01	1	9112-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC)	8-97023-974-1	01	1	9112-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6VD1 DOHC ENG(RLV)	8-94376-340-0	01	1	9112-	●	●
73	CLIP; HTR HOSE 6VD1 DOHC ENG(RLV) ID=24	8-97010-605-0	04	1	9112-	●	●
107	HOSE; WATER,HTR 6VD1 DOHC ENG(RLV) (A) OUT	8-97018-915-2	01	1	9112-	●	●
107	HOSE; WATER,HTR 6VD1 DOHC ENG(RLV) (B) IN	8-97018-916-2	01	1	9112-	●	●
