◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#166621) — 18 parça

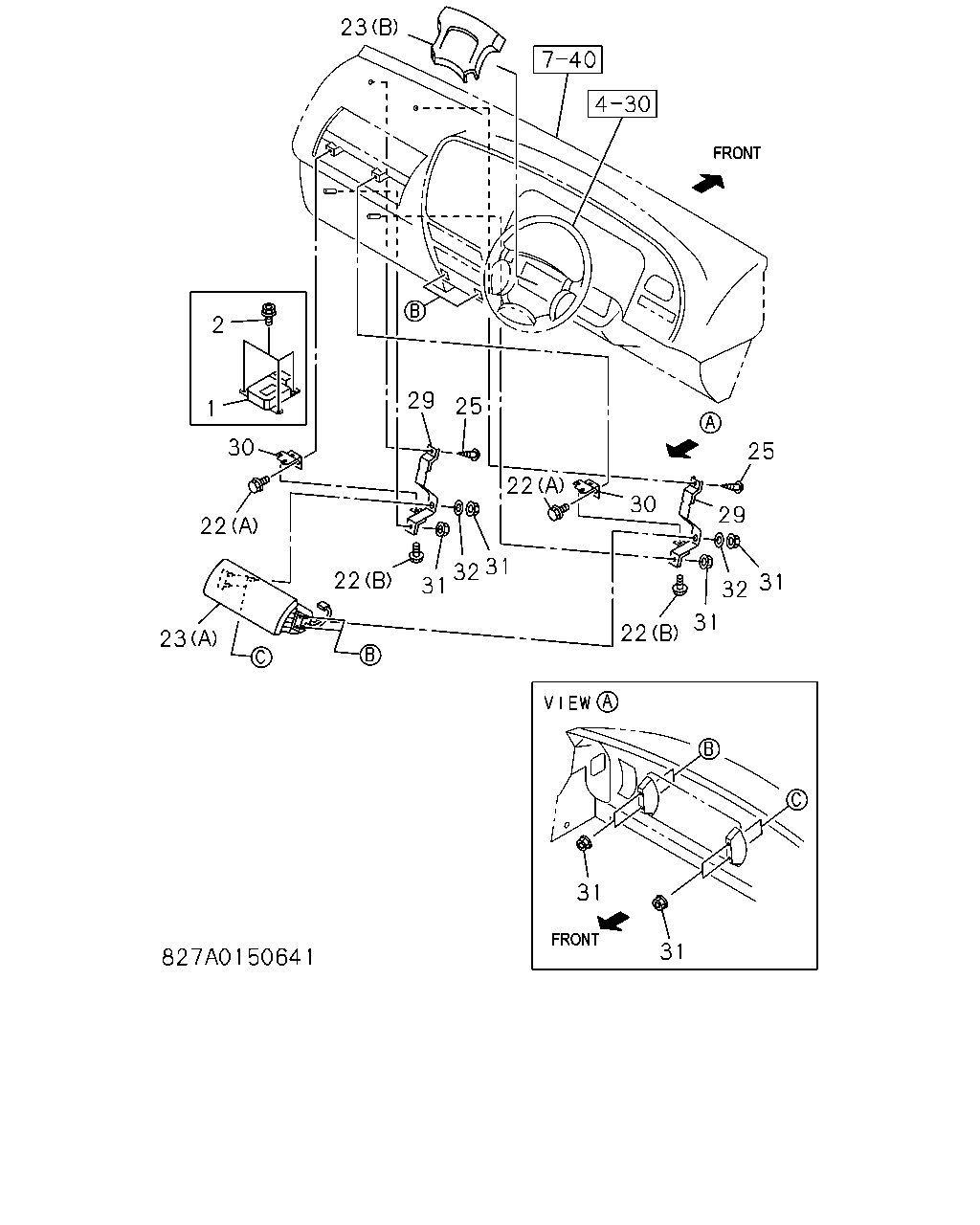

çizim 494432
23 2 1 30 22 23 29 25 22 31 32 31 22 25 30 29 31 32 31 22 31 31
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONTROL UNIT; SIR
AIR BAG DRIVER<AJ3> 		8-16205-059-0 01 1 9511- ● ●
2 BOLT; CONT UNIT,SIR
AIR BAG DRIVER<AJ3> M6X18 W/PL WASHER 		8-97105-796-0 03 1 9511- ● ●
22 BOLT; SIR MODULE
AIR BAG PASSENGER<7FA> (A) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9511- ● ●
22 BOLT; SIR MODULE
AIR BAG PASSENGER<7FA> (B) M6X12 W/PL WASHER 		8-97806-950-0 02 1 9511- ● ●
23 AIR BAG UNIT
AIR BAG PASSENGER<7FA> (A) DARK GRAY 		8-97154-034-3 01 1 9511- ● ●
23 AIR BAG UNIT
AIR BAG DRIVER<AJ3> EXC. HONDA BRAND PACKAGE<7EP> (B) BLACK 		8-97154-803-0 01 1 9511-9605 ● ●
23 AIR BAG UNIT
AIR BAG DRIVER<AJ3> (B) BLACK 		8-97154-803-0 01 1 9606-9610 ●
23 AIR BAG UNIT
AIR BAG DRIVER<AJ3> EXC. HONDA BRAND PACKAGE<7EP>,AUGUST LIMITED MODEL(7RE) (B) BLACK 		8-97154-803-0 01 1 9606-9610 ●
23 AIR BAG UNIT
AIR BAG DRIVER<AJ3> JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) (B) 		8-97158-033-0 01 1 9611-9611 ●
23 AIR BAG UNIT
AIR BAG DRIVER<AJ3> AUGUST LIMITED MODEL(7RE) (B) 		8-97158-033-0 01 1 9611- ●
23 AIR BAG UNIT
AIR BAG DRIVER<AJ3> EXC. JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) (B) BLACK 		8-97154-803-0 01 1 9611-9611 ●
23 AIR BAG UNIT
AIR BAG DRIVER<AJ3> (B) BLACK 		8-97154-803-0 01 1 9611- ●
23 AIR BAG UNIT
AIR BAG DRIVER<AJ3> EXC. HONDA BRAND PACKAGE<7EP>,AUGUST LIMITED MODEL(7RE) (B) BLACK 		8-97154-803-0 01 1 9611- ●
25 SCREW
AIR BAG PASSENGER<7FA> M5X14 TAPPING 		1-72548-072-0 02 1 9511- ● ●
29 BRACKET; SUPPORT
AIR BAG PASSENGER<7FA> 		8-97103-476-1 02 1 9511- ● ●
30 BRACKET; SIR
AIR BAG PASSENGER<7FA> 		8-97083-249-1 02 1 9511- ● ●
31 NUT
AIR BAG PASSENGER<7FA> M6 W/DISHED WASHER 		8-94170-192-0 08 1 9511- ● ●
32 WASHER; PL
AIR BAG PASSENGER<7FA> 		1-09503-075-0 02 1 9511- ● ●
