◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#166620) — 192 parça

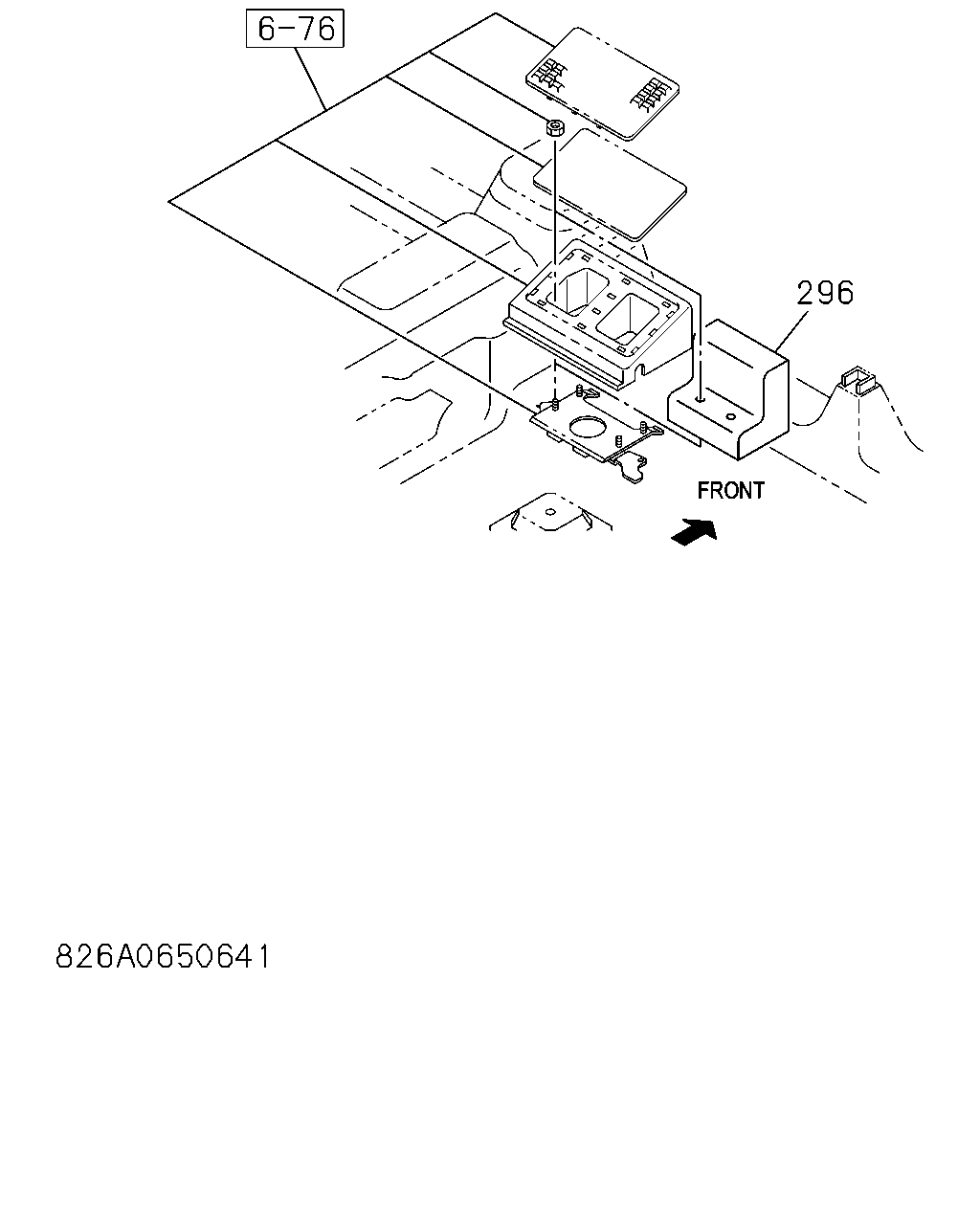

çizim 493541
296
BalonParca AdiParca NoAdetTipApplied Date A B
296 COVER; CONT UNIT
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. RR FOOT REST<6WM> 		8-97147-733-1 01 1 9606- ●
296 COVER; CONT UNIT
VARIABLE TORQUE SPRIT<7HA> EXC. RR FOOT REST<6WM> 		8-97147-733-1 01 1 9606- ●

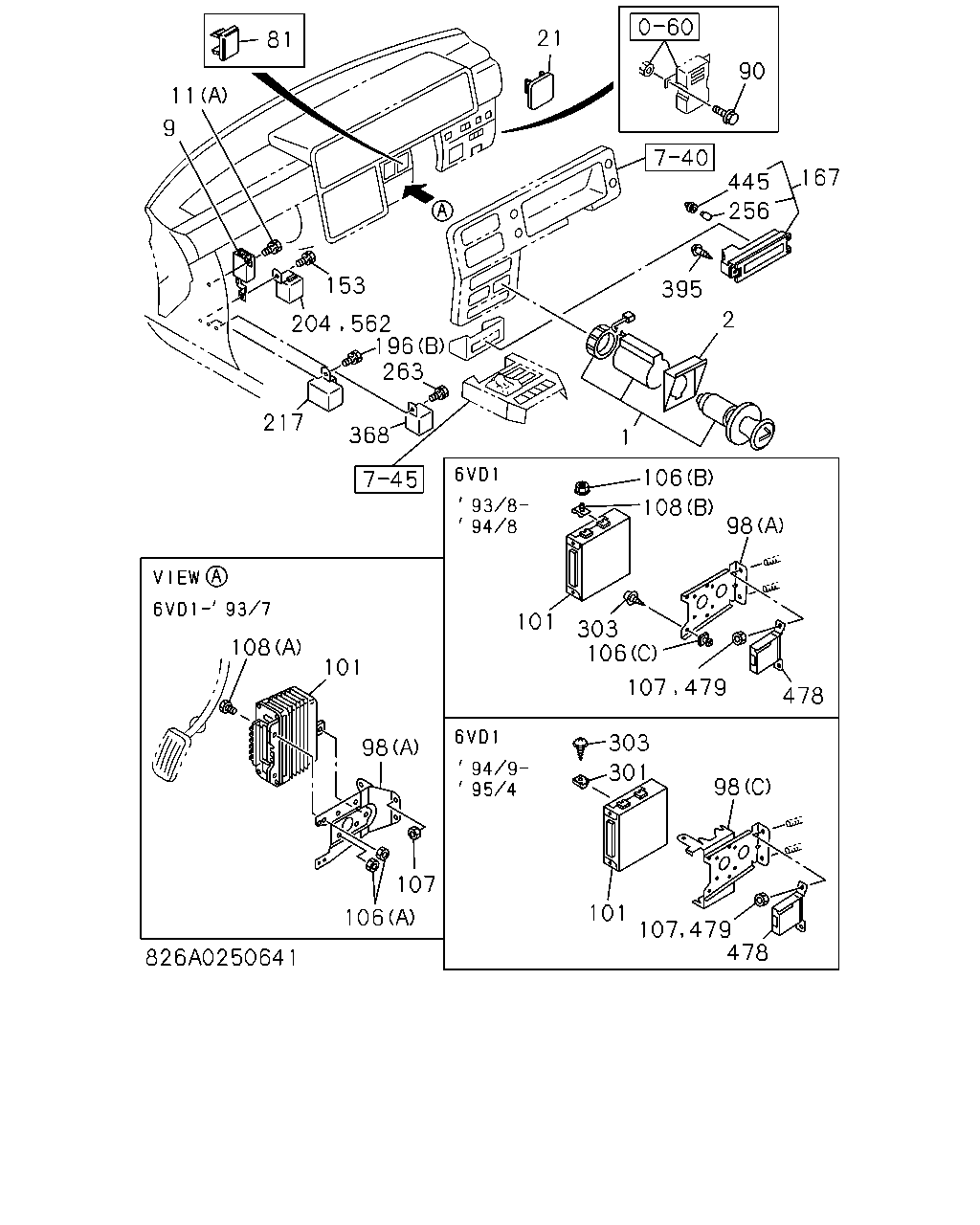

çizim 493768
11 9 81 21 90 445 256 167 395 2 1 263 196 368 217 562 204 153 106 108 98 478 479 107 106 303 101 108 101 98 107 106 101 107 479 478 98 303 301
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-94442-590-0 01 1 9112-9504 ● ●
1 LIGHTER; CIGAR 8-97094-468-1 01 1 9505- ● ●
2 BEZEL; CIGAR LIGHTER
BLACK 		8-97003-110-0 01 1 9112-9504 ● ●
2 BEZEL; CIGAR LIGHTER
BLACK 		8-97098-337-0 01 1 9505- ● ●
9 CONTROLLER; CRUISE
6VD1 DOHC ENG(RLV) A/T THM(RMQ) AUTO CRUISE CONT<K30> 		8-97070-115-0 01 1 9112-9504 ● ●
9 CONTROLLER; CRUISE
6VD1 DOHC ENG(RLV) A/T THM(RMQ) AUTO CRUISE CONT<K30> 		8-97116-911-1 01 1 9505- ● ●
9 CONTROLLER; CRUISE
6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> 		8-97070-116-0 01 1 9112-9504 ● ●
9 CONTROLLER; CRUISE
6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> 		8-97116-912-1 01 1 9505- ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (A) M6X16 		0-28410-616-0 02 1 9112-9204 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (A) M6X16 FLANGE 		0-28480-616-0 02 1 9205-9504 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (C) M6X18 W/LK&PL WASHER 		0-50140-618-0 02 1 9505- ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (B) M6X14 		8-94153-946-0 01 1 9112-9307 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9308- ● ●
21 COVER; HOLE
EXC. HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> BLACK 		8-94417-418-2 01 1 9112-9504 ● ●
81 BEZEL; IDLE CONT
4JG2 ENG(RJC) 		8-97065-377-1 01 1 9112-9504 ● ●
81 BEZEL; IDLE CONT
6VD1 DOHC ENG(RLV) 		8-94450-512-3 01 1 9112-9504 ● ●
90 BOLT; QOS CONTROLLER
4JG2 ENG(RJC) M6X16 FLANGE 		8-94380-676-1 02 1 9112-9409 ● ●
90 BOLT; QOS CONTROLLER
4JG2 ENG(RJC) M6X16 FLANGE 		0-28480-616-0 02 1 9410-9504 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T AISIN(RMD),A/T THM(RMQ) (A) 		8-94375-128-0 01 1 9112-9307 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T AISIN(RMD),A/T THM(RMQ) (A) 		8-97094-683-0 01 1 9308-9408 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T AISIN(RMD) (A) 		8-97094-683-0 01 1 9409-9504 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T AISIN(RMD) (E) 		8-97116-918-1 01 1 9505- ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (B) 		8-97088-846-1 01 1 9308-9408 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (C) 		8-97110-214-0 01 1 9409-9504 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (D) 		8-97116-916-1 01 1 9505- ● ●
101 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-94375-126-2 01 1 9112-9112 ● ●
101 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97070-674-0 01 1 9201-9307 ● ●
101 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97094-696-1 01 1 9308-9504 ● ●
101 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97129-444-0 01 1 9505-9603 ● ●
101 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97146-174-0 01 1 9604- ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-96016-802-2 01 1 9112-9205 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-96017-067-0 01 1 9206-9307 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-16196-599-0 01 1 9308-9309 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-16202-529-0 01 1 9310-9504 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-16218-459-1 01 1 9505- ● ●
106 NUT; ELEC CONT UNIT
A/T THM(RMQ) (A) M6 FLANGE 		0-91150-106-0 03 1 9112-9307 ● ●
106 NUT; ELEC CONT UNIT
A/T THM(RMQ) (B) M5 FLANGE 		8-94178-699-0 04 1 9308-9408 ● ●
106 NUT; ELEC CONT UNIT
A/T THM(RMQ) (C) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9308-9408 ● ●
106 NUT; ELEC CONT UNIT
4JG2 ENG(RJC) A/T AISIN(RMD) (A) M6 FLANGE 		0-91150-106-0 04 1 9112-9505 ● ●
106 NUT; ELEC CONT UNIT
4JG2 ENG(RJC) A/T AISIN(RMD) (A) M6 FLANGE 		0-91150-106-0 03 1 9505- ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD),A/T THM(RMQ) M8 FLANGE 		0-91150-108-0 04 1 9112-9307 ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD),A/T THM(RMQ) M8 FLANGE 		0-91150-108-0 02 1 9308- ● ●
108 BOLT; TRANS CONT MODULE
A/T THM(RMQ) (A) M6X16 		8-94220-097-0 03 1 9112-9307 ● ●
108 BOLT; TRANS CONT MODULE
A/T THM(RMQ) (B) M5X12 W/CLIP 		8-94443-197-0 04 1 9308-9408 ● ●
153 BOLT; BUZZER FIX
M6X16 		0-28410-616-0 01 1 9112-9204 ● ●
153 BOLT; BUZZER FIX
M6X16 FLANGE 		0-28480-616-0 01 1 9205-9504 ● ●
167 INDICATOR ASM; TRANS
A/T AISIN(RMD) 		8-97038-640-0 01 1 9112-9208 ● ●
167 INDICATOR ASM; TRANS
A/T AISIN(RMD) 		8-97073-774-0 01 1 9209-9307 ● ●
167 INDICATOR ASM; TRANS
A/T AISIN(RMD) 		8-97086-257-0 01 1 9308-9504 ● ●
167 INDICATOR ASM; TRANS
A/T THM(RMQ) 		8-97033-294-1 01 1 9112-9208 ● ●
167 INDICATOR ASM; TRANS
A/T THM(RMQ) 		8-97071-707-0 01 1 9209-9504 ● ●
196 BOLT
POWER WINDOW W/TIMER<6WS> (B) M6X16 		0-28410-616-0 01 1 9112-9204 ● ●
196 BOLT
POWER WINDOW W/TIMER<6WS> (B) M6X16 FLANGE 		0-28480-616-0 01 1 9205-9504 ● ●
196 BOLT
M/T MUA 5 SPEED(RMN) (A) M8X14 		9-01960-814-0 01 1 9112-9204 ● ●
196 BOLT
M/T MUA 5 SPEED(RMN) (A) M8X14 		0-50140-814-0 01 1 9205-9208 ● ●
204 BUZZER; KEY REMIND 8-97039-272-0 01 1 9112-9504 ● ●
204 BUZZER; KEY REMIND 8-97113-143-0 01 1 9505-9601 ● ●
204 BUZZER; KEY REMIND 8-97135-563-0 01 1 9602-9605 ● ●
217 TIMER; POWER WINDOW
POWER WINDOW W/TIMER<6WS> 		8-94388-216-0 01 1 9112-9504 ● ●
256 BULB; TRANS INDICATOR
A/T THM(RMQ) 12V 1.4W 		8-94152-313-0 03 1 9112-9208 ● ●
256 BULB; TRANS INDICATOR
A/T AISIN(RMD) 12V 1.4W 		8-94152-313-0 03 1 9209-9307 ● ●
256 BULB; TRANS INDICATOR
A/T THM(RMQ) 12V 1.4W 		8-94152-313-0 02 1 9209-9307 ● ●
256 BULB; TRANS INDICATOR
A/T AISIN(RMD),A/T THM(RMQ) 12V 1.4W 		8-94152-313-0 02 1 9308-9504 ● ●
256 BULB; TRANS INDICATOR
A/T AISIN(RMD) 12V 1.4W 		8-94152-313-0 04 1 9112-9208 ● ●
263 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> M6X16 		0-28410-616-0 01 1 9112-9204 ● ●
263 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28480-616-0 01 1 9205-9504 ● ●
301 GROMMET; CONT UNIT BRKT
A/T THM(RMQ) 		8-97110-216-1 04 1 9409- ● ●
303 SCREW; CONT UNIT
A/T THM(RMQ) M6X14 TAPPING W/PL WASHER 		0-74100-614-0 04 1 9308-9408 ● ●
303 SCREW; CONT UNIT
A/T THM(RMQ) M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 9409- ● ●
368 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-94323-680-1 01 1 9112-9504 ● ●
395 SCREW; INDICATOR
A/T AISIN(RMD),A/T THM(RMQ) M5X12 TAPPING 		9-09829-321-1 02 1 9112-9504 ● ●
445 SOCKET; BULB
A/T AISIN(RMD),A/T THM(RMQ) 12V 1.4W BLACK 		8-94114-138-0 03 1 9112-9208 ● ●
445 SOCKET; BULB
A/T AISIN(RMD) 12V 1.4W BLACK 		8-94114-138-0 03 1 9209-9307 ● ●
445 SOCKET; BULB
A/T THM(RMQ) 12V 1.4W BLACK 		8-94114-138-0 02 1 9209-9307 ● ●
445 SOCKET; BULB
A/T AISIN(RMD),A/T THM(RMQ) 12V 1.4W BLACK 		8-94114-138-0 02 1 9308-9504 ● ●
478 CONTROLLER; INDICATOR,A/T
A/T THM(RMQ) 		8-97086-258-0 01 1 9308- ● ●
479 NUT; CONTROLLER
A/T THM(RMQ) M8 FLANGE 		0-91150-108-0 02 1 9308- ● ●
562 CONTROL UNIT; ALARM 8-97135-564-0 01 1 9606- ● ●

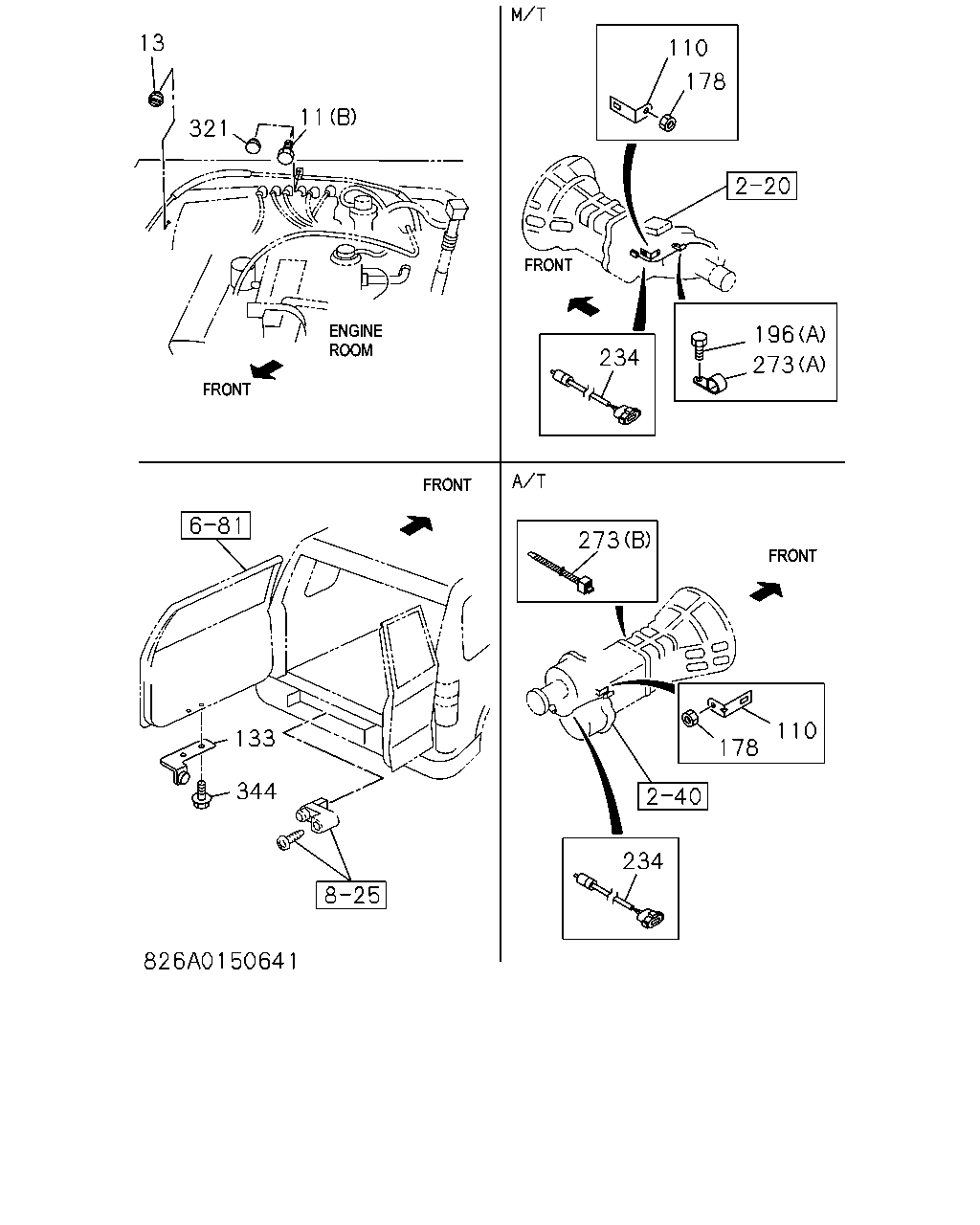

çizim 494391
13 321 11 110 178 196 273 234 133 344 178 110 273 234
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (A) M6X16 		0-28410-616-0 02 1 9112-9204 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (A) M6X16 FLANGE 		0-28480-616-0 02 1 9205-9504 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (C) M6X18 W/LK&PL WASHER 		0-50140-618-0 02 1 9505- ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (B) M6X14 		8-94153-946-0 01 1 9112-9307 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9308- ● ●
13 PLUG; CONTROLLER,CRUISE
EXC. AUTO CRUISE CONT<K30> 		8-94147-164-1 01 1 9112- ● ●
110 BRACKET; VEHICLE SPD SENSOR 8-97035-531-0 01 1 9112-9208 ● ●
133 BRACKET; SWITCH 8-97048-462-3 01 1 9112-9302 ● ●
133 BRACKET; SWITCH 8-97090-017-0 01 1 9303- ● ●
178 NUT; VEHICLE SPD SENSOR
M10 FLANGE 		0-91150-110-0 01 1 9112-9208 ● ●
196 BOLT
POWER WINDOW W/TIMER<6WS> (B) M6X16 		0-28410-616-0 01 1 9112-9204 ● ●
196 BOLT
POWER WINDOW W/TIMER<6WS> (B) M6X16 FLANGE 		0-28480-616-0 01 1 9205-9504 ● ●
196 BOLT
M/T MUA 5 SPEED(RMN) (A) M8X14 		9-01960-814-0 01 1 9112-9204 ● ●
196 BOLT
M/T MUA 5 SPEED(RMN) (A) M8X14 		0-50140-814-0 01 1 9205-9208 ● ●
234 SENSOR; VEHICLE SPD
A/T AISIN(RMD),A/T THM(RMQ) 		8-97035-533-3 01 1 9112-9208 ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED(RMN) 		8-97033-291-3 01 1 9112-9208 ● ●
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN DARK GRAY 		8-97065-834-0 01 1 9209-9503 ● ●
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9504-9703 ● ●
234 SENSOR; VEHICLE SPD
EXC. VARIABLE TORQUE SPRIT<7HA> 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9704- ● ●
234 SENSOR; VEHICLE SPD
VARIABLE TORQUE SPRIT<7HA> 		8-97129-727-0 01 1 9704- ●
273 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9112-9208 ● ●
273 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) (B) L=140 		5-09707-031-0 02 1 9112-9504 ● ●
273 CLIP; HARNESS
A/T AISIN(RMD) (B) L=140 		5-09707-031-0 02 1 9505-9603 ● ●
273 CLIP; HARNESS
A/T AISIN(RMD) (B) L=140 		5-09707-031-0 01 1 9604- ● ●
321 CLIP; SW PANEL
6VD1 DOHC ENG(RLV) EXC. AUTO CRUISE CONT<K30> OD=12 L=14.8 		8-94279-921-0 01 1 9112- ● ●
344 BOLT; SW BRKT
M6X16 FLANGE 		8-97803-298-0 02 1 9112-9206 ● ●
344 BOLT; SW BRKT
M6X16 FLANGE 		8-97808-792-1 02 1 9207- ● ●

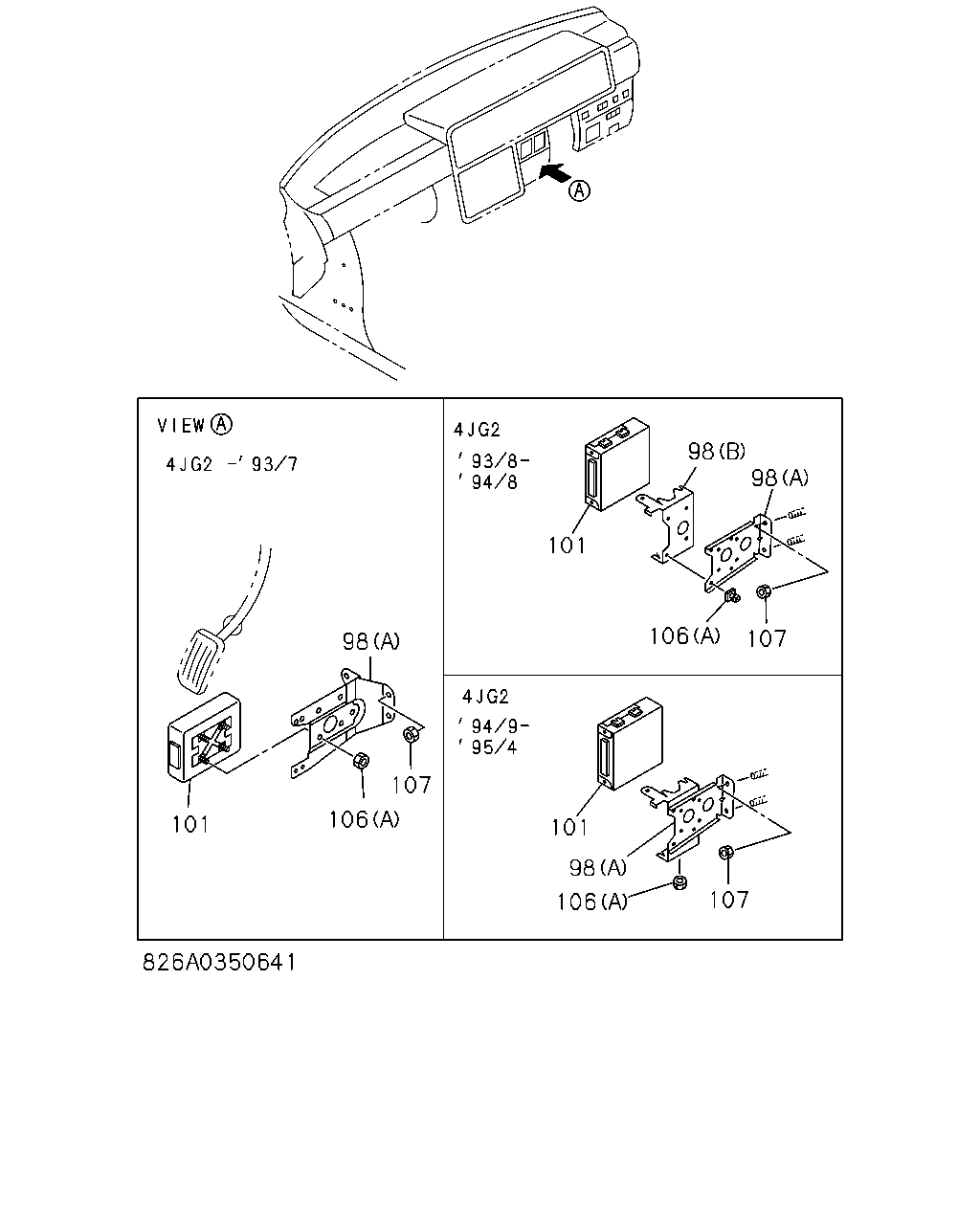

çizim 494402
98 107 106 101 101 98 106 107 106 107 98 98 101
BalonParca AdiParca NoAdetTipApplied Date A B
98 BRACKET; ELEC CONT UNIT,A/T
A/T AISIN(RMD),A/T THM(RMQ) (A) 		8-94375-128-0 01 1 9112-9307 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T AISIN(RMD),A/T THM(RMQ) (A) 		8-97094-683-0 01 1 9308-9408 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T AISIN(RMD) (A) 		8-97094-683-0 01 1 9409-9504 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T AISIN(RMD) (E) 		8-97116-918-1 01 1 9505- ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (B) 		8-97088-846-1 01 1 9308-9408 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (C) 		8-97110-214-0 01 1 9409-9504 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (D) 		8-97116-916-1 01 1 9505- ● ●
101 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-94375-126-2 01 1 9112-9112 ● ●
101 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97070-674-0 01 1 9201-9307 ● ●
101 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97094-696-1 01 1 9308-9504 ● ●
101 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97129-444-0 01 1 9505-9603 ● ●
101 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97146-174-0 01 1 9604- ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-96016-802-2 01 1 9112-9205 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-96017-067-0 01 1 9206-9307 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-16196-599-0 01 1 9308-9309 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-16202-529-0 01 1 9310-9504 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-16218-459-1 01 1 9505- ● ●
106 NUT; ELEC CONT UNIT
A/T THM(RMQ) (A) M6 FLANGE 		0-91150-106-0 03 1 9112-9307 ● ●
106 NUT; ELEC CONT UNIT
A/T THM(RMQ) (B) M5 FLANGE 		8-94178-699-0 04 1 9308-9408 ● ●
106 NUT; ELEC CONT UNIT
A/T THM(RMQ) (C) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9308-9408 ● ●
106 NUT; ELEC CONT UNIT
4JG2 ENG(RJC) A/T AISIN(RMD) (A) M6 FLANGE 		0-91150-106-0 04 1 9112-9505 ● ●
106 NUT; ELEC CONT UNIT
4JG2 ENG(RJC) A/T AISIN(RMD) (A) M6 FLANGE 		0-91150-106-0 03 1 9505- ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD),A/T THM(RMQ) M8 FLANGE 		0-91150-108-0 04 1 9112-9307 ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD),A/T THM(RMQ) M8 FLANGE 		0-91150-108-0 02 1 9308- ● ●

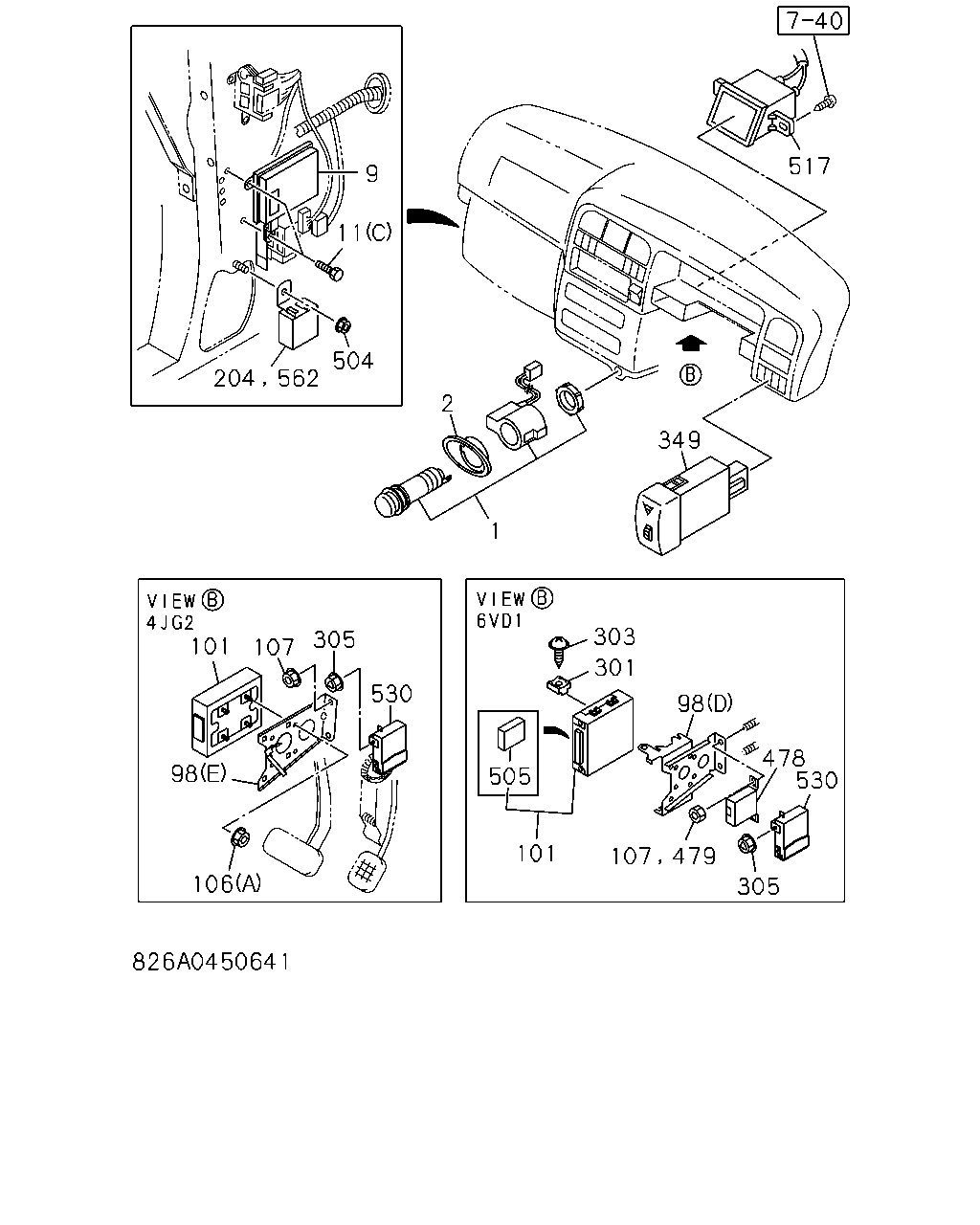

çizim 494411
9 11 504 562 204 2 1 349 517 305 530 478 98 479 107 101 301 303 530 305 107 101 98 106 505
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-94442-590-0 01 1 9112-9504 ● ●
1 LIGHTER; CIGAR 8-97094-468-1 01 1 9505- ● ●
2 BEZEL; CIGAR LIGHTER
BLACK 		8-97003-110-0 01 1 9112-9504 ● ●
2 BEZEL; CIGAR LIGHTER
BLACK 		8-97098-337-0 01 1 9505- ● ●
9 CONTROLLER; CRUISE
6VD1 DOHC ENG(RLV) A/T THM(RMQ) AUTO CRUISE CONT<K30> 		8-97070-115-0 01 1 9112-9504 ● ●
9 CONTROLLER; CRUISE
6VD1 DOHC ENG(RLV) A/T THM(RMQ) AUTO CRUISE CONT<K30> 		8-97116-911-1 01 1 9505- ● ●
9 CONTROLLER; CRUISE
6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> 		8-97070-116-0 01 1 9112-9504 ● ●
9 CONTROLLER; CRUISE
6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> 		8-97116-912-1 01 1 9505- ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (A) M6X16 		0-28410-616-0 02 1 9112-9204 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (A) M6X16 FLANGE 		0-28480-616-0 02 1 9205-9504 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (C) M6X18 W/LK&PL WASHER 		0-50140-618-0 02 1 9505- ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (B) M6X14 		8-94153-946-0 01 1 9112-9307 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9308- ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T AISIN(RMD),A/T THM(RMQ) (A) 		8-94375-128-0 01 1 9112-9307 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T AISIN(RMD),A/T THM(RMQ) (A) 		8-97094-683-0 01 1 9308-9408 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T AISIN(RMD) (A) 		8-97094-683-0 01 1 9409-9504 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T AISIN(RMD) (E) 		8-97116-918-1 01 1 9505- ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (B) 		8-97088-846-1 01 1 9308-9408 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (C) 		8-97110-214-0 01 1 9409-9504 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (D) 		8-97116-916-1 01 1 9505- ● ●
101 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-94375-126-2 01 1 9112-9112 ● ●
101 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97070-674-0 01 1 9201-9307 ● ●
101 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97094-696-1 01 1 9308-9504 ● ●
101 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97129-444-0 01 1 9505-9603 ● ●
101 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97146-174-0 01 1 9604- ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-96016-802-2 01 1 9112-9205 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-96017-067-0 01 1 9206-9307 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-16196-599-0 01 1 9308-9309 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-16202-529-0 01 1 9310-9504 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-16218-459-1 01 1 9505- ● ●
106 NUT; ELEC CONT UNIT
A/T THM(RMQ) (A) M6 FLANGE 		0-91150-106-0 03 1 9112-9307 ● ●
106 NUT; ELEC CONT UNIT
A/T THM(RMQ) (B) M5 FLANGE 		8-94178-699-0 04 1 9308-9408 ● ●
106 NUT; ELEC CONT UNIT
A/T THM(RMQ) (C) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9308-9408 ● ●
106 NUT; ELEC CONT UNIT
4JG2 ENG(RJC) A/T AISIN(RMD) (A) M6 FLANGE 		0-91150-106-0 04 1 9112-9505 ● ●
106 NUT; ELEC CONT UNIT
4JG2 ENG(RJC) A/T AISIN(RMD) (A) M6 FLANGE 		0-91150-106-0 03 1 9505- ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD),A/T THM(RMQ) M8 FLANGE 		0-91150-108-0 04 1 9112-9307 ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD),A/T THM(RMQ) M8 FLANGE 		0-91150-108-0 02 1 9308- ● ●
204 BUZZER; KEY REMIND 8-97039-272-0 01 1 9112-9504 ● ●
204 BUZZER; KEY REMIND 8-97113-143-0 01 1 9505-9601 ● ●
204 BUZZER; KEY REMIND 8-97135-563-0 01 1 9602-9605 ● ●
301 GROMMET; CONT UNIT BRKT
A/T THM(RMQ) 		8-97110-216-1 04 1 9409- ● ●
303 SCREW; CONT UNIT
A/T THM(RMQ) M6X14 TAPPING W/PL WASHER 		0-74100-614-0 04 1 9308-9408 ● ●
303 SCREW; CONT UNIT
A/T THM(RMQ) M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 9409- ● ●
305 NUT; CONT UNIT
A/T AISIN(RMD),A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA> M6 FLANGE 		8-97063-399-0 02 1 9505- ●
349 CONTROL; ILLUMINATION 8-97085-355-2 01 1 9505-9605 ● ●
349 CONTROL; ILLUMINATION 8-97135-515-0 01 1 9606- ● ●
478 CONTROLLER; INDICATOR,A/T
A/T THM(RMQ) 		8-97086-258-0 01 1 9308- ● ●
479 NUT; CONTROLLER
A/T THM(RMQ) M8 FLANGE 		0-91150-108-0 02 1 9308- ● ●
504 NUT; BUZZER
M6 FLANGE 		0-91150-106-0 01 1 9505- ● ●
505 CALIBRATION; A/T CONTROL UNIT
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-16218-440-0 01 1 9505- ● ●
517 INDICATOR; AUTO CRUISE
AUTO CRUISE CONT<K30> 		8-97102-483-0 01 1 9505- ● ●
530 CONTROL UNIT; TOD INDICATOR
A/T AISIN(RMD),A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA> 		8-97111-052-0 01 1 9505- ●
562 CONTROL UNIT; ALARM 8-97135-564-0 01 1 9606- ● ●

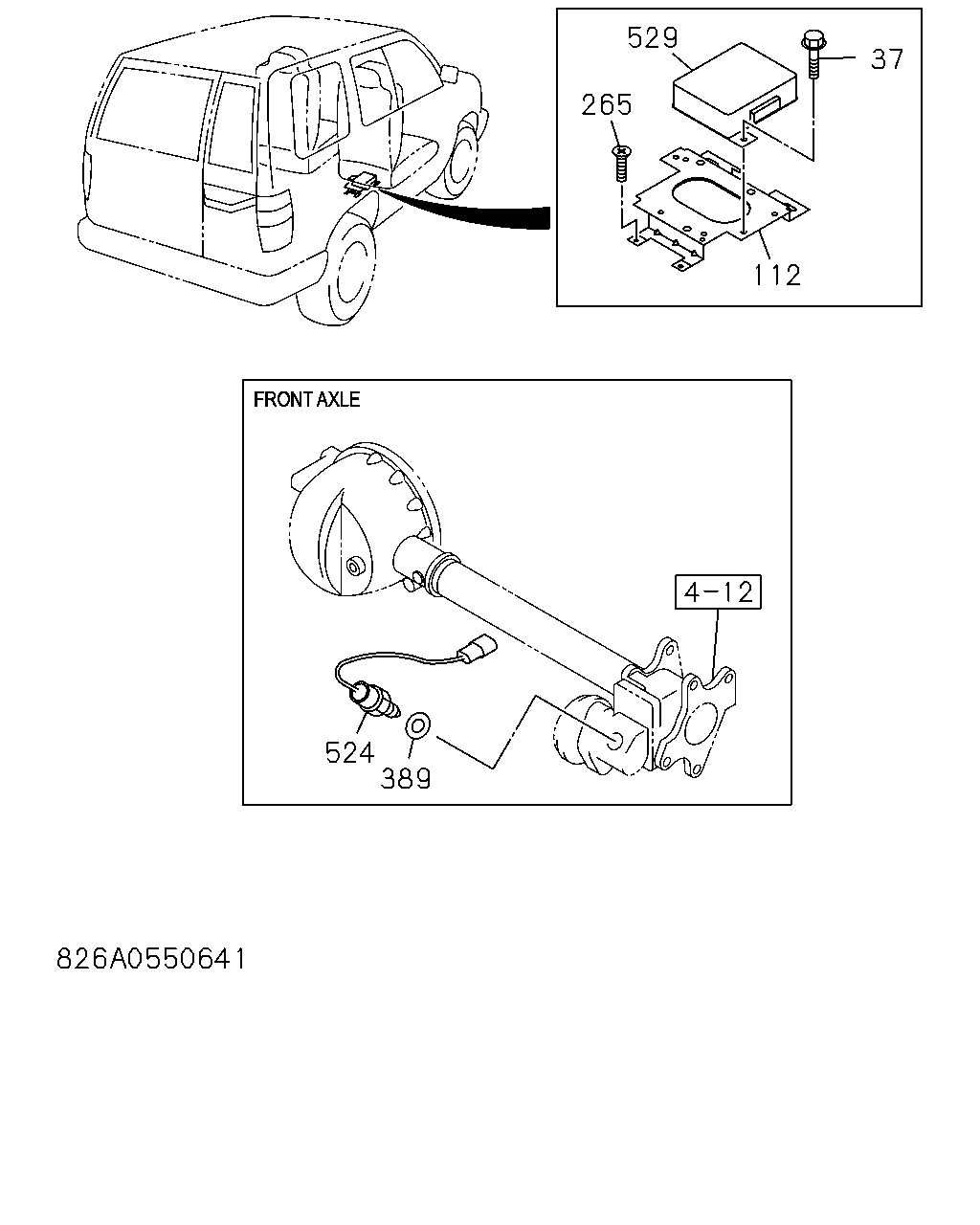

çizim 494412
112 37 529 265 389 524
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; BRKT FIX
VARIABLE TORQUE SPRIT<7HA> M6X20 W/WASHER 		8-94112-987-1 02 1 9505- ●
112 BRACKET; CONT UNIT
VARIABLE TORQUE SPRIT<7HA> 		8-97115-621-0 01 1 9505-9510 ●
112 BRACKET; CONT UNIT
VARIABLE TORQUE SPRIT<7HA> 		8-97136-446-1 01 1 9511- ●
265 SCREW; BRKT,CONT UNIT
VARIABLE TORQUE SPRIT<7HA> M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 9505- ●
389 GASKET; SWITCH
SHIFT ON THE FLY(7EX) ID=14.2 OD=20.0 		9-09571-414-0 01 1 9505- ● ●
524 SWITCH; DIFF
SHIFT ON THE FLY(7EX) 		8-97101-956-2 01 1 9505- ● ●
529 CONTROL UNIT; TOD
VARIABLE TORQUE SPRIT<7HA> 		8-97122-537-0 01 1 9505-9610 ●
529 CONTROL UNIT; TOD
VARIABLE TORQUE SPRIT<7HA> 		8-97176-362-0 01 1 9611- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
