3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#16662) — 13 parça

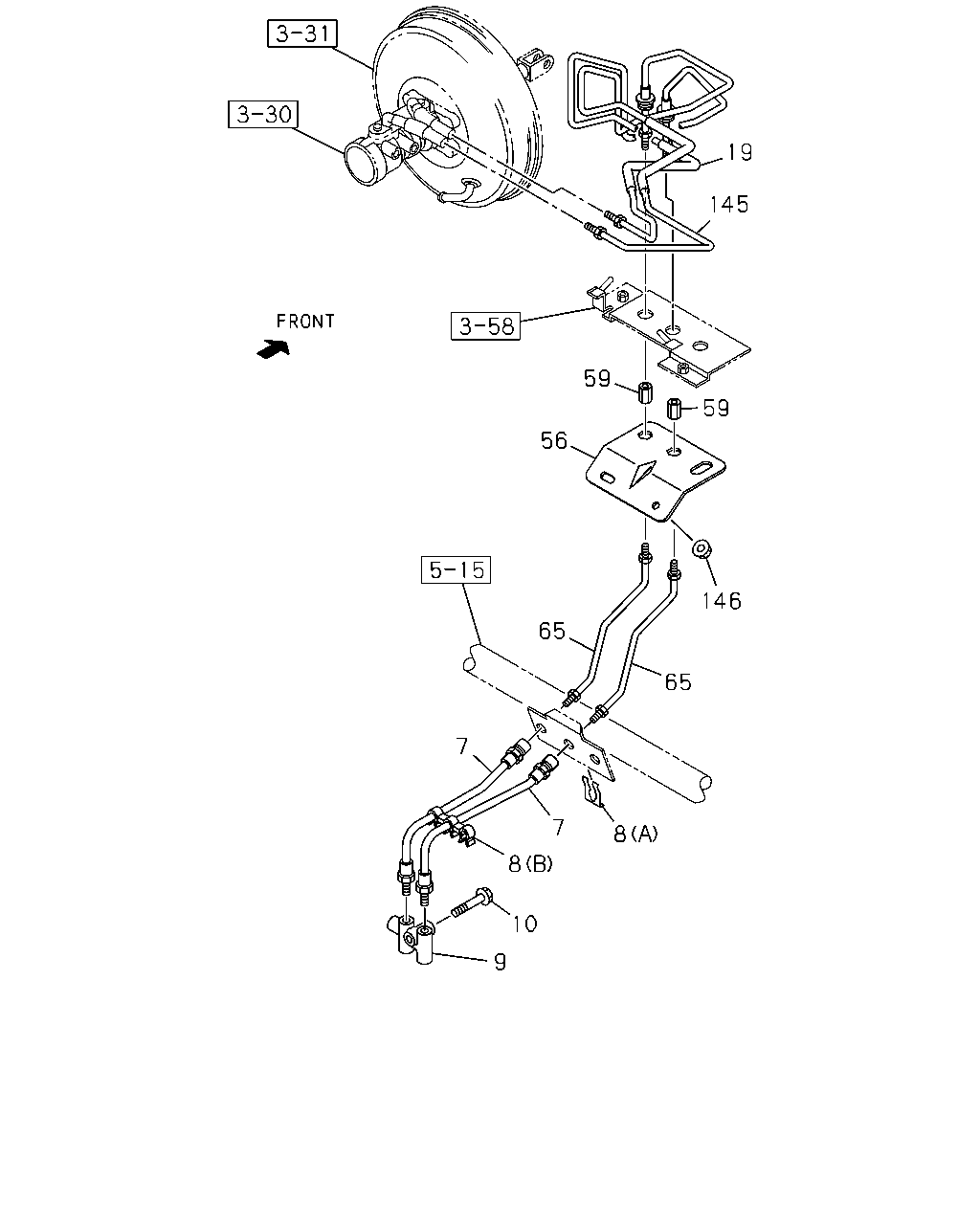

çizim 47782
19 145 9 59 56 146 65 65 7 7 8 8 10 9
BalonParca AdiParca NoAdetTipApplied Date A B C
7 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-97171-031-0 02 1 0009- ● ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-94167-006-0 02 1 0009- ● ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-97076-471-0 01 1 0009- ● ● ●
9 JOINT; BRK & CLU PIPE,CAB SIDE 5-47456-009-1 01 1 0009- ● ● ●
10 BOLT; JOINT
M6X40 FLANGE 		0-28680-640-0 01 1 0009- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
THA 		8-97916-835-0 01 1 0009-0104 ● ● ●
19 PIPE; BRK,M/CYL TO UNION
THA 		8-97922-087-0 01 1 0105- ● ● ●
56 BRACKET; UNION,BRK 8-97078-564-1 01 1 0009- ● ● ●
59 UNION; BRK PIPE
M10 STRAIGHT 		9-09227-005-0 02 1 0009- ● ● ●
65 PIPE; OIL,UNION TO FRT FLEX HOSE
THA 		8-97916-832-0 02 1 0009- ● ● ●
145 PIPE; BRK,METERING VLV TO UNION
THA 		8-97916-841-0 01 1 0009-0104 ● ● ●
145 PIPE; BRK,METERING VLV TO UNION
THA 		8-97922-086-0 01 1 0105- ● ● ●
146 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0009- ● ● ●
