Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#166619) — 343 parça

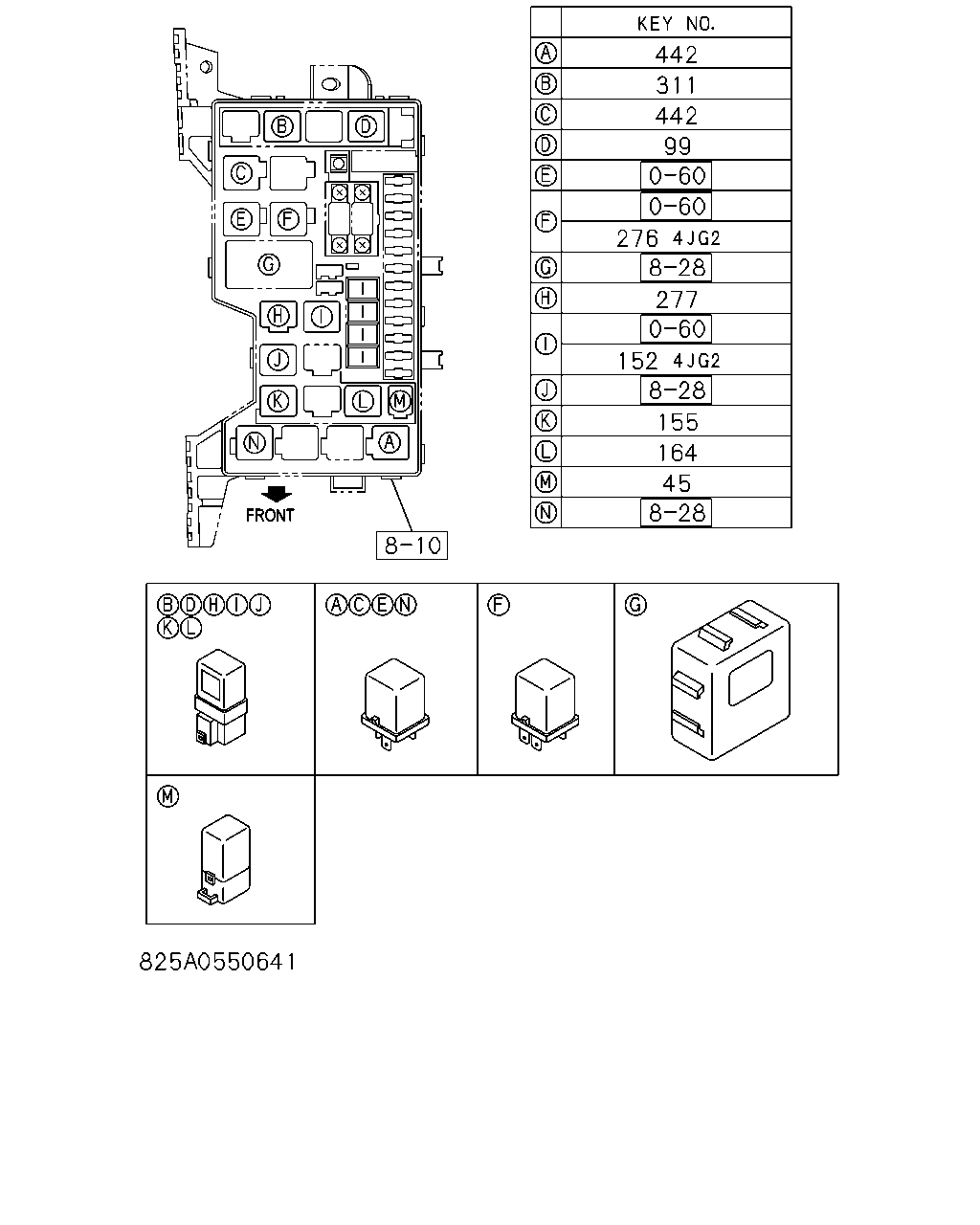

442 311 442 99 276 277 152 155 45 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	RELAY; HORN	8-97018-462-0	01	1	9112-	●	●
99	RELAY; FOG LAMP IRMSHER KIT<6RS>,LOTUS KIT<6WK> 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
99	RELAY; FOG LAMP IRMSHER KIT<6RS>,LOTUS KIT<6WK> 12V 20A	8-97093-910-1	01	1	9304-9406	●	●
99	RELAY; FOG LAMP FOG LAMP HALOGEN(T37),FOG LAMP(T96) 12V 20A	8-97093-910-1	01	1	9407-	●	●
152	RELAY; CERAMIC HTR 4JG2 ENG(RJC) CERAMIC HEATER<6YX> 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
152	RELAY; CERAMIC HTR 4JG2 ENG(RJC) CERAMIC HEATER<6YX> 12V 20A	8-97093-910-1	01	1	9304-	●	●
155	RELAY; THERMO SW,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 12V 20A	8-97048-665-0	01	1	9209-9303	●	●
155	RELAY; THERMO SW,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 12V 20A	8-97093-910-1	01	1	9304-	●	●
164	RELAY; A/C COMPRESSOR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
164	RELAY; A/C COMPRESSOR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 12V 20A	8-97093-910-1	01	1	9505-9605	●	●
164	RELAY; A/C COMPRESSOR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 12V 20A	8-97093-910-1	01	1	9606-	●	●
276	RELAY; CHARGE & AUTO CHOKE 4JG2 ENG(RJC) 12V 20A BLUE	8-94235-627-0	01	1	9112-	●	●
277	RELAY; FUEL PUMP 6VD1 DOHC ENG(RLV) 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
277	RELAY; FUEL PUMP 6VD1 DOHC ENG(RLV) 12V 20A	8-97093-910-1	01	1	9304-	●	●
311	RELAY; CORNERING LAMP 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
311	RELAY; CORNERING LAMP 12V 20A	8-97093-910-1	01	1	9304-	●	●
442	RELAY SHIFT ON THE FLY(7EX) 12V 20A	8-94218-497-0	02	1	9505-9510	●	●
442	RELAY 12V 20A	8-94218-497-0	02	1	9505-9510	●	●
442	RELAY SHIFT ON THE FLY(7EX) 12V 20A	8-94218-497-0	01	1	9511-	●	●
442	RELAY 12V 20A	8-94218-497-0	01	1	9511-	●	●

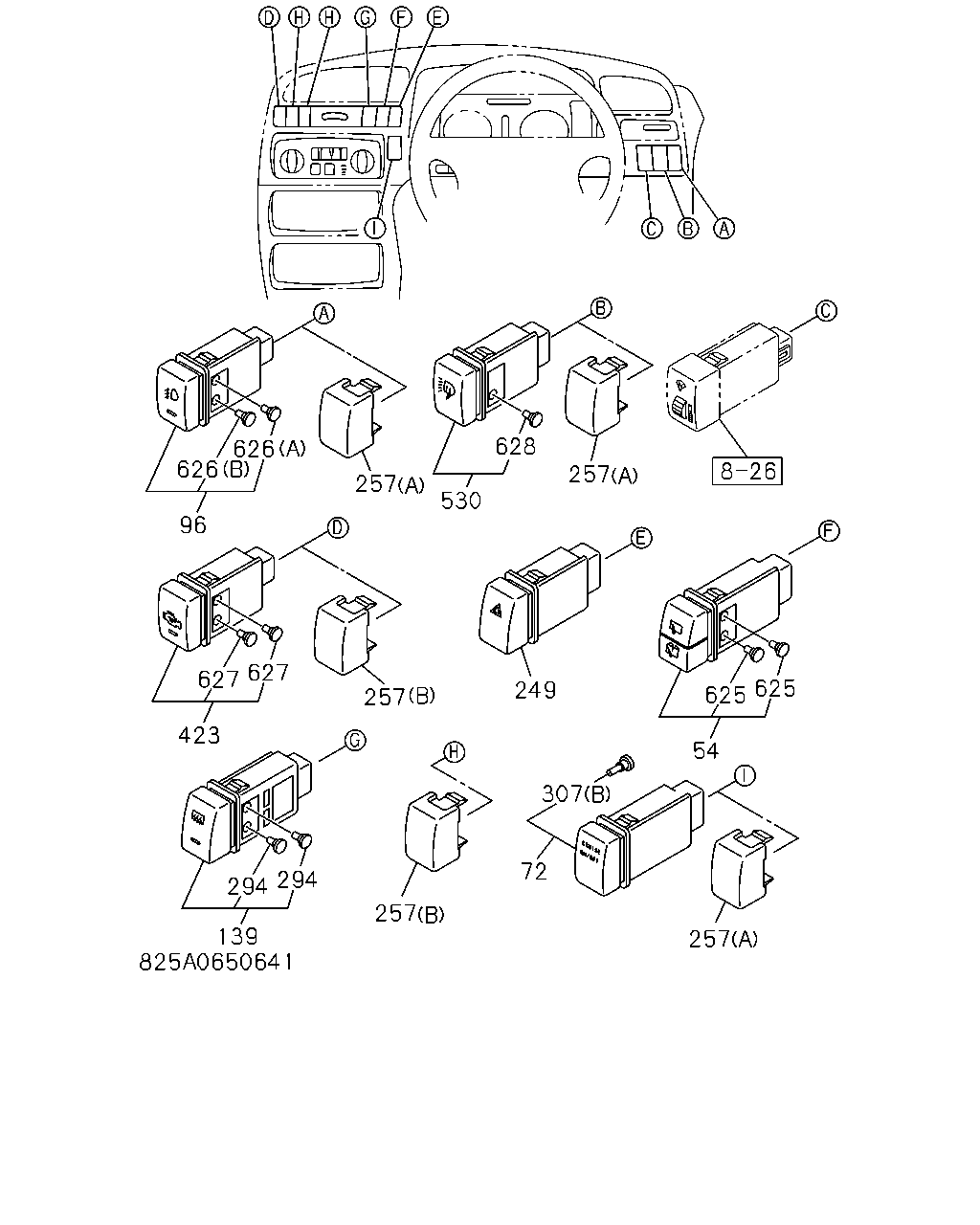

626 626 96 627 627 423 294 294 139 257 72 257 54 625 625 249 257 530 257 257 628 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	SWITCH; RR WIPER RR WIPER W/INTERMITTENT<6WJ>	8-97043-261-3	01	1	9112-9504	●	●
54	SWITCH; RR WIPER	8-97103-581-2	01	1	9505-9605	●	●
54	SWITCH; RR WIPER	8-97135-516-0	01	1	9606-	●	●
54	SWITCH; RR WIPER RR WIPER<C25>	8-97043-731-3	01	1	9112-9208	●	●
54	SWITCH; RR WIPER RR WIPER<C25>	8-97077-532-0	01	1	9209-9504	●	●
72	SWITCH; CRUISE CONT AUTO CRUISE CONT<K30>	8-97018-582-2	01	1	9112-9504	●	●
72	SWITCH; CRUISE CONT AUTO CRUISE CONT<K30>	8-97116-755-1	01	1	9505-9605	●	●
72	SWITCH; CRUISE CONT AUTO CRUISE CONT<K30>	8-97135-520-0	01	1	9606-	●	●
96	SWITCH; FOG LAMP IRMSHER KIT<6RS>	8-94450-648-0	01	1	9112-9407	●
96	SWITCH; FOG LAMP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-94450-648-0	01	1	9112-9407		●
96	SWITCH; FOG LAMP FOG LAMP HALOGEN(T37) IRMSHER KIT<6RS>	8-94450-648-0	01	1	9408-9409	●
96	SWITCH; FOG LAMP FOG LAMP HALOGEN(T37) IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-94450-648-0	01	1	9408-9409		●
96	SWITCH; FOG LAMP FOG LAMP HALOGEN(T37),FOG LAMP(T96)	8-94450-648-0	01	1	9410-9504	●	●
96	SWITCH; FOG LAMP FOG LAMP HALOGEN(T37),FOG LAMP(T96)	8-97085-353-2	01	1	9505-9605	●	●
96	SWITCH; FOG LAMP FOG LAMP HALOGEN(T37),FOG LAMP(T96)	8-97135-512-0	01	1	9606-	●	●
139	SWITCH; RR DEFOGGER	8-97085-382-2	01	1	9505-9605	●	●
139	SWITCH; RR DEFOGGER	8-97135-517-0	01	1	9606-	●	●
249	SWITCH; HAZARD	8-94375-394-1	01	1	9112-9504	●	●
249	SWITCH; HAZARD	8-97085-381-3	01	1	9505-	●	●
257	COVER; HOLE,SW BLACK	8-94417-418-2	AR	1	9112-9504	●	●
257	COVER; HOLE,SW (B)	8-97088-762-0	02	1	9505-	●	●
257	COVER; HOLE,SW EXC. FOG LAMP HALOGEN(T37),FOG LAMP(T96) (A)	8-97081-617-1	01	1	9505-	●	●
257	COVER; HOLE,SW EXC. HEADLAMP WASHER<CE3> (A)	8-97081-617-1	01	1	9505-	●	●
257	COVER; HOLE,SW EXC. AUTO CRUISE CONT<K30> (A)	8-97081-617-1	01	1	9505-	●	●
257	COVER; HOLE,SW 6VD1 DOHC ENG(RLV) (B)	8-97088-762-0	01	1	9505-	●	●
294	BULB; DEFOGGER SW 14V 0.84W	8-97102-440-0	01	1	9505-	●	●
294	BULB; DEFOGGER SW 14V 0.84W	8-97117-108-0	01	1	9505-	●	●
294	BULB; DEFOGGER SW REAR DEFOGGER<C49>	8-94372-908-0	02	1	9112-9208	●	●
307	BULB ASM; SW (C) ILLUMINATED	8-97061-422-0	01	1	9112-9504	●	●
307	BULB ASM; SW ELECTRIC DOOR MIRROR(6MK) (D) GREEN	8-97066-258-0	02	1	9112-9504	●	●
307	BULB ASM; SW ELECTRIC DOOR MIRROR(6MK) (A) 14V 0.7W	8-97102-439-0	01	1	9505-	●	●
307	BULB ASM; SW ELECTRIC DOOR MIRROR(6MK) (E) AMBER	8-97066-259-0	01	1	9112-9504	●	●
307	BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97117-108-0	01	1	9505-9605	●	●
307	BULB ASM; SW HEADLAMP WASHER<CE3> (B) 14V 0.84W	8-97117-108-0	01	1	9606-	●	●
307	BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97117-108-0	01	1	9606-	●	●
423	SWITCH; ENG WARMING 4JG2 ENG(RJC)	8-94434-439-0	01	1	9112-9504	●	●
423	SWITCH; ENG WARMING 4JG2 ENG(RJC)	8-97081-772-2	01	1	9505-9605	●	●
423	SWITCH; ENG WARMING 4JG2 ENG(RJC)	8-97135-519-1	01	1	9606-	●	●
530	SWITCH; HEAD/L WIPER HEADLAMP WASHER<CE3>	8-97081-611-1	01	1	9505-9605	●	●
530	SWITCH; HEAD/L WIPER HEADLAMP WASHER<CE3>	8-97135-513-1	01	1	9606-	●	●
625	BULB; SW,RR WIPER	8-97228-192-0	01	1	9112-9504	●	●
625	BULB; SW,RR WIPER 14V 0.84W	8-97117-108-0	02	1	9505-	●	●
626	BULB; SW,FOG LAMP FOG LAMP HALOGEN(T37),FOG LAMP(T96) (A) FOR RECLINE 14V 0.84W	8-97117-108-0	01	1	9505-	●	●
626	BULB; SW,FOG LAMP FOG LAMP HALOGEN(T37),FOG LAMP(T96) (B) FOR RECLINE 14V 0.7W	8-97102-439-0	01	1	9505-	●	●
627	BULB; SW,ENG WARMING 4JG2 ENG(RJC) 14V 0.84W	8-97117-108-0	02	1	9505-	●	●
628	BULB; SW,HEAD/L WIPER HEADLAMP WASHER<CE3> 14V 0.84W	8-97117-108-0	01	1	9505-	●	●

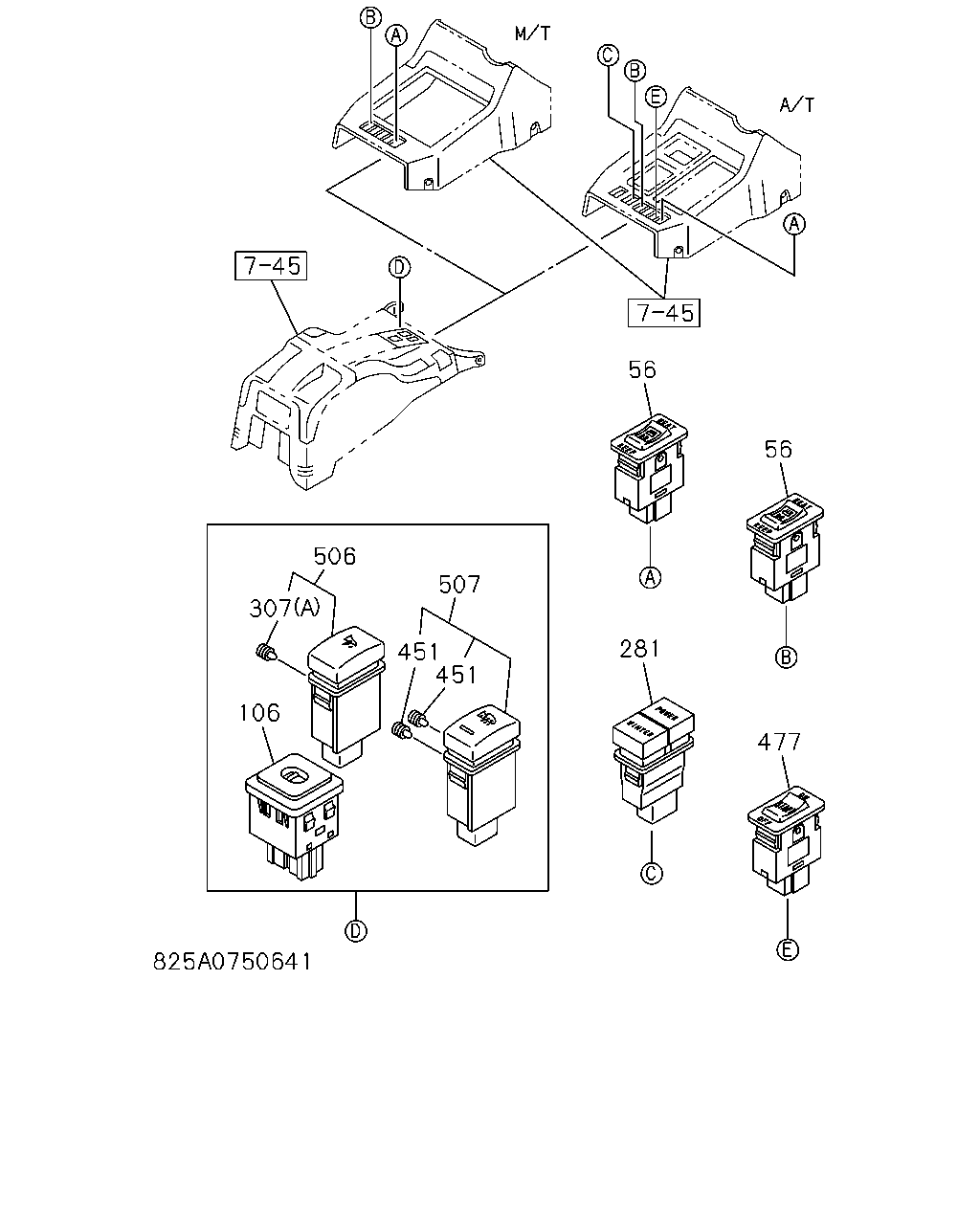

56 56 506 507 451 451 307 106 281 477

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38> RECARO SHEET<6LX>	8-97039-054-1	01	1	9112-9504	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38> RECARO SHEET<6LX>	8-97104-991-0	01	1	9505-9510	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38> RECARO SHEET<6LX>	8-97140-024-0	01	1	9511-	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38> EXC. RECARO SHEET<6LX>	8-97021-229-1	01	1	9112-9504	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38> EXC. RECARO SHEET<6LX>	8-97104-989-1	01	1	9505-9510	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38> EXC. RECARO SHEET<6LX>	8-97140-023-0	01	1	9511-	●	●
56	SWITCH; SEAT HTR SEAT HEATER DRIVER<C37> RECARO SHEET<6LX>	8-97039-053-1	01	1	9112-9504	●	●
56	SWITCH; SEAT HTR SEAT HEATER DRIVER<C37> RECARO SHEET<6LX>	8-97104-990-0	01	1	9505-	●	●
56	SWITCH; SEAT HTR SEAT HEATER DRIVER<C37> EXC. RECARO SHEET<6LX>	8-97021-228-1	01	1	9112-9504	●	●
56	SWITCH; SEAT HTR SEAT HEATER DRIVER<C37> EXC. RECARO SHEET<6LX>	8-97104-988-1	01	1	9505-	●	●
106	SWITCH; REMOTE CONT MIRROR ELECTRIC DOOR MIRROR(6MK)	8-97020-098-2	01	1	9112-9504	●	●
106	SWITCH; REMOTE CONT MIRROR ELECTRIC DOOR MIRROR(6MK)	8-97060-167-1	01	1	9505-	●	●
281	SWITCH; SELECT,TRANS CONT A/T AISIN(RMD)	8-94380-714-0	01	1	9112-9504	●	●
281	SWITCH; SELECT,TRANS CONT A/T AISIN(RMD)	8-97104-993-0	01	1	9505-	●	●
281	SWITCH; SELECT,TRANS CONT A/T THM(RMQ)	8-94375-503-0	01	1	9112-9504	●	●
281	SWITCH; SELECT,TRANS CONT A/T THM(RMQ)	8-97104-996-0	01	1	9505-	●	●
307	BULB ASM; SW (C) ILLUMINATED	8-97061-422-0	01	1	9112-9504	●	●
307	BULB ASM; SW ELECTRIC DOOR MIRROR(6MK) (D) GREEN	8-97066-258-0	02	1	9112-9504	●	●
307	BULB ASM; SW ELECTRIC DOOR MIRROR(6MK) (A) 14V 0.7W	8-97102-439-0	01	1	9505-	●	●
307	BULB ASM; SW ELECTRIC DOOR MIRROR(6MK) (E) AMBER	8-97066-259-0	01	1	9112-9504	●	●
307	BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97117-108-0	01	1	9505-9605	●	●
307	BULB ASM; SW HEADLAMP WASHER<CE3> (B) 14V 0.84W	8-97117-108-0	01	1	9606-	●	●
307	BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97117-108-0	01	1	9606-	●	●
451	BULB; MIRROR HTR SW ELECTRIC DOOR MIRROR(6MK) 14V 0.7W	8-97102-439-0	01	1	9505-	●	●
451	BULB; MIRROR HTR SW ELECTRIC DOOR MIRROR(6MK) 14V 0.84W	8-97102-440-0	01	1	9505-	●	●
477	SWITCH; STABILIZER RR STABILIZER W/CLUTCH<6WV>	8-97018-651-0	01	1	9112-9504	●	●
477	SWITCH; STABILIZER RR STABILIZER W/CLUTCH<6WV>	8-97104-994-0	01	1	9505-	●	●
506	SWITCH; MIRROR FOLD ELECTRIC DOOR MIRROR(6MK)	8-97081-766-3	01	1	9505-	●	●
507	SWITCH; MIRROR HEATER ELECTRIC DOOR MIRROR(6MK)	8-97081-763-4	01	1	9505-	●	●

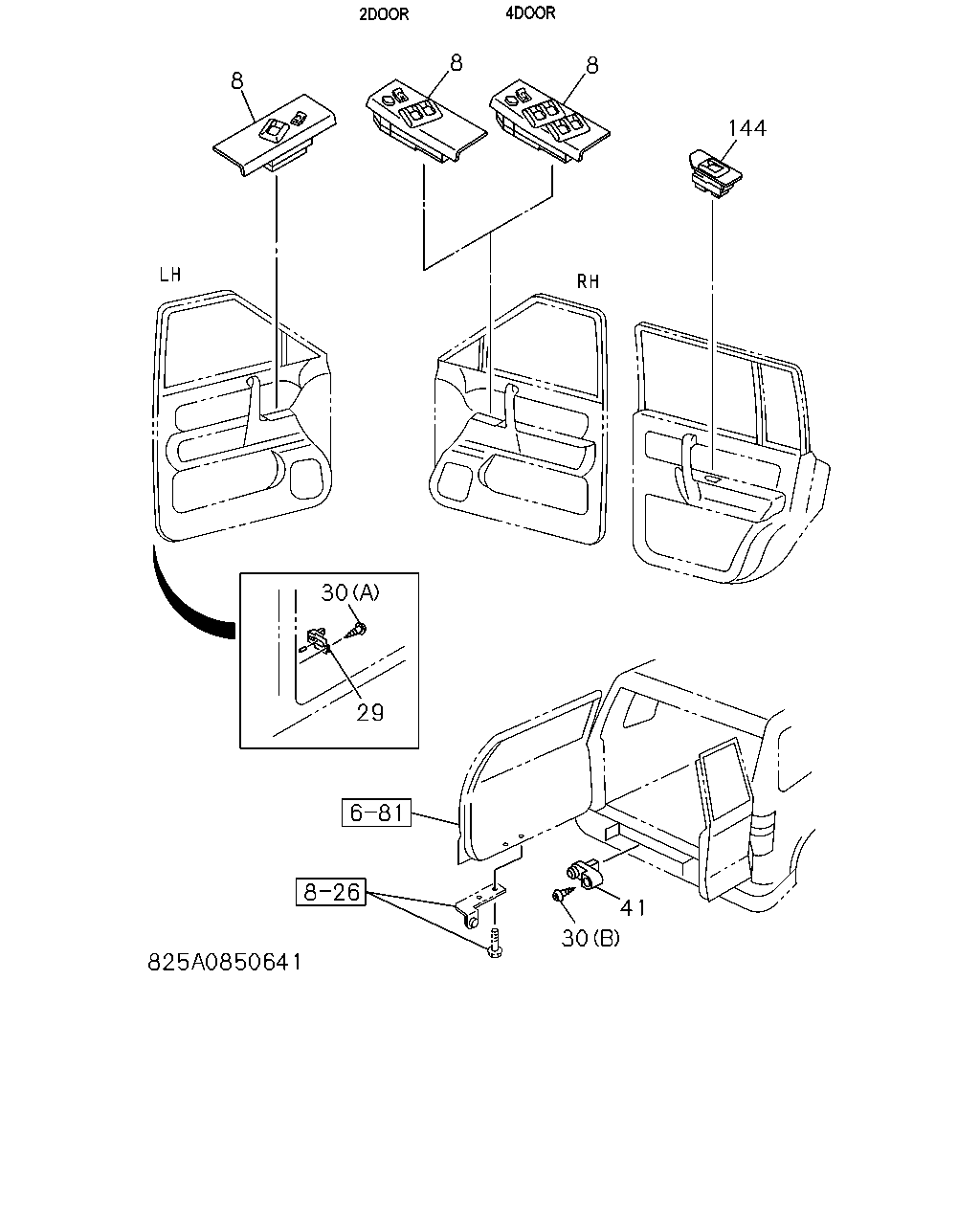

144 8 8 8 41 29 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97153-005-0	01	1	9505-9510	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97153-005-0	01	1	9511-9605	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97157-809-0	01	1	9606-9606	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97157-809-0	01	1	9606-9711	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97196-119-0	01	1	9712-	●
8	SWITCH; POWER WINDOW POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97005-935-3	01	1	9112-9504	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> ASSIST BLACK	8-97153-011-0	01	1	9505-9605	●	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> ASSIST BLACK	8-97154-915-1	01	1	9606-	●	●
8	SWITCH; POWER WINDOW POWER WINDOW W/TIMER<6WS> ASSIST BLACK	8-97007-249-0	01	1	9112-9504	●	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97153-008-0	01	1	9505-9510		●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97153-008-0	01	1	9511-9605		●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97157-810-0	01	1	9606-9606		●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97157-810-0	01	1	9606-9711		●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97196-120-0	01	1	9712-		●
8	SWITCH; POWER WINDOW POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97005-933-3	01	1	9112-9504		●
29	SWITCH; DOOR	8-97033-276-1	02	1	9112-9208	●
29	SWITCH; DOOR	8-97071-864-0	02	1	9209-9510	●
29	SWITCH; DOOR	8-97071-864-0	02	1	9511-9604	●
29	SWITCH; DOOR	8-97146-195-0	02	1	9605-	●
29	SWITCH; DOOR	8-97033-276-1	04	1	9112-9208		●
29	SWITCH; DOOR	8-97071-864-0	04	1	9209-9604		●
29	SWITCH; DOOR	8-97146-195-0	04	1	9605-		●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	02	1	9112-9208	●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	02	1	9209-9510	●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	02	1	9511-	●
30	SCREW; DOOR SW (B) M5X14	8-94313-116-1	01	1	9209-	●	●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	04	1	9112-		●
41	SWITCH; BACK DOOR LOCK	8-97015-743-1	01	1	9112-9208	●	●
41	SWITCH; BACK DOOR LOCK	8-97081-773-0	01	1	9209-	●	●
144	SWITCH; POWER WINDOW,RR POWER WINDOW W/TIMER<6WS> BLACK	8-97003-120-0	01	1	9112-9504		●
144	SWITCH; POWER WINDOW,RR POWER WINDOW W/TIMER<6WS> BLACK	8-97098-342-2	01	1	9505-		●
144	SWITCH; POWER WINDOW,RR POWER WINDOW W/TIMER<6WS> BLACK	8-97003-119-0	01	1	9112-9504		●
144	SWITCH; POWER WINDOW,RR POWER WINDOW W/TIMER<6WS> BLACK	8-97098-341-2	01	1	9505-		●

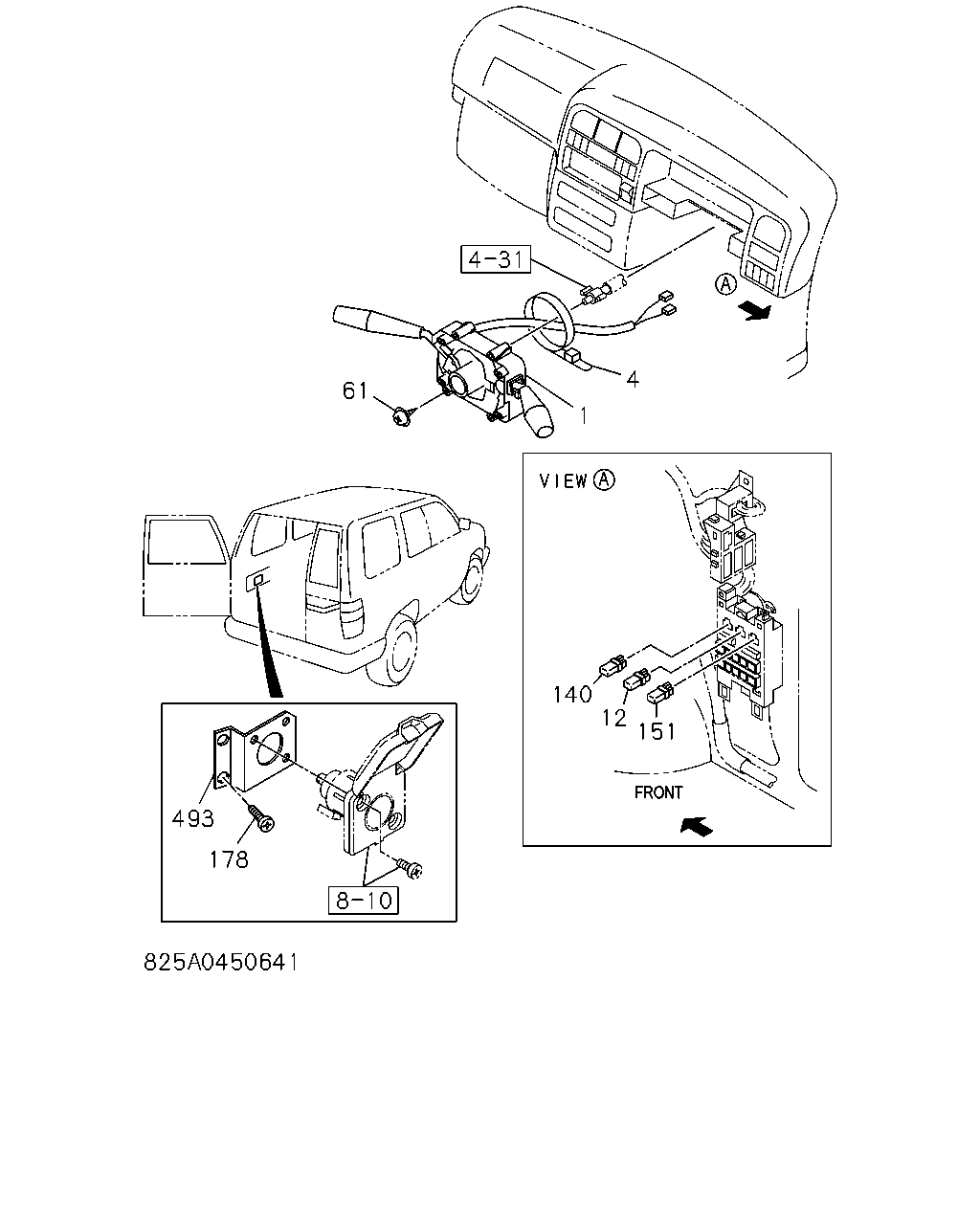

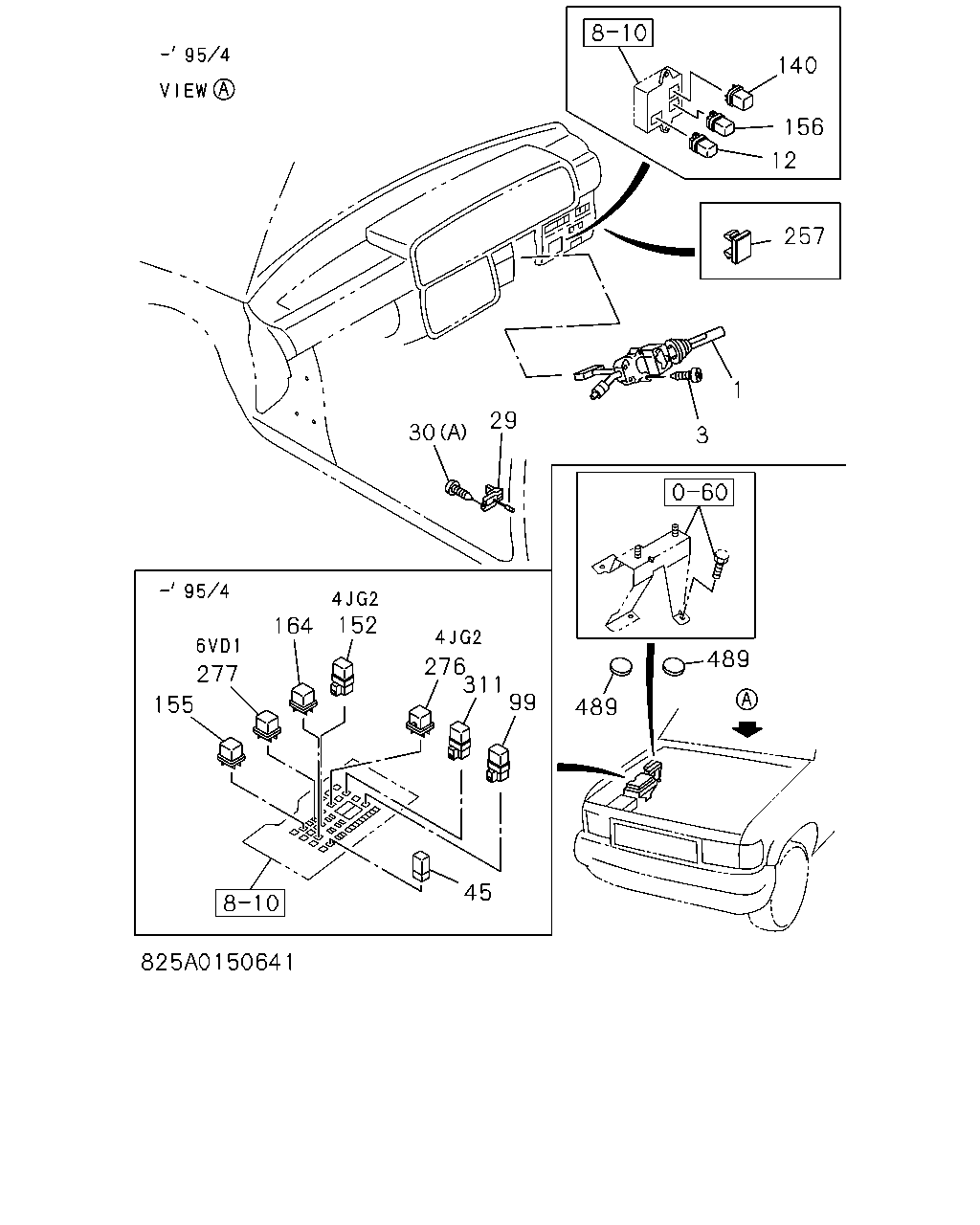

140 156 12 257 1 3 29 30 164 152 276 311 99 45 277 155 489 489

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB AIR BAG DRIVER<AJ3> AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97132-114-1	01	1	9511-9605	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97160-568-0	01	1	9606-9606	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97160-943-0	01	1	9607-	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30>	8-97132-112-1	01	1	9511-9605	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30>	8-97160-566-0	01	1	9606-9606	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30>	8-97160-941-0	01	1	9607-	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-97132-113-1	01	1	9511-9605	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-97160-567-0	01	1	9606-9606	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-97160-942-0	01	1	9607-	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-97132-111-1	01	1	9511-9605	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-97160-565-0	01	1	9606-9606	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-97160-940-0	01	1	9607-	●	●
1	SWITCH; COMB AUTO CRUISE CONT<K30>	8-94382-263-3	01	1	9112-9504	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-97130-078-0	01	1	9505-9510	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> EXC. AIR BAG DRIVER<AJ3>	8-97130-078-0	01	1	9511-9606	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> EXC. AIR BAG DRIVER<AJ3>	8-97160-934-0	01	1	9607-	●	●
1	SWITCH; COMB AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97130-079-0	01	1	9505-9510	●	●
1	SWITCH; COMB AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>	8-97130-079-0	01	1	9511-9606	●	●
1	SWITCH; COMB AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>	8-97160-935-0	01	1	9607-	●	●
1	SWITCH; COMB EXC. AUTO CRUISE CONT<K30>	8-94375-495-3	01	1	9112-9504	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-97130-076-0	01	1	9505-9510	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30>	8-97130-076-0	01	1	9511-9606	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30>	8-97160-932-0	01	1	9607-	●	●
1	SWITCH; COMB FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30>	8-97130-077-0	01	1	9505-9510	●	●
1	SWITCH; COMB FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30>	8-97130-077-0	01	1	9511-9606	●	●
1	SWITCH; COMB FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30>	8-97160-933-0	01	1	9607-	●	●
3	SCREW; COMB SW M5X20 W/LK WASHER	9-03910-520-0	03	1	9112-9504	●	●
12	RELAY; POWER WINDOW POWER WINDOW W/TIMER<6WS> 12V 20A	8-97048-665-0	01	1	9209-9303	●	●
12	RELAY; POWER WINDOW POWER WINDOW W/TIMER<6WS> 12V 20A	8-97093-910-1	01	1	9304-	●	●
29	SWITCH; DOOR	8-97033-276-1	02	1	9112-9208	●
29	SWITCH; DOOR	8-97071-864-0	02	1	9209-9510	●
29	SWITCH; DOOR	8-97071-864-0	02	1	9511-9604	●
29	SWITCH; DOOR	8-97146-195-0	02	1	9605-	●
29	SWITCH; DOOR	8-97033-276-1	04	1	9112-9208		●
29	SWITCH; DOOR	8-97071-864-0	04	1	9209-9604		●
29	SWITCH; DOOR	8-97146-195-0	04	1	9605-		●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	02	1	9112-9208	●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	02	1	9209-9510	●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	02	1	9511-	●
30	SCREW; DOOR SW (B) M5X14	8-94313-116-1	01	1	9209-	●	●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	04	1	9112-		●
45	RELAY; HORN	8-97018-462-0	01	1	9112-	●	●
99	RELAY; FOG LAMP IRMSHER KIT<6RS>,LOTUS KIT<6WK> 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
99	RELAY; FOG LAMP IRMSHER KIT<6RS>,LOTUS KIT<6WK> 12V 20A	8-97093-910-1	01	1	9304-9406	●	●
99	RELAY; FOG LAMP FOG LAMP HALOGEN(T37),FOG LAMP(T96) 12V 20A	8-97093-910-1	01	1	9407-	●	●
140	RELAY; RR DEFOGGER REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
140	RELAY; RR DEFOGGER REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
140	RELAY; RR DEFOGGER 12V 20A	8-97093-910-1	01	1	9505-	●	●
152	RELAY; CERAMIC HTR 4JG2 ENG(RJC) CERAMIC HEATER<6YX> 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
152	RELAY; CERAMIC HTR 4JG2 ENG(RJC) CERAMIC HEATER<6YX> 12V 20A	8-97093-910-1	01	1	9304-	●	●
155	RELAY; THERMO SW,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 12V 20A	8-97048-665-0	01	1	9209-9303	●	●
155	RELAY; THERMO SW,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 12V 20A	8-97093-910-1	01	1	9304-	●	●
156	RELAY; BLOWER 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
156	RELAY; BLOWER 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
164	RELAY; A/C COMPRESSOR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
164	RELAY; A/C COMPRESSOR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 12V 20A	8-97093-910-1	01	1	9505-9605	●	●
164	RELAY; A/C COMPRESSOR 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 12V 20A	8-97093-910-1	01	1	9606-	●	●
257	COVER; HOLE,SW BLACK	8-94417-418-2	AR	1	9112-9504	●	●
257	COVER; HOLE,SW (B)	8-97088-762-0	02	1	9505-	●	●
257	COVER; HOLE,SW EXC. FOG LAMP HALOGEN(T37),FOG LAMP(T96) (A)	8-97081-617-1	01	1	9505-	●	●
257	COVER; HOLE,SW EXC. HEADLAMP WASHER<CE3> (A)	8-97081-617-1	01	1	9505-	●	●
257	COVER; HOLE,SW EXC. AUTO CRUISE CONT<K30> (A)	8-97081-617-1	01	1	9505-	●	●
257	COVER; HOLE,SW 6VD1 DOHC ENG(RLV) (B)	8-97088-762-0	01	1	9505-	●	●
276	RELAY; CHARGE & AUTO CHOKE 4JG2 ENG(RJC) 12V 20A BLUE	8-94235-627-0	01	1	9112-	●	●
277	RELAY; FUEL PUMP 6VD1 DOHC ENG(RLV) 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
277	RELAY; FUEL PUMP 6VD1 DOHC ENG(RLV) 12V 20A	8-97093-910-1	01	1	9304-	●	●
311	RELAY; CORNERING LAMP 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
311	RELAY; CORNERING LAMP 12V 20A	8-97093-910-1	01	1	9304-	●	●
489	TAPE; SEALING 6VD1 DOHC ENG(RLV) OD=16	8-94111-207-1	02	1	9203-	●	●

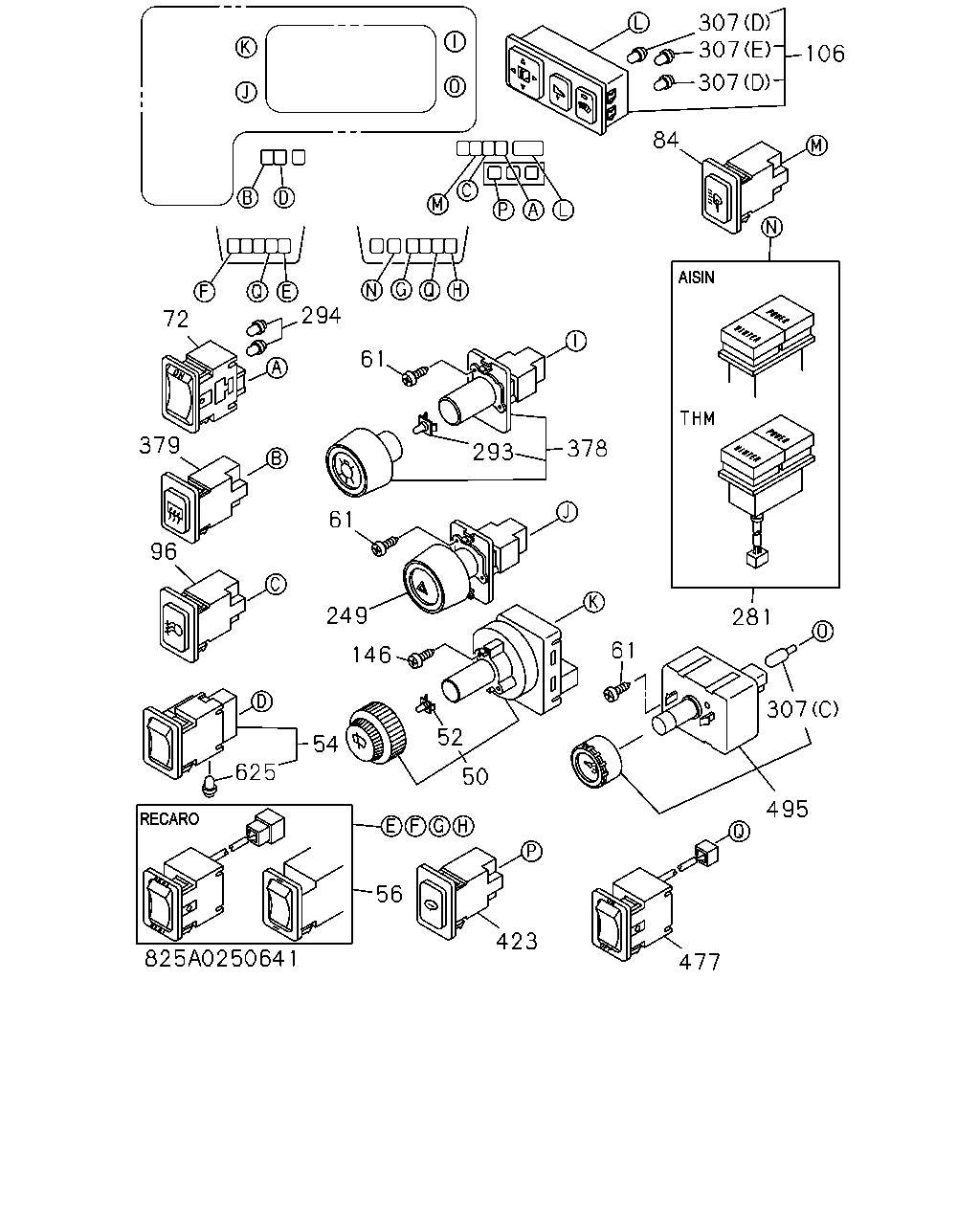

307 307 307 106 84 281 378 293 61 294 72 379 96 61 249 146 52 50 54 625 56 423 477 495 307 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	SWITCH; FRT WIPER FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97023-828-1	01	1	9112-9203	●	●
50	SWITCH; FRT WIPER FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97077-607-1	01	1	9204-9502	●	●
50	SWITCH; FRT WIPER FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97119-646-0	01	1	9503-9504	●	●
50	SWITCH; FRT WIPER INTERMITTENT WIPER<C13>	8-97023-827-1	01	1	9112-9203	●	●
50	SWITCH; FRT WIPER INTERMITTENT WIPER<C13>	8-97077-606-1	01	1	9204-9502	●	●
50	SWITCH; FRT WIPER INTERMITTENT WIPER<C13>	8-97119-645-0	01	1	9503-9504	●	●
52	BULB ASM; WIPER & WASHER SW INTERMITTENT WIPER<C13>,FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97045-658-0	01	1	9112-9504	●	●
54	SWITCH; RR WIPER RR WIPER W/INTERMITTENT<6WJ>	8-97043-261-3	01	1	9112-9504	●	●
54	SWITCH; RR WIPER	8-97103-581-2	01	1	9505-9605	●	●
54	SWITCH; RR WIPER	8-97135-516-0	01	1	9606-	●	●
54	SWITCH; RR WIPER RR WIPER<C25>	8-97043-731-3	01	1	9112-9208	●	●
54	SWITCH; RR WIPER RR WIPER<C25>	8-97077-532-0	01	1	9209-9504	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38> RECARO SHEET<6LX>	8-97039-054-1	01	1	9112-9504	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38> RECARO SHEET<6LX>	8-97104-991-0	01	1	9505-9510	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38> RECARO SHEET<6LX>	8-97140-024-0	01	1	9511-	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38> EXC. RECARO SHEET<6LX>	8-97021-229-1	01	1	9112-9504	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38> EXC. RECARO SHEET<6LX>	8-97104-989-1	01	1	9505-9510	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38> EXC. RECARO SHEET<6LX>	8-97140-023-0	01	1	9511-	●	●
56	SWITCH; SEAT HTR SEAT HEATER DRIVER<C37> RECARO SHEET<6LX>	8-97039-053-1	01	1	9112-9504	●	●
56	SWITCH; SEAT HTR SEAT HEATER DRIVER<C37> RECARO SHEET<6LX>	8-97104-990-0	01	1	9505-	●	●
56	SWITCH; SEAT HTR SEAT HEATER DRIVER<C37> EXC. RECARO SHEET<6LX>	8-97021-228-1	01	1	9112-9504	●	●
56	SWITCH; SEAT HTR SEAT HEATER DRIVER<C37> EXC. RECARO SHEET<6LX>	8-97104-988-1	01	1	9505-	●	●
61	SCREW; SW M4X14 TAPPING	9-09829-313-1	06	1	9112-9302	●	●
61	SCREW; SW M4X12 TAPPING OVAL-HEAD	9-09829-312-1	06	1	9303-9504	●	●
61	SCREW; SW M5X14 W/LK WASHER	9-03910-514-0	04	1	9505-	●	●
72	SWITCH; CRUISE CONT AUTO CRUISE CONT<K30>	8-97018-582-2	01	1	9112-9504	●	●
72	SWITCH; CRUISE CONT AUTO CRUISE CONT<K30>	8-97116-755-1	01	1	9505-9605	●	●
72	SWITCH; CRUISE CONT AUTO CRUISE CONT<K30>	8-97135-520-0	01	1	9606-	●	●
84	SWITCH; WASHER,HEADLAMP HEADLAMP WASHER<CE3>	8-97045-927-2	01	1	9112-9307	●	●
84	SWITCH; WASHER,HEADLAMP HEADLAMP WASHER<CE3>	8-97045-927-2	01	1	9308-9504	●	●
96	SWITCH; FOG LAMP IRMSHER KIT<6RS>	8-94450-648-0	01	1	9112-9407	●
96	SWITCH; FOG LAMP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-94450-648-0	01	1	9112-9407		●
96	SWITCH; FOG LAMP FOG LAMP HALOGEN(T37) IRMSHER KIT<6RS>	8-94450-648-0	01	1	9408-9409	●
96	SWITCH; FOG LAMP FOG LAMP HALOGEN(T37) IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-94450-648-0	01	1	9408-9409		●
96	SWITCH; FOG LAMP FOG LAMP HALOGEN(T37),FOG LAMP(T96)	8-94450-648-0	01	1	9410-9504	●	●
96	SWITCH; FOG LAMP FOG LAMP HALOGEN(T37),FOG LAMP(T96)	8-97085-353-2	01	1	9505-9605	●	●
96	SWITCH; FOG LAMP FOG LAMP HALOGEN(T37),FOG LAMP(T96)	8-97135-512-0	01	1	9606-	●	●
106	SWITCH; REMOTE CONT MIRROR ELECTRIC DOOR MIRROR(6MK)	8-97020-098-2	01	1	9112-9504	●	●
106	SWITCH; REMOTE CONT MIRROR ELECTRIC DOOR MIRROR(6MK)	8-97060-167-1	01	1	9505-	●	●
146	SCREW; SW M4X14 TAPPING	9-09829-313-1	02	1	9112-9302	●	●
146	SCREW; SW M4X12 TAPPING OVAL-HEAD	9-09829-312-1	02	1	9303-9504	●	●
249	SWITCH; HAZARD	8-94375-394-1	01	1	9112-9504	●	●
249	SWITCH; HAZARD	8-97085-381-3	01	1	9505-	●	●
281	SWITCH; SELECT,TRANS CONT A/T AISIN(RMD)	8-94380-714-0	01	1	9112-9504	●	●
281	SWITCH; SELECT,TRANS CONT A/T AISIN(RMD)	8-97104-993-0	01	1	9505-	●	●
281	SWITCH; SELECT,TRANS CONT A/T THM(RMQ)	8-94375-503-0	01	1	9112-9504	●	●
281	SWITCH; SELECT,TRANS CONT A/T THM(RMQ)	8-97104-996-0	01	1	9505-	●	●
293	BULB; LIGHTING SW	8-97045-658-0	01	1	9112-9502	●	●
294	BULB; DEFOGGER SW 14V 0.84W	8-97102-440-0	01	1	9505-	●	●
294	BULB; DEFOGGER SW 14V 0.84W	8-97117-108-0	01	1	9505-	●	●
294	BULB; DEFOGGER SW REAR DEFOGGER<C49>	8-94372-908-0	02	1	9112-9208	●	●
307	BULB ASM; SW (C) ILLUMINATED	8-97061-422-0	01	1	9112-9504	●	●
307	BULB ASM; SW ELECTRIC DOOR MIRROR(6MK) (D) GREEN	8-97066-258-0	02	1	9112-9504	●	●
307	BULB ASM; SW ELECTRIC DOOR MIRROR(6MK) (A) 14V 0.7W	8-97102-439-0	01	1	9505-	●	●
307	BULB ASM; SW ELECTRIC DOOR MIRROR(6MK) (E) AMBER	8-97066-259-0	01	1	9112-9504	●	●
307	BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97117-108-0	01	1	9505-9605	●	●
307	BULB ASM; SW HEADLAMP WASHER<CE3> (B) 14V 0.84W	8-97117-108-0	01	1	9606-	●	●
307	BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97117-108-0	01	1	9606-	●	●
378	SWITCH; LIGHTING	8-97023-830-1	01	1	9112-9203	●	●
378	SWITCH; LIGHTING	8-97077-603-1	01	1	9204-9502	●	●
378	SWITCH; LIGHTING	8-97119-647-0	01	1	9503-9504	●	●
379	SWITCH; DEFOGGER REAR DEFOGGER<C49>	8-94450-651-1	01	1	9112-9504	●	●
379	SWITCH; DEFOGGER RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97018-464-2	01	1	9112-9504	●	●
423	SWITCH; ENG WARMING 4JG2 ENG(RJC)	8-94434-439-0	01	1	9112-9504	●	●
423	SWITCH; ENG WARMING 4JG2 ENG(RJC)	8-97081-772-2	01	1	9505-9605	●	●
423	SWITCH; ENG WARMING 4JG2 ENG(RJC)	8-97135-519-1	01	1	9606-	●	●
477	SWITCH; STABILIZER RR STABILIZER W/CLUTCH<6WV>	8-97018-651-0	01	1	9112-9504	●	●
477	SWITCH; STABILIZER RR STABILIZER W/CLUTCH<6WV>	8-97104-994-0	01	1	9505-	●	●
495	SWITCH; METER,ILLUMINATION	8-94381-092-2	01	1	9112-9504	●	●
625	BULB; SW,RR WIPER	8-97228-192-0	01	1	9112-9504	●	●
625	BULB; SW,RR WIPER 14V 0.84W	8-97117-108-0	02	1	9505-	●	●

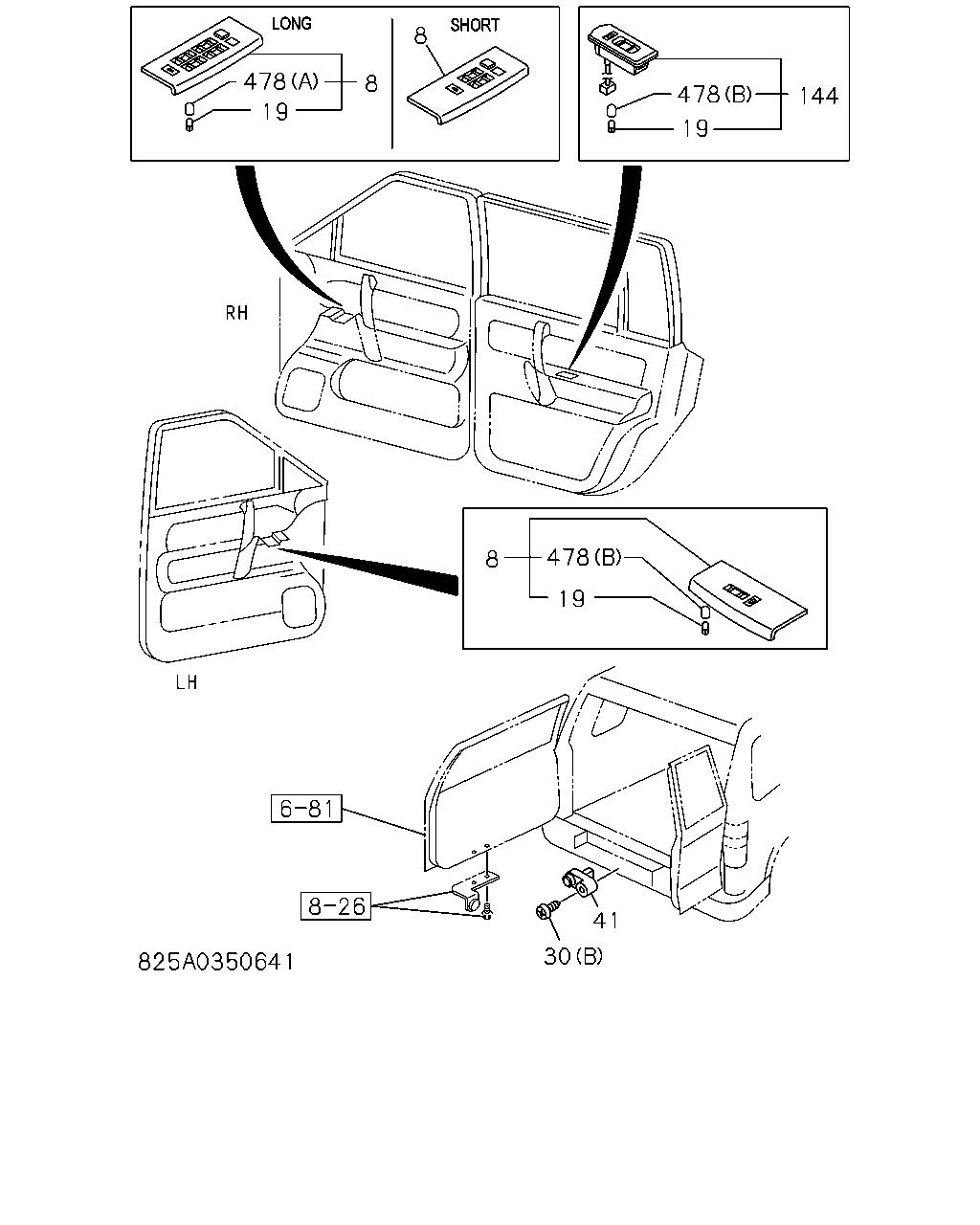

478 8 8 19 478 19 144 8 19 478 30 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97153-005-0	01	1	9505-9510	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97153-005-0	01	1	9511-9605	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97157-809-0	01	1	9606-9606	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97157-809-0	01	1	9606-9711	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97196-119-0	01	1	9712-	●
8	SWITCH; POWER WINDOW POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97005-935-3	01	1	9112-9504	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> ASSIST BLACK	8-97153-011-0	01	1	9505-9605	●	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> ASSIST BLACK	8-97154-915-1	01	1	9606-	●	●
8	SWITCH; POWER WINDOW POWER WINDOW W/TIMER<6WS> ASSIST BLACK	8-97007-249-0	01	1	9112-9504	●	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97153-008-0	01	1	9505-9510		●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97153-008-0	01	1	9511-9605		●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97157-810-0	01	1	9606-9606		●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97157-810-0	01	1	9606-9711		●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97196-120-0	01	1	9712-		●
8	SWITCH; POWER WINDOW POWER WINDOW W/TIMER<6WS> DRIVER BLACK	8-97005-933-3	01	1	9112-9504		●
19	BULB; POWER WINDOW SW POWER WINDOW W/TIMER<6WS> DRIVER	8-97062-287-0	02	1	9112-9504	●
19	BULB; POWER WINDOW SW POWER WINDOW W/TIMER<6WS> ASSIST	8-97062-565-0	02	1	9112-9504	●	●
19	BULB; POWER WINDOW SW POWER WINDOW W/TIMER<6WS> DRIVER	8-97062-287-0	03	1	9112-9504		●
19	BULB; POWER WINDOW SW POWER WINDOW W/TIMER<6WS> REAR	8-97062-565-0	02	1	9112-9504		●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	02	1	9112-9208	●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	02	1	9209-9510	●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	02	1	9511-	●
30	SCREW; DOOR SW (B) M5X14	8-94313-116-1	01	1	9209-	●	●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	04	1	9112-		●
41	SWITCH; BACK DOOR LOCK	8-97015-743-1	01	1	9112-9208	●	●
41	SWITCH; BACK DOOR LOCK	8-97081-773-0	01	1	9209-	●	●
144	SWITCH; POWER WINDOW,RR POWER WINDOW W/TIMER<6WS> BLACK	8-97003-120-0	01	1	9112-9504		●
144	SWITCH; POWER WINDOW,RR POWER WINDOW W/TIMER<6WS> BLACK	8-97098-342-2	01	1	9505-		●
144	SWITCH; POWER WINDOW,RR POWER WINDOW W/TIMER<6WS> BLACK	8-97003-119-0	01	1	9112-9504		●
144	SWITCH; POWER WINDOW,RR POWER WINDOW W/TIMER<6WS> BLACK	8-97098-341-2	01	1	9505-		●
478	CAP; COLLAR POWER WINDOW W/TIMER<6WS> (A)	8-97062-563-0	02	1	9112-9504	●
478	CAP; COLLAR POWER WINDOW W/TIMER<6WS> (B)	8-97069-657-0	04	1	9112-9504	●	●
478	CAP; COLLAR POWER WINDOW W/TIMER<6WS> (A)	8-97062-563-0	03	1	9112-9504		●

4 1 61 178 493 140 12 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB AIR BAG DRIVER<AJ3> AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97132-114-1	01	1	9511-9605	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97160-568-0	01	1	9606-9606	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97160-943-0	01	1	9607-	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30>	8-97132-112-1	01	1	9511-9605	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30>	8-97160-566-0	01	1	9606-9606	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30>	8-97160-941-0	01	1	9607-	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-97132-113-1	01	1	9511-9605	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-97160-567-0	01	1	9606-9606	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-97160-942-0	01	1	9607-	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-97132-111-1	01	1	9511-9605	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-97160-565-0	01	1	9606-9606	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-97160-940-0	01	1	9607-	●	●
1	SWITCH; COMB AUTO CRUISE CONT<K30>	8-94382-263-3	01	1	9112-9504	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-97130-078-0	01	1	9505-9510	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> EXC. AIR BAG DRIVER<AJ3>	8-97130-078-0	01	1	9511-9606	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> EXC. AIR BAG DRIVER<AJ3>	8-97160-934-0	01	1	9607-	●	●
1	SWITCH; COMB AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97130-079-0	01	1	9505-9510	●	●
1	SWITCH; COMB AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>	8-97130-079-0	01	1	9511-9606	●	●
1	SWITCH; COMB AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>	8-97160-935-0	01	1	9607-	●	●
1	SWITCH; COMB EXC. AUTO CRUISE CONT<K30>	8-94375-495-3	01	1	9112-9504	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-97130-076-0	01	1	9505-9510	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30>	8-97130-076-0	01	1	9511-9606	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30>	8-97160-932-0	01	1	9607-	●	●
1	SWITCH; COMB FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30>	8-97130-077-0	01	1	9505-9510	●	●
1	SWITCH; COMB FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30>	8-97130-077-0	01	1	9511-9606	●	●
1	SWITCH; COMB FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30>	8-97160-933-0	01	1	9607-	●	●
4	CLIP; COMB SW L=250	5-09707-030-0	01	1	9505-	●	●
12	RELAY; POWER WINDOW POWER WINDOW W/TIMER<6WS> 12V 20A	8-97048-665-0	01	1	9209-9303	●	●
12	RELAY; POWER WINDOW POWER WINDOW W/TIMER<6WS> 12V 20A	8-97093-910-1	01	1	9304-	●	●
61	SCREW; SW M4X14 TAPPING	9-09829-313-1	06	1	9112-9302	●	●
61	SCREW; SW M4X12 TAPPING OVAL-HEAD	9-09829-312-1	06	1	9303-9504	●	●
61	SCREW; SW M5X14 W/LK WASHER	9-03910-514-0	04	1	9505-	●	●
140	RELAY; RR DEFOGGER REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
140	RELAY; RR DEFOGGER REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
140	RELAY; RR DEFOGGER 12V 20A	8-97093-910-1	01	1	9505-	●	●
151	RELAY; HTR & A/C 4JG2 ENG(RJC) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 12V 20A	8-97093-910-1	01	1	9505-9506	●	●
151	RELAY; HTR & A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 12V 20A	8-97093-910-1	01	1	9505-9506	●	●
151	RELAY; HTR & A/C 12V 20A	8-97093-910-1	01	1	9507-	●	●
178	SCREW; BRKT M5X16 TAPPING	9-09829-323-1	02	1	9505-	●	●
493	BRACKET	8-97111-258-3	01	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
