Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#166617) — 395 parça

512 16 390 27 27 27 27 27 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (F) L=250	5-09707-030-0	01	1	9209-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,ELECTRIC DOOR MIRROR(6MK) ,POWER WINDOW W/TIMER<6WS> (C) L=60	8-94449-165-0	06	1	9505-	●	●
16	CLIP; HARNESS FULLAUTO AIR CONDITIONER(C68) (G) L=63	1-09700-418-1	01	1	9511-	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,ELECTRIC DOOR MIRROR(6MK) ,POWER WINDOW W/TIMER<6WS> (D) L=36.5	8-97019-892-0	08	1	9505-	●	●
16	CLIP; HARNESS SEAT HEATER DRIVER<C37> (A) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS SEAT HEATER PASSENGER<C38> (A) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,ELECTRIC DOOR MIRROR(6MK) ,POWER WINDOW W/TIMER<6WS> (E) L=104	8-94433-185-0	02	1	9505-	●	●
16	CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9209-9504	●	●
16	CLIP; HARNESS A/T AISIN(RMD) (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9505-9510	●	●
16	CLIP; HARNESS A/T AISIN(RMD) (H) L=140	8-97122-360-0	01	1	9511-9511	●	●
16	CLIP; HARNESS A/T AISIN(RMD) (H) 951120-	8-94430-365-0	01	1	9511-	●	●
27	PROTECTOR; EDGE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (Q) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9606-	●
27	PROTECTOR; EDGE (C) SERVICED BY L=190 L=40	1-71998-300-0	01	1	9112-9202	●	●
27	PROTECTOR; EDGE (C) SERVICED BY L=190 L=40	1-71998-300-0	02	1	9203-	●	●
27	PROTECTOR; EDGE (E)	8-94142-264-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (P) L=65	8-94235-856-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (F) ID=34.7	8-94365-780-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (H)	8-97803-554-0	01	1	9112-	●	●
27	PROTECTOR; EDGE (B)	8-97804-817-1	01	1	9112-	●	●
27	PROTECTOR; EDGE (D)	8-94142-264-0	04	1	9505-	●	●
27	PROTECTOR; EDGE (N) L=80	5-22439-006-0	01	1	9506-9605	●	●
27	PROTECTOR; EDGE AIR BAG DRIVER<AJ3> (N) L=80	5-22439-006-0	01	1	9606-	●	●
27	PROTECTOR; EDGE (N) L=80	5-22439-006-0	01	1	9606-	●	●
27	PROTECTOR; EDGE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) AUTO CRUISE CONT<K30> (K) L=30	8-94366-689-0	01	1	9201-9208	●	●
27	PROTECTOR; EDGE DIVERSITY ANTENNA<7HE> (I) 950522- L=73 SERVICED BY L=190	1-71998-300-0	02	1	9505-9510	●	●
27	PROTECTOR; EDGE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) AUTO CRUISE CONT<K30> (K) L=30	8-94366-689-0	01	1	9209-9307	●	●
27	PROTECTOR; EDGE DIVERSITY ANTENNA<7HE> (I) L=73 SERVICED BY L=190	1-71998-300-0	02	1	9511-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) (L) L=65	8-94235-856-0	01	1	9505-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) FRIGID ZONE(YL3) (M) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9505-	●	●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9201-9504		●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9505-	●	●
27	PROTECTOR; EDGE (J) ID=36	8-94178-685-0	01	1	9505-		●
27	PROTECTOR; EDGE AUTO DOOR LOCK<AU4> (J) ID=36	8-94178-685-0	03	1	9505-		●
27	PROTECTOR; EDGE POWER WINDOW W/TIMER<6WS> (R)	8-94142-264-0	02	1	9505-		●
390	CONNECTOR; SHORT CIRCUIT 4JG2 ENG(RJC) EXC. SHIFT ON THE FLY(7EX),VARIABLE TORQUE SPRIT<7HA>	8-97110-718-0	01	1	9505-	●	●
512	PROTECTOR; HARNESS L=73 SERVICED BY L=190	1-71998-300-0	01	1	9512-	●	●
512	PROTECTOR; HARNESS AIR BAG DRIVER<AJ3> L=120 SERVICED BY L=190	1-71998-300-0	01	1	9511-	●	●

399 399 399 27 27 16 16 16 166 524 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (F) L=250	5-09707-030-0	01	1	9209-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,ELECTRIC DOOR MIRROR(6MK) ,POWER WINDOW W/TIMER<6WS> (C) L=60	8-94449-165-0	06	1	9505-	●	●
16	CLIP; HARNESS FULLAUTO AIR CONDITIONER(C68) (G) L=63	1-09700-418-1	01	1	9511-	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,ELECTRIC DOOR MIRROR(6MK) ,POWER WINDOW W/TIMER<6WS> (D) L=36.5	8-97019-892-0	08	1	9505-	●	●
16	CLIP; HARNESS SEAT HEATER DRIVER<C37> (A) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS SEAT HEATER PASSENGER<C38> (A) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,ELECTRIC DOOR MIRROR(6MK) ,POWER WINDOW W/TIMER<6WS> (E) L=104	8-94433-185-0	02	1	9505-	●	●
16	CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9209-9504	●	●
16	CLIP; HARNESS A/T AISIN(RMD) (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9505-9510	●	●
16	CLIP; HARNESS A/T AISIN(RMD) (H) L=140	8-97122-360-0	01	1	9511-9511	●	●
16	CLIP; HARNESS A/T AISIN(RMD) (H) 951120-	8-94430-365-0	01	1	9511-	●	●
27	PROTECTOR; EDGE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (Q) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9606-	●
27	PROTECTOR; EDGE (C) SERVICED BY L=190 L=40	1-71998-300-0	01	1	9112-9202	●	●
27	PROTECTOR; EDGE (C) SERVICED BY L=190 L=40	1-71998-300-0	02	1	9203-	●	●
27	PROTECTOR; EDGE (E)	8-94142-264-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (P) L=65	8-94235-856-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (F) ID=34.7	8-94365-780-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (H)	8-97803-554-0	01	1	9112-	●	●
27	PROTECTOR; EDGE (B)	8-97804-817-1	01	1	9112-	●	●
27	PROTECTOR; EDGE (D)	8-94142-264-0	04	1	9505-	●	●
27	PROTECTOR; EDGE (N) L=80	5-22439-006-0	01	1	9506-9605	●	●
27	PROTECTOR; EDGE AIR BAG DRIVER<AJ3> (N) L=80	5-22439-006-0	01	1	9606-	●	●
27	PROTECTOR; EDGE (N) L=80	5-22439-006-0	01	1	9606-	●	●
27	PROTECTOR; EDGE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) AUTO CRUISE CONT<K30> (K) L=30	8-94366-689-0	01	1	9201-9208	●	●
27	PROTECTOR; EDGE DIVERSITY ANTENNA<7HE> (I) 950522- L=73 SERVICED BY L=190	1-71998-300-0	02	1	9505-9510	●	●
27	PROTECTOR; EDGE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) AUTO CRUISE CONT<K30> (K) L=30	8-94366-689-0	01	1	9209-9307	●	●
27	PROTECTOR; EDGE DIVERSITY ANTENNA<7HE> (I) L=73 SERVICED BY L=190	1-71998-300-0	02	1	9511-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) (L) L=65	8-94235-856-0	01	1	9505-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) FRIGID ZONE(YL3) (M) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9505-	●	●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9201-9504		●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9505-	●	●
27	PROTECTOR; EDGE (J) ID=36	8-94178-685-0	01	1	9505-		●
27	PROTECTOR; EDGE AUTO DOOR LOCK<AU4> (J) ID=36	8-94178-685-0	03	1	9505-		●
27	PROTECTOR; EDGE POWER WINDOW W/TIMER<6WS> (R)	8-94142-264-0	02	1	9505-		●
166	CLIP; HARNESS CLU SW M/T MUA 5 SPEED(RMN)	8-94238-565-1	01	1	9505-	●	●
399	COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> (C) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9505-9509		●
399	COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> (C) OD=20 T=0.4 BLACK	1-76798-020-0	02	1	9510-		●
399	COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> (A)	8-97115-143-0	02	1	9505-		●
399	COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> (B)	8-97115-144-0	02	1	9505-		●
524	NUT; HARNESS A/T AISIN(RMD) M8 FLANGE	0-91150-108-0	01	1	9511-	●	●

27 239 12 14 483 14 412 239 294 53 85 14 294 401 38 239 27 12 8 8 7 14 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR 4JG2 ENG(RJC) (A)	8-97805-895-0	01	1	9112-	●	●
7	BRACKET; CONNECTOR 4JG2 ENG(RJC) (B)	8-97805-902-1	01	1	9112-	●	●
8	BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC) (A) M8X18 W/LK WASHER	9-01900-818-0	01	1	9112-9204	●	●
8	BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC) (A) M8X18 W/LK WASHER	0-50040-818-0	01	1	9205-9407	●	●
8	BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC) (A) M8X16 FLANGE	0-28080-816-0	01	1	9408-	●	●
8	BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC) (B) M6X14 W/LK&PL WASHER	9-01960-614-0	01	1	9112-9204	●	●
8	BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC) (B) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9205-	●	●
12	WASHER; LK ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	06	1	9112-9209	●	●
12	WASHER; LK ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	01	1	9112-9209	●	●
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-0	01	1	9112-	●	●
14	CLIP; BAND,HARNESS (A) L=172	8-94232-620-0	01	1	9112-9504	●	●
14	CLIP; BAND,HARNESS (A) L=212	8-94107-652-0	01	1	9309-9504	●	●
14	CLIP; BAND,HARNESS 4JG2 ENG(RJC) (E)	8-94225-098-0	01	1	9201-9504	●	●
14	CLIP; BAND,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. FRIGID ZONE(YL3) (C) L=135	8-94473-399-0	01	1	9112-9504	●	●
14	CLIP; BAND,HARNESS 6VD1 DOHC ENG(RLV) (D) L=175	8-94155-593-1	01	1	9112-9307	●	●
14	CLIP; BAND,HARNESS 6VD1 DOHC ENG(RLV) (D) ID=12	5-09700-331-0	01	1	9308-	●	●
27	PROTECTOR; EDGE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (Q) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9606-	●
27	PROTECTOR; EDGE (C) SERVICED BY L=190 L=40	1-71998-300-0	01	1	9112-9202	●	●
27	PROTECTOR; EDGE (C) SERVICED BY L=190 L=40	1-71998-300-0	02	1	9203-	●	●
27	PROTECTOR; EDGE (E)	8-94142-264-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (P) L=65	8-94235-856-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (F) ID=34.7	8-94365-780-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (H)	8-97803-554-0	01	1	9112-	●	●
27	PROTECTOR; EDGE (B)	8-97804-817-1	01	1	9112-	●	●
27	PROTECTOR; EDGE (D)	8-94142-264-0	04	1	9505-	●	●
27	PROTECTOR; EDGE (N) L=80	5-22439-006-0	01	1	9506-9605	●	●
27	PROTECTOR; EDGE AIR BAG DRIVER<AJ3> (N) L=80	5-22439-006-0	01	1	9606-	●	●
27	PROTECTOR; EDGE (N) L=80	5-22439-006-0	01	1	9606-	●	●
27	PROTECTOR; EDGE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) AUTO CRUISE CONT<K30> (K) L=30	8-94366-689-0	01	1	9201-9208	●	●
27	PROTECTOR; EDGE DIVERSITY ANTENNA<7HE> (I) 950522- L=73 SERVICED BY L=190	1-71998-300-0	02	1	9505-9510	●	●
27	PROTECTOR; EDGE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) AUTO CRUISE CONT<K30> (K) L=30	8-94366-689-0	01	1	9209-9307	●	●
27	PROTECTOR; EDGE DIVERSITY ANTENNA<7HE> (I) L=73 SERVICED BY L=190	1-71998-300-0	02	1	9511-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) (L) L=65	8-94235-856-0	01	1	9505-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) FRIGID ZONE(YL3) (M) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9505-	●	●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9201-9504		●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9505-	●	●
27	PROTECTOR; EDGE (J) ID=36	8-94178-685-0	01	1	9505-		●
27	PROTECTOR; EDGE AUTO DOOR LOCK<AU4> (J) ID=36	8-94178-685-0	03	1	9505-		●
27	PROTECTOR; EDGE POWER WINDOW W/TIMER<6WS> (R)	8-94142-264-0	02	1	9505-		●
38	BOLT; CLIP,HARNESS (A) M6X16 W/LK WASHER	9-01900-616-0	01	1	9112-9204	●	●
38	BOLT; CLIP,HARNESS (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9211	●	●
38	BOLT; CLIP,HARNESS (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9212-9504	●	●
38	BOLT; CLIP,HARNESS (B) M8X18	9-01960-618-0	08	1	9112-9204	●	●
38	BOLT; CLIP,HARNESS (B) M6X18 W/LK&PL WASHER	0-50140-618-0	08	1	9205-9504	●	●
38	BOLT; CLIP,HARNESS A/T THM(RMQ) (C) M4X12 W/LK WASHER	8-97066-403-1	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (F) M8X14	0-50140-814-0	01	1	9209-9212	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (F) M8X14 FLANGE	0-28080-814-0	01	1	9301-9408	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68) (D) M10X16 FLANGE	0-28181-016-0	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) (E) M8X12 FLANGE	0-28080-812-0	01	1	9209-9307	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) A/T THM(RMQ) (E) M8X12 FLANGE	0-28080-812-0	01	1	9308-9408	●	●
38	BOLT; CLIP,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) (E) M8X12 FLANGE	0-28080-812-0	01	1	9308-9408	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9308-9408	●	●
38	BOLT; CLIP,HARNESS (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-9510	●	●
38	BOLT; CLIP,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-9510	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-9510	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9511-	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9511-	●	●
53	BRACKET; HARNESS A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97807-647-2	01	1	9112-	●	●
53	BRACKET; HARNESS M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97805-901-3	01	1	9112-	●	●
85	CLIP; BRKT ASM,HARNESS A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) D6.8X12	8-94198-687-0	01	1	9112-	●	●
239	BOLT; GRAND (A) M6X14	8-94153-946-0	05	1	9112-9209	●	●
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9210-9504	●	●
239	BOLT; GRAND (C) M6X14	8-94153-946-0	01	1	9112-9209	●	●
239	BOLT; GRAND 6VD1 DOHC ENG(RLV) A/T THM(RMQ) (C) M6X14	8-94153-946-0	01	1	9210-9307	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9307	●	●
239	BOLT; GRAND ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9307	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9308-9504	●	●
239	BOLT; GRAND 6VD1 DOHC ENG(RLV) A/T THM(RMQ) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
294	NUT 4JG2 ENG(RJC) M6 FLANGE	0-91150-106-0	01	1	9112-9208	●	●
294	NUT A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M6 FLANGE	0-91150-106-0	01	1	9112-9208	●	●
294	NUT A/T AISIN(RMD) M6 FLANGE	0-91150-106-0	01	1	9209-9504	●	●
294	NUT A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M6 FLANGE	0-91150-106-0	01	1	9209-9504	●	●
294	NUT A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M6 FLANGE	0-91150-106-0	01	1	9505-	●	●
401	BRACKET; HARNESS,GEN 4JG2 ENG(RJC)	8-97805-899-0	01	1	9112-9208	●	●
412	BRACKET; HARNESS,TRANS 4JG2 ENG(RJC) A/T AISIN(RMD) (A)	8-97805-903-1	01	1	9112-	●	●
412	BRACKET; HARNESS,TRANS 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) (B)	8-94359-008-1	01	1	9112-	●	●
483	CLIP; ENG HARNESS L=212	8-94107-652-0	01	1	9505-	●	●

408 95 466 465 412 407 313 38 408 459 408 38 16 38 16 408 81 239 408 408 132 465 466 95 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (F) L=250	5-09707-030-0	01	1	9209-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,ELECTRIC DOOR MIRROR(6MK) ,POWER WINDOW W/TIMER<6WS> (C) L=60	8-94449-165-0	06	1	9505-	●	●
16	CLIP; HARNESS FULLAUTO AIR CONDITIONER(C68) (G) L=63	1-09700-418-1	01	1	9511-	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,ELECTRIC DOOR MIRROR(6MK) ,POWER WINDOW W/TIMER<6WS> (D) L=36.5	8-97019-892-0	08	1	9505-	●	●
16	CLIP; HARNESS SEAT HEATER DRIVER<C37> (A) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS SEAT HEATER PASSENGER<C38> (A) L=112	8-94232-618-0	01	1	9112-9504	●	●

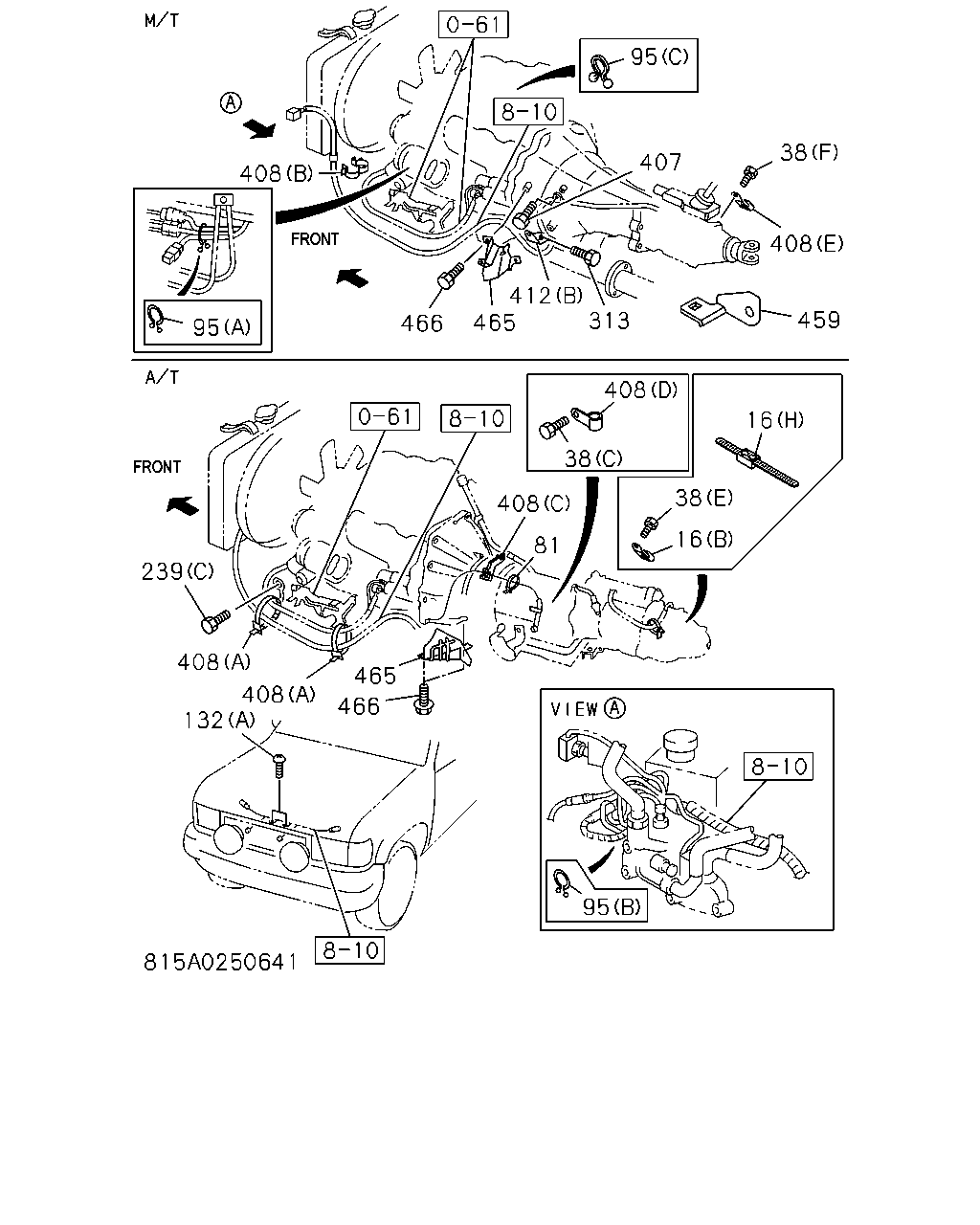

16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,ELECTRIC DOOR MIRROR(6MK) ,POWER WINDOW W/TIMER<6WS> (E) L=104	8-94433-185-0	02	1	9505-	●	●
16	CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9209-9504	●	●
16	CLIP; HARNESS A/T AISIN(RMD) (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9505-9510	●	●
16	CLIP; HARNESS A/T AISIN(RMD) (H) L=140	8-97122-360-0	01	1	9511-9511	●	●
16	CLIP; HARNESS A/T AISIN(RMD) (H) 951120-	8-94430-365-0	01	1	9511-	●	●
38	BOLT; CLIP,HARNESS (A) M6X16 W/LK WASHER	9-01900-616-0	01	1	9112-9204	●	●
38	BOLT; CLIP,HARNESS (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9211	●	●
38	BOLT; CLIP,HARNESS (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9212-9504	●	●
38	BOLT; CLIP,HARNESS (B) M8X18	9-01960-618-0	08	1	9112-9204	●	●
38	BOLT; CLIP,HARNESS (B) M6X18 W/LK&PL WASHER	0-50140-618-0	08	1	9205-9504	●	●
38	BOLT; CLIP,HARNESS A/T THM(RMQ) (C) M4X12 W/LK WASHER	8-97066-403-1	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (F) M8X14	0-50140-814-0	01	1	9209-9212	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (F) M8X14 FLANGE	0-28080-814-0	01	1	9301-9408	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68) (D) M10X16 FLANGE	0-28181-016-0	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) (E) M8X12 FLANGE	0-28080-812-0	01	1	9209-9307	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) A/T THM(RMQ) (E) M8X12 FLANGE	0-28080-812-0	01	1	9308-9408	●	●
38	BOLT; CLIP,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) (E) M8X12 FLANGE	0-28080-812-0	01	1	9308-9408	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9308-9408	●	●
38	BOLT; CLIP,HARNESS (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-9510	●	●
38	BOLT; CLIP,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-9510	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-9510	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9511-	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9511-	●	●
81	CLIP; HARNESS VARIABLE TORQUE SPRIT<7HA> L=140	5-09707-031-0	01	1	9505-		●
95	CLIP; CABLE 4JG2 ENG(RJC) (B) ID=20	1-09709-068-0	01	1	9112-9504	●	●
95	CLIP; CABLE 4JG2 ENG(RJC) (A) L=140	5-09707-031-0	01	1	9112-	●	●
95	CLIP; CABLE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=25	8-94120-831-0	01	1	9112-	●	●
132	SCREW; HARNESS (B) M5X16 TAPPING W/PL WASHER	0-74315-516-0	05	1	9112-9504	●	●
132	SCREW; HARNESS (B) M5X16 TAPPING	9-09829-323-1	04	1	9505-	●	●
132	SCREW; HARNESS IRMSHER KIT<6RS>,LOTUS KIT<6WK> (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	02	1	9112-9311	●	●
132	SCREW; HARNESS IRMSHER KIT<6RS>,LOTUS KIT<6WK> (A) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9312-9605	●	●
132	SCREW; HARNESS FOG LAMP(T96) (A) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9606-	●	●
239	BOLT; GRAND (A) M6X14	8-94153-946-0	05	1	9112-9209	●	●
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9210-9504	●	●
239	BOLT; GRAND (C) M6X14	8-94153-946-0	01	1	9112-9209	●	●
239	BOLT; GRAND 6VD1 DOHC ENG(RLV) A/T THM(RMQ) (C) M6X14	8-94153-946-0	01	1	9210-9307	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9307	●	●
239	BOLT; GRAND ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9307	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9308-9504	●	●
239	BOLT; GRAND 6VD1 DOHC ENG(RLV) A/T THM(RMQ) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
313	BOLT; BRKT 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) M8X40	0-28010-840-0	01	1	9112-9204	●	●
313	BOLT; BRKT 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) M8X40 FLANGE	0-28080-840-0	01	1	9205-	●	●
407	BOLT; HARNESS TO TRANS 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) M6X12	0-28010-612-0	01	1	9112-9204	●	●
407	BOLT; HARNESS TO TRANS 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) M6X12 FLANGE	0-28080-612-0	01	1	9205-9605	●	●
407	BOLT; HARNESS TO TRANS 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) M6X16 FLANGE	0-28680-616-0	01	1	9606-	●	●
408	CLIP; TRANS HARNESS M/T MUA 5 SPEED(RMN) (E) ID=12 B=14 ID=8.5	5-09700-350-0	05	1	9209-9504	●	●
408	CLIP; TRANS HARNESS M/T MUA 5 SPEED(RMN) (E) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9505-	●	●
408	CLIP; TRANS HARNESS 6VD1 DOHC ENG(RLV) A/T THM(RMQ) (A) L=250	5-09707-030-0	02	1	9112-9305	●	●
408	CLIP; TRANS HARNESS 6VD1 DOHC ENG(RLV) A/T THM(RMQ) (A) L=200	8-94464-835-0	02	1	9306-	●	●
408	CLIP; TRANS HARNESS 6VD1 DOHC ENG(RLV) A/T THM(RMQ) (C)	8-97022-809-0	01	1	9112-	●	●
408	CLIP; TRANS HARNESS 6VD1 DOHC ENG(RLV) A/T THM(RMQ) (D) ID=16	9-09525-522-0	01	1	9112-	●	●
408	CLIP; TRANS HARNESS 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) (B) ID=24	8-97022-568-3	01	1	9112-	●	●
408	CLIP; TRANS HARNESS VARIABLE TORQUE SPRIT<7HA> (B) L=140	5-09707-031-0	01	1	9505-		●
412	BRACKET; HARNESS,TRANS 4JG2 ENG(RJC) A/T AISIN(RMD) (A)	8-97805-903-1	01	1	9112-	●	●
412	BRACKET; HARNESS,TRANS 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) (B)	8-94359-008-1	01	1	9112-	●	●
459	BRACKET; SUPPORT,HARNESS 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-94315-284-0	01	1	9112-	●	●
465	PROTECTOR; HEAT,HARNESS A/T THM(RMQ)	8-97029-511-1	01	1	9112-	●	●
465	PROTECTOR; HEAT,HARNESS 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN)	8-97807-963-0	01	1	9112-9210	●	●
465	PROTECTOR; HEAT,HARNESS 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN)	8-97809-116-1	01	1	9211-	●	●
466	BOLT; HEAT PROTECTOR A/T THM(RMQ) M6X12	0-28010-612-0	02	1	9112-9204	●	●
466	BOLT; HEAT PROTECTOR A/T THM(RMQ) M6X12 FLANGE	0-28080-612-0	02	1	9205-9604	●	●
466	BOLT; HEAT PROTECTOR A/T THM(RMQ) M6X16 FLANGE	0-28680-616-0	02	1	9605-	●	●
466	BOLT; HEAT PROTECTOR 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) M6X12	0-28010-612-0	03	1	9112-9204	●	●
466	BOLT; HEAT PROTECTOR 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) M6X12 FLANGE	0-28080-612-0	03	1	9205-9605	●	●
466	BOLT; HEAT PROTECTOR 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) M6X16 FLANGE	0-28680-616-0	03	1	9606-	●	●

27 462 239 12 27 38 38 239 38 181 513 132 132 132 27 334 242 188 144 27 115 115 115 239 27

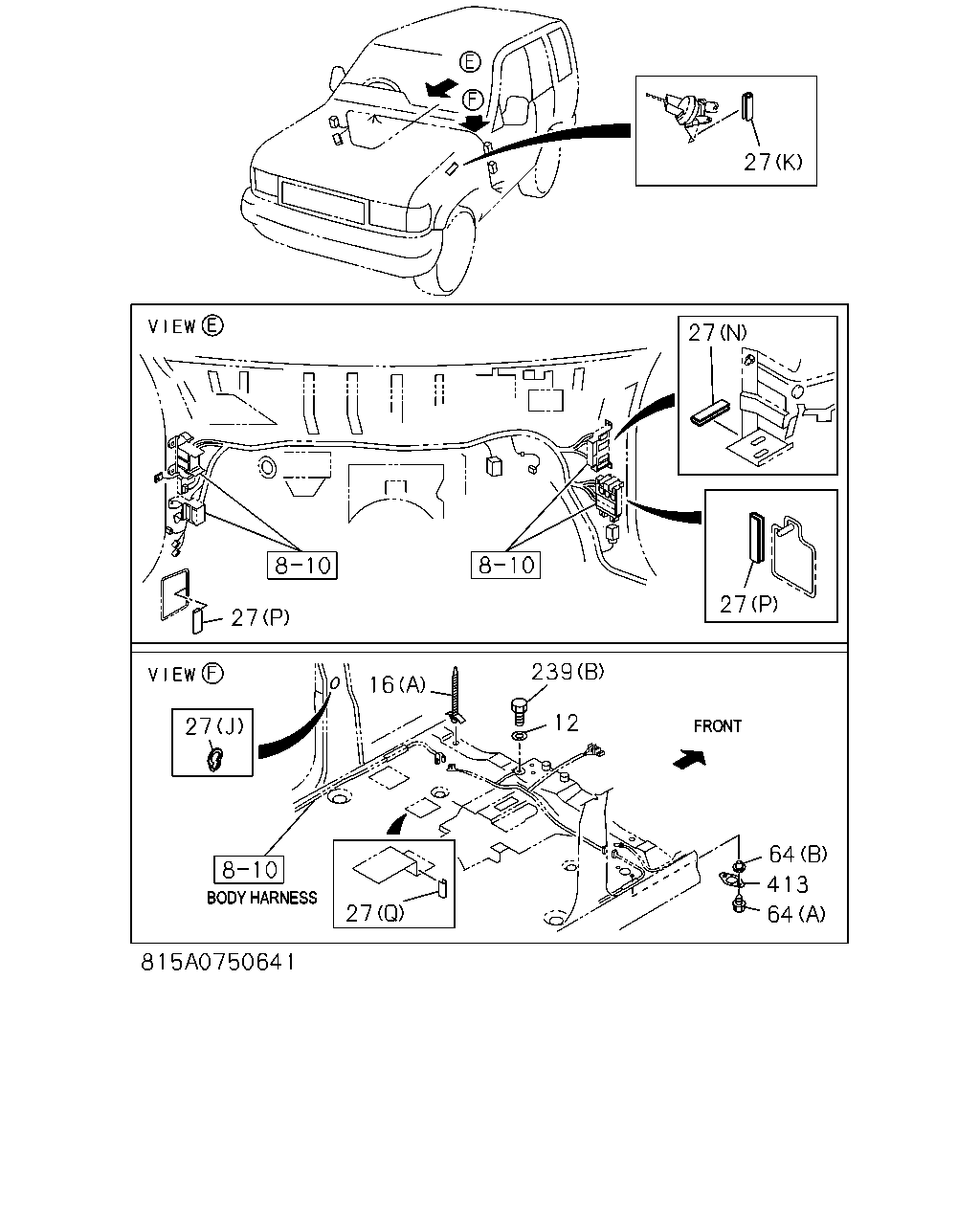

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	WASHER; LK ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	06	1	9112-9209	●	●
12	WASHER; LK ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	01	1	9112-9209	●	●
27	PROTECTOR; EDGE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (Q) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9606-	●
27	PROTECTOR; EDGE (C) SERVICED BY L=190 L=40	1-71998-300-0	01	1	9112-9202	●	●
27	PROTECTOR; EDGE (C) SERVICED BY L=190 L=40	1-71998-300-0	02	1	9203-	●	●
27	PROTECTOR; EDGE (E)	8-94142-264-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (P) L=65	8-94235-856-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (F) ID=34.7	8-94365-780-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (H)	8-97803-554-0	01	1	9112-	●	●
27	PROTECTOR; EDGE (B)	8-97804-817-1	01	1	9112-	●	●
27	PROTECTOR; EDGE (D)	8-94142-264-0	04	1	9505-	●	●
27	PROTECTOR; EDGE (N) L=80	5-22439-006-0	01	1	9506-9605	●	●
27	PROTECTOR; EDGE AIR BAG DRIVER<AJ3> (N) L=80	5-22439-006-0	01	1	9606-	●	●
27	PROTECTOR; EDGE (N) L=80	5-22439-006-0	01	1	9606-	●	●
27	PROTECTOR; EDGE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) AUTO CRUISE CONT<K30> (K) L=30	8-94366-689-0	01	1	9201-9208	●	●
27	PROTECTOR; EDGE DIVERSITY ANTENNA<7HE> (I) 950522- L=73 SERVICED BY L=190	1-71998-300-0	02	1	9505-9510	●	●
27	PROTECTOR; EDGE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) AUTO CRUISE CONT<K30> (K) L=30	8-94366-689-0	01	1	9209-9307	●	●
27	PROTECTOR; EDGE DIVERSITY ANTENNA<7HE> (I) L=73 SERVICED BY L=190	1-71998-300-0	02	1	9511-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) (L) L=65	8-94235-856-0	01	1	9505-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) FRIGID ZONE(YL3) (M) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9505-	●	●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9201-9504		●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9505-	●	●
27	PROTECTOR; EDGE (J) ID=36	8-94178-685-0	01	1	9505-		●
27	PROTECTOR; EDGE AUTO DOOR LOCK<AU4> (J) ID=36	8-94178-685-0	03	1	9505-		●
27	PROTECTOR; EDGE POWER WINDOW W/TIMER<6WS> (R)	8-94142-264-0	02	1	9505-		●
38	BOLT; CLIP,HARNESS (A) M6X16 W/LK WASHER	9-01900-616-0	01	1	9112-9204	●	●
38	BOLT; CLIP,HARNESS (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9211	●	●
38	BOLT; CLIP,HARNESS (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9212-9504	●	●
38	BOLT; CLIP,HARNESS (B) M8X18	9-01960-618-0	08	1	9112-9204	●	●
38	BOLT; CLIP,HARNESS (B) M6X18 W/LK&PL WASHER	0-50140-618-0	08	1	9205-9504	●	●
38	BOLT; CLIP,HARNESS A/T THM(RMQ) (C) M4X12 W/LK WASHER	8-97066-403-1	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (F) M8X14	0-50140-814-0	01	1	9209-9212	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (F) M8X14 FLANGE	0-28080-814-0	01	1	9301-9408	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68) (D) M10X16 FLANGE	0-28181-016-0	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) (E) M8X12 FLANGE	0-28080-812-0	01	1	9209-9307	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) A/T THM(RMQ) (E) M8X12 FLANGE	0-28080-812-0	01	1	9308-9408	●	●
38	BOLT; CLIP,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) (E) M8X12 FLANGE	0-28080-812-0	01	1	9308-9408	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9308-9408	●	●
38	BOLT; CLIP,HARNESS (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-9510	●	●
38	BOLT; CLIP,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-9510	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-9510	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9511-	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9511-	●	●
115	CLIP; DOOR HARNESS (B)	8-94338-044-0	03	1	9209-	●	●
115	CLIP; DOOR HARNESS (C) L=36.5	8-97019-892-0	04	1	9209-	●	●
115	CLIP; DOOR HARNESS (A)	8-97804-785-0	05	1	9209-	●	●
132	SCREW; HARNESS (B) M5X16 TAPPING W/PL WASHER	0-74315-516-0	05	1	9112-9504	●	●
132	SCREW; HARNESS (B) M5X16 TAPPING	9-09829-323-1	04	1	9505-	●	●
132	SCREW; HARNESS IRMSHER KIT<6RS>,LOTUS KIT<6WK> (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	02	1	9112-9311	●	●
132	SCREW; HARNESS IRMSHER KIT<6RS>,LOTUS KIT<6WK> (A) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9312-9605	●	●
132	SCREW; HARNESS FOG LAMP(T96) (A) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9606-	●	●
144	CLIP; TAIL LAMP HARNESS ID=20	8-94410-200-0	01	1	9112-9202	●	●
144	CLIP; TAIL LAMP HARNESS ID=6 & 10-13	8-97069-515-0	01	1	9203-	●	●
181	TAPE; SOFT,SIDE PNL HARNESS M/T MUA 5 SPEED(RMN)	8-94137-544-0	01	1	9308-9504	●	●
188	CLIP; CHAS HARN TO BODY 6VD1 DOHC ENG(RLV) L=55	8-94473-398-0	01	1	9112-	●	●
239	BOLT; GRAND (A) M6X14	8-94153-946-0	05	1	9112-9209	●	●
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9210-9504	●	●
239	BOLT; GRAND (C) M6X14	8-94153-946-0	01	1	9112-9209	●	●
239	BOLT; GRAND 6VD1 DOHC ENG(RLV) A/T THM(RMQ) (C) M6X14	8-94153-946-0	01	1	9210-9307	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9307	●	●
239	BOLT; GRAND ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9307	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9308-9504	●	●
239	BOLT; GRAND 6VD1 DOHC ENG(RLV) A/T THM(RMQ) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
242	BOLT; BRKT,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) M6X14 W/LK&PL WASHER	9-01960-614-0	01	1	9112-9204	●	●
242	BOLT; BRKT,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9205-9504	●	●
242	BOLT; BRKT,HARNESS 6VD1 DOHC ENG(RLV) M8X12 FLANGE	0-28080-812-0	02	1	9112-	●	●
334	BRACKET 6VD1 DOHC ENG(RLV)	8-97038-918-2	01	1	9112-	●	●
462	CLIP; HARNESS,HTR 4JG2 ENG(RJC) ID=8.5	5-09700-275-0	01	1	9112-9208	●	●
462	CLIP; HARNESS,HTR 4JG2 ENG(RJC) EXC. FULLAUTO AIR CONDITIONER(C68) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9209-9307	●	●
462	CLIP; HARNESS,HTR FULLAUTO AIR CONDITIONER(C68) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9209-9307	●	●
513	TAPE; SOFT,HARNESS M/T MUA 5 SPEED(RMN)	8-94137-544-0	01	1	9505-9506	●	●

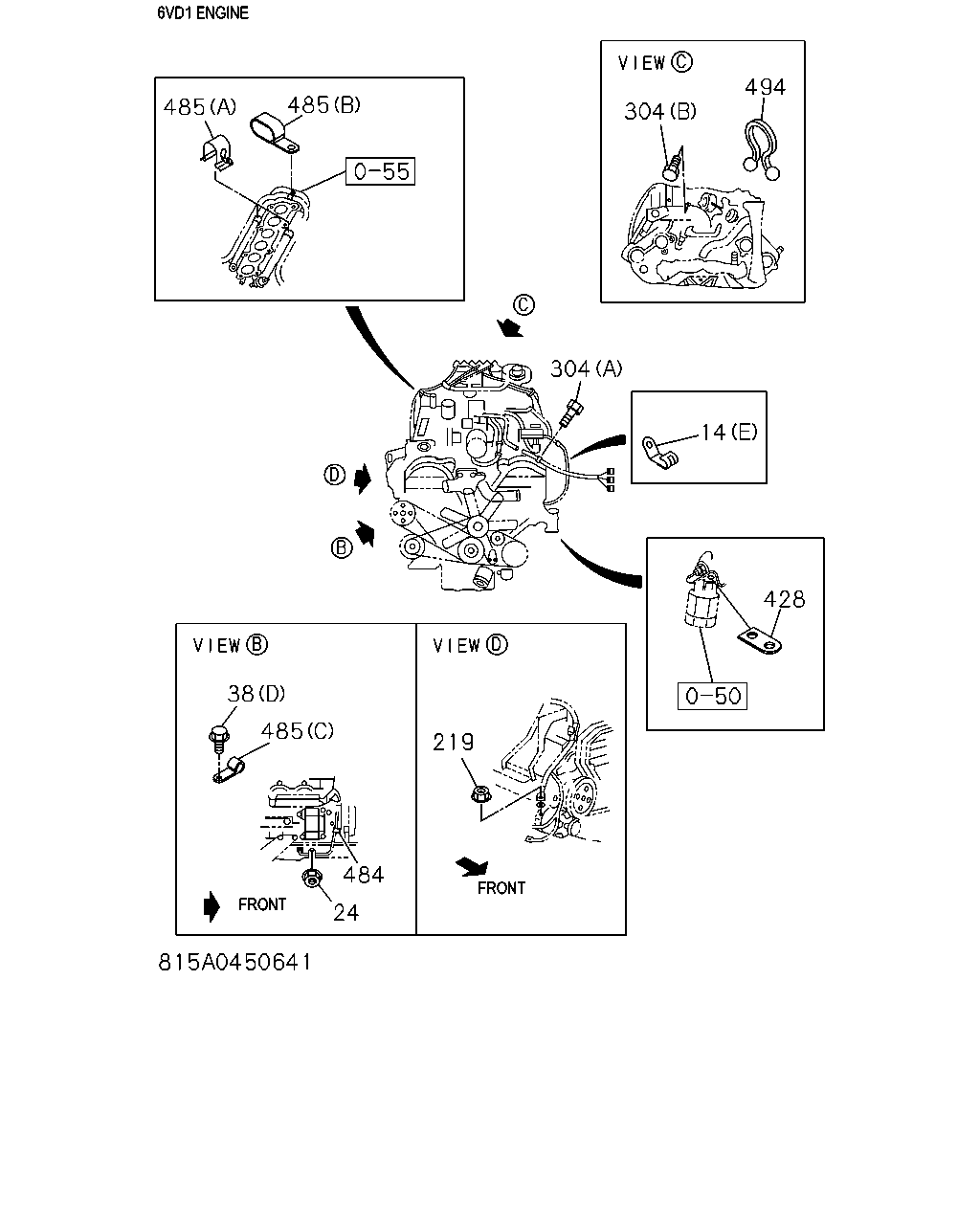

485 485 304 494 304 14 428 38 485 219 484 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-0	01	1	9112-	●	●
14	CLIP; BAND,HARNESS (A) L=172	8-94232-620-0	01	1	9112-9504	●	●
14	CLIP; BAND,HARNESS (A) L=212	8-94107-652-0	01	1	9309-9504	●	●
14	CLIP; BAND,HARNESS 4JG2 ENG(RJC) (E)	8-94225-098-0	01	1	9201-9504	●	●
14	CLIP; BAND,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. FRIGID ZONE(YL3) (C) L=135	8-94473-399-0	01	1	9112-9504	●	●
14	CLIP; BAND,HARNESS 6VD1 DOHC ENG(RLV) (D) L=175	8-94155-593-1	01	1	9112-9307	●	●
14	CLIP; BAND,HARNESS 6VD1 DOHC ENG(RLV) (D) ID=12	5-09700-331-0	01	1	9308-	●	●
24	NUT; HARNESS 6VD1 DOHC ENG(RLV) M8 W/LK WASHER	8-94327-073-0	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS (A) M6X16 W/LK WASHER	9-01900-616-0	01	1	9112-9204	●	●
38	BOLT; CLIP,HARNESS (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9211	●	●
38	BOLT; CLIP,HARNESS (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9212-9504	●	●
38	BOLT; CLIP,HARNESS (B) M8X18	9-01960-618-0	08	1	9112-9204	●	●
38	BOLT; CLIP,HARNESS (B) M6X18 W/LK&PL WASHER	0-50140-618-0	08	1	9205-9504	●	●
38	BOLT; CLIP,HARNESS A/T THM(RMQ) (C) M4X12 W/LK WASHER	8-97066-403-1	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (F) M8X14	0-50140-814-0	01	1	9209-9212	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (F) M8X14 FLANGE	0-28080-814-0	01	1	9301-9408	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68) (D) M10X16 FLANGE	0-28181-016-0	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) (E) M8X12 FLANGE	0-28080-812-0	01	1	9209-9307	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) A/T THM(RMQ) (E) M8X12 FLANGE	0-28080-812-0	01	1	9308-9408	●	●
38	BOLT; CLIP,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) (E) M8X12 FLANGE	0-28080-812-0	01	1	9308-9408	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9308-9408	●	●
38	BOLT; CLIP,HARNESS (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-9510	●	●
38	BOLT; CLIP,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-9510	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-9510	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9511-	●	●
38	BOLT; CLIP,HARNESS 6VD1 DOHC ENG(RLV) (E) M8X12 FLANGE	0-28080-812-0	01	1	9511-	●	●
219	NUT 4JG2 ENG(RJC) EXC. FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91150-108-0	01	1	9209-9307	●	●
219	NUT FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91150-108-0	01	1	9209-9307	●	●
219	NUT 4JG2 ENG(RJC) CERAMIC HEATER<6YX> M6 W/LK WASHER	8-94424-179-0	01	1	9112-9504	●	●
219	NUT 6VD1 DOHC ENG(RLV) M6 W/LK WASHER	8-94424-179-0	01	1	9112-9504	●	●
219	NUT 4JG2 ENG(RJC) A/T AISIN(RMD) M6 FLANGE	0-91150-106-0	01	1	9505-	●	●
304	BOLT; ENG HARNESS CLIP 6VD1 DOHC ENG(RLV) (A) M6X12 FLANGE	0-28080-612-0	02	1	9112-9307	●	●
304	BOLT; ENG HARNESS CLIP 6VD1 DOHC ENG(RLV) (B) M8X12 FLANGE	0-28080-812-0	01	1	9112-9307	●	●
428	BRACKET 6VD1 DOHC ENG(RLV)	8-97032-701-0	01	1	9112-	●	●
484	CLIP; ECGI HARNESS TO C/MBR 6VD1 DOHC ENG(RLV) L=100	5-09707-036-0	03	1	9112-	●	●
485	CLIP; HARNESS,ECGI 6VD1 DOHC ENG(RLV) (A)	8-94386-489-0	02	1	9112-9307	●	●
485	CLIP; HARNESS,ECGI 6VD1 DOHC ENG(RLV) (B) ID=13X2 L=20	9-09535-236-0	01	1	9112-	●	●
485	CLIP; HARNESS,ECGI 6VD1 DOHC ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60) (C) ID=8 L=31	1-09700-112-0	01	1	9112-9201	●	●
485	CLIP; HARNESS,ECGI 6VD1 DOHC ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68) (C) L=22 ID=10.5	8-94327-574-0	01	1	9202-	●	●
494	CLIP; BONDING CABLE 6VD1 DOHC ENG(RLV) ID=25	8-94120-831-0	01	1	9112-9201	●	●

27 27 27 27 16 27 239 12 27 64 413 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	WASHER; LK ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	06	1	9112-9209	●	●
12	WASHER; LK ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	01	1	9112-9209	●	●
16	CLIP; HARNESS (F) L=250	5-09707-030-0	01	1	9209-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,ELECTRIC DOOR MIRROR(6MK) ,POWER WINDOW W/TIMER<6WS> (C) L=60	8-94449-165-0	06	1	9505-	●	●
16	CLIP; HARNESS FULLAUTO AIR CONDITIONER(C68) (G) L=63	1-09700-418-1	01	1	9511-	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,ELECTRIC DOOR MIRROR(6MK) ,POWER WINDOW W/TIMER<6WS> (D) L=36.5	8-97019-892-0	08	1	9505-	●	●
16	CLIP; HARNESS SEAT HEATER DRIVER<C37> (A) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS SEAT HEATER PASSENGER<C38> (A) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,ELECTRIC DOOR MIRROR(6MK) ,POWER WINDOW W/TIMER<6WS> (E) L=104	8-94433-185-0	02	1	9505-	●	●
16	CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9209-9504	●	●
16	CLIP; HARNESS A/T AISIN(RMD) (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9505-9510	●	●
16	CLIP; HARNESS A/T AISIN(RMD) (H) L=140	8-97122-360-0	01	1	9511-9511	●	●
16	CLIP; HARNESS A/T AISIN(RMD) (H) 951120-	8-94430-365-0	01	1	9511-	●	●
27	PROTECTOR; EDGE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (Q) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9606-	●
27	PROTECTOR; EDGE (C) SERVICED BY L=190 L=40	1-71998-300-0	01	1	9112-9202	●	●
27	PROTECTOR; EDGE (C) SERVICED BY L=190 L=40	1-71998-300-0	02	1	9203-	●	●
27	PROTECTOR; EDGE (E)	8-94142-264-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (P) L=65	8-94235-856-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (F) ID=34.7	8-94365-780-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (H)	8-97803-554-0	01	1	9112-	●	●
27	PROTECTOR; EDGE (B)	8-97804-817-1	01	1	9112-	●	●
27	PROTECTOR; EDGE (D)	8-94142-264-0	04	1	9505-	●	●
27	PROTECTOR; EDGE (N) L=80	5-22439-006-0	01	1	9506-9605	●	●
27	PROTECTOR; EDGE AIR BAG DRIVER<AJ3> (N) L=80	5-22439-006-0	01	1	9606-	●	●
27	PROTECTOR; EDGE (N) L=80	5-22439-006-0	01	1	9606-	●	●
27	PROTECTOR; EDGE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) AUTO CRUISE CONT<K30> (K) L=30	8-94366-689-0	01	1	9201-9208	●	●
27	PROTECTOR; EDGE DIVERSITY ANTENNA<7HE> (I) 950522- L=73 SERVICED BY L=190	1-71998-300-0	02	1	9505-9510	●	●
27	PROTECTOR; EDGE ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) AUTO CRUISE CONT<K30> (K) L=30	8-94366-689-0	01	1	9209-9307	●	●
27	PROTECTOR; EDGE DIVERSITY ANTENNA<7HE> (I) L=73 SERVICED BY L=190	1-71998-300-0	02	1	9511-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) (L) L=65	8-94235-856-0	01	1	9505-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) FRIGID ZONE(YL3) (M) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9505-	●	●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9201-9504		●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9505-	●	●
27	PROTECTOR; EDGE (J) ID=36	8-94178-685-0	01	1	9505-		●
27	PROTECTOR; EDGE AUTO DOOR LOCK<AU4> (J) ID=36	8-94178-685-0	03	1	9505-		●
27	PROTECTOR; EDGE POWER WINDOW W/TIMER<6WS> (R)	8-94142-264-0	02	1	9505-		●
64	SCREW; CLIP (A) M5X14	8-94120-095-0	02	1	9112-	●	●
64	SCREW; CLIP (B) D=7.9X7.9 L=20 M5	8-94441-539-0	02	1	9112-	●	●
239	BOLT; GRAND (A) M6X14	8-94153-946-0	05	1	9112-9209	●	●
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9210-9504	●	●
239	BOLT; GRAND (C) M6X14	8-94153-946-0	01	1	9112-9209	●	●
239	BOLT; GRAND 6VD1 DOHC ENG(RLV) A/T THM(RMQ) (C) M6X14	8-94153-946-0	01	1	9210-9307	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9307	●	●
239	BOLT; GRAND ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9307	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9308-9504	●	●
239	BOLT; GRAND 6VD1 DOHC ENG(RLV) A/T THM(RMQ) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
413	PLUG; CAVITY,HARNESS 4JG2 ENG(RJC) EXC. RR STABILIZER W/CLUTCH<6WV>,VARIABLE TORQUE SPRIT<7HA>	8-97803-276-0	01	1	9112-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
