Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#166616) — 532 parça

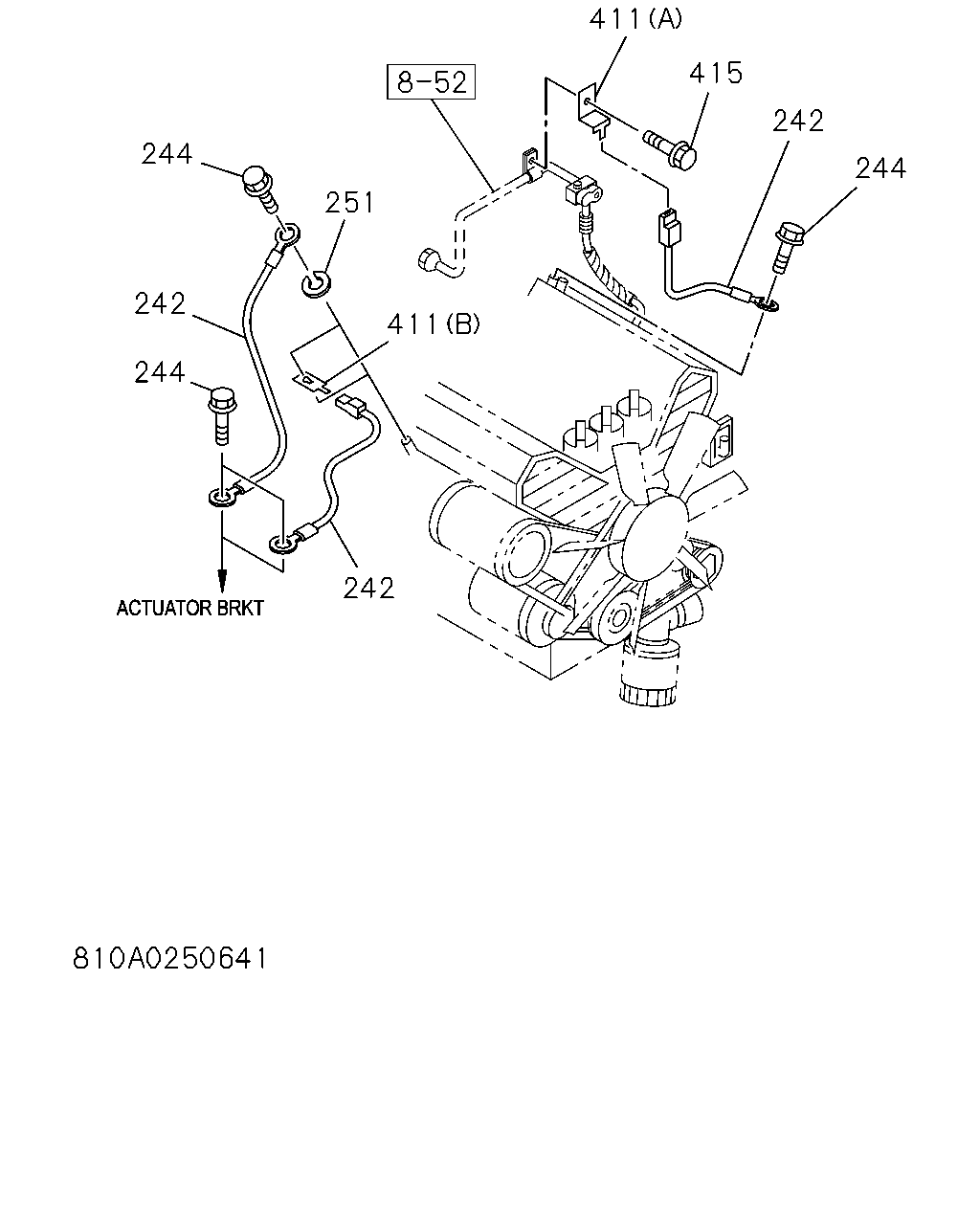

244 242 415 411 411 251 244 242 244 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
242	CABLE; BONDING,ENG TO BODY 6VD1 DOHC ENG(RLV)	8-97033-280-1	01	1	9112-	●	●
242	CABLE; BONDING,ENG TO BODY 6VD1 DOHC ENG(RLV)	8-97033-281-1	01	1	9112-9401	●	●
242	CABLE; BONDING,ENG TO BODY 6VD1 DOHC ENG(RLV)	8-97084-314-0	01	1	9402-9403	●	●
242	CABLE; BONDING,ENG TO BODY 6VD1 DOHC ENG(RLV)	8-94126-755-0	01	1	9404-	●	●
244	BOLT; GRAND BONDING CABLE AIR BAG DRIVER<AJ3> M6X14 W/LK&PL WASHER	8-97119-479-0	01	1	9511-	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 DOHC ENG(RLV) M6X12	0-28010-612-0	02	1	9112-9204	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 DOHC ENG(RLV) M6X12 FLANGE	0-28080-612-0	02	1	9205-	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 DOHC ENG(RLV) M6X14	8-94153-946-0	01	1	9112-9307	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 DOHC ENG(RLV) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9308-	●	●
251	WASHER; PL,BONDING CABLE 6VD1 DOHC ENG(RLV) ID=6.4 OD=18	9-09160-706-0	02	1	9307-9405	●	●
411	TERMINAL; MALE,EARTH BONDING CABLE 6VD1 DOHC ENG(RLV) (A)	8-97033-282-0	01	1	9112-	●	●
411	TERMINAL; MALE,EARTH BONDING CABLE 6VD1 DOHC ENG(RLV) (B)	8-94102-644-0	01	1	9402-	●	●
415	BOLT; CABLE,BONDING 6VD1 DOHC ENG(RLV) M6X14	8-94153-946-0	01	1	9112-9206	●	●
415	BOLT; CABLE,BONDING 6VD1 DOHC ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60) M6X14	8-94153-946-0	01	1	9207-9208	●	●
415	BOLT; CABLE,BONDING 6VD1 DOHC ENG(RLV) M6X14	8-94153-946-0	01	1	9209-9307	●	●
415	BOLT; CABLE,BONDING 6VD1 DOHC ENG(RLV) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9308-	●	●
415	BOLT; CABLE,BONDING 6VD1 DOHC ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) M6X40	8-94370-153-0	01	1	9207-9208	●	●

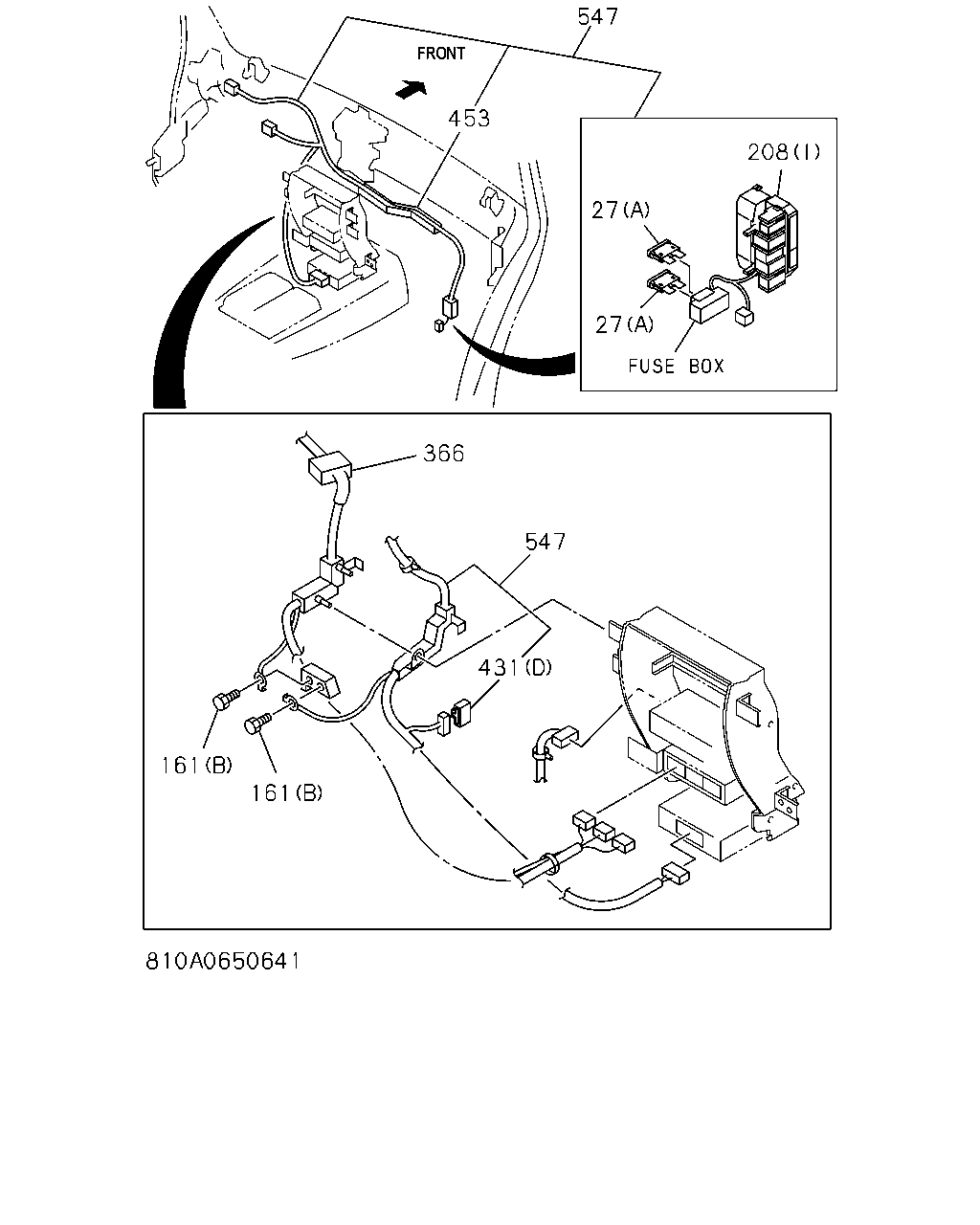

547 453 27 208 27 366 547 431 161 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	FUSE UNIT (A) 10A RED	5-82516-002-0	AR	1	9112-	●	●
27	FUSE UNIT (A) 15A BLUE	5-82516-003-0	AR	1	9112-	●	●
27	FUSE UNIT (A) 20A YELLOW	5-82516-004-0	AR	1	9112-	●	●
27	FUSE UNIT (A) 25A CLEAR	5-82516-005-0	AR	1	9112-	●	●
27	FUSE UNIT (A) 7.5A BROWN	8-94159-007-0	AR	1	9112-	●	●
27	FUSE UNIT (C) 50A RED	8-94388-302-0	AR	1	9112-	●	●
27	FUSE UNIT (C) 80A BLACK	8-94388-305-0	AR	1	9112-	●	●
27	FUSE UNIT (B) 30A PINK	8-94468-661-0	AR	1	9112-	●	●
27	FUSE UNIT (B) 40A GREEN	8-94468-662-0	AR	1	9112-	●	●
27	FUSE UNIT (B) 50A RED	8-94468-663-0	AR	1	9112-	●	●
161	BOLT; GROUND,HARNESS (A) M6X20	8-94412-422-0	03	1	9505-	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	06	1	9505-9605	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9606-	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9606-	●	●
161	BOLT; GROUND,HARNESS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
208	HOLDER; CONNECTOR (B)	8-97801-051-0	01	1	9112-9208	●	●
208	HOLDER; CONNECTOR (B)	8-97806-955-0	01	1	9209-9504	●	●
208	HOLDER; CONNECTOR (E)	8-97105-296-0	01	1	9505-	●	●
208	HOLDER; CONNECTOR (D)	8-97801-062-1	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (F)	8-97094-964-0	01	1	9505-	●	●
208	HOLDER; CONNECTOR (A)	8-97801-519-1	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (G)	8-97808-879-2	01	1	9505-	●	●
208	HOLDER; CONNECTOR (C)	8-97801-747-0	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (H)	8-97808-880-0	01	1	9505-	●	●
208	HOLDER; CONNECTOR AIR BAG DRIVER<AJ3> (I)	8-97111-319-0	01	1	9511-9605	●	●
208	HOLDER; CONNECTOR AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> (I)	8-97111-319-0	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-154-0	01	1	9112-9203	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-659-0	01	1	9204-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-405-5	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-551-1	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97130-153-0	01	1	9505-9605	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-021-1	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-018-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-406-3	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-552-1	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97130-154-0	01	1	9505-9605	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-023-0	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-158-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-413-6	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-557-1	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97129-811-2	01	1	9505-9510	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97138-868-0	01	1	9511-9605	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-053-2	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-026-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-414-6	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-558-1	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97129-812-2	01	1	9505-9510	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97138-869-0	01	1	9511-9605	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-054-2	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-159-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-415-6	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-559-1	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97129-809-3	01	1	9505-9510	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97138-866-0	01	1	9511-9605	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-051-2	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-028-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-416-6	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-560-1	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97129-810-3	01	1	9505-9510	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97138-867-0	01	1	9511-9605	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-052-2	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-151-0	01	1	9112-9203	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-657-0	01	1	9204-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-401-5	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-549-1	01	1	9308-9310	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97811-122-0	01	1	9311-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97130-334-0	01	1	9505-9605	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-013-1	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-014-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-402-3	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-550-1	01	1	9308-9310	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97811-123-0	01	1	9311-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97130-335-0	01	1	9505-9605	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-015-0	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-155-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-409-5	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-833-0	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97129-803-1	01	1	9505-9510	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97138-864-0	01	1	9511-9605	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-045-0	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-156-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-410-5	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-834-0	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97129-804-1	01	1	9505-9510	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97138-865-0	01	1	9511-9605	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-046-0	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-157-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-411-5	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-835-0	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97129-801-2	01	1	9505-9510	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97138-862-0	01	1	9511-9605	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-043-0	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-024-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-412-5	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-836-0	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97129-802-2	01	1	9505-9510	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97138-863-0	01	1	9511-9605	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-044-0	01	1	9606-	●	●
431	CONNECTOR; JOINT (A) GROUDING WIRE JOINT	8-97805-765-0	02	1	9112-9510	●	●
431	CONNECTOR; JOINT (A) GROUDING WIRE JOINT	8-97805-765-0	01	1	9511-	●	●
431	CONNECTOR; JOINT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) ABS SENSOR	8-97093-517-0	01	1	9308-9504	●	●
431	CONNECTOR; JOINT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (C) ABS SENSOR	8-97111-448-0	01	1	9505-	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER<AJ3> (D)	8-97125-467-0	01	1	9511-9605	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> (D)	8-97125-467-0	01	1	9606-9609	●	●
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER<AJ3> (E)	8-97133-712-0	01	1	9606-	●	●
453	PROTECTOR; HARNESS AIR BAG DRIVER<AJ3>	8-97122-323-0	01	1	9511-9605	●	●
453	PROTECTOR; HARNESS AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA>	8-97122-323-0	01	1	9606-	●	●
547	HARNESS; CABLE,SRS AIR BAG DRIVER<AJ3>	8-97139-180-0	01	1	9511-9605	●	●
547	HARNESS; CABLE,SRS AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA>	8-97160-343-1	01	1	9606-	●	●

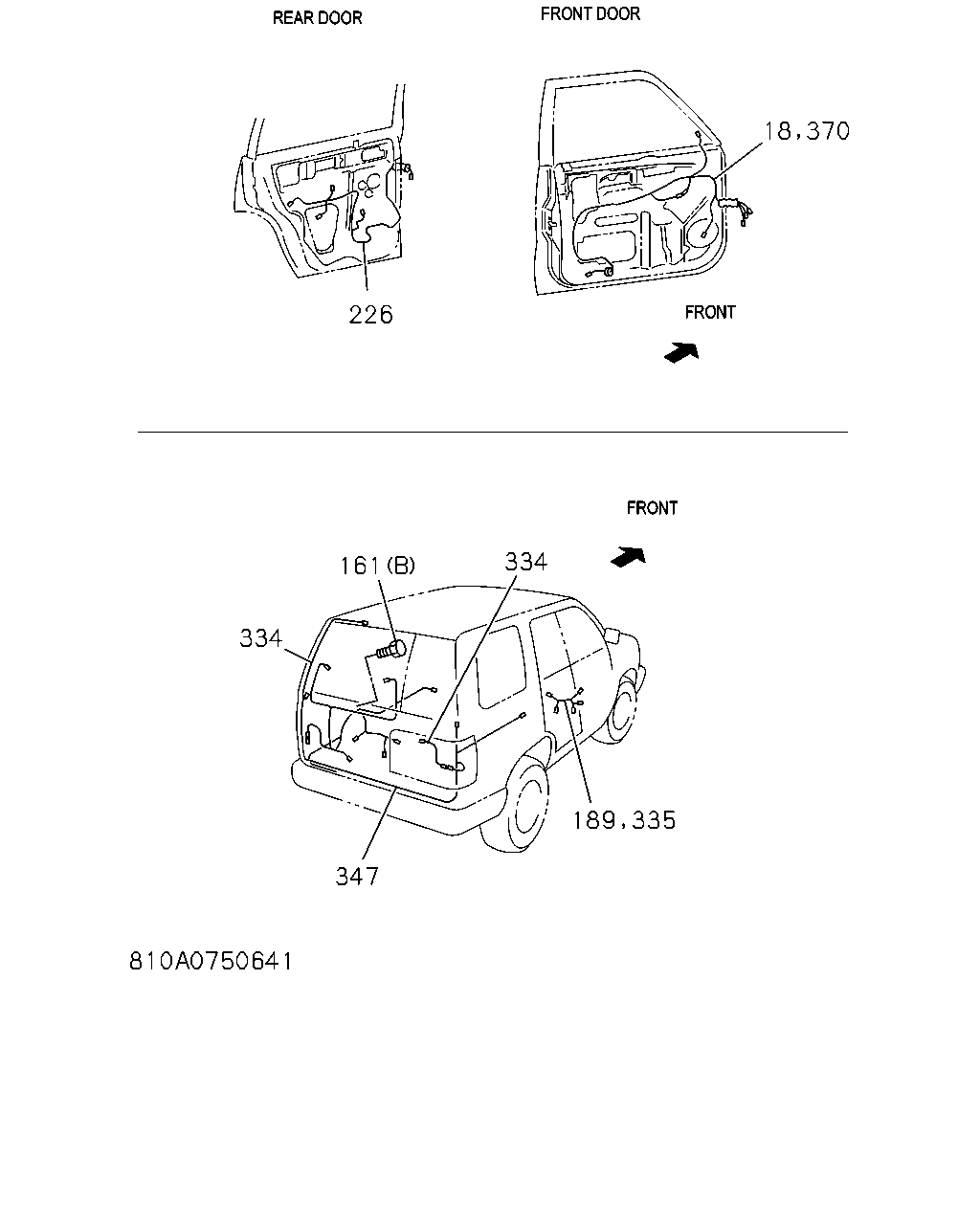

226 18 370 161 334 334 347 189 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,ANTI THEFT<UA6>,ELECTRIC DOOR MIRROR(6MK),POWER WINDOW W/TIMER<6WS>	8-97808-254-3	02	1	9112-9504	●	●
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,ELECTRIC DOOR MIRROR(6MK) ,POWER WINDOW W/TIMER<6WS>	8-97106-951-1	02	1	9505-	●	●
161	BOLT; GROUND,HARNESS (A) M6X20	8-94412-422-0	03	1	9505-	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	06	1	9505-9605	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9606-	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9606-	●	●
161	BOLT; GROUND,HARNESS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
189	HARNESS; EXT POWER WINDOW W/TIMER<6WS>	8-97807-560-1	01	1	9112-9208		●
189	HARNESS; EXT POWER WINDOW W/TIMER<6WS>	8-97808-921-0	01	1	9209-9308		●
189	HARNESS; EXT POWER WINDOW W/TIMER<6WS>	8-97810-812-0	01	1	9308-9504		●
189	HARNESS; EXT POWER WINDOW W/TIMER<6WS>	8-97123-832-1	01	1	9505-		●
189	HARNESS; EXT EXC. POWER WINDOW W/TIMER<6WS>	8-97807-561-1	01	1	9112-9208		●
189	HARNESS; EXT EXC. POWER WINDOW W/TIMER<6WS>	8-97808-922-0	01	1	9209-9308		●
189	HARNESS; EXT EXC. POWER WINDOW W/TIMER<6WS>	8-97810-813-0	01	1	9308-9504		●
189	HARNESS; EXT EXC. POWER WINDOW W/TIMER<6WS>	8-97117-521-1	01	1	9505-		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS>	8-97807-292-3	02	1	9112-9504		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4>	8-97130-152-0	02	1	9505-		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW W/TIMER<6WS>	8-97807-294-3	02	1	9112-9504		●
226	HARNESS; RR DOOR EXC. AUTO DOOR LOCK<AU4>,ANTI THEFT<UA6>,POWER WINDOW W/TIMER<6WS>	8-97807-293-3	02	1	9112-9504		●
334	HARNESS; CABLE,BACK DOOR	8-94359-020-4	01	1	9112-	●	●
334	HARNESS; CABLE,BACK DOOR	8-97808-490-6	01	1	9209-9504	●	●
334	HARNESS; CABLE,BACK DOOR	8-97130-165-0	01	1	9505-	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6>	8-97807-297-3	01	1	9112-9208	●	●
334	HARNESS; CABLE,BACK DOOR EXC. AUTO DOOR LOCK<AU4>,RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ>	8-94359-019-3	01	1	9112-9208	●	●
334	HARNESS; CABLE,BACK DOOR REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>	8-97807-296-3	01	1	9112-9208	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> ANTI THEFT<UA6>	8-97807-295-3	01	1	9112-9208		●
335	HARNESS; CABLE,DOOR SW	8-97806-184-2	01	1	9112-9208	●
335	HARNESS; CABLE,DOOR SW	8-97808-920-0	01	1	9209-9510	●
335	HARNESS; CABLE,DOOR SW	8-97808-920-1	01	1	9511-	●
347	HARNESS; CABLE,RR BODY	8-97807-559-1	01	1	9112-9208	●
347	HARNESS; CABLE,RR BODY	8-97808-487-2	01	1	9209-9307	●
347	HARNESS; CABLE,RR BODY	8-97809-948-2	01	1	9308-9504	●
347	HARNESS; CABLE,RR BODY	8-97123-819-0	01	1	9505-9605	●
347	HARNESS; CABLE,RR BODY	8-97144-827-1	01	1	9606-	●
347	HARNESS; CABLE,RR BODY	8-97807-558-1	01	1	9112-9208		●
347	HARNESS; CABLE,RR BODY	8-97808-486-2	01	1	9209-9307		●
347	HARNESS; CABLE,RR BODY	8-97809-947-1	01	1	9308-9308		●
347	HARNESS; CABLE,RR BODY 930816-	8-97810-811-0	01	1	9308-9504		●
347	HARNESS; CABLE,RR BODY	8-97130-173-0	01	1	9505-9605		●
347	HARNESS; CABLE,RR BODY	8-97144-824-1	01	1	9606-		●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6>,POWER WINDOW W/TIMER<6WS>	8-97808-252-4	01	1	9112-9504	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6>,POWER WINDOW W/TIMER<6WS>	8-97808-247-4	01	1	9112-9504	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> ELECTRIC DOOR MIRROR(6MK) EXC. ANTI THEFT<UA6>	8-97808-249-4	01	1	9112-9504	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4>	8-97130-151-0	01	1	9505-9605	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4>	8-97133-802-0	01	1	9606-	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> ELECTRIC DOOR MIRROR(6MK) EXC. ANTI THEFT<UA6>	8-97808-244-4	01	1	9112-9504	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4>	8-97130-149-0	01	1	9505-	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> EXC. ANTI THEFT<UA6>,ELECTRIC DOOR MIRROR(6MK)	8-97808-250-4	01	1	9112-9504	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> EXC. ANTI THEFT<UA6>,ELECTRIC DOOR MIRROR(6MK)	8-97808-245-4	01	1	9112-9504	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> ANTI THEFT<UA6>	8-97808-251-4	01	1	9112-9504		●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> POWER WINDOW W/TIMER<6WS> ANTI THEFT<UA6>	8-97808-246-4	01	1	9112-9504		●

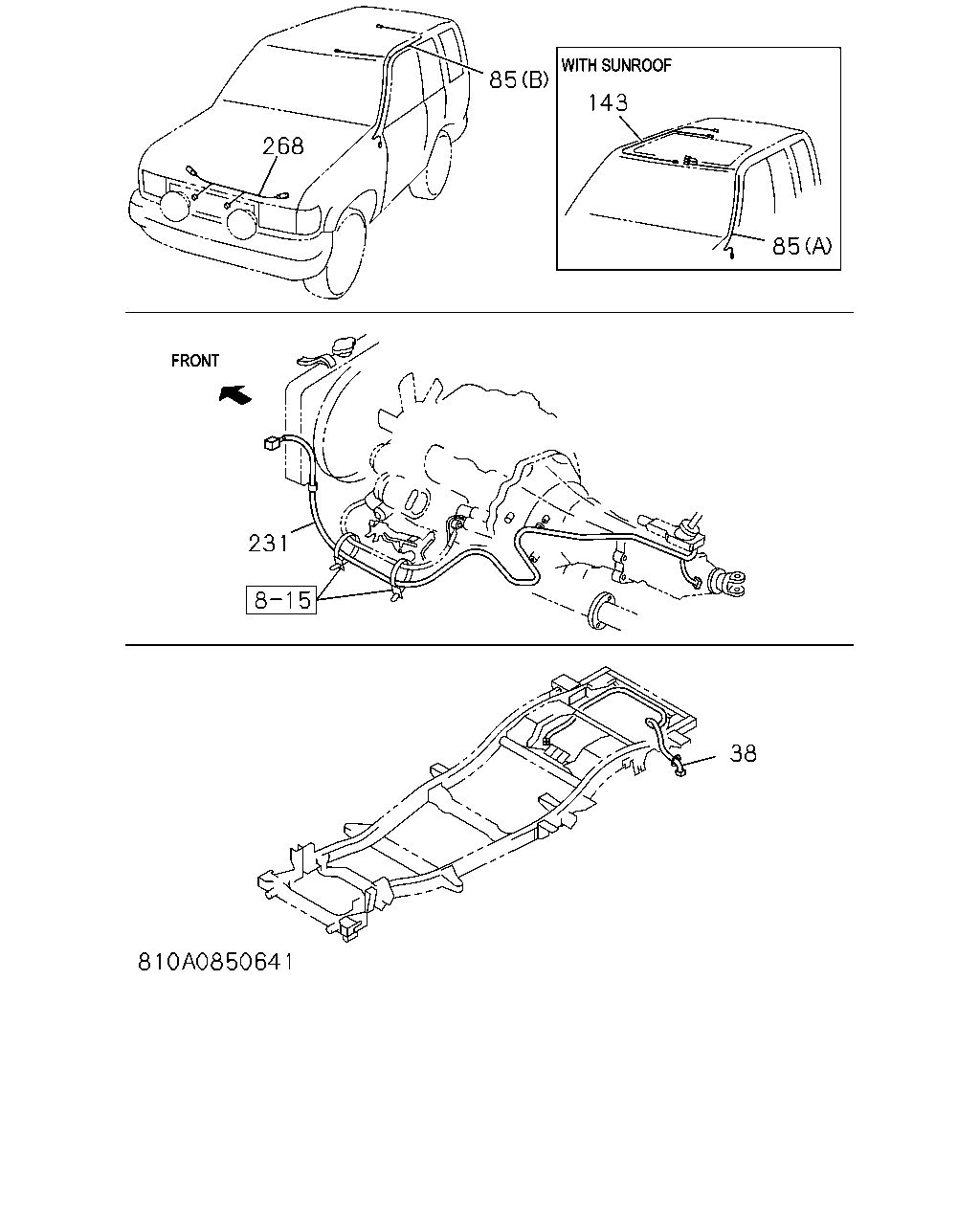

143 85 268 85 231 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	HARNESS; CHAS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97807-565-1	01	1	9112-9208	●	●
38	HARNESS; CHAS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-599-3	01	1	9209-9307	●	●
38	HARNESS; CHAS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-126-0	01	1	9308-9605	●	●
38	HARNESS; CHAS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97133-781-0	01	1	9606-	●	●
38	HARNESS; CHAS EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97807-564-3	01	1	9112-9605	●	●
38	HARNESS; CHAS EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97133-782-0	01	1	9606-	●	●
85	HARNESS; ROOM LAMP SUNROOF<CF5> (A)	8-97804-813-2	01	1	9112-9504	●	●
85	HARNESS; ROOM LAMP SUNROOF<CF5> (A)	8-97130-331-0	01	1	9505-	●	●
85	HARNESS; ROOM LAMP EXC. SUNROOF<CF5> (B)	8-94359-006-4	01	1	9112-9504	●	●
85	HARNESS; ROOM LAMP MULTI METER<7HT> EXC. SUNROOF<CF5> (B)	8-97123-827-1	01	1	9505-	●	●
85	HARNESS; ROOM LAMP EXC. SUNROOF<CF5>,MULTI METER<7HT> (B)	8-97123-828-1	01	1	9505-	●	●
143	HARNESS; CABLE,SUNROOF SUNROOF<CF5>	8-97805-525-1	01	1	9112-	●	●
231	HARNESS; TRANS 6VD1 DOHC ENG(RLV) A/T THM(RMQ)	8-97066-982-0	01	1	9112-9208	●	●
231	HARNESS; TRANS 6VD1 DOHC ENG(RLV) A/T THM(RMQ)	8-97074-815-1	01	1	9209-9504	●	●
231	HARNESS; TRANS 6VD1 DOHC ENG(RLV) A/T THM(RMQ) SHIFT ON THE FLY(7EX)	8-97102-390-5	01	1	9505-9605	●	●
231	HARNESS; TRANS 6VD1 DOHC ENG(RLV) A/T THM(RMQ) SHIFT ON THE FLY(7EX)	8-97145-028-0	01	1	9606-	●	●
231	HARNESS; TRANS 6VD1 DOHC ENG(RLV) A/T THM(RMQ) EXC. SHIFT ON THE FLY(7EX)	8-97111-259-1	01	1	9505-9605	●	●
231	HARNESS; TRANS 6VD1 DOHC ENG(RLV) A/T THM(RMQ) EXC. SHIFT ON THE FLY(7EX)	8-97145-029-0	01	1	9606-	●	●
231	HARNESS; TRANS 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN)	8-97801-957-2	01	1	9112-9208	●	●
231	HARNESS; TRANS 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN)	8-97808-664-1	01	1	9209-9307	●	●
231	HARNESS; TRANS 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN)	8-97810-506-0	01	1	9308-9504	●	●
231	HARNESS; TRANS 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX)	8-97130-484-0	01	1	9505-9605	●	●
231	HARNESS; TRANS 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX)	8-97145-033-0	01	1	9606-	●	●
231	HARNESS; TRANS 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. SHIFT ON THE FLY(7EX)	8-97125-753-0	01	1	9505-9605	●	●
231	HARNESS; TRANS 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. SHIFT ON THE FLY(7EX)	8-97145-034-0	01	1	9606-	●	●
268	HARNESS; CABLE,FOG LAMP IRMSHER KIT<6RS>,LOTUS KIT<6WK>	8-97806-181-1	01	1	9112-9605	●	●
268	HARNESS; CABLE,FOG LAMP FOG LAMP(T96)	8-97806-181-1	01	1	9606-	●	●

432 432 433 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
178	HARNESS; THERMO SENSOR 6VD1 DOHC ENG(RLV)	8-97016-346-2	01	1	9112-	●	●
432	HARNESS; STABILIZER 4JG2 ENG(RJC) AIR BAG DRIVER<AJ3> RR STABILIZER W/CLUTCH<6WV>	8-97133-795-0	01	1	9512-9605	●
432	HARNESS; STABILIZER 4JG2 ENG(RJC) RR STABILIZER W/CLUTCH<6WV>	8-97133-795-0	01	1	9606-	●
432	HARNESS; STABILIZER 4JG2 ENG(RJC) RR STABILIZER W/CLUTCH<6WV>	8-97805-961-2	01	1	9112-9511	●
432	HARNESS; STABILIZER 4JG2 ENG(RJC) RR STABILIZER W/CLUTCH<6WV> EXC. AIR BAG DRIVER<AJ3>	8-97805-961-2	01	1	9512-9605	●
432	HARNESS; STABILIZER 4JG2 ENG(RJC) RR STABILIZER W/CLUTCH<6WV> VARIABLE TORQUE SPRIT<7HA>	8-97133-796-0	01	1	9606-		●
432	HARNESS; STABILIZER 6VD1 DOHC ENG(RLV) AIR BAG DRIVER<AJ3> RR STABILIZER W/CLUTCH<6WV>	8-97133-797-0	01	1	9512-9605	●
432	HARNESS; STABILIZER 4JG2 ENG(RJC) RR STABILIZER W/CLUTCH<6WV>	8-97805-960-2	01	1	9112-9605		●
432	HARNESS; STABILIZER 4JG2 ENG(RJC) RR STABILIZER W/CLUTCH<6WV> EXC. VARIABLE TORQUE SPRIT<7HA>	8-97805-960-2	01	1	9606-		●
433	HARNESS; HEAT SENSOR 6VD1 DOHC ENG(RLV) RR STABILIZER W/CLUTCH<6WV>	8-97806-341-2	01	1	9112-9511	●
433	HARNESS; HEAT SENSOR 6VD1 DOHC ENG(RLV) RR STABILIZER W/CLUTCH<6WV> EXC. AIR BAG DRIVER<AJ3>	8-97806-341-2	01	1	9512-9605	●
433	HARNESS; HEAT SENSOR 6VD1 DOHC ENG(RLV) RR STABILIZER W/CLUTCH<6WV>	8-97133-797-0	01	1	9606-	●
433	HARNESS; HEAT SENSOR 6VD1 DOHC ENG(RLV) EXC. RR STABILIZER W/CLUTCH<6WV>	8-97806-340-2	01	1	9112-9504	●	●
433	HARNESS; HEAT SENSOR 6VD1 DOHC ENG(RLV) EXC. RR STABILIZER W/CLUTCH<6WV>,VARIABLE TORQUE SPRIT<7HA>	8-97806-340-2	01	1	9505-	●	●
433	HARNESS; HEAT SENSOR A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA>	8-97130-284-1	01	1	9505-9605		●
433	HARNESS; HEAT SENSOR 6VD1 DOHC ENG(RLV) VARIABLE TORQUE SPRIT<7HA> EXC. RR STABILIZER W/CLUTCH<6WV>	8-97130-284-1	01	1	9606-		●

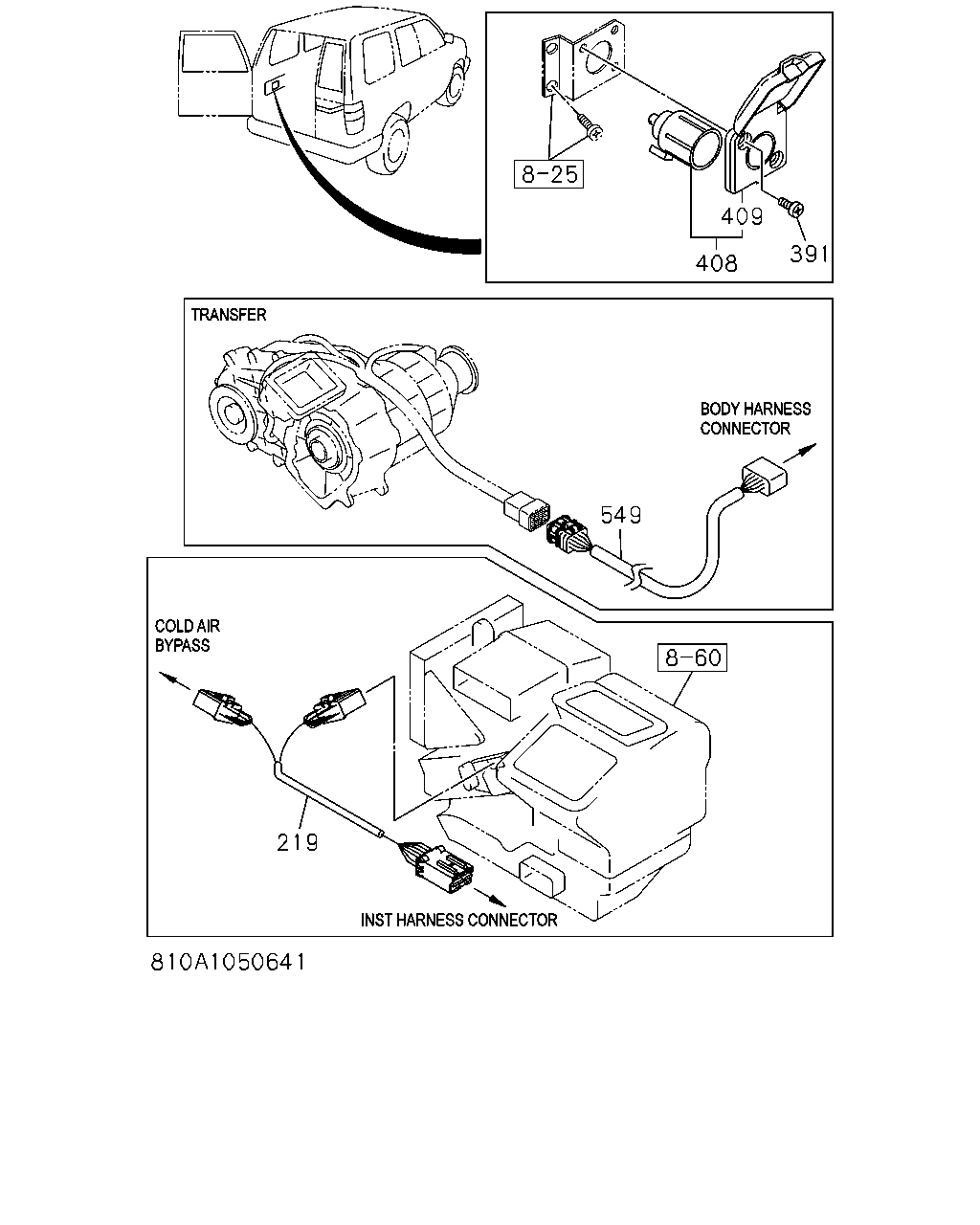

409 408 391 549 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
219	HARNESS; HTR FULLAUTO AIR CONDITIONER(C68)	8-97130-169-0	01	1	9505-	●	●
391	SCREW; BRKT M5X16 TAPPING	9-09829-323-1	02	1	9505-	●	●
408	SOCKET ASM; ACCESSORY	8-97111-066-0	01	1	9505-	●	●
409	CAP; ACCESSORY SOCKET	8-97123-280-0	01	1	9505-	●	●
549	HARNESS; TOD A/T AISIN(RMD) VARIABLE TORQUE SPRIT<7HA>	8-97129-827-1	01	1	9505-9605		●
549	HARNESS; TOD 4JG2 ENG(RJC) VARIABLE TORQUE SPRIT<7HA> EXC. RR STABILIZER W/CLUTCH<6WV>	8-97129-827-1	01	1	9606-		●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68)	8-97133-039-2	01	1	9511-9605	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97133-039-2	01	1	9511-9605		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97160-495-0	01	1	9606-	●	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97808-456-3	01	1	9209-9307	●	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97810-837-0	01	1	9308-9504	●	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97130-269-0	01	1	9505-9505	●	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97131-372-0	01	1	9506-9510	●	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER<AJ3>	8-97131-372-1	01	1	9511-9605	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER<AJ3>,VARIABLE TORQUE SPRIT<7HA>	8-97131-372-1	01	1	9511-9605		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97808-457-3	01	1	9209-9307	●	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97810-838-0	01	1	9308-9504	●	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68)	8-97130-270-0	01	1	9505-9505	●	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68)	8-97131-373-0	01	1	9506-9510	●	●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,FULLAUTO AIR CONDITIONER(C68)	8-97131-373-0	01	1	9511-9605	●	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68),RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97808-459-2	01	1	9209-9307	●	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68),RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97810-840-0	01	1	9308-9504	●	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68)	8-97133-040-2	01	1	9511-9605	●	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68),VARIABLE TORQUESPRIT<7HA>	8-97160-496-1	01	1	9606-	●	●
1	HARNESS; CAB RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97808-222-0	01	1	9112-9208	●	●
1	HARNESS; CAB RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. FULLAUTO AIR CONDITIONER(C68)	8-97808-458-2	01	1	9209-9307	●	●
1	HARNESS; CAB RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. FULLAUTO AIR CONDITIONER(C68)	8-97810-839-0	01	1	9308-9504	●	●
1	HARNESS; CAB VARIABLE TORQUE SPRIT<7HA>	8-97130-268-0	01	1	9505-9505		●
1	HARNESS; CAB VARIABLE TORQUE SPRIT<7HA>	8-97131-371-0	01	1	9506-9510		●
1	HARNESS; CAB VARIABLE TORQUE SPRIT<7HA> EXC. AIR BAG DRIVER<AJ3>	8-97131-371-1	01	1	9511-9605		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3> VARIABLE TORQUE SPRIT<7HA> EXC. FULLAUTO AIR CONDITIONER(C68)	8-97144-830-1	01	1	9606-		●
1	HARNESS; CAB EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97808-224-0	01	1	9112-9208	●	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3> VARIABLE TORQUE SPRIT<7HA>	8-97133-038-2	01	1	9511-9605		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) VARIABLE TORQUE SPRIT<7HA>	8-97160-494-0	01	1	9606-		●

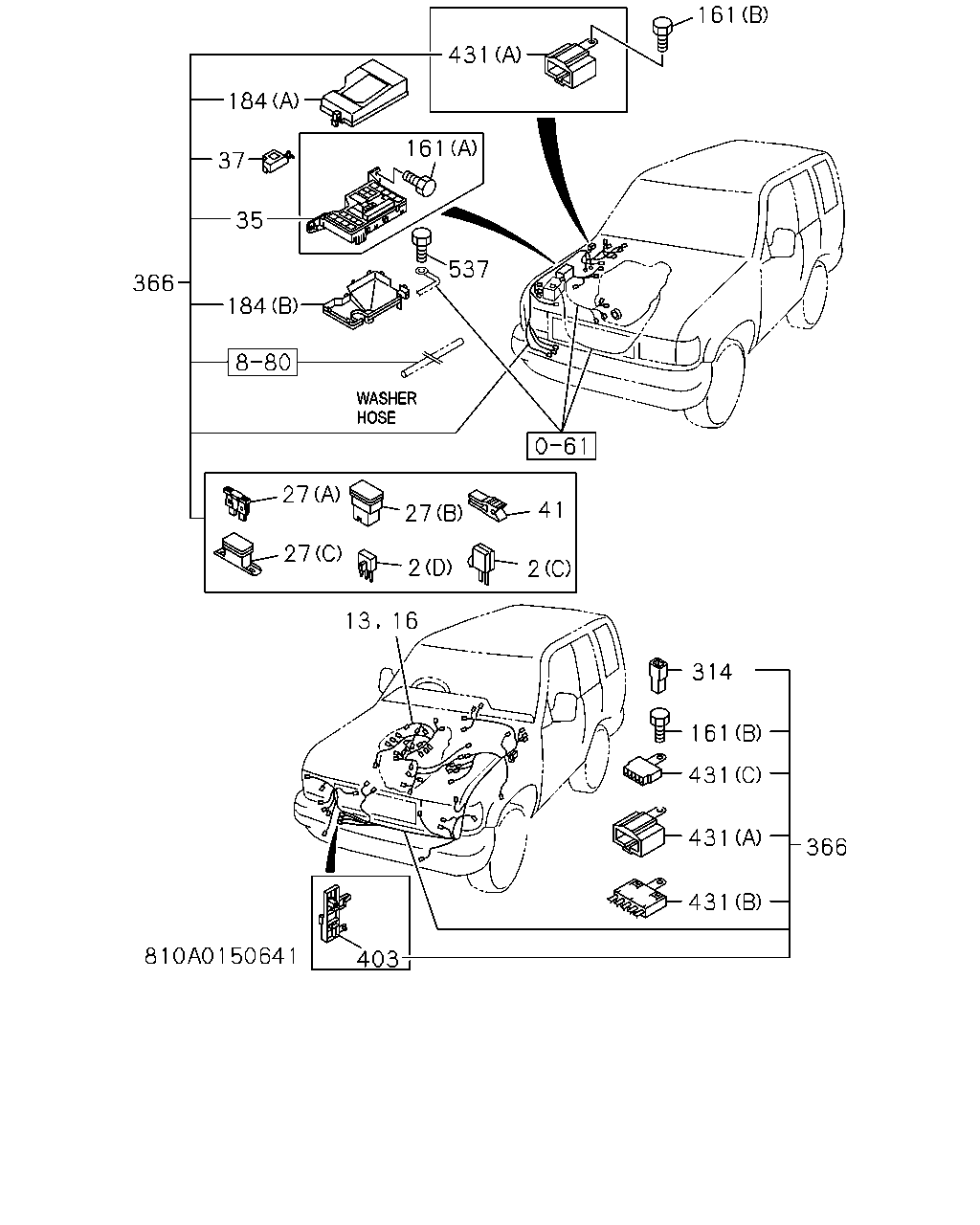

161 431 161 537 184 37 35 184 366 27 27 27 2 41 2 13 16 314 161 431 431 431 366 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94416-438-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 4P-1.5A	8-94416-440-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94422-640-1	AR	1	9112-	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) A/T AISIN(RMD)	8-97039-025-4	01	1	9112-9504	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) A/T AISIN(RMD)	8-97117-169-2	01	1	9505-9605	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) A/T AISIN(RMD)	8-97136-387-2	01	1	9606-	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-97039-024-3	01	1	9112-9208	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-97074-629-1	01	1	9209-9307	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-97086-796-1	01	1	9308-9504	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-97117-168-2	01	1	9505-9605	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-97136-388-1	01	1	9606-	●	●
16	HARNESS; ENG,ECGI 6VD1 DOHC ENG(RLV)	8-94389-785-7	01	1	9112-9307	●	●
16	HARNESS; ENG,ECGI 6VD1 DOHC ENG(RLV) A/T THM(RMQ)	8-97087-541-4	01	1	9308-9504	●	●
16	HARNESS; ENG,ECGI 6VD1 DOHC ENG(RLV)	8-97111-583-1	01	1	9505-	●	●
16	HARNESS; ENG,ECGI 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN)	8-97094-914-3	01	1	9308-9504	●	●
27	FUSE UNIT (A) 10A RED	5-82516-002-0	AR	1	9112-	●	●
27	FUSE UNIT (A) 15A BLUE	5-82516-003-0	AR	1	9112-	●	●
27	FUSE UNIT (A) 20A YELLOW	5-82516-004-0	AR	1	9112-	●	●
27	FUSE UNIT (A) 25A CLEAR	5-82516-005-0	AR	1	9112-	●	●
27	FUSE UNIT (A) 7.5A BROWN	8-94159-007-0	AR	1	9112-	●	●
27	FUSE UNIT (C) 50A RED	8-94388-302-0	AR	1	9112-	●	●
27	FUSE UNIT (C) 80A BLACK	8-94388-305-0	AR	1	9112-	●	●
27	FUSE UNIT (B) 30A PINK	8-94468-661-0	AR	1	9112-	●	●
27	FUSE UNIT (B) 40A GREEN	8-94468-662-0	AR	1	9112-	●	●
27	FUSE UNIT (B) 50A RED	8-94468-663-0	AR	1	9112-	●	●
35	BOX; RELAY & FUSE	8-97044-180-1	01	1	9112-	●	●
37	COVER; FUSE,RELAY & FUSE BOX	8-97044-183-0	01	1	9112-9605	●	●
41	PULLER; FUSE L=31.0 B=10.0	8-94369-144-0	01	1	9112-	●	●
161	BOLT; GROUND,HARNESS (A) M6X20	8-94412-422-0	03	1	9505-	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	06	1	9505-9605	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9606-	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9606-	●	●
161	BOLT; GROUND,HARNESS ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
184	COVER; RELAY & FUSE BOX (B)	8-97044-181-0	01	1	9112-	●	●
184	COVER; RELAY & FUSE BOX 4JG2 ENG(RJC) (A)	8-97044-191-1	01	1	9112-9208	●	●
184	COVER; RELAY & FUSE BOX 4JG2 ENG(RJC) (A)	8-97078-073-0	01	1	9209-9307	●	●
184	COVER; RELAY & FUSE BOX 4JG2 ENG(RJC) (A)	8-97086-731-1	01	1	9308-9504	●	●
184	COVER; RELAY & FUSE BOX 4JG2 ENG(RJC) (A)	8-97112-399-2	01	1	9505-9605	●	●
184	COVER; RELAY & FUSE BOX 4JG2 ENG(RJC) (A)	8-97135-079-0	01	1	9606-	●	●
184	COVER; RELAY & FUSE BOX 6VD1 DOHC ENG(RLV) (A)	8-97044-185-1	01	1	9112-9208	●	●
184	COVER; RELAY & FUSE BOX 6VD1 DOHC ENG(RLV) (A)	8-97078-069-0	01	1	9209-9307	●	●
184	COVER; RELAY & FUSE BOX 6VD1 DOHC ENG(RLV) (A)	8-97086-728-0	01	1	9308-9504	●	●
184	COVER; RELAY & FUSE BOX 6VD1 DOHC ENG(RLV) (A)	8-97112-394-1	01	1	9505-	●	●
314	RESISTOR; HARNESS 6VD1 DOHC ENG(RLV)	8-97808-503-0	01	1	9308-	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-154-0	01	1	9112-9203	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-659-0	01	1	9204-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-405-5	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-551-1	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97130-153-0	01	1	9505-9605	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-021-1	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-018-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-406-3	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-552-1	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97130-154-0	01	1	9505-9605	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-023-0	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-158-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-413-6	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-557-1	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97129-811-2	01	1	9505-9510	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97138-868-0	01	1	9511-9605	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-053-2	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-026-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-414-6	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-558-1	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97129-812-2	01	1	9505-9510	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97138-869-0	01	1	9511-9605	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-054-2	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-159-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-415-6	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-559-1	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97129-809-3	01	1	9505-9510	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97138-866-0	01	1	9511-9605	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-051-2	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-028-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-416-6	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-560-1	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97129-810-3	01	1	9505-9510	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97138-867-0	01	1	9511-9605	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-052-2	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-151-0	01	1	9112-9203	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-657-0	01	1	9204-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-401-5	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-549-1	01	1	9308-9310	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97811-122-0	01	1	9311-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97130-334-0	01	1	9505-9605	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-013-1	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-014-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-402-3	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-550-1	01	1	9308-9310	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97811-123-0	01	1	9311-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97130-335-0	01	1	9505-9605	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-015-0	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-155-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-409-5	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-833-0	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97129-803-1	01	1	9505-9510	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97138-864-0	01	1	9511-9605	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-045-0	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-156-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-410-5	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-834-0	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97129-804-1	01	1	9505-9510	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97138-865-0	01	1	9511-9605	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) A/T THM(RMQ) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-046-0	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-157-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-411-5	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-835-0	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97129-801-2	01	1	9505-9510	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97138-862-0	01	1	9511-9605	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-043-0	01	1	9606-	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-024-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97808-412-5	01	1	9209-9307	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97810-836-0	01	1	9308-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97129-802-2	01	1	9505-9510	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97138-863-0	01	1	9511-9605	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97160-044-0	01	1	9606-	●	●
403	BRACKET; CONNECTOR,HARNESS	8-97808-482-1	01	1	9209-9504	●	●
403	BRACKET; CONNECTOR,HARNESS	8-97124-408-0	01	1	9505-	●	●
431	CONNECTOR; JOINT (A) GROUDING WIRE JOINT	8-97805-765-0	02	1	9112-9510	●	●
431	CONNECTOR; JOINT (A) GROUDING WIRE JOINT	8-97805-765-0	01	1	9511-	●	●
431	CONNECTOR; JOINT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) ABS SENSOR	8-97093-517-0	01	1	9308-9504	●	●
431	CONNECTOR; JOINT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (C) ABS SENSOR	8-97111-448-0	01	1	9505-	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER<AJ3> (D)	8-97125-467-0	01	1	9511-9605	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> (D)	8-97125-467-0	01	1	9606-9609	●	●
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER<AJ3> (E)	8-97133-712-0	01	1	9606-	●	●
537	BOLT M6X12 W/LK WASHER	0-50040-612-0	01	1	9505-9612	●	●
537	BOLT M6X12 FLANGE	0-28080-612-0	01	1	9701-	●	●

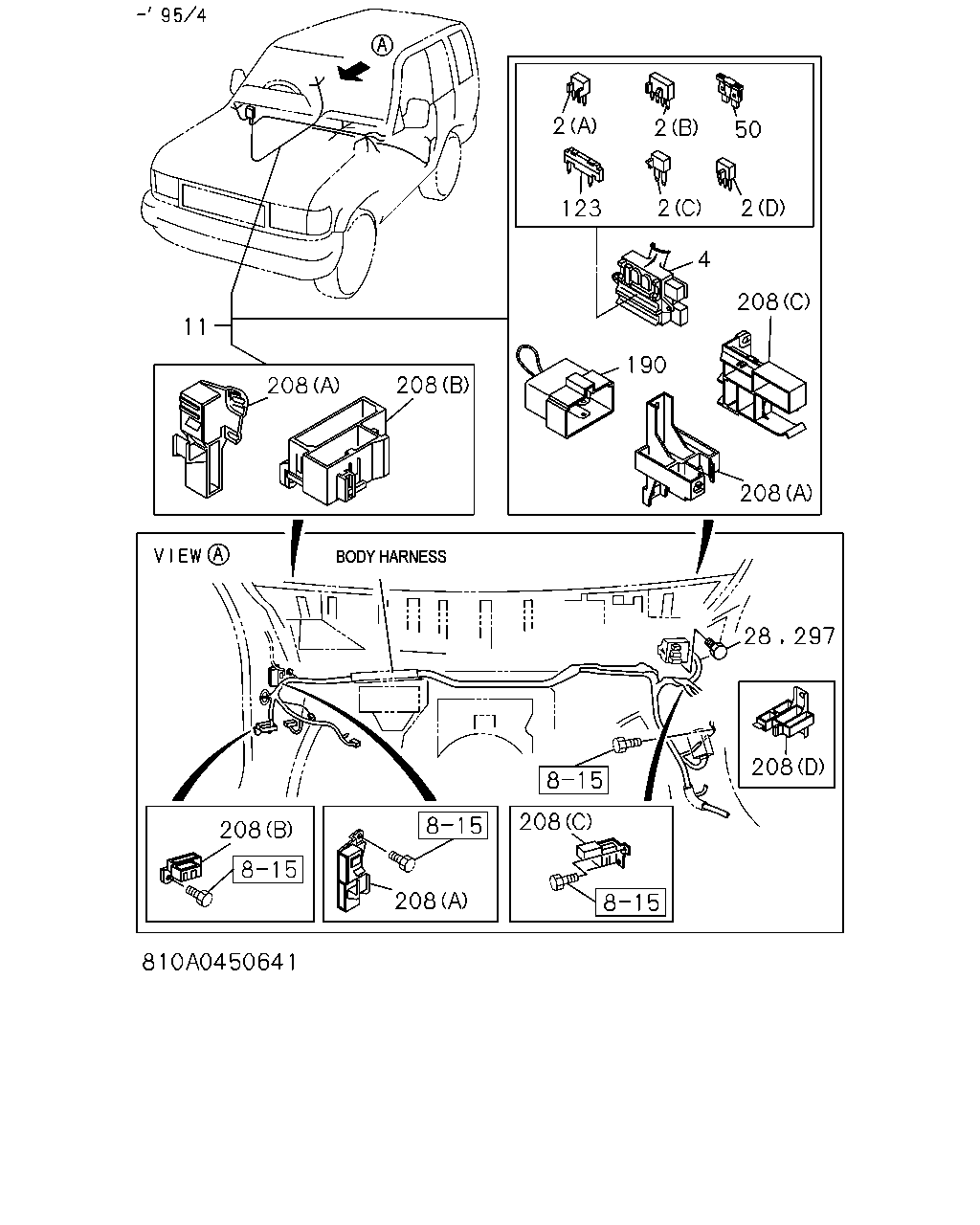

11 208 208 123 2 2 2 2 50 4 208 190 208 297 28 208 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94416-438-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 4P-1.5A	8-94416-440-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94422-640-1	AR	1	9112-	●	●
4	BOX ASM; FUSE,HARNESS	8-97801-071-1	01	1	9112-9306	●	●
4	BOX ASM; FUSE,HARNESS 6VD1 DOHC ENG(RLV) EXC. FULLAUTO AIR CONDITIONER(C68)	8-97801-071-1	01	1	9307-9307	●	●
4	BOX ASM; FUSE,HARNESS 4JG2 ENG(RJC)	8-97801-071-1	01	1	9307-9307	●	●
4	BOX ASM; FUSE,HARNESS 6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68)	8-97803-983-1	01	1	9307-9307	●	●
4	BOX ASM; FUSE,HARNESS	8-97803-983-2	01	1	9308-9504	●	●
4	BOX ASM; FUSE,HARNESS	8-97808-883-1	01	1	9505-	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) EXC. ANTI THEFT<UA6>	8-97807-993-0	01	1	9112-9201	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) EXC. ANTI THEFT<UA6>	8-97808-544-0	01	1	9202-9208	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) EXC. ANTI THEFT<UA6>	8-97808-444-6	01	1	9209-9307	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) EXC. ANTI THEFT<UA6>	8-97810-541-1	01	1	9308-9504	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97130-131-1	01	1	9505-9510	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. AIR BAG DRIVER<AJ3>,VARIABLE TORQUE SPRIT<7HA>	8-97130-131-2	01	1	9511-9605	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97160-309-0	01	1	9606-	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. FULLAUTO AIR CONDITIONER(C68),ANTI THEFT<UA6>	8-97808-478-6	01	1	9209-9307	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. FULLAUTO AIR CONDITIONER(C68),ANTI THEFT<UA6>	8-97810-543-1	01	1	9308-9504	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97130-125-0	01	1	9505-9510	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) EXC. AIR BAG DRIVER<AJ3>,VARIABLE TORQUE SPRIT<7HA>	8-97130-125-1	01	1	9511-9605	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) VARIABLE TORQUE SPRIT<7HA>	8-97160-308-0	01	1	9606-	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. ANTI THEFT<UA6>	8-97807-992-0	01	1	9112-9208	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) AIR BAG DRIVER<AJ3> EXC. VARIABLE TORQUE SPRIT<7HA>	8-97133-037-1	01	1	9511-9605	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97160-319-0	01	1	9606-	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) EXC. ANTI THEFT<UA6>	8-97808-446-6	01	1	9209-9307	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) EXC. ANTI THEFT<UA6>	8-97810-537-1	01	1	9308-9504	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) VARIABLE TORQUE SPRIT<7HA>	8-97130-130-1	01	1	9505-9510		●
11	HARNESS; BODY 4JG2 ENG(RJC) VARIABLE TORQUE SPRIT<7HA> EXC. AIR BAG DRIVER<AJ3>	8-97130-130-2	01	1	9511-9605		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) EXC. FULLAUTO AIR CONDITIONER(C68),ANTI THEFT<UA6>	8-97808-480-5	01	1	9209-9307	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) EXC. FULLAUTO AIR CONDITIONER(C68),ANTI THEFT<UA6>	8-97810-539-1	01	1	9308-9504	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) VARIABLE TORQUE SPRIT<7HA>	8-97130-124-0	01	1	9505-9510		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) VARIABLE TORQUE SPRIT<7HA> EXC. AIR BAG DRIVER<AJ3>	8-97130-124-1	01	1	9511-9605		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) AIR BAG DRIVER<AJ3> EXC. VARIABLE TORQUE SPRIT<7HA>	8-97133-035-1	01	1	9511-9605	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) VARIABLE TORQUE SPRIT<7HA>	8-97160-318-0	01	1	9606-	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) AIR BAG DRIVER<AJ3> VARIABLE TORQUE SPRIT<7HA>	8-97133-036-1	01	1	9511-9605		●
11	HARNESS; BODY 4JG2 ENG(RJC) ANTI THEFT<UA6>	8-97807-991-0	01	1	9112-9208		●
11	HARNESS; BODY 4JG2 ENG(RJC) ANTI THEFT<UA6> FULLAUTO AIR CONDITIONER(C68)	8-97808-443-6	01	1	9209-9307		●
11	HARNESS; BODY 4JG2 ENG(RJC) ANTI THEFT<UA6> FULLAUTO AIR CONDITIONER(C68)	8-97810-540-1	01	1	9308-9504		●
11	HARNESS; BODY 4JG2 ENG(RJC) ANTI THEFT<UA6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-97808-477-6	01	1	9209-9307		●
11	HARNESS; BODY 4JG2 ENG(RJC) ANTI THEFT<UA6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-97810-542-1	01	1	9308-9504		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) AIR BAG DRIVER<AJ3> VARIABLE TORQUE SPRIT<7HA>	8-97133-034-1	01	1	9511-9605		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) ANTI THEFT<UA6>	8-97808-007-0	01	1	9112-9201		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) ANTI THEFT<UA6>	8-97808-545-0	01	1	9202-9208		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) ANTI THEFT<UA6> FULLAUTO AIR CONDITIONER(C68)	8-97808-445-6	01	1	9209-9307		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) ANTI THEFT<UA6> FULLAUTO AIR CONDITIONER(C68)	8-97810-536-1	01	1	9308-9504		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) ANTI THEFT<UA6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-97808-479-5	01	1	9209-9307		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) ANTI THEFT<UA6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-97810-538-1	01	1	9308-9504		●
28	SCREW; FUSE BOX M5X16 W/LK&PL WASHER	9-03920-516-0	02	1	9302-9504	●	●
50	FUSE; BODY HARNESS 10A RED	5-82516-002-0	AR	1	9112-	●	●
50	FUSE; BODY HARNESS 15A BLUE	5-82516-003-0	AR	1	9112-	●	●
50	FUSE; BODY HARNESS 20A YELLOW	5-82516-004-0	AR	1	9112-	●	●
50	FUSE; BODY HARNESS 25A CLEAR	5-82516-005-0	AR	1	9112-	●	●
50	FUSE; BODY HARNESS 7.5A BROWN	8-94159-007-0	AR	1	9112-	●	●
123	BREAKER; CIRCUIT	8-97011-745-0	01	1	9112-9307	●	●
123	BREAKER; CIRCUIT	8-97011-746-0	01	1	9308-9504	●	●
123	BREAKER; CIRCUIT	8-97106-113-0	01	1	9505-	●	●
190	CONNECTOR; SHORT CIRCUIT RR WIPER<C25>	8-97801-402-0	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (B)	8-97801-051-0	01	1	9112-9208	●	●
208	HOLDER; CONNECTOR (B)	8-97806-955-0	01	1	9209-9504	●	●
208	HOLDER; CONNECTOR (E)	8-97105-296-0	01	1	9505-	●	●
208	HOLDER; CONNECTOR (D)	8-97801-062-1	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (F)	8-97094-964-0	01	1	9505-	●	●
208	HOLDER; CONNECTOR (A)	8-97801-519-1	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (G)	8-97808-879-2	01	1	9505-	●	●
208	HOLDER; CONNECTOR (C)	8-97801-747-0	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (H)	8-97808-880-0	01	1	9505-	●	●
208	HOLDER; CONNECTOR AIR BAG DRIVER<AJ3> (I)	8-97111-319-0	01	1	9511-9605	●	●
208	HOLDER; CONNECTOR AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> (I)	8-97111-319-0	01	1	9606-	●	●
297	BOLT; BOX BRKT M5X16	8-94242-120-0	02	1	9112-9301	●	●

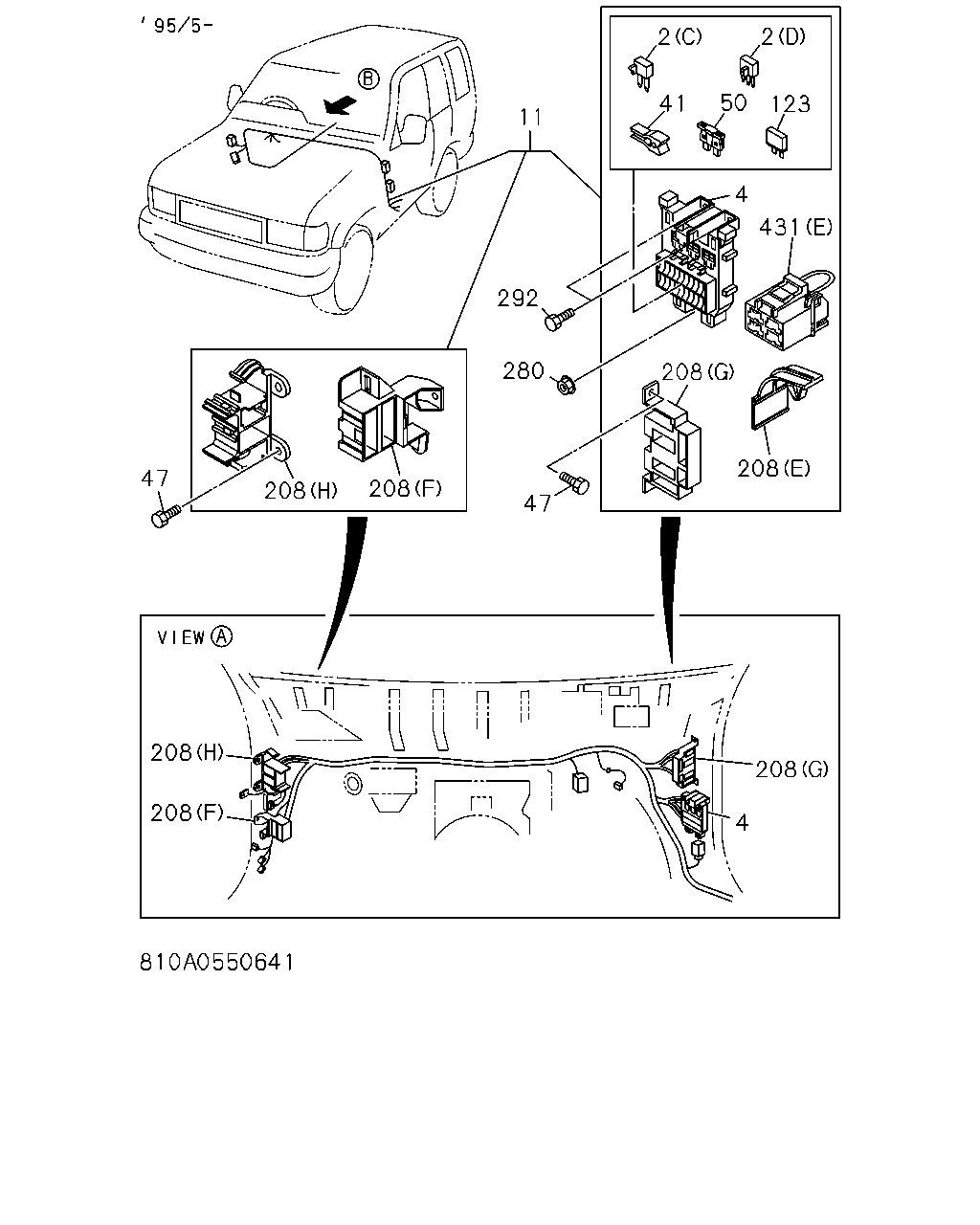

11 2 2 41 50 123 4 431 292 280 47 208 208 47 208 208 208 208 208 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94416-438-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 4P-1.5A	8-94416-440-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94422-640-1	AR	1	9112-	●	●
4	BOX ASM; FUSE,HARNESS	8-97801-071-1	01	1	9112-9306	●	●
4	BOX ASM; FUSE,HARNESS 6VD1 DOHC ENG(RLV) EXC. FULLAUTO AIR CONDITIONER(C68)	8-97801-071-1	01	1	9307-9307	●	●
4	BOX ASM; FUSE,HARNESS 4JG2 ENG(RJC)	8-97801-071-1	01	1	9307-9307	●	●
4	BOX ASM; FUSE,HARNESS 6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68)	8-97803-983-1	01	1	9307-9307	●	●
4	BOX ASM; FUSE,HARNESS	8-97803-983-2	01	1	9308-9504	●	●
4	BOX ASM; FUSE,HARNESS	8-97808-883-1	01	1	9505-	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) EXC. ANTI THEFT<UA6>	8-97807-993-0	01	1	9112-9201	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) EXC. ANTI THEFT<UA6>	8-97808-544-0	01	1	9202-9208	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) EXC. ANTI THEFT<UA6>	8-97808-444-6	01	1	9209-9307	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) FULLAUTO AIR CONDITIONER(C68) EXC. ANTI THEFT<UA6>	8-97810-541-1	01	1	9308-9504	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97130-131-1	01	1	9505-9510	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. AIR BAG DRIVER<AJ3>,VARIABLE TORQUE SPRIT<7HA>	8-97130-131-2	01	1	9511-9605	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97160-309-0	01	1	9606-	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. FULLAUTO AIR CONDITIONER(C68),ANTI THEFT<UA6>	8-97808-478-6	01	1	9209-9307	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. FULLAUTO AIR CONDITIONER(C68),ANTI THEFT<UA6>	8-97810-543-1	01	1	9308-9504	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97130-125-0	01	1	9505-9510	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) EXC. AIR BAG DRIVER<AJ3>,VARIABLE TORQUE SPRIT<7HA>	8-97130-125-1	01	1	9511-9605	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) VARIABLE TORQUE SPRIT<7HA>	8-97160-308-0	01	1	9606-	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. ANTI THEFT<UA6>	8-97807-992-0	01	1	9112-9208	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) AIR BAG DRIVER<AJ3> EXC. VARIABLE TORQUE SPRIT<7HA>	8-97133-037-1	01	1	9511-9605	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97160-319-0	01	1	9606-	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) EXC. ANTI THEFT<UA6>	8-97808-446-6	01	1	9209-9307	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) FULLAUTO AIR CONDITIONER(C68) EXC. ANTI THEFT<UA6>	8-97810-537-1	01	1	9308-9504	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) VARIABLE TORQUE SPRIT<7HA>	8-97130-130-1	01	1	9505-9510		●
11	HARNESS; BODY 4JG2 ENG(RJC) VARIABLE TORQUE SPRIT<7HA> EXC. AIR BAG DRIVER<AJ3>	8-97130-130-2	01	1	9511-9605		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) EXC. FULLAUTO AIR CONDITIONER(C68),ANTI THEFT<UA6>	8-97808-480-5	01	1	9209-9307	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) EXC. FULLAUTO AIR CONDITIONER(C68),ANTI THEFT<UA6>	8-97810-539-1	01	1	9308-9504	●	●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) VARIABLE TORQUE SPRIT<7HA>	8-97130-124-0	01	1	9505-9510		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) VARIABLE TORQUE SPRIT<7HA> EXC. AIR BAG DRIVER<AJ3>	8-97130-124-1	01	1	9511-9605		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) AIR BAG DRIVER<AJ3> EXC. VARIABLE TORQUE SPRIT<7HA>	8-97133-035-1	01	1	9511-9605	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) VARIABLE TORQUE SPRIT<7HA>	8-97160-318-0	01	1	9606-	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) AIR BAG DRIVER<AJ3> VARIABLE TORQUE SPRIT<7HA>	8-97133-036-1	01	1	9511-9605		●
11	HARNESS; BODY 4JG2 ENG(RJC) ANTI THEFT<UA6>	8-97807-991-0	01	1	9112-9208		●
11	HARNESS; BODY 4JG2 ENG(RJC) ANTI THEFT<UA6> FULLAUTO AIR CONDITIONER(C68)	8-97808-443-6	01	1	9209-9307		●
11	HARNESS; BODY 4JG2 ENG(RJC) ANTI THEFT<UA6> FULLAUTO AIR CONDITIONER(C68)	8-97810-540-1	01	1	9308-9504		●
11	HARNESS; BODY 4JG2 ENG(RJC) ANTI THEFT<UA6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-97808-477-6	01	1	9209-9307		●
11	HARNESS; BODY 4JG2 ENG(RJC) ANTI THEFT<UA6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-97810-542-1	01	1	9308-9504		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) AIR BAG DRIVER<AJ3> VARIABLE TORQUE SPRIT<7HA>	8-97133-034-1	01	1	9511-9605		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) ANTI THEFT<UA6>	8-97808-007-0	01	1	9112-9201		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) ANTI THEFT<UA6>	8-97808-545-0	01	1	9202-9208		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) ANTI THEFT<UA6> FULLAUTO AIR CONDITIONER(C68)	8-97808-445-6	01	1	9209-9307		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) ANTI THEFT<UA6> FULLAUTO AIR CONDITIONER(C68)	8-97810-536-1	01	1	9308-9504		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) ANTI THEFT<UA6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-97808-479-5	01	1	9209-9307		●
11	HARNESS; BODY 6VD1 DOHC ENG(RLV) ANTI THEFT<UA6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-97810-538-1	01	1	9308-9504		●
41	PULLER; FUSE L=31.0 B=10.0	8-94369-144-0	01	1	9112-	●	●
47	BOLT; JUNCTION BLOCK M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	9505-9704	●	●
50	FUSE; BODY HARNESS 10A RED	5-82516-002-0	AR	1	9112-	●	●
50	FUSE; BODY HARNESS 15A BLUE	5-82516-003-0	AR	1	9112-	●	●
50	FUSE; BODY HARNESS 20A YELLOW	5-82516-004-0	AR	1	9112-	●	●
50	FUSE; BODY HARNESS 25A CLEAR	5-82516-005-0	AR	1	9112-	●	●
50	FUSE; BODY HARNESS 7.5A BROWN	8-94159-007-0	AR	1	9112-	●	●
123	BREAKER; CIRCUIT	8-97011-745-0	01	1	9112-9307	●	●
123	BREAKER; CIRCUIT	8-97011-746-0	01	1	9308-9504	●	●
123	BREAKER; CIRCUIT	8-97106-113-0	01	1	9505-	●	●
208	HOLDER; CONNECTOR (B)	8-97801-051-0	01	1	9112-9208	●	●
208	HOLDER; CONNECTOR (B)	8-97806-955-0	01	1	9209-9504	●	●
208	HOLDER; CONNECTOR (E)	8-97105-296-0	01	1	9505-	●	●
208	HOLDER; CONNECTOR (D)	8-97801-062-1	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (F)	8-97094-964-0	01	1	9505-	●	●
208	HOLDER; CONNECTOR (A)	8-97801-519-1	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (G)	8-97808-879-2	01	1	9505-	●	●
208	HOLDER; CONNECTOR (C)	8-97801-747-0	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (H)	8-97808-880-0	01	1	9505-	●	●
208	HOLDER; CONNECTOR AIR BAG DRIVER<AJ3> (I)	8-97111-319-0	01	1	9511-9605	●	●
208	HOLDER; CONNECTOR AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> (I)	8-97111-319-0	01	1	9606-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91150-106-0	01	1	9505-9704	●	●
280	NUT; BOX ASM FIX M6 FLANGE	8-97063-399-0	01	1	9705-	●	●
292	BOLT; BOX M6X18 W/LK&PL WASHER	0-50140-618-0	02	1	9505-9704	●	●
292	BOLT; BOX M6X16 FLANGE	0-28080-616-0	07	1	9705-	●	●
431	CONNECTOR; JOINT (A) GROUDING WIRE JOINT	8-97805-765-0	02	1	9112-9510	●	●
431	CONNECTOR; JOINT (A) GROUDING WIRE JOINT	8-97805-765-0	01	1	9511-	●	●
431	CONNECTOR; JOINT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (B) ABS SENSOR	8-97093-517-0	01	1	9308-9504	●	●
431	CONNECTOR; JOINT ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (C) ABS SENSOR	8-97111-448-0	01	1	9505-	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER<AJ3> (D)	8-97125-467-0	01	1	9511-9605	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> (D)	8-97125-467-0	01	1	9606-9609	●	●
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER<AJ3> (E)	8-97133-712-0	01	1	9606-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
