8-03 — LAMP; REAR AND REAR SIDE (#166613) — 49 parça

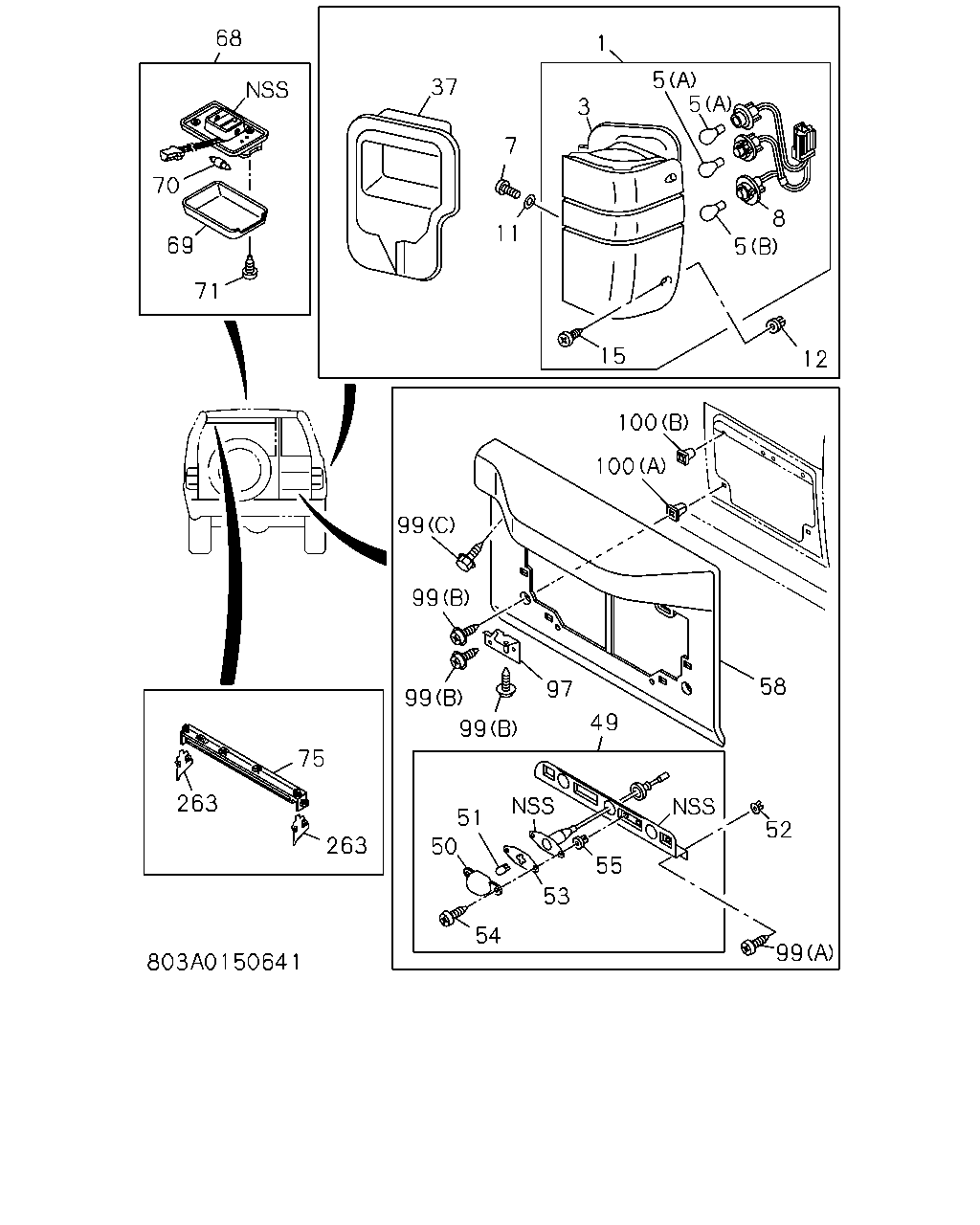

çizim 493591
68 70 69 71 75 263 263 37 7 11 1 3 5 5 8 5 12 15 100 100 99 99 99 99 97 49 58 52 51 50 53 54 55 99
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB 8-94358-905-2 01 1 9112-9308 ● ●
1 LAMP ASM; RR COMB 8-97103-733-1 01 1 9309- ● ●
1 LAMP ASM; RR COMB 8-94358-904-2 01 1 9112-9308 ● ●
1 LAMP ASM; RR COMB 8-97103-732-1 01 1 9309- ● ●
3 GASKET; RR COMB LAMP 8-97807-106-0 02 1 9112- ● ●
5 BULB; RR COMB LAMP
(A) 12V 21W 		8-94124-074-0 04 1 9112- ● ●
5 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 9112- ● ●
7 SCREW; RR COMB LAMP
M5X16 		8-97800-740-0 02 1 9112- ● ●
8 HARNESS; RR COMB LAMP 8-97807-103-0 02 1 9112- ● ●
11 WASHER; PL,LAMP,RR COMB
ID=6 		8-94126-642-0 02 1 9112-9404 ● ●
11 WASHER; PL,LAMP,RR COMB
D=16 		8-94427-941-0 02 1 9405- ● ●
12 GROMMET; RR COMB LAMP 8-94430-318-1 04 1 9112- ● ●
15 SCREW; RR COMB LAMP 8-97807-135-0 04 1 9112- ● ●
37 COVER; RR COMB LAMP 8-97808-597-1 01 1 9201-9602 ● ●
37 COVER; RR COMB LAMP 8-97808-596-1 01 1 9201-9602 ● ●
49 LAMP; LICENSE PLATE 8-97800-734-3 01 1 9112-9305 ● ●
49 LAMP; LICENSE PLATE 8-97810-728-0 01 1 9306-9410 ● ●
49 LAMP; LICENSE PLATE 8-97118-028-0 01 1 9411-9504 ● ●
49 LAMP; LICENSE PLATE 8-97118-027-0 01 1 9505- ● ●
50 LENS; LICENSE PLATE LAMP 8-94360-612-0 02 1 9112-9504 ● ●
50 LENS; LICENSE PLATE LAMP 8-94360-612-0 01 1 9505- ● ●
51 BULB; LICENSE PLATE LAMP
12V 5W 		8-94124-595-0 02 1 9112-9504 ● ●
51 BULB; LICENSE PLATE LAMP
12V 5W 		8-94124-595-0 01 1 9505- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP 8-94430-318-1 02 1 9112- ● ●
53 GASKET; LICENSE LAMP 8-94379-544-0 02 1 9112-9504 ● ●
53 GASKET; LICENSE LAMP 8-94379-544-0 01 1 9505- ● ●
54 SCREW; LICENSE PLATE LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 9112-9504 ● ●
54 SCREW; LICENSE PLATE LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 02 1 9505- ● ●
55 NUT; LICENSE PLATE LAMP
M4 		5-09470-002-0 04 1 9112-9504 ● ●
55 NUT; LICENSE PLATE LAMP
M4 		5-09470-002-0 02 1 9505- ● ●
58 COVER; LICENSE PLATE LAMP
GRADE BASIC OR LS(RBA),GRADE XS(RBB),GRADE RS(RBF) ,GRADE IRMSHER (RBQ) EXTERIOR CHROME PACKAGE<6CX> WITHOUT EMBOSS PLEASE PAINT TO MATCH BODY COLOR 		8-94358-812-3 01 1 9112- ● ●
58 COVER; LICENSE PLATE LAMP
GRADE LOTUS/LOTUS SE(RBL) WITHOUT EMBOSS PLEASE PAINT TO MATCH BODY COLOR 		8-94358-812-3 01 1 9112- ●
58 COVER; LICENSE PLATE LAMP
GRADE BASIC OR LS(RBA),GRADE XS(RBB),GRADE RS(RBF) ,GRADE IRMSHER (RBQ) EXC. EXTERIOR CHROME PACKAGE<6CX> W/GRAIN GRAY 		8-94359-730-3 01 1 9112- ● ●
68 LAMP; LUGGAGE ROOM
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97004-733-2 01 1 9112-9307 ● ●
68 LAMP; LUGGAGE ROOM
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97004-735-2 01 1 9112-9504 ● ●
68 LAMP; LUGGAGE ROOM
DARK GRAY 		8-97098-336-2 01 1 9505- ● ●
69 LENS; LUGGAGE ROOM LAMP 8-94377-660-0 01 1 9112- ● ●
70 BULB; LUGGAGE ROOM LAMP
12V 8W 		8-94153-335-0 01 1 9112- ● ●
71 SCREW; LUGGAGE ROOM LAMP 9-07067-516-0 02 1 9112- ● ●
75 LAMP ASM; STOP,HIGHMOUNTED 8-97806-969-2 01 1 9209- ● ●
97 BRACKET; LICENSE PLATE LAMP 8-97807-358-1 01 1 9112- ● ●
99 SCREW
(A) M5X16 		8-94358-694-0 02 1 9112- ● ●
99 SCREW
(B) M6X16 		8-97805-189-0 05 1 9112- ● ●
99 SCREW
(C) M6X25 		8-97807-554-0 03 1 9112-9509 ● ●
99 SCREW
(C) M6X25 		8-97807-554-0 02 1 9510- ● ●
100 SCREW; GROMMET
(A) FOR M6 TAPPING SCREW 		8-97801-073-1 04 1 9112- ● ●
100 SCREW; GROMMET
(B) 		8-97802-935-2 03 1 9112-9509 ● ●
100 SCREW; GROMMET
(B) 		8-97802-935-2 02 1 9510- ● ●
263 CLIP; STOP LAMP 8-97808-380-1 02 1 9209- ● ●
