Sayfa 7-60 - Isuzu EPC

7-60 — SEAT BELT (#166611) — 271 parça

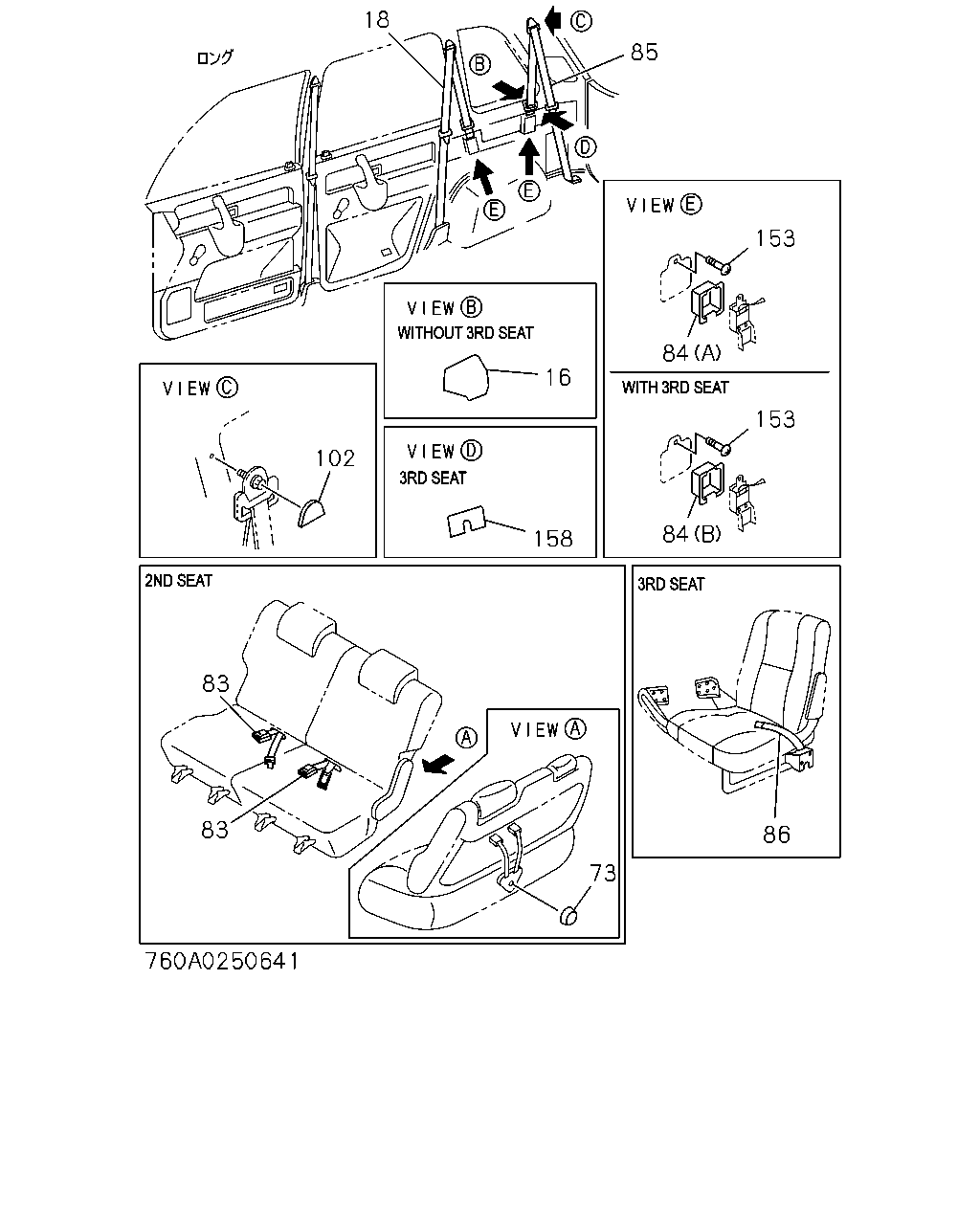

85 18 153 153 84 158 16 102 83 83 73 86 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	COVER; HOLE,SEAT BELT EXC. 3RD SEAT 7 PASSENGERS(AS3)	8-97805-828-1	01	1	9308-9607	●
16	COVER; HOLE,SEAT BELT EXC. 3RD SEAT 7 PASSENGERS(AS3)	8-97146-243-0	01	1	9608-	●
16	COVER; HOLE,SEAT BELT EXC. 3RD SEAT 7 PASSENGERS(AS3)	8-97805-944-1	01	1	9308-9607	●
16	COVER; HOLE,SEAT BELT EXC. 3RD SEAT 7 PASSENGERS(AS3)	8-97146-242-1	01	1	9608-	●
18	BELT; SEAT,RR	8-97155-236-1	01	1	9606-		●
18	BELT; SEAT,RR	8-97155-233-1	01	1	9606-		●
18	BELT; SEAT,RR INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-318-3	01	1	9112-9208		●
18	BELT; SEAT,RR INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-315-3	01	1	9112-9208		●
18	BELT; SEAT,RR INTERIOR COLOR BROWN(130) DARK BROWN	8-97808-329-2	01	1	9209-9307		●
18	BELT; SEAT,RR INTERIOR COLOR BROWN(130) DARK BROWN	8-97808-327-2	01	1	9209-9307		●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-320-3	01	1	9112-9208		●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-317-3	01	1	9112-9208		●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97808-330-2	01	1	9209-9307		●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97808-328-2	01	1	9209-9307		●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97809-928-2	01	1	9308-9504		●
18	BELT; SEAT,RR DARK GRAY	8-97152-853-1	01	1	9505-9605		●
18	BELT; SEAT,RR DARK GRAY	8-97155-235-2	01	1	9606-		●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97809-926-2	01	1	9308-9504		●
18	BELT; SEAT,RR DARK GRAY	8-97152-850-1	01	1	9505-9605		●
18	BELT; SEAT,RR DARK GRAY	8-97155-232-2	01	1	9606-		●
18	BELT; SEAT,RR INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-299-4	01	1	9112-9208	●
18	BELT; SEAT,RR INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-296-4	01	1	9112-9208	●
18	BELT; SEAT,RR INTERIOR COLOR BROWN(130) DARK BROWN	8-97808-333-2	01	1	9209-9307	●
18	BELT; SEAT,RR INTERIOR COLOR BROWN(130) DARK BROWN	8-97808-331-2	01	1	9209-9307	●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-301-4	01	1	9112-9208	●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-298-4	01	1	9112-9208	●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97808-334-3	01	1	9209-9504	●
18	BELT; SEAT,RR DARK GRAY	8-97151-765-1	01	1	9505-9605	●
18	BELT; SEAT,RR	8-97155-281-1	01	1	9606-	●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97808-332-3	01	1	9209-9504	●
18	BELT; SEAT,RR DARK GRAY	8-97151-764-1	01	1	9505-9605	●
18	BELT; SEAT,RR	8-97155-280-1	01	1	9606-	●
73	CAP; ANCHOR BOLT,SEAT BELT	8-97807-539-0	01	1	9112-9209		●
83	BELT; RR SEAT,INNER INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-345-2	01	1	9112-9208		●
83	BELT; RR SEAT,INNER INTERIOR COLOR BROWN(130) DARK BROWN	8-97809-403-0	01	1	9209-9307		●
83	BELT; RR SEAT,INNER INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-347-2	01	1	9112-9208		●
83	BELT; RR SEAT,INNER INTERIOR COLOR GRAY(153) DARK GRAY	8-97809-404-0	01	1	9209-9307		●
83	BELT; RR SEAT,INNER DARK GRAY	8-97151-768-1	01	1	9505-9605	●
83	BELT; RR SEAT,INNER DARK GRAY	8-97155-284-1	01	1	9606-	●
83	BELT; RR SEAT,INNER DARK GRAY	8-97151-769-1	01	1	9505-9605	●
83	BELT; RR SEAT,INNER DARK GRAY	8-97155-283-1	01	1	9606-	●
83	BELT; RR SEAT,INNER INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-342-2	01	1	9112-9208	●
83	BELT; RR SEAT,INNER INTERIOR COLOR BROWN(130) DARK BROWN	8-97809-407-0	01	1	9209-9307	●
83	BELT; RR SEAT,INNER INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-331-2	01	1	9112-9208	●
83	BELT; RR SEAT,INNER INTERIOR COLOR BROWN(130) DARK BROWN	8-97809-405-0	01	1	9209-9307	●
83	BELT; RR SEAT,INNER INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-344-2	01	1	9112-9208	●
83	BELT; RR SEAT,INNER INTERIOR COLOR GRAY(153) DARK GRAY	8-97809-408-0	01	1	9209-9504	●
83	BELT; RR SEAT,INNER INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-333-2	01	1	9112-9208	●
83	BELT; RR SEAT,INNER INTERIOR COLOR GRAY(153) DARK GRAY	8-97809-406-0	01	1	9209-9504	●
84	COVER; RETRACTOR,RR SEAT BELT	8-97805-823-5	01	1	9112-		●
84	COVER; RETRACTOR,RR SEAT BELT	8-97805-822-5	01	1	9112-		●
84	COVER; RETRACTOR,RR SEAT BELT (B) THIRD	8-97805-827-3	01	1	9112-9307	●
84	COVER; RETRACTOR,RR SEAT BELT (B) THIRD	8-97805-826-3	01	1	9112-9307	●
84	COVER; RETRACTOR,RR SEAT BELT (A) SECOND	8-97805-821-6	01	1	9112-	●
84	COVER; RETRACTOR,RR SEAT BELT (A) SECOND	8-97805-820-6	01	1	9112-	●
84	COVER; RETRACTOR,RR SEAT BELT 3RD SEAT 7 PASSENGERS(AS3) (B)	8-97805-827-5	01	1	9308-	●
84	COVER; RETRACTOR,RR SEAT BELT 3RD SEAT 7 PASSENGERS(AS3) (B) THIRD	8-97805-826-5	01	1	9308-	●
85	BELT; SEAT,RR OUTER INTERIOR COLOR BROWN(130) 3 POINT DARK BROWN	8-97806-369-3	01	1	9112-9208	●
85	BELT; SEAT,RR OUTER INTERIOR COLOR BROWN(130) 3 POINT DARK BROWN	8-97806-366-3	01	1	9112-9208	●
85	BELT; SEAT,RR OUTER INTERIOR COLOR BROWN(130) 3 POINT DARK BROWN	8-97808-353-2	01	1	9209-9307	●
85	BELT; SEAT,RR OUTER INTERIOR COLOR BROWN(130) 3 POINT DARK BROWN	8-97808-351-2	01	1	9209-9307	●
85	BELT; SEAT,RR OUTER INTERIOR COLOR GRAY(153) 3 POINT DARK GRAY	8-97806-371-3	01	1	9112-9208	●
85	BELT; SEAT,RR OUTER INTERIOR COLOR GRAY(153) 3 POINT DARK GRAY	8-97806-368-3	01	1	9112-9208	●
85	BELT; SEAT,RR OUTER INTERIOR COLOR GRAY(153) 3 POINT DARK GRAY	8-97808-354-2	01	1	9209-9307	●
85	BELT; SEAT,RR OUTER INTERIOR COLOR GRAY(153) 3 POINT DARK GRAY	8-97808-352-2	01	1	9209-9307	●
85	BELT; SEAT,RR OUTER 3RD SEAT 7 PASSENGERS(AS3) INTERIOR COLOR GRAY(153) 3 POINT DARK GRAY	8-97808-354-2	01	1	9308-9504	●
85	BELT; SEAT,RR OUTER 3RD SEAT 7 PASSENGERS(AS3) THIRD 3POINT DARK GRAY	8-97153-487-0	01	1	9505-9605	●
85	BELT; SEAT,RR OUTER 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97155-293-1	01	1	9606-	●
85	BELT; SEAT,RR OUTER 3RD SEAT 7 PASSENGERS(AS3) INTERIOR COLOR GRAY(153) 3 POINT DARK GRAY	8-97808-352-2	01	1	9308-9504	●
85	BELT; SEAT,RR OUTER 3RD SEAT 7 PASSENGERS(AS3) THIRD 3POINT DARK GRAY	8-97153-486-0	01	1	9505-9605	●
85	BELT; SEAT,RR OUTER 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97155-292-1	01	1	9606-	●
86	BELT; SEAT,RR INNER INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-376-1	02	1	9112-9208	●
86	BELT; SEAT,RR INNER INTERIOR COLOR BROWN(130) DARK BROWN	8-97809-417-0	02	1	9209-9307	●
86	BELT; SEAT,RR INNER INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-378-1	02	1	9112-9208	●
86	BELT; SEAT,RR INNER INTERIOR COLOR GRAY(153) DARK GRAY	8-97809-418-0	02	1	9209-9307	●
86	BELT; SEAT,RR INNER 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97809-418-0	02	1	9308-9504	●
86	BELT; SEAT,RR INNER 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97153-491-1	02	1	9505-9605	●
86	BELT; SEAT,RR INNER 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97155-297-2	02	1	9606-	●
102	COVER; SHOULDER ANCHOR INTERIOR COLOR BROWN(130) DARK BROWN	8-97804-866-0	04	1	9112-9307	●
102	COVER; SHOULDER ANCHOR INTERIOR COLOR GRAY(153) DARK GRAY	8-97804-868-0	04	1	9112-9307	●
102	COVER; SHOULDER ANCHOR INTERIOR COLOR GRAY(153) DARK GRAY	8-97804-868-0	02	1	9308-9504	●
102	COVER; SHOULDER ANCHOR 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97098-482-0	02	1	9505-	●
153	SCREW; RETRACTOR 3RD SEAT 7 PASSENGERS(AS3) M6X10	9-03800-610-0	02	1	9112-	●
158	SEAL; BEZEL,SEAT BELT 3RD SEAT 7 PASSENGERS(AS3)	8-97808-256-1	02	1	9201-	●

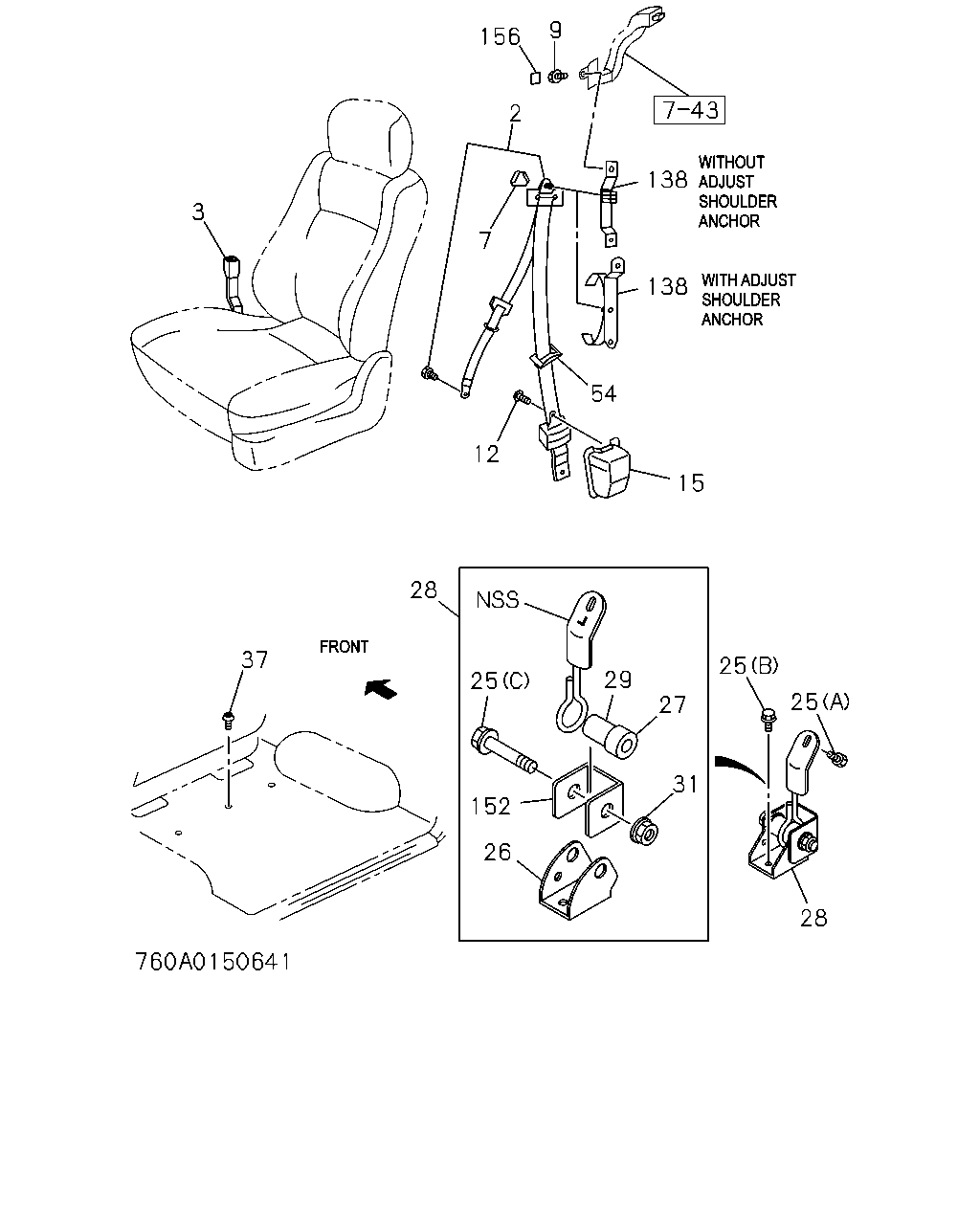

156 9 2 7 138 138 15 54 12 3 28 37 29 25 27 31 152 26 25 25 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN DARK BROWN	8-97806-541-3	01	1	9112-9208		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97809-550-1	01	1	9209-9307		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97806-241-3	01	1	9112-9208		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97809-546-1	01	1	9209-9307		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97806-538-3	01	1	9112-9207		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97806-537-4	01	1	9208-9208		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97809-548-1	01	1	9209-9307		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97806-235-3	01	1	9112-9208		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97809-544-1	01	1	9209-9307		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97806-543-3	01	1	9112-9208		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97806-243-3	01	1	9112-9208		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97809-551-1	01	1	9209-9504		●
2	BELT; SEAT,TONGUE SIDE ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97153-462-0	01	1	9505-9510		●
2	BELT; SEAT,TONGUE SIDE ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97155-147-1	01	1	9511-9605		●
2	BELT; SEAT,TONGUE SIDE ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97155-263-2	01	1	9606-		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97809-547-1	01	1	9209-9504		●
2	BELT; SEAT,TONGUE SIDE ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97153-458-0	01	1	9505-9510		●
2	BELT; SEAT,TONGUE SIDE ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97155-143-0	01	1	9511-9605		●
2	BELT; SEAT,TONGUE SIDE ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97155-259-1	01	1	9606-		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97806-540-3	01	1	9112-9208		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97806-237-3	01	1	9112-9208		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97809-549-1	01	1	9209-9504		●
2	BELT; SEAT,TONGUE SIDE EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97153-461-0	01	1	9505-9510		●
2	BELT; SEAT,TONGUE SIDE EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97155-146-1	01	1	9511-9605		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97809-545-1	01	1	9209-9504		●
2	BELT; SEAT,TONGUE SIDE EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97153-457-0	01	1	9505-9510		●
2	BELT; SEAT,TONGUE SIDE EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97155-142-0	01	1	9511-9605		●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97807-618-2	01	1	9112-9208	●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97806-255-3	01	1	9112-9208	●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97809-558-1	01	1	9209-9307	●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97809-554-1	01	1	9209-9307	●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97807-616-2	01	1	9112-9208	●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97806-249-3	01	1	9112-9208	●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97809-556-1	01	1	9209-9307	●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BROWN(130) EXC. ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97809-552-1	01	1	9209-9307	●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97807-619-2	01	1	9112-9208	●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97806-257-3	01	1	9112-9208	●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97809-559-1	01	1	9209-9504	●
2	BELT; SEAT,TONGUE SIDE ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97153-464-0	01	1	9505-9510	●
2	BELT; SEAT,TONGUE SIDE ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97155-149-1	01	1	9511-9605	●
2	BELT; SEAT,TONGUE SIDE ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97155-265-2	01	1	9606-	●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97809-555-1	01	1	9209-9504	●
2	BELT; SEAT,TONGUE SIDE ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97153-460-0	01	1	9505-9510	●
2	BELT; SEAT,TONGUE SIDE ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97155-145-0	01	1	9511-9605	●
2	BELT; SEAT,TONGUE SIDE ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97155-261-1	01	1	9606-	●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97807-617-2	01	1	9112-9208	●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97806-251-3	01	1	9112-9208	●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97809-557-1	01	1	9209-9504	●
2	BELT; SEAT,TONGUE SIDE EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97153-463-0	01	1	9505-9510	●
2	BELT; SEAT,TONGUE SIDE EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97155-148-1	01	1	9511-9605	●
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(153) EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97809-553-1	01	1	9209-9504	●
2	BELT; SEAT,TONGUE SIDE EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97153-459-0	01	1	9505-9510	●
2	BELT; SEAT,TONGUE SIDE EXC. ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97155-144-0	01	1	9511-9605	●
3	BELT; SEAT,BUCKLE SIDE INTERIOR COLOR BROWN(130) DARK BROWN DARK BROWN	8-97806-263-2	02	1	9112-9208	●	●
3	BELT; SEAT,BUCKLE SIDE INTERIOR COLOR BROWN(130) DARK BROWN	8-97808-824-0	01	1	9209-9307	●	●
3	BELT; SEAT,BUCKLE SIDE INTERIOR COLOR BROWN(130) DARK BROWN	8-97808-317-0	01	1	9209-9307	●	●
3	BELT; SEAT,BUCKLE SIDE INTERIOR COLOR GRAY(153) DARK GRAY DARK GRAY	8-97806-265-2	02	1	9112-9208	●	●
3	BELT; SEAT,BUCKLE SIDE INTERIOR COLOR GRAY(153) DARK GRAY	8-97808-825-1	01	1	9209-9504	●	●
3	BELT; SEAT,BUCKLE SIDE DARK GRAY	8-97154-513-0	01	1	9505-9605	●	●
3	BELT; SEAT,BUCKLE SIDE DARK GRAY	8-97155-275-1	01	1	9606-	●	●
3	BELT; SEAT,BUCKLE SIDE INTERIOR COLOR GRAY(153) DARK GRAY	8-97808-318-1	01	1	9209-9504	●	●
3	BELT; SEAT,BUCKLE SIDE DARK GRAY	8-97154-512-0	01	1	9505-9605	●	●
3	BELT; SEAT,BUCKLE SIDE DARK GRAY	8-97155-274-1	01	1	9606-	●	●
7	COVER; SHOULDER ANCHOR,FRT SEAT INTERIOR COLOR BROWN(130) DARK BROWN	8-97804-866-0	02	1	9112-9307	●	●
7	COVER; SHOULDER ANCHOR,FRT SEAT INTERIOR COLOR GRAY(153) DARK GRAY	8-97804-868-0	02	1	9112-9504	●	●
7	COVER; SHOULDER ANCHOR,FRT SEAT DARK GRAY	8-97098-482-0	02	1	9505-	●	●
9	BOLT; SEAT BELT ANCHOR	8-97807-245-0	04	1	9112-		●
9	BOLT; SEAT BELT ANCHOR 7/16"X32	8-97807-246-0	04	1	9112-	●
12	SCREW; RETRACTOR COVER,SEAT BELT M6X10	9-03800-610-0	02	1	9112-		●
12	SCREW; RETRACTOR COVER,SEAT BELT M6X12 TAPPING W/PL WASHER	0-74100-612-0	02	1	9112-	●
15	COVER; DUST,FRT SEAT BELT RETRACTOR	8-97805-819-3	02	1	9112-9208		●
15	COVER; DUST,FRT SEAT BELT RETRACTOR	8-97808-204-3	02	1	9209-		●
15	COVER; DUST,FRT SEAT BELT RETRACTOR	8-97805-818-3	02	1	9112-9208	●
15	COVER; DUST,FRT SEAT BELT RETRACTOR	8-97808-203-2	02	1	9209-	●
25	BOLT; TENSION ROD BRKT,SEAT BELT (C) M10X50 FLANGE	0-28081-050-0	02	1	9112-9307	●	●
25	BOLT; TENSION ROD BRKT,SEAT BELT (C) M10X50 FLANGE	0-28081-050-0	01	1	9308-9511	●	●
25	BOLT; TENSION ROD BRKT,SEAT BELT (C) M10X50 FLANGE	0-28081-050-0	02	1	9511-	●	●
25	BOLT; TENSION ROD BRKT,SEAT BELT (A) M10X20 W/LK WASHER	0-50041-020-0	02	1	9112-9710	●	●
25	BOLT; TENSION ROD BRKT,SEAT BELT (A) M10X20 FLANGE	0-28081-020-0	02	1	9711-	●	●
25	BOLT; TENSION ROD BRKT,SEAT BELT (B) M10X20 W/PL WASHER	8-94180-854-0	02	1	9112-	●	●
26	BRACKET; TENSION ROD,SEAT BELT	8-97801-223-1	02	1	9112-	●	●
27	CUSHION; TENSION ROD,SEAT BELT	8-97801-221-0	02	1	9112-9502	●	●
27	CUSHION; TENSION ROD,SEAT BELT	8-97115-110-0	01	1	9503-9511	●	●
28	ROD ASM; TENSION,SEAT BELT	8-97806-772-1	01	1	9112-9502		●
28	ROD ASM; TENSION,SEAT BELT	8-97115-109-0	01	1	9503-9511		●
28	ROD ASM; TENSION,SEAT BELT	8-97804-919-1	01	1	9112-9502	●	●
28	ROD ASM; TENSION,SEAT BELT	8-97115-107-1	01	1	9503-9706	●	●
28	ROD ASM; TENSION,SEAT BELT	8-97119-217-1	01	1	9707-9801	●	●
28	ROD ASM; TENSION,SEAT BELT	8-97189-276-1	01	1	9802-	●	●
28	ROD ASM; TENSION,SEAT BELT	8-97804-920-1	01	1	9112-9502	●
28	ROD ASM; TENSION,SEAT BELT	8-97115-108-0	01	1	9503-9511	●
28	ROD ASM; TENSION,SEAT BELT	8-97115-108-1	01	1	9511-9706	●	●
28	ROD ASM; TENSION,SEAT BELT	8-97119-218-1	01	1	9707-9801	●	●
28	ROD ASM; TENSION,SEAT BELT	8-97189-277-1	01	1	9802-	●	●
29	SPACER; TENSION ROD,SEAT BELT	8-97801-222-0	02	1	9112-9504	●	●
29	SPACER; TENSION ROD,SEAT BELT	8-97801-222-0	01	1	9505-9511	●	●
29	SPACER; TENSION ROD,SEAT BELT	8-97801-222-0	02	1	9511-	●	●
31	NUT; TENSION ROD BRKT M10 FLANGE	0-91150-210-0	02	1	9112-9504	●	●
31	NUT; TENSION ROD BRKT M10 FLANGE	0-91150-210-0	01	1	9505-9511	●	●
31	NUT; TENSION ROD BRKT M10 FLANGE	0-91150-210-0	02	1	9511-	●	●
37	PLUG; SEAT BELT ANCHOR M8X16	8-97803-676-0	03	1	9112-9205	●	●
37	PLUG; SEAT BELT ANCHOR M8X16	8-94188-667-0	03	1	9206-	●	●
54	BEZEL; SEAT BELT INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-339-2	02	1	9112-9307		●
54	BEZEL; SEAT BELT INTERIOR COLOR BROWN(130) DARK BROWN	8-97804-477-0	01	1	9112-9307		●
54	BEZEL; SEAT BELT INTERIOR COLOR BROWN(130) DARK BROWN	8-97804-473-0	01	1	9112-9307		●
54	BEZEL; SEAT BELT INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-740-2	02	1	9112-9504		●
54	BEZEL; SEAT BELT DARK GRAY	8-97805-740-2	02	1	9505-		●
54	BEZEL; SEAT BELT INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-748-0	01	1	9112-9504		●
54	BEZEL; SEAT BELT DARK GRAY	8-97098-555-0	01	1	9505-9605		●
54	BEZEL; SEAT BELT INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-746-0	01	1	9112-9504		●
54	BEZEL; SEAT BELT DARK GRAY	8-97098-508-0	01	1	9505-9605		●
54	BEZEL; SEAT BELT INTERIOR COLOR BROWN(130) DARK BROWN	8-97807-137-1	02	1	9112-9208	●
54	BEZEL; SEAT BELT INTERIOR COLOR GRAY(153) DARK GRAY	8-97807-139-1	02	1	9112-9208	●
138	BRACKET; ANCHOR,SEAT BELT INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97808-785-2	02	1	9202-9307		●
138	BRACKET; ANCHOR,SEAT BELT INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97808-786-4	02	1	9202-9504		●
138	BRACKET; ANCHOR,SEAT BELT INTERIOR COLOR MEDIUM GRAY(113) ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97151-479-4	02	1	9505-		●
138	BRACKET; ANCHOR,SEAT BELT EXC. ADJ SHOULDER ANCHOR<AF8>	8-97803-303-2	02	1	9112-	●	●
138	BRACKET; ANCHOR,SEAT BELT INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97806-271-3	02	1	9112-9201	●	●
138	BRACKET; ANCHOR,SEAT BELT INTERIOR COLOR BROWN(130) ADJ SHOULDER ANCHOR<AF8> DARK BROWN	8-97806-271-5	02	1	9202-9307	●
138	BRACKET; ANCHOR,SEAT BELT INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97806-273-3	02	1	9112-9201	●	●
138	BRACKET; ANCHOR,SEAT BELT INTERIOR COLOR GRAY(153) ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97806-273-7	02	1	9202-9504	●
138	BRACKET; ANCHOR,SEAT BELT INTERIOR COLOR MEDIUM GRAY(113) ADJ SHOULDER ANCHOR<AF8> DARK GRAY	8-97151-478-7	02	1	9505-	●
152	PROTECTOR	8-97804-661-0	02	1	9112-9504		●
152	PROTECTOR	8-97804-661-0	01	1	9505-9511		●
156	CUSHION; SHOULDER ANCHOR ADJ SHOULDER ANCHOR<AF8>	8-97808-667-0	04	1	9202-	●	●

153 84 42 18 22 83 22 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	BELT; SEAT,RR	8-97155-236-1	01	1	9606-		●
18	BELT; SEAT,RR	8-97155-233-1	01	1	9606-		●
18	BELT; SEAT,RR INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-318-3	01	1	9112-9208		●
18	BELT; SEAT,RR INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-315-3	01	1	9112-9208		●
18	BELT; SEAT,RR INTERIOR COLOR BROWN(130) DARK BROWN	8-97808-329-2	01	1	9209-9307		●
18	BELT; SEAT,RR INTERIOR COLOR BROWN(130) DARK BROWN	8-97808-327-2	01	1	9209-9307		●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-320-3	01	1	9112-9208		●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-317-3	01	1	9112-9208		●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97808-330-2	01	1	9209-9307		●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97808-328-2	01	1	9209-9307		●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97809-928-2	01	1	9308-9504		●
18	BELT; SEAT,RR DARK GRAY	8-97152-853-1	01	1	9505-9605		●
18	BELT; SEAT,RR DARK GRAY	8-97155-235-2	01	1	9606-		●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97809-926-2	01	1	9308-9504		●
18	BELT; SEAT,RR DARK GRAY	8-97152-850-1	01	1	9505-9605		●
18	BELT; SEAT,RR DARK GRAY	8-97155-232-2	01	1	9606-		●
18	BELT; SEAT,RR INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-299-4	01	1	9112-9208	●
18	BELT; SEAT,RR INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-296-4	01	1	9112-9208	●
18	BELT; SEAT,RR INTERIOR COLOR BROWN(130) DARK BROWN	8-97808-333-2	01	1	9209-9307	●
18	BELT; SEAT,RR INTERIOR COLOR BROWN(130) DARK BROWN	8-97808-331-2	01	1	9209-9307	●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-301-4	01	1	9112-9208	●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-298-4	01	1	9112-9208	●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97808-334-3	01	1	9209-9504	●
18	BELT; SEAT,RR DARK GRAY	8-97151-765-1	01	1	9505-9605	●
18	BELT; SEAT,RR	8-97155-281-1	01	1	9606-	●
18	BELT; SEAT,RR INTERIOR COLOR GRAY(153) DARK GRAY	8-97808-332-3	01	1	9209-9504	●
18	BELT; SEAT,RR DARK GRAY	8-97151-764-1	01	1	9505-9605	●
18	BELT; SEAT,RR	8-97155-280-1	01	1	9606-	●
22	BELT; RR SEAT,CENTER DARK GRAY	8-97809-932-1	01	1	9308-9504		●
22	BELT; RR SEAT,CENTER DARK GRAY	8-97152-856-2	01	1	9505-9605		●
22	BELT; RR SEAT,CENTER DARK GRAY	8-97155-237-2	01	1	9606-		●
42	COVER; SEAT BELT INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-807-1	01	1	9112-9307		●
42	COVER; SEAT BELT INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-804-1	01	1	9112-9307		●
42	COVER; SEAT BELT INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-809-1	01	1	9112-9504		●
42	COVER; SEAT BELT INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97098-416-1	01	1	9505-		●
42	COVER; SEAT BELT INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-806-1	01	1	9112-9504		●
42	COVER; SEAT BELT INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97098-415-1	01	1	9505-		●
83	BELT; RR SEAT,INNER INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-345-2	01	1	9112-9208		●
83	BELT; RR SEAT,INNER INTERIOR COLOR BROWN(130) DARK BROWN	8-97809-403-0	01	1	9209-9307		●
83	BELT; RR SEAT,INNER INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-347-2	01	1	9112-9208		●
83	BELT; RR SEAT,INNER INTERIOR COLOR GRAY(153) DARK GRAY	8-97809-404-0	01	1	9209-9307		●
83	BELT; RR SEAT,INNER DARK GRAY	8-97151-768-1	01	1	9505-9605	●
83	BELT; RR SEAT,INNER DARK GRAY	8-97155-284-1	01	1	9606-	●
83	BELT; RR SEAT,INNER DARK GRAY	8-97151-769-1	01	1	9505-9605	●
83	BELT; RR SEAT,INNER DARK GRAY	8-97155-283-1	01	1	9606-	●
83	BELT; RR SEAT,INNER INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-342-2	01	1	9112-9208	●
83	BELT; RR SEAT,INNER INTERIOR COLOR BROWN(130) DARK BROWN	8-97809-407-0	01	1	9209-9307	●
83	BELT; RR SEAT,INNER INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-331-2	01	1	9112-9208	●
83	BELT; RR SEAT,INNER INTERIOR COLOR BROWN(130) DARK BROWN	8-97809-405-0	01	1	9209-9307	●
83	BELT; RR SEAT,INNER INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-344-2	01	1	9112-9208	●
83	BELT; RR SEAT,INNER INTERIOR COLOR GRAY(153) DARK GRAY	8-97809-408-0	01	1	9209-9504	●
83	BELT; RR SEAT,INNER INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-333-2	01	1	9112-9208	●
83	BELT; RR SEAT,INNER INTERIOR COLOR GRAY(153) DARK GRAY	8-97809-406-0	01	1	9209-9504	●
84	COVER; RETRACTOR,RR SEAT BELT	8-97805-823-5	01	1	9112-		●
84	COVER; RETRACTOR,RR SEAT BELT	8-97805-822-5	01	1	9112-		●
84	COVER; RETRACTOR,RR SEAT BELT (B) THIRD	8-97805-827-3	01	1	9112-9307	●
84	COVER; RETRACTOR,RR SEAT BELT (B) THIRD	8-97805-826-3	01	1	9112-9307	●
84	COVER; RETRACTOR,RR SEAT BELT (A) SECOND	8-97805-821-6	01	1	9112-	●
84	COVER; RETRACTOR,RR SEAT BELT (A) SECOND	8-97805-820-6	01	1	9112-	●
84	COVER; RETRACTOR,RR SEAT BELT 3RD SEAT 7 PASSENGERS(AS3) (B)	8-97805-827-5	01	1	9308-	●
84	COVER; RETRACTOR,RR SEAT BELT 3RD SEAT 7 PASSENGERS(AS3) (B) THIRD	8-97805-826-5	01	1	9308-	●
153	SCREW; RETRACTOR 3RD SEAT 7 PASSENGERS(AS3) M6X10	9-03800-610-0	02	1	9112-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
