Sayfa 7-40 - Isuzu EPC

7-40 — INSTRUMENT PANEL AND BOX (#166604) — 350 parça

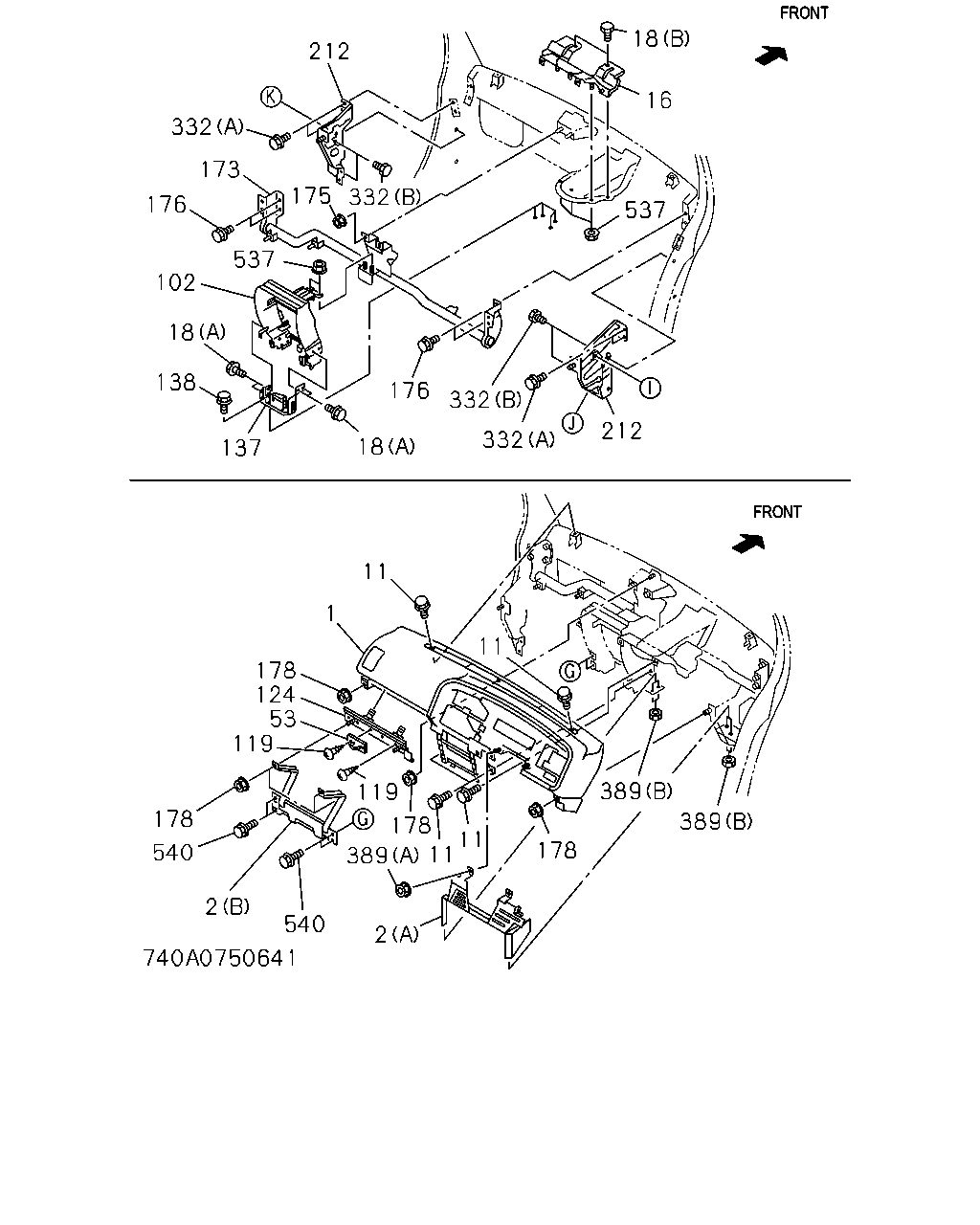

18 212 332 332 175 173 176 537 102 18 138 137 18 176 332 332 212 537 16 11 11 1 178 124 53 119 178 540 2 119 178 389 540 2 11 11 178 389 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; INST INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-390-9	01	1	9112-9303	●	●
1	PANEL; INST INTERIOR COLOR BROWN(130) DARK BROWN	8-97817-004-0	01	1	9304-9307	●	●
1	PANEL; INST INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-392-9	01	1	9112-9303	●	●
1	PANEL; INST INTERIOR COLOR GRAY(153) DARK GRAY	8-97817-003-1	01	1	9304-9504	●	●
1	PANEL; INST DARK GRAY	8-97152-349-5	01	1	9505-9510	●	●
1	PANEL; INST EXC. AIR BAG PASSENGER<7FA> DARK GRAY	8-97152-349-5	01	1	9511-	●	●
1	PANEL; INST AIR BAG PASSENGER<7FA> DARK GRAY	8-97157-873-5	01	1	9511-	●	●
2	REINFORCEMENT; INST PNL,LWR INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-402-4	01	1	9202-9307	●	●
2	REINFORCEMENT; INST PNL,LWR INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-404-4	01	1	9202-9504	●	●
2	REINFORCEMENT; INST PNL,LWR (B) DARK GRAY	8-97091-921-3	01	1	9505-9510	●	●
2	REINFORCEMENT; INST PNL,LWR EXC. AIR BAG PASSENGER<7FA> (B) DARK GRAY	8-97091-921-3	01	1	9511-9511	●	●
2	REINFORCEMENT; INST PNL,LWR AIR BAG PASSENGER<7FA> (B)	8-97130-115-0	01	1	9511-9511	●	●
2	REINFORCEMENT; INST PNL,LWR (B)	8-97130-115-1	01	1	9512-	●	●
2	REINFORCEMENT; INST PNL,LWR AIR BAG DRIVER<AJ3> (A)	8-97130-114-0	01	1	9511-9703	●	●
2	REINFORCEMENT; INST PNL,LWR AIR BAG DRIVER<AJ3> (A)	8-97175-234-1	01	1	9704-	●	●
11	BOLT; INST PNL	8-97805-931-0	06	1	9112-9210	●	●
11	BOLT; INST PNL	8-97032-653-0	06	1	9211-9504	●	●
11	BOLT; INST PNL M6X18 W/LK&PL WASHER	8-97060-719-0	06	1	9505-	●	●
16	BRACKET; INST PNL	8-97808-068-1	01	1	9112-9504	●	●
16	BRACKET; INST PNL	8-97083-250-2	01	1	9505-9510	●	●
16	BRACKET; INST PNL AIR BAG DRIVER<AJ3>	8-97133-384-0	01	1	9511-9605	●	●
16	BRACKET; INST PNL	8-97133-384-0	01	1	9606-	●	●
16	BRACKET; INST PNL EXC. AIR BAG DRIVER<AJ3>	8-97110-158-1	01	1	9511-9605	●	●
18	BOLT; BRKT (A) M6X12 W/LK WASHER	0-50040-612-0	04	1	9505-	●	●
18	BOLT; BRKT (B) M8X25	8-94493-360-1	02	1	9505-	●	●
53	STRIKER; GLOVE BOX	8-94310-754-1	01	1	9112-9504	●	●
53	STRIKER; GLOVE BOX	8-97064-753-0	01	1	9505-	●	●
102	BRACKET; INST PANEL TO FLOOR	8-97803-731-4	01	1	9112-9504	●	●
102	BRACKET; INST PANEL TO FLOOR	8-97093-551-3	01	1	9505-	●	●
119	SCREW; BRKT TO INST M5X16 TAPPING	9-09829-323-1	08	1	9505-	●	●
124	REINFORCEMENT; INST PNL,UPR	8-97804-156-1	01	1	9112-9504	●	●
124	REINFORCEMENT; INST PNL,UPR	8-97091-905-1	01	1	9505-9606	●	●
124	REINFORCEMENT; INST PNL,UPR AIR BAG PASSENGER<7FA>	8-97091-905-1	01	1	9607-	●	●
124	REINFORCEMENT; INST PNL,UPR EXC. AIR BAG PASSENGER<7FA>	8-97176-082-0	01	1	9607-	●	●
137	BRACKET; INST PNL MTG	8-97093-943-0	01	1	9505-9510	●	●
137	BRACKET; INST PNL MTG	8-97115-364-0	01	1	9511-	●	●
138	BOLT; BRKT TO BODY M6X16 W/LK&PL WASHER	8-97086-823-0	04	1	9505-9510	●	●
138	BOLT; BRKT TO BODY M6X16 W/LK&PL WASHER	8-97086-823-0	06	1	9511-	●	●
173	BEAM ASM; CROSS,INST PANEL	8-94359-614-4	01	1	9112-9504	●	●
173	BEAM ASM; CROSS,INST PANEL	8-97093-538-1	01	1	9505-9510	●	●
173	BEAM ASM; CROSS,INST PANEL	8-97130-116-0	01	1	9511-	●	●
175	NUT; CROSS BEAM M6 W/DISHED WASHER	8-94170-192-0	04	1	9112-9504	●	●
175	NUT; CROSS BEAM M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
176	BOLT; CROSS BEAM (A) M6X16 W/PL WASHER	8-94204-636-0	08	1	9112-9504	●	●
176	BOLT; CROSS BEAM (A) M6X16 W/PL WASHER	8-94204-636-0	04	1	9505-	●	●
176	BOLT; CROSS BEAM (B) M6X20	8-97803-614-0	02	1	9112-9504	●	●
178	NUT; INST PANEL (B) M5 SPIRE NUT	8-94217-271-0	24	1	9112-9211	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	24	1	9212-9303	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	22	1	9304-9307	●	●
178	NUT; INST PANEL (A) M6 W/DISHED WASHER	8-94170-192-0	02	1	9112-9504	●	●
178	NUT; INST PANEL (A) M6 W/DISHED WASHER	8-94170-192-0	07	1	9505-	●	●
178	NUT; INST PANEL (C)	8-97807-989-0	01	1	9112-9504	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	22	1	9308-9504	●	●
212	BRACKET; INST PNL SIDE	8-97093-552-4	01	1	9505-	●	●
212	BRACKET; INST PNL SIDE	8-97093-550-4	01	1	9505-9510	●	●
212	BRACKET; INST PNL SIDE	8-97130-117-1	01	1	9511-	●	●
332	BOLT; SIDE CLUSTER (B) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9505-	●	●
332	BOLT; SIDE CLUSTER (A) M6X16 W/PL WASHER	8-94204-636-0	04	1	9505-	●	●
389	NUT; REINF AIR BAG DRIVER<AJ3> (A) M6 FLANGE	0-91150-106-0	02	1	9511-	●	●
389	NUT; REINF AIR BAG DRIVER<AJ3> (B) M8 FLANGE	0-91150-208-0	04	1	9511-	●	●
537	NUT; BRKT M6 FLANGE	8-97063-399-0	05	1	9505-	●	●
540	BOLT; REINFORCEMENT M6X20 W/WASHER	8-94112-987-1	04	1	9505-	●	●

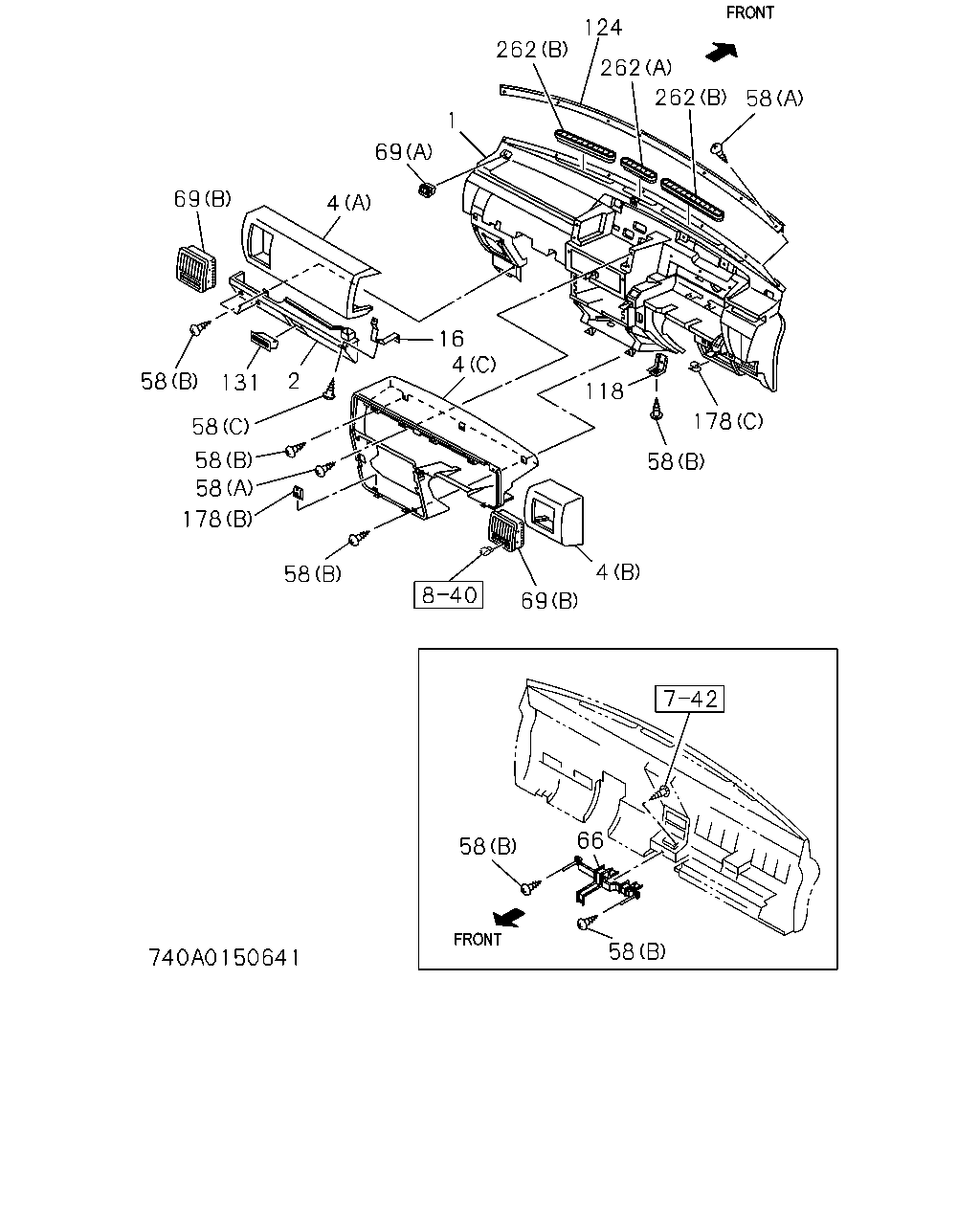

69 58 58 58 58 178 58 69 4 58 4 16 178 118 2 131 4 69 1 58 262 262 124 262 58 66 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; INST INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-390-9	01	1	9112-9303	●	●
1	PANEL; INST INTERIOR COLOR BROWN(130) DARK BROWN	8-97817-004-0	01	1	9304-9307	●	●
1	PANEL; INST INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-392-9	01	1	9112-9303	●	●
1	PANEL; INST INTERIOR COLOR GRAY(153) DARK GRAY	8-97817-003-1	01	1	9304-9504	●	●
1	PANEL; INST DARK GRAY	8-97152-349-5	01	1	9505-9510	●	●
1	PANEL; INST EXC. AIR BAG PASSENGER<7FA> DARK GRAY	8-97152-349-5	01	1	9511-	●	●
1	PANEL; INST AIR BAG PASSENGER<7FA> DARK GRAY	8-97157-873-5	01	1	9511-	●	●
2	REINFORCEMENT; INST PNL,LWR INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-402-4	01	1	9202-9307	●	●
2	REINFORCEMENT; INST PNL,LWR INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-404-4	01	1	9202-9504	●	●
2	REINFORCEMENT; INST PNL,LWR (B) DARK GRAY	8-97091-921-3	01	1	9505-9510	●	●
2	REINFORCEMENT; INST PNL,LWR EXC. AIR BAG PASSENGER<7FA> (B) DARK GRAY	8-97091-921-3	01	1	9511-9511	●	●
2	REINFORCEMENT; INST PNL,LWR AIR BAG PASSENGER<7FA> (B)	8-97130-115-0	01	1	9511-9511	●	●
2	REINFORCEMENT; INST PNL,LWR (B)	8-97130-115-1	01	1	9512-	●	●
2	REINFORCEMENT; INST PNL,LWR AIR BAG DRIVER<AJ3> (A)	8-97130-114-0	01	1	9511-9703	●	●
2	REINFORCEMENT; INST PNL,LWR AIR BAG DRIVER<AJ3> (A)	8-97175-234-1	01	1	9704-	●	●
4	COVER; INST PNL INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97806-393-1	01	1	9112-9307	●	●
4	COVER; INST PNL INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97806-396-1	01	1	9112-9307	●	●
4	COVER; INST PNL INTERIOR COLOR BROWN(130) (C) DARK BROWN	8-97806-399-5	01	1	9112-9307	●	●
4	COVER; INST PNL INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97806-395-1	01	1	9112-9504	●	●
4	COVER; INST PNL DARK GRAY	8-97151-278-4	01	1	9505-9510	●	●
4	COVER; INST PNL DARK GRAY	8-97155-300-0	01	1	9511-	●	●
4	COVER; INST PNL INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97806-398-1	01	1	9112-9504	●	●
4	COVER; INST PNL INTERIOR COLOR GRAY(153) (C) DARK GRAY	8-97806-401-5	01	1	9112-9504	●	●
16	BRACKET; INST PNL	8-97808-068-1	01	1	9112-9504	●	●
16	BRACKET; INST PNL	8-97083-250-2	01	1	9505-9510	●	●
16	BRACKET; INST PNL AIR BAG DRIVER<AJ3>	8-97133-384-0	01	1	9511-9605	●	●
16	BRACKET; INST PNL	8-97133-384-0	01	1	9606-	●	●
16	BRACKET; INST PNL EXC. AIR BAG DRIVER<AJ3>	8-97110-158-1	01	1	9511-9605	●	●
58	SCREW; INST PANEL (C) M5X14 TAPPING W/PL WASHER	0-74110-514-0	07	1	9112-9504	●	●
58	SCREW; INST PANEL (A) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	13	1	9112-9504	●	●
58	SCREW; INST PANEL (B) M5X14 TAPPING	9-09829-322-1	22	1	9112-9504	●	●
66	REINFORCEMENT; INST PANEL	8-97804-042-5	01	1	9112-9504	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-318-3	01	1	9112-9307	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-362-3	01	1	9112-9208	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97808-675-0	01	1	9209-9307	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-265-3	01	1	9112-9208	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97808-672-0	01	1	9209-9307	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-314-3	01	1	9112-9307	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-364-3	01	1	9112-9208	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97808-676-0	01	1	9209-9504	●	●
69	GRILLE; SIDE,AIR OUTLET (C) BLACK	8-97091-908-1	01	1	9505-	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-267-3	01	1	9112-9208	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97808-673-0	01	1	9209-9504	●	●
69	GRILLE; SIDE,AIR OUTLET (D) DARK GRAY	8-97080-486-1	01	1	9505-	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-316-3	01	1	9112-9504	●	●
69	GRILLE; SIDE,AIR OUTLET (E) DARK GRAY	8-97151-142-1	01	1	9505-	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-320-3	01	1	9112-9504	●	●
69	GRILLE; SIDE,AIR OUTLET (E) DARK GRAY	8-97151-143-1	01	1	9505-	●	●
118	BRACKET; STRG	8-97805-932-2	01	1	9112-9504	●	●
124	REINFORCEMENT; INST PNL,UPR	8-97804-156-1	01	1	9112-9504	●	●
124	REINFORCEMENT; INST PNL,UPR	8-97091-905-1	01	1	9505-9606	●	●
124	REINFORCEMENT; INST PNL,UPR AIR BAG PASSENGER<7FA>	8-97091-905-1	01	1	9607-	●	●
124	REINFORCEMENT; INST PNL,UPR EXC. AIR BAG PASSENGER<7FA>	8-97176-082-0	01	1	9607-	●	●
131	GRILLE ASM; LAP VENT BLACK	8-97806-851-2	02	1	9112-9504	●	●
178	NUT; INST PANEL (B) M5 SPIRE NUT	8-94217-271-0	24	1	9112-9211	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	24	1	9212-9303	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	22	1	9304-9307	●	●
178	NUT; INST PANEL (A) M6 W/DISHED WASHER	8-94170-192-0	02	1	9112-9504	●	●
178	NUT; INST PANEL (A) M6 W/DISHED WASHER	8-94170-192-0	07	1	9505-	●	●
178	NUT; INST PANEL (C)	8-97807-989-0	01	1	9112-9504	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	22	1	9308-9504	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-302-0	01	1	9112-9307	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-310-0	01	1	9112-9307	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-306-0	01	1	9112-9307	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-304-0	01	1	9112-9504	●	●
262	GRILLE; DEFROSTER DARK GRAY	8-97098-380-1	01	1	9505-	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-312-0	01	1	9112-9504	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-308-0	01	1	9112-9504	●	●

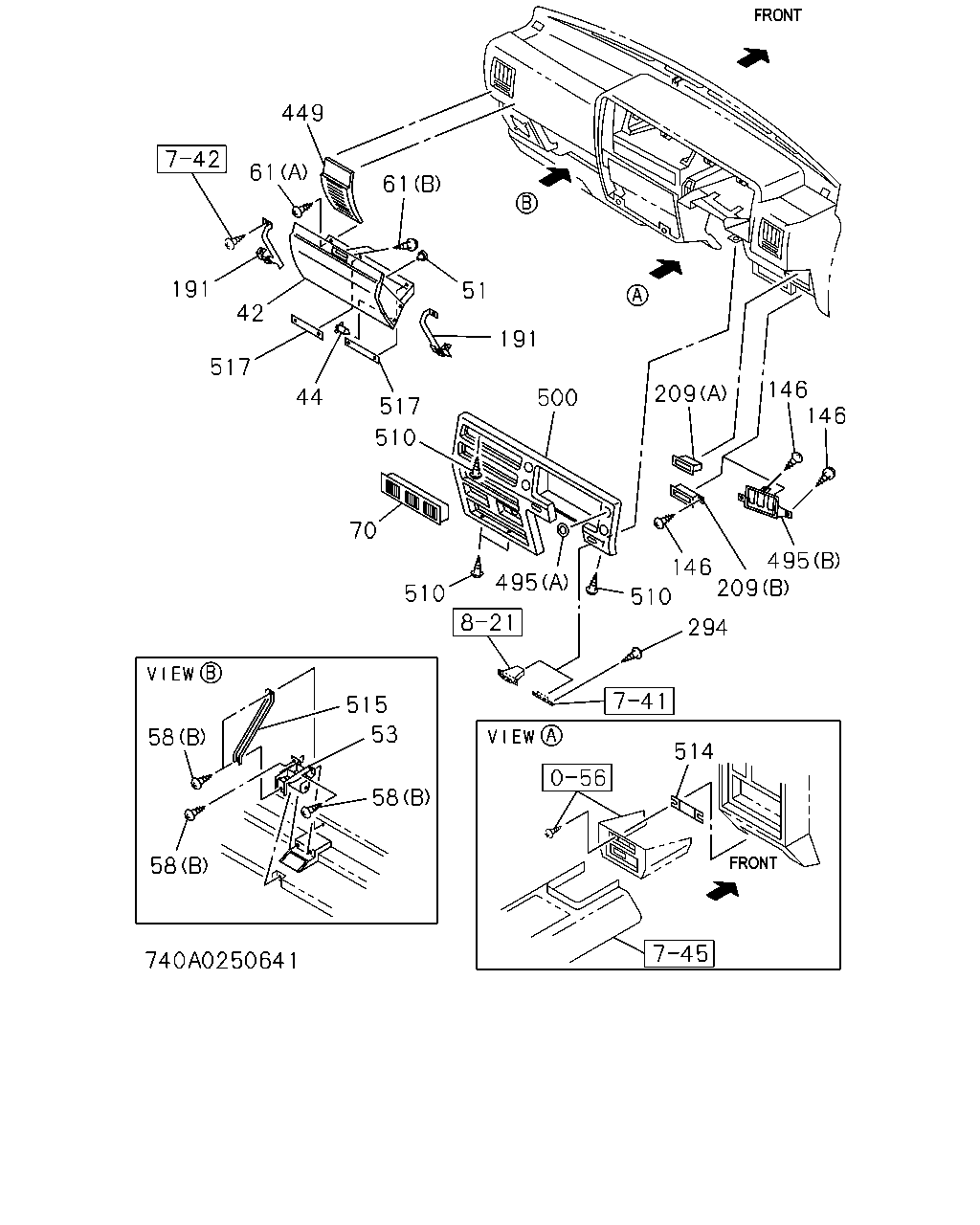

449 61 61 191 517 44 517 510 51 191 500 70 510 495 209 146 146 146 495 209 294 510 42 58 515 53 58 58 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	BOX; GLOVE,INST PNL INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-322-6	01	1	9112-9307	●	●
42	BOX; GLOVE,INST PNL INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-324-7	01	1	9112-9504	●	●
42	BOX; GLOVE,INST PNL DARK GRAY	8-97151-304-4	01	1	9505-9708	●	●
42	BOX; GLOVE,INST PNL DARK GRAY	8-97195-652-0	01	1	9709-	●	●
44	PIN; GLOVE BOX	8-94129-687-2	02	1	9112-9210	●	●
44	PIN; GLOVE BOX	8-94344-553-1	02	1	9211-9504	●	●
51	CUSHION; STOPPER,GLOVE BOX CENTER&SIDE	9-09956-622-0	04	1	9112-9211	●	●
51	CUSHION; STOPPER,GLOVE BOX CENTER&SIDE	8-97810-124-0	04	1	9212-9411	●	●
51	CUSHION; STOPPER,GLOVE BOX SIDE	8-97810-124-0	02	1	9412-9504	●	●
51	CUSHION; STOPPER,GLOVE BOX CENTER	9-09956-622-0	02	1	9412-9504	●	●
53	STRIKER; GLOVE BOX	8-94310-754-1	01	1	9112-9504	●	●
53	STRIKER; GLOVE BOX	8-97064-753-0	01	1	9505-	●	●
58	SCREW; INST PANEL (C) M5X14 TAPPING W/PL WASHER	0-74110-514-0	07	1	9112-9504	●	●
58	SCREW; INST PANEL (A) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	13	1	9112-9504	●	●
58	SCREW; INST PANEL (B) M5X14 TAPPING	9-09829-322-1	22	1	9112-9504	●	●
61	SCREW; GLOVE BOX (A) D6X11 POP RIVET	8-94298-119-0	04	1	9112-9504	●	●
61	SCREW; GLOVE BOX (B) M4X8 CK-HEAD	9-03094-408-0	02	1	9112-9401	●	●
61	SCREW; GLOVE BOX (B) M4X10	8-97107-420-0	02	1	9402-9504	●	●
61	SCREW; GLOVE BOX M4X14 TAPPING	8-97111-555-0	02	1	9505-	●	●
70	GRILLE; CENTER,AIR OUTLET BLACK	8-97805-300-3	01	1	9112-9208	●	●
70	GRILLE; CENTER,AIR OUTLET BLACK	8-97808-678-2	01	1	9209-9504	●	●
70	GRILLE; CENTER,AIR OUTLET BLACK	8-97091-909-1	01	1	9505-	●	●
146	SCREW; TAP M4X12 TAPPING OVAL-HEAD	9-09829-312-1	03	1	9304-9504	●	●
146	SCREW; TAP (B) M5X14 TAPPING	1-72548-072-0	12	1	9505-	●	●
146	SCREW; TAP (C) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9505-	●	●
146	SCREW; TAP (D) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	04	1	9505-	●	●
146	SCREW; TAP (A) M5X12 TAPPING	9-09829-321-1	05	1	9505-	●	●
191	REINFORCEMENT; GLOVE BOX	8-97807-627-3	01	1	9112-9504	●	●
191	REINFORCEMENT; GLOVE BOX	8-97807-626-3	01	1	9112-9504	●	●
209	BOX; COIN EXC. ELECTRIC DOOR MIRROR(6MK) (A)	8-94119-021-1	01	1	9112-9504	●	●
209	BOX; COIN 6VD1 DOHC ENG(RLV) (B) BLACK	8-97806-916-1	01	1	9112-9303	●	●
209	BOX; COIN 6VD1 DOHC ENG(RLV) (B)	8-97810-465-0	01	1	9304-9504	●	●
294	SCREW; BEZEL M4X14 TAPPING W/PL WASHER	0-74300-414-0	04	1	9112-9504	●	●
294	SCREW; BEZEL M4X14 TAPPING W/PL WASHER	0-74300-414-0	02	1	9505-	●	●
449	COVER; SPEAKER INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-405-2	01	1	9112-9307	●	●
449	COVER; SPEAKER INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-407-2	01	1	9112-9504	●	●
495	BEZEL; SW (A) WIPER BLACK	8-97805-290-2	01	1	9112-9504	●	●
495	BEZEL; SW (A) HEAD LIGHT BLACK	8-97805-292-3	01	1	9112-9504	●	●
495	BEZEL; SW (A) METER LIGHT BLACK	8-97805-293-2	01	1	9112-9504	●	●
495	BEZEL; SW (A) HARZARD BLACK	8-97805-294-3	01	1	9112-9504	●	●
495	BEZEL; SW 4JG2 ENG(RJC) (B) BLACK	8-97806-915-1	01	1	9112-9504	●	●
500	CLUSTER; INST CENTER	8-97803-780-5	01	1	9112-9311	●	●
500	CLUSTER; INST CENTER	8-97810-753-0	01	1	9312-9504	●	●
510	SCREW; CENTER CLUSTER M5X16 TAPPING	9-09829-323-1	08	1	9112-9504	●	●
514	BEZEL; WARNING A/T AISIN(RMD),A/T THM(RMQ)	8-97803-344-0	01	1	9112-9308	●	●
515	RETAINER; GLOVE BOX	8-97804-043-0	01	1	9112-9504	●	●
517	PATCH; GLOVE BOX	8-97808-121-0	02	1	9112-9504	●	●

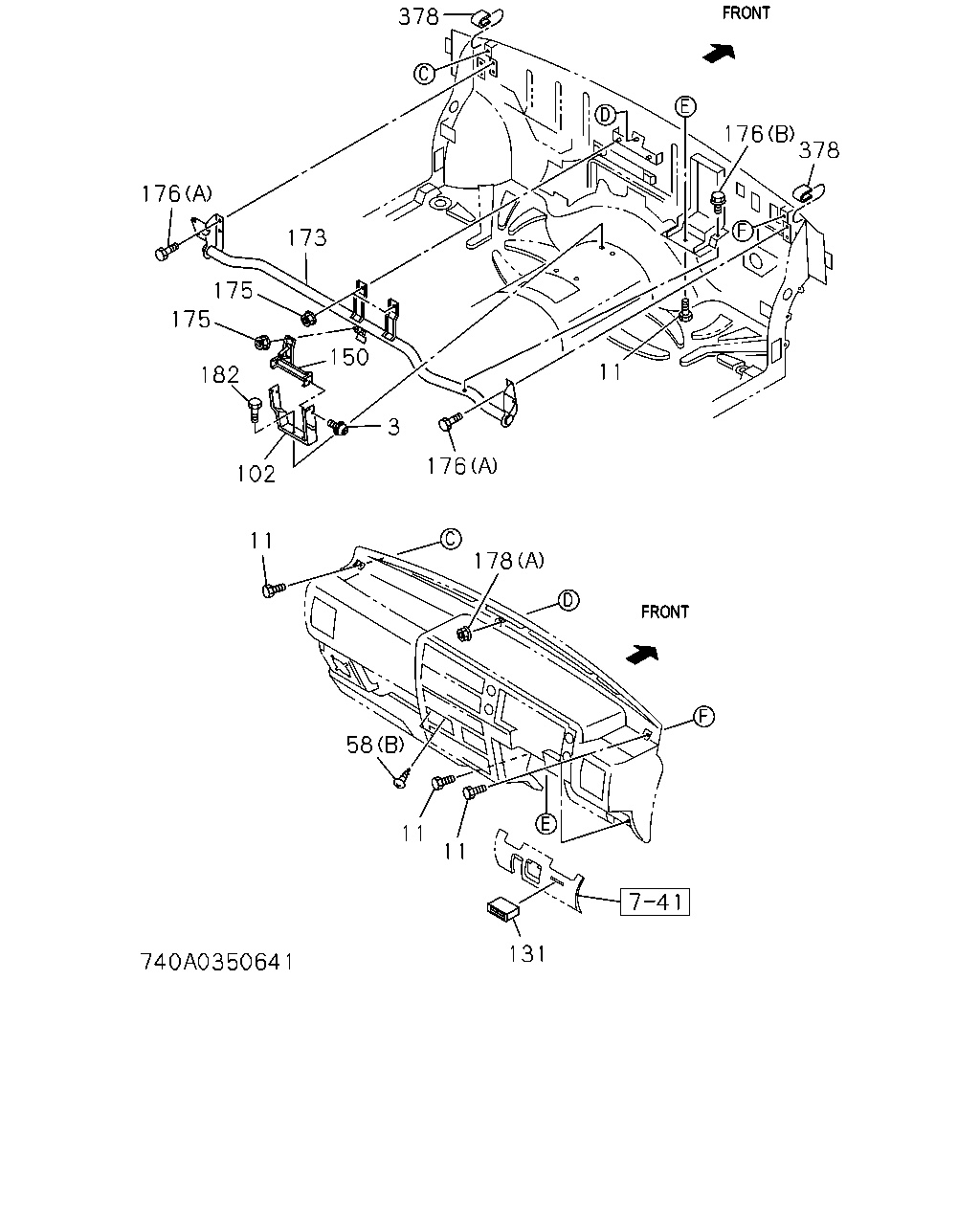

378 176 378 176 173 175 175 150 182 3 102 176 11 11 178 58 11 11 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	SCREW; BINDER HD M6X12 W/LK&PL WASHER	9-03920-612-0	04	1	9112-9504	●	●
11	BOLT; INST PNL	8-97805-931-0	06	1	9112-9210	●	●
11	BOLT; INST PNL	8-97032-653-0	06	1	9211-9504	●	●
11	BOLT; INST PNL M6X18 W/LK&PL WASHER	8-97060-719-0	06	1	9505-	●	●
58	SCREW; INST PANEL (C) M5X14 TAPPING W/PL WASHER	0-74110-514-0	07	1	9112-9504	●	●
58	SCREW; INST PANEL (A) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	13	1	9112-9504	●	●
58	SCREW; INST PANEL (B) M5X14 TAPPING	9-09829-322-1	22	1	9112-9504	●	●
102	BRACKET; INST PANEL TO FLOOR	8-97803-731-4	01	1	9112-9504	●	●
102	BRACKET; INST PANEL TO FLOOR	8-97093-551-3	01	1	9505-	●	●
131	GRILLE ASM; LAP VENT BLACK	8-97806-851-2	02	1	9112-9504	●	●
150	STAY; INST PNL	8-94359-618-2	01	1	9112-9307	●	●
150	STAY; INST PNL	8-97810-918-0	01	1	9308-9504	●	●
173	BEAM ASM; CROSS,INST PANEL	8-94359-614-4	01	1	9112-9504	●	●
173	BEAM ASM; CROSS,INST PANEL	8-97093-538-1	01	1	9505-9510	●	●
173	BEAM ASM; CROSS,INST PANEL	8-97130-116-0	01	1	9511-	●	●
175	NUT; CROSS BEAM M6 W/DISHED WASHER	8-94170-192-0	04	1	9112-9504	●	●
175	NUT; CROSS BEAM M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
176	BOLT; CROSS BEAM (A) M6X16 W/PL WASHER	8-94204-636-0	08	1	9112-9504	●	●
176	BOLT; CROSS BEAM (A) M6X16 W/PL WASHER	8-94204-636-0	04	1	9505-	●	●
176	BOLT; CROSS BEAM (B) M6X20	8-97803-614-0	02	1	9112-9504	●	●
178	NUT; INST PANEL (B) M5 SPIRE NUT	8-94217-271-0	24	1	9112-9211	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	24	1	9212-9303	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	22	1	9304-9307	●	●
178	NUT; INST PANEL (A) M6 W/DISHED WASHER	8-94170-192-0	02	1	9112-9504	●	●
178	NUT; INST PANEL (A) M6 W/DISHED WASHER	8-94170-192-0	07	1	9505-	●	●
178	NUT; INST PANEL (C)	8-97807-989-0	01	1	9112-9504	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	22	1	9308-9504	●	●
182	BOLT; BRKT,INST PANEL M6X14	8-94153-946-0	02	1	9112-9307	●	●
182	BOLT; BRKT,INST PANEL M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9308-9504	●	●
378	SEAL; INST PANEL	8-97807-547-0	04	1	9112-9210	●	●
378	SEAL; INST PANEL	8-97809-121-0	08	1	9211-9504	●	●

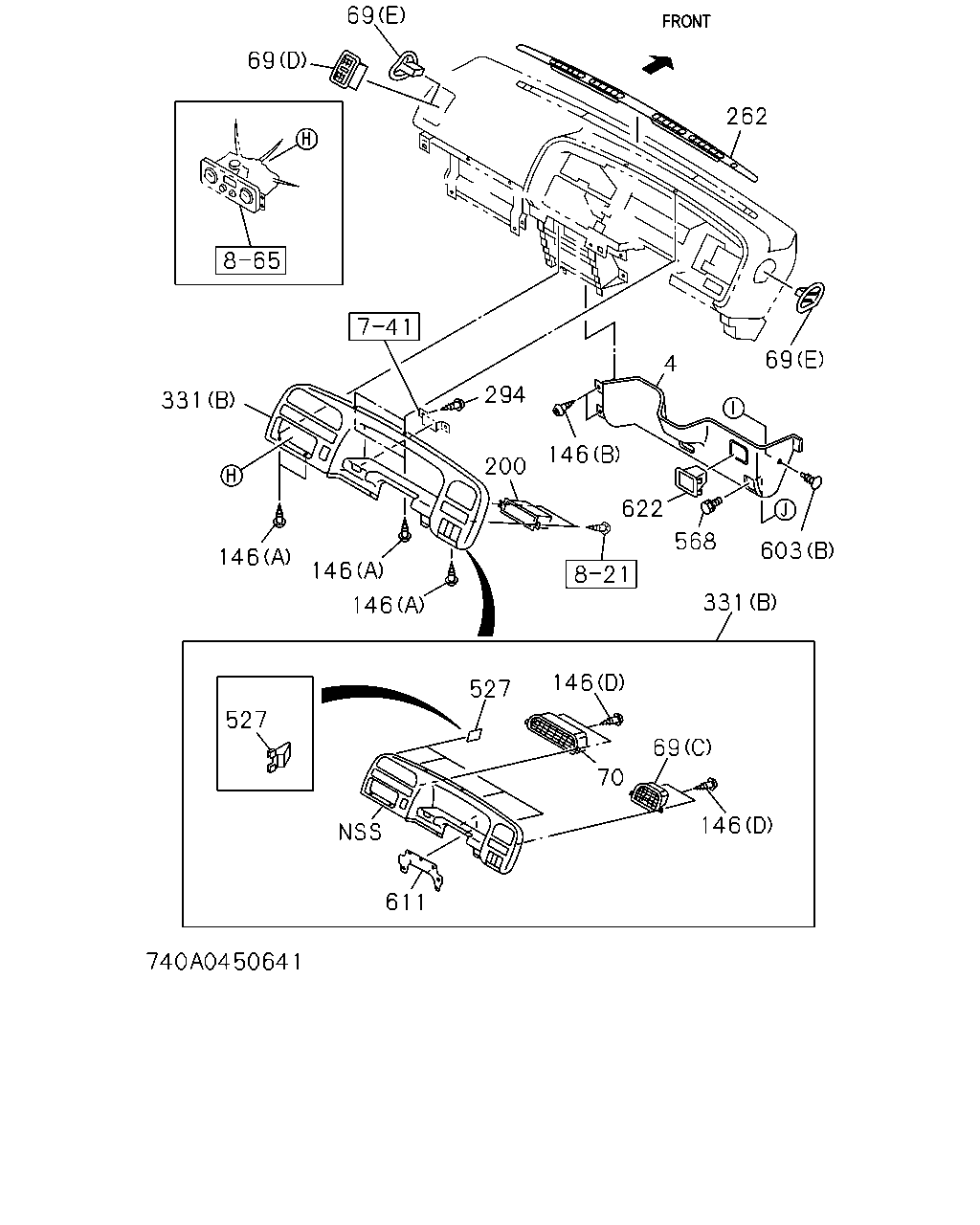

69 69 262 69 4 294 331 146 146 146 200 146 622 568 603 331 527 146 69 146 611 70 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	COVER; INST PNL INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97806-393-1	01	1	9112-9307	●	●
4	COVER; INST PNL INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97806-396-1	01	1	9112-9307	●	●
4	COVER; INST PNL INTERIOR COLOR BROWN(130) (C) DARK BROWN	8-97806-399-5	01	1	9112-9307	●	●
4	COVER; INST PNL INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97806-395-1	01	1	9112-9504	●	●
4	COVER; INST PNL DARK GRAY	8-97151-278-4	01	1	9505-9510	●	●
4	COVER; INST PNL DARK GRAY	8-97155-300-0	01	1	9511-	●	●
4	COVER; INST PNL INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97806-398-1	01	1	9112-9504	●	●
4	COVER; INST PNL INTERIOR COLOR GRAY(153) (C) DARK GRAY	8-97806-401-5	01	1	9112-9504	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-318-3	01	1	9112-9307	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-362-3	01	1	9112-9208	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97808-675-0	01	1	9209-9307	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-265-3	01	1	9112-9208	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97808-672-0	01	1	9209-9307	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-314-3	01	1	9112-9307	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-364-3	01	1	9112-9208	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97808-676-0	01	1	9209-9504	●	●
69	GRILLE; SIDE,AIR OUTLET (C) BLACK	8-97091-908-1	01	1	9505-	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-267-3	01	1	9112-9208	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97808-673-0	01	1	9209-9504	●	●
69	GRILLE; SIDE,AIR OUTLET (D) DARK GRAY	8-97080-486-1	01	1	9505-	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-316-3	01	1	9112-9504	●	●
69	GRILLE; SIDE,AIR OUTLET (E) DARK GRAY	8-97151-142-1	01	1	9505-	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-320-3	01	1	9112-9504	●	●
69	GRILLE; SIDE,AIR OUTLET (E) DARK GRAY	8-97151-143-1	01	1	9505-	●	●
70	GRILLE; CENTER,AIR OUTLET BLACK	8-97805-300-3	01	1	9112-9208	●	●
70	GRILLE; CENTER,AIR OUTLET BLACK	8-97808-678-2	01	1	9209-9504	●	●
70	GRILLE; CENTER,AIR OUTLET BLACK	8-97091-909-1	01	1	9505-	●	●
146	SCREW; TAP M4X12 TAPPING OVAL-HEAD	9-09829-312-1	03	1	9304-9504	●	●
146	SCREW; TAP (B) M5X14 TAPPING	1-72548-072-0	12	1	9505-	●	●
146	SCREW; TAP (C) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9505-	●	●
146	SCREW; TAP (D) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	04	1	9505-	●	●
146	SCREW; TAP (A) M5X12 TAPPING	9-09829-321-1	05	1	9505-	●	●
200	BOX; CENTER CLUSTER M/T MUA 5 SPEED(RMN) EXC. RR STABILIZER W/CLUTCH<6WV>	8-97103-473-1	01	1	9505-	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-302-0	01	1	9112-9307	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-310-0	01	1	9112-9307	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-306-0	01	1	9112-9307	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-304-0	01	1	9112-9504	●	●
262	GRILLE; DEFROSTER DARK GRAY	8-97098-380-1	01	1	9505-	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-312-0	01	1	9112-9504	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-308-0	01	1	9112-9504	●	●
294	SCREW; BEZEL M4X14 TAPPING W/PL WASHER	0-74300-414-0	04	1	9112-9504	●	●
294	SCREW; BEZEL M4X14 TAPPING W/PL WASHER	0-74300-414-0	02	1	9505-	●	●
331	CLUSTER; INST SIDE (A)	8-97091-910-4	01	1	9505-9603	●	●
331	CLUSTER; INST SIDE (A)	8-97160-268-0	01	1	9604-9608	●	●
331	CLUSTER; INST SIDE (A)	8-97165-355-0	01	1	9609-	●	●
331	CLUSTER; INST SIDE (B)	8-97091-970-1	01	1	9505-9603	●	●
331	CLUSTER; INST SIDE (B)	8-97160-267-0	01	1	9604-	●	●
527	CLIP; INST CLUSTER T=0.5	8-97137-828-0	08	1	9505-	●	●
568	BOLT; COVER M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9505-	●	●
603	CLIP; COVER (A) OD=12 L=14.8	8-94279-921-0	01	1	9505-	●	●
603	CLIP; COVER (B) DARK GRAY	8-97151-280-1	02	1	9505-	●	●
611	SHEET	8-97103-470-1	01	1	9505-	●	●
622	BOX; IDLE CONT DARK GRAY	8-97153-696-0	01	1	9505-	●	●

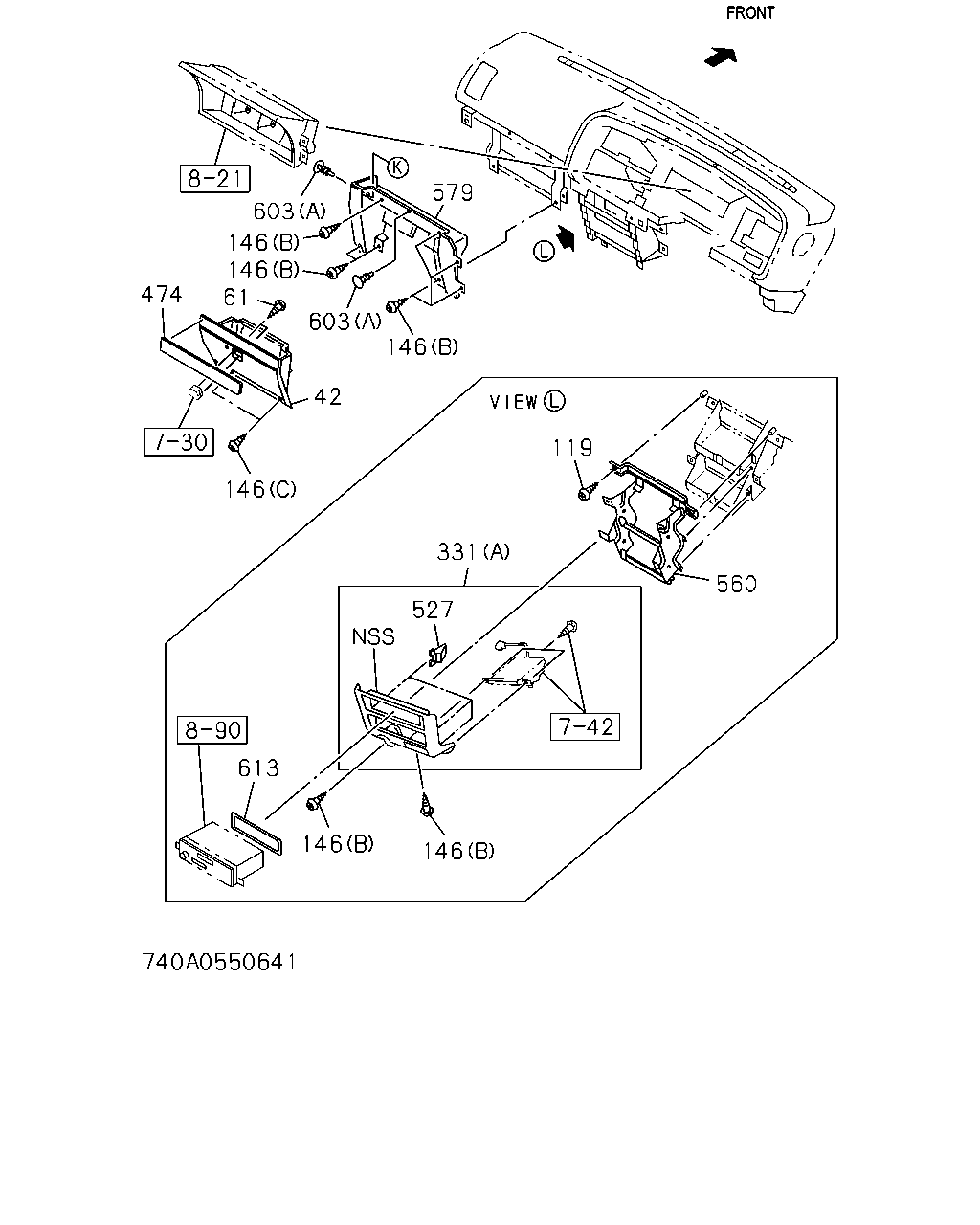

603 579 146 146 61 603 42 146 146 119 560 331 527 146 146 613 474

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	BOX; GLOVE,INST PNL INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-322-6	01	1	9112-9307	●	●
42	BOX; GLOVE,INST PNL INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-324-7	01	1	9112-9504	●	●
42	BOX; GLOVE,INST PNL DARK GRAY	8-97151-304-4	01	1	9505-9708	●	●
42	BOX; GLOVE,INST PNL DARK GRAY	8-97195-652-0	01	1	9709-	●	●
61	SCREW; GLOVE BOX (A) D6X11 POP RIVET	8-94298-119-0	04	1	9112-9504	●	●
61	SCREW; GLOVE BOX (B) M4X8 CK-HEAD	9-03094-408-0	02	1	9112-9401	●	●
61	SCREW; GLOVE BOX (B) M4X10	8-97107-420-0	02	1	9402-9504	●	●
61	SCREW; GLOVE BOX M4X14 TAPPING	8-97111-555-0	02	1	9505-	●	●
119	SCREW; BRKT TO INST M5X16 TAPPING	9-09829-323-1	08	1	9505-	●	●
146	SCREW; TAP M4X12 TAPPING OVAL-HEAD	9-09829-312-1	03	1	9304-9504	●	●
146	SCREW; TAP (B) M5X14 TAPPING	1-72548-072-0	12	1	9505-	●	●
146	SCREW; TAP (C) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9505-	●	●
146	SCREW; TAP (D) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	04	1	9505-	●	●
146	SCREW; TAP (A) M5X12 TAPPING	9-09829-321-1	05	1	9505-	●	●
331	CLUSTER; INST SIDE (A)	8-97091-910-4	01	1	9505-9603	●	●
331	CLUSTER; INST SIDE (A)	8-97160-268-0	01	1	9604-9608	●	●
331	CLUSTER; INST SIDE (A)	8-97165-355-0	01	1	9609-	●	●
331	CLUSTER; INST SIDE (B)	8-97091-970-1	01	1	9505-9603	●	●
331	CLUSTER; INST SIDE (B)	8-97160-267-0	01	1	9604-	●	●
474	PANEL ASM; ORNAMENT INST TRIM WOOD GRAIN<7HB>	8-97089-513-2	01	1	9505-9605		●
474	PANEL ASM; ORNAMENT INST TRIM WOOD GRAIN<7HB>	8-97135-973-0	01	1	9606-9610		●
474	PANEL ASM; ORNAMENT INST TRIM WOOD GRAIN<7HB>	8-97169-721-0	01	1	9611-		●
527	CLIP; INST CLUSTER T=0.5	8-97137-828-0	08	1	9505-	●	●
560	BRACKET	8-97080-119-1	01	1	9505-	●	●
579	COVER; INST PNL DARK GRAY	8-97151-279-4	01	1	9505-	●	●
603	CLIP; COVER (A) OD=12 L=14.8	8-94279-921-0	01	1	9505-	●	●
603	CLIP; COVER (B) DARK GRAY	8-97151-280-1	02	1	9505-	●	●
613	PANEL; WOOD INST TRIM WOOD GRAIN<7HB>	8-97089-514-1	02	1	9505-9605		●
613	PANEL; WOOD INST TRIM WOOD GRAIN<7HB>	8-97135-972-0	02	1	9606-		●

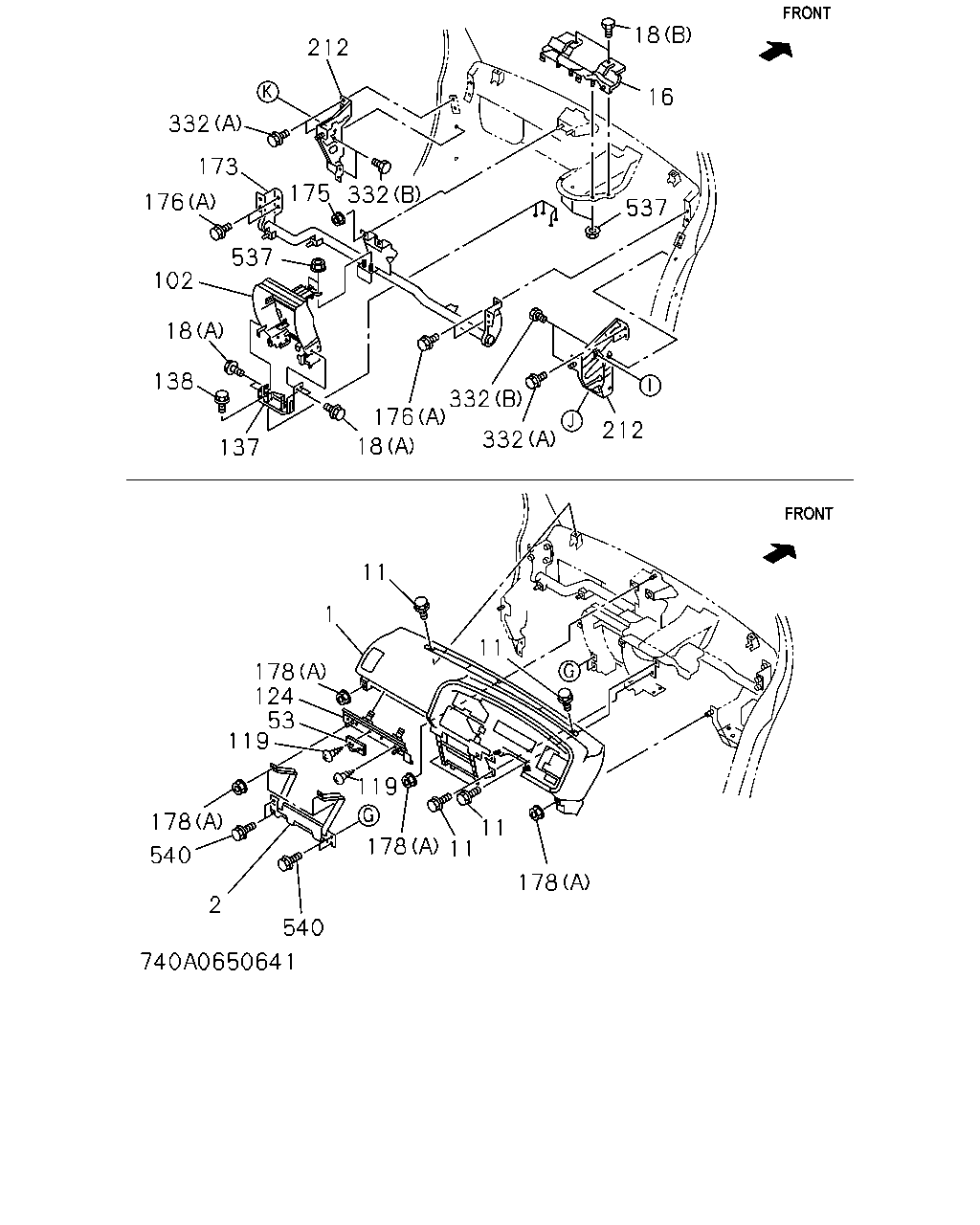

212 18 16 537 212 332 332 176 18 137 138 18 102 537 332 175 176 173 332 11 11 1 178 124 53 119 178 540 119 178 11 11 178 2 540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; INST INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-390-9	01	1	9112-9303	●	●
1	PANEL; INST INTERIOR COLOR BROWN(130) DARK BROWN	8-97817-004-0	01	1	9304-9307	●	●
1	PANEL; INST INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-392-9	01	1	9112-9303	●	●
1	PANEL; INST INTERIOR COLOR GRAY(153) DARK GRAY	8-97817-003-1	01	1	9304-9504	●	●
1	PANEL; INST DARK GRAY	8-97152-349-5	01	1	9505-9510	●	●
1	PANEL; INST EXC. AIR BAG PASSENGER<7FA> DARK GRAY	8-97152-349-5	01	1	9511-	●	●
1	PANEL; INST AIR BAG PASSENGER<7FA> DARK GRAY	8-97157-873-5	01	1	9511-	●	●
2	REINFORCEMENT; INST PNL,LWR INTERIOR COLOR BROWN(130) DARK BROWN	8-97806-402-4	01	1	9202-9307	●	●
2	REINFORCEMENT; INST PNL,LWR INTERIOR COLOR GRAY(153) DARK GRAY	8-97806-404-4	01	1	9202-9504	●	●
2	REINFORCEMENT; INST PNL,LWR (B) DARK GRAY	8-97091-921-3	01	1	9505-9510	●	●
2	REINFORCEMENT; INST PNL,LWR EXC. AIR BAG PASSENGER<7FA> (B) DARK GRAY	8-97091-921-3	01	1	9511-9511	●	●
2	REINFORCEMENT; INST PNL,LWR AIR BAG PASSENGER<7FA> (B)	8-97130-115-0	01	1	9511-9511	●	●
2	REINFORCEMENT; INST PNL,LWR (B)	8-97130-115-1	01	1	9512-	●	●
2	REINFORCEMENT; INST PNL,LWR AIR BAG DRIVER<AJ3> (A)	8-97130-114-0	01	1	9511-9703	●	●
2	REINFORCEMENT; INST PNL,LWR AIR BAG DRIVER<AJ3> (A)	8-97175-234-1	01	1	9704-	●	●
11	BOLT; INST PNL	8-97805-931-0	06	1	9112-9210	●	●
11	BOLT; INST PNL	8-97032-653-0	06	1	9211-9504	●	●
11	BOLT; INST PNL M6X18 W/LK&PL WASHER	8-97060-719-0	06	1	9505-	●	●
16	BRACKET; INST PNL	8-97808-068-1	01	1	9112-9504	●	●
16	BRACKET; INST PNL	8-97083-250-2	01	1	9505-9510	●	●
16	BRACKET; INST PNL AIR BAG DRIVER<AJ3>	8-97133-384-0	01	1	9511-9605	●	●
16	BRACKET; INST PNL	8-97133-384-0	01	1	9606-	●	●
16	BRACKET; INST PNL EXC. AIR BAG DRIVER<AJ3>	8-97110-158-1	01	1	9511-9605	●	●
18	BOLT; BRKT (A) M6X12 W/LK WASHER	0-50040-612-0	04	1	9505-	●	●
18	BOLT; BRKT (B) M8X25	8-94493-360-1	02	1	9505-	●	●
53	STRIKER; GLOVE BOX	8-94310-754-1	01	1	9112-9504	●	●
53	STRIKER; GLOVE BOX	8-97064-753-0	01	1	9505-	●	●
102	BRACKET; INST PANEL TO FLOOR	8-97803-731-4	01	1	9112-9504	●	●
102	BRACKET; INST PANEL TO FLOOR	8-97093-551-3	01	1	9505-	●	●
119	SCREW; BRKT TO INST M5X16 TAPPING	9-09829-323-1	08	1	9505-	●	●
124	REINFORCEMENT; INST PNL,UPR	8-97804-156-1	01	1	9112-9504	●	●
124	REINFORCEMENT; INST PNL,UPR	8-97091-905-1	01	1	9505-9606	●	●
124	REINFORCEMENT; INST PNL,UPR AIR BAG PASSENGER<7FA>	8-97091-905-1	01	1	9607-	●	●
124	REINFORCEMENT; INST PNL,UPR EXC. AIR BAG PASSENGER<7FA>	8-97176-082-0	01	1	9607-	●	●
137	BRACKET; INST PNL MTG	8-97093-943-0	01	1	9505-9510	●	●
137	BRACKET; INST PNL MTG	8-97115-364-0	01	1	9511-	●	●
138	BOLT; BRKT TO BODY M6X16 W/LK&PL WASHER	8-97086-823-0	04	1	9505-9510	●	●
138	BOLT; BRKT TO BODY M6X16 W/LK&PL WASHER	8-97086-823-0	06	1	9511-	●	●
173	BEAM ASM; CROSS,INST PANEL	8-94359-614-4	01	1	9112-9504	●	●
173	BEAM ASM; CROSS,INST PANEL	8-97093-538-1	01	1	9505-9510	●	●
173	BEAM ASM; CROSS,INST PANEL	8-97130-116-0	01	1	9511-	●	●
175	NUT; CROSS BEAM M6 W/DISHED WASHER	8-94170-192-0	04	1	9112-9504	●	●
175	NUT; CROSS BEAM M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
176	BOLT; CROSS BEAM (A) M6X16 W/PL WASHER	8-94204-636-0	08	1	9112-9504	●	●
176	BOLT; CROSS BEAM (A) M6X16 W/PL WASHER	8-94204-636-0	04	1	9505-	●	●
176	BOLT; CROSS BEAM (B) M6X20	8-97803-614-0	02	1	9112-9504	●	●
178	NUT; INST PANEL (B) M5 SPIRE NUT	8-94217-271-0	24	1	9112-9211	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	24	1	9212-9303	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	22	1	9304-9307	●	●
178	NUT; INST PANEL (A) M6 W/DISHED WASHER	8-94170-192-0	02	1	9112-9504	●	●
178	NUT; INST PANEL (A) M6 W/DISHED WASHER	8-94170-192-0	07	1	9505-	●	●
178	NUT; INST PANEL (C)	8-97807-989-0	01	1	9112-9504	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	22	1	9308-9504	●	●
212	BRACKET; INST PNL SIDE	8-97093-552-4	01	1	9505-	●	●
212	BRACKET; INST PNL SIDE	8-97093-550-4	01	1	9505-9510	●	●
212	BRACKET; INST PNL SIDE	8-97130-117-1	01	1	9511-	●	●
332	BOLT; SIDE CLUSTER (B) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9505-	●	●
332	BOLT; SIDE CLUSTER (A) M6X16 W/PL WASHER	8-94204-636-0	04	1	9505-	●	●
537	NUT; BRKT M6 FLANGE	8-97063-399-0	05	1	9505-	●	●
540	BOLT; REINFORCEMENT M6X20 W/WASHER	8-94112-987-1	04	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
