◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#166602) — 87 parça

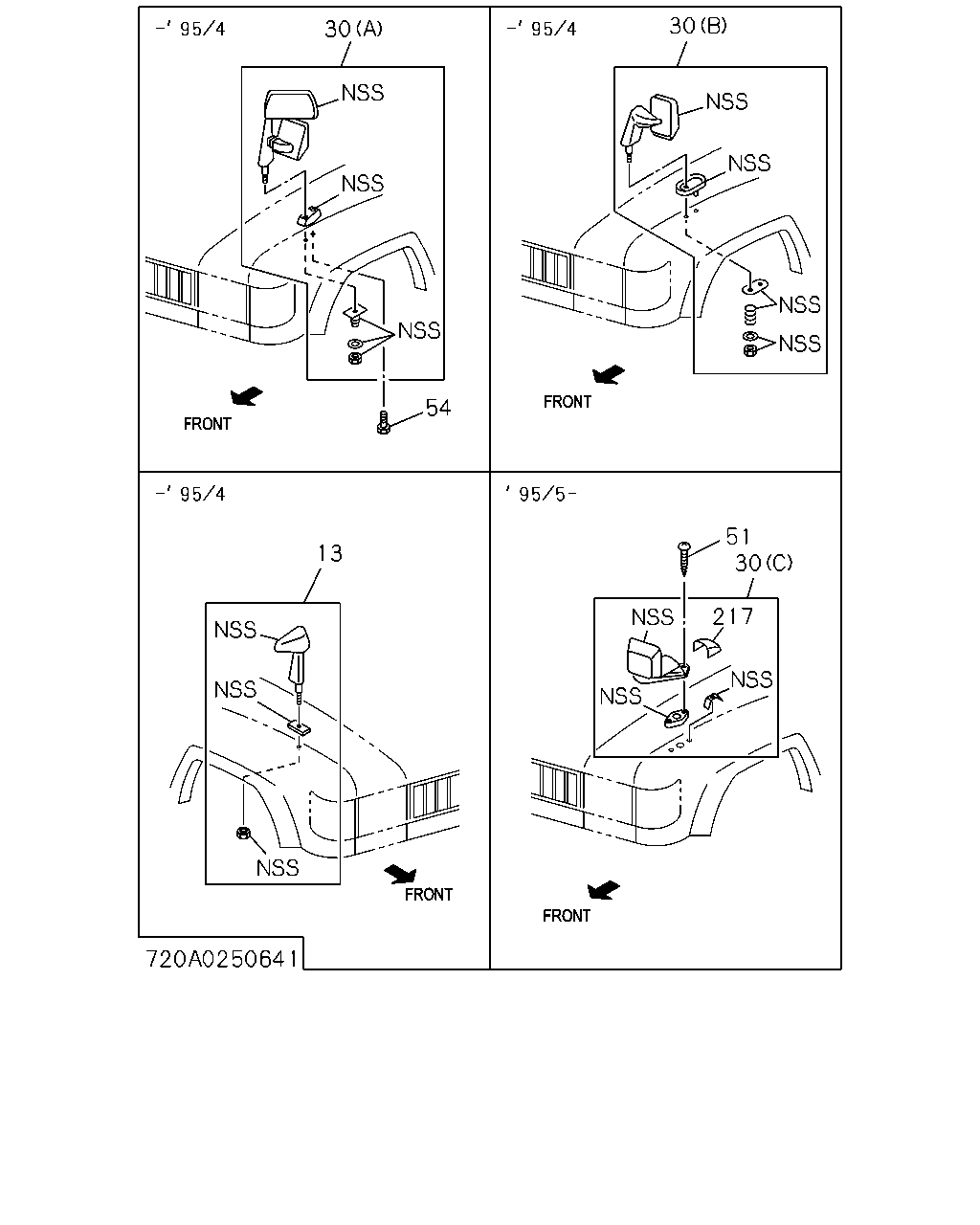

çizim 493469
30 30 54 13 51 217 30
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
FENDER MIRROR(DG3) 		8-97803-042-1 01 1 9112-9504 ● ●
30 MIRROR; UNDER
FENDER MIRROR(DG3) (A) 		8-97807-053-4 01 1 9112-9504 ● ●
30 MIRROR; UNDER
(C) 		8-97092-786-2 01 1 9505- ● ●
30 MIRROR; UNDER
EXC. FENDER MIRROR(DG3) (B) 		8-97807-052-1 01 1 9112-9202 ● ●
30 MIRROR; UNDER
EXC. FENDER MIRROR(DG3) (B) 		8-97809-182-1 01 1 9203-9504 ● ●
51 SCREW; MIRROR
M6X20 		9-07077-620-0 02 1 9505- ● ●
54 BOLT; STAY
FENDER MIRROR(DG3) M6X16 FLANGE 		0-28080-616-0 01 1 9301-9301 ● ●
54 BOLT; STAY
FENDER MIRROR(DG3) M6X18 W/LK&PL WASHER 		8-97060-719-0 01 1 9302-9504 ● ●
217 COVER; UNDER MIRROR 8-97216-088-0 01 1 9505- ● ●
çizim 494001
1 76 11 157 7 7 19 7 7 2 33 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-900-1 01 1 9112-9307 ● ●
1 MIRROR; ROOM
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-902-3 01 1 9112-9504 ● ●
1 MIRROR; ROOM
LIGHT GRAY 		8-97098-386-3 01 1 9505-9605 ● ●
1 MIRROR; ROOM
LIGHT GRAY 		8-97157-110-1 01 1 9606- ● ●
2 SCREW; MIRROR TO BODY
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 03 1 9112- ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) (D) 		8-97806-740-1 01 1 9112- ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) (D) 		8-97806-741-1 01 1 9112- ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-951-4 01 1 9112-9506 ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) EXC. EXTERIOR CHROME PACKAGE<6CX>,LOTUS JB LIMITEDMODEL(7NF) (B) 		8-97803-951-4 01 1 9507-9510 ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-951-6 01 1 9511- ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-950-4 01 1 9112-9309 ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-950-4 01 1 9310-9504 ● ●
7 MIRROR ASM; DOOR
EXTERIOR CHROME PACKAGE<6CX> HONDA BRAND PACKAGE<7EP> (B) 		8-97803-950-4 01 1 9310-9504 ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-950-4 01 1 9505-9506 ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) EXC. EXTERIOR CHROME PACKAGE<6CX>,LOTUS JB LIMITEDMODEL(7NF) (B) 		8-97803-950-4 01 1 9507-9510 ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) EXC. EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-950-6 01 1 9511- ● ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) (C) 		8-97806-747-1 01 1 9112-9504 ● ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) (C) 		8-97806-747-1 01 1 9505-9605 ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) (C) 		8-97806-748-1 01 1 9112-9504 ● ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) (C) 		8-97806-748-1 01 1 9505-9605 ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-969-3 01 1 9112-9504 ● ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-969-5 01 1 9505-9605 ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-968-3 01 1 9112-9504 ● ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-968-5 01 1 9505-9605 ●
7 MIRROR ASM; DOOR
EXTERIOR CHROME PACKAGE<6CX> ELECTRIC DOOR MIRROR(6MK) (B) 		8-97803-941-4 01 1 9112-9307 ●
7 MIRROR ASM; DOOR
EXTERIOR CHROME PACKAGE<6CX> ELECTRIC DOOR MIRROR(6MK) (B) 		8-97810-889-0 01 1 9308-9309 ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97810-889-0 01 1 9310-9310 ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-941-4 01 1 9310-9506 ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-941-4 01 1 9507-9510 ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) LOTUS JB LIMITED MODEL(7NF) (B) 		8-97803-941-4 01 1 9507-9510 ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-941-6 01 1 9511- ● ●
7 MIRROR ASM; DOOR
EXTERIOR CHROME PACKAGE<6CX> ELECTRIC DOOR MIRROR(6MK) (B) 		8-97803-940-4 01 1 9112-9307 ●
7 MIRROR ASM; DOOR
EXTERIOR CHROME PACKAGE<6CX> ELECTRIC DOOR MIRROR(6MK) (B) 		8-97810-888-0 01 1 9308-9309 ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97810-888-0 01 1 9310-9310 ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-940-4 01 1 9310-9506 ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-940-4 01 1 9507-9510 ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) LOTUS JB LIMITED MODEL(7NF) (B) 		8-97803-940-4 01 1 9507-9510 ● ●
7 MIRROR ASM; DOOR
ELECTRIC DOOR MIRROR(6MK) EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-940-6 01 1 9511- ● ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) (C) 		8-97806-744-1 01 1 9612-9612 ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) (C) 		8-97806-747-1 01 1 9701- ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) (C) 		8-97806-746-1 01 1 9612-9612 ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) (C) 		8-97806-748-1 01 1 9701- ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-959-3 01 1 9112-9307 ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97810-897-0 01 1 9308-9309 ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-959-5 01 1 9310-9605 ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-958-3 01 1 9112-9307 ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97810-896-0 01 1 9308-9309 ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-958-5 01 1 9310-9605 ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-957-5 01 1 9612-9612 ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-959-5 01 1 9701- ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-956-5 01 1 9612-9612 ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-958-5 01 1 9701- ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-967-5 01 1 9612-9612 ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-969-5 01 1 9701- ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-966-5 01 1 9612-9612 ●
7 MIRROR ASM; DOOR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXC. EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-968-5 01 1 9701- ●
11 COVER; CONT KNOB,MIRROR
EXC. GRADE BASIC OR LS(RBA) BLACK 		8-97807-795-1 01 1 9112-9310 ● ●
11 COVER; CONT KNOB,MIRROR
EXC. GRADE BASIC OR LS(RBA),HONDA BRAND PACKAGE<7EP> BLACK 		8-97807-795-1 01 1 9311-9504 ● ●
11 COVER; CONT KNOB,MIRROR
EXC. AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) BLACK 		8-97807-795-1 01 1 9505- ● ●
11 COVER; CONT KNOB,MIRROR
EXC. GRADE BASIC OR LS(RBA) BLACK 		8-97807-794-1 01 1 9112-9310 ● ●
11 COVER; CONT KNOB,MIRROR
EXC. GRADE BASIC OR LS(RBA),HONDA BRAND PACKAGE<7EP> BLACK 		8-97807-794-1 01 1 9311-9504 ● ●
11 COVER; CONT KNOB,MIRROR
EXC. AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) BLACK 		8-97807-794-1 01 1 9505- ● ●
19 GASKET; MIRROR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) 		8-97810-474-0 01 1 9511-9605 ●
19 GASKET; MIRROR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) 		8-97810-474-0 01 1 9612- ●
19 GASKET; MIRROR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) 		8-97810-473-0 01 1 9612- ●
19 GASKET; MIRROR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97810-473-0 01 1 9505-9510 ●
19 GASKET; MIRROR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) 		8-97810-473-0 01 1 9511-9605 ●
19 GASKET; MIRROR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K), ELECTRICDOOR MIRROR(6MK) EXTERIOR CHROME PACKAGE<6CX> 		8-97810-474-0 01 1 9308-9309 ●
19 GASKET; MIRROR
EXTERIOR CHROME PACKAGE<6CX> ELECTRIC DOOR MIRROR(6MK) EXC. HONDA BRAND PACKAGE<7EP> 		8-97810-474-0 01 1 9310-9310 ●
19 GASKET; MIRROR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXTERIOR CHROME PACKAGE<6CX> 		8-97810-474-0 01 1 9310-9310 ●
19 GASKET; MIRROR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K), ELECTRICDOOR MIRROR(6MK) EXTERIOR CHROME PACKAGE<6CX> 		8-97810-473-0 01 1 9308-9309 ●
19 GASKET; MIRROR
EXTERIOR CHROME PACKAGE<6CX> ELECTRIC DOOR MIRROR(6MK) EXC. HONDA BRAND PACKAGE<7EP> 		8-97810-473-0 01 1 9310-9310 ●
19 GASKET; MIRROR
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) EXTERIOR CHROME PACKAGE<6CX> 		8-97810-473-0 01 1 9310-9310 ●
33 COVER; MIRROR
LIGHT GRAY 		8-97157-112-0 01 1 9606- ● ●
76 BOLT; STAY BRKT
M6X14 FLANGE 		8-94327-380-0 06 1 9112- ● ●
157 CLIP; COVER
EXC. GRADE BASIC OR LS(RBA) 		8-97019-200-0 04 1 9203-9310 ● ●
157 CLIP; COVER
EXC. GRADE BASIC OR LS(RBA),HONDA BRAND PACKAGE<7EP> 		8-97019-200-0 04 1 9311-9504 ● ●
157 CLIP; COVER
EXC. AM/FM W/CASSETTE HIGH GRADE 4SPEAKER(6RV) 		8-97019-200-0 04 1 9505- ● ●
