◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#166601) — 71 parça

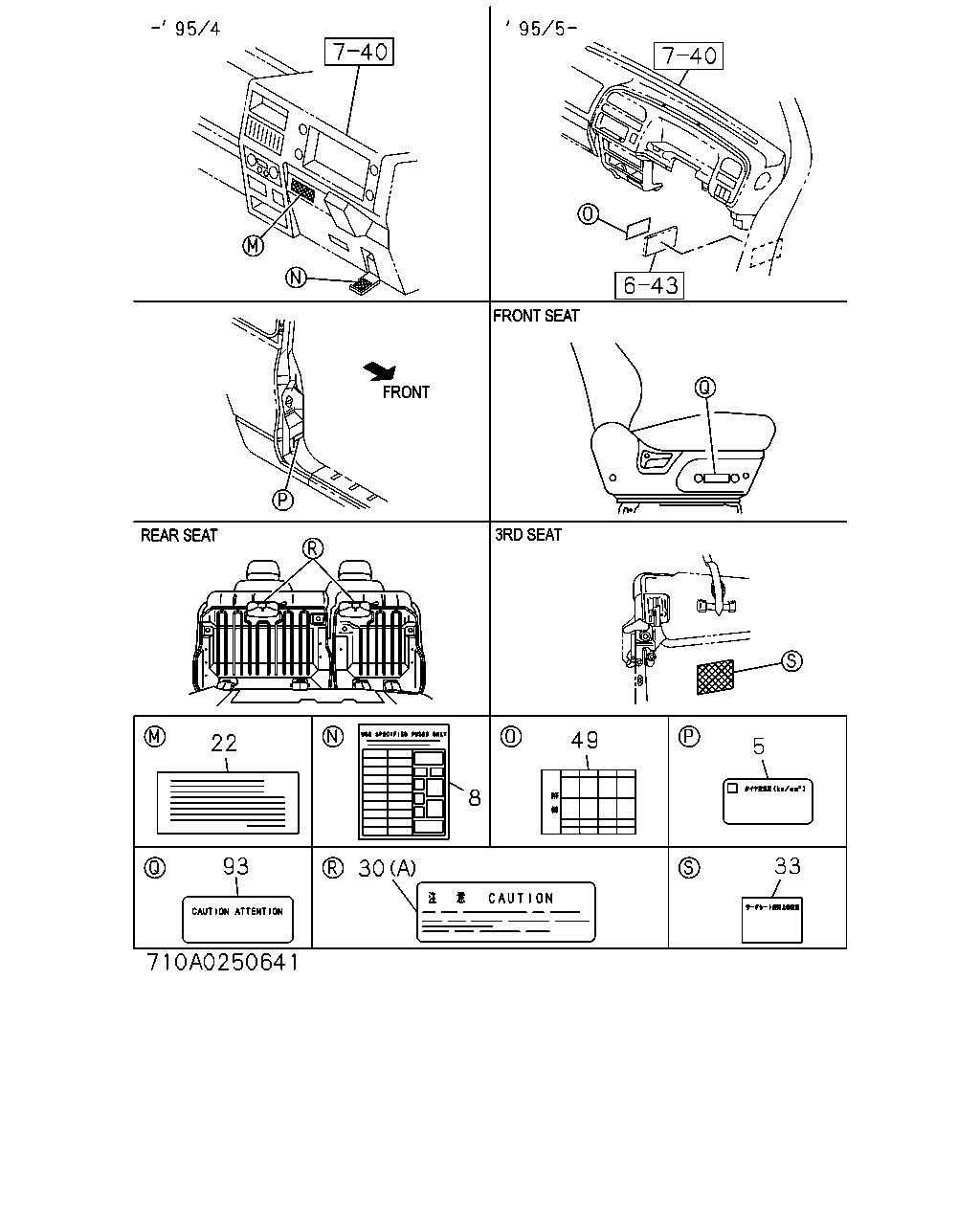

çizim 493495
33 5 49 8 30 93 22
BalonParca AdiParca NoAdetTipApplied Date A B
5 LABEL; TIRE AIR PRESSURE
GRADE BASIC OR LS(RBA),GRADE RS(RBF),GRADE IRMSHER(RBQ) 		8-97039-227-1 01 1 9112-9504 ● ●
5 LABEL; TIRE AIR PRESSURE
GRADE BASIC OR LS(RBA),GRADE XS(RBB),GRADE RS(RBF) ,GRADE IRMSHER (RBQ) 		8-97039-227-1 01 1 9505-9505 ● ●
5 LABEL; TIRE AIR PRESSURE
GRADE BASIC OR LS(RBA),GRADE XS(RBB),GRADE RS(RBF) ,GRADE IRMSHER (RBQ) 		8-97134-277-0 01 1 9506- ● ●
5 LABEL; TIRE AIR PRESSURE
GRADE LOTUS/LOTUS SE(RBL) 		8-97039-228-1 01 1 9112- ●
8 LABEL; FUSE 8-97807-337-0 01 1 9112-9307 ● ●
8 LABEL; FUSE 8-97810-052-0 01 1 9308-9504 ● ●
22 PLATE; CAUTION,A/T SELECT MODE
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-97038-812-1 01 1 9112-9307 ● ●
30 PLATE; CAUTION,RR SEAT
(A) SECOND SEAT 		8-97086-937-0 01 1 9209-9301 ●
30 PLATE; CAUTION,RR SEAT
(A) SECOND SEAT 		8-97092-587-1 01 1 9302-9506 ●
30 PLATE; CAUTION,RR SEAT
(A) SECOND SEAT 		8-97135-363-0 01 1 9507- ●
30 PLATE; CAUTION,RR SEAT
(A) SECOND SEAT 		8-97069-512-1 02 1 9112-9208 ●
30 PLATE; CAUTION,RR SEAT
(A) SECOND SEAT 		8-97086-937-0 02 1 9209-9301 ●
30 PLATE; CAUTION,RR SEAT
(A) SECOND SEAT 		8-97092-587-1 02 1 9302-9506 ●
30 PLATE; CAUTION,RR SEAT
(A) SECOND SEAT 		8-97135-363-0 02 1 9507- ●
30 PLATE; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) (B) REAR PILLAR TRIM COVER 		8-97101-705-1 02 1 9308- ●
33 LABEL; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97044-903-1 02 1 9112-9308 ●
33 LABEL; CAUTION,RR SEAT
GRADE BASIC OR LS(RBA),GRADE LOTUS/LOTUS SE(RBL), GRADE IRMSHER (RBQ) 3RD SEAT 7 PASSENGERS(AS3) EXC. HONDA BRAND PACKAGE<7EP> 		8-97044-903-1 02 1 9309-9312 ●
33 LABEL; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97044-903-1 02 1 9401-9501 ●
33 LABEL; CAUTION,RR SEAT
GRADE BASIC OR LS(RBA) 3RD SEAT 7 PASSENGERS(AS3) LS FIELD STAR(7KB) 		8-97044-903-1 02 1 9502-9504 ●
33 LABEL; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97115-760-0 02 1 9502-9506 ●
33 LABEL; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97124-953-0 02 1 9507- ●
49 PLATE; CAUTION,FUSE BOX 8-97117-406-0 01 1 9505- ● ●
93 PLATE; CAUTION,WALK-IN SEAT
EXC. RECARO SHEET<6LX> 		8-97069-513-2 01 1 9112-9209 ●
93 PLATE; CAUTION,WALK-IN SEAT
EXC. RECARO SHEET<6LX> 		8-97086-935-0 01 1 9209-9301 ●
93 PLATE; CAUTION,WALK-IN SEAT
EXC. RECARO SHEET<6LX> 		8-97092-625-1 01 1 9302- ●
çizim 493754
30 140 21
BalonParca AdiParca NoAdetTipApplied Date A B
21 PLATE; CAUTION,CHILD LOCK 8-94117-828-0 02 1 9112-9509 ●
21 PLATE; CAUTION,CHILD LOCK 8-97022-812-0 02 1 9510- ●
30 PLATE; CAUTION,RR SEAT
(A) SECOND SEAT 		8-97086-937-0 01 1 9209-9301 ●
30 PLATE; CAUTION,RR SEAT
(A) SECOND SEAT 		8-97092-587-1 01 1 9302-9506 ●
30 PLATE; CAUTION,RR SEAT
(A) SECOND SEAT 		8-97135-363-0 01 1 9507- ●
30 PLATE; CAUTION,RR SEAT
(A) SECOND SEAT 		8-97069-512-1 02 1 9112-9208 ●
30 PLATE; CAUTION,RR SEAT
(A) SECOND SEAT 		8-97086-937-0 02 1 9209-9301 ●
30 PLATE; CAUTION,RR SEAT
(A) SECOND SEAT 		8-97092-587-1 02 1 9302-9506 ●
30 PLATE; CAUTION,RR SEAT
(A) SECOND SEAT 		8-97135-363-0 02 1 9507- ●
30 PLATE; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) (B) REAR PILLAR TRIM COVER 		8-97101-705-1 02 1 9308- ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER<AJ3> 		8-97133-824-0 01 1 9511- ● ●

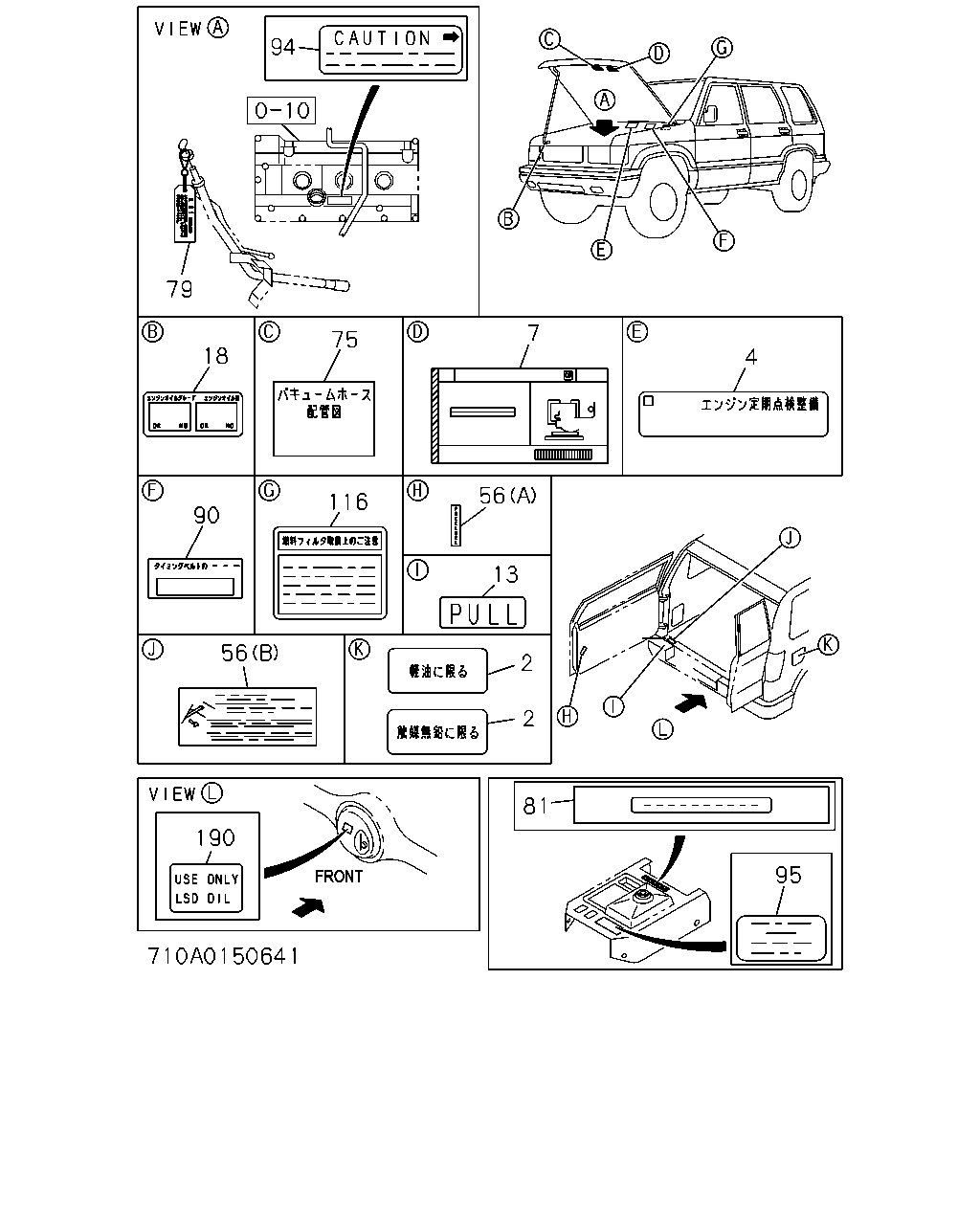

çizim 493966
79 18 75 7 4 56 116 90 13 2 2 56 190 81 95 94
BalonParca AdiParca NoAdetTipApplied Date A B
2 LABEL; FUEL CAUTION
4JG2 ENG(RJC) 		5-85883-040-0 01 1 9112- ● ●
2 LABEL; FUEL CAUTION
6VD1 DOHC ENG(RLV) 		8-94208-591-0 01 1 9112-9208 ● ●
4 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) 		8-97039-226-0 01 1 9112-9504 ● ●
4 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) 		8-97129-565-0 01 1 9505-9509 ● ●
4 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) 		8-97136-235-0 01 1 9510- ● ●
7 LABEL; EMISSION
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97047-145-0 01 1 9112-9307 ● ●
7 LABEL; EMISSION
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97086-980-0 01 1 9308-9504 ● ●
7 LABEL; EMISSION
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97121-143-0 01 1 9505-9509 ● ●
7 LABEL; EMISSION
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97039-222-0 01 1 9112-9307 ● ●
7 LABEL; EMISSION
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97086-979-0 01 1 9308-9504 ● ●
7 LABEL; EMISSION
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97121-142-0 01 1 9505-9509 ● ●
7 LABEL; EMISSION
6VD1 DOHC ENG(RLV) 		8-97044-321-1 01 1 9112-9307 ● ●
7 LABEL; EMISSION
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-97087-428-0 01 1 9308-9504 ● ●
7 LABEL; EMISSION
6VD1 DOHC ENG(RLV) 		8-97087-428-0 01 1 9505-9508 ● ●
7 LABEL; EMISSION
6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-97044-321-1 01 1 9308-9504 ● ●
13 LABEL; CAUTION,CHECK LINK 8-94187-413-0 01 1 9209-9307 ● ●
18 LABEL; ENG OIL
4JG2 ENG(RJC) 		8-94439-217-1 01 1 9112- ● ●
56 PLATE; NAME,CAUTION
(A) 		8-94186-486-0 01 1 9112- ● ●
56 PLATE; NAME,CAUTION
(B) 		8-97807-978-1 01 1 9112-9507 ● ●
56 PLATE; NAME,CAUTION
(B) 		8-97135-651-0 01 1 9508- ● ●
75 PLATE; CAUTION,HOSE ROUTING
6VD1 DOHC ENG(RLV) 		8-97044-325-0 01 1 9112-9307 ● ●
75 PLATE; CAUTION,HOSE ROUTING
6VD1 DOHC ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-97044-325-0 01 1 9308-9504 ● ●
75 PLATE; CAUTION,HOSE ROUTING
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-97087-429-0 01 1 9308-9504 ● ●
75 PLATE; CAUTION,HOSE ROUTING
6VD1 DOHC ENG(RLV) 		8-97087-429-0 01 1 9505-9508 ● ●
75 PLATE; CAUTION,HOSE ROUTING
6VD1 DOHC ENG(RLV) 		8-97135-709-0 01 1 9509- ● ●
79 PLATE; CAUTION,A/T
6VD1 DOHC ENG(RLV) A/T THM(RMQ) 		8-97108-036-0 01 1 9312- ● ●
81 LABEL; CAUTION,A/T SHIFT
A/T AISIN(RMD),A/T THM(RMQ) 		8-97011-971-1 01 1 9112-9312 ● ●
90 LABEL; CAUTION,TIMING BELT
4JG2 ENG(RJC) 		8-94416-074-0 01 1 9112-9202 ● ●
90 LABEL; CAUTION,TIMING BELT
4JG2 ENG(RJC) 		8-97078-262-0 01 1 9203-9203 ● ●
90 LABEL; CAUTION,TIMING BELT 8-97078-262-0 01 1 9204- ● ●
94 PLATE; CAUTION,EGR PIPE
6VD1 DOHC ENG(RLV) 		8-97069-859-2 01 1 9112- ● ●
95 LABEL; CAUTION,STABILIZER
RR STABILIZER W/CLUTCH<6WV> 		8-97069-888-0 01 1 9112- ● ●
116 LABEL; CAUTION,SEDIMENTER
4JG2 ENG(RJC) 		8-94246-537-1 01 1 9209-9410 ● ●
190 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF(G80) 		8-97106-816-0 01 1 9311-9712 ● ●
190 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF(G80) 		8-97200-740-0 01 1 9801- ● ●
