◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50814 - NKR(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#16660) — 27 parça
çizim 10355
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 0009- ● ●
2 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 0009- ●

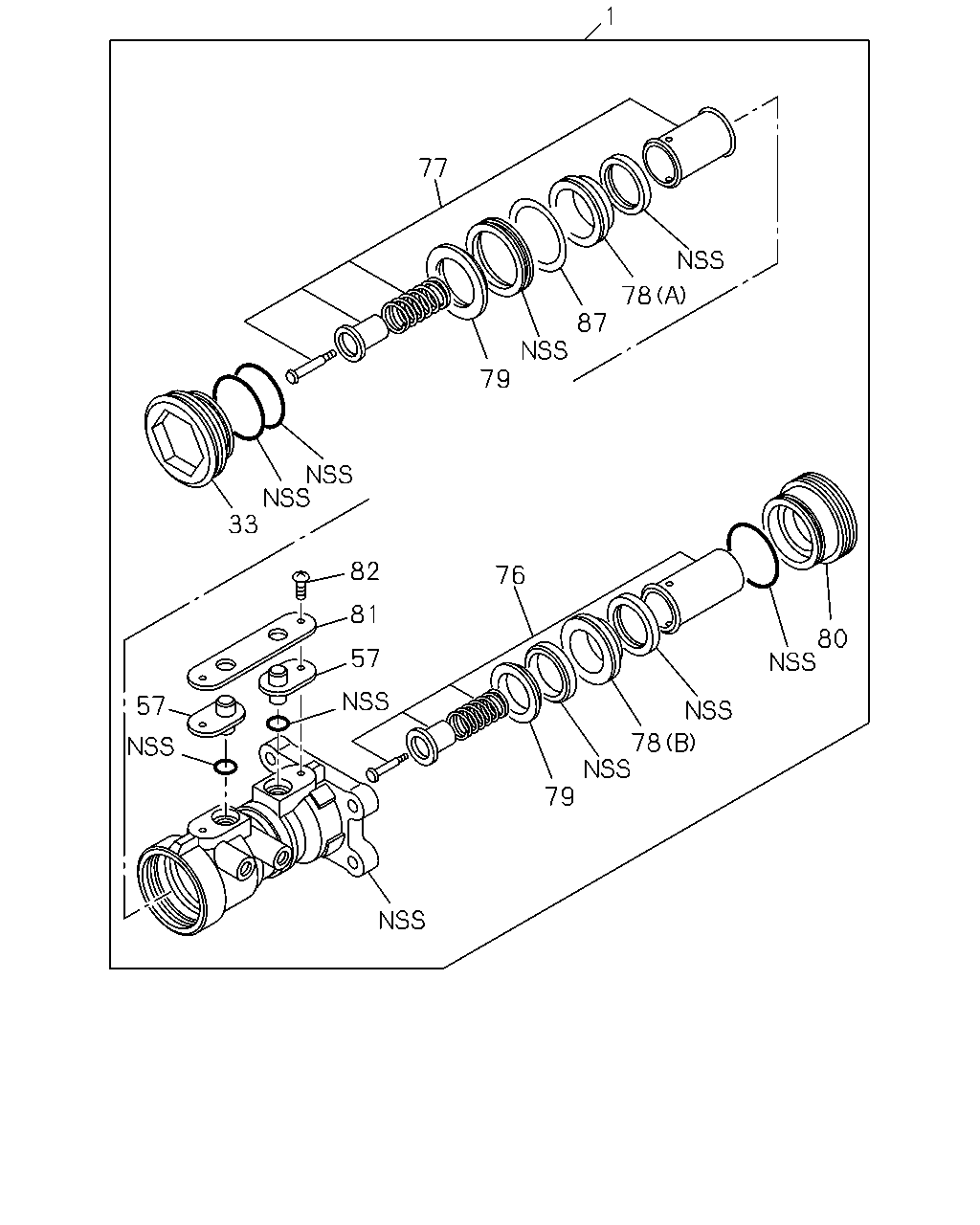

çizim 47176
1 77 78 87 79 33 82 76 81 80 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER ASM; BRK MASTER 8-97224-375-0 01 1 0009-0109 ● ●
1 CYLINDER ASM; BRK MASTER 8-97224-373-0 01 1 0110- ● ●
1 CYLINDER ASM; BRK MASTER 8-97224-372-0 01 1 0009-0109 ●
1 CYLINDER ASM; BRK MASTER 8-97224-370-0 01 1 0110- ●
33 PLUG; END,M/CYL 8-97186-696-0 01 1 0009- ● ●
33 PLUG; END,M/CYL 8-97186-697-0 01 1 0009- ●
57 NIPPLE; BRK M/CYL 8-97130-441-0 02 1 0009-0109 ● ● ●
57 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 0110- ● ● ●
76 PISTON ASM; PRIMARY 8-97224-636-0 01 1 0009- ● ●
76 PISTON ASM; PRIMARY 8-97224-643-0 01 1 0009- ●
77 PISTON ASM; SECONDARY 8-97224-635-0 01 1 0009- ● ●
77 PISTON ASM; SECONDARY 8-97224-642-0 01 1 0009- ●
78 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 0009- ● ●
78 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 0009- ● ●
78 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 0009- ●
78 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 0009- ●
79 SUPPORTER; CUP 8-97130-462-0 02 1 0009- ● ●
79 SUPPORTER; CUP 8-97130-463-0 02 1 0009- ●
80 COVER; MASTER CYL 8-97130-448-0 01 1 0009- ● ●
80 COVER; MASTER CYL 8-97130-449-0 01 1 0009- ●
81 HOLDER; NIPPLE 8-97130-444-0 01 1 0009-0109 ● ● ●
81 HOLDER; NIPPLE 8-97130-445-0 01 1 0110- ● ● ●
82 SCREW; HOLDER 8-97130-446-0 02 1 0009- ● ● ●
87 SPACER; CUP 8-97130-458-0 01 1 0009- ● ●
87 SPACER; CUP 8-97130-459-0 01 1 0009- ●
