◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#1666) — 22 parça

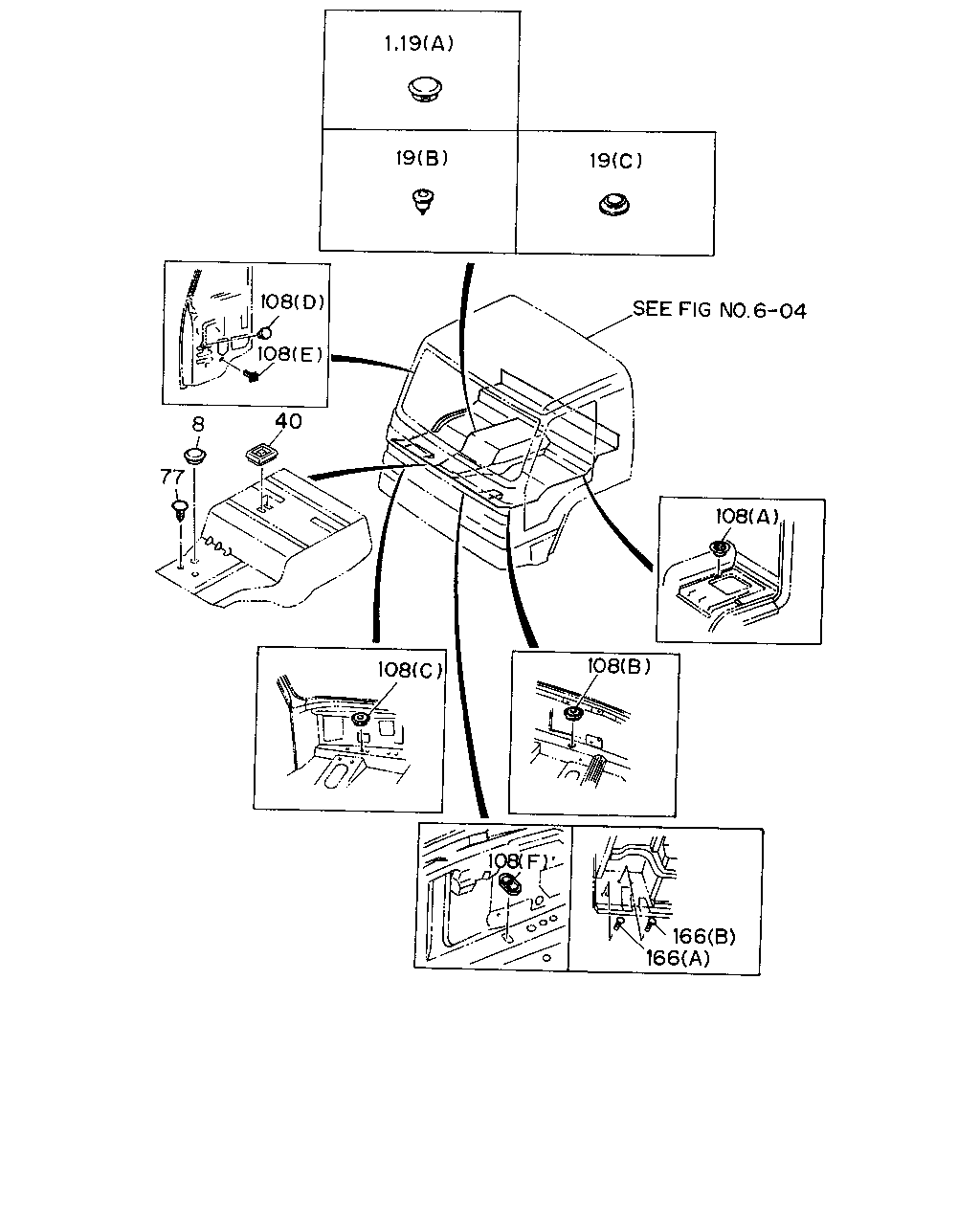

çizim 95108
1 19 19 19 108 108 40 8 77 108 108 166 166 108 108
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 GROMMET
OD=35 		1-09983-066-1 02 1 9503- ● ● ● ● ●
8 GROMMET; CABLE,A/T 1-09983-016-0 01 1 9207- ● ● ● ● ●
19 GROMMET; FLOOR FRT
(A) OD=35 		1-09983-066-1 02 1 9207- ● ● ● ● ●
19 GROMMET; FLOOR FRT
(A) OD=23.5 		1-09983-101-0 02 1 9207- ● ● ● ● ●
19 GROMMET; FLOOR FRT
(A) OD=23.5 		1-09983-101-0 02 1 9207- ● ● ● ●
19 GROMMET; FLOOR FRT
(C) OD=32 T=5 		5-09983-018-0 02 1 9207- ● ● ● ● ●
19 GROMMET; FLOOR FRT
(C) OD=20 		5-09983-020-0 02 1 9207- ● ● ● ● ●
19 GROMMET; FLOOR FRT
(C) OD=20 		5-09983-020-0 02 1 9207- ● ● ● ●
19 GROMMET; FLOOR FRT
(B) OD=22 		9-61168-535-0 01 1 9207- ● ● ● ● ●
19 GROMMET; FLOOR FRT
(C) OD=20 		5-09983-020-0 06 1 9207- ●
40 GROMMET; RR,UNION 1-09983-108-0 02 1 9207- ●
40 GROMMET; RR,UNION
EXC. REAR WHEEL PARKING(B3A) 		1-09983-108-0 02 1 9207- ● ● ● ●
77 PLUG; STAND,A/T
D4.7X11 		1-76378-154-0 02 1 9207- ● ● ● ● ●
108 GROMMET; HOLE PLUG
(F) OD=40X19 T=6 		1-09983-012-2 01 1 9207- ● ● ● ● ●
108 GROMMET; HOLE PLUG
(D) ID=20 OD=40 		1-09983-077-0 02 1 9207- ● ● ● ● ●
108 GROMMET; HOLE PLUG
(A) OD=20 		5-09983-020-0 04 1 9207- ● ● ● ● ●
108 GROMMET; HOLE PLUG
(E) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 9207- ● ● ● ● ●
108 GROMMET; HOLE PLUG
(C) OD=28 		9-09575-497-0 02 1 9207- ● ● ● ● ●
108 GROMMET; HOLE PLUG
AUTO ENG SHUTOFF(KB6) (B) OD=36 		1-09983-092-0 01 1 9207- ● ● ● ● ●
108 GROMMET; HOLE PLUG
EXC. TACHOMETER<UD7> (C) OD=28 		9-09575-497-0 01 1 9207-9310 ● ● ● ● ●
166 PLUG; UNDER FRAME
(B) D4.7X11 		1-76378-154-0 04 1 9207- ● ● ● ● ●
166 PLUG; UNDER FRAME
(A) OD=15 L=14.5 		1-76378-157-0 01 1 9207- ● ● ● ● ●
