◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#166599) — 110 parça

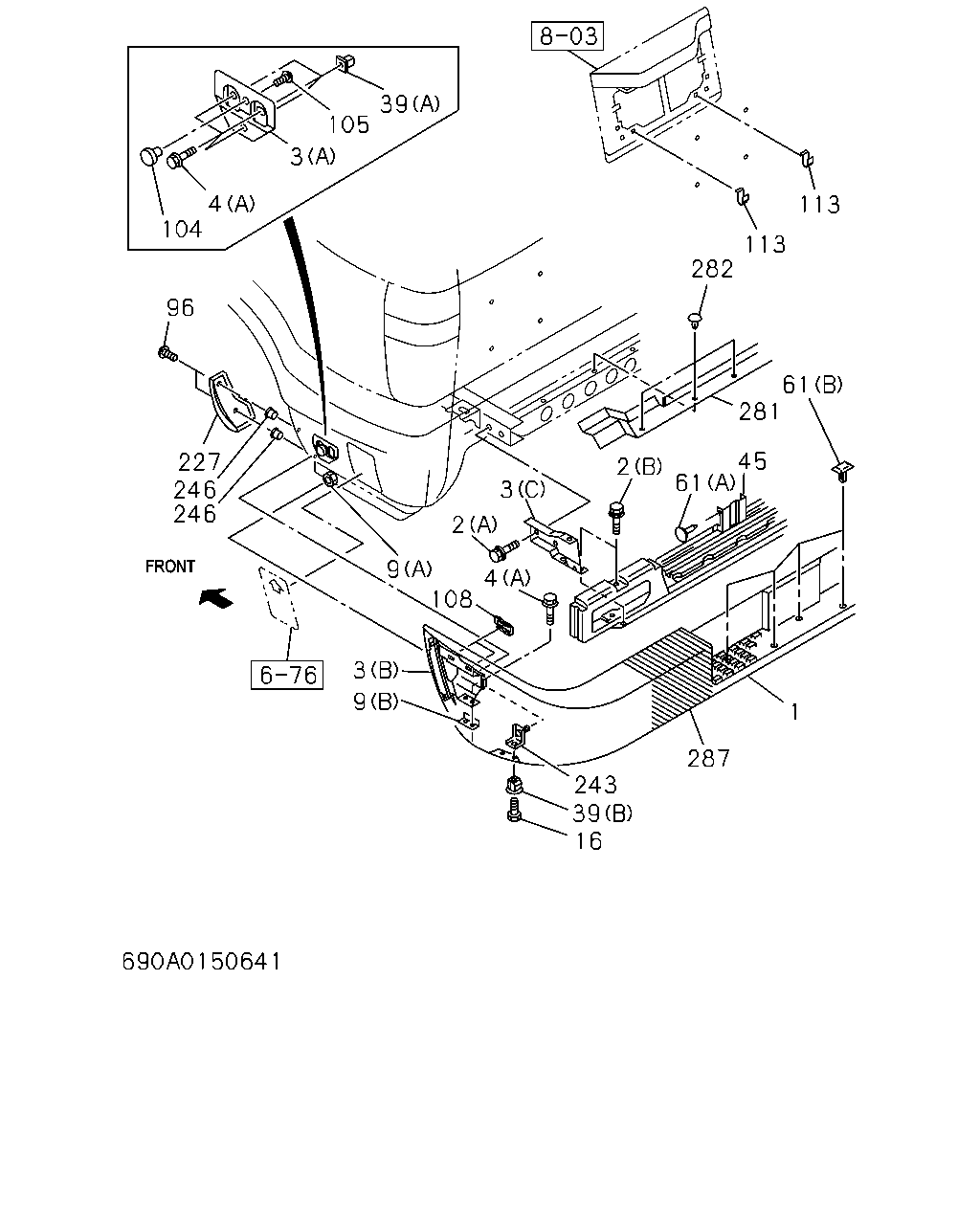

çizim 493862
104 4 3 105 39 113 113 282 61 281 45 61 2 3 2 4 108 9 246 246 227 96 3 9 243 39 16 287 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER; RR
PRIMER 		8-97807-862-1 01 1 9112-9504 ● ●
1 BUMPER; RR
EXC. OVER FENDER<6GH> PRIMER 		8-97807-862-1 01 1 9505-9605 ● ●
1 BUMPER; RR
EXC. OVER FENDER<6GH> PRIMER 		8-97183-086-0 01 1 9606- ● ●
1 BUMPER; RR
GRADE RS(RBF),GRADE IRMSHER (RBQ) BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUE MICA/IRON GRAY MET(784),BODY COLOR IRON GRAY MET(849) GRAY 		8-97805-499-4 01 1 9308-9504 ● ●
1 BUMPER; RR
BODY COLOR IRON GRAY MET(849) GRADE BASIC OR LS(RBA) GRAY 		8-97805-499-4 01 1 9308-9504 ● ●
1 BUMPER; RR
GRADE XS(RBB) OVER FENDER<6GH> AUGUST LIMITED MODEL(7RE) LIGHT SILVER 		8-97098-494-2 01 1 9606-9610 ● ●
1 BUMPER; RR
GRADE XS(RBB) OVER FENDER<6GH> JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) LIGHT SILVER 		8-97098-494-2 01 1 9611- ● ●
1 BUMPER; RR
GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) OVER FENDER<6GH> GRAY 		8-97098-495-2 01 1 9505-9605 ● ●
1 BUMPER; RR
GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) OVER FENDER<6GH> EXC. AUGUST LIMITED MODEL(7RE) GRAY 		8-97098-495-2 01 1 9606-9610 ● ●
1 BUMPER; RR
FRT BUMPER DARK GRAY<EQ9> GRAY 		8-97805-499-4 01 1 9112-9307 ● ●
1 BUMPER; RR
BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUE MICA/IRON GRAY MET(784) COLOR KEYED BUMPER<S4H> GRAY 		8-97805-499-4 01 1 9112-9307 ● ●
1 BUMPER; RR
BODY COLOR EBONY BLACK/LT.SILVER MET(774),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) COLOR KEYED BUMPER<S4H> LIGHT SILVER 		8-97805-500-4 01 1 9209-9307 ● ●
1 BUMPER; RR
BODY COLOR EBONY BLACK/LT.SILVER MET(774),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR NEWMED.BROWN MET/LT.SILVER MET(778),BODY COLOR GOLDMICA GREEN/LT.SILVER MET(780),BODY COLOR CRANBERRYMICA/LT.SILVER MET(783) COLOR KEYED BUMPER<S4H> LIGHT SILVER 		8-97805-500-4 01 1 9112-9208 ● ●
1 BUMPER; RR
BODY COLOR LT.SILVER MET(753) GRADE BASIC OR LS(RBA) LIGHT SILVER 		8-97805-500-4 01 1 9308-9504 ● ●
1 BUMPER; RR
GRADE LOTUS/LOTUS SE(RBL) LIGHT SILVER 		8-97805-500-4 01 1 9308-9504 ● ●
1 BUMPER; RR
BODY COLOR EBONY BLACK/LT.SILVER MET(774) GRADE IRMSHER (RBQ) LIGHT SILVER 		8-97805-500-4 01 1 9308-9504 ● ●
1 BUMPER; RR
BODY COLOR LT.SILVER MET(753) GRADE BASIC OR LS(RBA) LIGHT SILVER 		8-97805-500-4 01 1 9505-9512 ● ●
1 BUMPER; RR
GRADE LOTUS/LOTUS SE(RBL) LIGHT SILVER 		8-97805-500-4 01 1 9505-9512 ● ●
1 BUMPER; RR
GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) EXC. OVER FENDER<6GH> GRAY 		8-97805-499-4 01 1 9505- ● ●
1 BUMPER; RR
BODY COLOR IRON GRAY MET(849) GRADE BASIC OR LS(RBA) GRAY 		8-97805-499-4 01 1 9505- ● ●
1 BUMPER; RR
BODY COLOR LT.SILVER MET(753) GRADE BASIC OR LS(RBA) LIGHT SILVER 		8-97805-500-4 01 1 9601-9605 ● ●
1 BUMPER; RR
BODY COLOR LT.SILVER MET/IRON GRAY MET(751) GRADE LOTUS/LOTUS SE(RBL) JANUARY 96YEAR LIMITED MODEL(7PM) LIGHT SILVER 		8-97805-500-4 01 1 9601-9605 ● ●
1 BUMPER; RR
GRADE LOTUS/LOTUS SE(RBL) EXC. JANUARY 96YEAR LIMITED MODEL(7PM) LIGHT SILVER 		8-97805-500-4 01 1 9601-9605 ● ●
1 BUMPER; RR
BODY COLOR LT.SILVER MET(753) GRADE BASIC OR LS(RBA) LIGHT SILVER 		8-97805-500-4 01 1 9606- ● ●
1 BUMPER; RR
GRADE LOTUS/LOTUS SE(RBL) LIGHT SILVER 		8-97805-500-4 01 1 9606- ● ●
1 BUMPER; RR
GRADE XS(RBB),GRADE RS(RBF),GRADE IRMSHER (RBQ) OVER FENDER<6GH> EXC. JANUARY 96YEAR LIMITED MODEL(7PM),AUGUST LIMITED MODEL(7RE) GRAY 		8-97098-495-2 01 1 9611- ● ●
2 BOLT; BACK BAR
(B) M8X20 W/LK&PL WASHER 		9-01960-820-0 06 1 9112-9204 ● ●
2 BOLT; BACK BAR
(B) M8X20 W/LK&PL WASHER 		0-50140-820-0 06 1 9205-9412 ● ●
2 BOLT; BACK BAR
(B) M8X20 FLANGE 		0-28680-820-0 06 1 9501- ● ●
2 BOLT; BACK BAR
(A) M12X30 FLANGE 		8-94475-424-0 04 1 9112-9509 ● ●
2 BOLT; BACK BAR
(A) M12X30 FLANGE 		0-28691-230-0 04 1 9510- ● ●
2 BOLT; BACK BAR
(C) M6X16 		8-94493-405-0 06 1 9112- ● ●
3 BRACKET; BUMPER
(C) REINFORCEMENT SIDE 		8-97800-132-2 01 1 9112- ● ●
3 BRACKET; BUMPER
(A) BODY SIDE 		8-97805-157-1 01 1 9112- ● ●
3 BRACKET; BUMPER
(C) REINFORCEMENT SIDE 		8-97800-131-2 01 1 9112- ● ●
3 BRACKET; BUMPER
(A) BODY SIDE 		8-97805-156-1 01 1 9112- ● ●
3 BRACKET; BUMPER
FORMED MUD FLAP<6WL> (B) BUMPER SIDE 		8-97805-172-3 01 1 9112-9605 ● ●
3 BRACKET; BUMPER
COLOR KEYED ROCKER SKIRT<6YA> (B) BUMPER SIDE 		8-97805-172-3 01 1 9606- ● ●
3 BRACKET; BUMPER
FORMED MUD FLAP<6WL> (B) BUMPER SIDE 		8-97805-172-3 01 1 9606- ●
3 BRACKET; BUMPER
FORMED MUD FLAP<6WL> (B) BUMPER SIDE 		8-97805-171-3 01 1 9112-9605 ● ●
3 BRACKET; BUMPER
COLOR KEYED ROCKER SKIRT<6YA> (B) BUMPER SIDE 		8-97805-171-3 01 1 9606- ● ●
3 BRACKET; BUMPER
FORMED MUD FLAP<6WL> (B) BUMPER SIDE 		8-97805-171-3 01 1 9606- ●
3 BRACKET; BUMPER
EXC. FORMED MUD FLAP<6WL> (B) BUMPER SIDE 		8-97800-119-1 01 1 9112-9605 ● ●
3 BRACKET; BUMPER
EXC. OVER FENDER<6GH>,FORMED MUD FLAP<6WL>,COLOR KEYED ROCKER SKIRT<6YA> (B) BUMPER SIDE 		8-97800-119-1 01 1 9606- ● ●
3 BRACKET; BUMPER
EXC. FORMED MUD FLAP<6WL> (B) BUMPER SIDE 		8-97800-118-1 01 1 9112-9605 ● ●
3 BRACKET; BUMPER
EXC. OVER FENDER<6GH>,FORMED MUD FLAP<6WL>,COLOR KEYED ROCKER SKIRT<6YA> (B) BUMPER SIDE 		8-97800-118-1 01 1 9606- ● ●
4 BOLT; BUMPER
(A) M6X16 		8-94493-405-0 10 1 9112-9408 ● ●
4 BOLT; BUMPER
(A) M6X16 		8-94493-405-0 08 1 9409- ● ●
4 BOLT; BUMPER
(B) M6X12 		8-97807-917-0 04 1 9112- ● ●
9 NUT; BUMPER
(A) M6 FLANGE 		0-91150-106-0 02 1 9112- ● ●
9 NUT; BUMPER
(B) 		8-97801-185-1 02 1 9112- ● ●
16 SCREW; RR BUMPER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 07 1 9112- ● ●
39 GROMMET; SCREW,BUMPER BRKT
(A) D=9.7X9.7 L=8 		8-94222-314-0 06 1 9112- ● ●
39 GROMMET; SCREW,BUMPER BRKT
(B) 		8-97804-050-2 07 1 9112- ● ●
45 REINFORCEMENT; RR BUMPER 8-97800-982-4 01 1 9112- ● ●
61 CLIP; BUMPER RR
(A) 		8-94175-178-1 02 1 9112- ● ●
61 CLIP; BUMPER RR
(B) 		8-97805-166-0 07 1 9112- ● ●
96 SCREW; PROTECTOR
M6X16 		8-97805-189-0 04 1 9112- ● ●
104 SLIDER; SUPPORT,RR BUMPER 8-97805-152-2 02 1 9112- ● ●
105 SCREW; SLIDER
M8X18 		8-97805-235-0 02 1 9112- ● ●
108 SPIRE; RR BUMPER 8-94401-528-1 04 1 9112- ● ●
113 BRACKET; LICENSE PLATE 8-97801-412-1 02 1 9112- ● ●
227 PROTECTOR; RR BUMPER 8-97800-966-0 01 1 9112-9307 ● ●
227 PROTECTOR; RR BUMPER 8-97800-965-0 01 1 9112-9307 ● ●
227 PROTECTOR; RR BUMPER
FORMED MUD FLAP<6WL> 		8-97808-603-3 01 1 9308-9605 ● ●
227 PROTECTOR; RR BUMPER
COLOR KEYED ROCKER SKIRT<6YA> 		8-97808-603-3 01 1 9606- ● ●
227 PROTECTOR; RR BUMPER
FORMED MUD FLAP<6WL> 		8-97808-603-3 01 1 9606- ●
227 PROTECTOR; RR BUMPER
FORMED MUD FLAP<6WL> 		8-97808-602-3 01 1 9308-9605 ● ●
227 PROTECTOR; RR BUMPER
COLOR KEYED ROCKER SKIRT<6YA> 		8-97808-602-3 01 1 9606- ● ●
227 PROTECTOR; RR BUMPER
FORMED MUD FLAP<6WL> 		8-97808-602-3 01 1 9606- ●
227 PROTECTOR; RR BUMPER
EXC. FORMED MUD FLAP<6WL> 		8-97800-966-0 01 1 9308-9605 ● ●
227 PROTECTOR; RR BUMPER
EXC. COLOR KEYED ROCKER SKIRT<6YA> 		8-97800-966-0 01 1 9606- ●
227 PROTECTOR; RR BUMPER
EXC. FORMED MUD FLAP<6WL>,COLOR KEYED ROCKER SKIRT<6YA> 		8-97800-966-0 01 1 9606- ●
227 PROTECTOR; RR BUMPER
EXC. FORMED MUD FLAP<6WL> 		8-97800-965-0 01 1 9308-9605 ● ●
227 PROTECTOR; RR BUMPER
EXC. COLOR KEYED ROCKER SKIRT<6YA> 		8-97800-965-0 01 1 9606- ●
227 PROTECTOR; RR BUMPER
EXC. FORMED MUD FLAP<6WL>,COLOR KEYED ROCKER SKIRT<6YA> 		8-97800-965-0 01 1 9606- ●
243 BRACKET 8-97805-168-1 01 1 9112- ● ●
243 BRACKET 8-97805-167-1 01 1 9112- ● ●
246 GROMMET; SCREW,RR BUMPER COVER 8-94159-130-0 04 1 9112- ● ●
281 COVER; 6TH CROSS MEMBER 8-94359-701-1 01 1 9112- ● ●
282 CLIP; COVER
D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 05 1 9112-9503 ● ●
282 CLIP; COVER
D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 03 1 9504- ● ●
287 FILM; PROTECTION,BUMPER
BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR EBONY BLACK/LT.SILVER MET(774) EXC. SPARE TIRE COVER<P17>,SPARE TIRE COVER HARD<6SU> 		8-97808-790-0 01 1 9205-9208 ●
287 FILM; PROTECTION,BUMPER
BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR NEW MED.BROWN MET/LT.SILVER MET(778),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) EXC. SPARE TIRE COVER<P17>,SPARE TIRE COVER HARD<6SU> 		8-97808-790-0 01 1 9205-9208 ●
287 FILM; PROTECTION,BUMPER
BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR EBONY BLACK/LT.SILVER MET(774) EXC. SPARE TIRE COVER<P17>,SPARE TIRE COVER HARD<6SU> 		8-97808-790-0 01 1 9209-9301 ●
287 FILM; PROTECTION,BUMPER
BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR CRANBERRY MICA/LT.SILVERMET(783) EXC. SPARE TIRE COVER<P17>,SPARE TIRE COVER HARD<6SU> 		8-97808-790-0 01 1 9209-9301 ●
287 FILM; PROTECTION,BUMPER
BODY COLOR EBONY BLACK/LT.SILVER MET(774) GRADE RS(RBF) EXC. SPARE TIRE COVER<P17>,SPARE TIRE COVER HARD<6SU> 		8-97808-790-0 01 1 9302-9302 ●
287 FILM; PROTECTION,BUMPER
BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLORCRANBERRY MICA/LT.SILVER MET(783) GRADE LOTUS/LOTUS SE(RBL) EXC. SPARE TIRE COVER<P17>,SPARE TIRE COVER HARD<6SU> 		8-97808-790-0 01 1 9302-9302 ●
287 FILM; PROTECTION,BUMPER
BODY COLOR EBONY BLACK/LT.SILVER MET(774) GRADE RS(RBF) EXC. SPARE TIRE COVER<P17>,SPARE TIRE COVER HARD<6SU> 		8-97808-790-0 01 1 9303-9307 ●
287 FILM; PROTECTION,BUMPER
BODY COLOR EBONY BLACK/LT.SILVER MET(774),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) GRADE LOTUS/LOTUS SE(RBL) EXC. SPARE TIRE COVER<P17>,SPARE TIRE COVER HARD<6SU> 		8-97808-790-0 01 1 9303-9307 ●

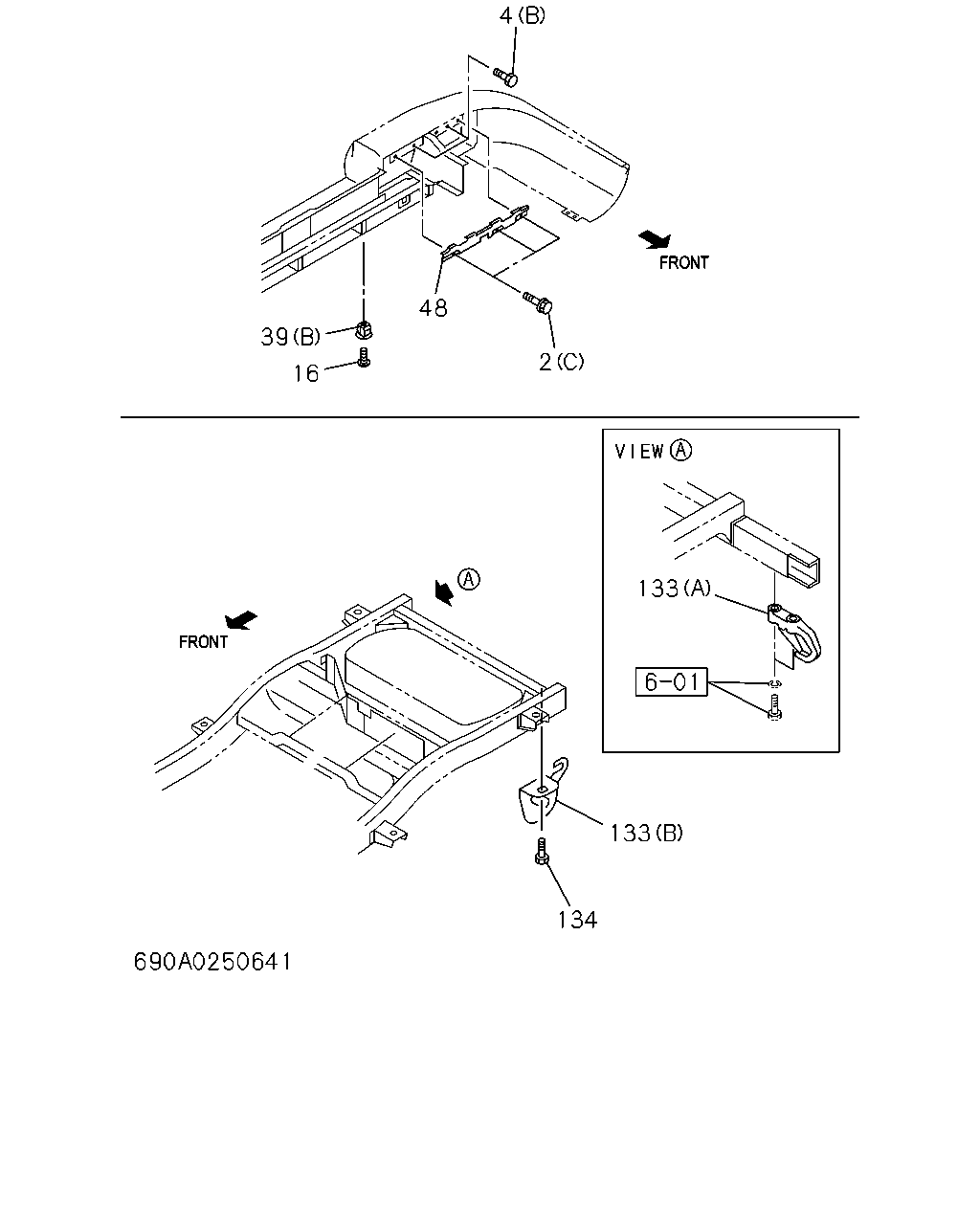

çizim 493863
4 2 48 39 16 133 133 134
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; BACK BAR
(B) M8X20 W/LK&PL WASHER 		9-01960-820-0 06 1 9112-9204 ● ●
2 BOLT; BACK BAR
(B) M8X20 W/LK&PL WASHER 		0-50140-820-0 06 1 9205-9412 ● ●
2 BOLT; BACK BAR
(B) M8X20 FLANGE 		0-28680-820-0 06 1 9501- ● ●
2 BOLT; BACK BAR
(A) M12X30 FLANGE 		8-94475-424-0 04 1 9112-9509 ● ●
2 BOLT; BACK BAR
(A) M12X30 FLANGE 		0-28691-230-0 04 1 9510- ● ●
2 BOLT; BACK BAR
(C) M6X16 		8-94493-405-0 06 1 9112- ● ●
4 BOLT; BUMPER
(A) M6X16 		8-94493-405-0 10 1 9112-9408 ● ●
4 BOLT; BUMPER
(A) M6X16 		8-94493-405-0 08 1 9409- ● ●
4 BOLT; BUMPER
(B) M6X12 		8-97807-917-0 04 1 9112- ● ●
16 SCREW; RR BUMPER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 07 1 9112- ● ●
39 GROMMET; SCREW,BUMPER BRKT
(A) D=9.7X9.7 L=8 		8-94222-314-0 06 1 9112- ● ●
39 GROMMET; SCREW,BUMPER BRKT
(B) 		8-97804-050-2 07 1 9112- ● ●
48 RETAINER; BUMPER RR SIDE 8-97803-993-1 01 1 9112- ● ●
48 RETAINER; BUMPER RR SIDE 8-97803-992-1 01 1 9112- ● ●
133 HOOK
(A) 		8-97041-464-2 01 1 9112-9504 ● ●
133 HOOK
(A) 		8-97121-060-0 01 1 9505- ● ●
133 HOOK
(B) 		8-97062-055-2 01 1 9112-9501 ● ●
133 HOOK
(B) 		8-97128-726-0 01 1 9502- ● ●
134 BOLT; HOOK 0-28281-230-0 01 1 9112-9610 ● ●
134 BOLT; HOOK
M12X30 FLANGE 		0-28681-230-0 01 1 9611- ● ●
