Sayfa 6-87 - Isuzu EPC

6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL (#166598) — 178 parça

123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
123	SEAL; REAR (A)	8-97805-795-1	02	1	9112-	●
123	SEAL; REAR (B)	8-97805-794-2	01	1	9112-	●	●
123	SEAL; REAR (C)	8-97135-087-0	04	1	9508-	●	●
123	SEAL; REAR (A)	8-97805-793-2	02	1	9112-		●

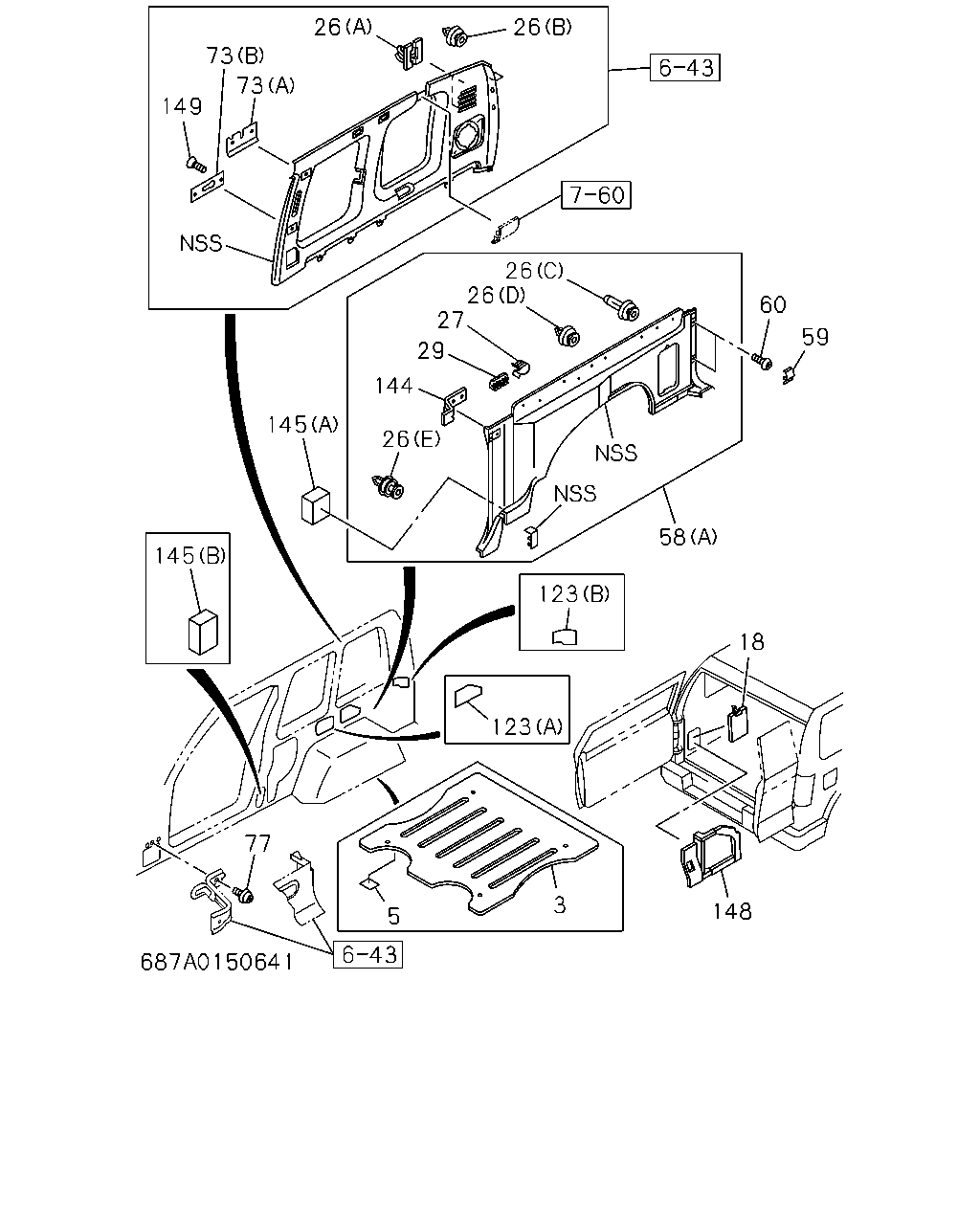

26 26 73 73 149 26 26 60 59 27 29 144 26 145 58 145 148 18 123 123 3 5 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) DARK BROWN	8-97804-966-5	01	1	9112-9307	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) DARK GRAY	8-97804-968-6	01	1	9112-9504	●
3	MAT; LUGGAGE FLOOR DARK GRAY	8-97152-097-0	01	1	9505-	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97806-431-6	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97817-053-0	01	1	9306-9307		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) EXC. LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97806-428-5	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) EXC. LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97817-051-0	01	1	9306-9307		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97806-432-6	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97817-054-0	01	1	9306-9307		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97810-279-2	01	1	9308-9504		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97806-430-5	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97817-052-1	01	1	9306-9504		●
3	MAT; LUGGAGE FLOOR 3RD SEAT 7 PASSENGERS(AS3) EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97152-102-0	01	1	9505-		●
3	MAT; LUGGAGE FLOOR EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97817-038-1	01	1	9308-9504		●
3	MAT; LUGGAGE FLOOR EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97152-101-0	01	1	9505-		●
3	MAT; LUGGAGE FLOOR LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97810-275-2	01	1	9308-9504		●
3	MAT; LUGGAGE FLOOR LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97152-100-0	01	1	9505-		●
5	FASTENER	8-97809-026-1	02	1	9203-	●
18	LID; LUGGAGE SIDE POCKET INTERIOR COLOR BROWN(130) DARK BROWN	8-97804-350-2	01	1	9112-9307	●	●
18	LID; LUGGAGE SIDE POCKET INTERIOR COLOR GRAY(153) DARK GRAY	8-97804-352-2	01	1	9112-9308	●	●
18	LID; LUGGAGE SIDE POCKET INTERIOR COLOR GRAY(153) DARK GRAY	8-97817-189-0	01	1	9308-9504	●	●
18	LID; LUGGAGE SIDE POCKET DARK GRAY	8-97098-438-0	01	1	9505-	●	●
26	CLIP; TRIM COVER (A)	8-94313-458-0	AR	1	9112-	●
26	CLIP; TRIM COVER (E) H=16	8-94318-803-1	AR	1	9112-9207	●
26	CLIP; TRIM COVER (C) H=19.1	8-94385-553-0	AR	1	9112-	●
26	CLIP; TRIM COVER (D) H=17.7	8-94443-278-1	AR	1	9112-9204	●
26	CLIP; TRIM COVER (B) H=16.7	8-97022-017-0	AR	1	9112-	●
26	CLIP; TRIM COVER (G)	8-94313-458-0	AR	1	9112-		●
26	CLIP; TRIM COVER (K) H=16	8-94318-803-1	AR	1	9112-9206		●
26	CLIP; TRIM COVER (J) H=17.7	8-94443-278-1	AR	1	9112-9206		●
26	CLIP; TRIM COVER (N) H=15.3	8-97804-778-0	AR	1	9112-		●
26	CLIP; TRIM COVER (F)	8-97808-609-0	AR	1	9112-		●
26	CLIP; TRIM COVER (H)	8-94365-771-0	AR	1	9203-		●
26	CLIP; TRIM COVER (M) H=11.2	8-97807-381-0	AR	1	9203-		●
26	CLIP; TRIM COVER (I) H=19.1	8-94385-553-0	AR	1	9207-		●
26	CLIP; TRIM COVER (J) H=16.7	8-97022-017-0	AR	1	9207-		●
26	CLIP; TRIM COVER (K) H=16.7	8-97022-017-0	AR	1	9207-		●
26	CLIP; TRIM COVER (L) H=15.3	8-97804-778-0	AR	1	9207-		●
27	CLIP; TRIM COVER	8-94388-826-0	02	1	9203-	●
29	NUT; SPIRE,TRIM COVER	8-94401-528-1	02	1	9203-	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97804-346-7	01	1	9112-9307	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97804-343-7	01	1	9112-9307	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-348-9	01	1	9112-9504	●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97151-332-1	01	1	9505-	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-345-9	01	1	9112-9504	●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97098-421-9	01	1	9505-	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-023-6	01	1	9112-9307		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97806-103-9	01	1	9112-9307		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97804-336-8	01	1	9112-9307		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-019-6	01	1	9112-9307		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97806-105-7	01	1	9112-9208		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-025-6	01	1	9112-9504		●
58	COVER; TRIM,LUGGAGE SIDE (B) DARK GRAY	8-97098-361-6	01	1	9505-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-338-9	01	1	9112-9410		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97817-270-0	01	1	9411-9504		●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97151-934-0	01	1	9505-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-021-6	01	1	9112-9504		●
58	COVER; TRIM,LUGGAGE SIDE (B) DARK GRAY	8-97098-360-6	01	1	9505-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97806-105-9	01	1	9209-9309		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97817-152-1	01	1	9310-9504		●
58	COVER; TRIM,LUGGAGE SIDE 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97151-334-1	01	1	9505-		●
58	COVER; TRIM,LUGGAGE SIDE EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97804-342-9	01	1	9308-9309		●
58	COVER; TRIM,LUGGAGE SIDE EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97817-150-1	01	1	9310-9504		●
58	COVER; TRIM,LUGGAGE SIDE EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97151-333-1	01	1	9505-		●
59	CAP; TRIM COVER INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-797-2	04	1	9112-9307	●	●
59	CAP; TRIM COVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-799-2	04	1	9112-9504	●	●
59	CAP; TRIM COVER DARK GRAY	8-97098-423-2	04	1	9505-	●	●
60	SCREW; LUGGAGE SIDE TRIM M7X20	8-94242-874-0	04	1	9112-	●	●
60	SCREW; LUGGAGE SIDE TRIM M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9112-		●
60	SCREW; LUGGAGE SIDE TRIM M5X16	8-94295-854-0	02	1	9112-		●
73	BRACKET; TRIM COVER (A)	8-97807-707-1	02	1	9112-	●
73	BRACKET; TRIM COVER (B)	8-97807-708-1	02	1	9112-	●
77	SCREW; BRKT M6X14 W/PL WASHER	9-03900-614-0	01	1	9112-9504	●	●
123	SEAL; REAR (A)	8-97805-795-1	02	1	9112-	●
123	SEAL; REAR (B)	8-97805-794-2	01	1	9112-	●	●
123	SEAL; REAR (C)	8-97135-087-0	04	1	9508-	●	●
123	SEAL; REAR (A)	8-97805-793-2	02	1	9112-		●
144	BRACKET INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153)	8-97807-690-0	02	1	9112-9201	●
144	BRACKET	8-97808-765-0	01	1	9203-	●
144	BRACKET	8-97808-764-0	01	1	9203-	●
144	BRACKET	8-97807-629-0	01	1	9203-		●
144	BRACKET	8-97807-628-0	01	1	9203-		●
145	PAD; CUSHION,LUGGAGE SIDE (A)	8-97807-547-0	02	1	9203-9410	●
145	PAD; CUSHION,LUGGAGE SIDE (A)	8-97811-223-0	02	1	9411-9510	●
145	PAD; CUSHION,LUGGAGE SIDE (A)	8-97811-223-0	01	1	9511-	●
145	PAD; CUSHION,LUGGAGE SIDE (B)	8-97809-436-0	02	1	9204-9206	●
145	PAD; CUSHION,LUGGAGE SIDE (B)	8-97808-910-0	02	1	9207-9403	●
148	PAD; CUSHION,JACK & TOOL	8-97806-776-4	01	1	9112-9302	●	●
148	PAD; CUSHION,JACK & TOOL	8-97810-300-0	01	1	9303-9412	●	●
148	PAD; CUSHION,JACK & TOOL	8-97111-186-0	01	1	9501-	●	●
149	SCREW; BRKT M4X10 TAPPING CK-HEAD	0-70080-410-0	08	1	9112-	●
149	SCREW; BRKT M4X8 TAPPING	9-07076-408-0	02	1	9203-		●

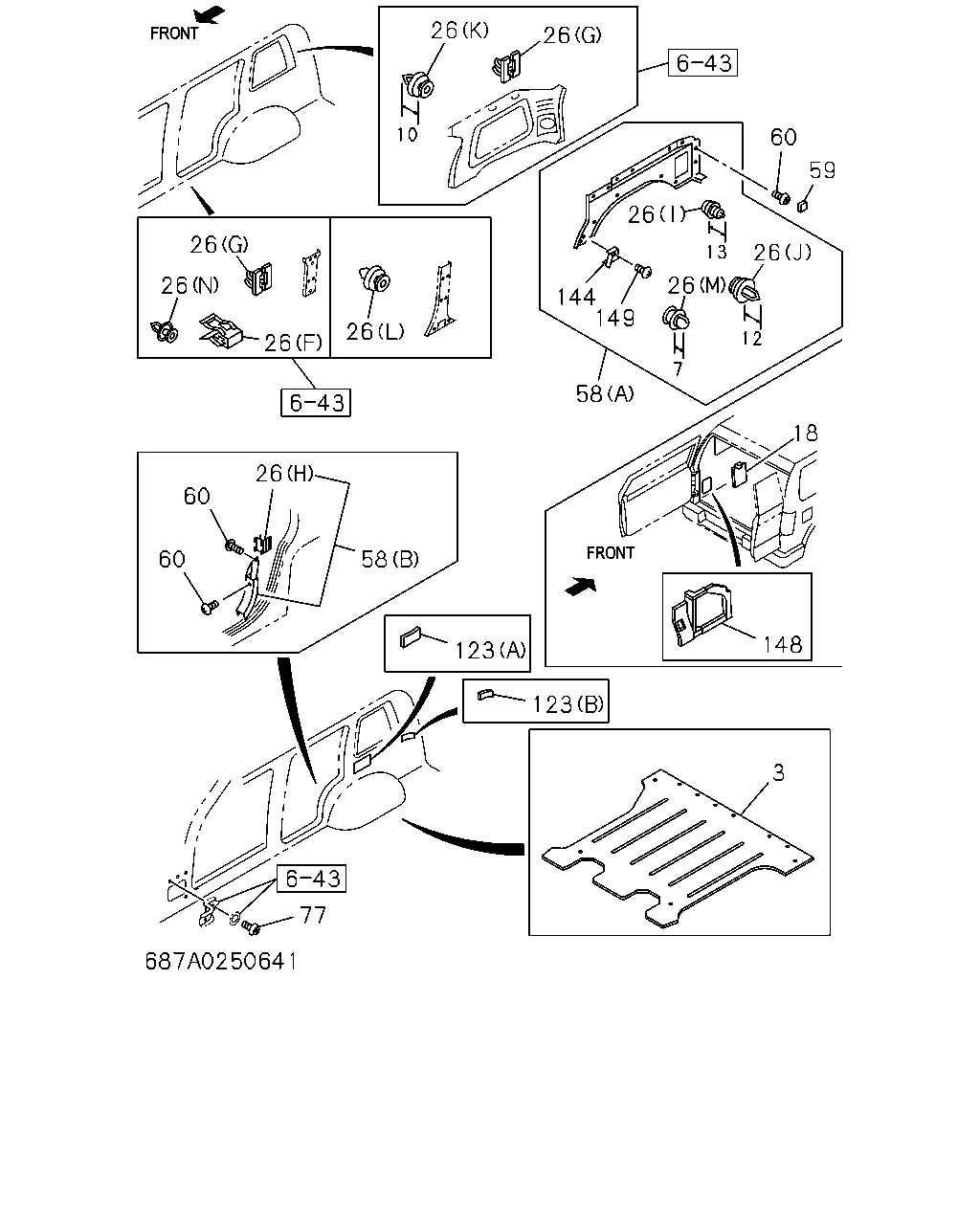

26 26 26 26 10 26 26 60 59 26 13 12 26 7 26 144 149 58 18 26 60 60 58 123 123 3 77 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) DARK BROWN	8-97804-966-5	01	1	9112-9307	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) DARK GRAY	8-97804-968-6	01	1	9112-9504	●
3	MAT; LUGGAGE FLOOR DARK GRAY	8-97152-097-0	01	1	9505-	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97806-431-6	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97817-053-0	01	1	9306-9307		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) EXC. LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97806-428-5	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) EXC. LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97817-051-0	01	1	9306-9307		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97806-432-6	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97817-054-0	01	1	9306-9307		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97810-279-2	01	1	9308-9504		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97806-430-5	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97817-052-1	01	1	9306-9504		●
3	MAT; LUGGAGE FLOOR 3RD SEAT 7 PASSENGERS(AS3) EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97152-102-0	01	1	9505-		●
3	MAT; LUGGAGE FLOOR EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97817-038-1	01	1	9308-9504		●
3	MAT; LUGGAGE FLOOR EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97152-101-0	01	1	9505-		●
3	MAT; LUGGAGE FLOOR LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97810-275-2	01	1	9308-9504		●
3	MAT; LUGGAGE FLOOR LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97152-100-0	01	1	9505-		●
18	LID; LUGGAGE SIDE POCKET INTERIOR COLOR BROWN(130) DARK BROWN	8-97804-350-2	01	1	9112-9307	●	●
18	LID; LUGGAGE SIDE POCKET INTERIOR COLOR GRAY(153) DARK GRAY	8-97804-352-2	01	1	9112-9308	●	●
18	LID; LUGGAGE SIDE POCKET INTERIOR COLOR GRAY(153) DARK GRAY	8-97817-189-0	01	1	9308-9504	●	●
18	LID; LUGGAGE SIDE POCKET DARK GRAY	8-97098-438-0	01	1	9505-	●	●
26	CLIP; TRIM COVER (A)	8-94313-458-0	AR	1	9112-	●
26	CLIP; TRIM COVER (E) H=16	8-94318-803-1	AR	1	9112-9207	●
26	CLIP; TRIM COVER (C) H=19.1	8-94385-553-0	AR	1	9112-	●
26	CLIP; TRIM COVER (D) H=17.7	8-94443-278-1	AR	1	9112-9204	●
26	CLIP; TRIM COVER (B) H=16.7	8-97022-017-0	AR	1	9112-	●
26	CLIP; TRIM COVER (G)	8-94313-458-0	AR	1	9112-		●
26	CLIP; TRIM COVER (K) H=16	8-94318-803-1	AR	1	9112-9206		●
26	CLIP; TRIM COVER (J) H=17.7	8-94443-278-1	AR	1	9112-9206		●
26	CLIP; TRIM COVER (N) H=15.3	8-97804-778-0	AR	1	9112-		●
26	CLIP; TRIM COVER (F)	8-97808-609-0	AR	1	9112-		●
26	CLIP; TRIM COVER (H)	8-94365-771-0	AR	1	9203-		●
26	CLIP; TRIM COVER (M) H=11.2	8-97807-381-0	AR	1	9203-		●
26	CLIP; TRIM COVER (I) H=19.1	8-94385-553-0	AR	1	9207-		●
26	CLIP; TRIM COVER (J) H=16.7	8-97022-017-0	AR	1	9207-		●
26	CLIP; TRIM COVER (K) H=16.7	8-97022-017-0	AR	1	9207-		●
26	CLIP; TRIM COVER (L) H=15.3	8-97804-778-0	AR	1	9207-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97804-346-7	01	1	9112-9307	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97804-343-7	01	1	9112-9307	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-348-9	01	1	9112-9504	●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97151-332-1	01	1	9505-	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-345-9	01	1	9112-9504	●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97098-421-9	01	1	9505-	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-023-6	01	1	9112-9307		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97806-103-9	01	1	9112-9307		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97804-336-8	01	1	9112-9307		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-019-6	01	1	9112-9307		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97806-105-7	01	1	9112-9208		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-025-6	01	1	9112-9504		●
58	COVER; TRIM,LUGGAGE SIDE (B) DARK GRAY	8-97098-361-6	01	1	9505-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-338-9	01	1	9112-9410		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97817-270-0	01	1	9411-9504		●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97151-934-0	01	1	9505-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-021-6	01	1	9112-9504		●
58	COVER; TRIM,LUGGAGE SIDE (B) DARK GRAY	8-97098-360-6	01	1	9505-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97806-105-9	01	1	9209-9309		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97817-152-1	01	1	9310-9504		●
58	COVER; TRIM,LUGGAGE SIDE 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97151-334-1	01	1	9505-		●
58	COVER; TRIM,LUGGAGE SIDE EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97804-342-9	01	1	9308-9309		●
58	COVER; TRIM,LUGGAGE SIDE EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97817-150-1	01	1	9310-9504		●
58	COVER; TRIM,LUGGAGE SIDE EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97151-333-1	01	1	9505-		●
59	CAP; TRIM COVER INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-797-2	04	1	9112-9307	●	●
59	CAP; TRIM COVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-799-2	04	1	9112-9504	●	●
59	CAP; TRIM COVER DARK GRAY	8-97098-423-2	04	1	9505-	●	●
60	SCREW; LUGGAGE SIDE TRIM M7X20	8-94242-874-0	04	1	9112-	●	●
60	SCREW; LUGGAGE SIDE TRIM M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9112-		●
60	SCREW; LUGGAGE SIDE TRIM M5X16	8-94295-854-0	02	1	9112-		●
77	SCREW; BRKT M6X14 W/PL WASHER	9-03900-614-0	01	1	9112-9504	●	●
123	SEAL; REAR (A)	8-97805-795-1	02	1	9112-	●
123	SEAL; REAR (B)	8-97805-794-2	01	1	9112-	●	●
123	SEAL; REAR (C)	8-97135-087-0	04	1	9508-	●	●
123	SEAL; REAR (A)	8-97805-793-2	02	1	9112-		●
144	BRACKET INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153)	8-97807-690-0	02	1	9112-9201	●
144	BRACKET	8-97808-765-0	01	1	9203-	●
144	BRACKET	8-97808-764-0	01	1	9203-	●
144	BRACKET	8-97807-629-0	01	1	9203-		●
144	BRACKET	8-97807-628-0	01	1	9203-		●
148	PAD; CUSHION,JACK & TOOL	8-97806-776-4	01	1	9112-9302	●	●
148	PAD; CUSHION,JACK & TOOL	8-97810-300-0	01	1	9303-9412	●	●
148	PAD; CUSHION,JACK & TOOL	8-97111-186-0	01	1	9501-	●	●
149	SCREW; BRKT M4X10 TAPPING CK-HEAD	0-70080-410-0	08	1	9112-	●
149	SCREW; BRKT M4X8 TAPPING	9-07076-408-0	02	1	9203-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
