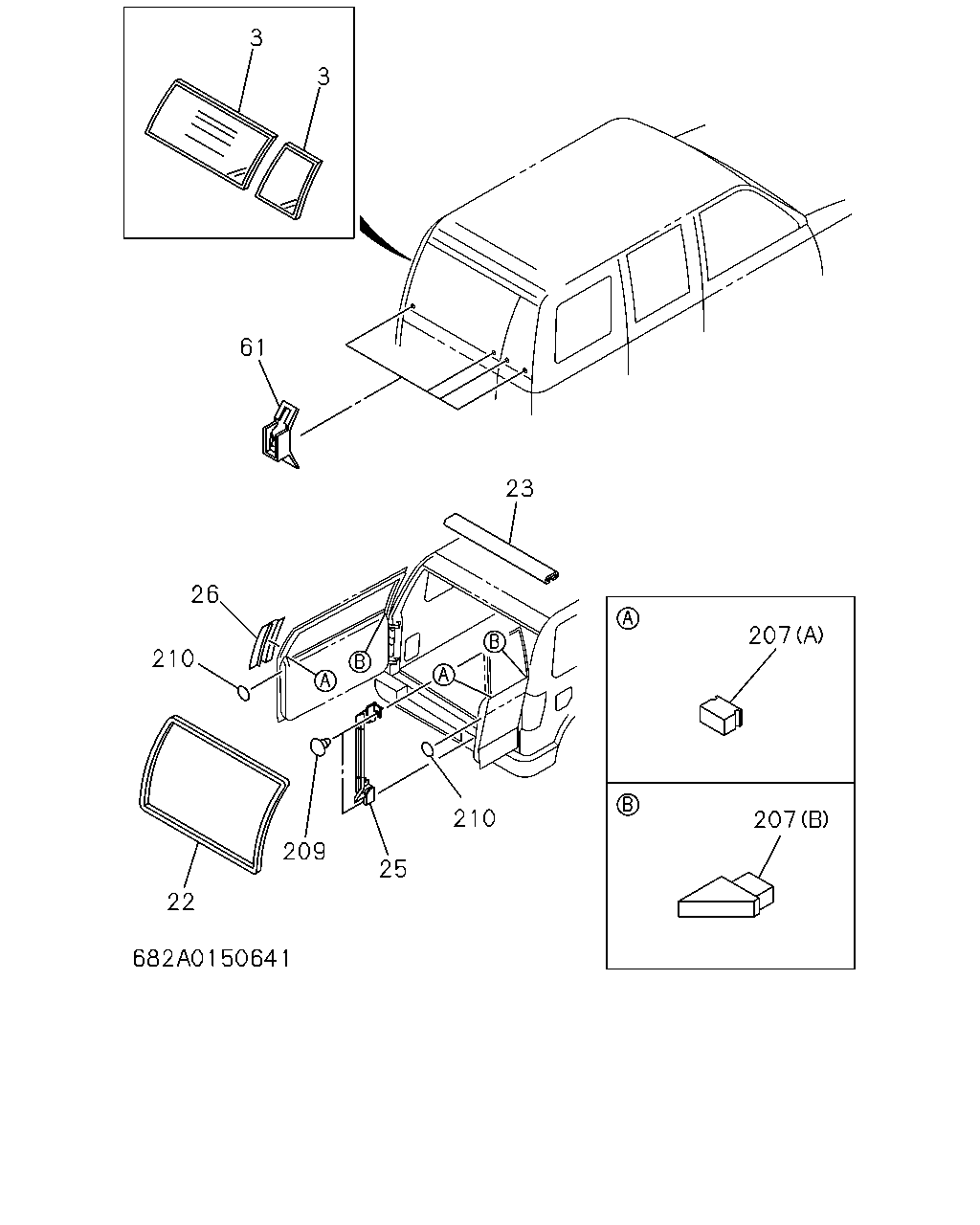

6-82 — BACK GLASS AND WEATHERSTRIP (#166594) — 28 parça

207 207 210 25 209 22 210 26 23 61 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GLASS; BACK DOOR WINDOW BRONZE GLASS(X72) WITH MOLDING	8-94358-598-4	01	1	9112-9309	●	●
3	GLASS; BACK DOOR WINDOW BRONZE GLASS(X72) WITH MOLDING	8-97810-997-1	01	1	9310-	●	●
3	GLASS; BACK DOOR WINDOW EXC. BRONZE GLASS(X72) WITH MOLDING	8-94358-595-4	01	1	9112-9309	●	●
3	GLASS; BACK DOOR WINDOW EXC. BRONZE GLASS(X72) WITH MOLDING	8-97810-996-0	01	1	9310-9504	●	●
3	GLASS; BACK DOOR WINDOW EXC. BRONZE GLASS(X72) WITH MOLDING	8-97121-770-1	01	1	9505-	●	●
3	GLASS; BACK DOOR WINDOW RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. BRONZE GLASS(X72) WITH MOLDING	8-97807-587-1	01	1	9112-9208	●	●
3	GLASS; BACK DOOR WINDOW RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> BRONZE GLASS(X72) WITH MOLDING	8-97807-588-1	01	1	9112-9208	●	●
3	GLASS; BACK DOOR WINDOW RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. BRONZE GLASS(X72) WITH MOLDING	8-97808-374-2	01	1	9209-9307	●	●
3	GLASS; BACK DOOR WINDOW RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> BRONZE GLASS(X72) WITH MOLDING	8-97808-376-2	01	1	9209-9307	●	●
3	GLASS; BACK DOOR WINDOW RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. BRONZE GLASS(X72) WITH MOLDING	8-97808-374-2	01	1	9308-9309	●	●
3	GLASS; BACK DOOR WINDOW RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. BRONZE GLASS(X72) WITH MOLDING	8-97811-024-0	01	1	9310-9504	●	●
3	GLASS; BACK DOOR WINDOW EXC. BRONZE GLASS(X72) WITH MOLDING	8-97130-207-1	01	1	9505-	●	●
3	GLASS; BACK DOOR WINDOW RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> BRONZE GLASS(X72) WITH MOLDING	8-97808-376-2	01	1	9308-9309	●	●
3	GLASS; BACK DOOR WINDOW RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> BRONZE GLASS(X72) WITH MOLDING	8-97811-030-0	01	1	9310-9504	●	●
3	GLASS; BACK DOOR WINDOW BRONZE GLASS(X72) WITH MOLDING	8-97811-030-1	01	1	9505-	●	●
22	WEATHERSTRIP; BACK DOOR	8-94358-611-3	01	1	9112-	●	●
23	WEATHERSTRIP; BACK DOOR OUTER UPR	8-94359-694-6	01	1	9112-9509	●	●
23	WEATHERSTRIP; BACK DOOR OUTER UPR	8-97811-347-1	01	1	9510-9702	●	●
23	WEATHERSTRIP; BACK DOOR OUTER UPR	8-97174-086-0	01	1	9703-	●	●
25	WEATHERSTRIP; BACK DOOR CTR	8-94358-612-5	01	1	9112-	●	●
26	WEATHERSTRIP; BACK DOOR OUTER CTR	8-97804-786-1	01	1	9112-	●	●
61	CLIP; GLASS	8-97801-234-1	04	1	9112-	●	●
207	SEAL; BACK DOOR (A)	8-97806-556-1	02	1	9112-	●	●
207	SEAL; BACK DOOR (B)	8-97806-557-1	02	1	9112-	●	●
209	CLIP; WEATHERSTRIP	8-97807-338-0	02	1	9112-	●	●
210	REFLECTOR; DOOR SEAL	5-76777-074-0	02	1	9112-9201	●	●
210	REFLECTOR; DOOR SEAL	8-97808-650-0	02	1	9202-9408	●	●
210	REFLECTOR; DOOR SEAL	8-97808-650-0	01	1	9409-	●	●
