6-81 — BACK DOOR AND HINGE (#166593) — 32 parça

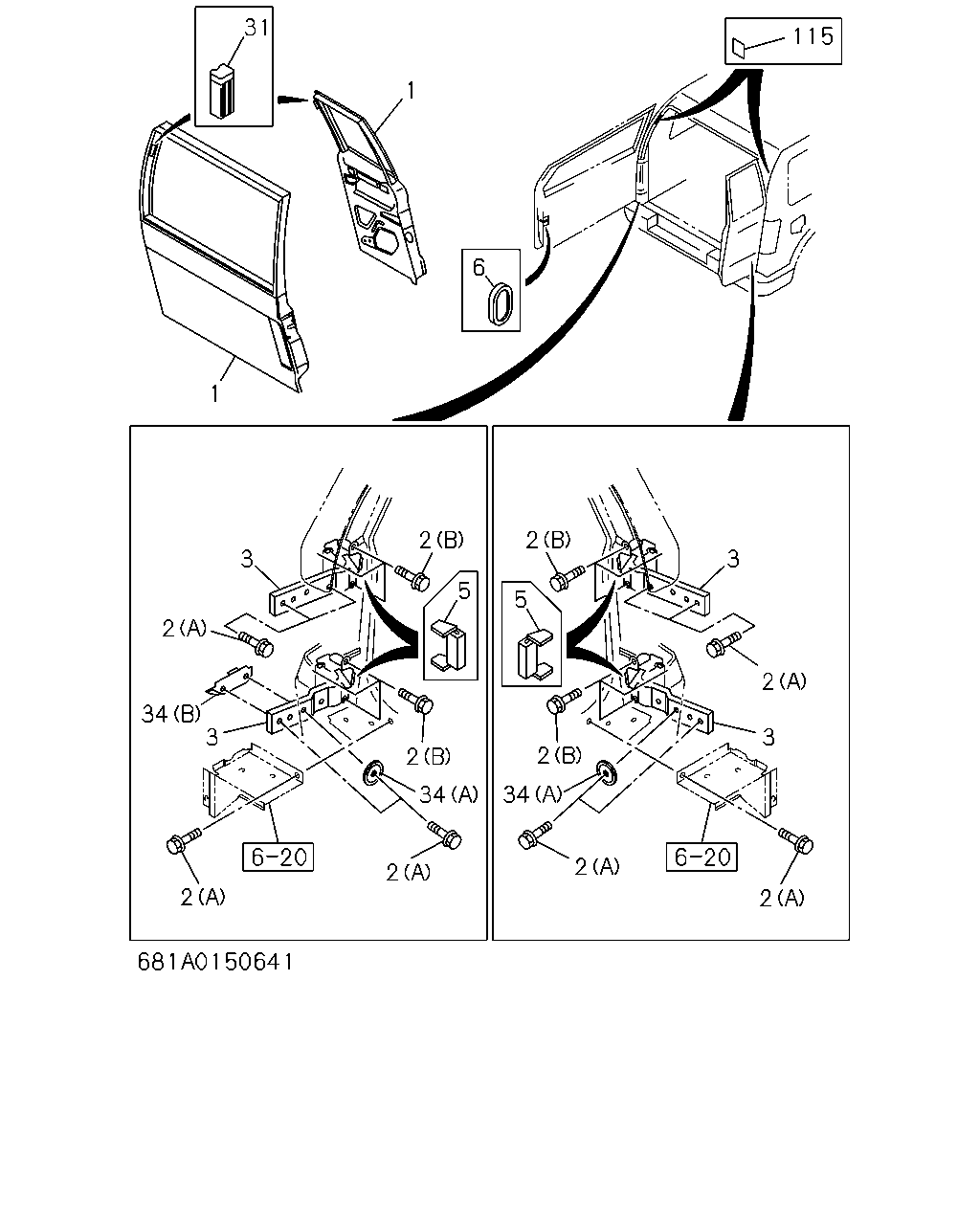

çizim 494258
1 31 1 2 2 34 2 3 2 3 2 5 2 2 34 2 3 34 2 3 2 5 6 115
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; BACK 8-94358-515-3 01 1 9112-9605 ● ●
1 DOOR ASM; BACK 8-97183-085-0 01 1 9606- ● ●
1 DOOR ASM; BACK 8-97801-078-1 01 1 9112-9706 ● ●
1 DOOR ASM; BACK 8-97167-388-0 01 1 9707- ● ●
2 BOLT; HINGE TO BODY,BACK DOOR
(B) M8X23 FLANGE 		8-94174-559-2 12 1 9112- ● ●
2 BOLT; HINGE TO BODY,BACK DOOR
(A) M8X30 		8-97035-384-0 08 1 9112-9508 ● ●
2 BOLT; HINGE TO BODY,BACK DOOR
(A) M8X30 		8-97035-384-0 04 1 9509- ● ●
2 BOLT; HINGE TO BODY,BACK DOOR
(A) M8X30 		8-97035-384-0 06 1 9509- ● ●
3 HINGE; BACK DOOR
UPPER 		8-94358-514-9 01 1 9112-9301 ● ●
3 HINGE; BACK DOOR
UPPER 		8-97809-944-1 01 1 9302-9501 ● ●
3 HINGE; BACK DOOR
UPPER 		8-97811-385-0 01 1 9502- ● ●
3 HINGE; BACK DOOR
LOWER 		8-97803-737-9 01 1 9112-9301 ● ●
3 HINGE; BACK DOOR
LOWER 		8-97809-946-1 01 1 9302-9501 ● ●
3 HINGE; BACK DOOR
LOWER 		8-97811-387-0 01 1 9502-9507 ● ●
3 HINGE; BACK DOOR
LOWER 		8-97129-336-0 01 1 9508- ● ●
3 HINGE; BACK DOOR
UPPER 		8-94358-513-9 01 1 9112-9301 ● ●
3 HINGE; BACK DOOR
UPPER 		8-97809-943-1 01 1 9302-9501 ● ●
3 HINGE; BACK DOOR
UPPER 		8-97811-384-0 01 1 9502- ● ●
3 HINGE; BACK DOOR
LOWER 		8-97803-131-9 01 1 9112-9301 ● ●
3 HINGE; BACK DOOR
LOWER 		8-97809-945-1 01 1 9302-9501 ● ●
3 HINGE; BACK DOOR
LOWER 		8-97811-386-0 01 1 9502- ● ●
5 SEAT; RUBBER,DOOR HINGE 8-97807-545-2 04 1 9112-9301 ● ●
5 SEAT; RUBBER,DOOR HINGE 8-97809-623-1 04 1 9302- ● ●
6 SEAL; BACK DOOR HINGE 8-94355-937-0 01 1 9112- ● ●
31 BUFFER; BACK DOOR 8-97805-811-0 02 1 9112-9201 ● ●
31 BUFFER; BACK DOOR 8-97808-610-0 02 1 9202-9208 ● ●
31 BUFFER; BACK DOOR 8-97808-519-1 02 1 9209- ● ●
34 SPACER; DOOR HINGE
(A) ID=10.5 		8-94433-179-1 02 1 9112-9201 ● ●
34 SPACER; DOOR HINGE
(A) ID=10.5 		8-94433-179-1 01 1 9202-9509 ● ●
34 SPACER; DOOR HINGE
(A) 		8-97134-959-0 01 1 9510- ● ●
34 SPACER; DOOR HINGE
(B) 		8-97808-701-0 01 1 9202- ● ●
115 TAPE; PROTECTION 8-97809-445-1 02 1 9205- ● ●
