◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#166591) — 61 parça

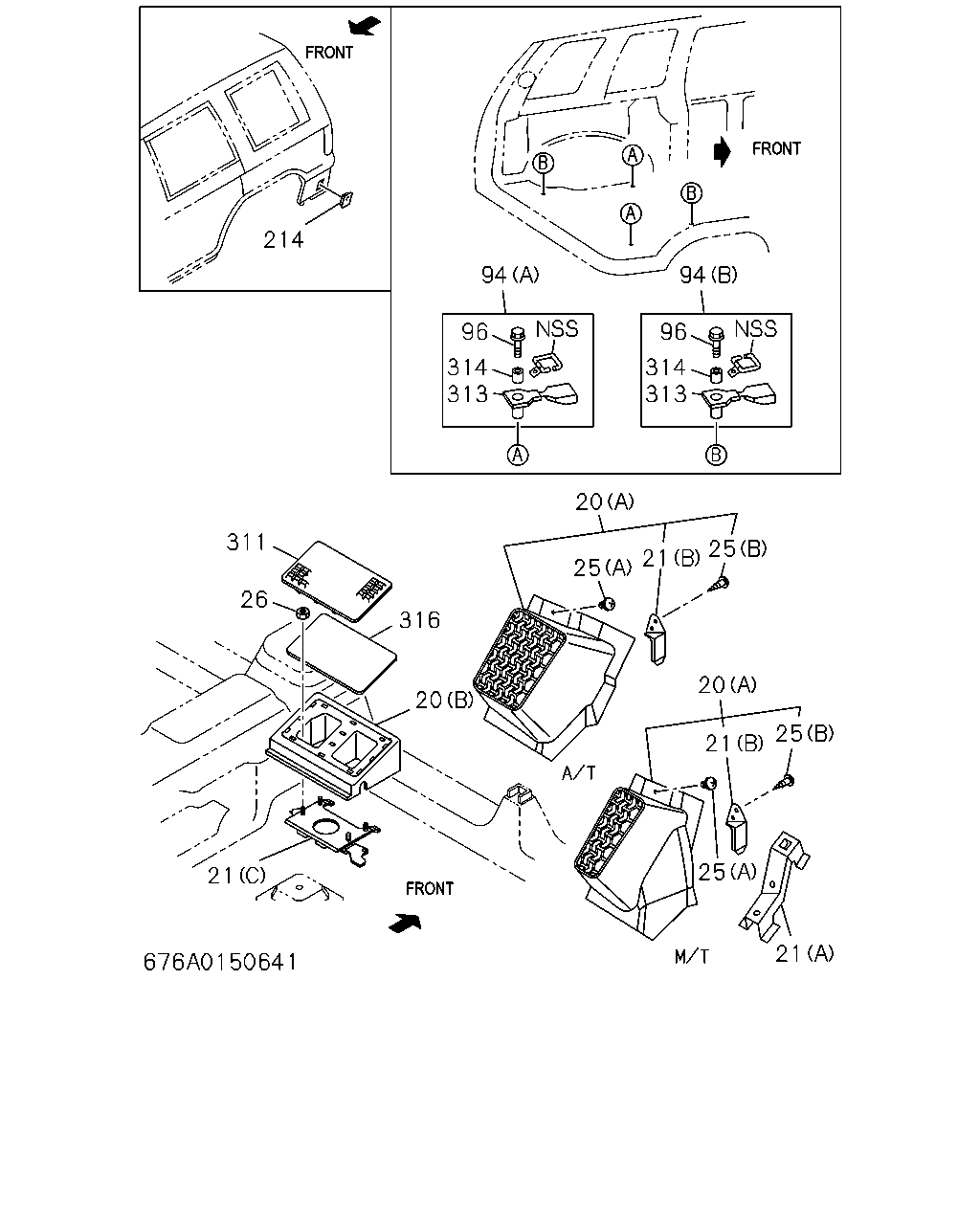

çizim 494189
214 94 96 314 313 96 314 313 94 311 26 316 20 21 25 21 25 20 20 21 25 25 21
BalonParca AdiParca NoAdetTipApplied Date A B
20 REST; FOOT
A/T AISIN(RMD),A/T THM(RMQ) (A) FRONT DRIVER SIDE 		8-97804-649-2 01 1 9112- ● ●
20 REST; FOOT
M/T MUA 5 SPEED(RMN) (A) FRONT DRIVER SIDE 		8-97803-057-2 01 1 9112- ● ●
20 REST; FOOT
INTERIOR COLOR BROWN(130) RR FOOT REST<6WM> (B) REAR DARK BROWN 		8-97805-055-2 01 1 9112-9307 ●
20 REST; FOOT
INTERIOR COLOR BROWN(130) RR FOOT REST<6WM> (B) REAR DARK BROWN 		8-97805-051-2 01 1 9112-9307 ●
20 REST; FOOT
INTERIOR COLOR GRAY(153) RR FOOT REST<6WM> (B) REAR DARK GRAY 		8-97805-057-2 01 1 9112-9307 ●
20 REST; FOOT
INTERIOR COLOR GRAY(153) RR FOOT REST<6WM> (B) REAR BLACK 		8-97817-142-2 01 1 9308-9406 ●
20 REST; FOOT
INTERIOR COLOR GRAY(153) RR FOOT REST<6WM> (B) REAR BLACK 		8-97151-275-0 01 1 9407-9504 ●
20 REST; FOOT
RR FOOT REST<6WM> (B) REAR BLACK 		8-97151-275-0 01 1 9505- ●
20 REST; FOOT
INTERIOR COLOR GRAY(153) RR FOOT REST<6WM> (B) REAR DARK GRAY 		8-97805-053-2 01 1 9112-9307 ●
20 REST; FOOT
INTERIOR COLOR GRAY(153) RR FOOT REST<6WM> (B) REAR BLACK 		8-97817-141-2 01 1 9308-9406 ●
20 REST; FOOT
INTERIOR COLOR GRAY(153) RR FOOT REST<6WM> (B) REAR BLACK 		8-97151-274-0 01 1 9407-9504 ●
20 REST; FOOT
RR FOOT REST<6WM> (B) REAR BLACK 		8-97151-274-0 01 1 9505- ●
21 BRACKET; FOOT REST
(A) FRONT DRIVER SIDE 		8-97802-298-1 01 1 9112-9307 ● ●
21 BRACKET; FOOT REST
(B) FRONT DRIVER SIDE 		8-97806-825-1 01 1 9112- ● ●
21 BRACKET; FOOT REST
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) RR FOOT REST<6WM> (C) REAR 		8-97132-952-0 01 1 9606- ●
21 BRACKET; FOOT REST
VARIABLE TORQUE SPRIT<7HA> EXC. RR FOOT REST<6WM> (C) REAR 		8-97161-001-0 01 1 9606-9606 ●
21 BRACKET; FOOT REST
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. RR FOOT REST<6WM> (C) REAR 		8-97161-001-0 01 1 9607- ●
21 BRACKET; FOOT REST
VARIABLE TORQUE SPRIT<7HA> EXC. RR FOOT REST<6WM> (C) REAR 		8-97161-000-0 01 1 9606- ●
21 BRACKET; FOOT REST
RR FOOT REST<6WM> (C) REAR 		8-97806-904-4 01 1 9112-9504 ●
21 BRACKET; FOOT REST
RR FOOT REST<6WM> (C) REAR 		8-97111-183-0 01 1 9505-9510 ●
21 BRACKET; FOOT REST
RR FOOT REST<6WM> (C) REAR 		8-97111-183-0 01 1 9511-9605 ●
21 BRACKET; FOOT REST
RR FOOT REST<6WM> EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) (C) REAR 		8-97111-183-0 01 1 9606- ●
21 BRACKET; FOOT REST
RR FOOT REST<6WM> (C) REAR 		8-97806-902-4 01 1 9112-9504 ●
21 BRACKET; FOOT REST
RR FOOT REST<6WM> EXC. VARIABLE TORQUE SPRIT<7HA> (C) REAR 		8-97111-182-0 01 1 9505- ●
21 BRACKET; FOOT REST
RR FOOT REST<6WM> VARIABLE TORQUE SPRIT<7HA> (C) REAR 		8-97113-166-0 01 1 9505- ●
25 SCREW; FOOT REST
(A) M6X16 		8-94479-534-0 01 1 9112- ● ●
25 SCREW; FOOT REST
(B) M4.5X10 		8-94489-930-0 02 1 9112-9504 ● ●
25 SCREW; FOOT REST
(B) M4.5X10 		8-94489-930-0 02 1 9505- ● ●
26 NUT; FLANGE
M6 FLANGE 		0-91150-106-0 04 1 9606- ● ●
26 NUT; FLANGE
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. RR FOOT REST<6WM> M6 FLANGE 		0-91150-106-0 02 1 9606- ●
26 NUT; FLANGE
VARIABLE TORQUE SPRIT<7HA> EXC. RR FOOT REST<6WM> M6 FLANGE 		0-91150-106-0 02 1 9606- ●
26 NUT; FLANGE
RR FOOT REST<6WM> M6 FLANGE 		0-91150-106-0 08 1 9112-9402 ●
26 NUT; FLANGE
RR FOOT REST<6WM> M6 FLANGE 		0-91150-106-0 04 1 9403-9504 ●
26 NUT; FLANGE
RR FOOT REST<6WM> VARIABLE TORQUE SPRIT<7HA> M6 FLANGE 		0-91150-106-0 05 1 9505-9605 ●
26 NUT; FLANGE
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) RR FOOT REST<6WM> VARIABLE TORQUE SPRIT<7HA> M6 FLANGE 		0-91150-106-0 06 1 9606- ●
26 NUT; FLANGE
RR FOOT REST<6WM> EXC. VARIABLE TORQUE SPRIT<7HA> M6 FLANGE 		0-91150-106-0 04 1 9505-9605 ●
26 NUT; FLANGE
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) RR FOOT REST<6WM> EXC. VARIABLE TORQUE SPRIT<7HA> M6 FLANGE 		0-91150-106-0 05 1 9606- ●
26 NUT; FLANGE
RR FOOT REST<6WM> VARIABLE TORQUE SPRIT<7HA> EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M6 FLANGE 		0-91150-106-0 05 1 9606- ●
94 HOOK ASM; ROPE
INTERIOR COLOR BROWN(130) (A) DARK BROWN 		8-97805-140-3 02 1 9112-9307 ● ●
94 HOOK ASM; ROPE
INTERIOR COLOR BROWN(130) (B) DARK BROWN 		8-97805-144-3 02 1 9112-9307 ● ●
94 HOOK ASM; ROPE
INTERIOR COLOR GRAY(153) (A) DARK GRAY 		8-97805-142-3 02 1 9112-9312 ● ●
94 HOOK ASM; ROPE
INTERIOR COLOR GRAY(153) (A) DARK GRAY 		8-97817-224-0 02 1 9401-9504 ● ●
94 HOOK ASM; ROPE
(A) BLACK 		8-97151-775-0 02 1 9505- ● ●
94 HOOK ASM; ROPE
INTERIOR COLOR GRAY(153) (B) DARK GRAY 		8-97805-146-3 02 1 9112-9312 ● ●
94 HOOK ASM; ROPE
INTERIOR COLOR GRAY(153) (B) DARK GRAY 		8-97817-226-0 02 1 9401-9504 ● ●
94 HOOK ASM; ROPE
(B) BLACK 		8-97151-776-0 02 1 9505- ● ●
96 BOLT; ROPE HOOK FIX
L=500 		8-97807-967-0 04 1 9112-9503 ● ●
96 BOLT; ROPE HOOK FIX
M8X40 FLANGE 		0-28690-840-0 04 1 9504- ● ●
214 SEAL; HOLE COVER 8-97803-265-1 02 1 9112- ● ●
311 PAD; FOOT REST
RR FOOT REST<6WM> BLACK 		8-97807-585-3 02 1 9112- ●
313 COVER; ROPE HOOK
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-103-2 04 1 9112-9307 ● ●
313 COVER; ROPE HOOK
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-105-2 04 1 9112-9312 ● ●
313 COVER; ROPE HOOK
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-228-0 04 1 9401-9504 ● ●
313 COVER; ROPE HOOK
BLACK 		8-97151-777-0 04 1 9505- ● ●
314 COLLAR; ROPE HOOK 8-97803-657-0 04 1 9112-9208 ● ●
314 COLLAR; ROPE HOOK 8-97803-657-0 04 1 9209- ● ●
316 INSULATOR; BRKT
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. RR FOOT REST<6WM> 		8-97808-527-0 01 1 9606- ●
316 INSULATOR; BRKT
VARIABLE TORQUE SPRIT<7HA> EXC. RR FOOT REST<6WM> 		8-97808-527-0 01 1 9606- ●
316 INSULATOR; BRKT
RR FOOT REST<6WM> 		8-97808-527-0 02 1 9112-9504 ●
316 INSULATOR; BRKT 8-97808-527-0 02 1 9505-9605 ●
316 INSULATOR; BRKT
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) VARIABLE TORQUE SPRIT<7HA> 		8-97808-527-0 02 1 9606- ●
