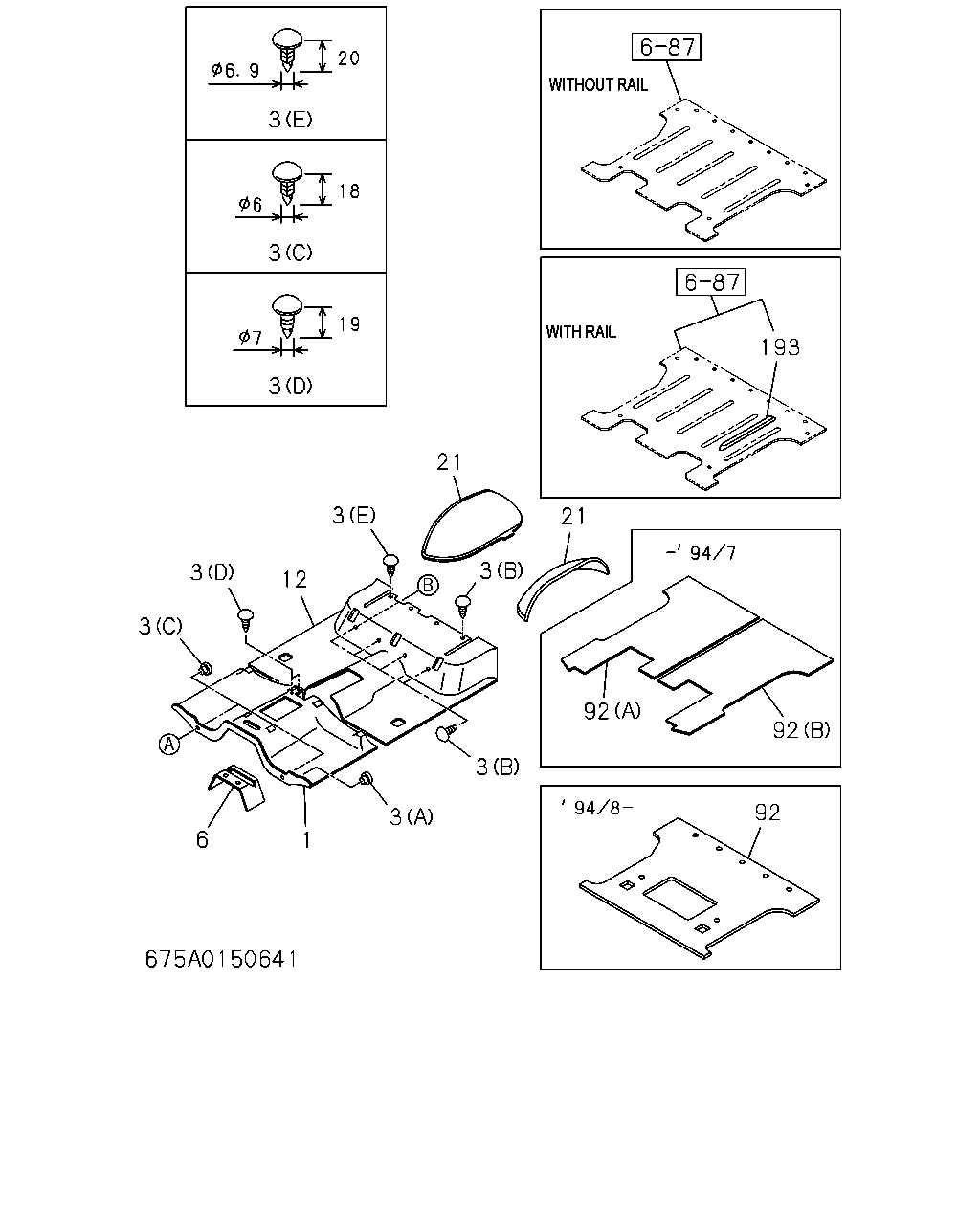

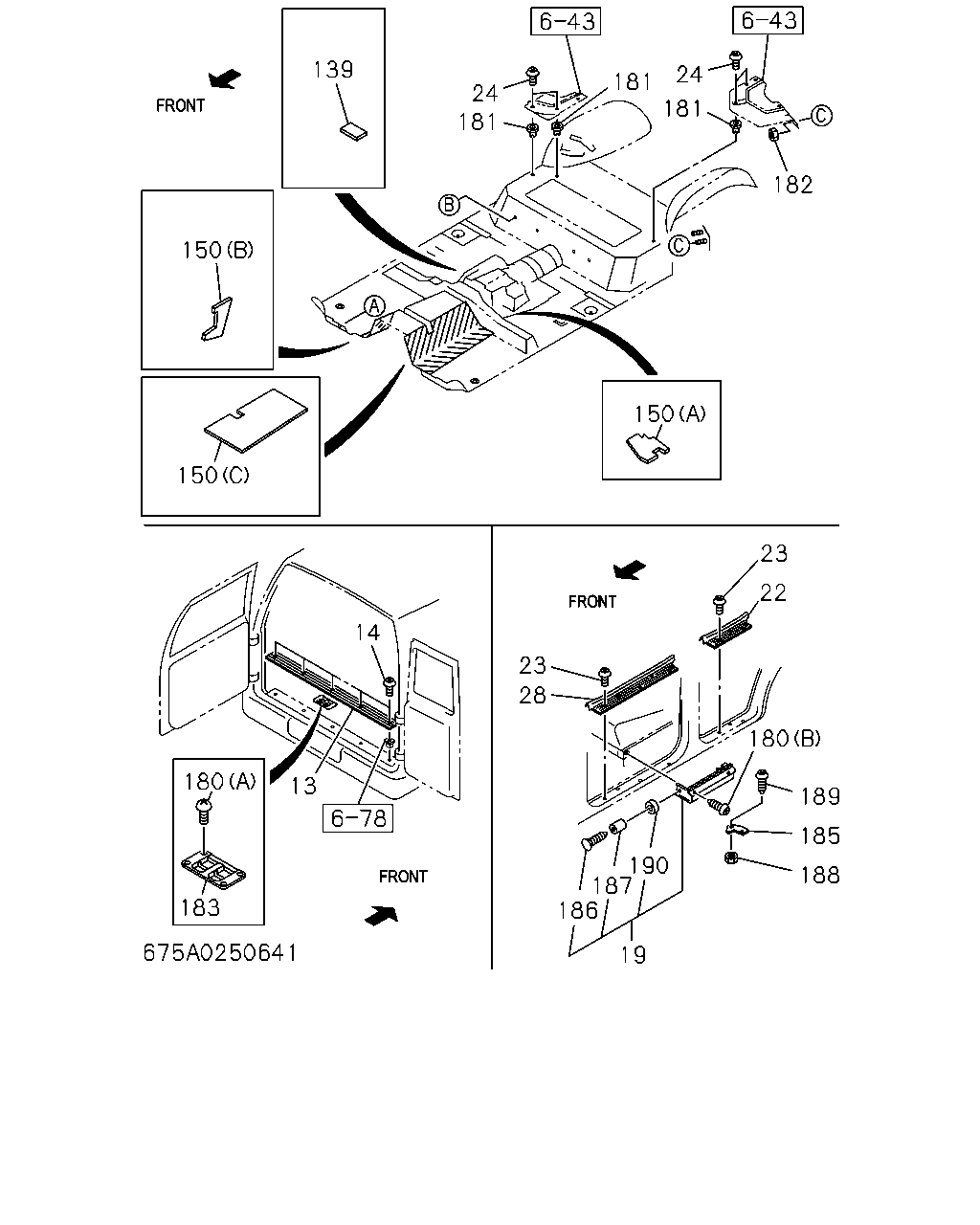

6-75 — MAT AND CARPET (#166590) — 391 parça

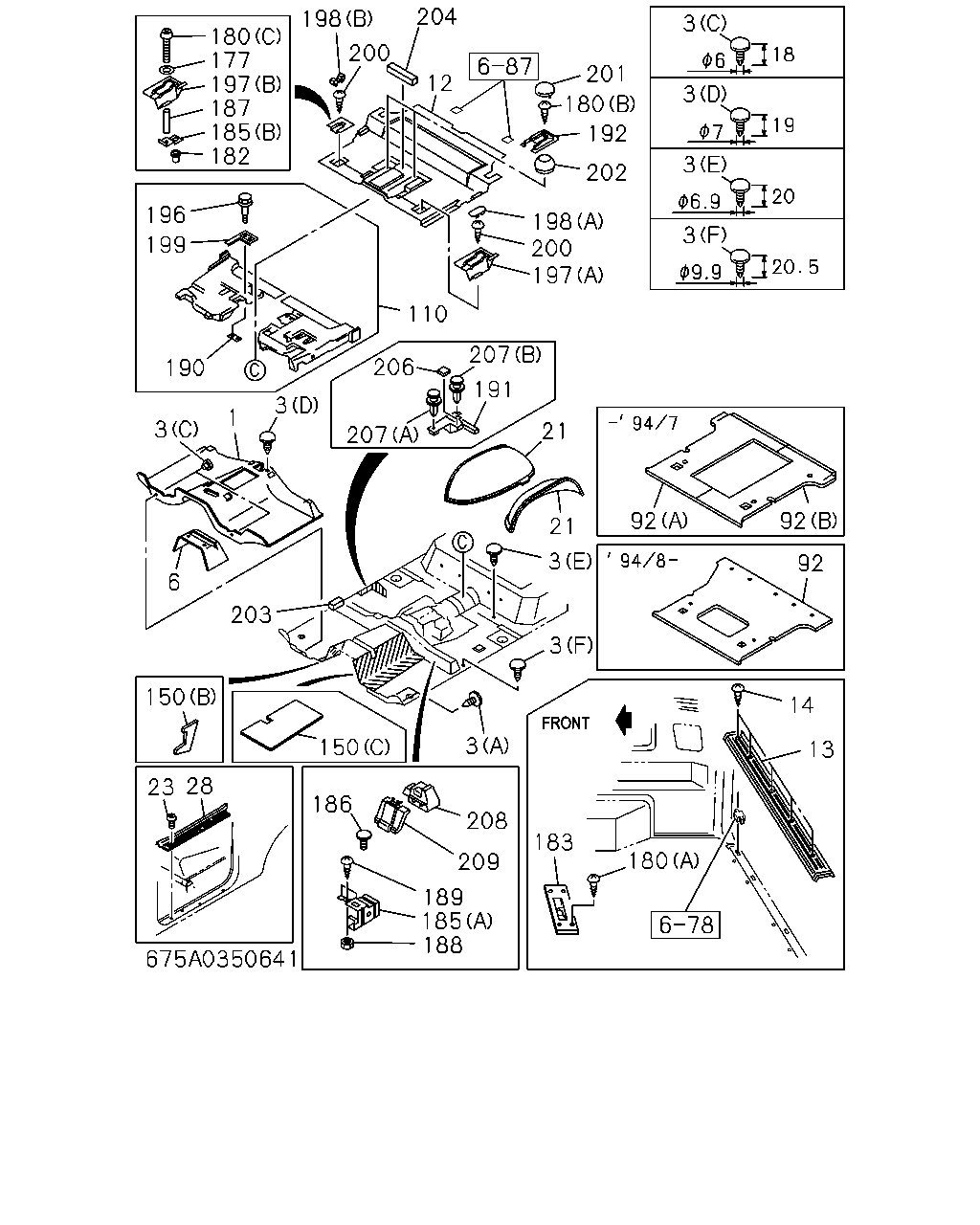

çizim 493675
3 3 3 3 201 180 192 202 198 200 197 12 204 200 198 110 180 177 197 187 185 182 196 199 190 3 1 3 6 203 206 191 207 207 21 21 3 150 23 28 186 208 209 189 185 188 183 180 13 14 92 92 92 3 3 150
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CARPET; FLOOR,FRT
SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-115-8 01 1 9112-9201 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-019-3 01 1 9202-9307 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-119-8 01 1 9112-9201 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-018-3 01 1 9202-9307 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-981-1 01 1 9308-9504 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ) DARK GRAY 		8-97152-072-1 01 1 9505-9510 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ) DARK GRAY 		8-97154-797-0 01 1 9511-9605 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ) DARK GRAY 		8-97156-044-0 01 1 9606- ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-175-8 01 1 9112-9201 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-017-4 01 1 9202-9307 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-114-8 01 1 9112-9201 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-016-4 01 1 9202-9307 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-977-2 01 1 9308-9504 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97152-071-1 01 1 9505-9510 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97154-796-0 01 1 9511-9605 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97156-043-0 01 1 9606- ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-969-8 01 1 9112-9205 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97808-867-1 01 1 9206-9307 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-147-8 01 1 9112-9205 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97808-868-2 01 1 9206-9504 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ) DARK GRAY 		8-97152-069-1 01 1 9505-9510 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ) DARK GRAY 		8-97154-795-0 01 1 9511-9605 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ) DARK GRAY 		8-97156-042-1 01 1 9606- ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-934-8 01 1 9112-9205 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97808-864-2 01 1 9206-9307 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-957-8 01 1 9112-9205 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97808-865-3 01 1 9206-9504 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97152-068-1 01 1 9505-9510 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97154-794-0 01 1 9511-9605 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97156-041-1 01 1 9606- ● ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) (A) L=19 BLACK 		8-94363-776-0 02 1 9112-9201 ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) (A) BLACK 		8-97002-822-1 02 1 9202-9303 ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) (D) ID=6 OD=16 L=18 		8-94178-705-0 05 1 9112-9504 ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) (D) ID=6 OD=16 L=18 		8-94178-705-0 05 1 9505-9605 ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) (D) ID=6 OD=16 L=18 		8-94178-705-0 05 1 9606- ● ● ● ● ●
3 CLIP; CARPET FIX
(A) L=19 BLACK 		8-94363-776-0 04 1 9112-9504 ● ● ● ● ●
3 CLIP; CARPET FIX
(A) L=19 BLACK 		8-94363-776-0 04 1 9505- ● ● ● ● ●
3 CLIP; CARPET FIX
(C) H=10.5 		8-94441-810-0 02 1 9112-9504 ● ● ● ● ●
3 CLIP; CARPET FIX
(C) H=10.5 		8-94441-810-0 02 1 9505- ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) (D) ID=6 OD=16 L=18 		8-94178-705-0 04 1 9112- ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) (E) L=14 DARK GRAY 		8-97804-944-0 02 1 9505-9505 ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) (E) DARK GRAY 		8-97098-324-0 02 1 9505- ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9202-9202 ● ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9203-9307 ● ● ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9408-9504 ● ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) (E) DARK GRAY 		8-97805-803-0 02 1 9505-9505 ● ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) (E) DARK GRAY 		8-97098-326-0 02 1 9505- ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 04 1 9203-9407 ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) INTERIOR COLOR GRAY(153) (F) OD=26 DARK GRAY 		8-97808-522-0 01 1 9112-9504 ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) (F) DARK GRAY 		8-97098-343-0 01 1 9505- ● ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) INTERIOR COLOR BROWN(130) (B) DARK BROWN 		8-97804-942-0 10 1 9112-9307 ● ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) INTERIOR COLOR GRAY(153) (B) L=14 DARK GRAY 		8-97804-944-0 10 1 9112-9407 ● ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) INTERIOR COLOR GRAY(153) (B) L=14 DARK GRAY 		8-97804-944-0 06 1 9408-9504 ● ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) (B) DARK GRAY 		8-97098-324-0 06 1 9505- ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) INTERIOR COLOR BROWN(130) (F) DARK BROWN 		8-97808-521-0 01 1 9112-9307 ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 02 1 9202-9202 ● ●
3 CLIP; CARPET FIX
LONG(UB***F) INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 02 1 9203-9307 ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 04 1 9203-9307 ● ●
6 DEADENER; FLOOR GEAR BOX FRT 8-97802-100-5 01 1 9112- ● ● ● ● ●
12 CARPET; FLOOR,RR
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-417-9 01 1 9112-9209 ● ● ● ● ●
12 CARPET; FLOOR,RR
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97808-937-0 01 1 9210-9307 ● ● ● ● ●
12 CARPET; FLOOR,RR
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-419-9 01 1 9112-9209 ● ● ● ● ●
12 CARPET; FLOOR,RR
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97808-936-1 01 1 9210-9504 ● ● ● ● ●
12 CARPET; FLOOR,RR
SHORT(UB***C) DARK GRAY 		8-97152-085-0 01 1 9505- ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) VARIABLE TORQUE SPRIT<7HA> EXC. RR FOOT REST<6WM> 		8-97157-895-1 01 1 9606- ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. RR FOOT REST<6WM>,VARIABLE TORQUE SPRIT<7HA> 		8-97157-896-1 01 1 9606- ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) INTERIOR COLOR BROWN(130) RR FOOT REST<6WM> DARK BROWN 		8-97807-879-4 01 1 9112-9305 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) INTERIOR COLOR BROWN(130) RR FOOT REST<6WM> DARK BROWN 		8-97817-045-0 01 1 9306-9307 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. RR FOOT REST<6WM> DARK BROWN 		8-97807-873-4 01 1 9112-9305 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. RR FOOT REST<6WM> DARK BROWN 		8-97817-041-0 01 1 9306-9307 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) INTERIOR COLOR GRAY(153) RR FOOT REST<6WM> DARK GRAY 		8-97807-880-4 01 1 9112-9305 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) INTERIOR COLOR GRAY(153) RR FOOT REST<6WM> DARK GRAY 		8-97817-046-0 01 1 9306-9504 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) RR FOOT REST<6WM> DARK GRAY 		8-97152-079-1 01 1 9505- ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. RR FOOT REST<6WM> DARK GRAY 		8-97807-874-4 01 1 9112-9305 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. RR FOOT REST<6WM> DARK GRAY 		8-97817-042-0 01 1 9306-9504 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) EXC. RR FOOT REST<6WM> DARK GRAY 		8-97152-080-0 01 1 9505-9605 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5),RR FOOT REST<6WM>,VARIABLE TORQUE SPRIT<7HA> DARK GRAY 		8-97152-080-1 01 1 9606- ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) VARIABLE TORQUE SPRIT<7HA> EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5),RR FOOT REST<6WM> DARK GRAY 		8-97157-904-1 01 1 9606- ● ● ● ● ●
13 PLATE; RR FLOOR CARPET
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-002-2 01 1 9112-9307 ● ● ● ● ●
13 PLATE; RR FLOOR CARPET
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-004-2 01 1 9112-9504 ● ● ● ● ●
13 PLATE; RR FLOOR CARPET
DARK GRAY 		8-97098-365-2 01 1 9505- ● ● ● ● ●
14 SCREW; PLATE 8-97803-149-1 05 1 9112- ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97807-378-3 01 1 9112-9409 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-338-0 01 1 9410-9504 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
SHORT(UB***C) DARK GRAY 		8-97152-109-0 01 1 9505- ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97807-375-3 01 1 9112-9409 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-336-0 01 1 9410-9504 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
SHORT(UB***C) DARK GRAY 		8-97152-108-0 01 1 9505- ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-438-5 01 1 9112-9307 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-435-5 01 1 9112-9307 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97806-440-5 01 1 9112-9409 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97817-334-0 01 1 9410-9504 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97152-107-0 01 1 9505- ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97806-437-5 01 1 9112-9409 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97817-332-0 01 1 9410-9504 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97152-106-0 01 1 9505- ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97807-376-3 01 1 9112-9307 ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97804-984-5 01 1 9308-9409 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97817-330-0 01 1 9410-9504 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97152-105-0 01 1 9505- ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97807-373-3 01 1 9112-9307 ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97804-980-5 01 1 9308-9409 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97817-328-0 01 1 9410-9504 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97152-104-0 01 1 9505- ● ● ● ● ●
23 SCREW; SILL PLATE
LONG(UB***F) M5X16 		8-94384-690-0 16 1 9112-9504 ● ● ●
23 SCREW; SILL PLATE
LONG(UB***F) M5X16 		8-94384-690-0 16 1 9505- ● ● ● ●
23 SCREW; SILL PLATE
SHORT(UB***C) M5X16 		8-94384-690-0 10 1 9112- ● ● ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-990-5 01 1 9112-9307 ● ● ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-986-5 01 1 9112-9307 ● ● ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-992-5 01 1 9112-9504 ● ● ● ● ●
28 PLATE; SILL,FRT
DARK GRAY 		8-97098-357-5 01 1 9505- ● ● ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-988-5 01 1 9112-9504 ● ● ● ● ●
28 PLATE; SILL,FRT
DARK GRAY 		8-97098-356-5 01 1 9505- ● ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
LONG(UB***F) (B) 		8-97803-019-6 01 1 9112-9407 ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) 		8-97811-272-0 01 1 9408-9504 ● ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) 		8-97811-272-0 01 1 9505- ● ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
LONG(UB***F) (A) 		8-97803-018-6 01 1 9112-9407 ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97811-265-0 01 1 9408-9504 ● ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97811-265-0 01 1 9505- ● ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
SHORT(UB***C) (B) 		8-97803-021-4 01 1 9112-9407 ● ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
SHORT(UB***C) (A) 		8-97803-020-4 01 1 9112-9407 ● ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
SHORT(UB***C) 		8-97811-263-0 01 1 9408- ● ● ● ● ●
110 INSULATION; PAD,RR FLOOR,RR
SHORT(UB***C) 		8-97805-863-9 01 1 9112-9605 ● ● ● ● ●
110 INSULATION; PAD,RR FLOOR,RR
SHORT(UB***C) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) 		8-97805-863-9 01 1 9606- ● ● ● ● ●
110 INSULATION; PAD,RR FLOOR,RR
SHORT(UB***C) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) 		8-97132-949-2 01 1 9606- ● ● ● ● ●
110 INSULATION; PAD,RR FLOOR,RR
SHORT(UB***C) 		8-97805-862-9 01 1 9112-9504 ● ● ● ● ●
110 INSULATION; PAD,RR FLOOR,RR
SHORT(UB***C) 		8-97125-396-1 01 1 9505- ● ● ● ● ●
150 INSULATION; HEAT,FLOOR
6VD1 DOHC ENG(RLV) (C) 		8-97807-474-2 01 1 9112- ● ● ● ● ●
150 INSULATION; HEAT,FLOOR
6VD1 DOHC ENG(RLV) (B) 		8-97807-473-2 01 1 9112- ● ● ● ● ●
150 INSULATION; HEAT,FLOOR
LONG(UB***F) 6VD1 DOHC ENG(RLV) (A) 		8-97807-916-1 01 1 9112-9311 ● ● ● ● ●
150 INSULATION; HEAT,FLOOR
LONG(UB***F) 6VD1 DOHC ENG(RLV) RR FOOT REST<6WM> (A) 		8-97807-916-1 01 1 9312- ● ● ● ● ●
150 INSULATION; HEAT,FLOOR
LONG(UB***F) 6VD1 DOHC ENG(RLV) EXC. RR FOOT REST<6WM> (A) 		8-97807-475-2 01 1 9312- ● ● ● ● ●
177 WASHER; PL
SHORT(UB***C) ID=5.3 OD=12 		9-09160-605-0 02 1 9112- ● ● ● ● ●
180 SCREW; COVER
LONG(UB***F) (B) M5X16 TAPPING 		9-09829-323-1 06 1 9112-9504 ● ● ●
180 SCREW; COVER
LONG(UB***F) (B) M5X16 TAPPING 		9-09829-323-1 06 1 9505- ● ● ● ●
180 SCREW; COVER
SHORT(UB***C) (A) M6X16 		8-94479-534-0 04 1 9112- ● ● ● ● ●
180 SCREW; COVER
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) (A) M6X16 		8-94479-534-0 04 1 9112- ● ● ● ● ●
180 SCREW; COVER
SHORT(UB***C) (B) M5X16 TAPPING 		9-09829-323-1 02 1 9112- ● ● ● ● ●
180 SCREW; COVER
SHORT(UB***C) (C) 		8-97808-810-0 02 1 9112- ● ● ● ● ●
182 NUT; COVER
LONG(UB***F) M6 W/DISHED WASHER 		8-97018-399-1 04 1 9112-9407 ● ● ●
182 NUT; COVER
LONG(UB***F) M6 W/DISHED WASHER 		8-94170-192-0 04 1 9408-9504 ● ● ●
182 NUT; COVER
LONG(UB***F) M6 W/DISHED WASHER 		8-94170-192-0 04 1 9505- ● ● ● ●
182 NUT; COVER
SHORT(UB***C) 		8-97809-447-0 01 1 9112- ● ● ● ● ●
183 COVER; SEAT STRIKER
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-453-0 01 1 9112-9307 ● ● ● ● ●
183 COVER; SEAT STRIKER
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-455-0 01 1 9112-9307 ● ● ● ● ●
183 COVER; SEAT STRIKER
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-013-0 01 1 9308-9504 ● ● ● ● ●
183 COVER; SEAT STRIKER
SHORT(UB***C) DARK GRAY 		8-97098-368-0 01 1 9505- ● ● ●
183 COVER; SEAT STRIKER
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-456-1 01 1 9112-9307 ● ● ● ● ●
183 COVER; SEAT STRIKER
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97806-458-1 01 1 9112-9504 ● ● ● ● ●
183 COVER; SEAT STRIKER
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-271-1 01 1 9505- ● ● ● ● ●
185 BRACKET; COVER
SHORT(UB***C) (B) 		8-97807-926-0 01 1 9112- ● ● ● ● ●
185 BRACKET; COVER
SHORT(UB***C) (A) 		8-97809-024-0 01 1 9202- ● ● ● ● ●
185 BRACKET; COVER
LONG(UB***F) EXC. RR FOOT REST<6WM> 		8-97807-469-0 02 1 9112- ● ● ● ● ●
186 CLIP; COVER
SHORT(UB***C) BLACK 		8-97002-822-1 02 1 9203-9307 ● ● ● ● ●
186 CLIP; COVER
SHORT(UB***C) BLACK 		8-97000-169-0 02 1 9308- ● ● ● ● ●
186 CLIP; COVER
LONG(UB***F) 		8-97807-496-0 02 1 9203- ● ● ● ● ●
187 COLLER; COVER
SHORT(UB***C) 		8-97807-823-1 02 1 9112- ● ● ● ● ●
187 COLLER; COVER
LONG(UB***F) 		8-97807-479-0 02 1 9203-9406 ● ● ● ● ●
187 COLLER; COVER
LONG(UB***F) 		8-97811-203-0 02 1 9407- ● ● ● ● ●
188 NUT; BRKT
LONG(UB***F) 		5-09466-004-1 02 1 9112-9504 ● ● ●
188 NUT; BRKT
LONG(UB***F) 		5-09466-004-1 02 1 9505- ● ● ● ●
188 NUT; BRKT
SHORT(UB***C) 		5-09466-004-1 01 1 9202- ● ● ● ● ●
189 SCREW; BRKT
LONG(UB***F) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9112-9503 ● ● ●
189 SCREW; BRKT
LONG(UB***F) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 9504-9504 ● ● ●
189 SCREW; BRKT
LONG(UB***F) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 9505- ● ● ● ●
189 SCREW; BRKT
SHORT(UB***C) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9202-9503 ● ● ● ● ●
189 SCREW; BRKT
SHORT(UB***C) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 01 1 9504- ● ● ● ● ●
190 WASHER; COVER
SHORT(UB***C) 		8-97807-789-0 02 1 9112-9605 ● ● ● ● ●
190 WASHER; COVER
SHORT(UB***C) 		8-97807-789-0 01 1 9606- ● ● ● ● ●
190 WASHER; COVER
LONG(UB***F) 		8-97804-914-0 02 1 9203-9406 ● ● ● ● ●
191 COVER; HOLE,SPACER
SHORT(UB***C) 		8-97807-721-6 01 1 9112- ● ● ● ● ●
192 COVER; SEAT SLIDE
SHORT(UB***C) 		8-97807-722-4 02 1 9112- ● ● ● ● ●
196 BOLT; SRACER
SHORT(UB***C) 		8-97807-717-0 04 1 9112-9504 ● ● ● ● ●
196 BOLT; SRACER
SHORT(UB***C) 		8-97807-717-0 03 1 9505-9505 ● ● ● ● ●
196 BOLT; SRACER
SHORT(UB***C) 		8-97807-717-0 02 1 9505-9605 ● ● ● ● ●
196 BOLT; SRACER
SHORT(UB***C) 		8-97807-717-0 01 1 9606- ● ● ● ● ●
197 COVER ASM; SEAT RAIL
SHORT(UB***C) (A) 		8-97807-764-3 01 1 9112- ● ● ● ● ●
197 COVER ASM; SEAT RAIL
SHORT(UB***C) INTERIOR COLOR GRAY(153) (B) DARK GRAY 		8-97807-833-6 01 1 9112-9504 ● ● ● ● ●
197 COVER ASM; SEAT RAIL
SHORT(UB***C) (B) DARK GRAY 		8-97152-095-0 01 1 9505- ● ● ● ● ●
197 COVER ASM; SEAT RAIL
SHORT(UB***C) INTERIOR COLOR BROWN(130) (B) DARK BROWN 		8-97807-832-5 01 1 9112-9307 ● ● ●
198 CAP; COVER,SEAT RAIL
SHORT(UB***C) (B) 		8-97807-925-1 01 1 9112-9208 ● ● ● ● ●
198 CAP; COVER,SEAT RAIL
SHORT(UB***C) (A) 		8-97807-990-2 01 1 9112-9112 ● ● ● ● ●
198 CAP; COVER,SEAT RAIL
SHORT(UB***C) (A) 		8-97808-702-0 01 1 9201-9307 ● ● ● ● ●
198 CAP; COVER,SEAT RAIL
SHORT(UB***C) (B) 		8-97807-925-2 01 1 9209- ● ● ● ● ●
198 CAP; COVER,SEAT RAIL
SHORT(UB***C) (A) 		8-97808-702-0 01 1 9308- ● ● ● ● ●
199 BRACKET; COVER,SEAT SLIDE
SHORT(UB***C) 		8-97807-788-2 01 1 9112-9307 ● ● ● ● ●
199 BRACKET; COVER,SEAT SLIDE
SHORT(UB***C) 		8-97807-787-2 01 1 9112-9307 ● ● ● ● ●
199 BRACKET; COVER,SEAT SLIDE
SHORT(UB***C) 		8-97807-788-2 01 1 9308- ● ● ● ● ●
199 BRACKET; COVER,SEAT SLIDE
SHORT(UB***C) 		8-97807-787-2 01 1 9308- ● ● ● ● ●
200 SCREW; COVER
SHORT(UB***C) M5X16 TAPPING 		9-09829-323-1 02 1 9112-9307 ● ● ● ● ●
200 SCREW; COVER
SHORT(UB***C) M5X16 TAPPING 		9-09829-323-1 03 1 9308- ● ● ● ● ●
201 COVER; HOLE,SEAT SLIDE
SHORT(UB***C) BLACK 		8-94364-001-2 02 1 9112- ● ● ● ● ●
202 COVER; BOLT,SEAT
SHORT(UB***C) 		8-97045-609-0 02 1 9112-9202 ● ● ● ● ●
203 INSULATION; SIDE SILL
SHORT(UB***C) 		8-97809-029-0 01 1 9202- ● ● ● ● ●
204 INSULATION; CENTER CONSOLE
SHORT(UB***C) 		8-97809-029-0 01 1 9205- ● ● ● ● ●
206 PAD; HOLE COVER
SHORT(UB***C) 		8-97809-470-0 01 1 9204-9206 ● ● ● ● ●
206 PAD; HOLE COVER
SHORT(UB***C) 		8-97808-911-0 01 1 9207- ● ● ● ● ●
207 CLIP; HARD BOARD
SHORT(UB***C) (B) 20X30 		8-97809-049-0 01 1 9202-9307 ● ● ● ● ●
207 CLIP; HARD BOARD
SHORT(UB***C) (A) OD=26 DARK GRAY 		8-97808-522-0 01 1 9209-9504 ● ● ● ● ●
207 CLIP; HARD BOARD
SHORT(UB***C) (A) DARK GRAY 		8-97098-343-0 01 1 9505- ● ● ● ● ●
207 CLIP; HARD BOARD
SHORT(UB***C) (B) 20X30 		8-97809-049-0 01 1 9308- ● ● ● ● ●
208 COVER; SEAT SIDE
SHORT(UB***C) 		8-97809-035-0 01 1 9202-9307 ● ● ● ● ●
208 COVER; SEAT SIDE
SHORT(UB***C) 		8-97809-032-0 01 1 9202-9307 ● ● ● ● ●
209 COVER; BRKT,FRT SEAT
SHORT(UB***C) BLACK 		8-97817-073-1 01 1 9308- ● ● ● ● ●
209 COVER; BRKT,FRT SEAT
SHORT(UB***C) BLACK 		8-97817-082-1 01 1 9308- ● ● ● ● ●
çizim 494158
21 3 21 3 12 3 3 6 3 1 3 92 92 92 193 3 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CARPET; FLOOR,FRT
SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-115-8 01 1 9112-9201 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-019-3 01 1 9202-9307 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-119-8 01 1 9112-9201 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-018-3 01 1 9202-9307 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-981-1 01 1 9308-9504 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ) DARK GRAY 		8-97152-072-1 01 1 9505-9510 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ) DARK GRAY 		8-97154-797-0 01 1 9511-9605 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) A/T AISIN(RMD),A/T THM(RMQ) DARK GRAY 		8-97156-044-0 01 1 9606- ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-175-8 01 1 9112-9201 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-017-4 01 1 9202-9307 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-114-8 01 1 9112-9201 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-016-4 01 1 9202-9307 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-977-2 01 1 9308-9504 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97152-071-1 01 1 9505-9510 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97154-796-0 01 1 9511-9605 ● ● ● ● ●
1 CARPET; FLOOR,FRT
SHORT(UB***C) M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97156-043-0 01 1 9606- ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-969-8 01 1 9112-9205 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97808-867-1 01 1 9206-9307 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-147-8 01 1 9112-9205 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97808-868-2 01 1 9206-9504 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ) DARK GRAY 		8-97152-069-1 01 1 9505-9510 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ) DARK GRAY 		8-97154-795-0 01 1 9511-9605 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ) DARK GRAY 		8-97156-042-1 01 1 9606- ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-934-8 01 1 9112-9205 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97808-864-2 01 1 9206-9307 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-957-8 01 1 9112-9205 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97808-865-3 01 1 9206-9504 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97152-068-1 01 1 9505-9510 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97154-794-0 01 1 9511-9605 ● ● ● ● ●
1 CARPET; FLOOR,FRT
LONG(UB***F) M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97156-041-1 01 1 9606- ● ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) (A) L=19 BLACK 		8-94363-776-0 02 1 9112-9201 ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) (A) BLACK 		8-97002-822-1 02 1 9202-9303 ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) (D) ID=6 OD=16 L=18 		8-94178-705-0 05 1 9112-9504 ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) (D) ID=6 OD=16 L=18 		8-94178-705-0 05 1 9505-9605 ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) (D) ID=6 OD=16 L=18 		8-94178-705-0 05 1 9606- ● ● ● ● ●
3 CLIP; CARPET FIX
(A) L=19 BLACK 		8-94363-776-0 04 1 9112-9504 ● ● ● ● ●
3 CLIP; CARPET FIX
(A) L=19 BLACK 		8-94363-776-0 04 1 9505- ● ● ● ● ●
3 CLIP; CARPET FIX
(C) H=10.5 		8-94441-810-0 02 1 9112-9504 ● ● ● ● ●
3 CLIP; CARPET FIX
(C) H=10.5 		8-94441-810-0 02 1 9505- ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) (D) ID=6 OD=16 L=18 		8-94178-705-0 04 1 9112- ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) (E) L=14 DARK GRAY 		8-97804-944-0 02 1 9505-9505 ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) (E) DARK GRAY 		8-97098-324-0 02 1 9505- ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9202-9202 ● ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9203-9307 ● ● ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9408-9504 ● ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) (E) DARK GRAY 		8-97805-803-0 02 1 9505-9505 ● ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) (E) DARK GRAY 		8-97098-326-0 02 1 9505- ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 04 1 9203-9407 ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) INTERIOR COLOR GRAY(153) (F) OD=26 DARK GRAY 		8-97808-522-0 01 1 9112-9504 ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) (F) DARK GRAY 		8-97098-343-0 01 1 9505- ● ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) INTERIOR COLOR BROWN(130) (B) DARK BROWN 		8-97804-942-0 10 1 9112-9307 ● ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) INTERIOR COLOR GRAY(153) (B) L=14 DARK GRAY 		8-97804-944-0 10 1 9112-9407 ● ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) INTERIOR COLOR GRAY(153) (B) L=14 DARK GRAY 		8-97804-944-0 06 1 9408-9504 ● ● ● ● ●
3 CLIP; CARPET FIX
LONG(UB***F) (B) DARK GRAY 		8-97098-324-0 06 1 9505- ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) INTERIOR COLOR BROWN(130) (F) DARK BROWN 		8-97808-521-0 01 1 9112-9307 ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 02 1 9202-9202 ● ●
3 CLIP; CARPET FIX
LONG(UB***F) INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 02 1 9203-9307 ● ● ● ● ●
3 CLIP; CARPET FIX
SHORT(UB***C) INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 04 1 9203-9307 ● ●
6 DEADENER; FLOOR GEAR BOX FRT 8-97802-100-5 01 1 9112- ● ● ● ● ●
12 CARPET; FLOOR,RR
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-417-9 01 1 9112-9209 ● ● ● ● ●
12 CARPET; FLOOR,RR
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97808-937-0 01 1 9210-9307 ● ● ● ● ●
12 CARPET; FLOOR,RR
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-419-9 01 1 9112-9209 ● ● ● ● ●
12 CARPET; FLOOR,RR
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97808-936-1 01 1 9210-9504 ● ● ● ● ●
12 CARPET; FLOOR,RR
SHORT(UB***C) DARK GRAY 		8-97152-085-0 01 1 9505- ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) VARIABLE TORQUE SPRIT<7HA> EXC. RR FOOT REST<6WM> 		8-97157-895-1 01 1 9606- ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. RR FOOT REST<6WM>,VARIABLE TORQUE SPRIT<7HA> 		8-97157-896-1 01 1 9606- ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) INTERIOR COLOR BROWN(130) RR FOOT REST<6WM> DARK BROWN 		8-97807-879-4 01 1 9112-9305 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) INTERIOR COLOR BROWN(130) RR FOOT REST<6WM> DARK BROWN 		8-97817-045-0 01 1 9306-9307 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. RR FOOT REST<6WM> DARK BROWN 		8-97807-873-4 01 1 9112-9305 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. RR FOOT REST<6WM> DARK BROWN 		8-97817-041-0 01 1 9306-9307 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) INTERIOR COLOR GRAY(153) RR FOOT REST<6WM> DARK GRAY 		8-97807-880-4 01 1 9112-9305 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) INTERIOR COLOR GRAY(153) RR FOOT REST<6WM> DARK GRAY 		8-97817-046-0 01 1 9306-9504 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) RR FOOT REST<6WM> DARK GRAY 		8-97152-079-1 01 1 9505- ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. RR FOOT REST<6WM> DARK GRAY 		8-97807-874-4 01 1 9112-9305 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. RR FOOT REST<6WM> DARK GRAY 		8-97817-042-0 01 1 9306-9504 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) EXC. RR FOOT REST<6WM> DARK GRAY 		8-97152-080-0 01 1 9505-9605 ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5),RR FOOT REST<6WM>,VARIABLE TORQUE SPRIT<7HA> DARK GRAY 		8-97152-080-1 01 1 9606- ● ● ● ● ●
12 CARPET; FLOOR,RR
LONG(UB***F) VARIABLE TORQUE SPRIT<7HA> EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5),RR FOOT REST<6WM> DARK GRAY 		8-97157-904-1 01 1 9606- ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97807-378-3 01 1 9112-9409 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-338-0 01 1 9410-9504 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
SHORT(UB***C) DARK GRAY 		8-97152-109-0 01 1 9505- ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97807-375-3 01 1 9112-9409 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-336-0 01 1 9410-9504 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
SHORT(UB***C) DARK GRAY 		8-97152-108-0 01 1 9505- ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-438-5 01 1 9112-9307 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-435-5 01 1 9112-9307 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97806-440-5 01 1 9112-9409 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97817-334-0 01 1 9410-9504 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97152-107-0 01 1 9505- ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97806-437-5 01 1 9112-9409 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97817-332-0 01 1 9410-9504 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97152-106-0 01 1 9505- ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97807-376-3 01 1 9112-9307 ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97804-984-5 01 1 9308-9409 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97817-330-0 01 1 9410-9504 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97152-105-0 01 1 9505- ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97807-373-3 01 1 9112-9307 ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97804-980-5 01 1 9308-9409 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97817-328-0 01 1 9410-9504 ● ● ● ● ●
21 CARPET; RR WHEEL HOUSE
LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97152-104-0 01 1 9505- ● ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
LONG(UB***F) (B) 		8-97803-019-6 01 1 9112-9407 ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) 		8-97811-272-0 01 1 9408-9504 ● ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) 		8-97811-272-0 01 1 9505- ● ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
LONG(UB***F) (A) 		8-97803-018-6 01 1 9112-9407 ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97811-265-0 01 1 9408-9504 ● ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97811-265-0 01 1 9505- ● ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
SHORT(UB***C) (B) 		8-97803-021-4 01 1 9112-9407 ● ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
SHORT(UB***C) (A) 		8-97803-020-4 01 1 9112-9407 ● ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
SHORT(UB***C) 		8-97811-263-0 01 1 9408- ● ● ● ● ●
193 RAIL; LUGGAGE FLOOR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> L=500 		8-97804-657-0 02 1 9112-9504 ● ● ● ● ●
193 RAIL; LUGGAGE FLOOR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> 930816- L=700 		8-97804-656-0 02 1 9308-9504 ● ● ● ● ●
193 RAIL; LUGGAGE FLOOR
LONG(UB***F) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) L=700 		8-97804-656-0 06 1 9308-9308 ● ● ● ● ●
193 RAIL; LUGGAGE FLOOR
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> L=700 		8-97804-656-0 04 1 9112-9307 ● ● ● ● ●
193 RAIL; LUGGAGE FLOOR
LONG(UB***F) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) L=700 930816- L=700 		8-97804-656-0 04 1 9308- ● ● ● ● ●
çizim 494159
139 150 150 181 24 181 24 181 182 150 23 22 180 189 185 188 190 19 187 186 28 23 13 14 180 183
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 PLATE; RR FLOOR CARPET
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-002-2 01 1 9112-9307 ● ● ● ● ●
13 PLATE; RR FLOOR CARPET
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-004-2 01 1 9112-9504 ● ● ● ● ●
13 PLATE; RR FLOOR CARPET
DARK GRAY 		8-97098-365-2 01 1 9505- ● ● ● ● ●
14 SCREW; PLATE 8-97803-149-1 05 1 9112- ● ● ● ● ●
19 COVER; SEAT RISER
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-010-2 01 1 9112-9307 ● ● ● ● ●
19 COVER; SEAT RISER
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-006-2 01 1 9112-9307 ● ● ● ● ●
19 COVER; SEAT RISER
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-012-2 01 1 9112-9504 ● ● ● ● ●
19 COVER; SEAT RISER
LONG(UB***F) DARK GRAY 		8-97098-367-2 01 1 9505- ● ● ● ● ●
19 COVER; SEAT RISER
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-008-2 01 1 9112-9504 ● ● ● ● ●
19 COVER; SEAT RISER
LONG(UB***F) DARK GRAY 		8-97098-366-2 01 1 9505- ● ● ● ● ●
22 PLATE; SILL,RR
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-998-6 01 1 9112-9307 ● ● ● ● ●
22 PLATE; SILL,RR
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-994-6 01 1 9112-9307 ● ● ● ● ●
22 PLATE; SILL,RR
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-000-6 01 1 9112-9504 ● ● ● ● ●
22 PLATE; SILL,RR
LONG(UB***F) DARK GRAY 		8-97098-359-6 01 1 9505- ● ● ● ● ●
22 PLATE; SILL,RR
LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-996-6 01 1 9112-9504 ● ● ● ● ●
22 PLATE; SILL,RR
LONG(UB***F) DARK GRAY 		8-97098-358-6 01 1 9505- ● ● ● ● ●
23 SCREW; SILL PLATE
LONG(UB***F) M5X16 		8-94384-690-0 16 1 9112-9504 ● ● ●
23 SCREW; SILL PLATE
LONG(UB***F) M5X16 		8-94384-690-0 16 1 9505- ● ● ● ●
23 SCREW; SILL PLATE
SHORT(UB***C) M5X16 		8-94384-690-0 10 1 9112- ● ● ● ● ●
24 SCREW; HEEL BOARD COVER
LONG(UB***F) M5X16 TAPPING 		9-09829-323-1 04 1 9112-9504 ● ● ●
24 SCREW; HEEL BOARD COVER
LONG(UB***F) M5X16 TAPPING 		9-09829-323-1 04 1 9505- ● ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-990-5 01 1 9112-9307 ● ● ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-986-5 01 1 9112-9307 ● ● ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-992-5 01 1 9112-9504 ● ● ● ● ●
28 PLATE; SILL,FRT
DARK GRAY 		8-97098-357-5 01 1 9505- ● ● ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-988-5 01 1 9112-9504 ● ● ● ● ●
28 PLATE; SILL,FRT
DARK GRAY 		8-97098-356-5 01 1 9505- ● ● ● ● ●
139 SEAL; FLOOR
LONG(UB***F) LEATHER SEAT<6TB> 		8-97810-863-0 02 1 9308- ●
150 INSULATION; HEAT,FLOOR
6VD1 DOHC ENG(RLV) (C) 		8-97807-474-2 01 1 9112- ● ● ● ● ●
150 INSULATION; HEAT,FLOOR
6VD1 DOHC ENG(RLV) (B) 		8-97807-473-2 01 1 9112- ● ● ● ● ●
150 INSULATION; HEAT,FLOOR
LONG(UB***F) 6VD1 DOHC ENG(RLV) (A) 		8-97807-916-1 01 1 9112-9311 ● ● ● ● ●
150 INSULATION; HEAT,FLOOR
LONG(UB***F) 6VD1 DOHC ENG(RLV) RR FOOT REST<6WM> (A) 		8-97807-916-1 01 1 9312- ● ● ● ● ●
150 INSULATION; HEAT,FLOOR
LONG(UB***F) 6VD1 DOHC ENG(RLV) EXC. RR FOOT REST<6WM> (A) 		8-97807-475-2 01 1 9312- ● ● ● ● ●
180 SCREW; COVER
LONG(UB***F) (B) M5X16 TAPPING 		9-09829-323-1 06 1 9112-9504 ● ● ●
180 SCREW; COVER
LONG(UB***F) (B) M5X16 TAPPING 		9-09829-323-1 06 1 9505- ● ● ● ●
180 SCREW; COVER
SHORT(UB***C) (A) M6X16 		8-94479-534-0 04 1 9112- ● ● ● ● ●
180 SCREW; COVER
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) (A) M6X16 		8-94479-534-0 04 1 9112- ● ● ● ● ●
180 SCREW; COVER
SHORT(UB***C) (B) M5X16 TAPPING 		9-09829-323-1 02 1 9112- ● ● ● ● ●
180 SCREW; COVER
SHORT(UB***C) (C) 		8-97808-810-0 02 1 9112- ● ● ● ● ●
181 GROMMET; SCREW,COVER
LONG(UB***F) 		8-94203-326-0 04 1 9112-9504 ● ● ●
181 GROMMET; SCREW,COVER
LONG(UB***F) 		8-94203-326-0 04 1 9505- ● ● ● ●
182 NUT; COVER
LONG(UB***F) M6 W/DISHED WASHER 		8-97018-399-1 04 1 9112-9407 ● ● ●
182 NUT; COVER
LONG(UB***F) M6 W/DISHED WASHER 		8-94170-192-0 04 1 9408-9504 ● ● ●
182 NUT; COVER
LONG(UB***F) M6 W/DISHED WASHER 		8-94170-192-0 04 1 9505- ● ● ● ●
182 NUT; COVER
SHORT(UB***C) 		8-97809-447-0 01 1 9112- ● ● ● ● ●
183 COVER; SEAT STRIKER
SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-453-0 01 1 9112-9307 ● ● ● ● ●
183 COVER; SEAT STRIKER
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-455-0 01 1 9112-9307 ● ● ● ● ●
183 COVER; SEAT STRIKER
SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-013-0 01 1 9308-9504 ● ● ● ● ●
183 COVER; SEAT STRIKER
SHORT(UB***C) DARK GRAY 		8-97098-368-0 01 1 9505- ● ● ●
183 COVER; SEAT STRIKER
LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-456-1 01 1 9112-9307 ● ● ● ● ●
183 COVER; SEAT STRIKER
LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97806-458-1 01 1 9112-9504 ● ● ● ● ●
183 COVER; SEAT STRIKER
LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-271-1 01 1 9505- ● ● ● ● ●
185 BRACKET; COVER
SHORT(UB***C) (B) 		8-97807-926-0 01 1 9112- ● ● ● ● ●
185 BRACKET; COVER
SHORT(UB***C) (A) 		8-97809-024-0 01 1 9202- ● ● ● ● ●
185 BRACKET; COVER
LONG(UB***F) EXC. RR FOOT REST<6WM> 		8-97807-469-0 02 1 9112- ● ● ● ● ●
186 CLIP; COVER
SHORT(UB***C) BLACK 		8-97002-822-1 02 1 9203-9307 ● ● ● ● ●
186 CLIP; COVER
SHORT(UB***C) BLACK 		8-97000-169-0 02 1 9308- ● ● ● ● ●
186 CLIP; COVER
LONG(UB***F) 		8-97807-496-0 02 1 9203- ● ● ● ● ●
187 COLLER; COVER
SHORT(UB***C) 		8-97807-823-1 02 1 9112- ● ● ● ● ●
187 COLLER; COVER
LONG(UB***F) 		8-97807-479-0 02 1 9203-9406 ● ● ● ● ●
187 COLLER; COVER
LONG(UB***F) 		8-97811-203-0 02 1 9407- ● ● ● ● ●
188 NUT; BRKT
LONG(UB***F) 		5-09466-004-1 02 1 9112-9504 ● ● ●
188 NUT; BRKT
LONG(UB***F) 		5-09466-004-1 02 1 9505- ● ● ● ●
188 NUT; BRKT
SHORT(UB***C) 		5-09466-004-1 01 1 9202- ● ● ● ● ●
189 SCREW; BRKT
LONG(UB***F) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9112-9503 ● ● ●
189 SCREW; BRKT
LONG(UB***F) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 9504-9504 ● ● ●
189 SCREW; BRKT
LONG(UB***F) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 9505- ● ● ● ●
189 SCREW; BRKT
SHORT(UB***C) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9202-9503 ● ● ● ● ●
189 SCREW; BRKT
SHORT(UB***C) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 01 1 9504- ● ● ● ● ●
190 WASHER; COVER
SHORT(UB***C) 		8-97807-789-0 02 1 9112-9605 ● ● ● ● ●
190 WASHER; COVER
SHORT(UB***C) 		8-97807-789-0 01 1 9606- ● ● ● ● ●
190 WASHER; COVER
LONG(UB***F) 		8-97804-914-0 02 1 9203-9406 ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
