6-70 — FLOOR PANEL (#166589) — 196 parça

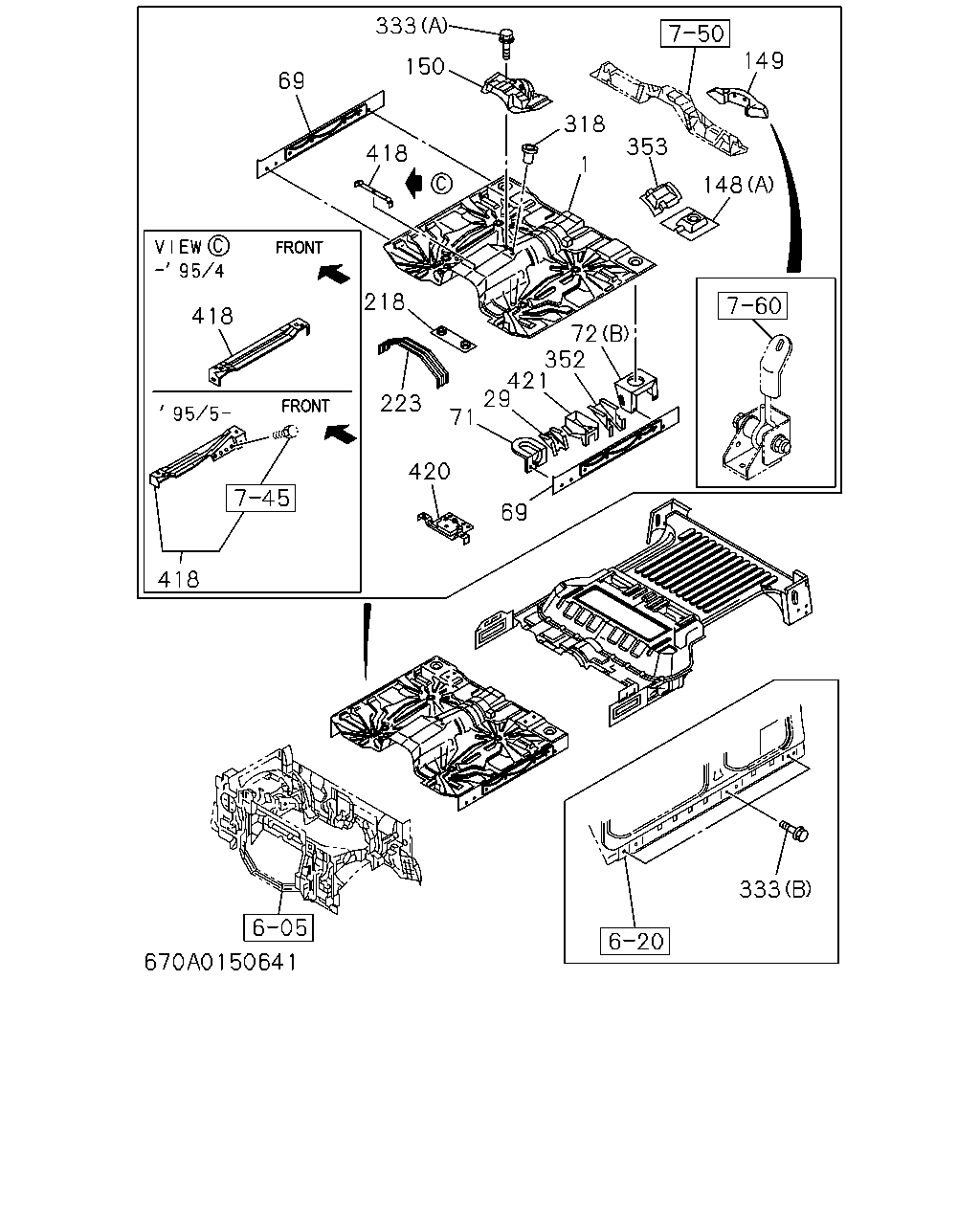

çizim 494063
333 318 150 353 148 149 418 69 418 218 223 418 420 69 71 29 421 352 72 1 333
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-94359-284-1 01 1 9112-9504 ●
1 PANEL; FLOOR 8-97121-265-2 01 1 9509-9509 ●
1 PANEL; FLOOR 8-97105-362-0 01 1 9509-9510 ●
1 PANEL; FLOOR 8-97121-265-2 01 1 9511- ●
1 PANEL; FLOOR 8-94359-283-0 01 1 9112-9504 ●
1 PANEL; FLOOR 8-97105-361-0 01 1 9505-9510 ●
1 PANEL; FLOOR 8-97121-264-2 01 1 9511- ●
29 GUSSET 8-94359-305-0 02 1 9112- ● ●
69 PANEL; ROCKER INNER 8-94359-308-2 01 1 9112- ● ●
69 PANEL; ROCKER INNER 8-94359-307-2 01 1 9112- ● ●
71 BRACKET; CAB MTG,CENTER 8-94359-298-0 01 1 9112-9710 ● ●
71 BRACKET; CAB MTG,CENTER 8-97167-614-1 01 1 9711- ● ●
71 BRACKET; CAB MTG,CENTER 8-94359-297-0 01 1 9112-9710 ● ●
71 BRACKET; CAB MTG,CENTER 8-97167-613-1 01 1 9711- ● ●
72 BRACKET; CAB MTG,RR
(C) 		8-97803-499-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(C) 		8-97803-498-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 9112- ●
148 BRACKET; SEAT
(E) 		8-94359-658-7 01 1 9112- ●
148 BRACKET; SEAT
(B) 		8-94359-659-1 01 1 9112- ●
148 BRACKET; SEAT
(D) 		8-97800-929-5 01 1 9112- ●
148 BRACKET; SEAT
(A) 		8-97802-746-0 01 1 9112-9311 ●
148 BRACKET; SEAT
(A) 		8-94435-642-0 01 1 9312- ●
148 BRACKET; SEAT
(C) 		8-97803-593-1 01 1 9112- ●
148 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 9112- ●
148 BRACKET; SEAT
(A) 		8-97802-746-0 02 1 9112-9311 ●
148 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9312- ●
149 BRACKET; SEAT BELT ROD 8-94359-295-2 01 1 9112-9710 ● ●
149 BRACKET; SEAT BELT ROD 8-97164-319-0 01 1 9711- ● ●
150 BRACKET; SEAT BELT,ANCHOR 8-97801-765-2 01 1 9112- ●
150 BRACKET; SEAT BELT,ANCHOR 8-97801-400-2 01 1 9112- ●
218 PATCH; A/T CONT LEVER 8-97800-803-0 01 1 9112- ● ●
223 PATCH; CONSOLE BOX 8-97800-541-0 01 1 9112-9504 ● ●
223 PATCH; CONSOLE BOX 8-97104-212-0 01 1 9505-9510 ● ●
223 PATCH; CONSOLE BOX 8-97109-933-0 01 1 9511- ● ●
318 NUT; COVER 8-97808-115-0 02 1 9112-9505 ● ●
318 NUT; COVER
M8 POP NUT 		8-94279-538-0 02 1 9505- ● ●
333 BOLT; BRKT
(B) M10X16 W/PL WASHER 		8-97807-818-0 04 1 9112-9201 ●
333 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 04 1 9202- ●
333 BOLT; BRKT
(A) M10X25 		8-94126-841-0 02 1 9112- ● ●
333 BOLT; BRKT
(B) M10X16 W/PL WASHER 		8-97807-818-0 06 1 9112-9201 ●
333 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 06 1 9202- ●
352 GUSSET; FRT SEAT 8-94359-306-1 02 1 9112-9510 ● ●
353 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9112- ● ●
418 BRACKET; CONSOLE 8-97801-457-0 01 1 9112-9504 ● ●
418 BRACKET; CONSOLE 8-97103-466-4 01 1 9505-9510 ● ●
420 BRACKET; SENSOR,SIR 8-97109-931-1 01 1 9511- ● ●
421 GUSSET; CAB STOPPER 8-97121-305-2 02 1 9511- ● ●

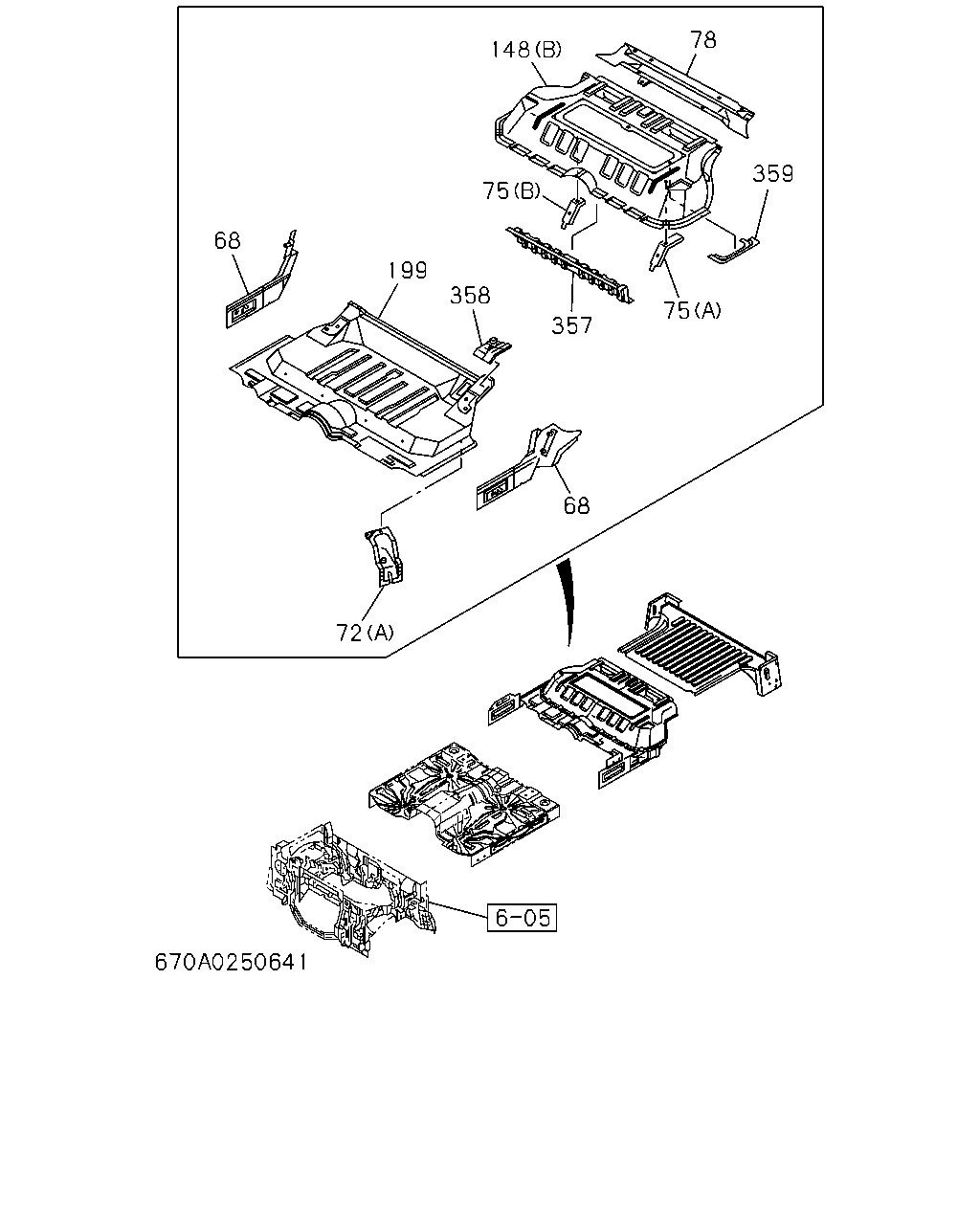

çizim 494092
148 78 359 75 357 358 199 68 68 72 75
BalonParca AdiParca NoAdetTipApplied Date A B
68 PANEL; ROCKER INNER,CENTER 8-94359-841-0 01 1 9112- ●
68 PANEL; ROCKER INNER,CENTER 8-94359-840-0 01 1 9112- ●
68 PANEL; ROCKER INNER,CENTER 8-97802-751-2 01 1 9112- ●
68 PANEL; ROCKER INNER,CENTER 8-97802-750-2 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(C) 		8-97803-499-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(C) 		8-97803-498-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 9112- ●
75 REINFORCEMENT; RR SEAT BELT,CENTER
(A) 		8-94359-649-0 02 1 9112- ●
75 REINFORCEMENT; RR SEAT BELT,CENTER
(B) 		8-94359-653-1 02 1 9112- ●
78 BOLSTER ASM; RR FLOOR NO 2 8-97808-086-1 01 1 9112- ●
148 BRACKET; SEAT
(E) 		8-94359-658-7 01 1 9112- ●
148 BRACKET; SEAT
(B) 		8-94359-659-1 01 1 9112- ●
148 BRACKET; SEAT
(D) 		8-97800-929-5 01 1 9112- ●
148 BRACKET; SEAT
(A) 		8-97802-746-0 01 1 9112-9311 ●
148 BRACKET; SEAT
(A) 		8-94435-642-0 01 1 9312- ●
148 BRACKET; SEAT
(C) 		8-97803-593-1 01 1 9112- ●
148 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 9112- ●
148 BRACKET; SEAT
(A) 		8-97802-746-0 02 1 9112-9311 ●
148 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9312- ●
199 PANEL; RR FLOOR 8-94359-641-1 01 1 9112-9609 ●
199 PANEL; RR FLOOR 8-97164-296-0 01 1 9610- ●
357 REINFORCEMENT; LID HINGE 8-94359-656-3 01 1 9112- ●
358 BRACKET; RR FLOOR SIDE 8-97803-333-0 01 1 9112- ●
358 BRACKET; RR FLOOR SIDE 8-97803-332-0 01 1 9112- ●
359 REINFORCEMENT; HOLE SIDE 8-94359-657-0 02 1 9112- ●

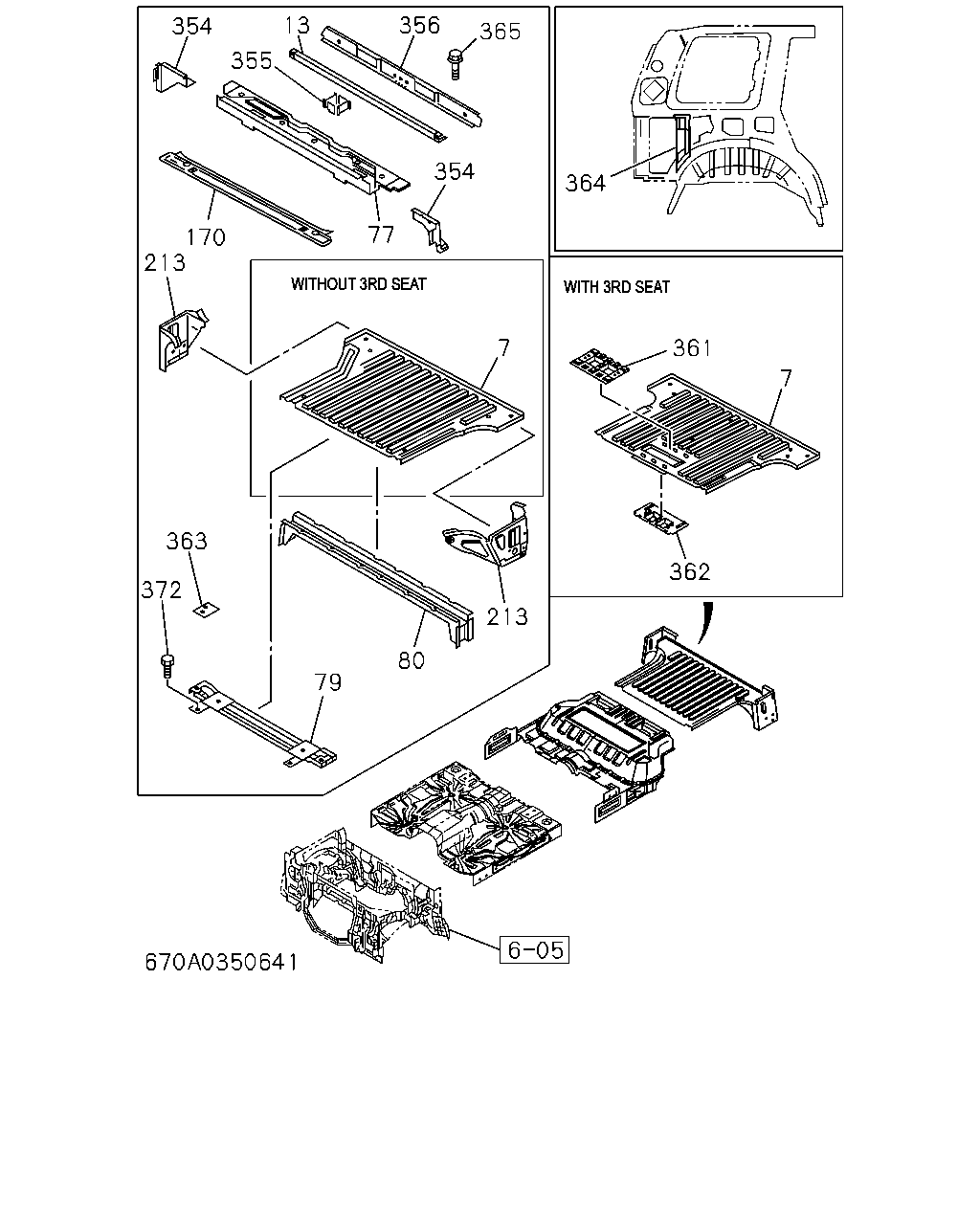

çizim 494094
13 356 365 354 77 355 354 170 213 364 361 7 362 213 7 80 79 372 363
BalonParca AdiParca NoAdetTipApplied Date A B
7 PANEL; RR FLOOR,RR 8-94359-667-3 01 1 9112-9208 ●
7 PANEL; RR FLOOR,RR 8-97809-434-1 01 1 9209- ●
7 PANEL; RR FLOOR,RR 8-97802-176-3 01 1 9112-9208 ●
7 PANEL; RR FLOOR,RR
3RD SEAT 7 PASSENGERS(AS3) 		8-97809-433-1 01 1 9209- ●
7 PANEL; RR FLOOR,RR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97809-432-1 01 1 9308- ●
13 PANEL; FAIRING RR 8-94358-823-5 01 1 9112- ● ●
77 BOLSTER ASM; END 8-94358-746-4 01 1 9112-9412 ● ●
77 BOLSTER ASM; END 8-97127-025-0 01 1 9501- ● ●
79 BOLSTER ASM; RR FLOOR NO 3 8-97802-168-3 01 1 9112- ● ●
80 BOLSTER ASM; RR FLOOR NO.4 8-97802-182-1 01 1 9112- ● ●
170 EXTENSION; RR FLOOR 8-94358-828-1 01 1 9112- ● ●
213 PANEL; RR FLOOR SIDE 8-94359-280-2 01 1 9112-9305 ● ●
213 PANEL; RR FLOOR SIDE 8-97810-391-0 01 1 9306- ● ●
213 PANEL; RR FLOOR SIDE 8-94359-279-2 01 1 9112- ● ●
354 EXTENSION; END BOLSTER 8-94359-682-3 01 1 9112- ● ●
354 EXTENSION; END BOLSTER 8-94359-681-3 01 1 9112- ● ●
355 BRACKET; END BOLSTER 8-94359-683-0 02 1 9112- ● ●
356 CLOSING; END BOLSTER 8-97803-733-1 01 1 9112- ● ●
361 RECESS; RR SEAT LOCK 8-94359-679-1 01 1 9112- ●
361 RECESS; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-177-1 01 1 9112- ●
362 REINFORCEMENT; RR SEAT LOCK 8-94359-677-3 01 1 9112- ●
362 REINFORCEMENT; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-178-1 01 1 9112- ●
363 PATCH; TETHER ANCHOR 8-97803-596-1 01 1 9112- ●
364 BRACKET; 3RD SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97803-404-2 01 1 9112- ●
365 BOLT; RR FAIRING
M10X16 W/PL WASHER 		8-97807-818-0 02 1 9112-9201 ● ●
365 BOLT; RR FAIRING
M6X20 W/PL WASHER 		8-97808-622-0 02 1 9202- ● ●
372 BOLT; PATCH
M6X20 W/PL WASHER 		8-97808-622-0 02 1 9209-9209 ● ●

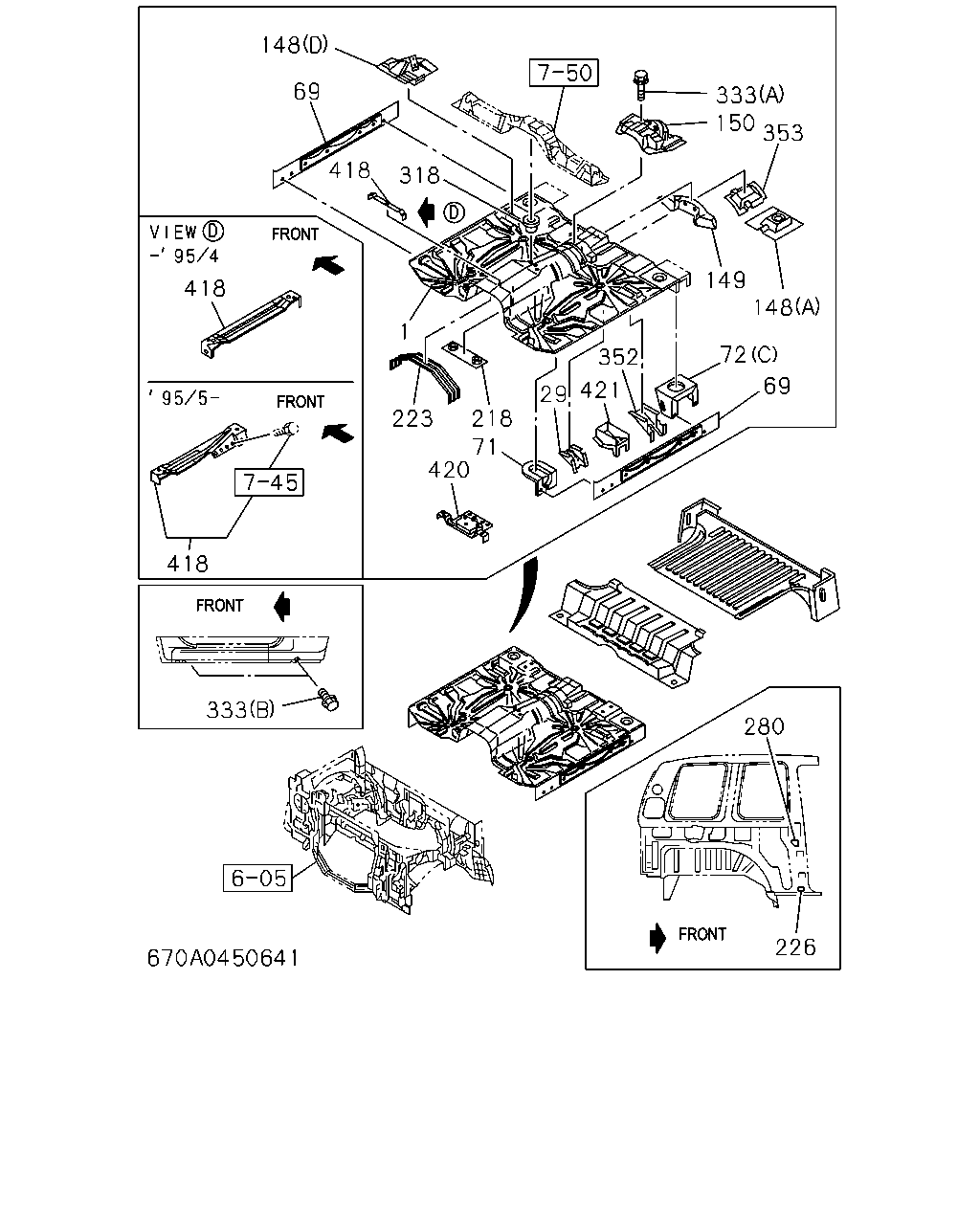

çizim 494126
148 69 418 318 333 150 353 149 72 148 69 352 421 29 218 223 1 420 71 418 418 333 280 226
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-94359-284-1 01 1 9112-9504 ●
1 PANEL; FLOOR 8-97121-265-2 01 1 9509-9509 ●
1 PANEL; FLOOR 8-97105-362-0 01 1 9509-9510 ●
1 PANEL; FLOOR 8-97121-265-2 01 1 9511- ●
1 PANEL; FLOOR 8-94359-283-0 01 1 9112-9504 ●
1 PANEL; FLOOR 8-97105-361-0 01 1 9505-9510 ●
1 PANEL; FLOOR 8-97121-264-2 01 1 9511- ●
29 GUSSET 8-94359-305-0 02 1 9112- ● ●
69 PANEL; ROCKER INNER 8-94359-308-2 01 1 9112- ● ●
69 PANEL; ROCKER INNER 8-94359-307-2 01 1 9112- ● ●
71 BRACKET; CAB MTG,CENTER 8-94359-298-0 01 1 9112-9710 ● ●
71 BRACKET; CAB MTG,CENTER 8-97167-614-1 01 1 9711- ● ●
71 BRACKET; CAB MTG,CENTER 8-94359-297-0 01 1 9112-9710 ● ●
71 BRACKET; CAB MTG,CENTER 8-97167-613-1 01 1 9711- ● ●
72 BRACKET; CAB MTG,RR
(C) 		8-97803-499-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(C) 		8-97803-498-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 9112- ●
148 BRACKET; SEAT
(E) 		8-94359-658-7 01 1 9112- ●
148 BRACKET; SEAT
(B) 		8-94359-659-1 01 1 9112- ●
148 BRACKET; SEAT
(D) 		8-97800-929-5 01 1 9112- ●
148 BRACKET; SEAT
(A) 		8-97802-746-0 01 1 9112-9311 ●
148 BRACKET; SEAT
(A) 		8-94435-642-0 01 1 9312- ●
148 BRACKET; SEAT
(C) 		8-97803-593-1 01 1 9112- ●
148 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 9112- ●
148 BRACKET; SEAT
(A) 		8-97802-746-0 02 1 9112-9311 ●
148 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9312- ●
149 BRACKET; SEAT BELT ROD 8-94359-295-2 01 1 9112-9710 ● ●
149 BRACKET; SEAT BELT ROD 8-97164-319-0 01 1 9711- ● ●
150 BRACKET; SEAT BELT,ANCHOR 8-97801-765-2 01 1 9112- ●
150 BRACKET; SEAT BELT,ANCHOR 8-97801-400-2 01 1 9112- ●
218 PATCH; A/T CONT LEVER 8-97800-803-0 01 1 9112- ● ●
223 PATCH; CONSOLE BOX 8-97800-541-0 01 1 9112-9504 ● ●
223 PATCH; CONSOLE BOX 8-97104-212-0 01 1 9505-9510 ● ●
223 PATCH; CONSOLE BOX 8-97109-933-0 01 1 9511- ● ●
226 PATCH; SEAT BELT,LWR 8-97801-964-1 02 1 9112- ●
280 PATCH; SEAT BELT 8-97803-584-1 01 1 9112- ●
280 PATCH; SEAT BELT 8-97803-583-1 01 1 9112- ●
318 NUT; COVER 8-97808-115-0 02 1 9112-9505 ● ●
318 NUT; COVER
M8 POP NUT 		8-94279-538-0 02 1 9505- ● ●
333 BOLT; BRKT
(B) M10X16 W/PL WASHER 		8-97807-818-0 04 1 9112-9201 ●
333 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 04 1 9202- ●
333 BOLT; BRKT
(A) M10X25 		8-94126-841-0 02 1 9112- ● ●
333 BOLT; BRKT
(B) M10X16 W/PL WASHER 		8-97807-818-0 06 1 9112-9201 ●
333 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 06 1 9202- ●
352 GUSSET; FRT SEAT 8-94359-306-1 02 1 9112-9510 ● ●
353 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9112- ● ●
418 BRACKET; CONSOLE 8-97801-457-0 01 1 9112-9504 ● ●
418 BRACKET; CONSOLE 8-97103-466-4 01 1 9505-9510 ● ●
420 BRACKET; SENSOR,SIR 8-97109-931-1 01 1 9511- ● ●
421 GUSSET; CAB STOPPER 8-97121-305-2 02 1 9511- ● ●

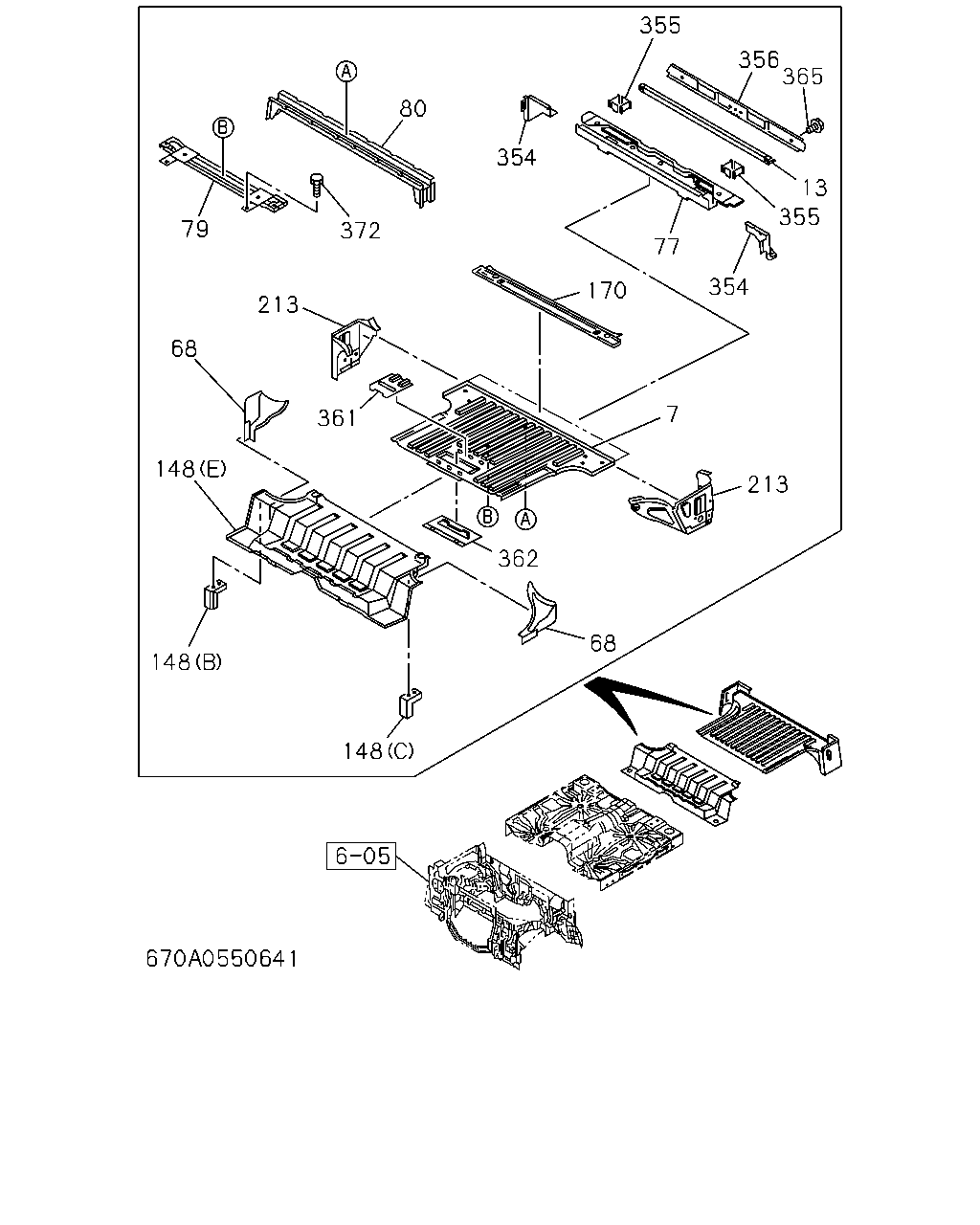

çizim 494127
80 355 356 13 365 355 354 77 354 372 79 213 361 68 148 148 148 362 68 213 7 170
BalonParca AdiParca NoAdetTipApplied Date A B
7 PANEL; RR FLOOR,RR 8-94359-667-3 01 1 9112-9208 ●
7 PANEL; RR FLOOR,RR 8-97809-434-1 01 1 9209- ●
7 PANEL; RR FLOOR,RR 8-97802-176-3 01 1 9112-9208 ●
7 PANEL; RR FLOOR,RR
3RD SEAT 7 PASSENGERS(AS3) 		8-97809-433-1 01 1 9209- ●
7 PANEL; RR FLOOR,RR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97809-432-1 01 1 9308- ●
13 PANEL; FAIRING RR 8-94358-823-5 01 1 9112- ● ●
68 PANEL; ROCKER INNER,CENTER 8-94359-841-0 01 1 9112- ●
68 PANEL; ROCKER INNER,CENTER 8-94359-840-0 01 1 9112- ●
68 PANEL; ROCKER INNER,CENTER 8-97802-751-2 01 1 9112- ●
68 PANEL; ROCKER INNER,CENTER 8-97802-750-2 01 1 9112- ●
77 BOLSTER ASM; END 8-94358-746-4 01 1 9112-9412 ● ●
77 BOLSTER ASM; END 8-97127-025-0 01 1 9501- ● ●
79 BOLSTER ASM; RR FLOOR NO 3 8-97802-168-3 01 1 9112- ● ●
80 BOLSTER ASM; RR FLOOR NO.4 8-97802-182-1 01 1 9112- ● ●
148 BRACKET; SEAT
(E) 		8-94359-658-7 01 1 9112- ●
148 BRACKET; SEAT
(B) 		8-94359-659-1 01 1 9112- ●
148 BRACKET; SEAT
(D) 		8-97800-929-5 01 1 9112- ●
148 BRACKET; SEAT
(A) 		8-97802-746-0 01 1 9112-9311 ●
148 BRACKET; SEAT
(A) 		8-94435-642-0 01 1 9312- ●
148 BRACKET; SEAT
(C) 		8-97803-593-1 01 1 9112- ●
148 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 9112- ●
148 BRACKET; SEAT
(A) 		8-97802-746-0 02 1 9112-9311 ●
148 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9312- ●
170 EXTENSION; RR FLOOR 8-94358-828-1 01 1 9112- ● ●
213 PANEL; RR FLOOR SIDE 8-94359-280-2 01 1 9112-9305 ● ●
213 PANEL; RR FLOOR SIDE 8-97810-391-0 01 1 9306- ● ●
213 PANEL; RR FLOOR SIDE 8-94359-279-2 01 1 9112- ● ●
354 EXTENSION; END BOLSTER 8-94359-682-3 01 1 9112- ● ●
354 EXTENSION; END BOLSTER 8-94359-681-3 01 1 9112- ● ●
355 BRACKET; END BOLSTER 8-94359-683-0 02 1 9112- ● ●
356 CLOSING; END BOLSTER 8-97803-733-1 01 1 9112- ● ●
361 RECESS; RR SEAT LOCK 8-94359-679-1 01 1 9112- ●
361 RECESS; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-177-1 01 1 9112- ●
362 REINFORCEMENT; RR SEAT LOCK 8-94359-677-3 01 1 9112- ●
362 REINFORCEMENT; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-178-1 01 1 9112- ●
365 BOLT; RR FAIRING
M10X16 W/PL WASHER 		8-97807-818-0 02 1 9112-9201 ● ●
365 BOLT; RR FAIRING
M6X20 W/PL WASHER 		8-97808-622-0 02 1 9202- ● ●
372 BOLT; PATCH
M6X20 W/PL WASHER 		8-97808-622-0 02 1 9209-9209 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
