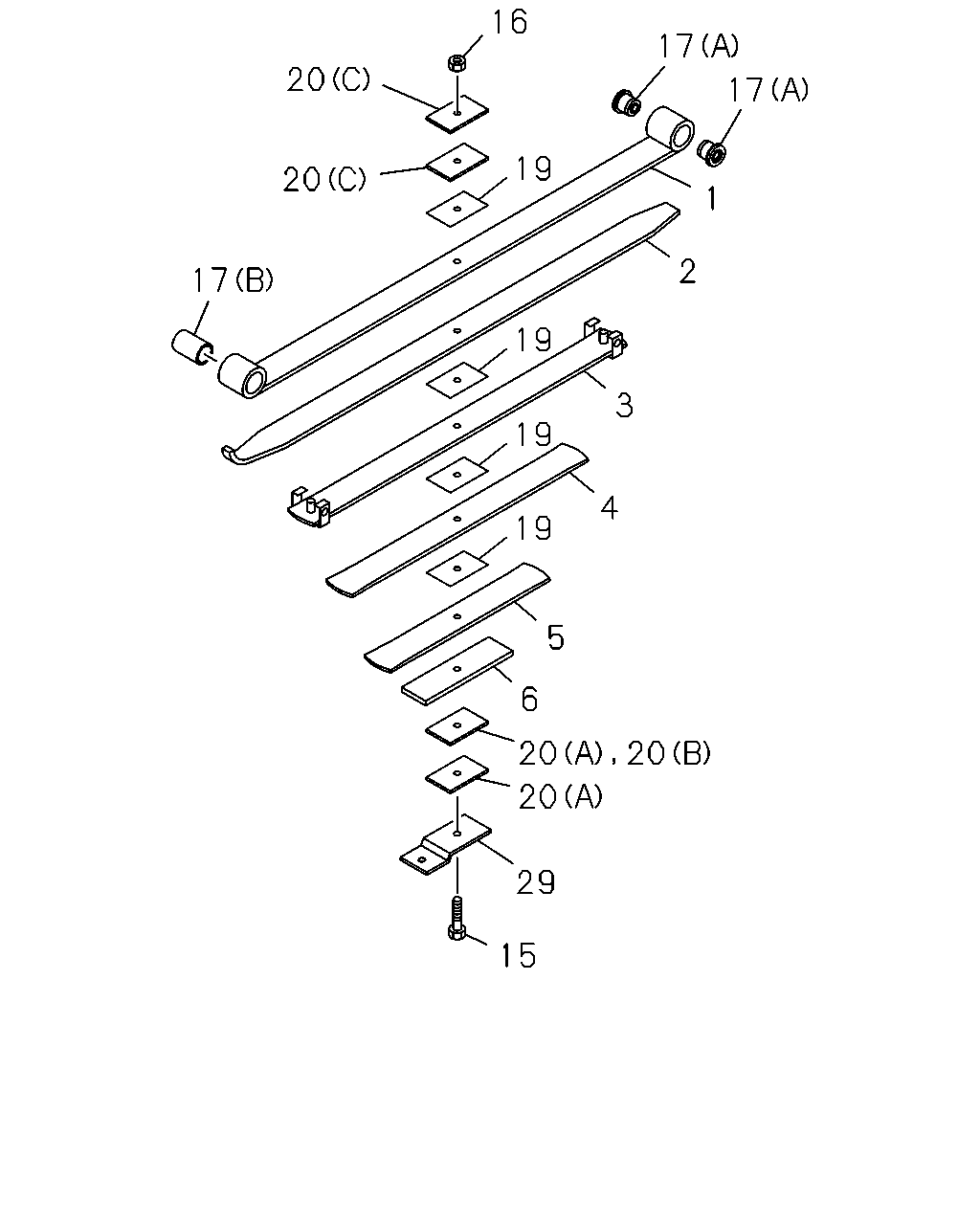

4-55C — FRONT LEAF SPRING (#166587) — 74 parça

6 20 20 20 29 15 5 4 3 19 19 2 1 17 17 19 19 17 20 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98079-922-0, 98079922, D = 8-98079-924-0, 98079924	8-98081-370-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98079-920-0, 98079920, C = 8-98079-923-0, 98079923	8-98081-379-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: E = 8-98141-456-0, 98141456, G = 8-98154-915-0, 98154915	8-98094-293-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: F = 8-98141-457-0, 98141457, H = 8-98154-916-0, 98154916	8-98094-299-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98079-922-0, 98079922, D = 8-98079-924-0, 98079924	8-98081-371-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98079-920-0, 98079920, C = 8-98079-923-0, 98079923	8-98081-380-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: E = 8-98141-456-0, 98141456, G = 8-98154-915-0, 98154915	8-98094-294-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: F = 8-98141-457-0, 98141457, H = 8-98154-916-0, 98154916	8-98094-300-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98079-922-0, 98079922, D = 8-98079-924-0, 98079924	8-98081-372-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98079-920-0, 98079920, C = 8-98079-923-0, 98079923	8-98081-381-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: E = 8-98141-456-0, 98141456, G = 8-98154-915-0, 98154915	8-98094-295-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: F = 8-98141-457-0, 98141457, H = 8-98154-916-0, 98154916	8-98094-301-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98079-922-0, 98079922, D = 8-98079-924-0, 98079924	8-98081-373-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98079-920-0, 98079920, C = 8-98079-923-0, 98079923	8-98081-382-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: E = 8-98141-456-0, 98141456, G = 8-98154-915-0, 98154915	8-98094-296-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: F = 8-98141-457-0, 98141457, H = 8-98154-916-0, 98154916	8-98094-302-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98079-922-0, 98079922, D = 8-98079-924-0, 98079924	8-98081-374-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98079-920-0, 98079920, C = 8-98079-923-0, 98079923	8-98081-383-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: E = 8-98141-456-0, 98141456, G = 8-98154-915-0, 98154915	8-98094-297-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: F = 8-98141-457-0, 98141457, H = 8-98154-916-0, 98154916	8-98094-303-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98079-922-0, 98079922, D = 8-98079-924-0, 98079924	8-98081-375-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98079-920-0, 98079920, C = 8-98079-923-0, 98079923	8-98081-384-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: E = 8-98141-456-0, 98141456, G = 8-98154-915-0, 98154915	8-98094-298-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: F = 8-98141-457-0, 98141457, H = 8-98154-916-0, 98154916	8-98094-304-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=110 ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924	8-98081-376-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=115 ASM PART: E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98154-915-0, 98154915, H = 8-98154-916-0, 98154916	8-98152-295-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98154-915-0, 98154915, H = 8-98154-916-0, 98154916	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.524, (A) ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98154-915-0, 98154915, H = 8-98154-916-0, 98154916	8-94118-588-1	02	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.105, (B) ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98154-915-0, 98154915, H = 8-98154-916-0, 98154916	8-94130-354-0	01	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98154-915-0, 98154915, H = 8-98154-916-0, 98154916	8-97084-845-0	04	1	-
20	07.425 SEAT; LEAF SPR,FRT (A) ASM PART: C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457	8-98039-233-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT (B) ASM PART: G = 8-98154-915-0, 98154915, H = 8-98154-916-0, 98154916	8-98041-368-0	01	1	-
20	07.425 SEAT; LEAF SPR,FRT (B) ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924	8-98041-368-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT (A) ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922	8-98077-684-0	01	1	-
20	07.425 SEAT; LEAF SPR,FRT (C) ASM PART: E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98154-915-0, 98154915, H = 8-98154-916-0, 98154916	8-98094-959-0	02	1	-
29	07.425 SUPPORTER; LEAF SPR,FRT ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922	8-94342-292-1	01	1	-
29	07.425 SUPPORTER; LEAF SPR,FRT ASM PART: G = 8-98154-915-0, 98154915, H = 8-98154-916-0, 98154916	8-98152-826-0	01	1	-

15 29 20 20 20 6 5 4 3 2 1 19 19 17 17 19 19 16 20 20 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98079-922-0, 98079922, D = 8-98079-924-0, 98079924	8-98081-370-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98079-920-0, 98079920, C = 8-98079-923-0, 98079923	8-98081-379-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: E = 8-98141-456-0, 98141456, G = 8-98154-915-0, 98154915	8-98094-293-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: F = 8-98141-457-0, 98141457, H = 8-98154-916-0, 98154916	8-98094-299-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98079-922-0, 98079922, D = 8-98079-924-0, 98079924	8-98081-371-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98079-920-0, 98079920, C = 8-98079-923-0, 98079923	8-98081-380-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: E = 8-98141-456-0, 98141456, G = 8-98154-915-0, 98154915	8-98094-294-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: F = 8-98141-457-0, 98141457, H = 8-98154-916-0, 98154916	8-98094-300-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98079-922-0, 98079922, D = 8-98079-924-0, 98079924	8-98081-372-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98079-920-0, 98079920, C = 8-98079-923-0, 98079923	8-98081-381-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: E = 8-98141-456-0, 98141456, G = 8-98154-915-0, 98154915	8-98094-295-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: F = 8-98141-457-0, 98141457, H = 8-98154-916-0, 98154916	8-98094-301-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98079-922-0, 98079922, D = 8-98079-924-0, 98079924	8-98081-373-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98079-920-0, 98079920, C = 8-98079-923-0, 98079923	8-98081-382-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: E = 8-98141-456-0, 98141456, G = 8-98154-915-0, 98154915	8-98094-296-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: F = 8-98141-457-0, 98141457, H = 8-98154-916-0, 98154916	8-98094-302-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98079-922-0, 98079922, D = 8-98079-924-0, 98079924	8-98081-374-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98079-920-0, 98079920, C = 8-98079-923-0, 98079923	8-98081-383-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: E = 8-98141-456-0, 98141456, G = 8-98154-915-0, 98154915	8-98094-297-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: F = 8-98141-457-0, 98141457, H = 8-98154-916-0, 98154916	8-98094-303-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98079-922-0, 98079922, D = 8-98079-924-0, 98079924	8-98081-375-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98079-920-0, 98079920, C = 8-98079-923-0, 98079923	8-98081-384-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: E = 8-98141-456-0, 98141456, G = 8-98154-915-0, 98154915	8-98094-298-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: F = 8-98141-457-0, 98141457, H = 8-98154-916-0, 98154916	8-98094-304-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=110 ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924	8-98081-376-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=115 ASM PART: E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98154-915-0, 98154915, H = 8-98154-916-0, 98154916	8-98152-295-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98154-915-0, 98154915, H = 8-98154-916-0, 98154916	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.524, (A) ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98154-915-0, 98154915, H = 8-98154-916-0, 98154916	8-94118-588-1	02	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.105, (B) ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98154-915-0, 98154915, H = 8-98154-916-0, 98154916	8-94130-354-0	01	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98154-915-0, 98154915, H = 8-98154-916-0, 98154916	8-97084-845-0	04	1	-
20	07.425 SEAT; LEAF SPR,FRT (A) ASM PART: C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457	8-98039-233-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT (B) ASM PART: G = 8-98154-915-0, 98154915, H = 8-98154-916-0, 98154916	8-98041-368-0	01	1	-
20	07.425 SEAT; LEAF SPR,FRT (B) ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924	8-98041-368-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT (A) ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922	8-98077-684-0	01	1	-
20	07.425 SEAT; LEAF SPR,FRT (C) ASM PART: E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98154-915-0, 98154915, H = 8-98154-916-0, 98154916	8-98094-959-0	02	1	-
29	07.425 SUPPORTER; LEAF SPR,FRT ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922	8-94342-292-1	01	1	-
29	07.425 SUPPORTER; LEAF SPR,FRT ASM PART: G = 8-98154-915-0, 98154915, H = 8-98154-916-0, 98154916	8-98152-826-0	01	1	-
